2.3l Alternator Packaging and Placement

vrewald14

Badlands
Well-Known Member
First Name
Vince
Joined
Jul 17, 2020
Messages
342
Reaction score
1,934
Location
Iowa
Vehicle(s)
03 Ford Excursion, 79 Ford Bronco, 04 Toyota Camry
Bronco
Badlands

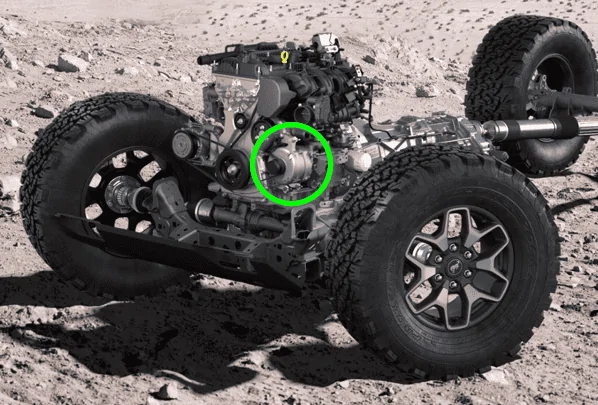

My observation is that the alternator placement on the 2.3l is not awesome for serviceability, but likely adequate to stay up out of water and mud for 80% of use cases.

My question is, is the alternator a totally sealed unit as it appears to be here? That would be a win for longevity and reliability.

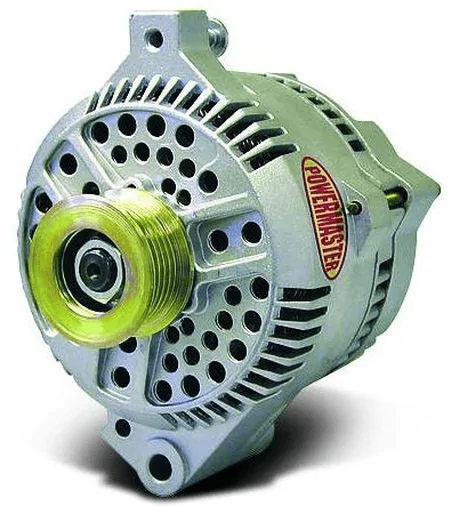

In my experience most alternators are ventilated / open frame which is obviously not optimal for dirt/water ingression:
Advertisement



crowdpleazer

Base
Well-Known Member
First Name
Daniel
Joined
Jul 29, 2020
Messages
101
Reaction score
169
Location
West Virginia
Vehicle(s)
Ford Ranger, Honda Civic
Bronco
Base
Aren't the holes in an alternator meant for cooling? A sealed up unit would build up a lot of heat I would think. Heat and electronics aren't the best of friends.


SVTLightning

Badlands
Well-Known Member
First Name
Christian
Joined
Jun 16, 2021
Messages
242
Reaction score
431
Location
Canada
Vehicle(s)
Titan
Bronco
Badlands
Water cooled - intended as humor, i ‘spect.
Do you remember when people were passing that picture of a supposedly Bronco 2.7 out of the chassis around with all the hoses running everywhere? That was actually a BMW motor that came with a water cooled alternator and that is what some of those lines were for.


Werkedperformance

Badlands
Well-Known Member
First Name
Mike
Joined
Jul 16, 2020
Messages
559
Reaction score
1,475
Location
Philthy
Website
www.instagram.com
Vehicle(s)
03 FX4 Level 2
Bronco
Badlands
Water cooled - intended as humor, i ‘spect.
It could be true. multiple applications have used them over the years. BMW, and more. I wasnt a huge fan, but it could get us a sealed alternator the rangers dont have


wrbix

Badlands
Well-Known Member
Joined
Apr 5, 2021
Messages
298
Reaction score
570
Location
VA and FL
Vehicle(s)
LR Def90, F250 7.3, Caterham 7, LR Series III, etc
Bronco
Badlands
Clubs

In photo of chassis/powertrain
that alternator does look to have some ? Plumbing in the back - could, indeed, be coolant serviced….,I’d never heard of such
