Question for the more mechanically inclined members…

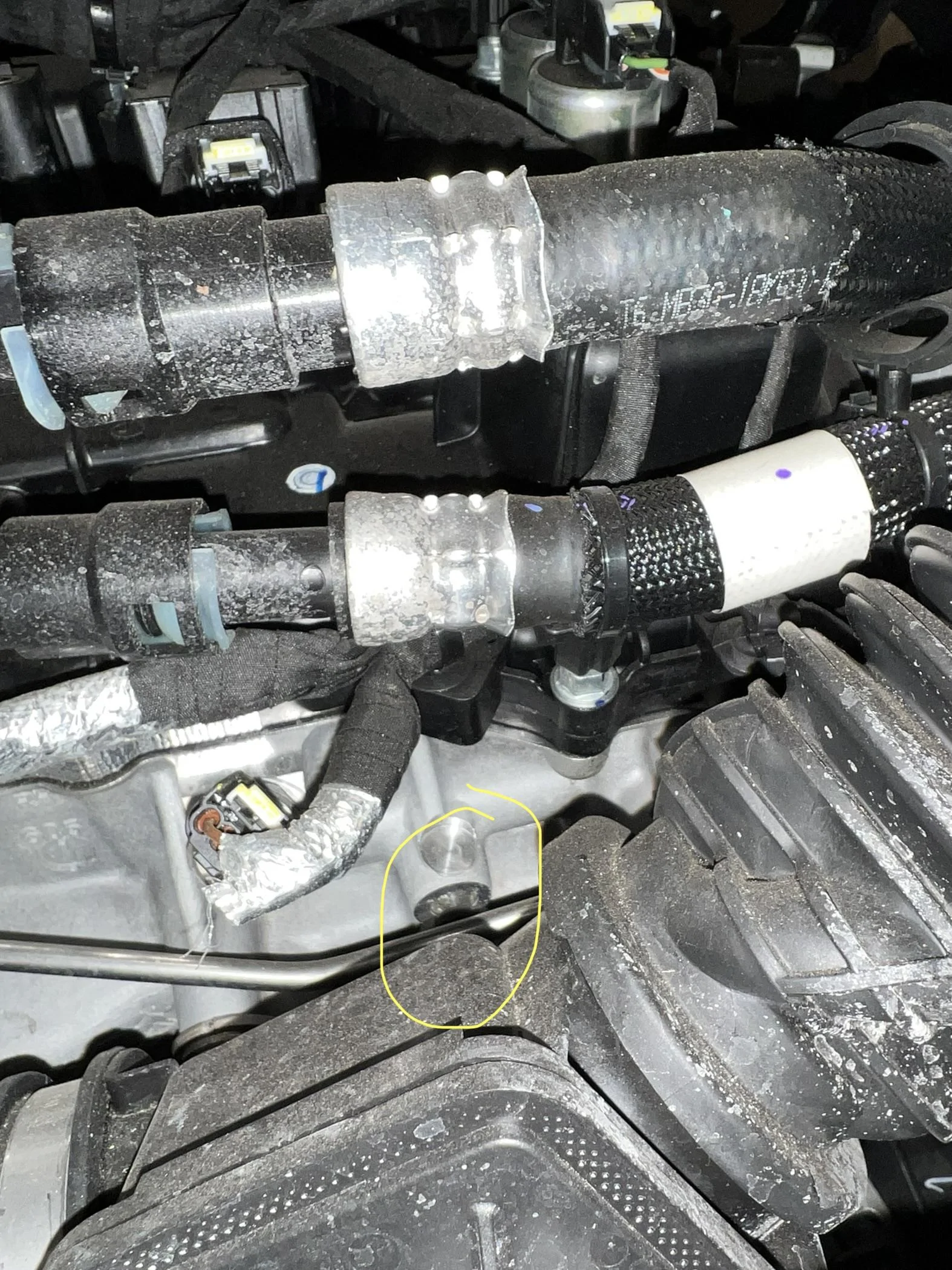

I was poking around under the hood last night and noticed this. Should it be connected where the bright light is focused or is it just some type of stop/bumper?

I tried to move it but it’s very rigid And don’t appear to be flexible.

Can someone with a 2.7 check and confirm?
🙏





Advertisement

Last edited:

Wanted33

Outer Banks
Well-Known Member
First Name
Jim
Joined
Aug 1, 2018
Threads
20
Messages
4,050
Reaction score
9,218
Location
Down south in Dixie
Vehicle(s)
2018 Mustang GT, 2019 Wrangler, 2020 Ranger
Your Bronco Model
Outer Banks
Vehicle Showcase
1
Clubs

I'm not sure what I'm looking at brother. Is it the hose's we're talking about?


Virtual-Chris

Badlands
Well-Known Member
First Name
Chris
Joined
Feb 17, 2021
Threads
18
Messages
412
Reaction score
853
Location
North Vancouver
Vehicle(s)
Bronco
Your Bronco Model
Badlands
I dunno but there’s a tear in that black boot in the photo. What is that?

OP
OP
broncoky

broncoky

Outer Banks
Well-Known Member
First Name
Jacob
Joined
Aug 4, 2021
Threads
10
Messages
197
Reaction score
729
Location
Lexington, KY
Vehicle(s)
2021 Bronco 2DR CB OBX SAS & 2000 Lexus LS400
Your Bronco Model
Outer Banks
Clubs

I'm not sure what I'm looking at brother. Is it the hose's we're talking about?
Take another look. I circled the area in question.


noliveaxle

Badlands
Well-Known Member
First Name
john
Joined
Jul 13, 2020
Threads
5
Messages
337
Reaction score
942
Location
Riverside, Calif
Vehicle(s)
2015 jku rubicon
Your Bronco Model
Badlands
Boot is twisted like it was shown to be on other posts. That black block looks like an insulator. I’m guessing to keep wiring a distance from the engine.


Advertisement

Firefight911

Wildtrak
Well-Known Member
First Name
Phil
Joined
Aug 24, 2020
Threads
9
Messages
1,340
Reaction score
4,372
Location
Simpsonville, South Carolina
Vehicle(s)
2022 Ford Bronco 4-door Wildtrak, Eruption Green
Your Bronco Model
Wildtrak
Clubs

OP
OP
broncoky

broncoky

Outer Banks
Well-Known Member
First Name
Jacob
Joined
Aug 4, 2021
Threads
10
Messages
197
Reaction score
729
Location
Lexington, KY
Vehicle(s)
2021 Bronco 2DR CB OBX SAS & 2000 Lexus LS400
Your Bronco Model
Outer Banks
Clubs

Boot is twisted like it was shown to be on other posts. That black block looks like an insulator. I’m guessing to keep wiring a distance from the engine.
Thank you!

To me, it looked as if something had come loose and freaked me out a bit.

I knew someone here would know!


Razorbak86

Badlands
Well-Known Member
Joined
Jul 19, 2020
Threads
39
Messages
3,075
Reaction score
11,444
Location
Northwest Arkansas
Vehicle(s)
Ford Bronco, BMW R1150 GS
Your Bronco Model
Badlands
Clubs

Question for the more mechanically inclined members…

I was poking around under the hood last night and noticed this. Should it be connected where the bright light is focused or is it just some type of stop/bumper?

I tried to move it but it’s very rigid And don’t appear to be flexible.

Can someone with a 2.7 check and confirm?
🙏



Thank you!

To me, it looked as if something had come loose and freaked me out a bit.

I knew someone here would know!

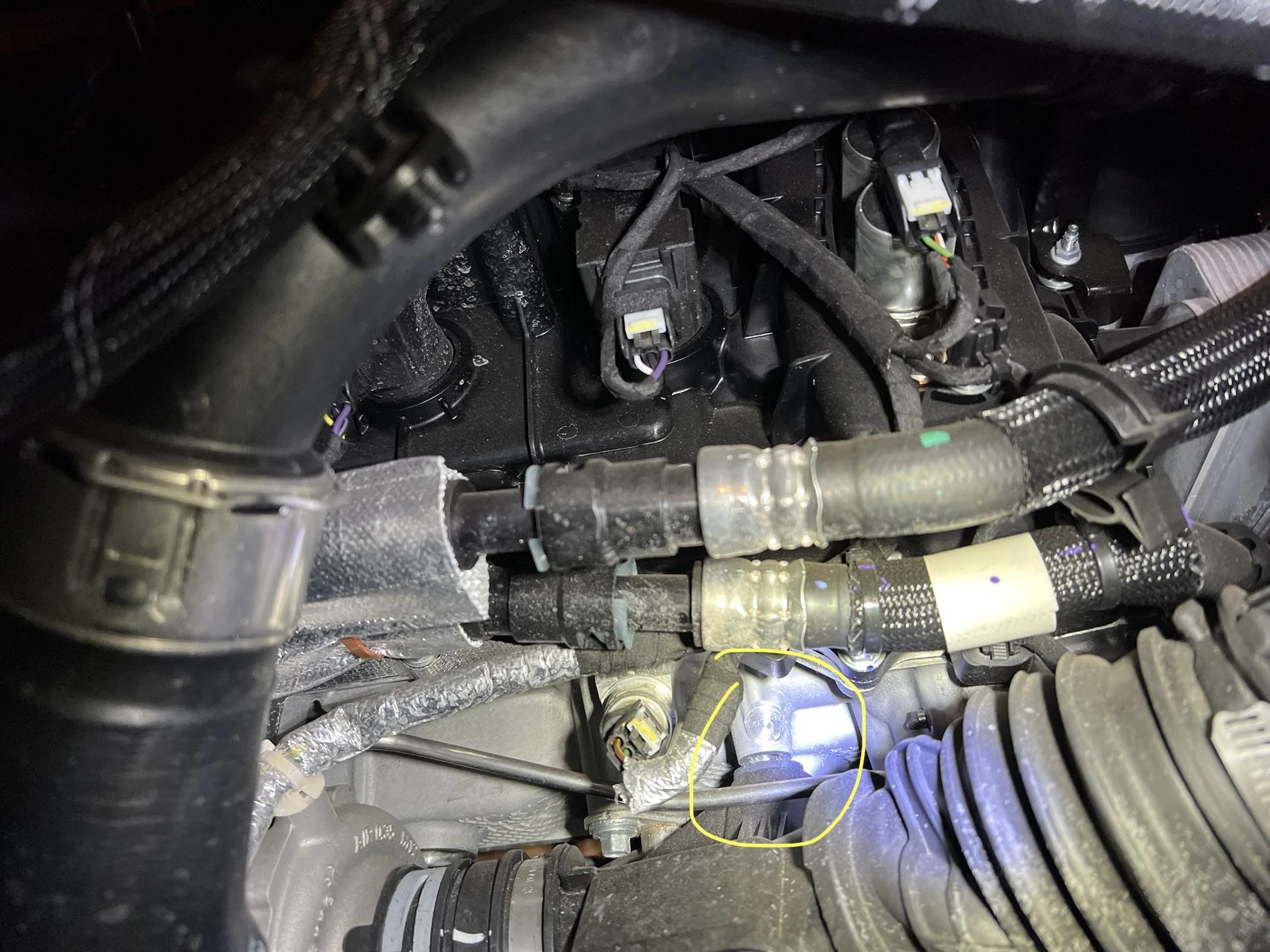

That silver surface that you circled with a hole in it in your 2nd photo is likely just a positioning lug on the side of the passenger's side cylinder head on the engine. It is probably used to hold the position of the casting before the internal surfaces are drilled, tapped, and machined.

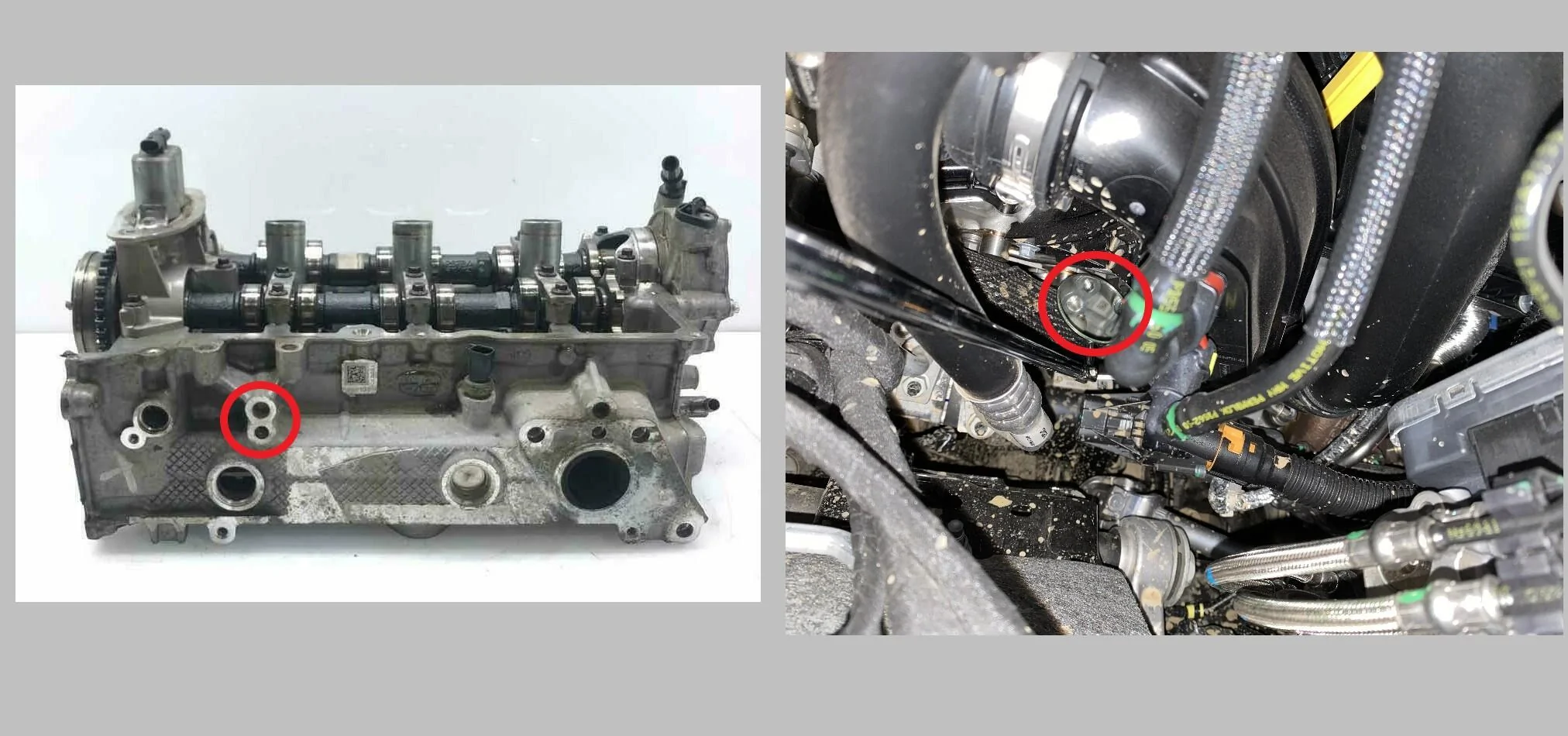

I took a photo of a similar lug on the driver's side cylinder head of my engine (below right), using an automotive extension mirror to show that the surface of the lug is not mated to anything, drilled through, or tapped for threads, so it's sole purpose is likely for positioning of the casting prior to machining. Next to my photo (below left) is a photo from an F-150 2.7L Ecoboost engine block on eBay.

Engine Positioning Lugs.jpg

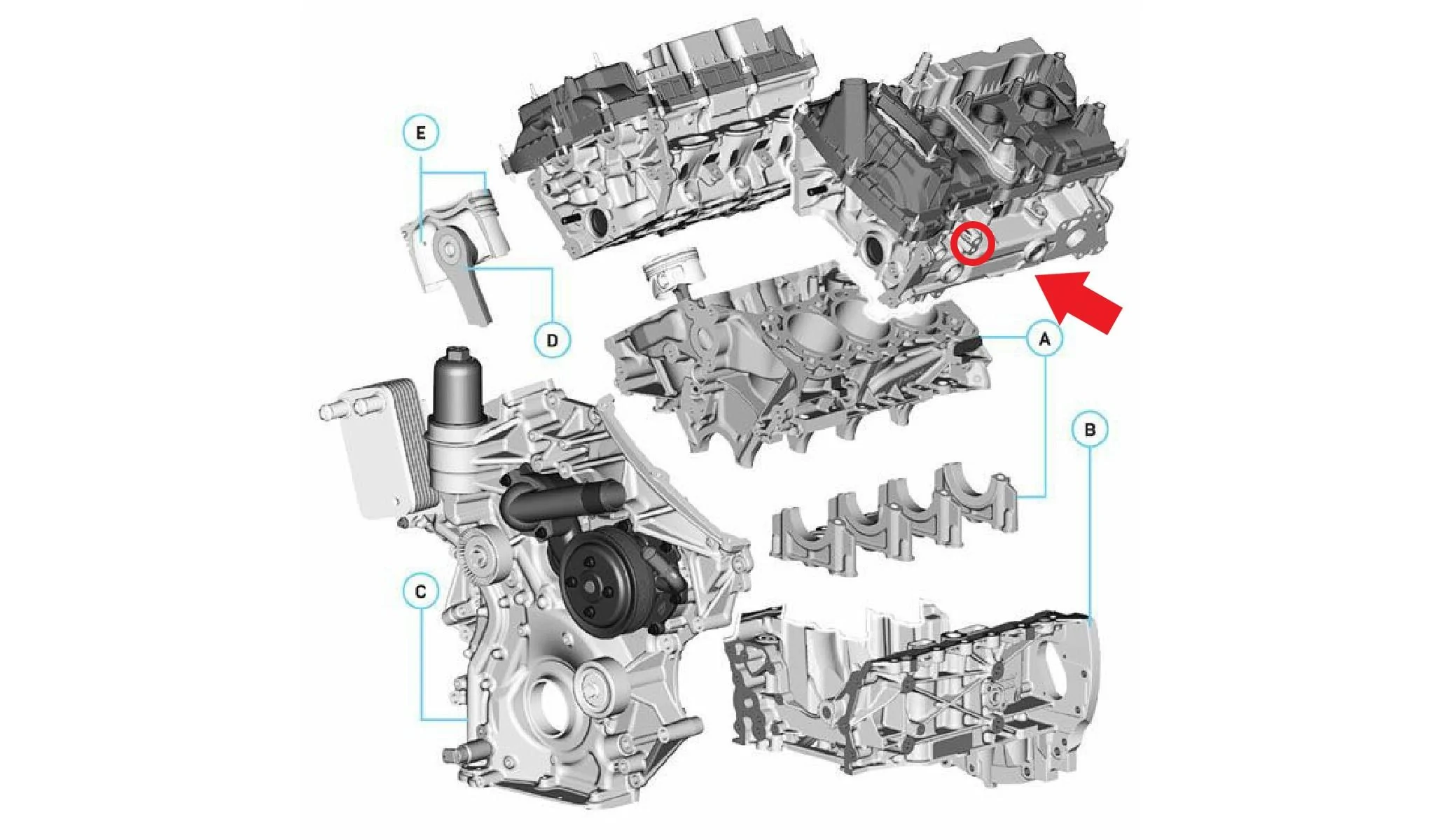

Below is a 3D drawing showing the same lug relative to the other engine components. All items circled in red appear to be the same positioning lug.
