Updated 10/23: Now that I’ve fooled with this for the last few days I wanted to share some tips to hopefully save you the time that I’ve wasted changing the oil on my 2.7L for the first time. I thought I was prepared for everything but this engine is really different compared to others I’ve owned as far as the oil change and check procedure. If you’ve owned one before I’m sure this is obvious, but many of us are first time Ford owners so the eco boost is a new learning process.

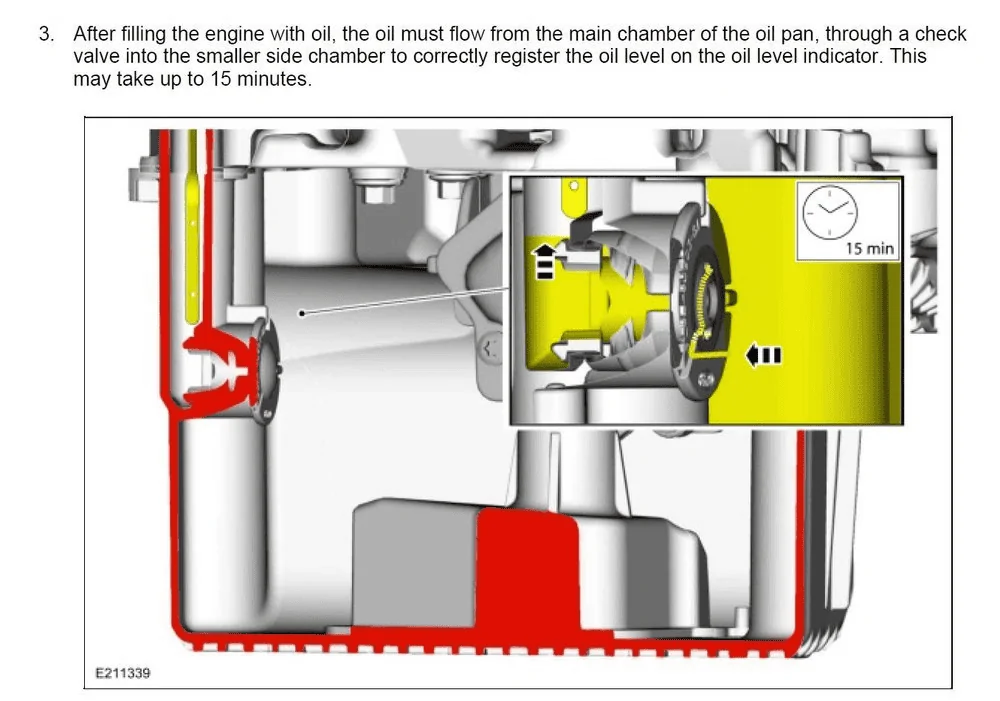

First off reference this bulletin from right after the 2.7L came out in 2015:

SSM 45195 - 2015 F-150/Edge And 2016 MKX Equipped With A 2.7L - Engine May Appear To Have Low Oil Level

Some 2015 F-150/Edge and 2016 MKX vehicles equipped with a 2.7L engine may appear to have low engine oil level if the proper procedures are not followed. Refer to the Owners Guide, Maintenance, Engine oil check section. When checking the engine oil level after shutting off the engine, wait at least 15 minutes prior to checking in order to allow the oil to drain back to the oil pan. The engine oil level can be checked immediately if the engine has not been started. When changing the engine oil, the engine needs to be at normal operating temperature and the oil filter removed before draining the oil. Allow the oil pan to drain completely for up to 5 minutes. Check oil level after filling by following the oil level check procedure.
The manual calls for 7 quarts. I was prepared to not use all of it due to previous reports. I bought 7 anyway just in case. I knew I needed to let it drain extra time and wait to check the oil level. But that still didn’t help me do it correctly.

First mistake: I didn’t open the filter housing before draining the oil. I made sure to wait for drainback prior to opening the plug, but apparently you need to do the filter first to allow the oil to drain from that area. Perhaps this contributed to my later issue.

Second mistake: After waiting 20-30 min for the pan to drain, I closed everything up and added 6 quarts. I waited 20 more min for the oil to reach the pan. (This is not a quick process when done correctly, more reason not to use a quick lane service.) I checked the dipstick and it was about halfway between the dots. Half quart low right? So I add a half quart. That’s a total of 6.5qts on a 7qt capacity engine. Figured I was safe and went about my business.

Fast forward a couple days and I check the level after it had been sitting in the parking lot at work all day. Had to check it about 3 times because the oil was still clean and the dipstick is different than I’m used to. It was definitely overfull. This is where I discovered the 2nd mistake that I didn’t realize I had made at the time. There is a crosshatched area on the dipstick and the normal “add” and ”full” dots. Well it turns out the top of the crosshatch is what you’re aiming for. The top dot is the “max” level.



So when I thought I was a half quart short while filling, it was probably good or already over even though I added less than engine capacity.

As you can see here if you go much past the top dot and near the twist in the dipstick, you’re almost completely filling the pan. This could cause the oil to foam and cause PCV issues and push oil past places you don’t want it to go. Would it be fine? Maybe, but long term I wouldn’t want to deal with an engine overfilled on oil.



So I drained oil back out this evening until it reached proper level. I don’t have an extractor so I slowly did it from the crappy yellow plug. Would have been much easier with one of the below replacement plugs that I plan to swap out in 4700 more miles. Hope this helps.

Original post:
I've been looking for a replacement for the plastic drain plug on the 2.7L oil pan. Wanted to share my findings in case others are looking as well.

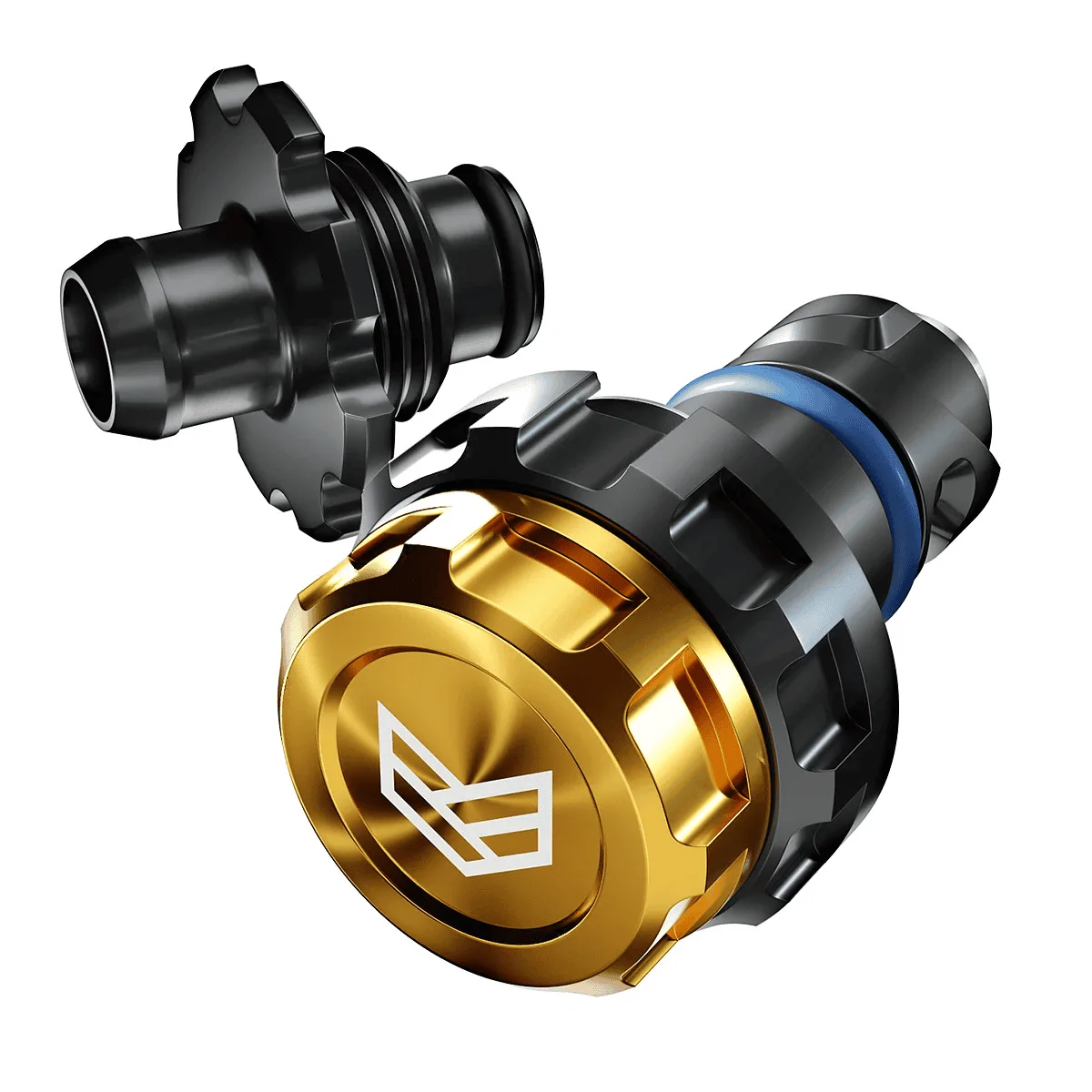

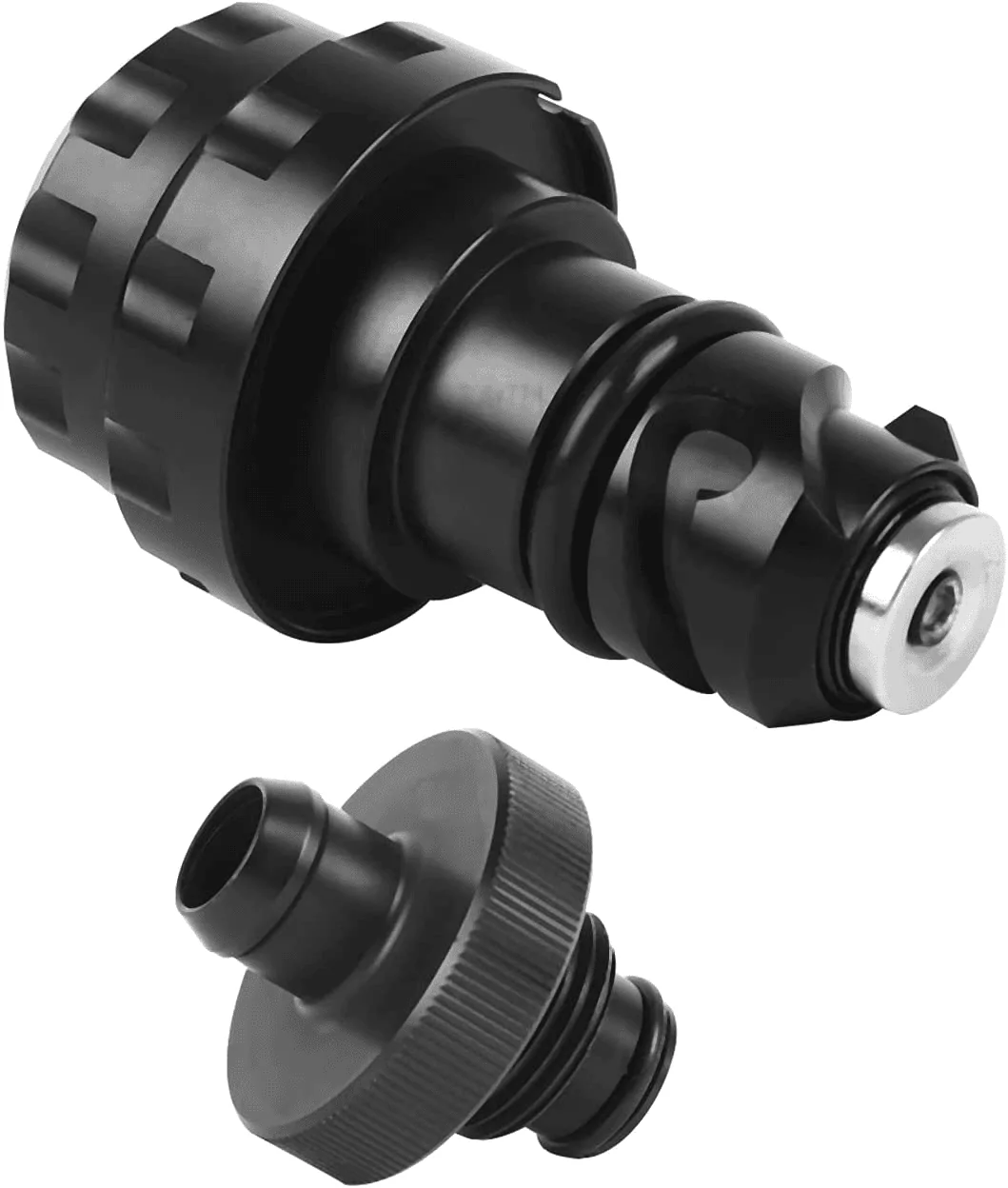

RONIN


https://roninfactory.com/products/ford-f150-raptor-oil-drain-ronin-factory
$80 - free shipping
Billet aluminum
Single o-ring
Magnet
Barbed for Drain Tube
also available on Amazon

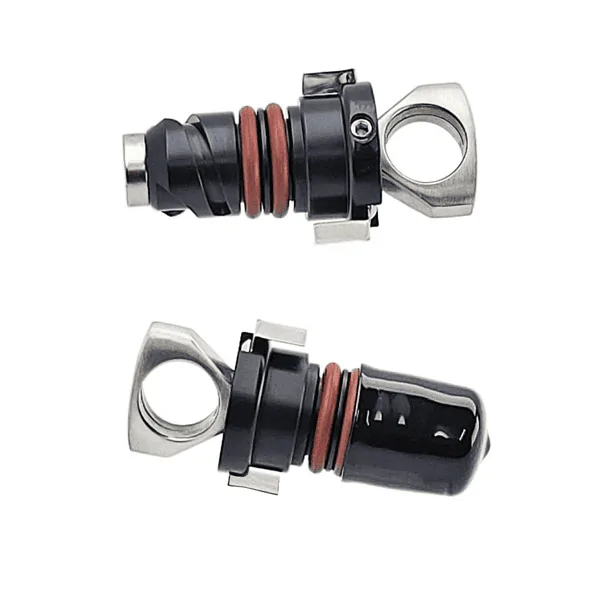

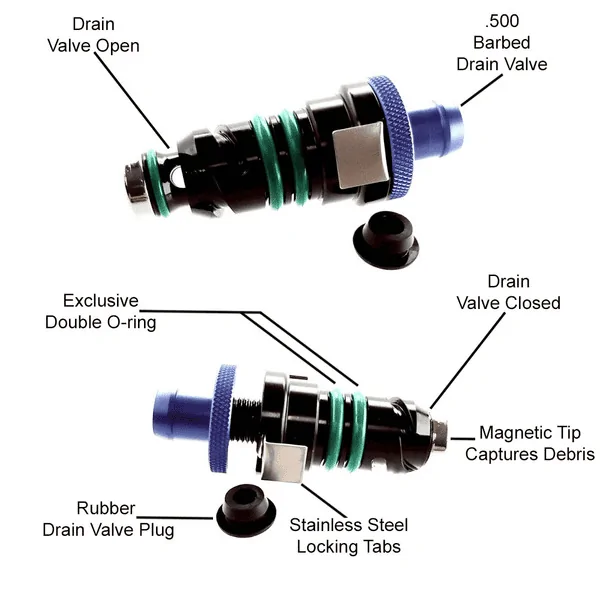

UPR

https://www.uprproducts.com/upr-ford-easy-oil-drain-valve-for-mustang-f150-raptor-edge-explorer/
$60 + shipping
Billet aluminum
Double o-ring
Magnet
Barbed for Drain Tube
Also on Amazon

Also another version with no drain valve, just a replacement plug for $50
https://www.uprproducts.com/upr-ford-easy-oil-drain-plug-for-mustang-f150-raptor-edge-explorer/

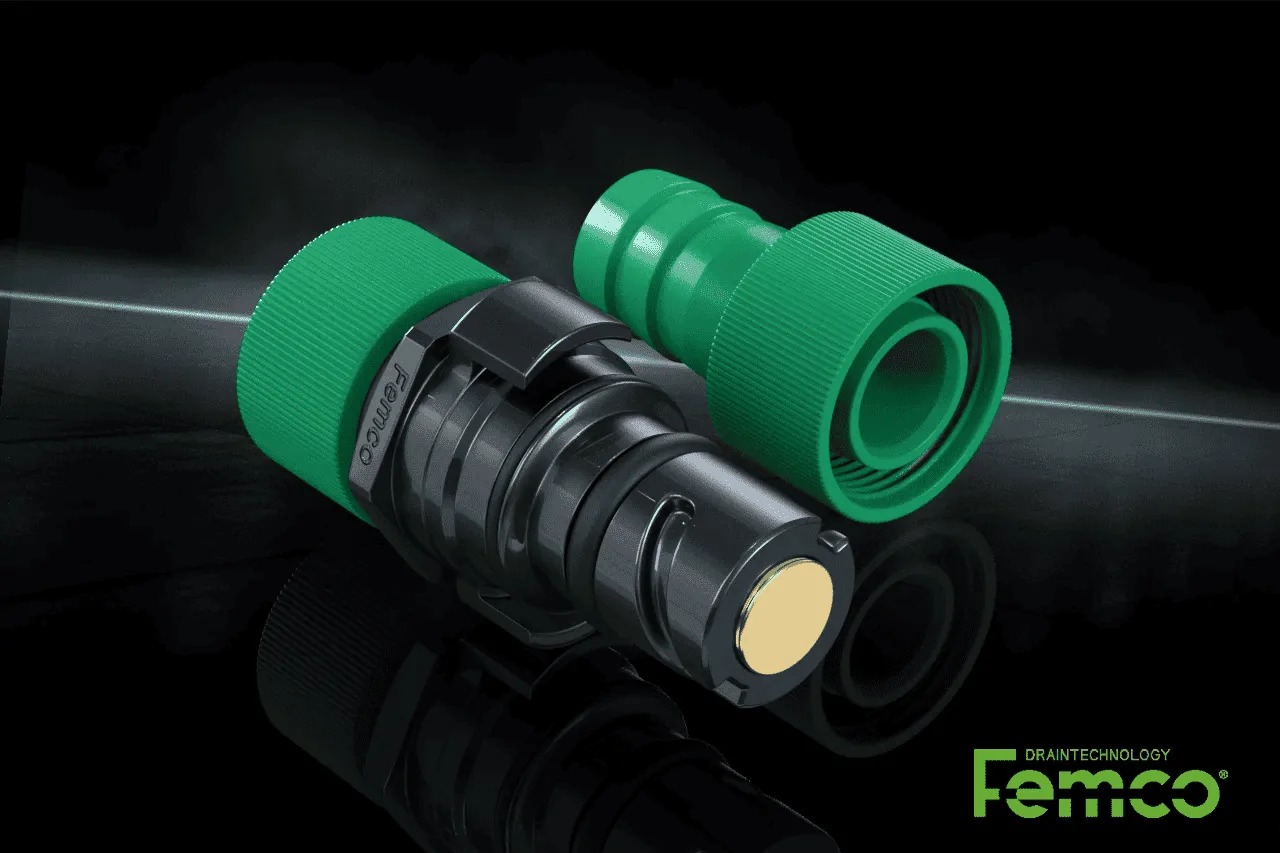

FEMCO


https://www.femco.com/product/ford-oil-plug/
$50 + shipping
Plastic
Single O ring
Magnet
barbed for Drain Tube
also on Amazon

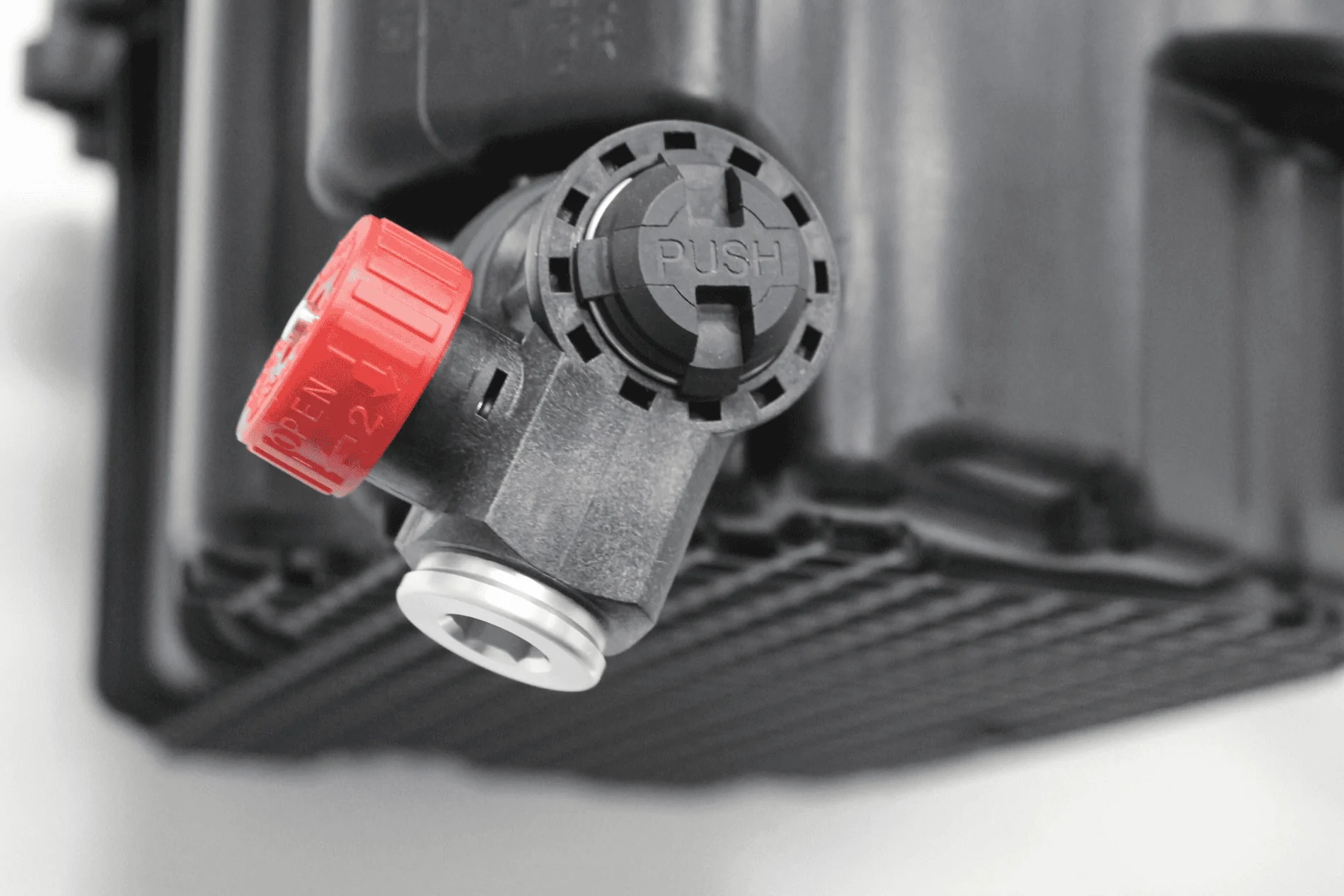

FUMOTO


https://www.bronco6g.com/forum/thre...-drain-valve-for-fords-plastic-oil-pan.17923/
In Beta Testing - May be available next year
Unknown cost
Plastic
Single O ring
Multi-piece design allows you to drain at different angles

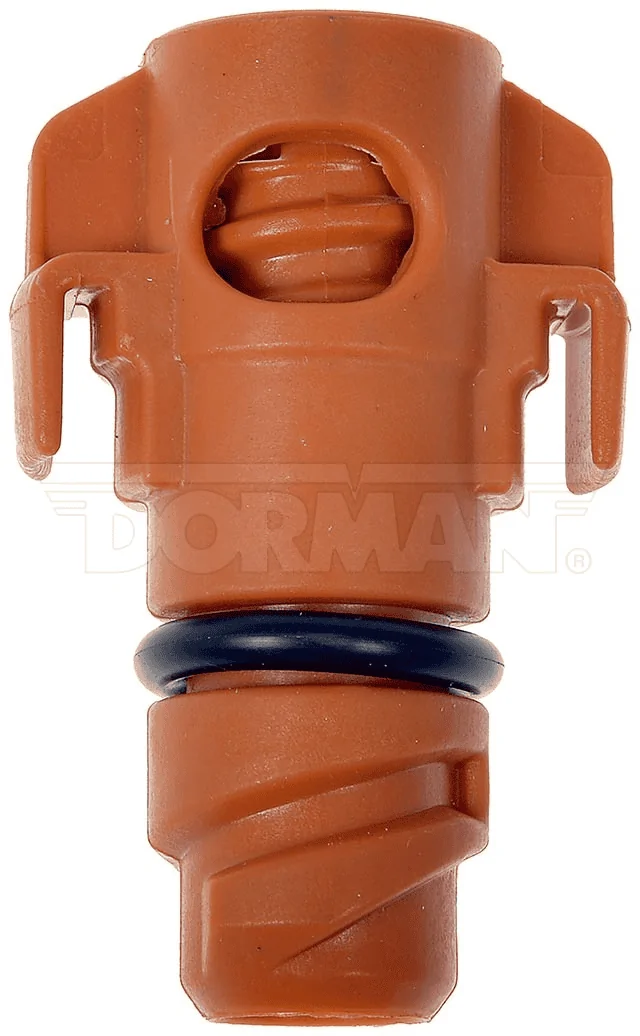

DORMAN


https://www.dormanproducts.com/p-133445-097-826hpcd.aspx
$10 + shipping on RockAuto
https://www.rockauto.com/en/moreinfo.php?pk=12646765&jsn=1481&jsn=1481
OEM replacement but features a downward drain hole that loosens with a flathead screwdriver
Plastic
Single O ring
No magnet or barbed hose fitting

Looks like there are a couple Ronin knockoffs on Amazon. One review said don't buy because it wouldn't lock into place. I wouldn't recommend them but wanted to share the info for anyone brave enough to try:

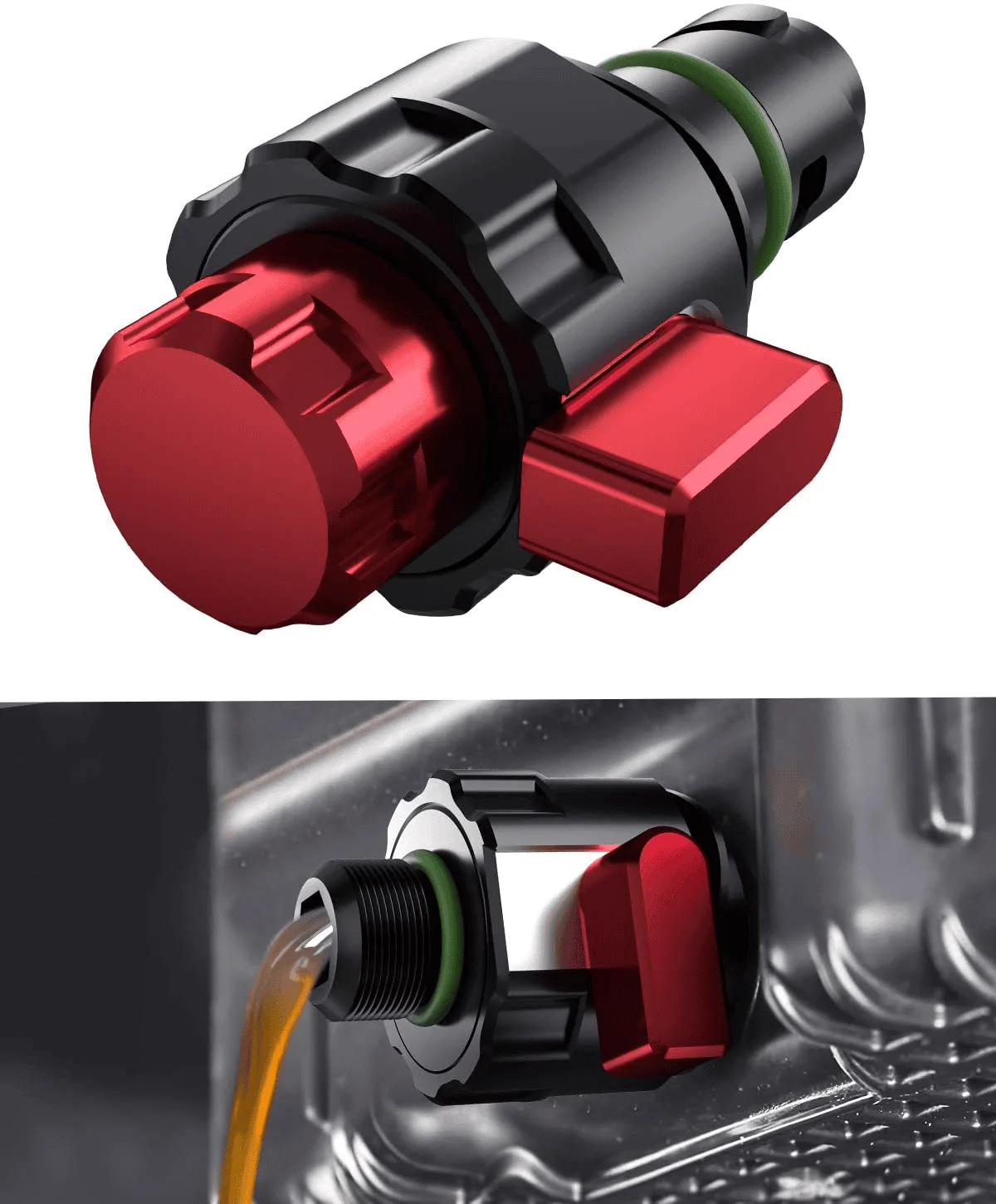

TZUTOGETHER
Amazon.com: TZUTOGETHER Oil Drain Plug Valve for 2015-2021 Ford F150 Raptor Mustang, Black


GOOPOOL

Amazon.com: GOOPOOL Engine Oil Drain Compatible with Ford F150
Advertisement


Last edited:
OP
OP
bytheway

bytheway

Badlands
Well-Known Member
First Name
Brice
Joined
Jul 6, 2020
Messages
1,029
Reaction score
3,361
Location
Louisville, KY
Vehicle(s)
2021 Bronco
Bronco
Badlands
Clubs

Updated with my findings after the fact. Has anyone managed to get 7 quarts out of their 2.7? Do you have to jack it up a certain direction?


buzpro

Outer Banks
Well-Known Member
First Name
Binky
Joined
Aug 2, 2020
Messages
1,203
Reaction score
1,667
Location
Arizona
Vehicle(s)
Tacoma
Bronco
Outer Banks
Clubs

Updated 10/23: Now that I’ve fooled with this for the last few days I wanted to share some tips to hopefully save you the time that I’ve wasted changing the oil on my 2.7L for the first time. I thought I was prepared for everything but this engine is really different compared to others I’ve owned as far as the oil change and check procedure. If you’ve owned one before I’m sure this is obvious, but many of us are first time Ford owners so the eco boost is a new learning process.

First off reference this bulletin from right after the 2.7L came out in 2015:



First of all, the manual calls for 7 quarts. I was prepared to not use all of it due to previous reports. I bought 7 anyway just in case. I knew I needed to let it drain extra time and wait to check the oil level. But that still didn’t help me do it correctly.

First mistake: I didn’t open the filter housing before draining the oil. I made sure to wait for drainback prior to opening the plug, but apparently you need to do the filter first to allow the oil to drain from that area. Perhaps this contributed to my later issue.

Second mistake: After waiting 20-30 min for the pan to drain, I closed everything up and added 6 quarts. I waited 20 more min for the oil to reach the pan. (This is not a quick process when done correctly, more reason not to use a quick lane service.) I checked the dipstick and it was about halfway between the dots. Half quart low right? So I add a half quart. That’s a total of 6.5qts on a 7qt capacity engine. Figured I was safe and went about my business.

Fast forward a couple days and I check the level after it had been sitting in the parking lot at work all day. Had to check it about 3 times because the oil was still clean and the dipstick is different than I’m used to. It was definitely overfull. This is where I discovered the 2nd mistake that I didn’t realize I had made at the time. There is a crosshatched area on the dipstick and the normal “add” and ”full” dots. Well it turns out the top of the crosshatch is what you’re aiming for. The top dot is the “max” level.



So when I thought I was a half quart short while filling, it was probably good or already over even though I added less than engine capacity. So I drained oil back out this evening until it reached proper level. I don’t have an extractor so I slowly did it from the crappy yellow plug. Would have been much easier with one of the below replacement plugs that I plan to swap out in 4700 more miles. Hope this helps.

Original post:
I've been looking for a replacement for the plastic drain plug on the 2.7L oil pan. Wanted to share my findings in case others are looking as well.

RONIN


https://roninfactory.com/products/ford-f150-raptor-oil-drain-ronin-factory
$80 - free shipping
Billet aluminum
Single o-ring
Magnet
Barbed for Drain Tube
Currently out of stock

UPR

https://www.uprproducts.com/upr-ford-easy-oil-drain-valve-for-mustang-f150-raptor-edge-explorer/
$60 + shipping
Billet aluminum
Double o-ring
Magnet
Barbed for Drain Tube

Also another version with no drain valve, just a replacement plug for $50
https://www.uprproducts.com/upr-ford-easy-oil-drain-plug-for-mustang-f150-raptor-edge-explorer/


FEMCO


https://www.femco.com/product/ford-oil-plug/
$50 + shipping
Plastic
Single O ring
Magnet
barbed for Drain Tube

FUMOTO


https://www.bronco6g.com/forum/thre...-drain-valve-for-fords-plastic-oil-pan.17923/
In Beta Testing - May be available next year
Unknown cost
Plastic
Single O ring
Multi-piece design allows you to drain at different angles

DORMAN


https://www.dormanproducts.com/p-133445-097-826hpcd.aspx
$10 + shipping on RockAuto
https://www.rockauto.com/en/moreinfo.php?pk=12646765&jsn=1481&jsn=1481
OEM replacement but features a downward drain hole that loosens with a flathead screwdriver
Plastic
Single O ring
No magnet or barbed hose fitting
couple of things i dont know:

1st - what do these magnets do? since the engine is made of Aluminum?

2nd- are these drain valves a one time install? don't you need to take them out and replace the O-rings on them?


Headsong

Black Diamond
Well-Known Member
First Name
Jeff
Joined
Aug 23, 2020
Messages
3,678
Reaction score
6,492
Location
Kane County, Western Chicago area
Vehicle(s)
08 Tundra
Bronco
Black Diamond
Clubs

First off, if you watched the recent vid from the engine builder on the 2.7, this is NOT the same engine that's been around. It's a new generation, called nano...nano nano? lol, so not sure that everything applies the same as before.


D2dhanover

Badlands
Well-Known Member
Joined
Feb 7, 2021
Messages
619
Reaction score
1,342
Location
Kansas City
Vehicle(s)
2021 F-150
Bronco
Badlands
First off, if you watched the recent vid from the engine builder on the 2.7, this is NOT the same engine that's been around. It's a new generation, called nano...nano nano? lol, so not sure that everything applies the same as before.
This is the second generation of the Nano engine platform.


buzpro

Outer Banks
Well-Known Member
First Name
Binky
Joined
Aug 2, 2020
Messages
1,203
Reaction score
1,667
Location
Arizona
Vehicle(s)
Tacoma
Bronco
Outer Banks
Clubs

First off, if you watched the recent vid from the engine builder on the 2.7, this is NOT the same engine that's been around. It's a new generation, called nano...nano nano? lol, so not sure that everything applies the same as before.
i think your response belongs on the other thread (engine builder on the 2.7)


Efudd

Badlands
Well-Known Member
First Name
Ernie
Joined
Mar 10, 2021
Messages
54
Reaction score
91
Location
California
Vehicle(s)
F350 Tremor
Bronco
Badlands
I was under the impression that you're supposed to change out the yellow plastic drain plug for a new one every few oil changes. Would you at least have to change out the O-rings on these reusable ones?


buzpro

Outer Banks
Well-Known Member
First Name
Binky
Joined
Aug 2, 2020
Messages
1,203
Reaction score
1,667
Location
Arizona
Vehicle(s)
Tacoma
Bronco
Outer Banks
Clubs

I was under the impression that you're supposed to change out the yellow plastic drain plug for a new one every few oil changes. Would you at least have to change out the O-rings on these reusable ones?
yes i believe you're correct but i'm asking about the aftermarket plugs the OP has mentioned


Mean Red GT

Well-Known Member
First Name
Kevin
Joined
Sep 7, 2021
Messages
261
Reaction score
439
Location
TN
Vehicle(s)
2016 Mustang GT PP/2011 Toyota Tundra DC
Bronco
Undecided
Clubs

couple of things i dont know:

1st - what do these magnets do? since the engine is made of Aluminum?

2nd- are these drain valves a one time install? don't you need to take them out and replace the O-rings on them?
The upper part of the block is aluminum but the lower portion and internals are all steel so the magnet would attract small particles coming from the rings, crankshaft, cams, etc especially during break-in


72BroncoSand

Base
Well-Known Member
Joined
Jul 22, 2020
Messages
367
Reaction score
1,226
Location
PNW
Vehicle(s)
72 Bronco, 77 f-150, Jetta Tdi, 1ton
Bronco
Base
Vehicle Showcase
2
Clubs

Updated 10/23: Now that I’ve fooled with this for the last few days I wanted to share some tips to hopefully save you the time that I’ve wasted changing the oil on my 2.7L for the first time. I thought I was prepared for everything but this engine is really different compared to others I’ve owned as far as the oil change and check procedure. If you’ve owned one before I’m sure this is obvious, but many of us are first time Ford owners so the eco boost is a new learning process.

First off reference this bulletin from right after the 2.7L came out in 2015:



The manual calls for 7 quarts. I was prepared to not use all of it due to previous reports. I bought 7 anyway just in case. I knew I needed to let it drain extra time and wait to check the oil level. But that still didn’t help me do it correctly.

First mistake: I didn’t open the filter housing before draining the oil. I made sure to wait for drainback prior to opening the plug, but apparently you need to do the filter first to allow the oil to drain from that area. Perhaps this contributed to my later issue.

Second mistake: After waiting 20-30 min for the pan to drain, I closed everything up and added 6 quarts. I waited 20 more min for the oil to reach the pan. (This is not a quick process when done correctly, more reason not to use a quick lane service.) I checked the dipstick and it was about halfway between the dots. Half quart low right? So I add a half quart. That’s a total of 6.5qts on a 7qt capacity engine. Figured I was safe and went about my business.

Fast forward a couple days and I check the level after it had been sitting in the parking lot at work all day. Had to check it about 3 times because the oil was still clean and the dipstick is different than I’m used to. It was definitely overfull. This is where I discovered the 2nd mistake that I didn’t realize I had made at the time. There is a crosshatched area on the dipstick and the normal “add” and ”full” dots. Well it turns out the top of the crosshatch is what you’re aiming for. The top dot is the “max” level.



So when I thought I was a half quart short while filling, it was probably good or already over even though I added less than engine capacity. So I drained oil back out this evening until it reached proper level. I don’t have an extractor so I slowly did it from the crappy yellow plug. Would have been much easier with one of the below replacement plugs that I plan to swap out in 4700 more miles. Hope this helps.

Original post:
I've been looking for a replacement for the plastic drain plug on the 2.7L oil pan. Wanted to share my findings in case others are looking as well.

RONIN


https://roninfactory.com/products/ford-f150-raptor-oil-drain-ronin-factory
$80 - free shipping
Billet aluminum
Single o-ring
Magnet
Barbed for Drain Tube
Currently out of stock

UPR

https://www.uprproducts.com/upr-ford-easy-oil-drain-valve-for-mustang-f150-raptor-edge-explorer/
$60 + shipping
Billet aluminum
Double o-ring
Magnet
Barbed for Drain Tube

Also another version with no drain valve, just a replacement plug for $50
https://www.uprproducts.com/upr-ford-easy-oil-drain-plug-for-mustang-f150-raptor-edge-explorer/


FEMCO


https://www.femco.com/product/ford-oil-plug/
$50 + shipping
Plastic
Single O ring
Magnet
barbed for Drain Tube

FUMOTO


https://www.bronco6g.com/forum/thre...-drain-valve-for-fords-plastic-oil-pan.17923/
In Beta Testing - May be available next year
Unknown cost
Plastic
Single O ring
Multi-piece design allows you to drain at different angles

DORMAN


https://www.dormanproducts.com/p-133445-097-826hpcd.aspx
$10 + shipping on RockAuto
https://www.rockauto.com/en/moreinfo.php?pk=12646765&jsn=1481&jsn=1481
OEM replacement but features a downward drain hole that loosens with a flathead screwdriver
Plastic
Single O ring
No magnet or barbed hose fitting
Updated with my findings after the fact. Has anyone managed to get 7 quarts out of their 2.7? Do you have to jack it up a certain direction?
Quick question: Where did you get that dip stick diagram? If that is from that owners manua, what page? I can’t find it. Literally just got my Bronco 2.7 back from dealer for first oil change and it is over filled and I’m pissed. I need to gather some detailEd info before I unload, thx!

Found it! Page 321 of owners manual

Last edited:
OP
OP
bytheway

bytheway

Badlands
Well-Known Member
First Name
Brice
Joined
Jul 6, 2020
Messages
1,029
Reaction score
3,361
Location
Louisville, KY
Vehicle(s)
2021 Bronco
Bronco
Badlands
Clubs

yes i believe you're correct but i'm asking about the aftermarket plugs the OP has mentioned
I haven’t used any of them but I think the idea is (minus the no-valve UPR) that since you don’t have to remove the plug you wouldn’t have to change the main o-rings. Plus they probably use higher quality materials than the OEM plug. The Ronin plug specifically mentions they are lifetime seals. They do sell replacement parts but only if they are lost or damaged.


Evolkidbell

Badlands
Well-Known Member
First Name
Brian
Joined
Jul 17, 2020
Messages
338
Reaction score
597
Location
Northern Colorado
Vehicle(s)
1966 Bronco, 2013 F-150
Bronco
Badlands
Clubs

Has anyone used the Ronin replacement plug?
Curious if it locks into the OEM pan like all others.


telenerd

Badlands
Well-Known Member
Joined
Jul 26, 2021
Messages
337
Reaction score
562
Location
Laramie
Vehicle(s)
Subaru
Bronco
Badlands
We need a good video on oil change! I saw one video on oil change but need more information. Sounds like pulling the oil filter first and then doing drain plug is best option to get all the oil out.

What oil did you use?

By the way good idea on replacing the plastic filter housing.


termin8

Outer Banks
Active Member
First Name
Dave
Joined
Feb 2, 2021
Messages
32
Reaction score
116
Location
Ontario, CAN
Vehicle(s)
2013 ford edge
Bronco
Outer Banks
Been doing oil changes since a kid, never thought it would be this detailed and exact steps need to be followed to get it right. Nice write up OP. Looks like if you are willing and able, then do it yourself and get it done right.


Slick Rick

Black Diamond
Well-Known Member
First Name
Rick
Joined
Nov 23, 2020
Messages
75
Reaction score
102
Location
Duffield
Vehicle(s)
F150, Challenger
Bronco
Black Diamond
Updated 10/23: Now that I’ve fooled with this for the last few days I wanted to share some tips to hopefully save you the time that I’ve wasted changing the oil on my 2.7L for the first time. I thought I was prepared for everything but this engine is really different compared to others I’ve owned as far as the oil change and check procedure. If you’ve owned one before I’m sure this is obvious, but many of us are first time Ford owners so the eco boost is a new learning process.

First off reference this bulletin from right after the 2.7L came out in 2015:



The manual calls for 7 quarts. I was prepared to not use all of it due to previous reports. I bought 7 anyway just in case. I knew I needed to let it drain extra time and wait to check the oil level. But that still didn’t help me do it correctly.

First mistake: I didn’t open the filter housing before draining the oil. I made sure to wait for drainback prior to opening the plug, but apparently you need to do the filter first to allow the oil to drain from that area. Perhaps this contributed to my later issue.

Second mistake: After waiting 20-30 min for the pan to drain, I closed everything up and added 6 quarts. I waited 20 more min for the oil to reach the pan. (This is not a quick process when done correctly, more reason not to use a quick lane service.) I checked the dipstick and it was about halfway between the dots. Half quart low right? So I add a half quart. That’s a total of 6.5qts on a 7qt capacity engine. Figured I was safe and went about my business.

Fast forward a couple days and I check the level after it had been sitting in the parking lot at work all day. Had to check it about 3 times because the oil was still clean and the dipstick is different than I’m used to. It was definitely overfull. This is where I discovered the 2nd mistake that I didn’t realize I had made at the time. There is a crosshatched area on the dipstick and the normal “add” and ”full” dots. Well it turns out the top of the crosshatch is what you’re aiming for. The top dot is the “max” level.



So when I thought I was a half quart short while filling, it was probably good or already over even though I added less than engine capacity.

As you can see here if you go much past the top dot and near the twist in the dipstick, you’re almost completely filling the pan. This could cause the oil to foam and cause PCV issues and push oil past places you don’t want it to go. Would it be fine? Maybe, but long term I wouldn’t want to deal with an engine overfilled on oil.



So I drained oil back out this evening until it reached proper level. I don’t have an extractor so I slowly did it from the crappy yellow plug. Would have been much easier with one of the below replacement plugs that I plan to swap out in 4700 more miles. Hope this helps.

Original post:
I've been looking for a replacement for the plastic drain plug on the 2.7L oil pan. Wanted to share my findings in case others are looking as well.

RONIN


https://roninfactory.com/products/ford-f150-raptor-oil-drain-ronin-factory
$80 - free shipping
Billet aluminum
Single o-ring
Magnet
Barbed for Drain Tube

UPR

https://www.uprproducts.com/upr-ford-easy-oil-drain-valve-for-mustang-f150-raptor-edge-explorer/
$60 + shipping
Billet aluminum
Double o-ring
Magnet
Barbed for Drain Tube

Also another version with no drain valve, just a replacement plug for $50
https://www.uprproducts.com/upr-ford-easy-oil-drain-plug-for-mustang-f150-raptor-edge-explorer/


FEMCO


https://www.femco.com/product/ford-oil-plug/
$50 + shipping
Plastic
Single O ring
Magnet
barbed for Drain Tube

FUMOTO


https://www.bronco6g.com/forum/thre...-drain-valve-for-fords-plastic-oil-pan.17923/
In Beta Testing - May be available next year
Unknown cost
Plastic
Single O ring
Multi-piece design allows you to drain at different angles

DORMAN


https://www.dormanproducts.com/p-133445-097-826hpcd.aspx
$10 + shipping on RockAuto
https://www.rockauto.com/en/moreinfo.php?pk=12646765&jsn=1481&jsn=1481
OEM replacement but features a downward drain hole that loosens with a flathead screwdriver
Plastic
Single O ring
No magnet or barbed hose fitting
Thanks for your good work!

Advertisement


Advertisement
Top
