Here are some of the Bronco General Specifications, thank you to our friends of the forum.

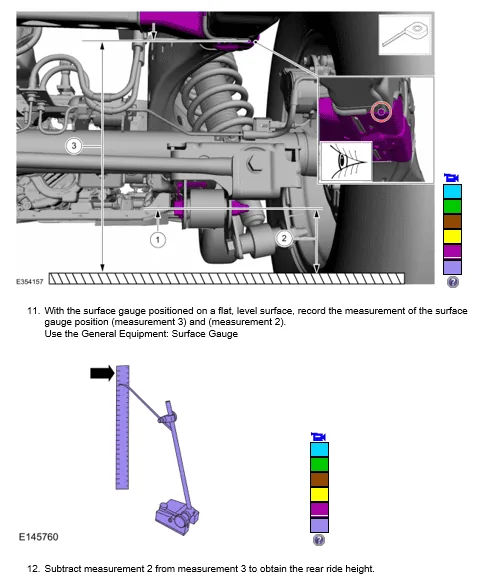

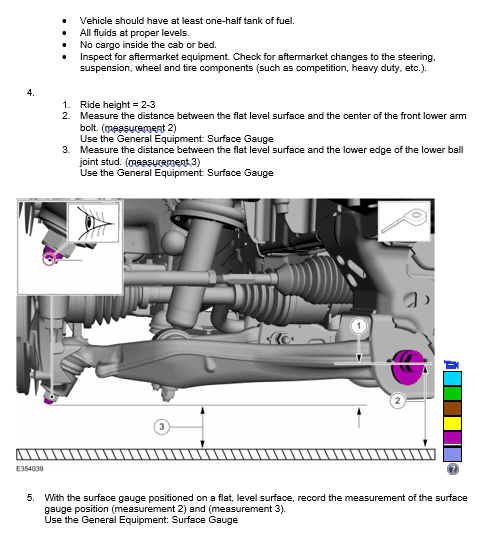

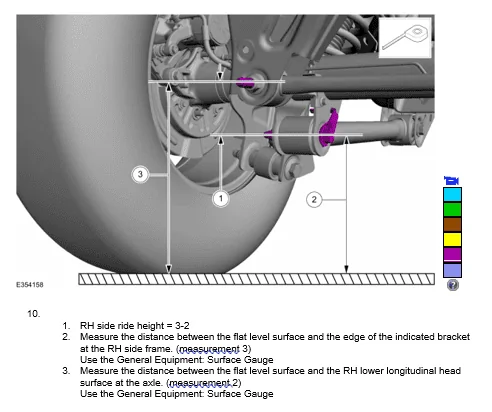

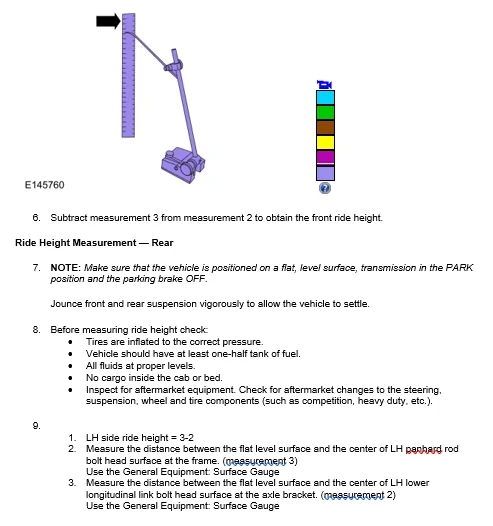

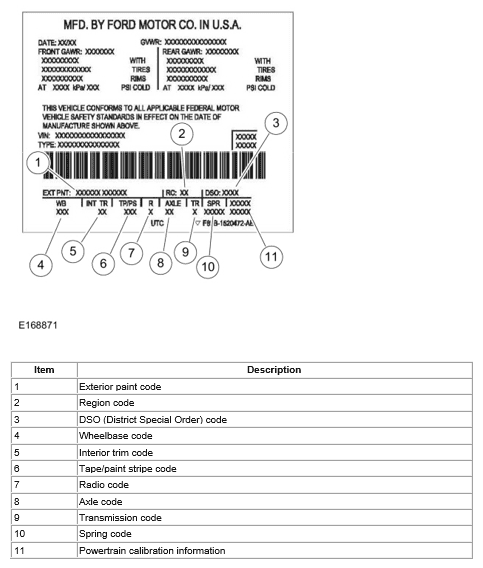

The attached PDF document contains items such as Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle codes, paint codes, etc.

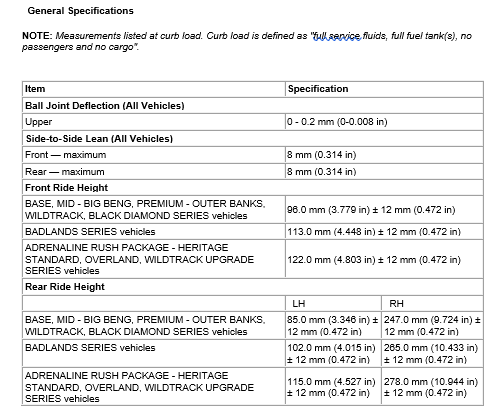

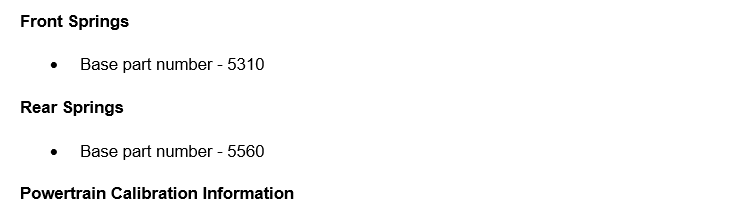

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412384951

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412345893

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412316345

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412464482

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412497691

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412533890

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412712498

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412767891

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623412832229

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623413157572

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623413325471

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. 1623413379944
Sponsored



Attachments

Last edited by a moderator:

Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
6
Messages
4,186
Reaction score
7,471
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

Wow - you hit the jackpot!

So Heritage is definitely Squatch. Not seeing the rumored "Everglades" edition. Seems like there will be a non-Squatch Wildtrak 🤷‍♂️

Overland .... that's new

Adrenaline Rush implies something performance wise over just Squatch.

2022 sounds interesting ...

Oh , and Badlands Special is a little higher than we thought.


Sponsored

Lakelife36

Big Bend
Well-Known Member
First Name
Ben
Joined
Jul 25, 2020
Threads
17
Messages
1,755
Reaction score
2,488
Location
Interior of BC
Vehicle(s)
2010 Kia Borrego, 2012 Chevy Cruze, 2022 Bronco
Your Bronco Model
Big Bend
Clubs

I have all sorts of questions. Like why is Wildtrak spelled wrong, have the same ride height as base suspension without the "upgrade package", and only have the tallest ride height with the "upgrade package"? Also what is Overland? Is that a future product? An old name for FE?


Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
6
Messages
4,186
Reaction score
7,471
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

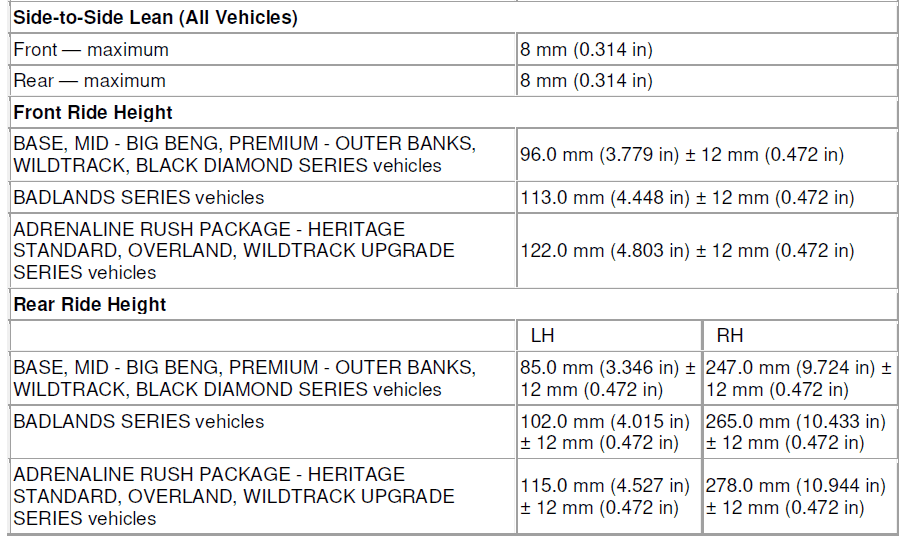

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. Screen Shot 2021-06-11 at 8.56.25 AM

...plus another heritage mention and the "overland" series.

and what's this Big Beng? lol
Good catch - Adrenaline Rush is connected to Heritage.

I better sock more money away. Heritage is sounding more and more expensive.


R11

Base
Well-Known Member
Joined
Jul 8, 2020
Threads
11
Messages
482
Reaction score
1,388
Location
Virginia
Website
www.basequatch.com
Vehicle(s)
Bronco Base Sasquatch 2.7
Your Bronco Model
Base
Clubs

Good catch - Adrenaline Rush is connected to Heritage.

I better sock more money away. Heritage is sounding more and more expensive.
I can't really tell. Maybe Adrenaline Rush is just a package, like Sasquatch, and the other three are trims: Heritage Standard, Overland, and Wildtrak.

This would appear to imply there's a Heritage non "Standard" too perhaps.


Sponsored

indio22

Base
Well-Known Member
Joined
Aug 25, 2019
Threads
10
Messages
4,029
Reaction score
8,460
Location
Chicagoland, USA
Vehicle(s)
'72 Rover, '85 CJ7, '98 TJ, '14 BRZ, '23 Bronco
Your Bronco Model
Base
I have all sorts of questions. Like why is Wildtrak spelled wrong, have the same ride height as base suspension without the "upgrade package", and only have the tallest ride height with the "upgrade package"? Also what is Overland? Is that a future product? An old name for FE?
I'm still waking up, but these measures are all ground to certain frame/suspension mount points. In that case the tire diameter would still need to be taken into account, when comparing the bottom line suspension lift between the versions.


604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Threads
164
Messages
8,344
Reaction score
29,045
Location
British Columbia
Website
www.bronco6g.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Badlands
Clubs

Ford Bronco 2021 Bronco Detailed Specs Document — Ride Height, Transmission Code, Spring Part Numbers, Calibration Codes, Axle Codes, Paint Codes, VIN Codes, Etc. Screen Shot 2021-06-11 at 8.56.25 AM

...plus another heritage mention and the "overland" series.

and what's this Big Beng? lol
It’s the Bronco version heading to England. I think it’s a nod to the clock…


Dads_bronze_bronco

Raptor
Well-Known Member
Joined
Feb 18, 2020
Threads
6
Messages
4,186
Reaction score
7,471
Location
NC
Vehicle(s)
08 JKUR / x_x 00 TJ x_x
Your Bronco Model
Raptor
Clubs

Just noticed: 8mm of lean. This drove me nuts on the JKUR - the OEM Rubicon springs up front were different part numbers to level for the gas tank and swaybar disconnect weight on the passenger side. The ARB OME springs were the same. After a few years of trial and error, I settled on 10mm spacers front and rear on the passenger side to take most of the Jeep lean out.

Something to note if you plan on swapping for Squatch take-offs - the spring set up for you Bronco maybe different for the one the take-offs came from and you may need to work on leveling it side to side.


Virtual-Chris

Badlands
Well-Known Member
First Name
Chris
Joined
Feb 17, 2021
Threads
18
Messages
412
Reaction score
860
Location
North Vancouver
Vehicle(s)
Bronco
Your Bronco Model
Badlands
So this confirms a 0.4” difference between base Badlands and SAS Badlands?
