2023 Bronco Total Speaker Upgrade Notes

As so many have indicated, the factory speakers that come with the Bronco are crap! My 2023 arrived last month and I instantly started researching how to replace and upgrade my sound system. I did not upgrade the sound system to the B&O package in my initial Bronco order. It did however arrive with a working factory sub and amp in the back cargo area. Therefore, it came equipped with 6 speakers (2 in the dash, 2 in the front floor kicker panel, and 2 in the rear rollbar speaker pods), plus the 1 sub and amp.

I watched several YouTube videos and read several blogs on which speakers to get and amp(s) that were the easiest to install yourself for the best bang for the cost while saving money to do it on my own. Below are my notes of what I did and what I purchased, which I hope saves any newbie like me just starting the sound system upgrade or considering upgrading some time and finds this information helpful.

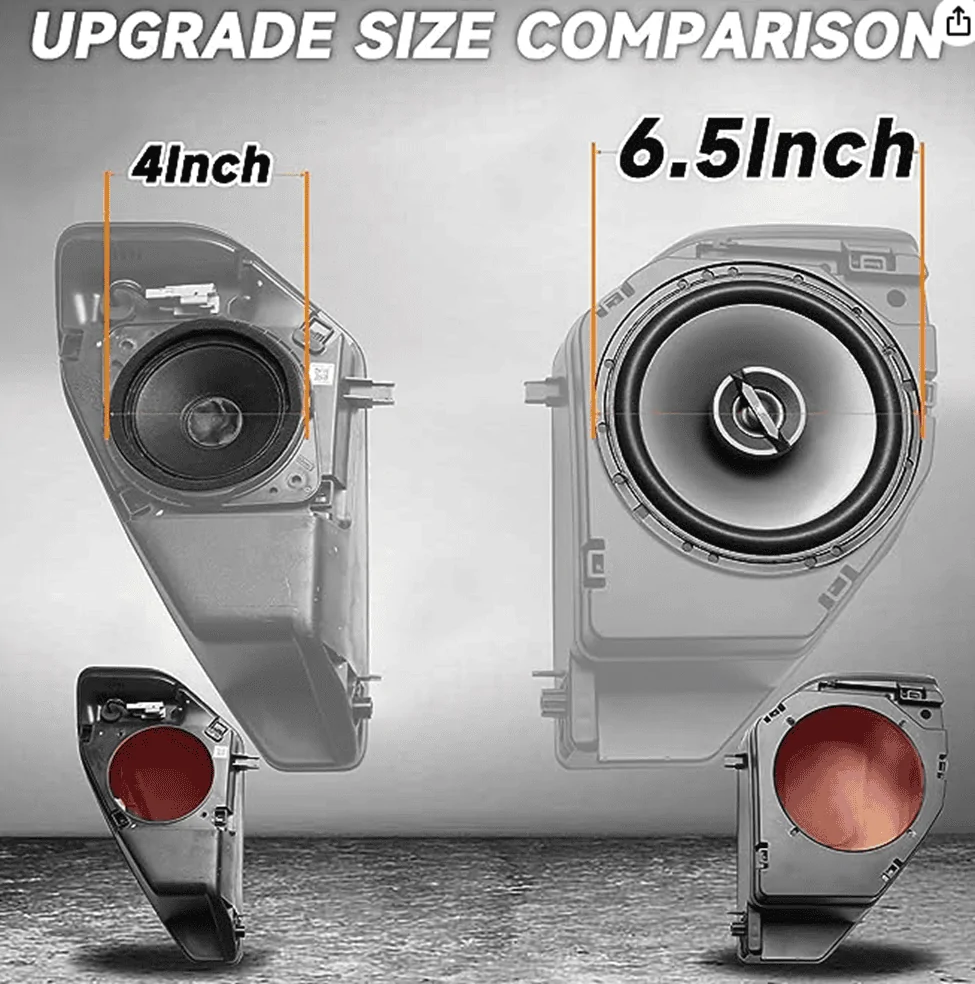

I started by simply replacing just the rear rollbar pod speakers first from the factory 4” speakers with 6.5” Kicker speakers. In order to do this you will need to get a pair of 6.5” pods to accommodate the bigger speakers.

These are the 6.5” Pods I purchased:

https://amzn.to/3ZqZmyN

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887048514

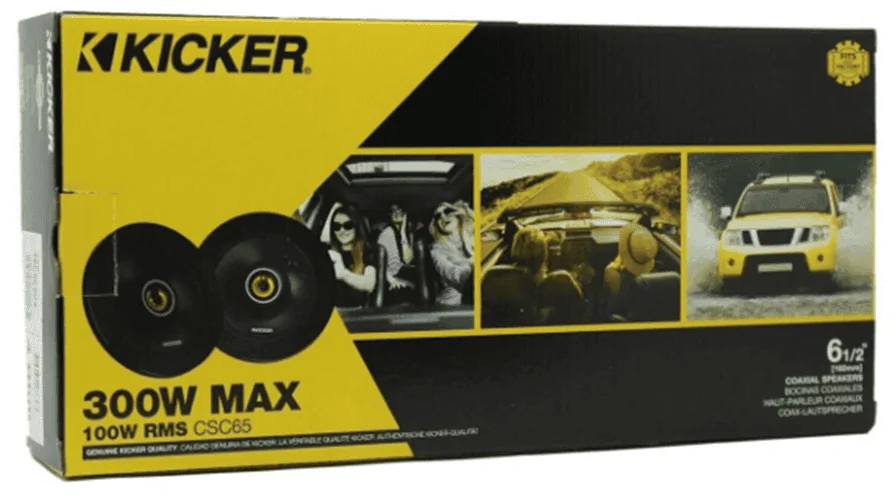

Note: the first set of 6.5” Kicker speakers I purchased were the “DS” series, which were 240 watts (120 watts each). Once installed I only heard a slight increase in sound, then realized I should have gotten the “CS” Kicker series which were 600 watts (300 watts each) for only just $0.97 more (yes, less than a dollar more). After returning and installing the “CS” series speakers, it was a noticeable improvement.

These are the Kicker 6.5” CS series speakers I purchased:

https://amzn.to/3PKwXRd

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887082645


I still wasn’t satisfied with the overall sound, even though it was a little better. I continued on with my overhaul and upgraded the 2 front dash speakers and the 2 front kicker panel speakers with Kicker “CS” series 4” for the dash, and Kicker “CS” series 6.75” for the kicker panels.

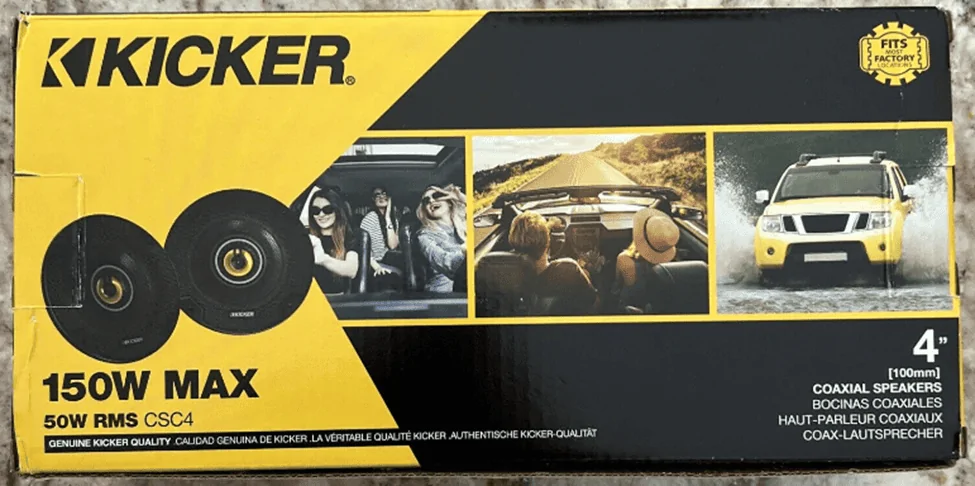

These are the Kicker 4” CS series dash speakers I purchased:

https://amzn.to/3Lsdrqc

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887110881

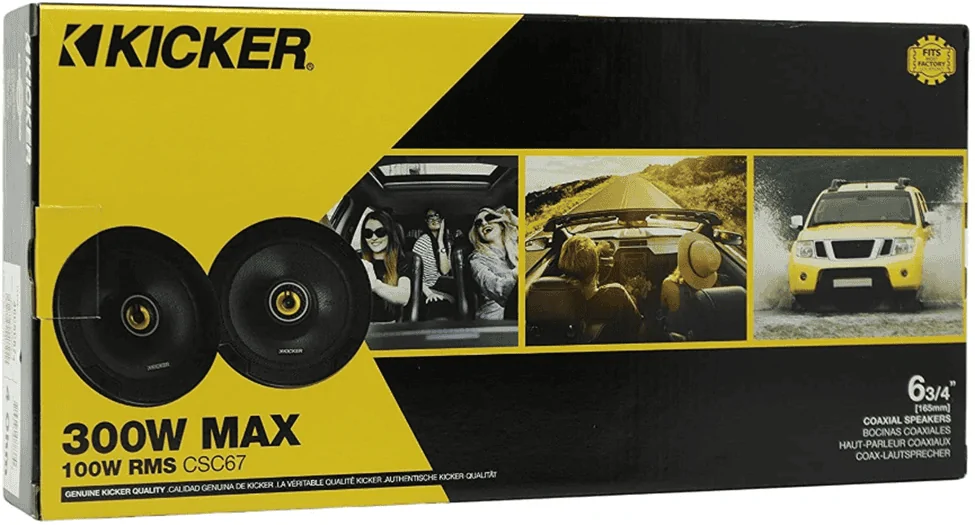

These are the Kicker 6.75” CS series kicker panel speakers I purchased:

https://amzn.to/3EL8fd4

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887136791


After now having all 6 speakers upgraded to the Kicker “CS” series, it sounded even better, but no real bass! So I moved forward with my sound system upgrade by replacing the factory sub and amp to the Kicker 8” CompRT sub and the Kicker Key 500.1 amp. (I first ordered the 6.75” CompRT sub and used the factory amp and this changed nothing bass wise. I then returned and got the 8” sub along with the Kicker Key 500.1 amp).

Note: the Kicker 6.75” CompRT fits nicely without having to make any modifications. Upgrading to the lager 8” sub will take a little modification to get it to fit in the whole. I used the cardboard cutout that came in the speaker box and traced an outline around the new whole diameter I needed to cut with a sharpie pen and used a multi-purpose tool to cut the new larger whole diameter.

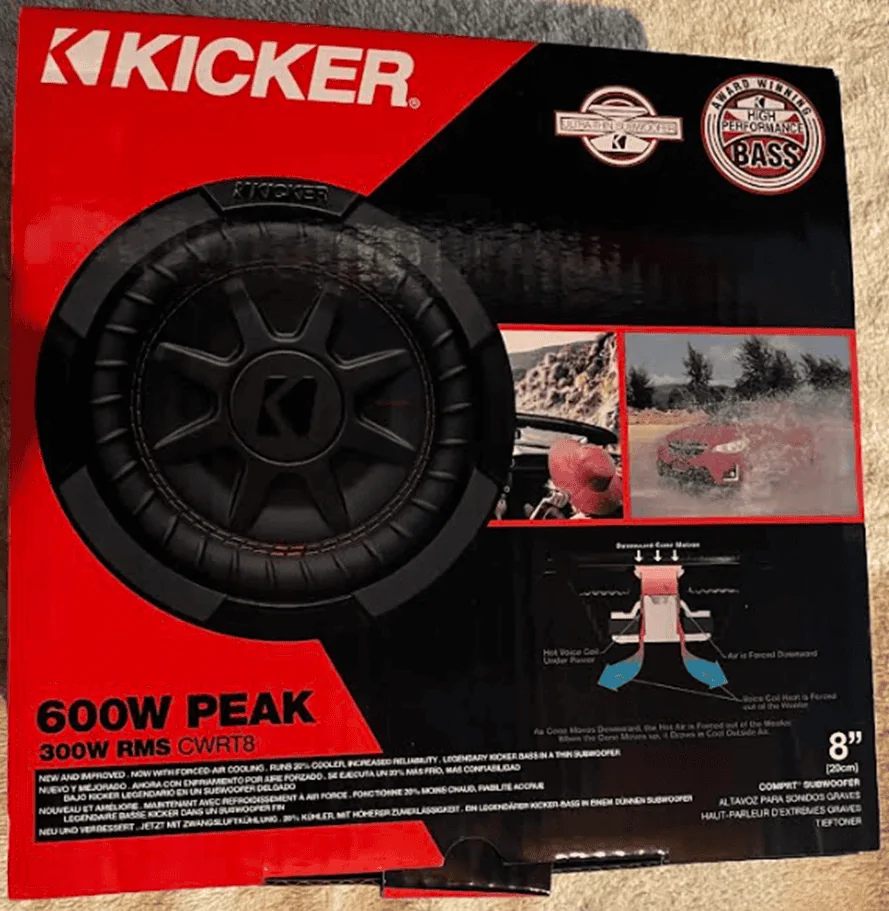

This is the Kicker 8” CompRT sub I purchased:

https://amzn.to/452CQgQ

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887180407


Here is the 6.75” Kicker CompRT sub that fits and requires no modification if that's the route you would rather take:

https://amzn.to/450lJwi


Note: you will still want to upgrade the amp to the Kicker Key 500.1 whether you go with the smaller 6.75” sub or the larger 8” sub or you will not get the power needed to hear a difference in the bass quality.

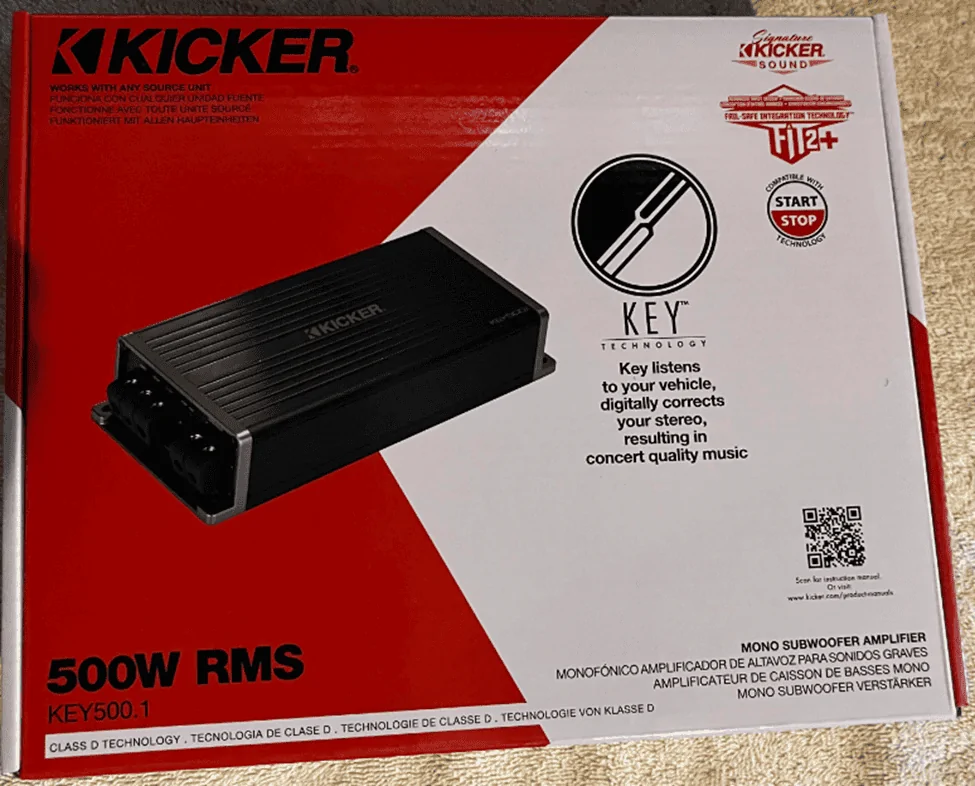

Here is the Kicker Key 500.1 amp I purchased for the sub:

https://amzn.to/3RpT9kQ

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887215527


You will also need to get a remote bass controller to be able to adjust the bass output if you desire. This is optional, but I went ahead and installed it and placed it under the steeling wheel just to the right.

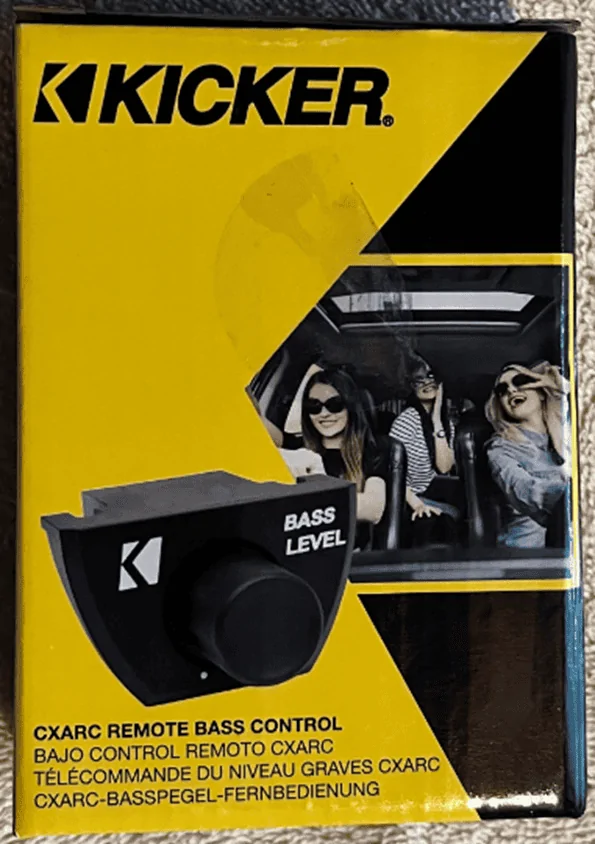

This is the Kicker Remote Bass Controller I purchased:

https://amzn.to/3t0c1wx

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887234525


Regarding the sub installation, you’ll want to go with a thicker gauge wire for powering the amp. I went with the 8 gauge recommendation over the factory 12 gauge. This kit has everything you need, even an inline fuse for added amp protection. Also, make sure you disconnect the battery before you clip the factory wire harness feeding the factory amp (if you have it) because one of the lines is hot. Simply wire nut and tape off the existing factory hot/power line. I did the same for the ground as well.

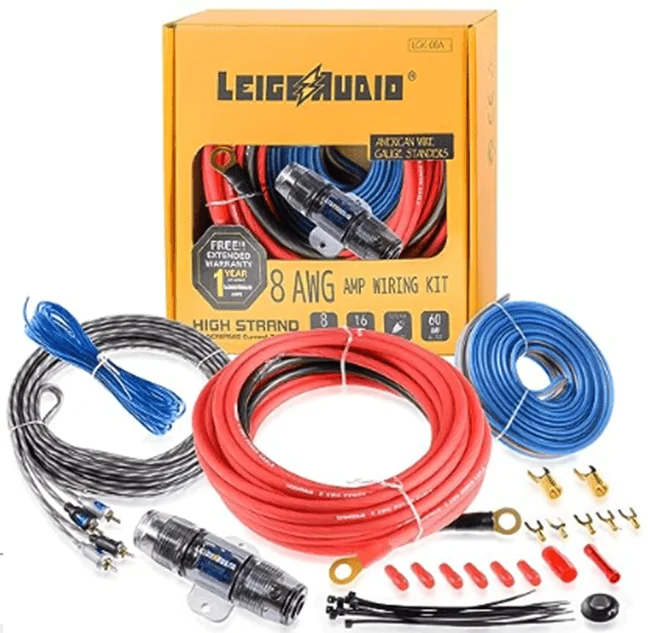

Here is the wiring kit I purchased:

https://amzn.to/3t96cwJ

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887252055


Note: there is a nice spot to connect the ground located above and to the right of the amp/sub panel area where you’ll see an existing ground placement used by the factory.

Lastly, since the overall sound system was at 4 ohms, I connected my sub as shown below for achieving 2 ohms so it could handle the full 500 watts of power from the Kicker Key 500.1 amp.

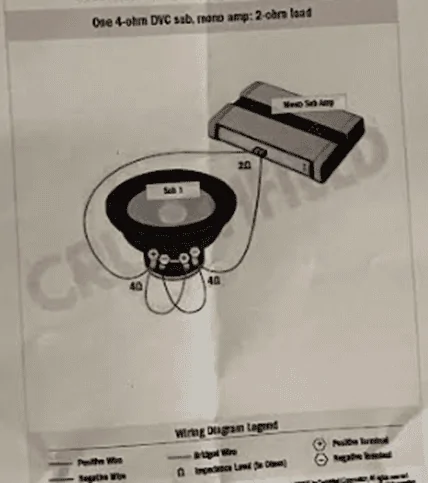

Here is the wiring diagram to go from 4 ohms to 2 ohms:

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887278466


Now I was getting a little more bass, but no where near what I expected. I adjusted both the amp's gain and played around with the FORScan settings (more detail on the FORScan settings below), and still not achieving much bass from the 8" sub and amp. Frustrated, I pulled the trigger to purchase and install the Kicker Key 200.4 amp for all the other speakers, including the rear speakers where the sub speaker inputs are coming from. This step did the trick and I was literally getting some great sound from all the speakers and really good bass from the sub.

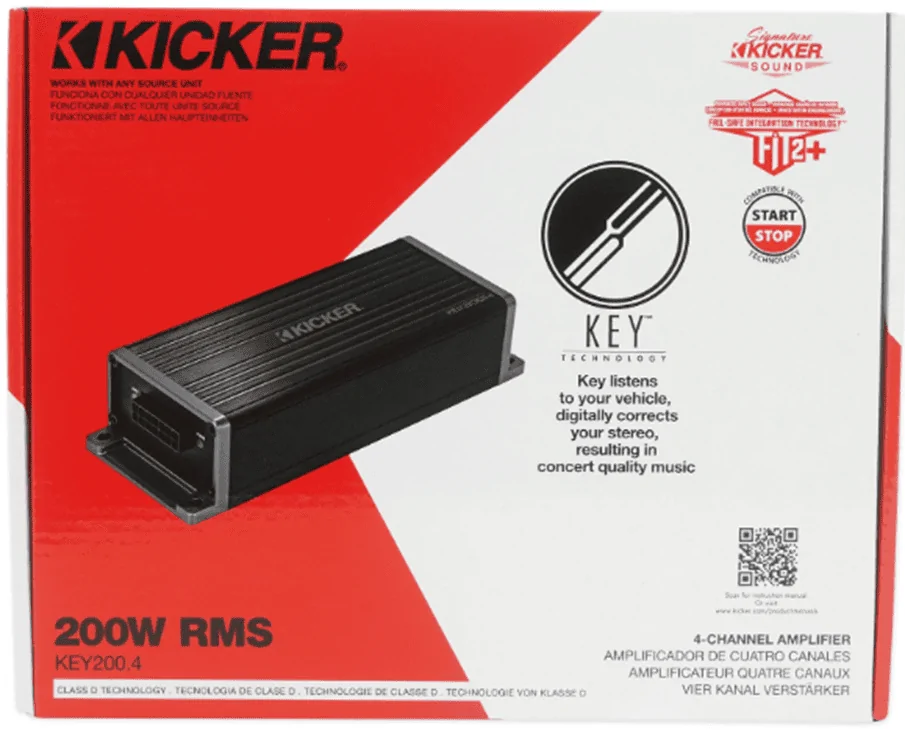

Here is the Kicker Key 200.4 amp I purchased:

https://amzn.to/3ZugGTS

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887303265


With the Kicker Key 200.4 amp, I recommend getting a plug n play wiring harness kit specifically for your Bronco. I purchased my wiring harness kit from https://plugnplaykits.com/

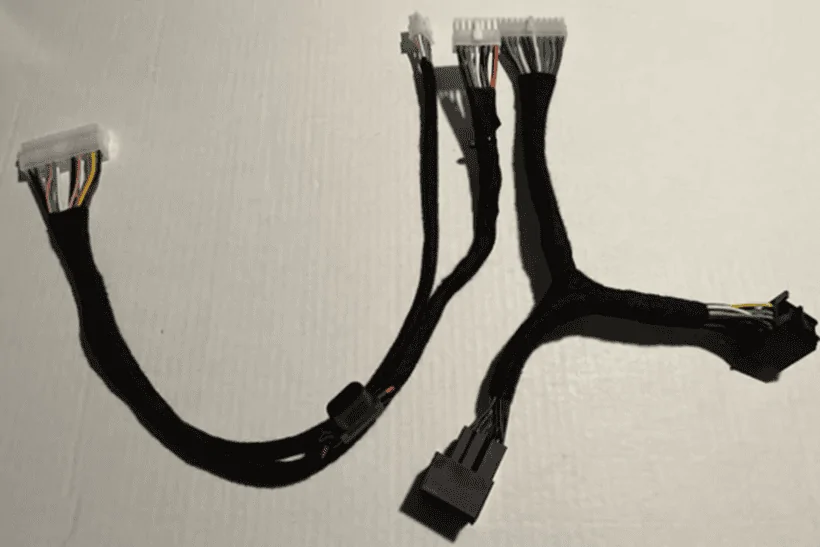

Here is the Kicker Key 200.4 wiring harness I purchased specifically made for the Bronco, which is Kit 11-1

Note: note shown in the picture, but the kit comes with all the additional power wiring: hot, ground, and fuse!

https://plugnplaykits.com/products/...y-audio-harnesses-kits?variant=41157659852990

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887326832






Now that you have all speakers upgraded, including the sub, and you now have two amps, one powering the sub in the back, and one powering the other 6 speakers, it’s now time to adjust your FORScan computer settings. You’ll need to get the recommended adaptor that plugs into your laptop to make the changes. You will also need to download the free software on your laptop at: https://forscan.org/download.html

Here is the recommended adaptor I purchased:

https://amzn.to/3RuzDU8

Ford Bronco 2023 Bronco Total Speaker Upgrade Notes 1694887353019


Finally, the FORScan settings I used for the ACM Module were:

First line in the ACM module series: 727-01-01

The Hex String: xxXX – XXxx – xxxx

I only adjusted the capital X’s above. I left the lower case x’s at their default settings. I am merely using a lowercase “x” and a capital “X” for sequence illustration purposes.

The last two capital XX’s in the first group box I changed to: 03

This sets the settings to read [Speaker/Speaker] for your driver side and passenger side kick panel and dash speakers to get full power.

The first two capital XX’s in the second group box I changed to: 02

This sets the settings to read [Speaker/Speaker & Sub] for your driver side and passenger side rear pod speakers and sub to get full power.

Note: If for some reason you are not getting any sound from your sub, you can try setting to: 0E

This sets the settings to read [Speaker/Sub Only] for your driver side and passenger side rear pod speakers and sub.

*** UPDATE ***
I overlooked one critical step and setting to my overall setup with having the Kicker Key 200.4 installed and that is turning off the factory EQ within FORScan. OMG! what an improvement that one simple setting made! This is now a must do and I highly recommend doing so!!


Here are the settings for turning off the factory EQ:

Second line in the ACM module series: 727-01-02

The Hex String: xxXX – xxxx – xxxx

The last two capital XX’s in the first group box I changed to: 00

This sets the settings to read [EQ Off]

Note: To turn the EQ back on simply change the setting back to: 01

-----------------------------------

Now that everything is completed and installed from all the above recommendations, what an overall noticeable sound quality improvement. Just wow! I’m getting some amazing bass and the clarity of the music is so clear and clean. What I observed is if you do not install the Kicker Key 200.4 amp you will not get the power you need to fully access the wattage from all the new Kicker speakers you upgraded to and send enough power to the sub amp's speaker input.

In summary, I tried to layout out as much as possible my approach and process. That said, I really could not just replace a speaker here and there and not get an amp or amps in order to get the sound I was looking for and wanted that provided enough bass and kick. Therefore, skip the slow cutting corners approach like I originally did and go all in, otherwise, you’ll eventually get there like I did. Order it all at one time and allow yourself a day to install and tweak at your own pace.

Order summary:

[Pair of Kicker CS 4” dash speakers, Pair of Kicker CS 6.75” Kicker speakers, Pair of 6.5” new Pods, Pair of 6.5” Kicker CS speakers, one 8” Kicker CompRT Sub or one 6.75 CompRT sub depending on whether you want to do any modifications, one Kicker Key 200.4 amp, one Kicker Key 500.1 amp, a Plug and Play wiring harness for the Kicker Key 200.4 amp, Power/Ground wiring kit for the Kicker Key 500.1 amp, Kicker Remote Bass Controller, and a FORScan adopter]…and don’t forget to wire your sub from 4 ohms down to 2 ohms so you get the max 500 watt output from your amp to your sub!

Here are a few recommended YouTube videos to watch for making this upgrade and how to remove panels, etc. Tremendous help, so I wanted to say thanks and give credit to these folks for their helpful videos!!

From @RagnarKon

Sub Upgrade


Speaker Upgrade


FORScan




From Jacob Doty
