Installed an icon 3” lift on my badlands Sasquatch.

This was my first time really digging into my car to do a somewhat major modification. I have to say it was fun to get in there and see how everything works and is put together no matter how much of a pain in the ass it was to install.

I really love how it turned out. I do rub at near full lock only in reverse on the rear crashbar mount and fender liner. I’ll have to get back in there with a Sawzall when I get time.

Going to install Broncbuster stuff tomorrow then hit the trails this weekend. Might end up trashing the fenders. Oh well, just gives me an excuse to buy new ones (hopefully that’s not the case though).

My build so far:
Icon 3” lift and tubular F&R control arms
37x12.5 KM3s
17x8.5 -15 Fuel Slayers
Hammerbuilt Tailgate reinforcement
Xpel Stealth PPF
Diode dynamics SS3 pro ditch lights
Diode dynamics SS3 and SSC2 sport fogs
Jb4 piggyback tuner
Whipple Filter
Broncbuster steering rack housing
Broncbuster bushing and braces
Dv8 shock skids and diff skid
3” custom axle-back exhaust system

Update: Added Rampage Trailview fastback soft top

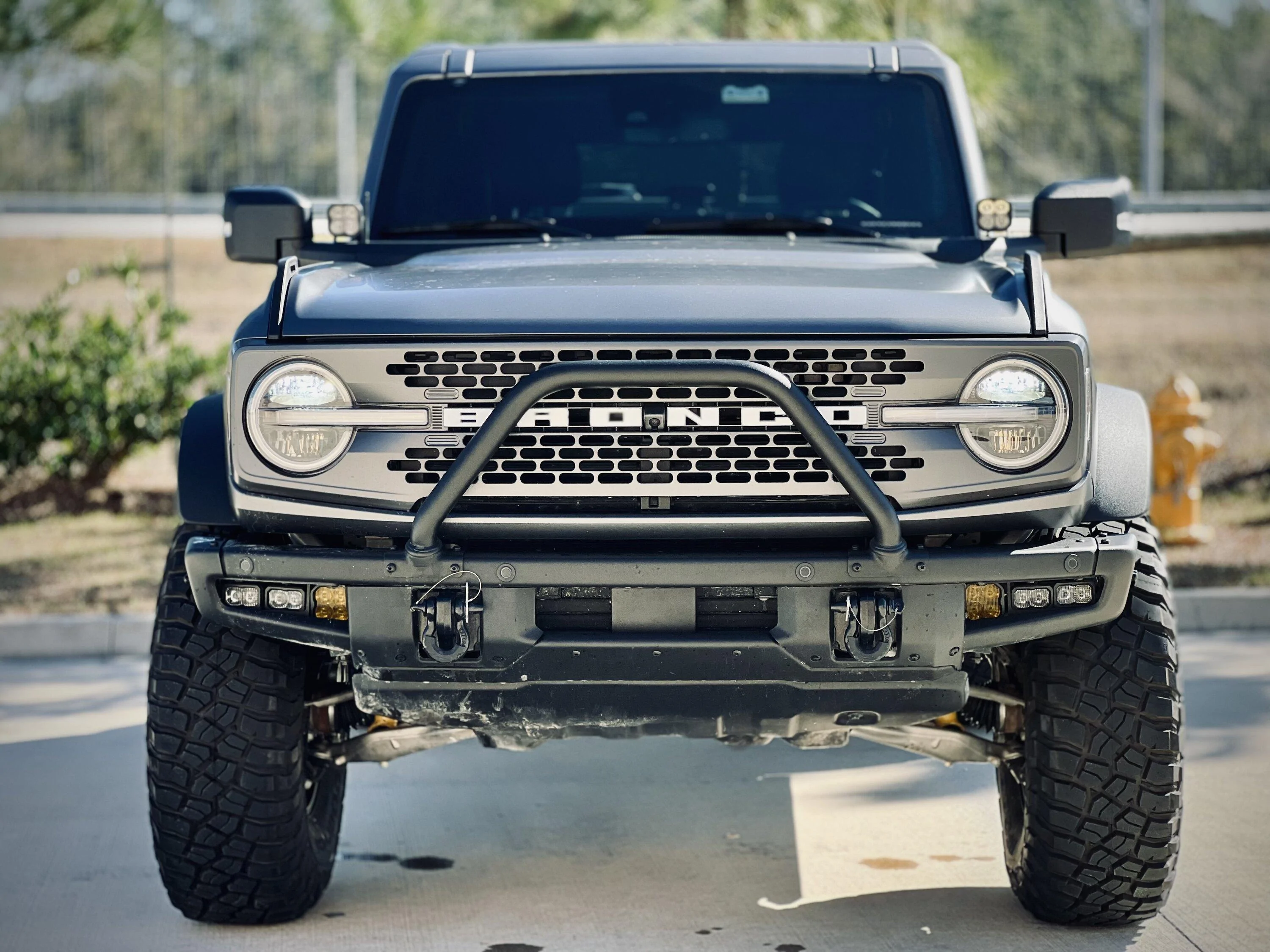

Ford Bronco 2dr Badlands 3” lift and 37s build C17E99C7-D4E2-4DD9-83E1-2BB8B302820A

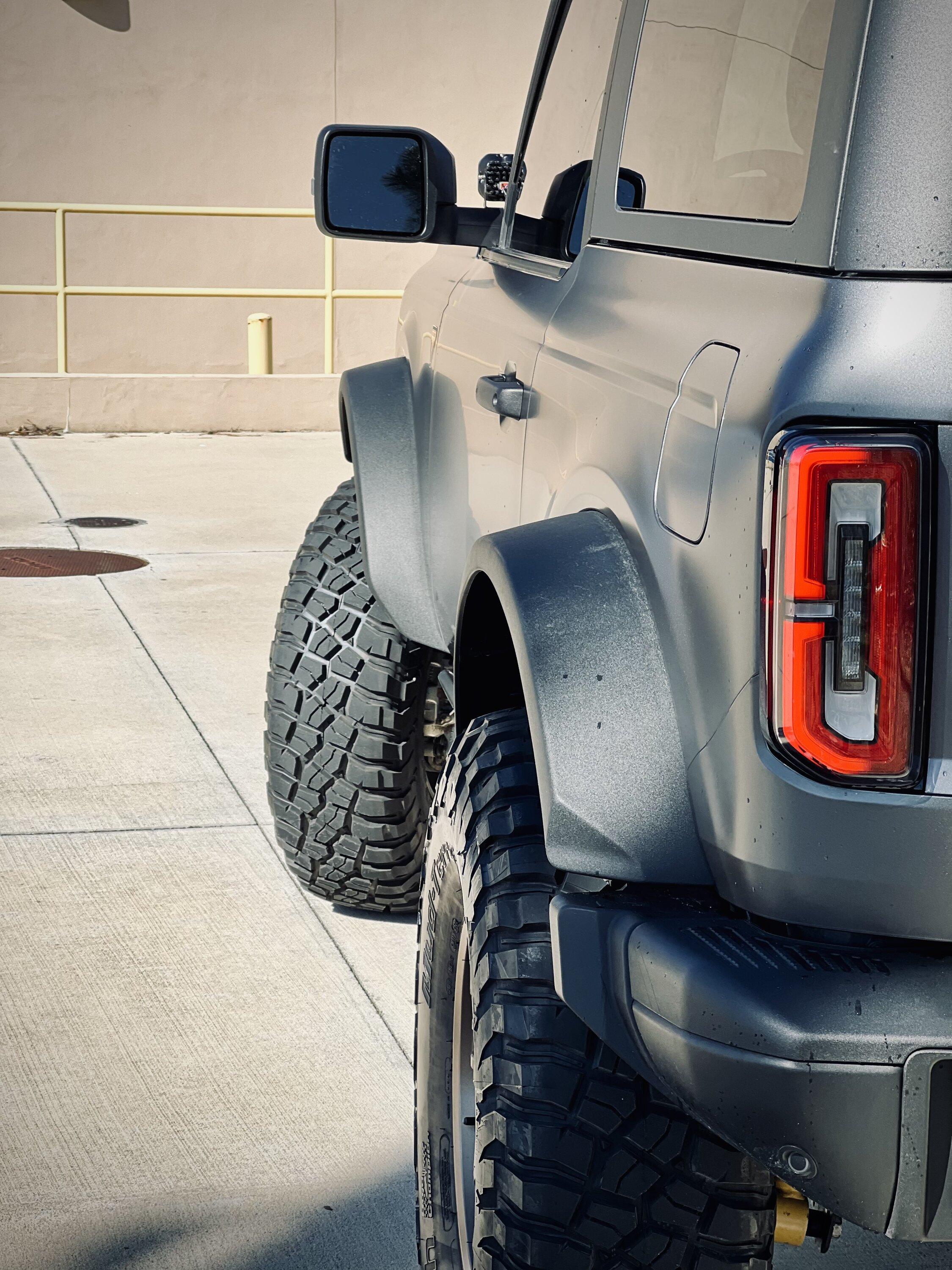

Ford Bronco 2dr Badlands 3” lift and 37s build 6972D21C-A933-4206-B04F-067F2F907CB1


Ford Bronco 2dr Badlands 3” lift and 37s build F535938B-81E9-4173-943D-FF70F26D7D23


Ford Bronco 2dr Badlands 3” lift and 37s build BA3809C6-CFD6-4A54-8917-6FE8FD0B1AE0

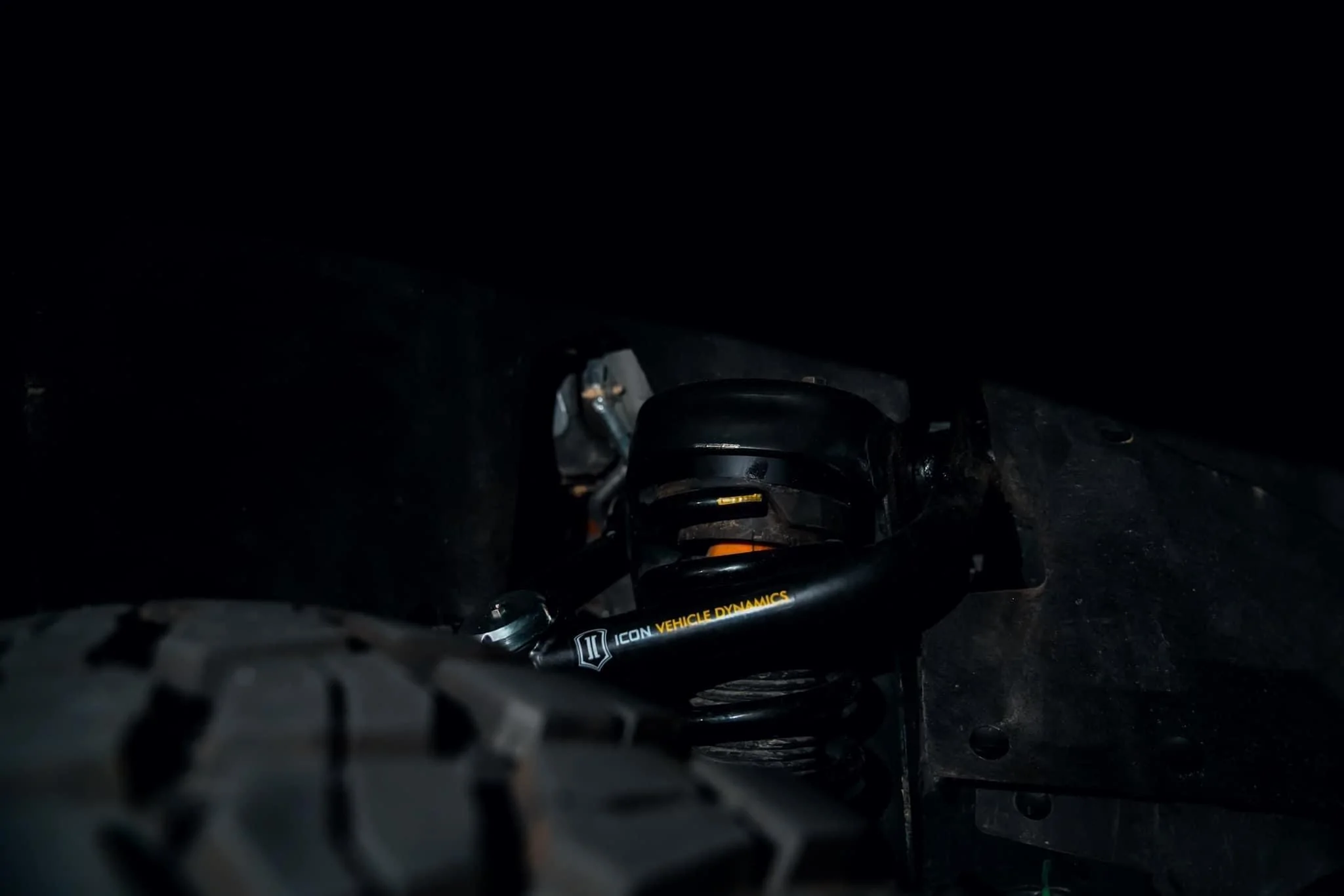

Ford Bronco 2dr Badlands 3” lift and 37s build 30091F43-0B6D-4E37-93D3-176500146471
