Hey everyone,

I thought I would share a couple of versions of an accessory mounting point / handle delete I designed and printed for the center console grab handle.

I have been looking to make a forged carbon part and thought this might be something cool to try it on (I know, totally unnecessary but hey). A 3d model that I liked was the first step in the process.

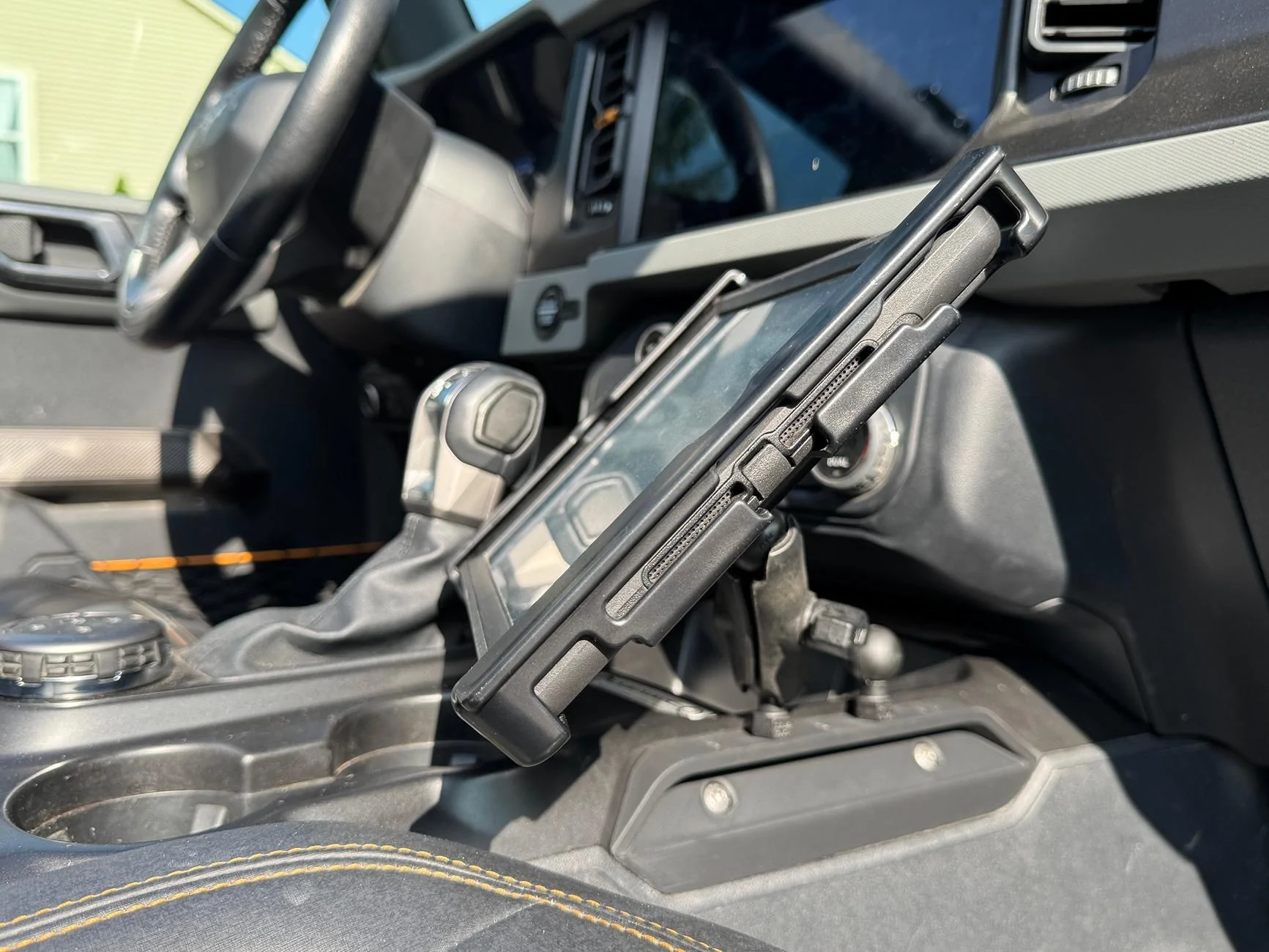

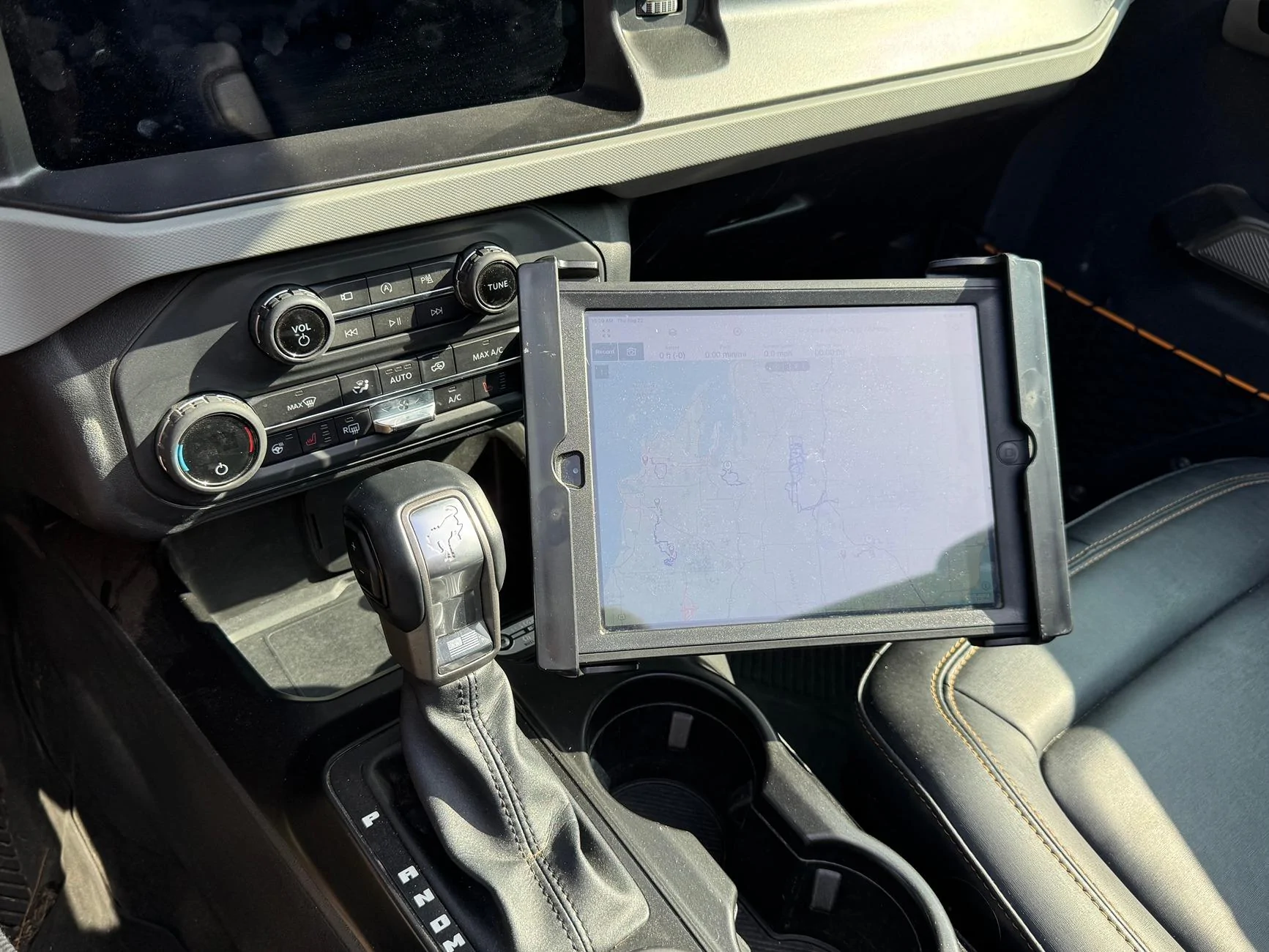

This took more revisions than I care to think about, but I am pretty happy with the part/console fit and the functionality it adds. I used this on a recent trip to northern Michigan and it held my iPad mini which I used to display my Gaia maps. It got bumped around pretty good and I was surprised at how well it held up.

I learned all my modeling skills from Youtube University so even though my Fusion 360 file might be a bit of a mess, I shared it on Makerworld for those who want to change up the model some. If you do, please just post a remix so everyone else can benefit.

For those who want to print them, here are the links to the files on Makerworld:

Version 1

Version 2

Note: Due to the shape of the object I have had difficulty getting a print that does not have some stringing on the back without using a short layer height. I did not spend a TON of time trying to tweak the printer settings so others might be able to get better results.

Brian


V1

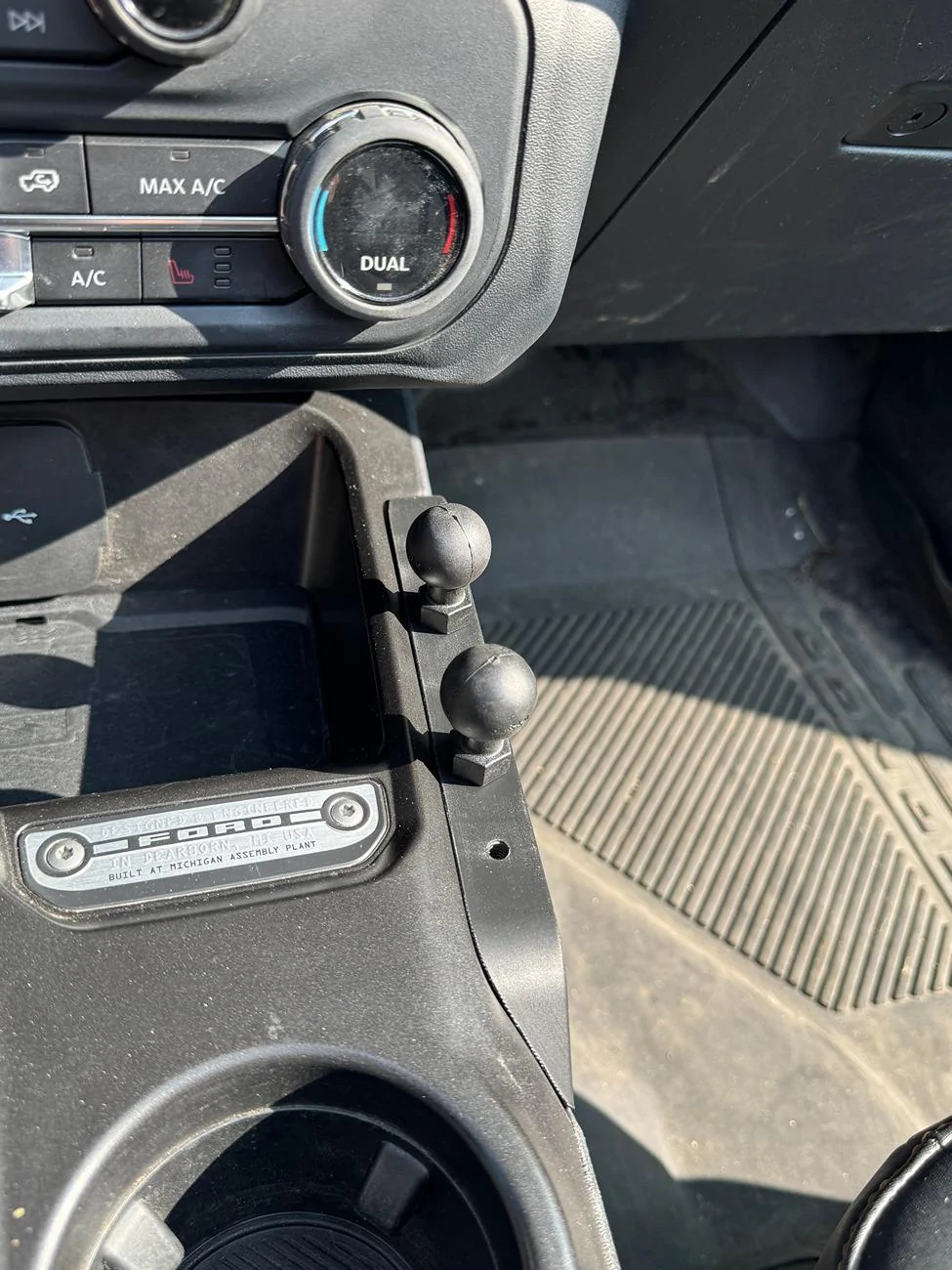

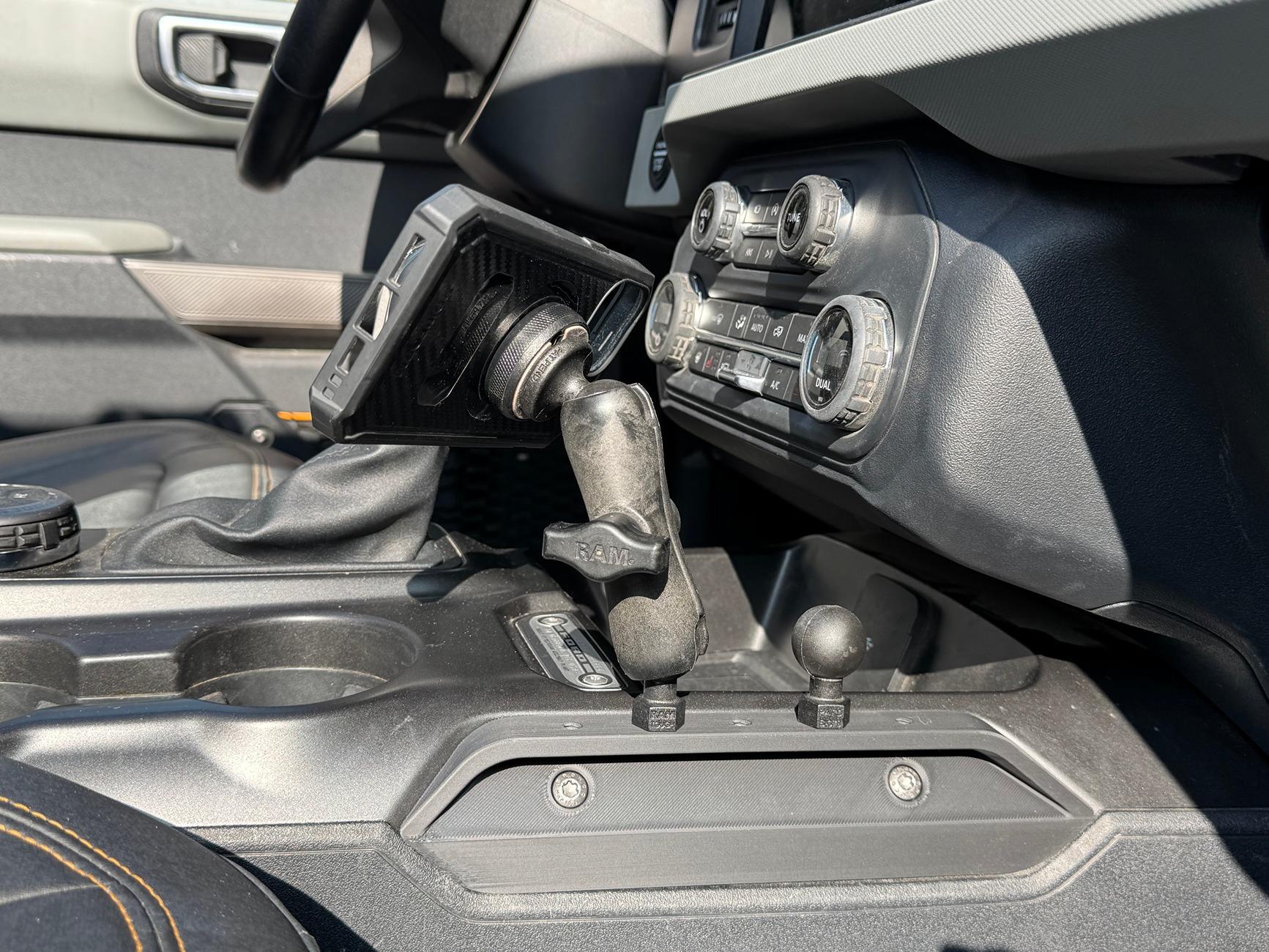

Ford Bronco 3D Printed Grab Handle Accessory Mount V1_5911


V2

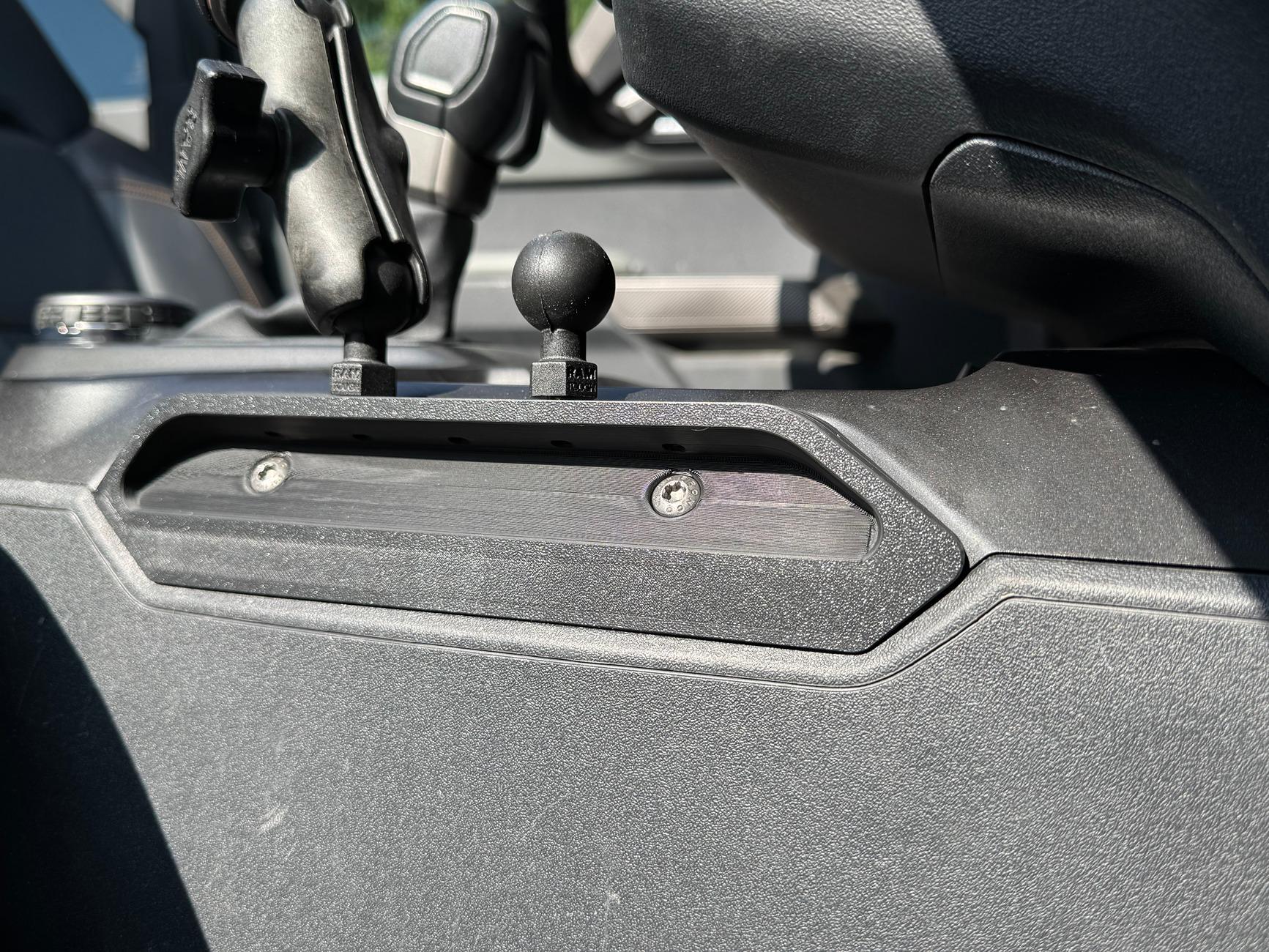

Ford Bronco 3D Printed Grab Handle Accessory Mount V2_5922


Ford Bronco 3D Printed Grab Handle Accessory Mount V1_5914
Ford Bronco 3D Printed Grab Handle Accessory Mount V1_5915
Ford Bronco 3D Printed Grab Handle Accessory Mount V1_5918
