This is blatantly copied off of a previous post here that was removed.

Issues and/or things others should change:

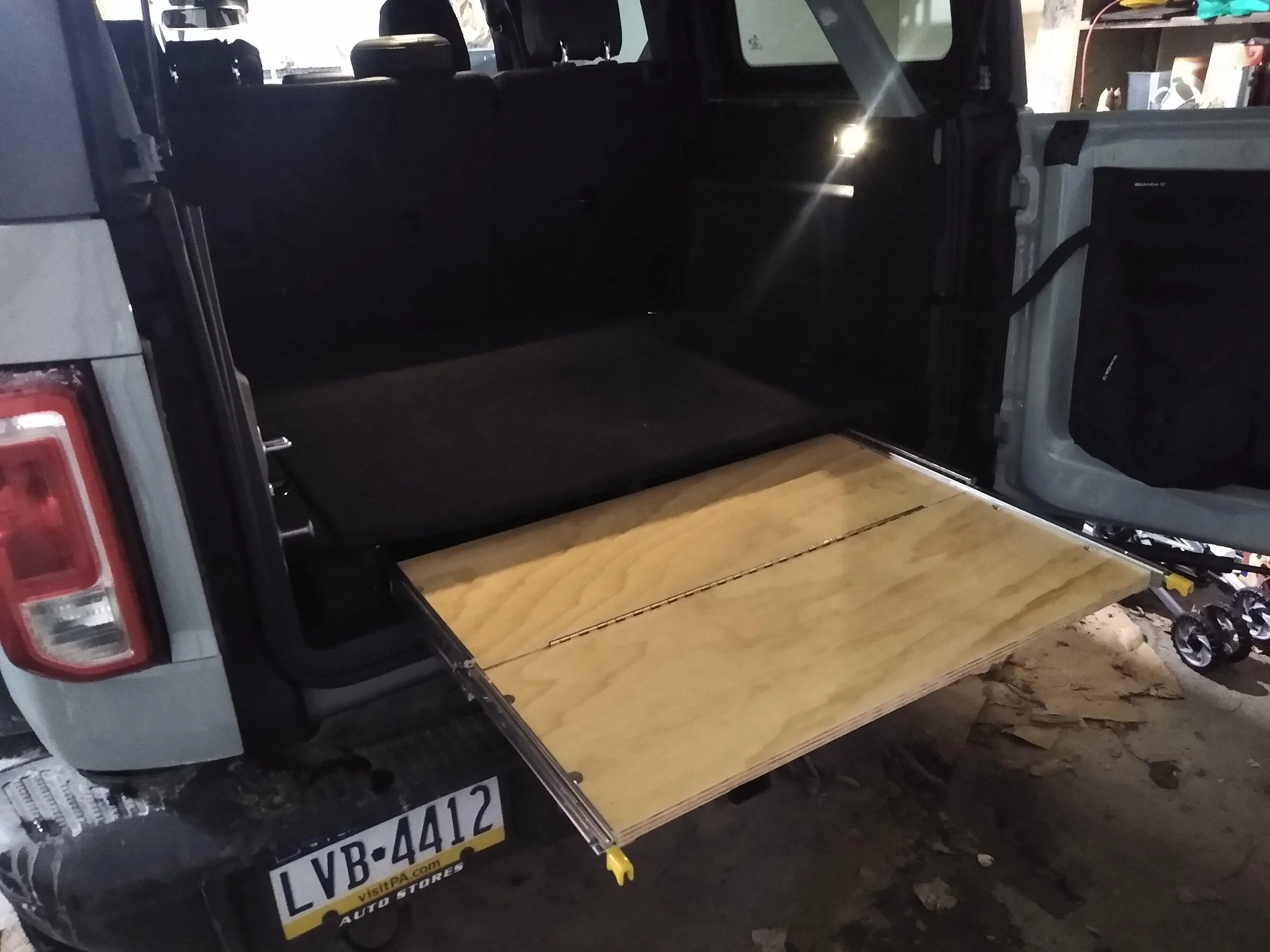

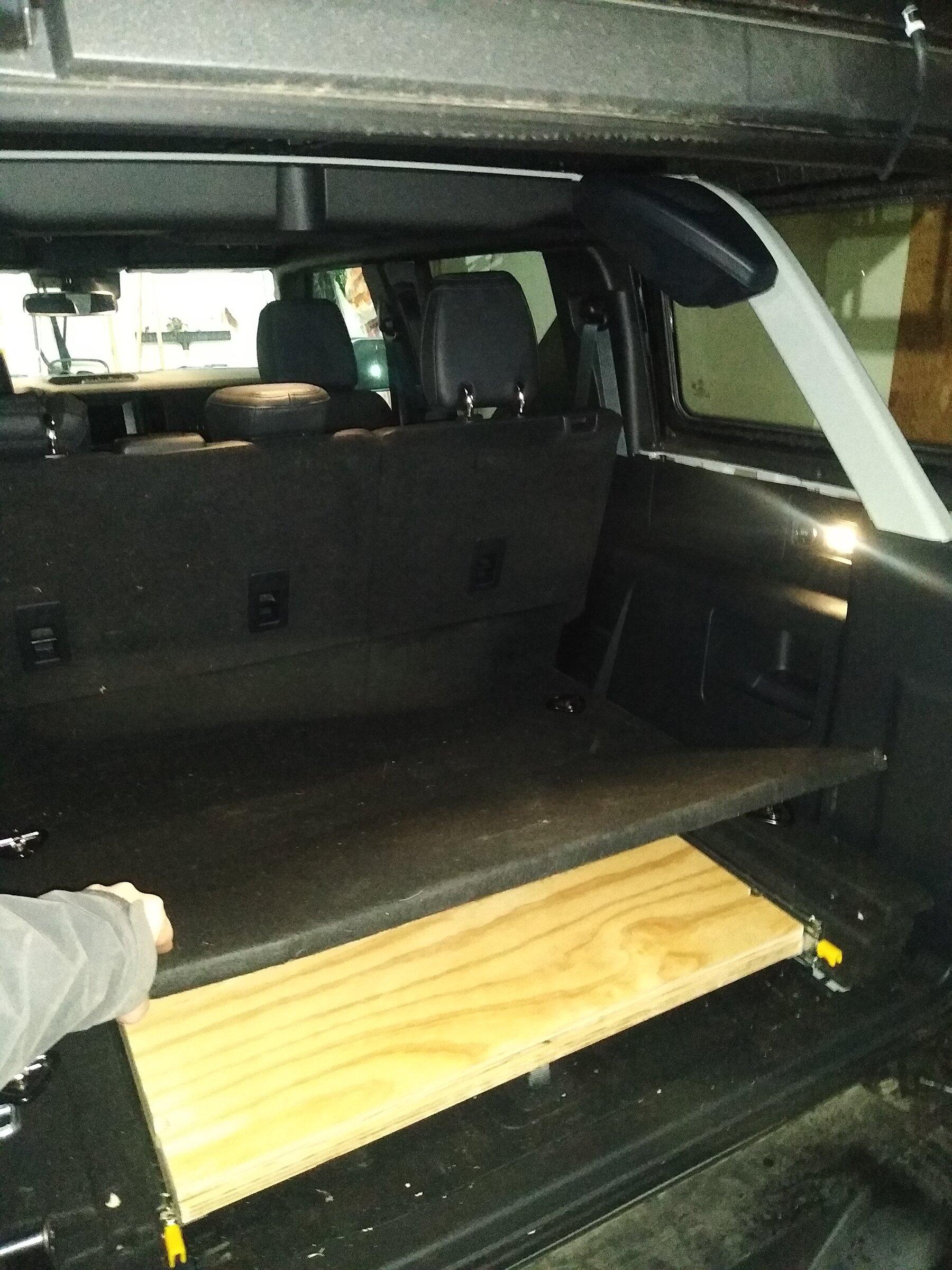

Top lid doesn't open far (pictured). I can access things for now, so I'll live with it. I wanted to avoid a large gap so I'm stuck with it like this. I wish I had put a big chamfer on the mating pieces to allow it to open further.

The tiedowns hardware isn't sexy. I need to find something better eventually.

The 3/4 plywood bench is fine, I can sit on it. I will eventually replace it with 4/4 hard maple.









Advertisement


2Jeeps&PatriotX1

Badlands
Well-Known Member
Joined
Jul 23, 2020
Threads
10
Messages
2,107
Reaction score
3,126
Location
Denver, CO
Vehicle(s)
'21 Bronco, ‘05 LJ & ‘17 F150
Your Bronco Model
Badlands
Whats the overall height of the platform? Looks like it sits pretty flush with rear seats?

OP
OP

Techun

Black Diamond
Well-Known Member
First Name
Brian
Joined
Jul 28, 2020
Threads
5
Messages
729
Reaction score
1,788
Location
Pa
Vehicle(s)
BD, 2.7, MIC, 4dr
Your Bronco Model
Black Diamond
Whats the overall height of the platform? Looks like it sits pretty flush with rear seats?

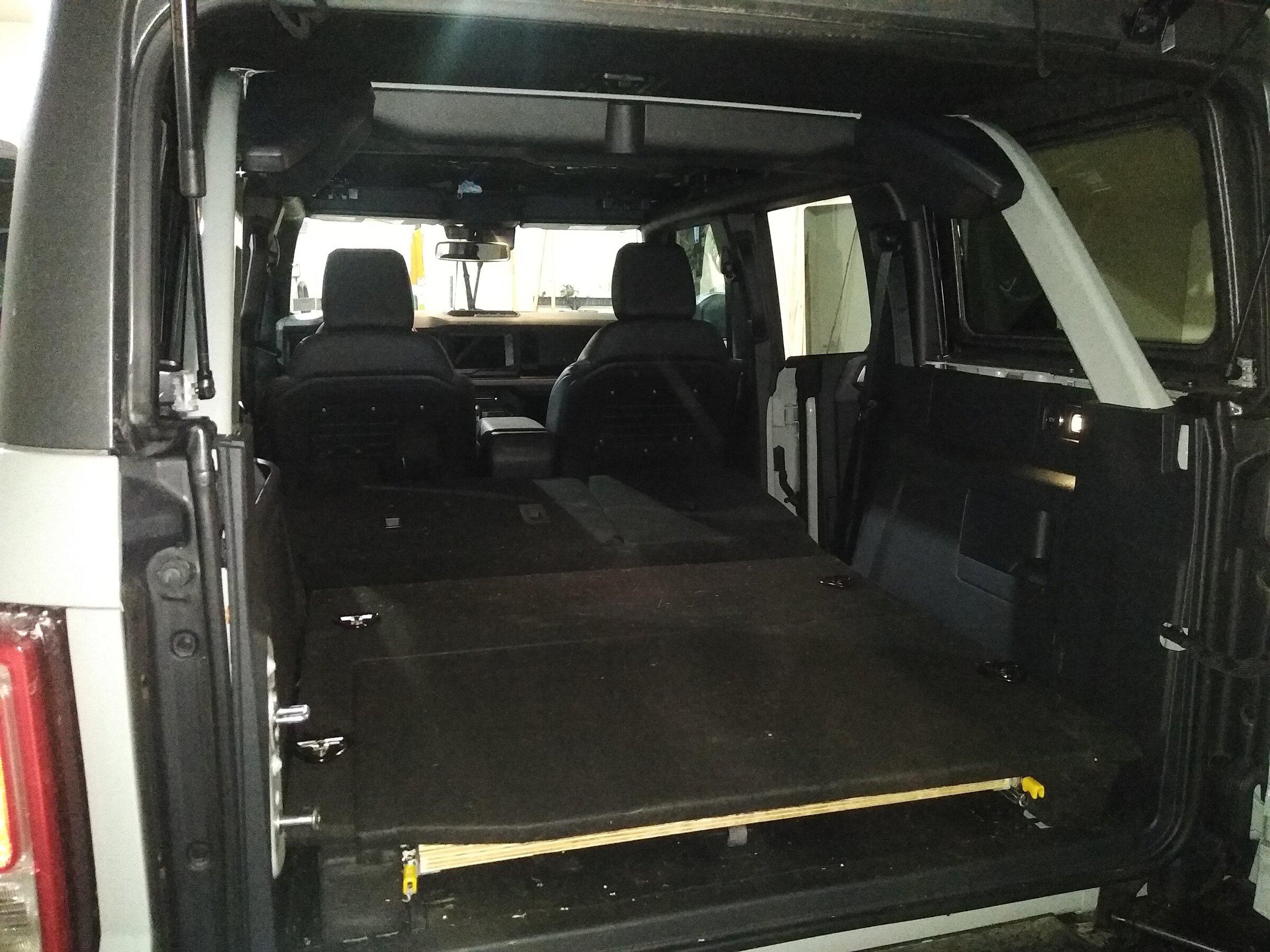

The bottom supports are two 2x4s glued and screwed together. Then 3/4 ply on that. Plus 4 layers of carpet, so a little over 4.25".

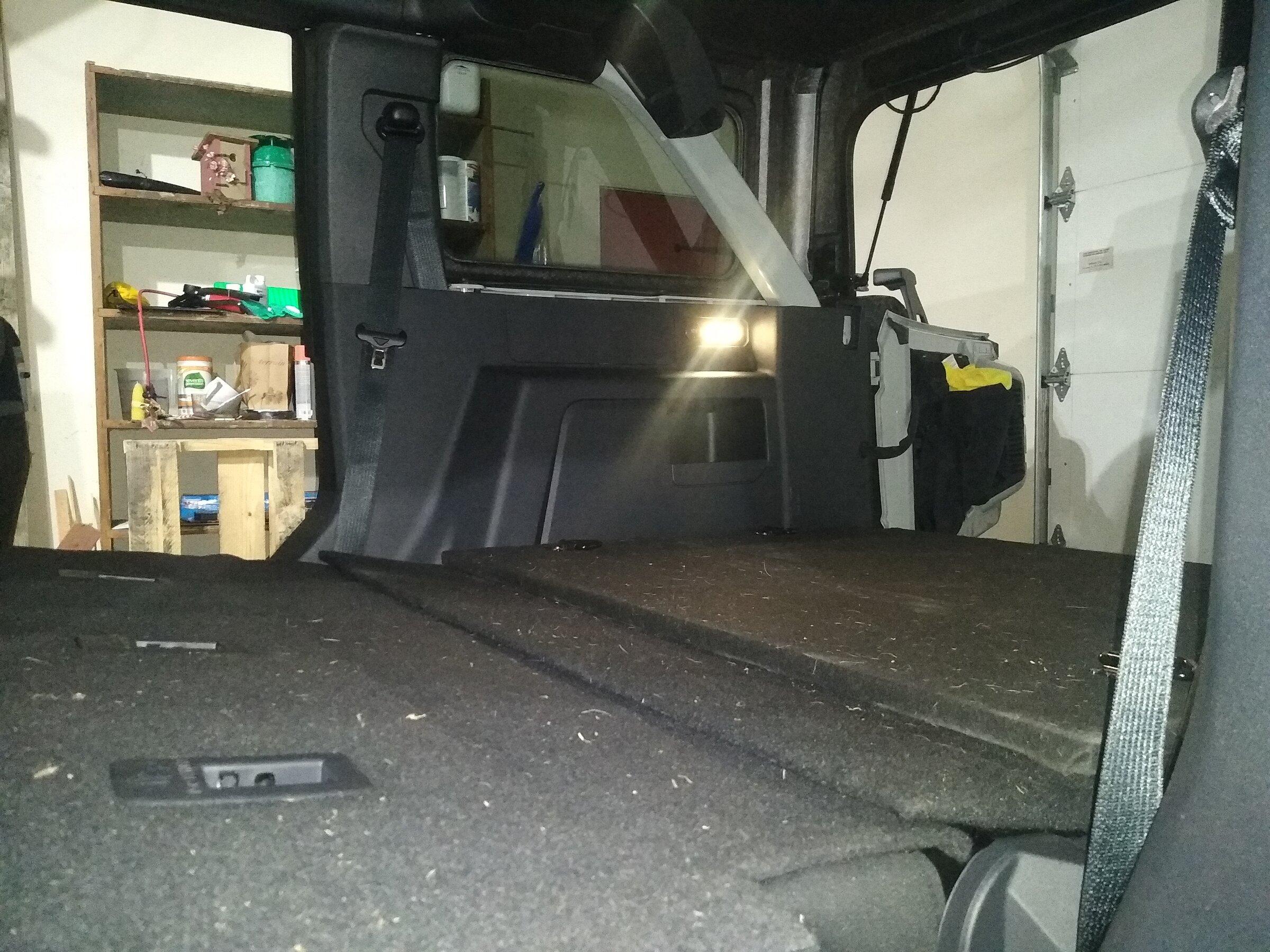

You can make the top platform lower and smaller and try and have it line up with the top of the plastic hump, or go larger and over the hump like me. This is pretty good, if you had something like a sleeping pad you may not notice the ledge. Or for hauling items, since the seat backs slope up anyway this lines up pretty well.

OP
OP

Techun

Black Diamond
Well-Known Member
First Name
Brian
Joined
Jul 28, 2020
Threads
5
Messages
729
Reaction score
1,788
Location
Pa
Vehicle(s)
BD, 2.7, MIC, 4dr
Your Bronco Model
Black Diamond

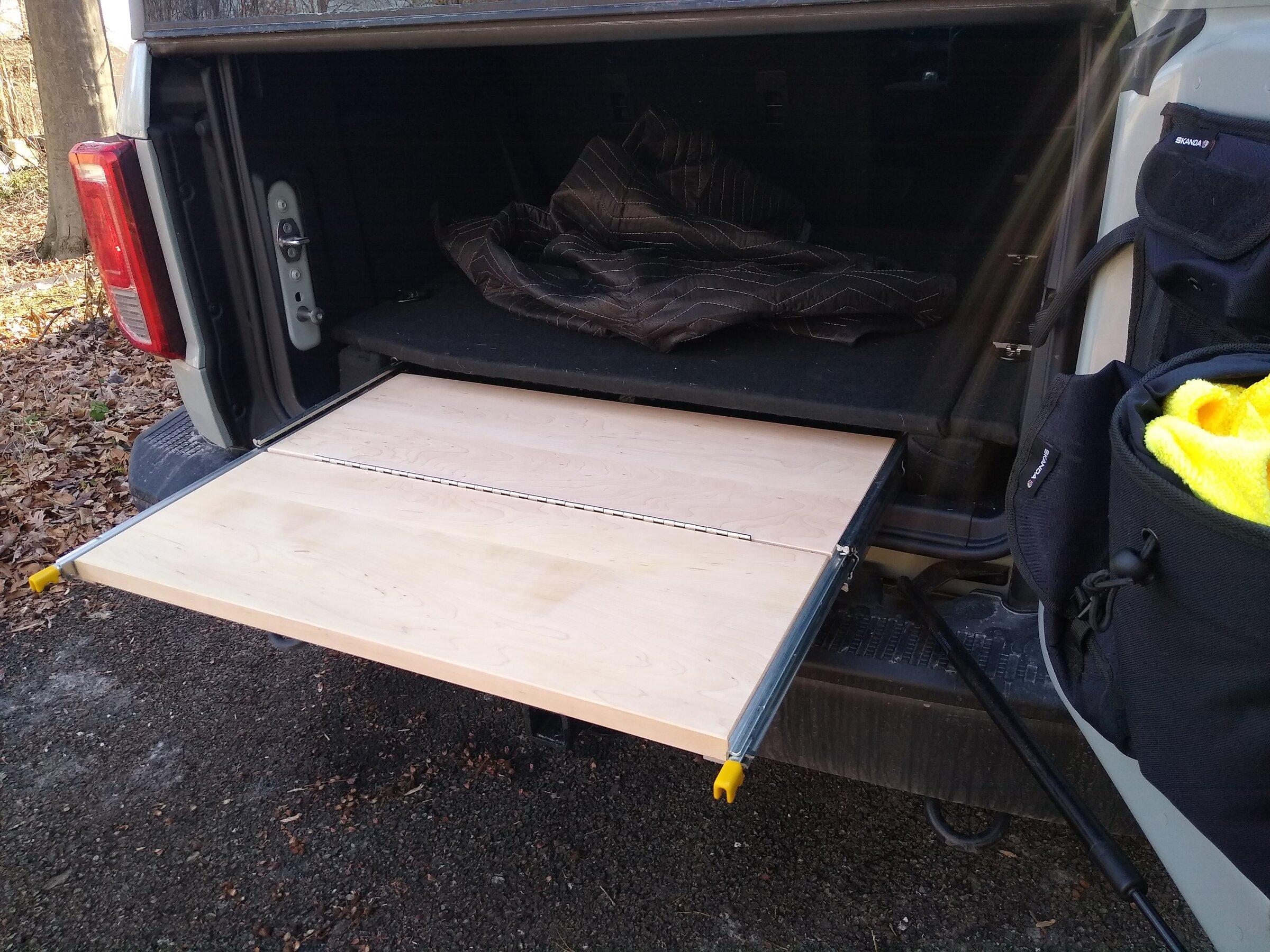

Updated with 1" thick maple. No deflection now, I would recommend over plywood.
