Worked up an rear antenna mount thought I would share.

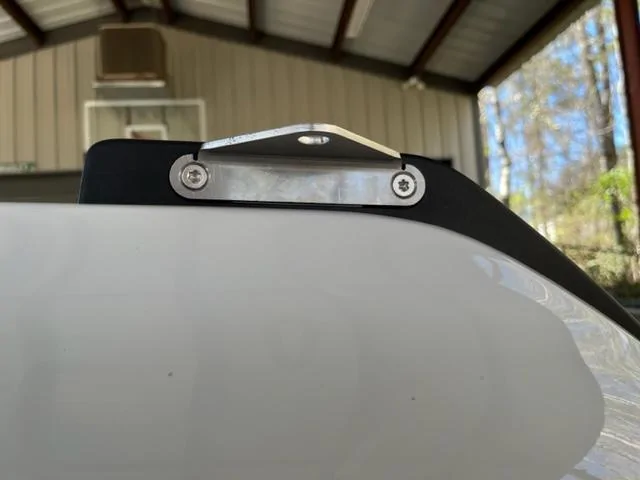

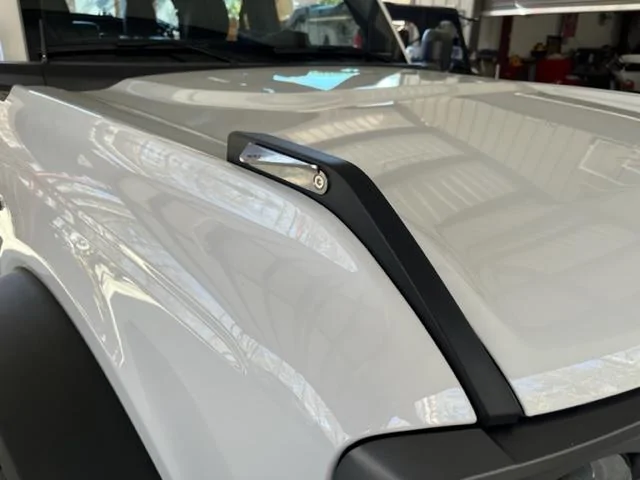

Bought a Jeep rear tire mount of amazon. Bolt holes were way off as I expected. So did some cutting. After getting it on I realized the tire sat too far back for the antenna to fit. So a 1 inch wheel spacer on the rear tire carrier did the trick. Pics of the interesting parts below. Added measurements of the bracket I modified incase someone wants to make their own
