Antenna mount for CB/GMRS/HAM

Mattwings

Badlands
Well-Known Member
First Name
Matthew
Joined
Jul 29, 2020
Threads
43
Messages
2,693
Reaction score
8,385
Location
Northville, MI
Vehicle(s)
2021 Badlands Bronco
Your Bronco Model
Badlands
Clubs

Worked up an rear antenna mount thought I would share.

Bought a Jeep rear tire mount of amazon. Bolt holes were way off as I expected. So did some cutting. After getting it on I realized the tire sat too far back for the antenna to fit. So a 1 inch wheel spacer on the rear tire carrier did the trick. Pics of the interesting parts below. Added measurements of the bracket I modified incase someone wants to make their own





























Nicely Done!
Sponsored



Pugsly

Outer Banks
Well-Known Member
First Name
Brian
Joined
Jan 24, 2022
Threads
7
Messages
192
Reaction score
303
Location
Clayton, DE
Vehicle(s)
2014 Ford Fusion
Your Bronco Model
Outer Banks
Clubs

Got mine installed today while doing my tailgate table.
Ford Bronco Antenna mount for CB/GMRS/HAM 0812F5E8-18F9-42D3-AD5D-17F5C071B6D4


cybercoaster

Badlands
Well-Known Member
First Name
Kevin
Joined
Jul 15, 2020
Threads
0
Messages
79
Reaction score
217
Location
Oklahoma
Vehicle(s)
Bronco reserved
Your Bronco Model
Badlands
Clubs

You have a wheel spacer on that? I got mine all mounted and hooked up, jiffy have not put the spare back in yet sad I need a wheel spacer I assume.


Pugsly

Outer Banks
Well-Known Member
First Name
Brian
Joined
Jan 24, 2022
Threads
7
Messages
192
Reaction score
303
Location
Clayton, DE
Vehicle(s)
2014 Ford Fusion
Your Bronco Model
Outer Banks
Clubs

You have a wheel spacer on that? I got mine all mounted and hooked up, jiffy have not put the spare back in yet sad I need a wheel spacer I assume.
No spacer, it’s stock outer banks 18in wheel and tire.


SCTWNB

Badlands
Well-Known Member
First Name
Scott
Joined
Nov 6, 2021
Threads
2
Messages
117
Reaction score
104
Location
Newport Beach
Vehicle(s)
Cadillac Escalade
Your Bronco Model
Badlands
Worked up an rear antenna mount thought I would share.

Bought a Jeep rear tire mount of amazon. Bolt holes were way off as I expected. So did some cutting. After getting it on I realized the tire sat too far back for the antenna to fit. So a 1 inch wheel spacer on the rear tire carrier did the trick. Pics of the interesting parts below. Added measurements of the bracket I modified incase someone wants to make their own

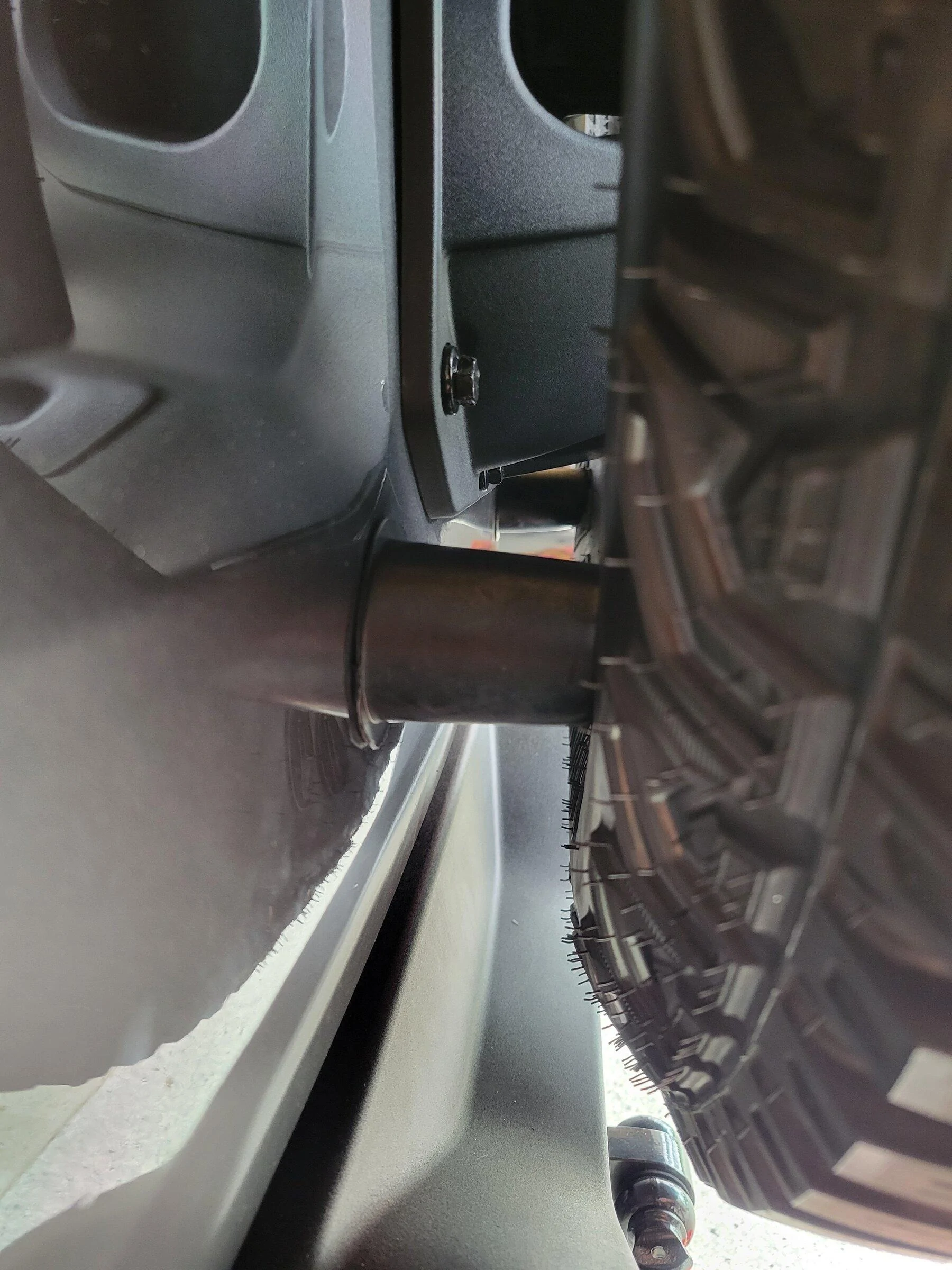

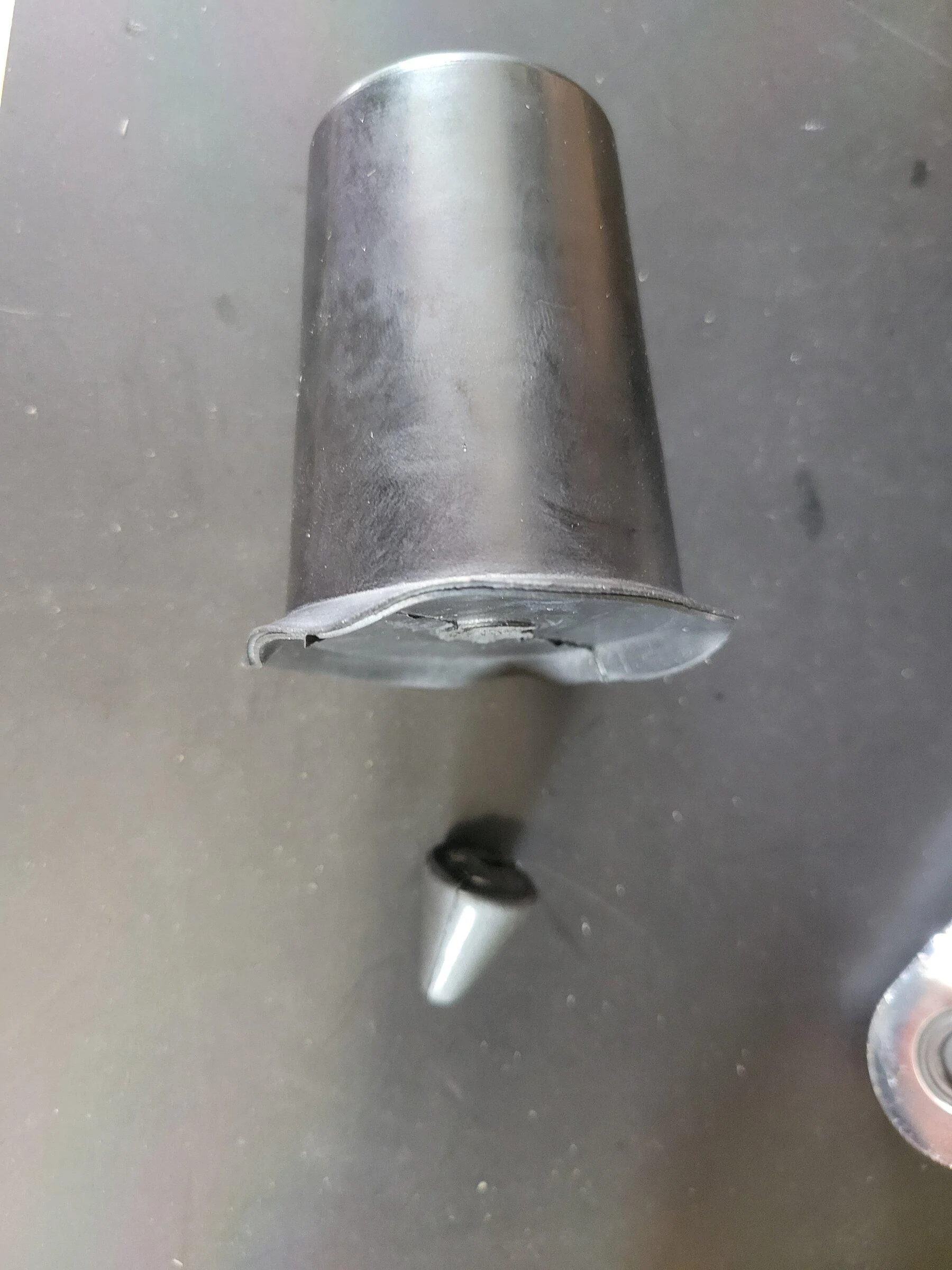

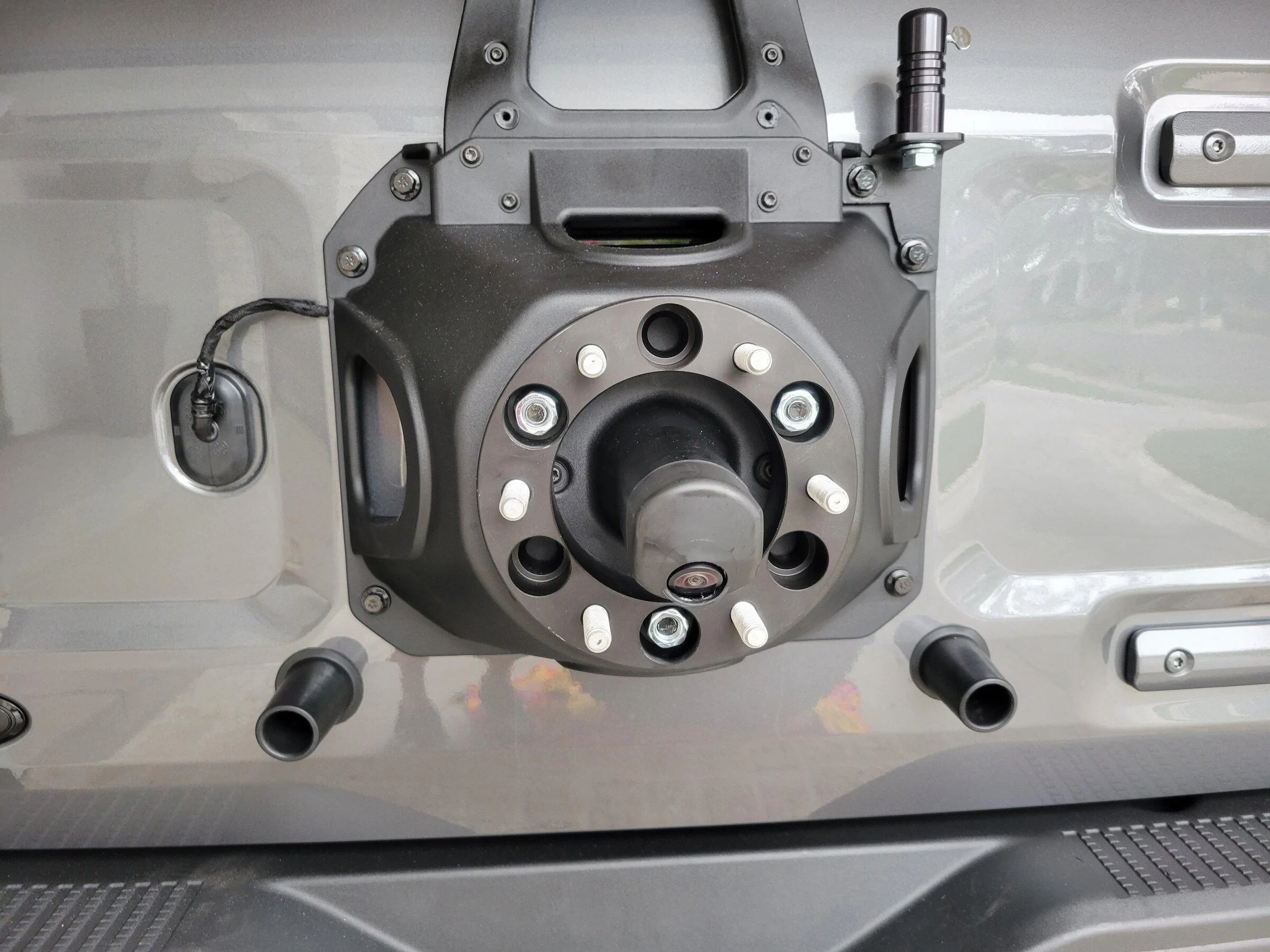

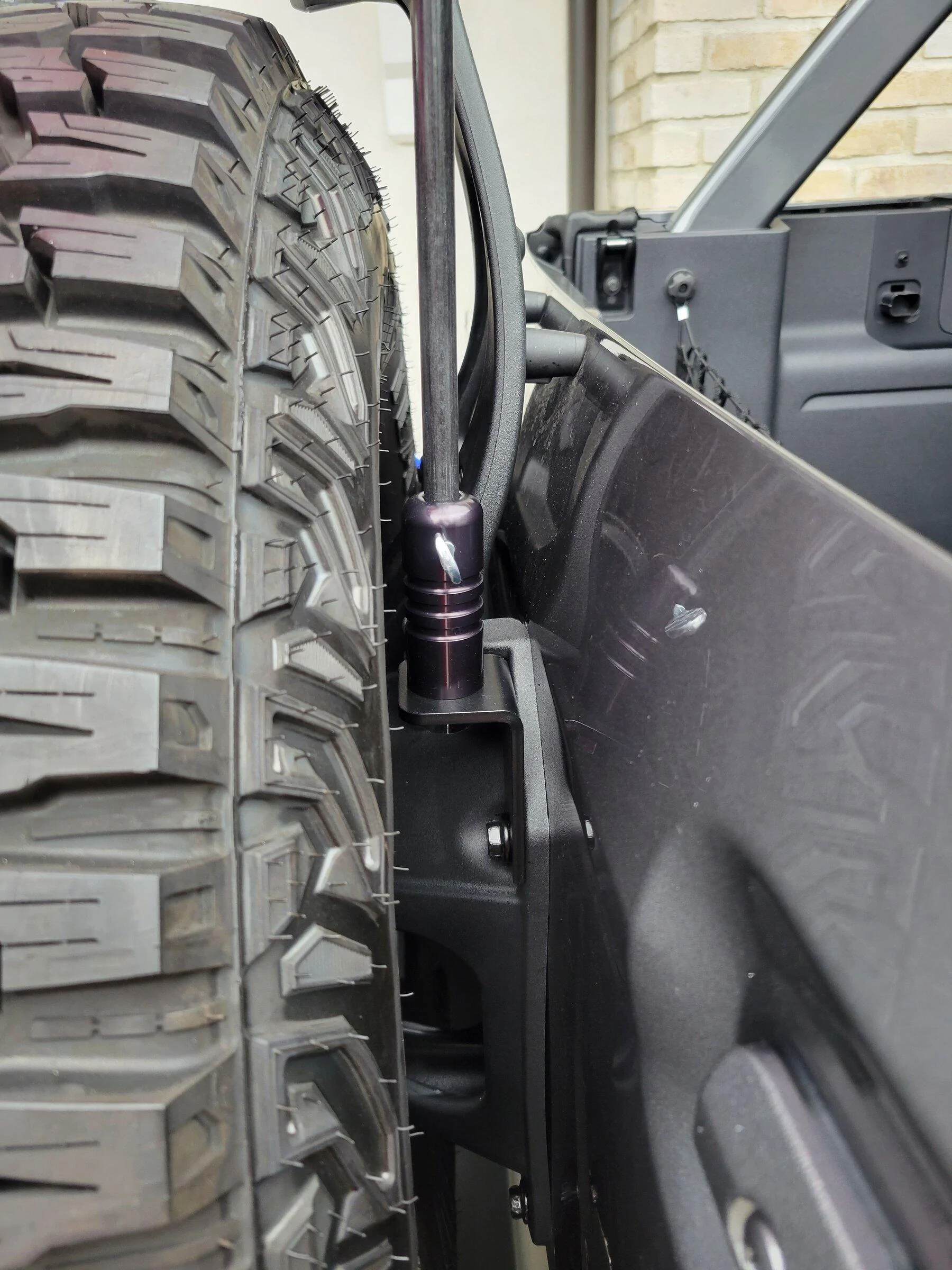

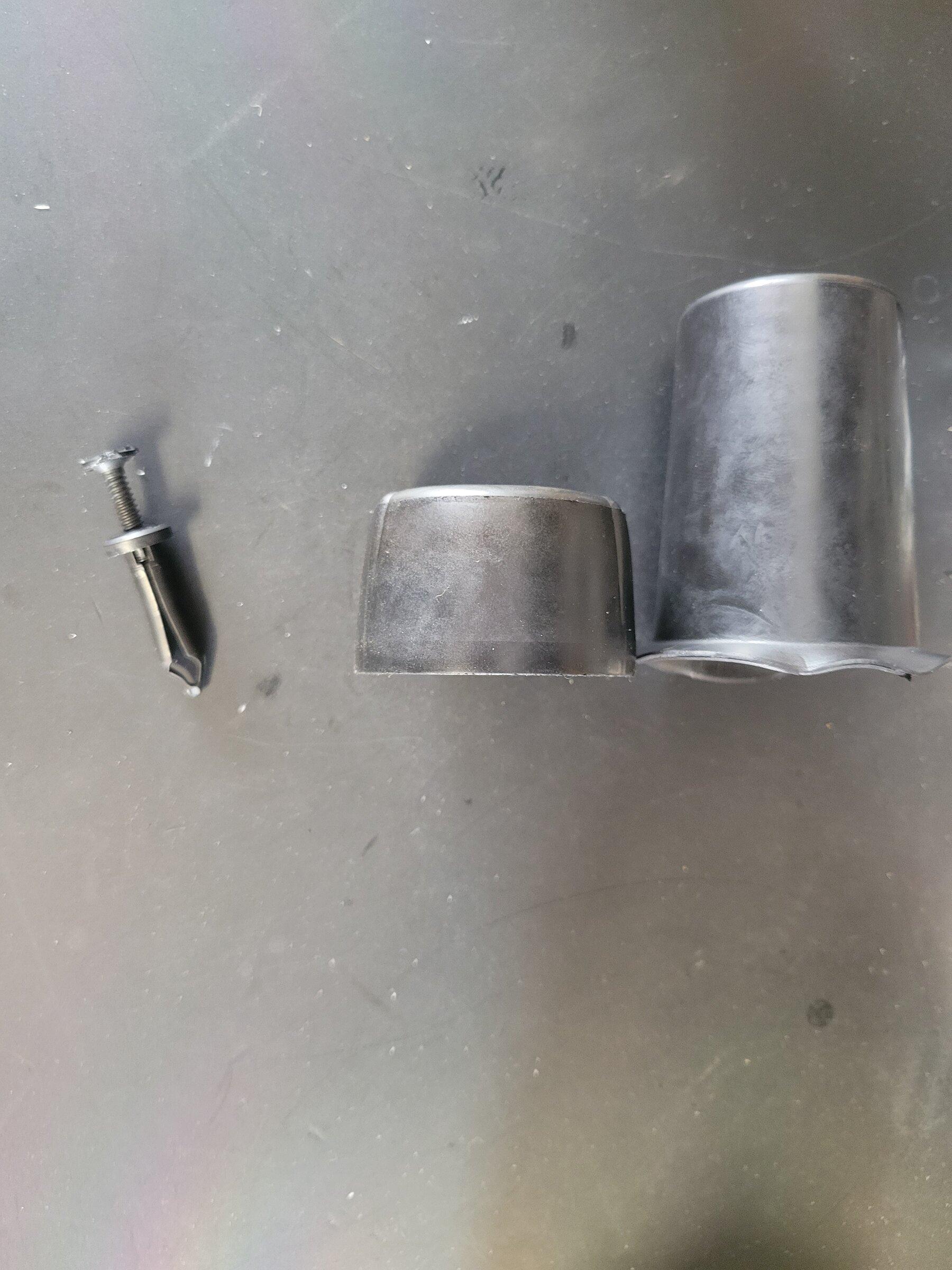

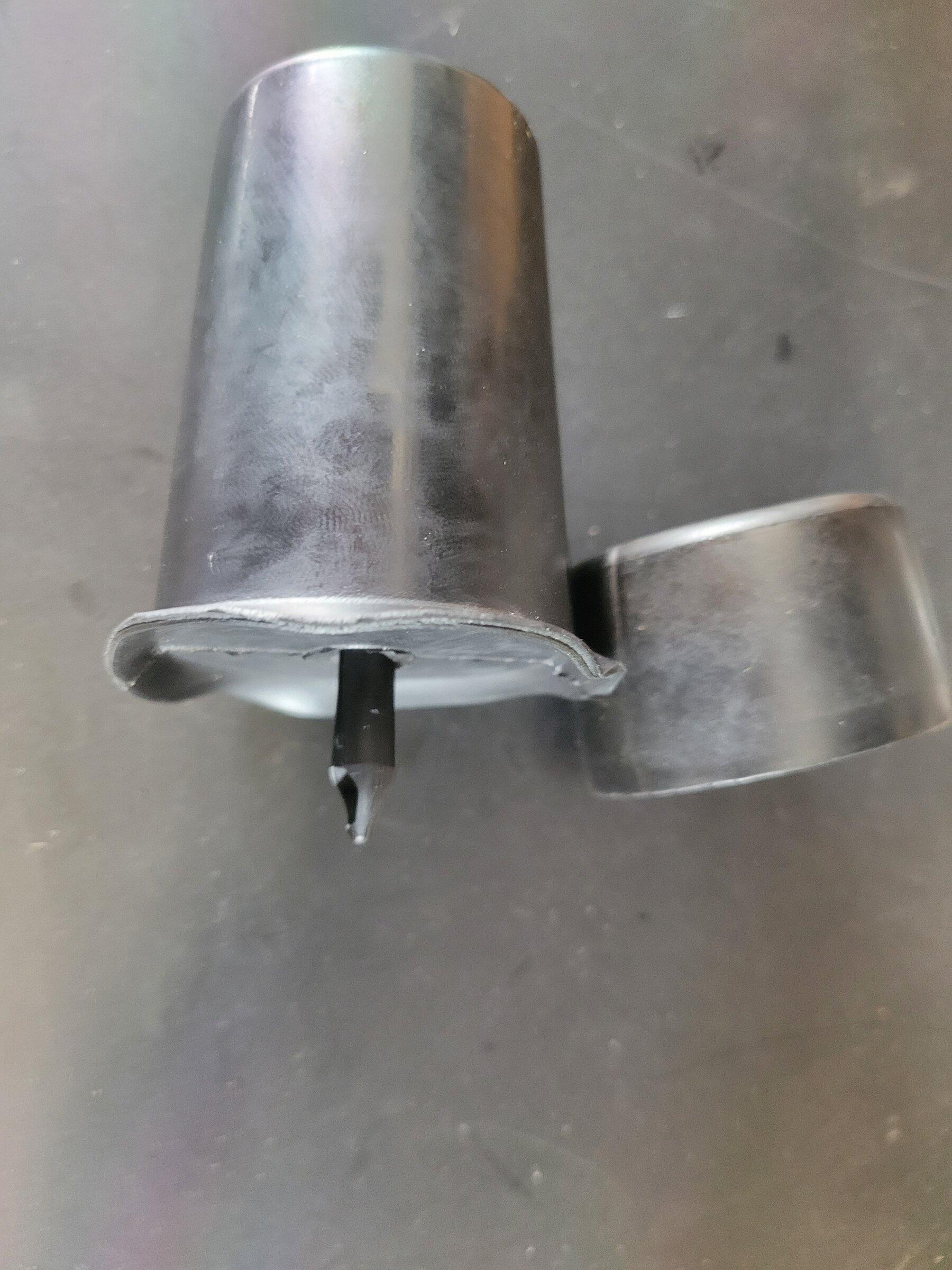

Thank you for the measurements on the bracket. It made it easy to do mine. I used a 1.5" space (I have a Bandlands SAS with 35 in tires. A 1 inch and 1.25 inch would not work for clearance. A 1.50 spacer finally did the trick. I also upgraded the spare tire bumpers and these work perfect. I used the pin from the old bumper, cut off the rubber insert on the new larger bumper and used the old pin.
I also have three extra black 1.50" spacers so if anyone wants to buy one, hit me up. I paid $110 for four of them. LInk to tail gate bumpers and flag holder. https://www.amazon.com/dp/B01BX41WL2?psc=1&ref=ppx_yo2ov_dt_b_product_details

https://www.jerichospecialties.com/store/p288/Fiberglass-UTV-Flag-Poles-Quick-Releases.html

Ford Bronco Antenna mount for CB/GMRS/HAM 20220521_103929


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143356


Ford Bronco Antenna mount for CB/GMRS/HAM 20220521_102808


Ford Bronco Antenna mount for CB/GMRS/HAM 20220521_103220


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143310


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341

Last edited:

Sponsored

k5wsa

Black Diamond
Member
First Name
William
Joined
Jun 17, 2022
Threads
1
Messages
5
Reaction score
4
Location
Fort Davis, Texas
Vehicle(s)
2022 Ford Bronco, Black Diamond, 4 dr.
Your Bronco Model
Black Diamond
This is a great way to mount an Amateur Radio Antenna, as it offers strength that is needed for some of our antennas. I followed this thread and obtained some 3/16" steel plate, to which being a past machinist, fabricated the mount. I also bought the wheel spacers which I think was a beautiful idea to use. As for the two rubber bumpers on the lower side of the tire, I used two 1/2" thick, by 2" hard rubber spacers, and extended the bumpers out to hit the bottom of the tire, to help on those bumpy roads.

Being that you have to buy 4 wheel spacers at a time, I have three that I am willing to part with, say about $30 each and that includes shipping. A bargain!

I mounted my antenna and ran the coax through the same rubber grommet that is on the rear of the Bronco Door, and routed the coax to the radio. But whoever said they used the Auxiliary switch #1, it is only good for 30 amps DC, whereas the Icom 2730A radio needs more than that, and the gauge of wire the Bronco uses is not large enough. The wiring that comes with the radio used 10 gauge wire, and the Bronco is only 18. Furthermore, it is recommended that the radio be wired to the Battery.

With that being said, I think this was a great idea, and I really enjoyed the pics and other comments.

73's and Stay Safe.


Tidy2000

Black Diamond
Active Member
First Name
Jon
Joined
Oct 26, 2021
Threads
1
Messages
25
Reaction score
36
Location
STL
Vehicle(s)
2017 Ford F150 Raptor SCrew
Your Bronco Model
Black Diamond
This is a great way to mount an Amateur Radio Antenna, as it offers strength that is needed for some of our antennas. I followed this thread and obtained some 3/16" steel plate, to which being a past machinist, fabricated the mount. I also bought the wheel spacers which I think was a beautiful idea to use. As for the two rubber bumpers on the lower side of the tire, I used two 1/2" thick, by 2" hard rubber spacers, and extended the bumpers out to hit the bottom of the tire, to help on those bumpy roads.

Being that you have to buy 4 wheel spacers at a time, I have three that I am willing to part with, say about $30 each and that includes shipping. A bargain!

I mounted my antenna and ran the coax through the same rubber grommet that is on the rear of the Bronco Door, and routed the coax to the radio. But whoever said they used the Auxiliary switch #1, it is only good for 30 amps DC, whereas the Icom 2730A radio needs more than that, and the gauge of wire the Bronco uses is not large enough. The wiring that comes with the radio used 10 gauge wire, and the Bronco is only 18. Furthermore, it is recommended that the radio be wired to the Battery.

With that being said, I think this was a great idea, and I really enjoyed the pics and other comments.

73's and Stay Safe.
In the past I have wired straight to the battery, but I also saw that the icom wiring harness has a 15A fuse (manual says transmit is 13A) that comes standard, why wouldn’t a circuit rated for 30A be enough?

Last edited:

KANE COUNTY ILLINOIS

Big Bend
Well-Known Member
First Name
SAL
Joined
Jul 24, 2020
Threads
0
Messages
748
Reaction score
687
Location
KANE COUNTY ILLINOIS
Vehicle(s)
GMC YUKON
Your Bronco Model
Big Bend
Thank you for the measurements on the bracket. It made it easy to do mine. I used a 1.5" space (I have a Bandlands SAS with 35 in tires. A 1 inch and 1.25 inch would not work for clearance. A 1.50 spacer finally did the trick. I also upgraded the spare tire bumpers and these work perfect. I used the pin from the old bumper, cut off the rubber insert on the new larger bumper and used the old pin.
I also have three extra black 1.50" spacers so if anyone wants to buy one, hit me up. I paid $110 for four of them. LInk to tail gate bumpers and flag holder. https://www.amazon.com/dp/B01BX41WL2?psc=1&ref=ppx_yo2ov_dt_b_product_details

https://www.jerichospecialties.com/store/p288/Fiberglass-UTV-Flag-Poles-Quick-Releases.html

Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341


Ford Bronco Antenna mount for CB/GMRS/HAM 20220519_143341
To remove the rubber bumpers, did you just pull on the bumpers to take off, which would then expose the plastic fastener? I'm about to clay/polish/ceramic coat the rear door and want to take off the bumpers and then re-mount them once I'm finished with the process! Great photos!


SCTWNB

Badlands
Well-Known Member
First Name
Scott
Joined
Nov 6, 2021
Threads
2
Messages
117
Reaction score
104
Location
Newport Beach
Vehicle(s)
Cadillac Escalade
Your Bronco Model
Badlands
The bumpers have a screw inside. You unscrew them but that did not seem to work so I had to pull them out with needle nose pliers.


ksdon

Black Diamond
Well-Known Member
Joined
Mar 24, 2022
Threads
8
Messages
238
Reaction score
356
Location
kansas
Vehicle(s)
Bronco
Your Bronco Model
Black Diamond
Very gently unscrew the plastic screw from the fastener. Don't put any inward pushing pressure on the screw as the threads are very shallow.


Sponsored

RTR Vehicles

Raptor
Well-Known Member
Lux Sponsor (Level 2)
First Name
RTR
Joined
Sep 23, 2022
Threads
43
Messages
169
Reaction score
723
Location
Concord, NC.
Website
www.rtrvehicles.com
Vehicle(s)
Bronco RTR
Your Bronco Model
Raptor

DenNut

Badlands
Well-Known Member
First Name
Troy
Joined
Jun 28, 2022
Threads
21
Messages
91
Reaction score
81
Location
Denver, CO
Vehicle(s)
2021 Bronco
Your Bronco Model
Badlands
Clubs

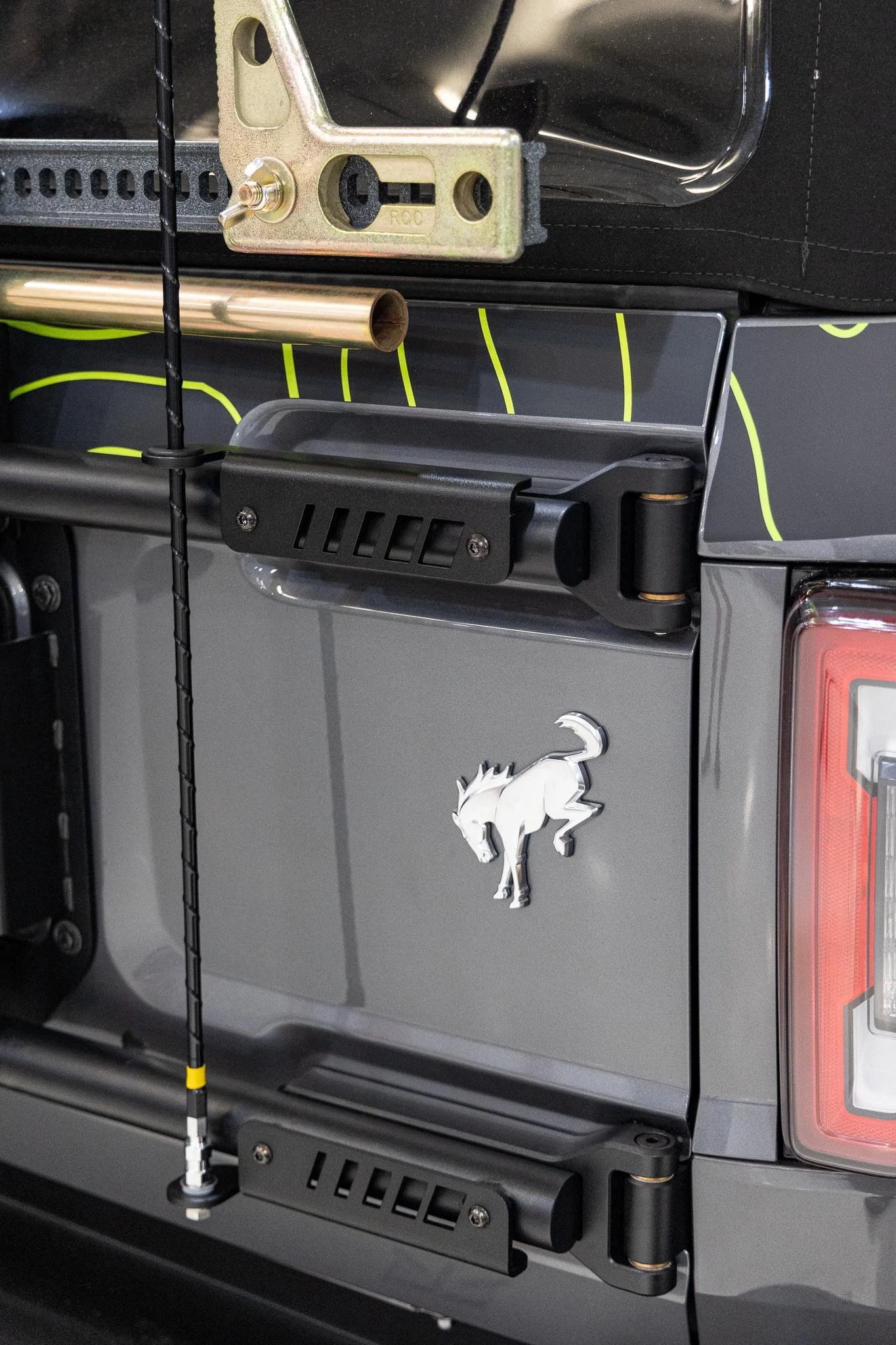

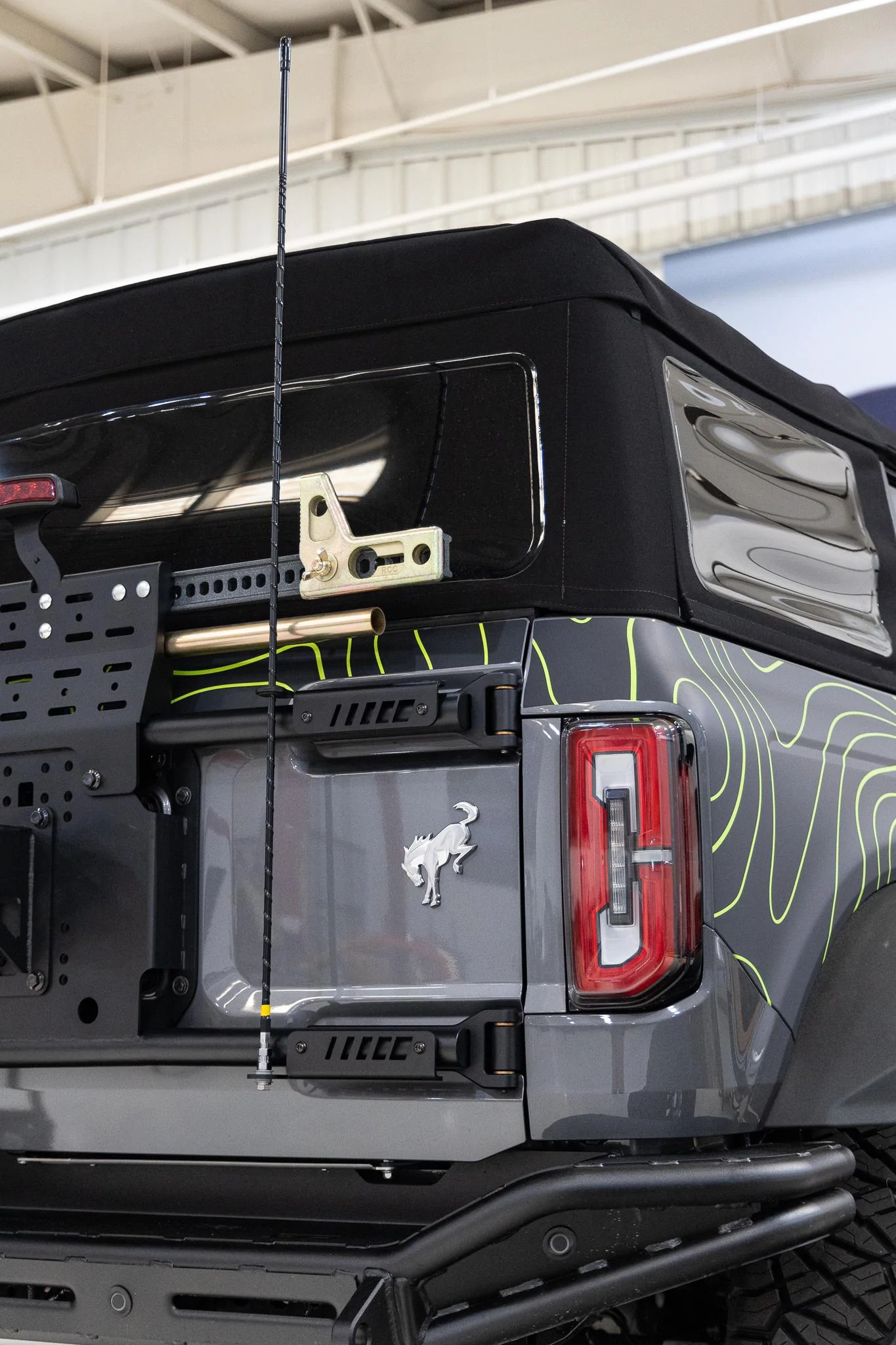

Here are some images of our Antenna / Flag mount! Let us know if this helps or if you have any questions.

Ford Bronco Antenna mount for CB/GMRS/HAM 8F5A1808


Ford Bronco Antenna mount for CB/GMRS/HAM 8F5A1808
thanks for those. I would be using the bracket with out the carrier, and really just the bottom bracket on the top hinge. I sand to keep my HAM antenna higher. Any reason I can’t use the bottom plate on the top hindge?


RTR Vehicles

Raptor
Well-Known Member
Lux Sponsor (Level 2)
First Name
RTR
Joined
Sep 23, 2022
Threads
43
Messages
169
Reaction score
723
Location
Concord, NC.
Website
www.rtrvehicles.com
Vehicle(s)
Bronco RTR
Your Bronco Model
Raptor
thanks for those. I would be using the bracket with out the carrier, and really just the bottom bracket on the top hinge. I sand to keep my HAM antenna higher. Any reason I can’t use the bottom plate on the top hindge?
We don't recommend installing it that way but the bottom bracket will fit on the top hinge if you choose to do so.
