ARB Dual Compressor Installed - Under Hood 2.7L Engine Compartment

[Ingridthehorrible]

Picked up Bronco this Tuesday from dealer. Have mounted a dual ARB compressor under the hood of a 2.7L Badlands. Fabricated the mount tonight, took about 4 hours. Used some aluminum that I had on hand. Also used a set of Quick Draw Brand Brackets to attach the compressor to the mount I built. Only had to drill one hole to install mount. The compressor and mount can be quickly removed in about two minutes by removing two nuts, this time doesn't include the air line or electrical. Still need to complete the air line, need to obtain some fittings and air line first and the complete the electrical. Also will be installing a 1 gallon air tank, still need to find a home for it. It's late will followup with more details maybe tomorrow. Will be removing mount to finish some of the rough edges and maybe paint black. Neither the compressor or mount rub against anything in the engine compartment

Here's some pictures.

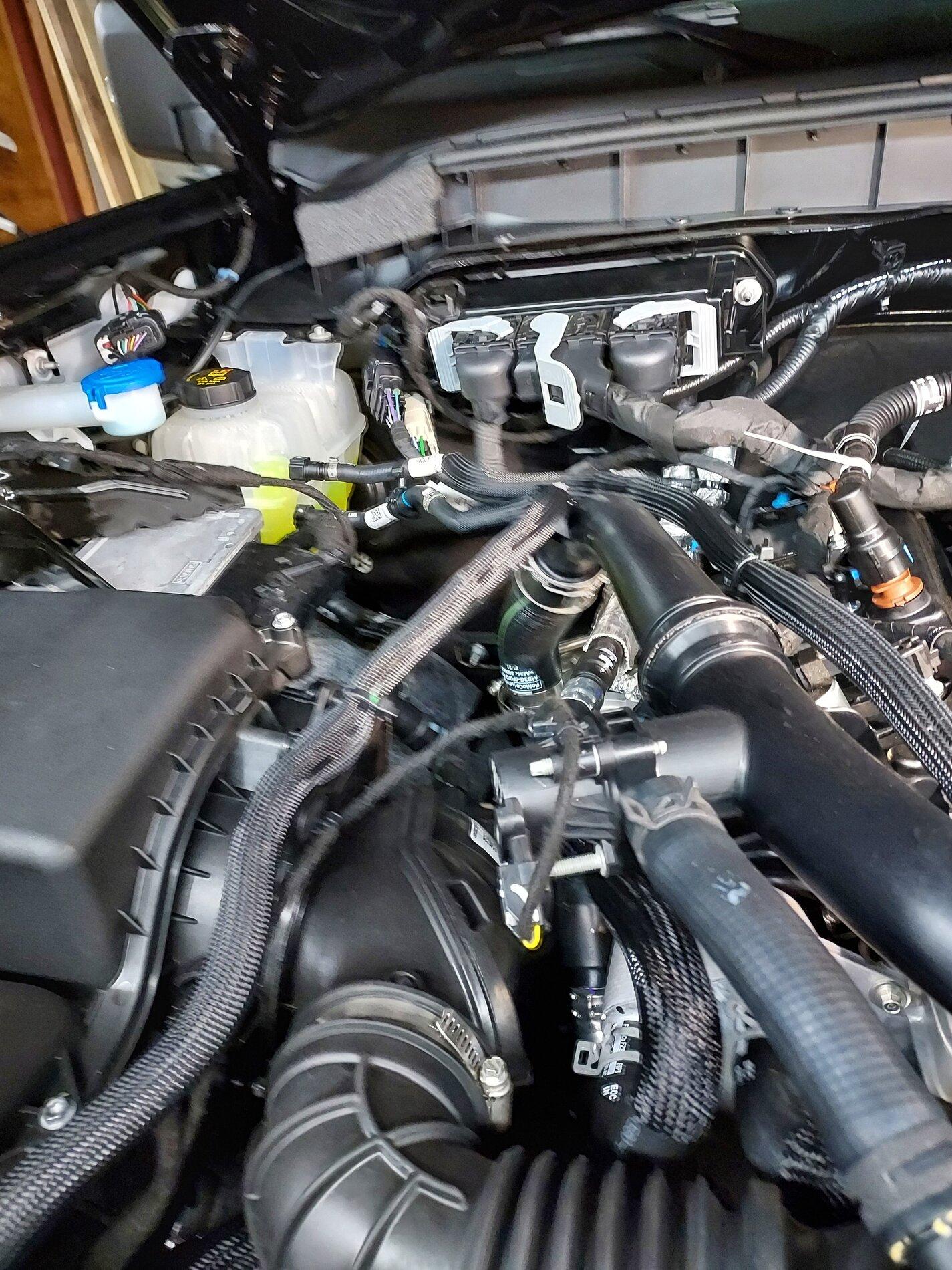

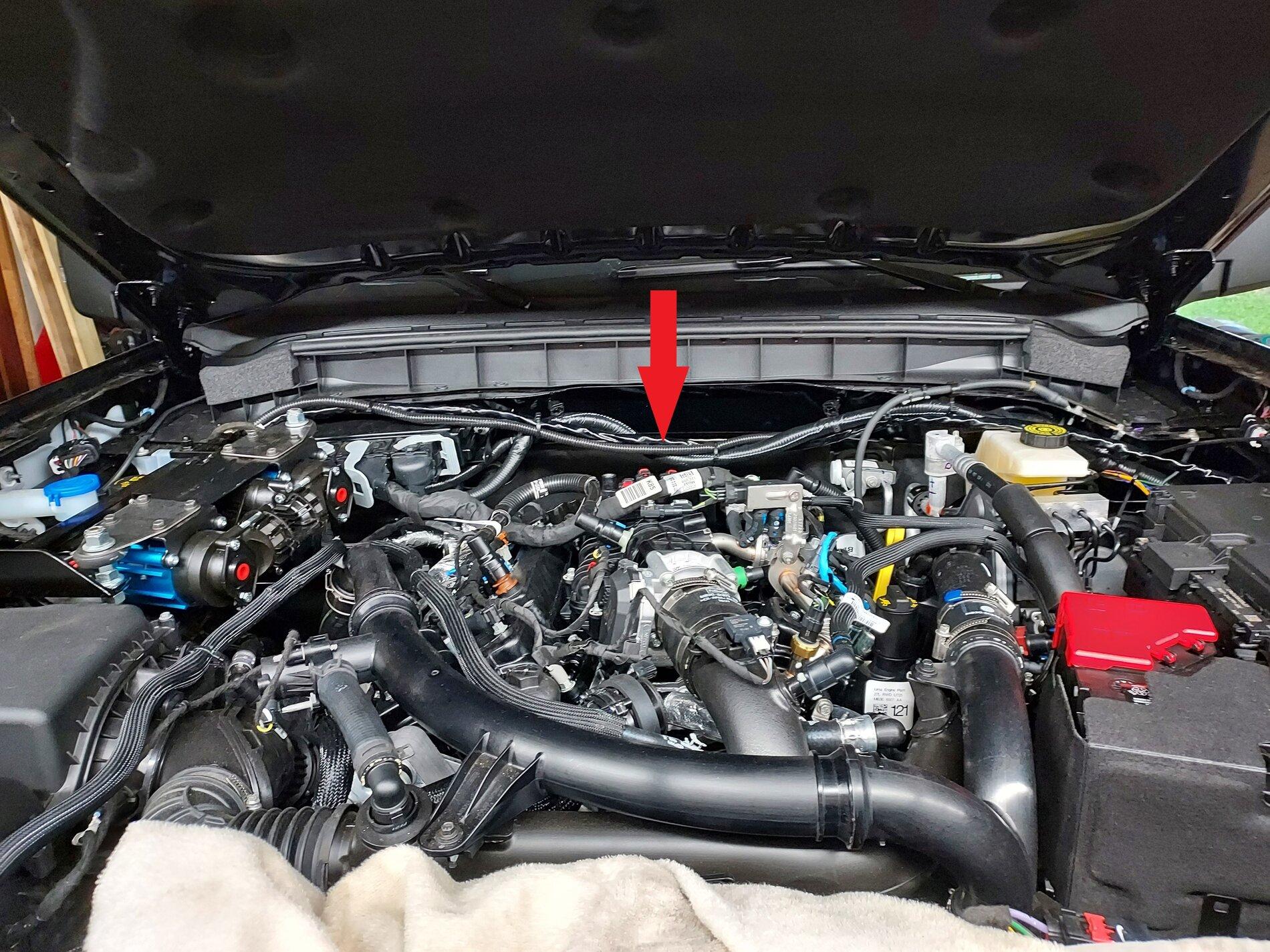

Original space before installation

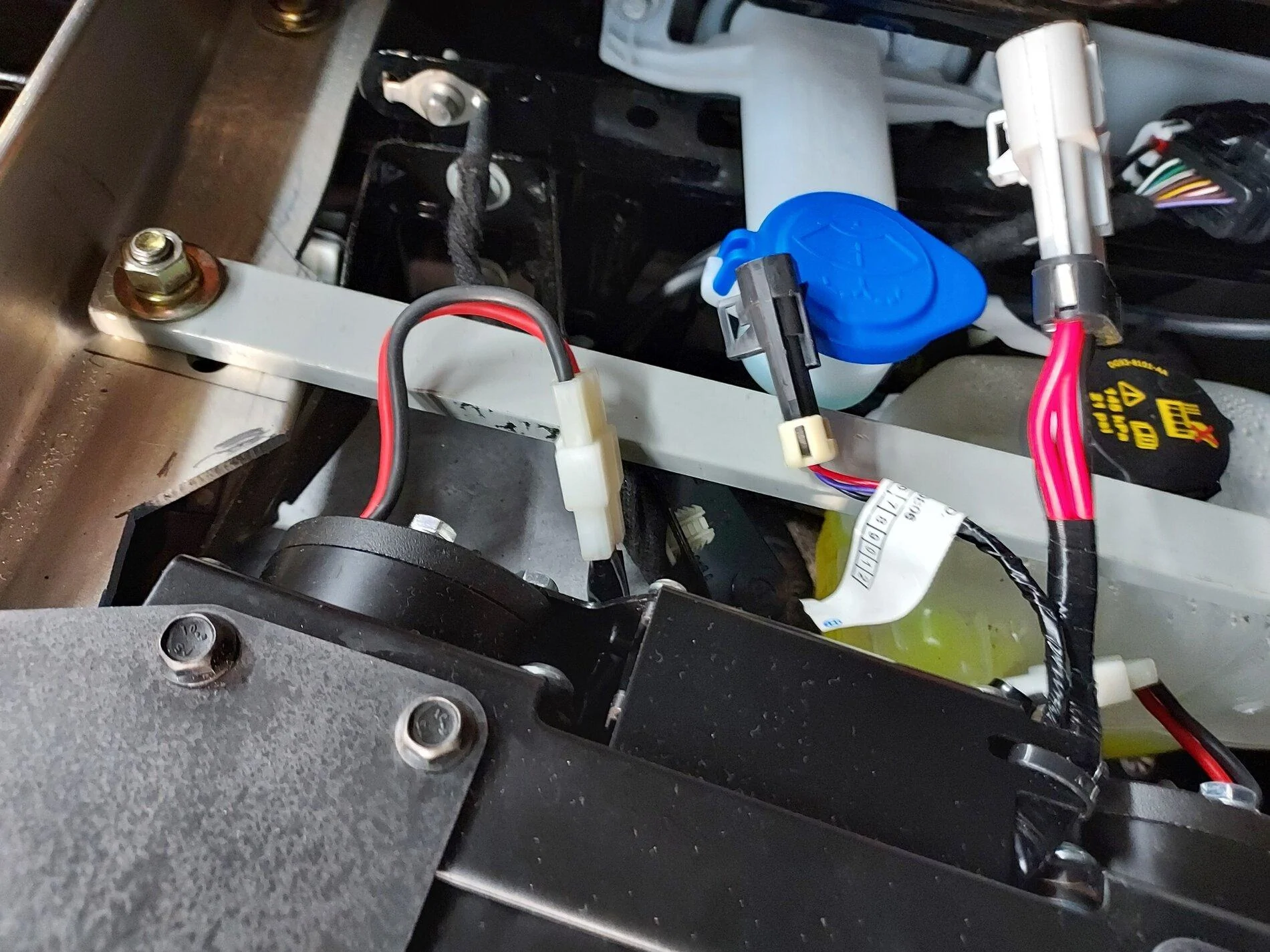

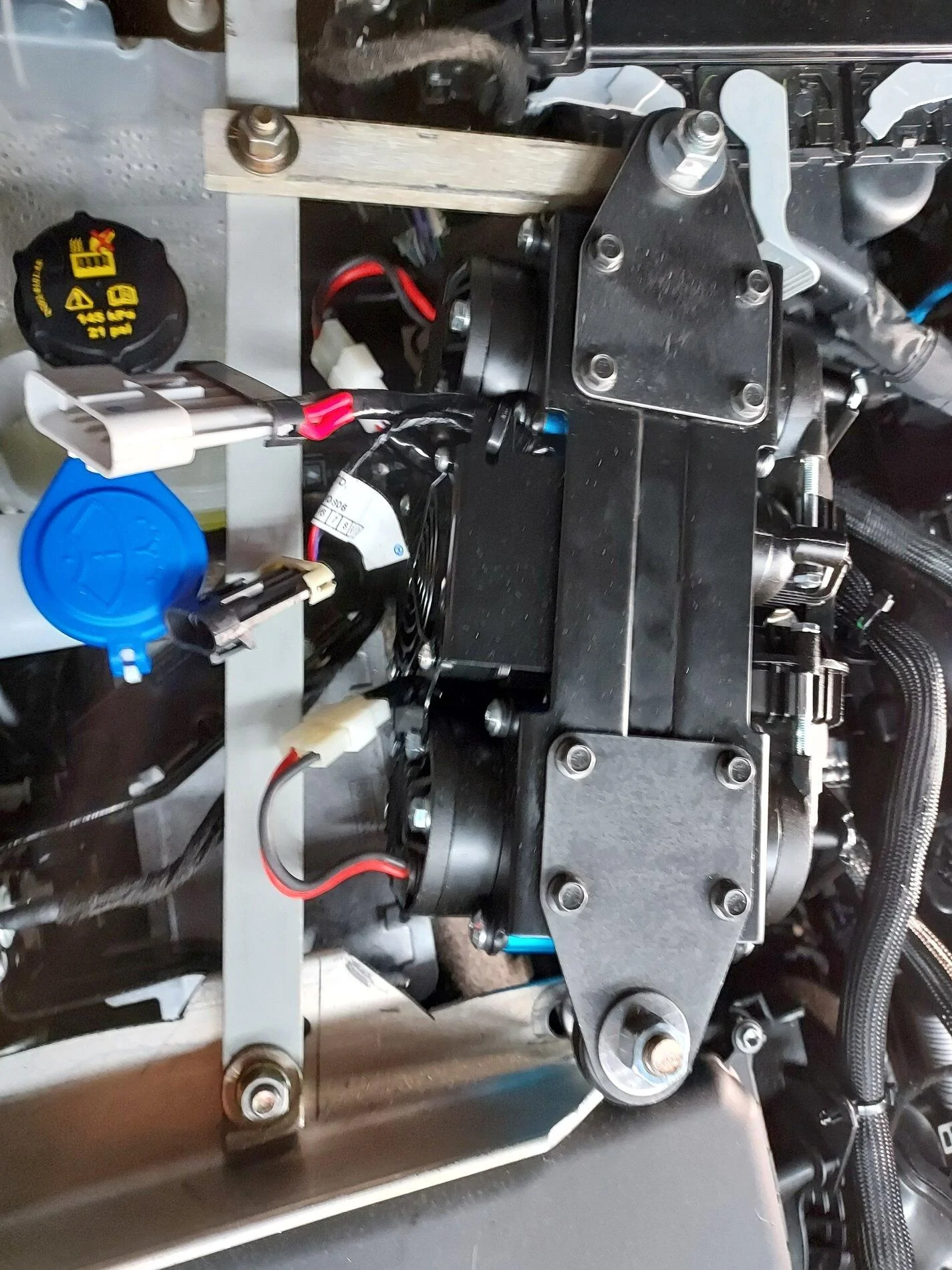

The two brackets attached directly to the compressor are from Quick Draw Brand https://quickdrawbrand.com/product/arb-twin-compressor-bracket-universal-mount/ Will be removing those eight bolts holding the brackets to put Loctite on them

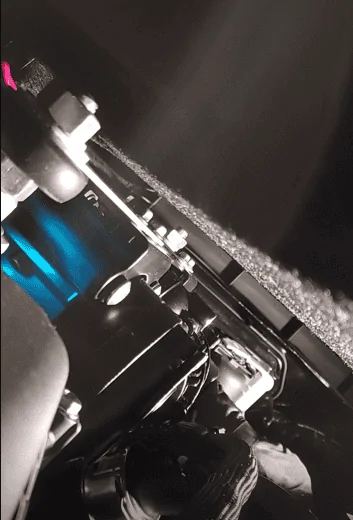

Clearance between the compressor/mount and closed hood

View attachment 205101

Sponsored



[Ingridthehorrible]

Update # 4. Completed the installation this last Sunday. Installed the air-line from the compressor to the remote 1 gallon storage tank and rear air line quick disconnect mounted on trailer hitch. Used 1/2 air-brake line and fittings, they are rated at 150 psi working pressure. Also installed two air line quick disconnects under the hood by the compressor, one has the air line going to the air tank and the back quick disconnect connected to it and the other is for for use to connect a air line at the font of the vehicle if needed. Remote mounted the compressor air filters just behind the leading edge of the hood so that the compressor has cooler air intake as opposed to the middle of the engine compartment. If needed the compressor, its mount and remote mounted compressor air filters can be removed in less than five minutes to service the compressor or vehicle components.

Built up a manifold and airlines for deflating and inflating all four tires at the same time. Started to rain so didn't have time to test the manifold and airlines. Will test the manifold and airlines this coming weekend, will time deflate and inflate times, and then post.

Pic's follow

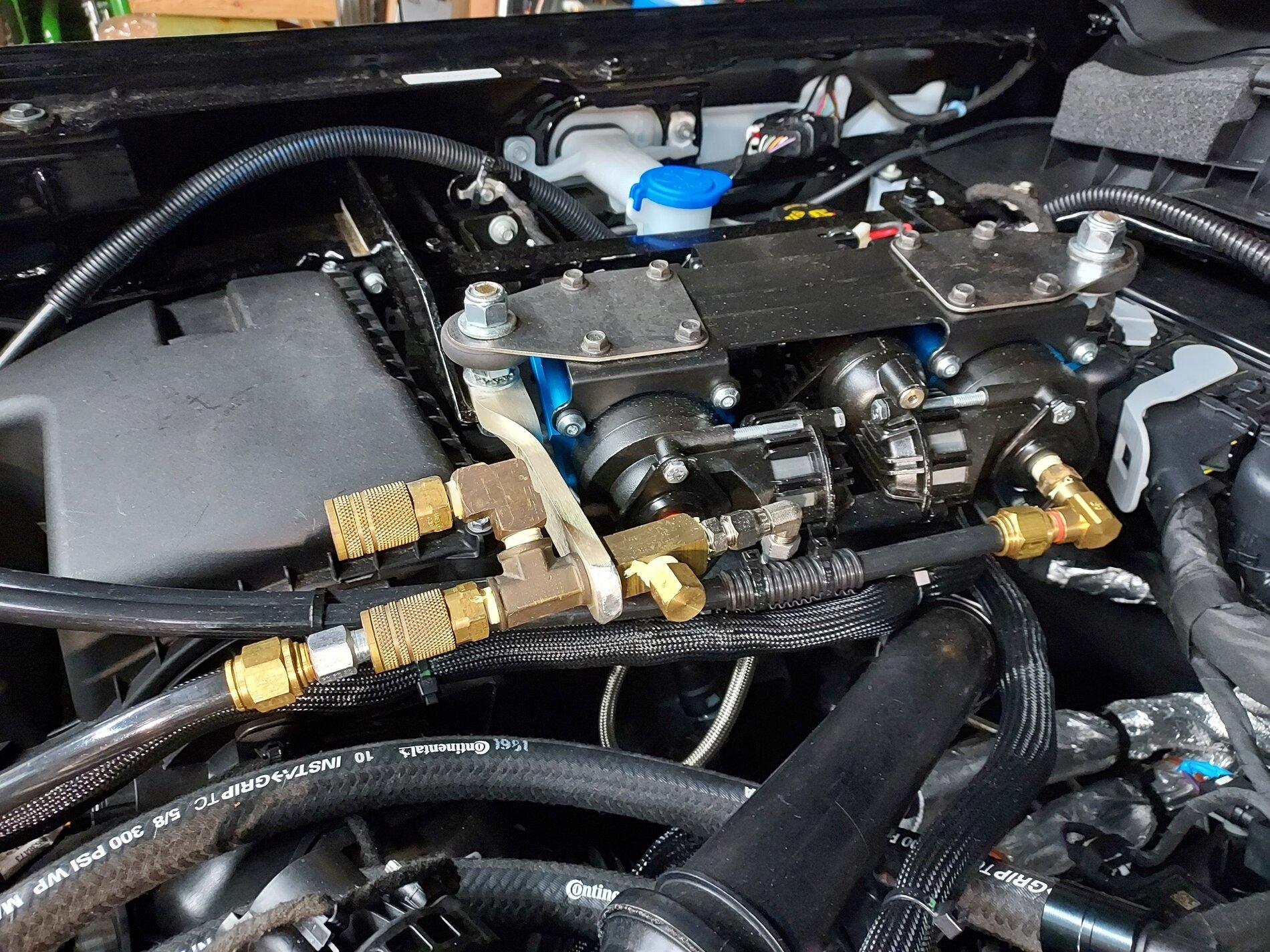

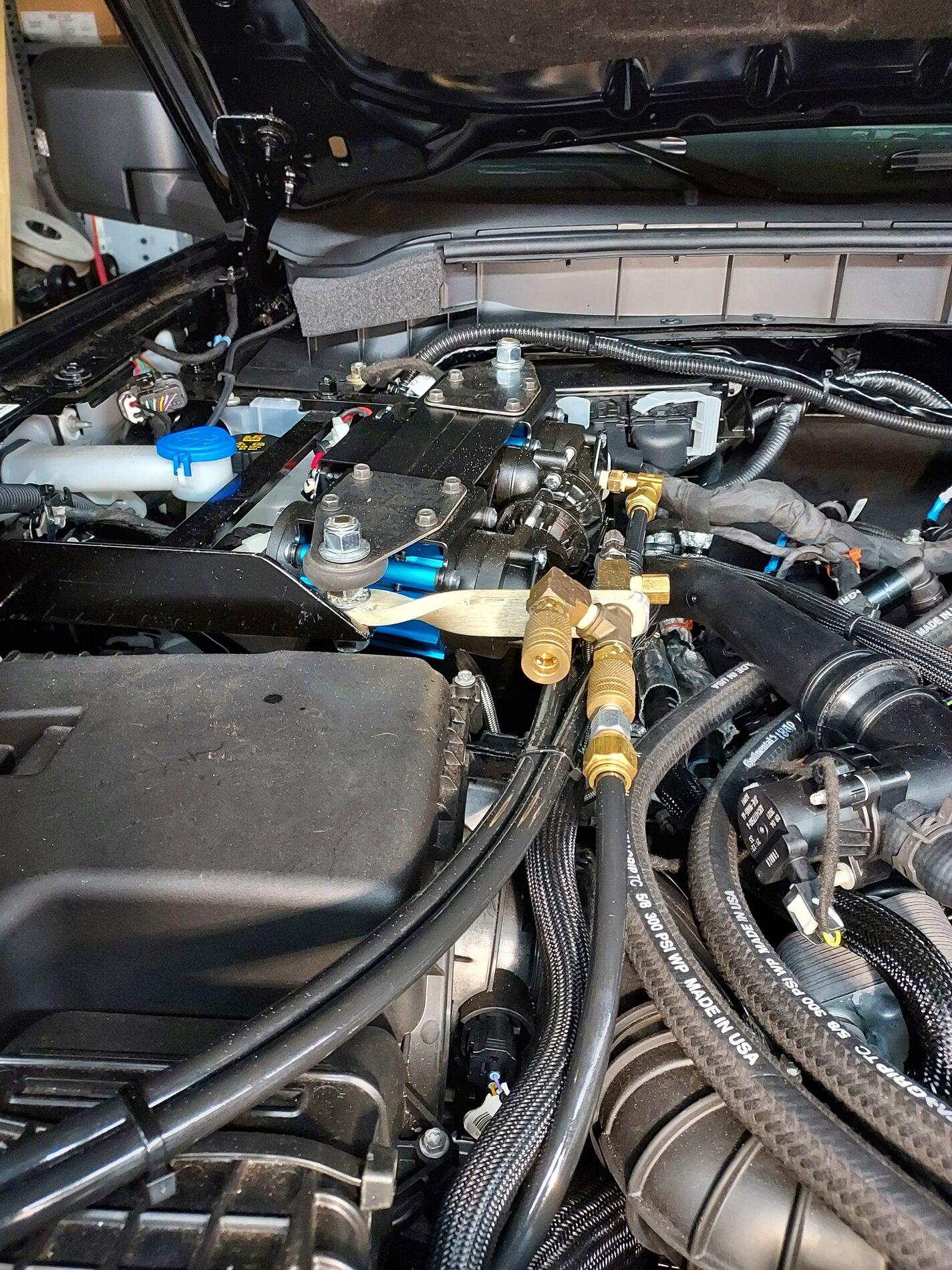

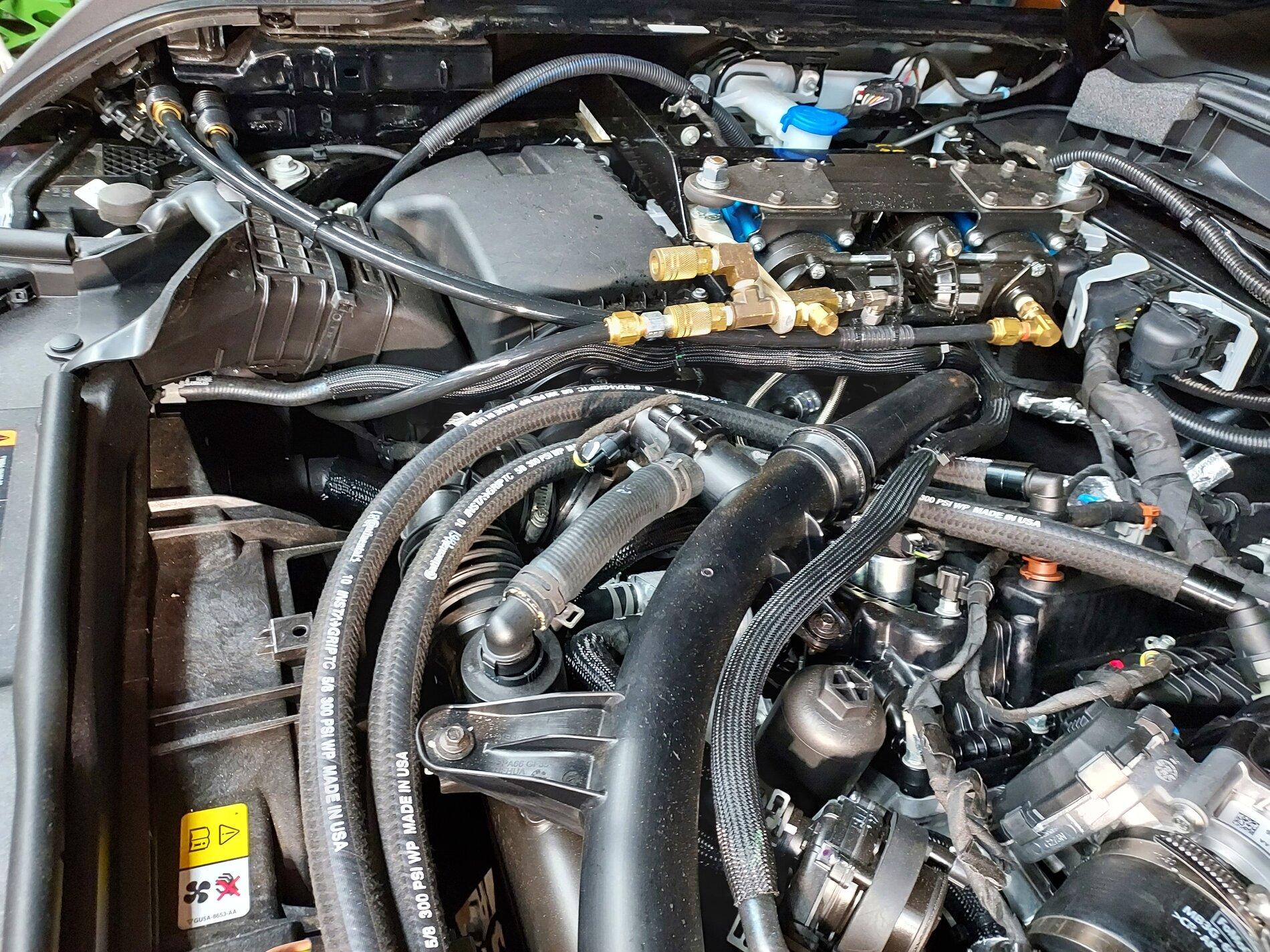

Final Installation closeup

Side view showing compressor installation with remote mounted air filters

View from the front of the installation

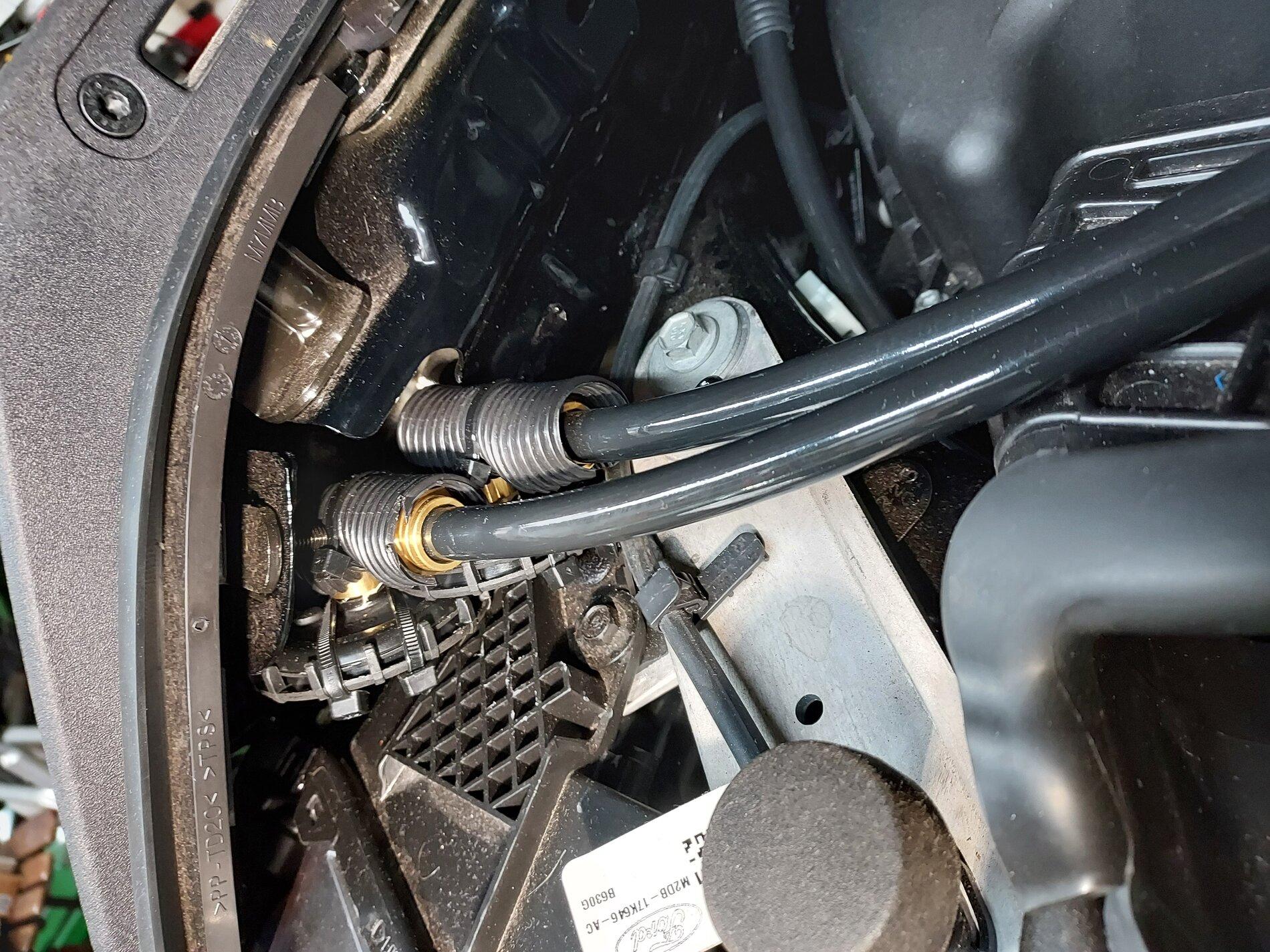

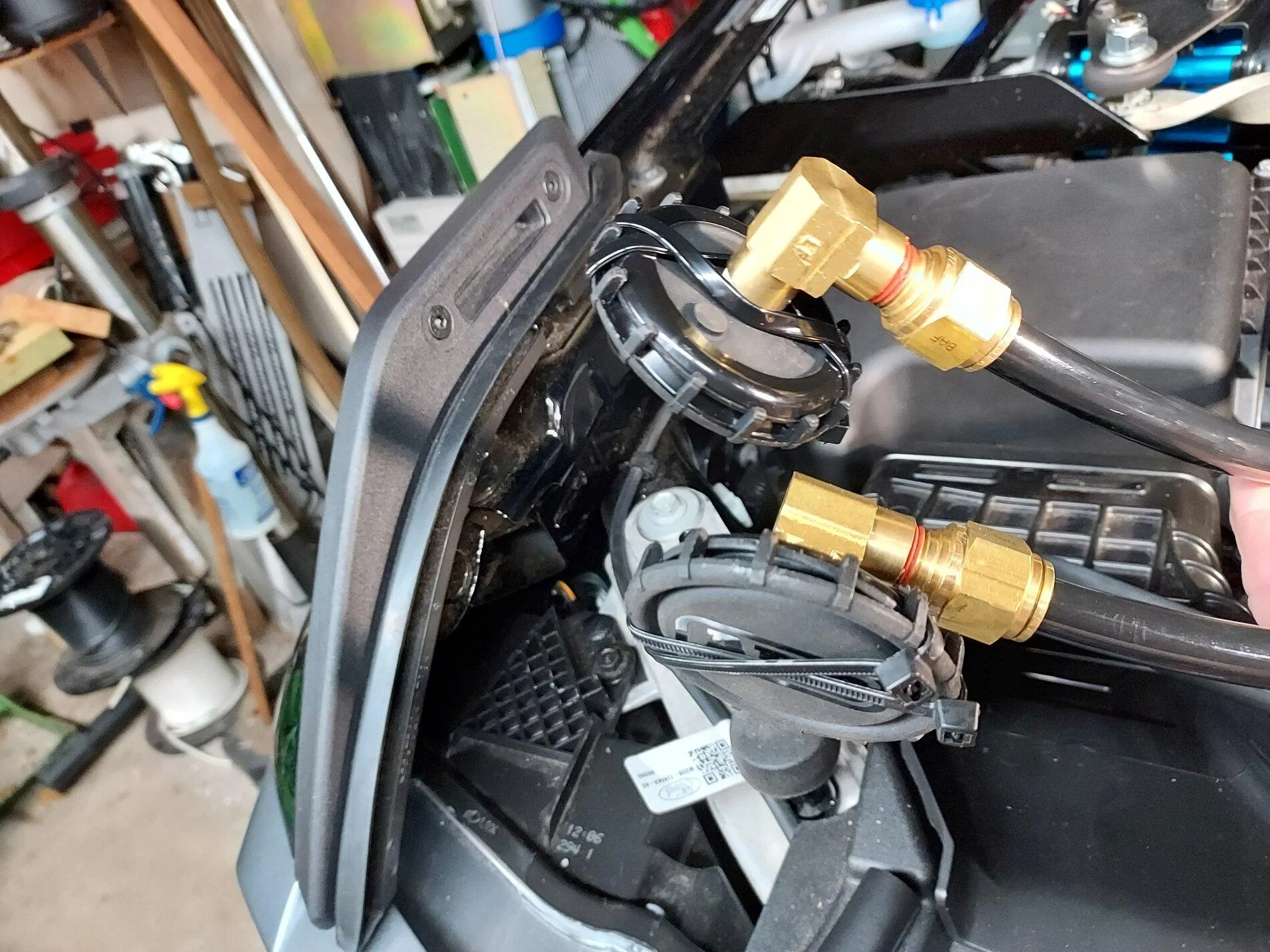

Remote compressor air filters location next two pic, ty-wrapped the air filters covers so they don't pop off.

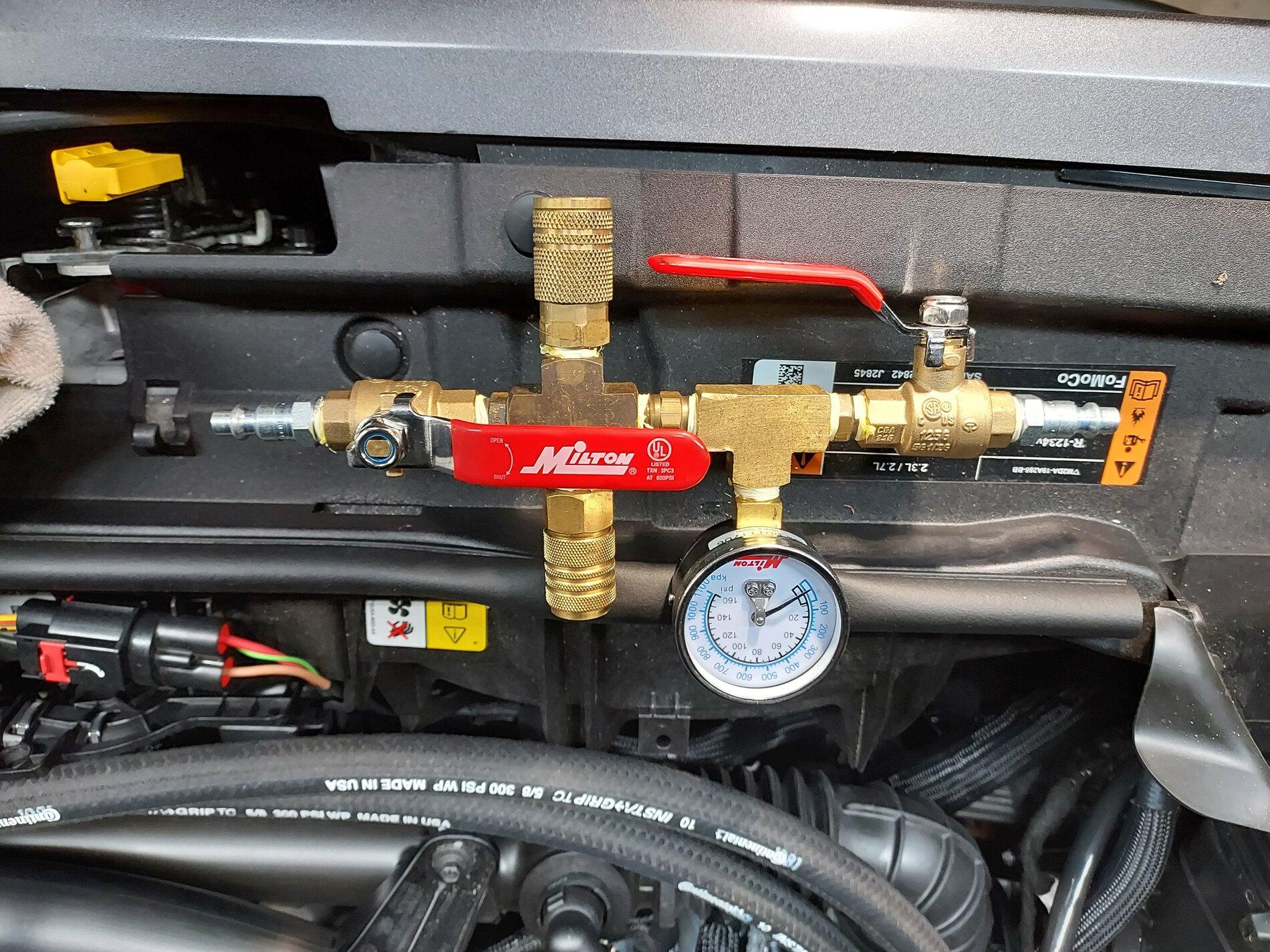

Manifold Assy

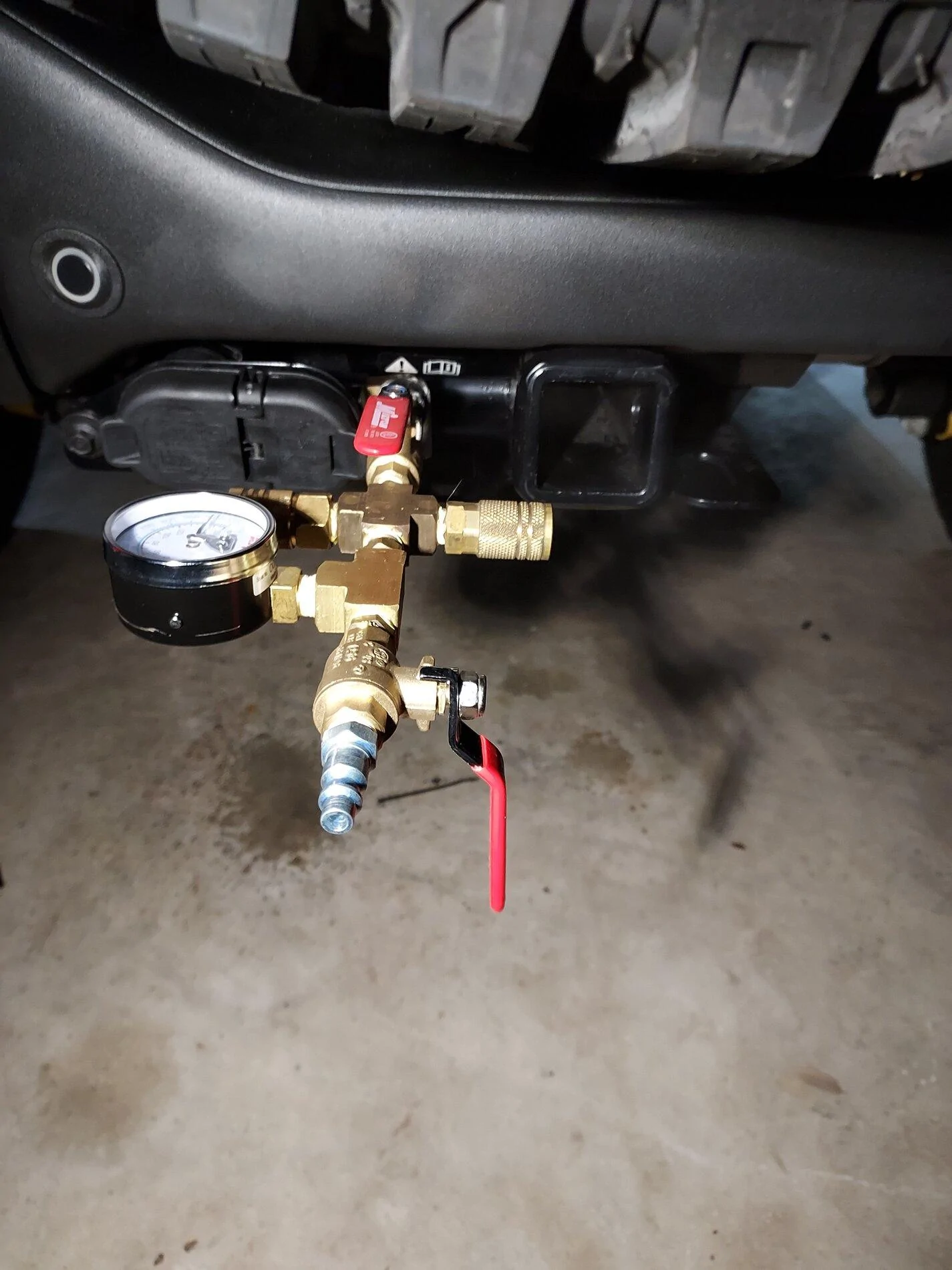

Manifold installed in rear mounted air quick disconnect

Update # 3. Have painted the compressor mounting bracket black, reinstalled the compressor and completed the electrical. Will be next weekend for the airline installation, airline and fittings should be delivered by next Friday.

Used AUX switch # 6 to control the compressor, stripped the violet and black compressor control wiring and plug from the factory ARB control wiring harness, note the black wire is not used. Pictures follow

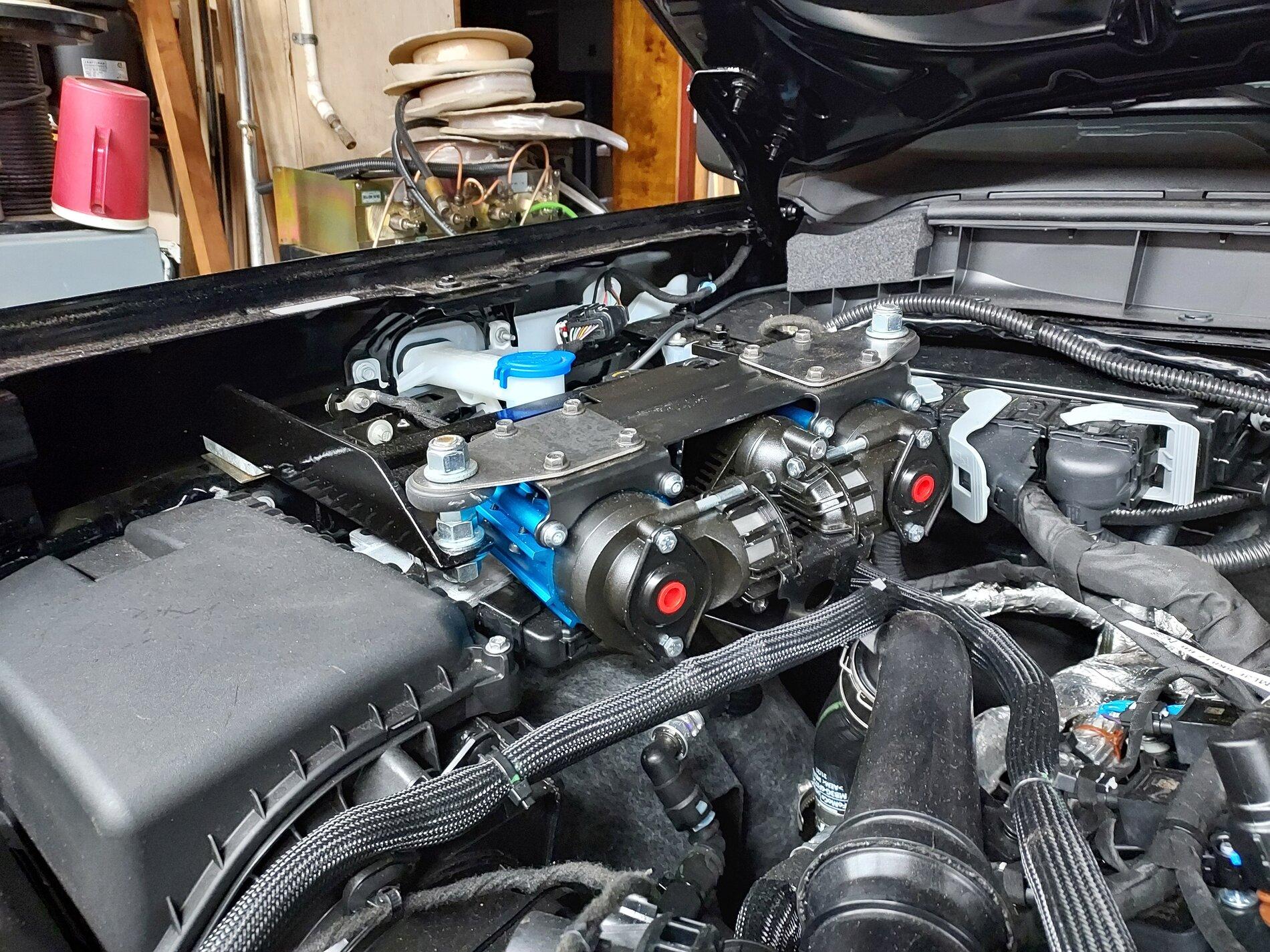

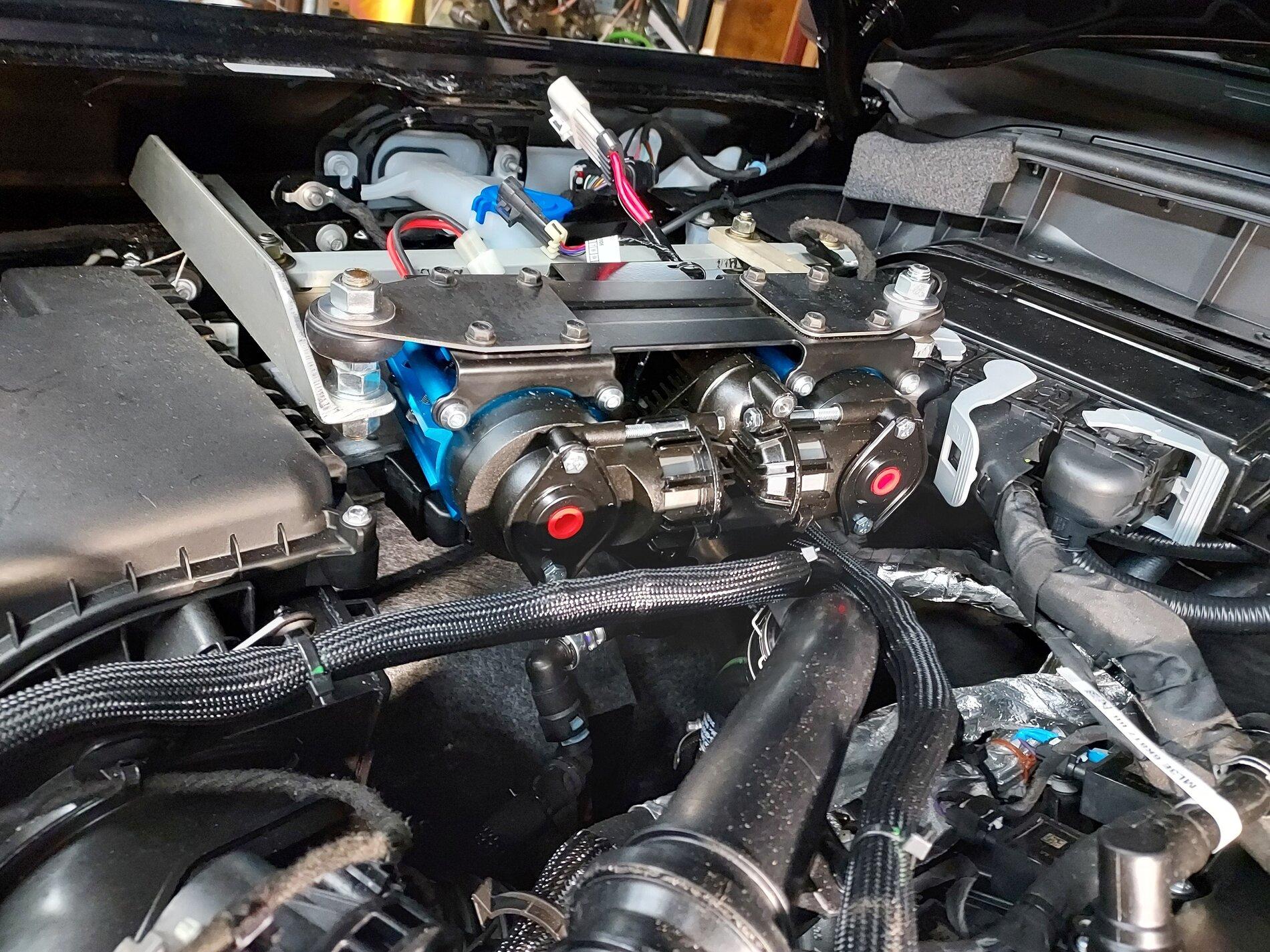

Compressor reinstalled with mounting bracket painted black

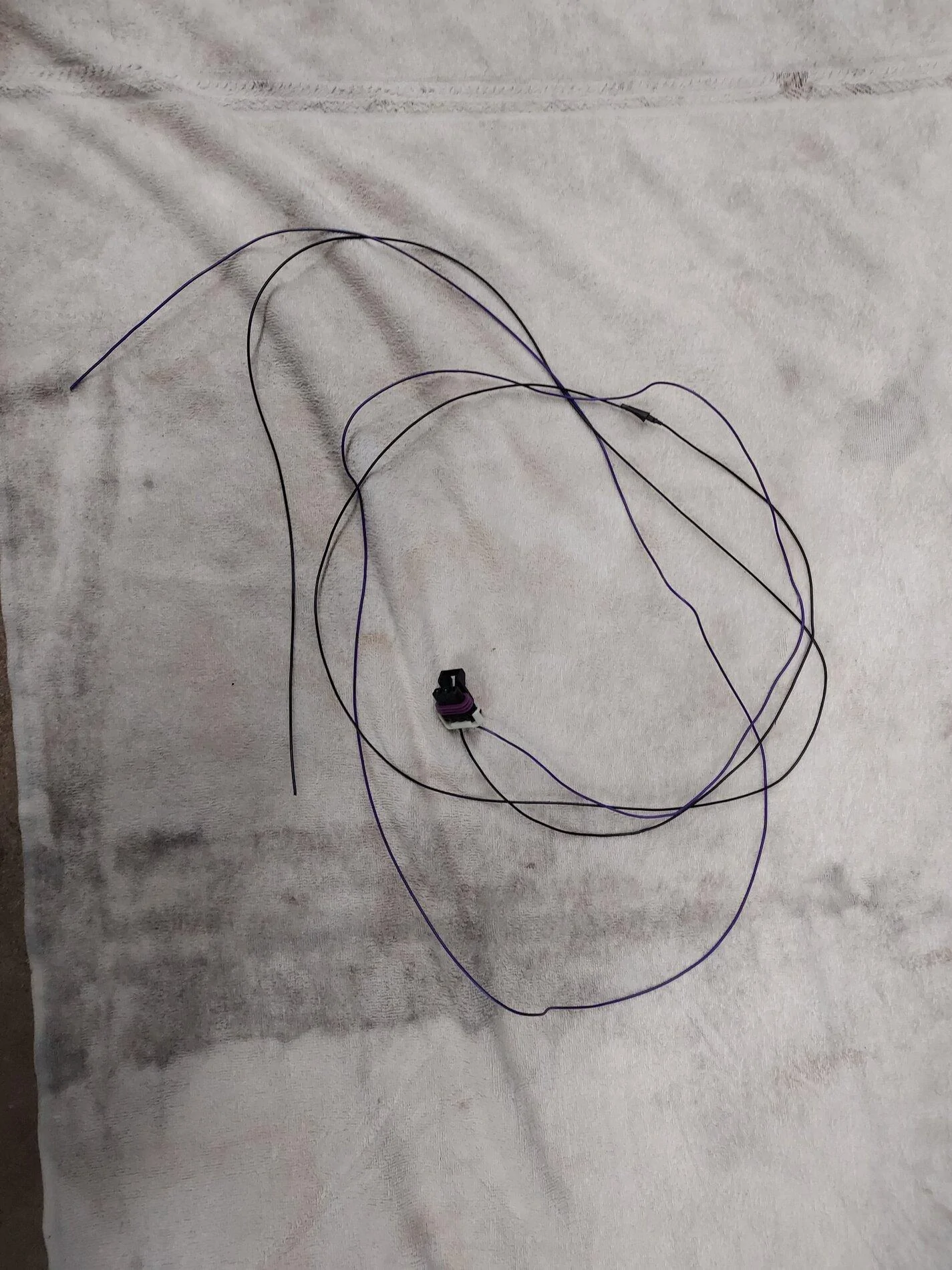

Compressor Control wiring and connection plug stripped from ARB factory harness, this was installed in Bronco using split loom

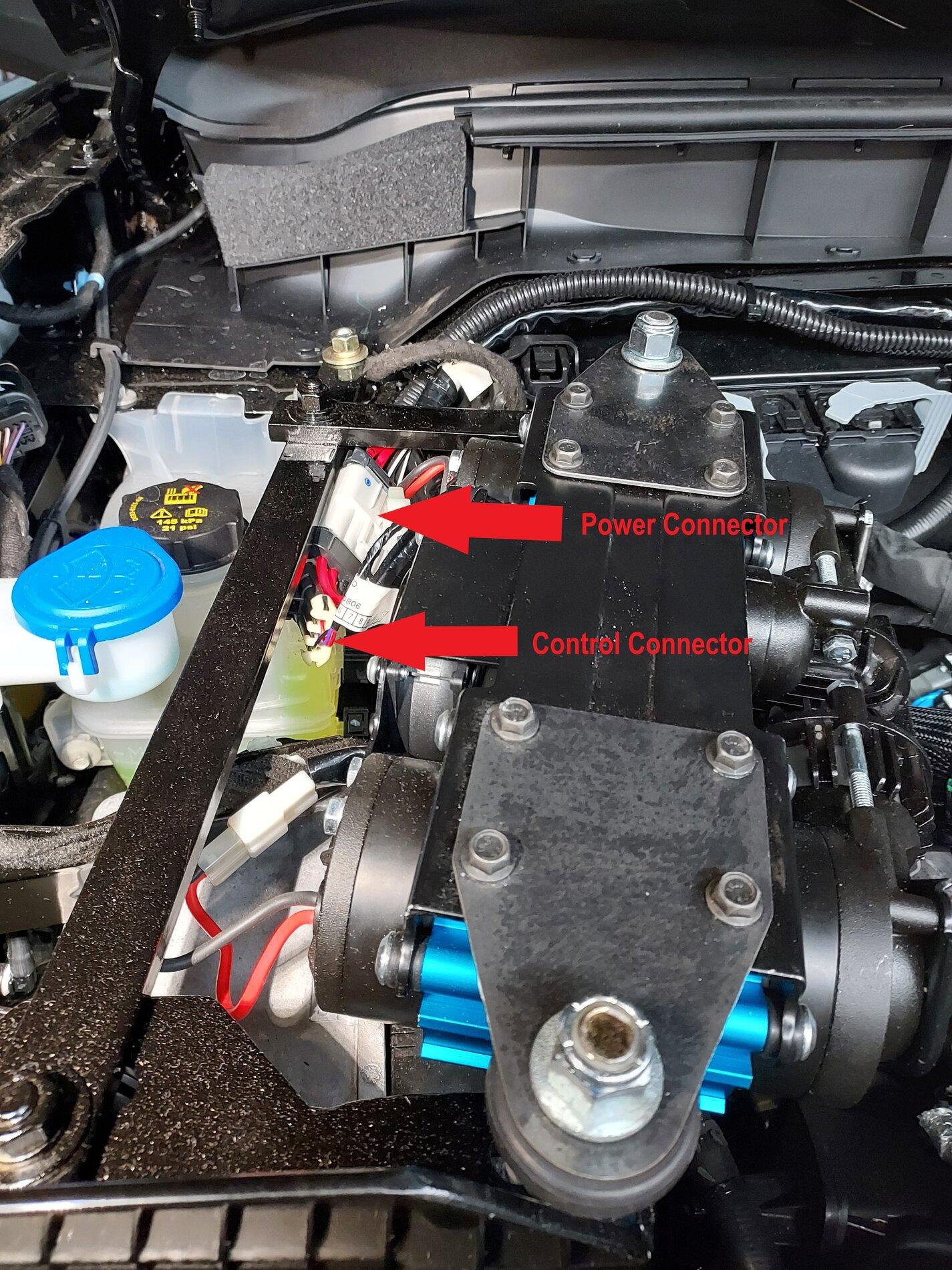

Compressor power cable and control wiring connected to compressor

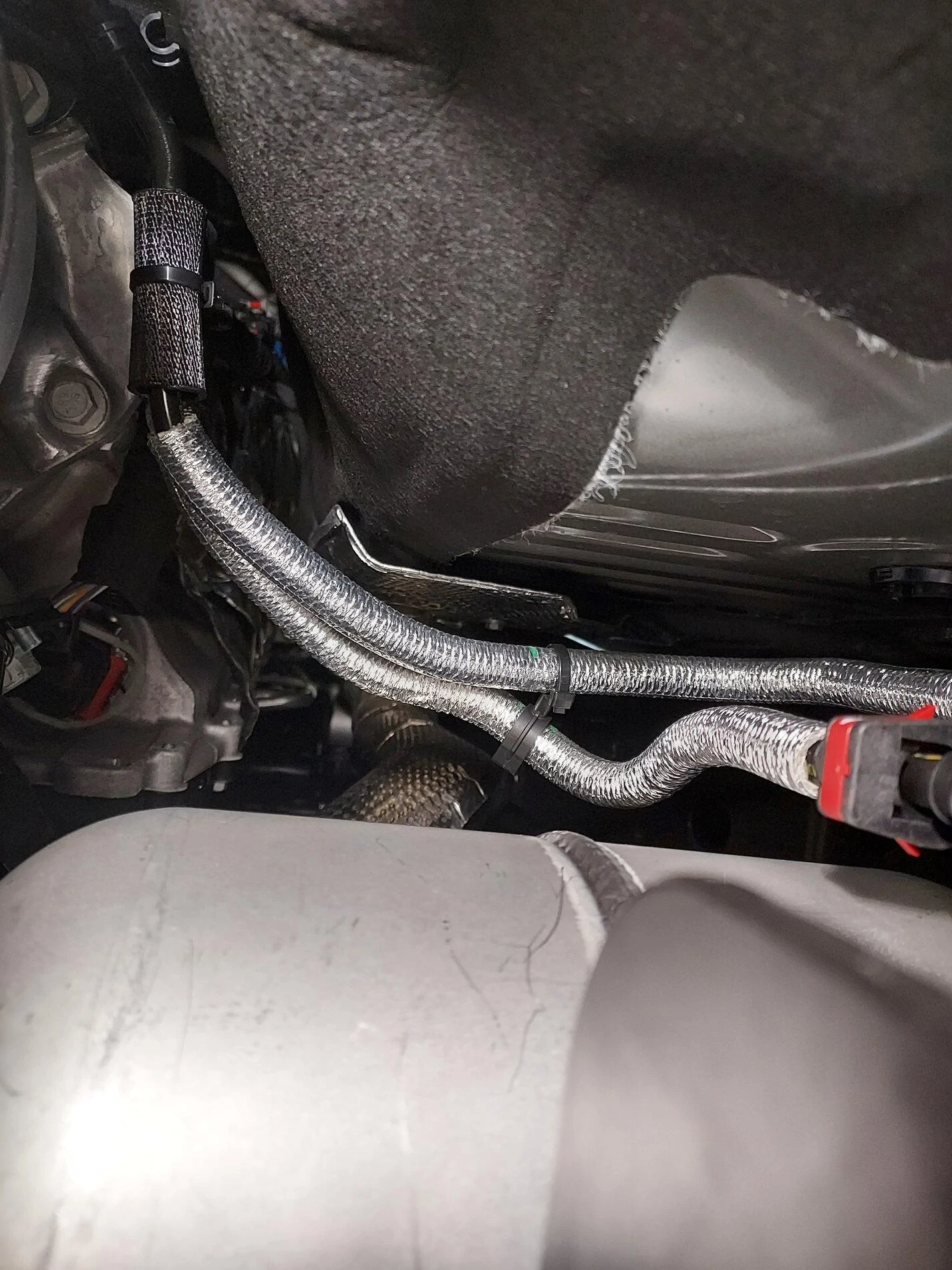

Compressor power and control cable dressed along Bronco factory wiring harness

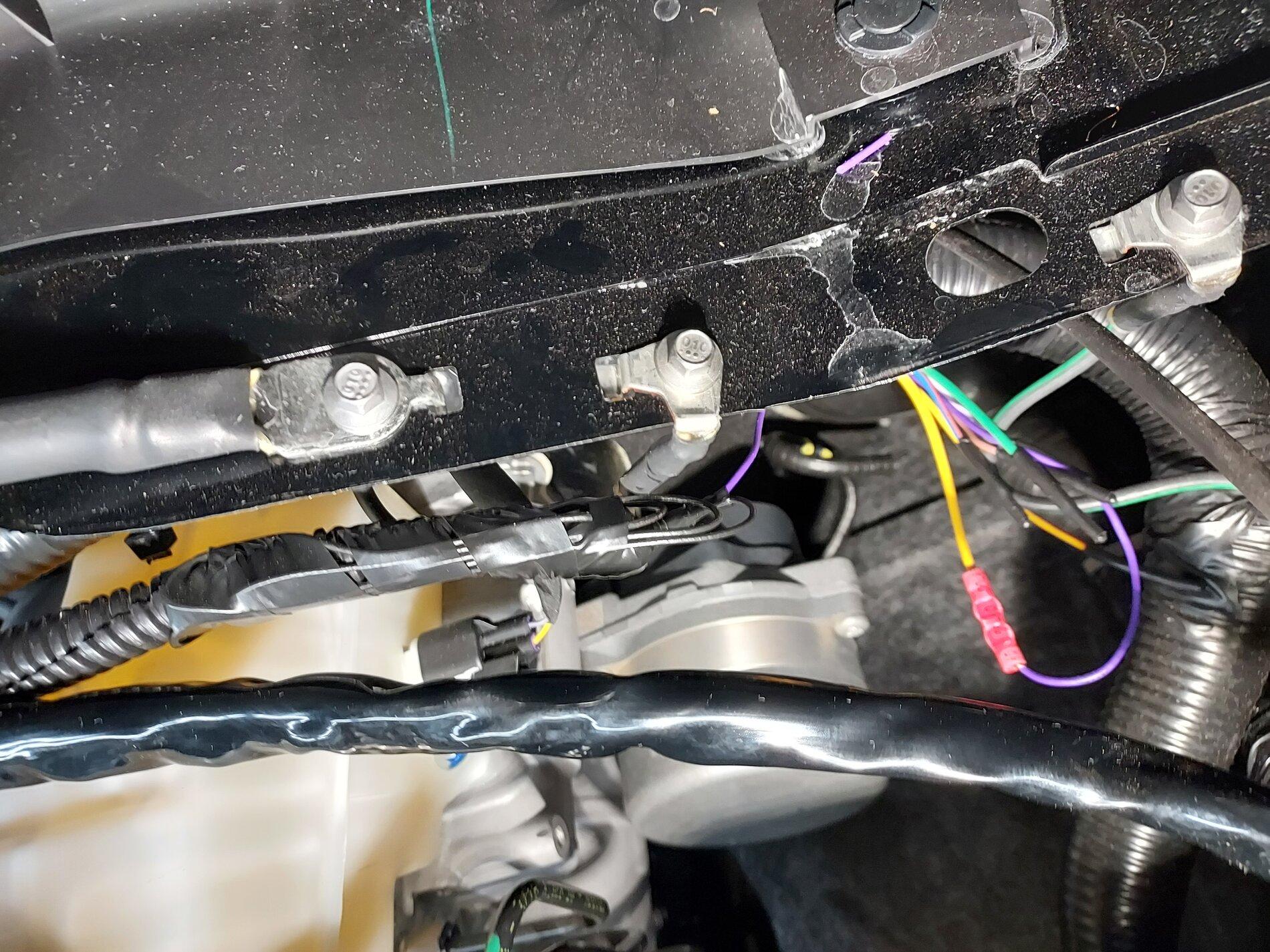

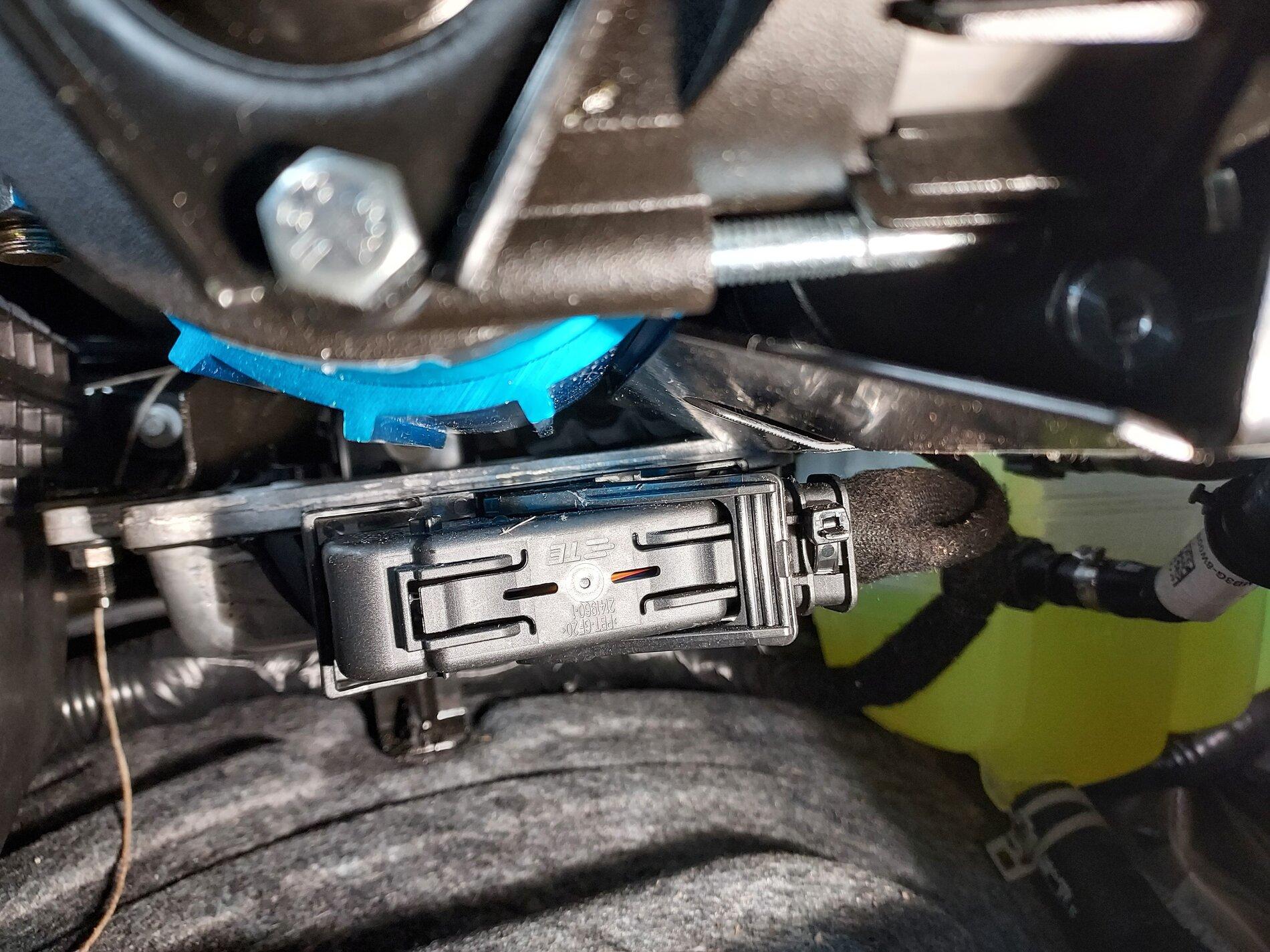

Compressor Control wiring connected # 6 Aux Switch wiring, yellow with orange tracer which was connected to the violet wire from the compressor

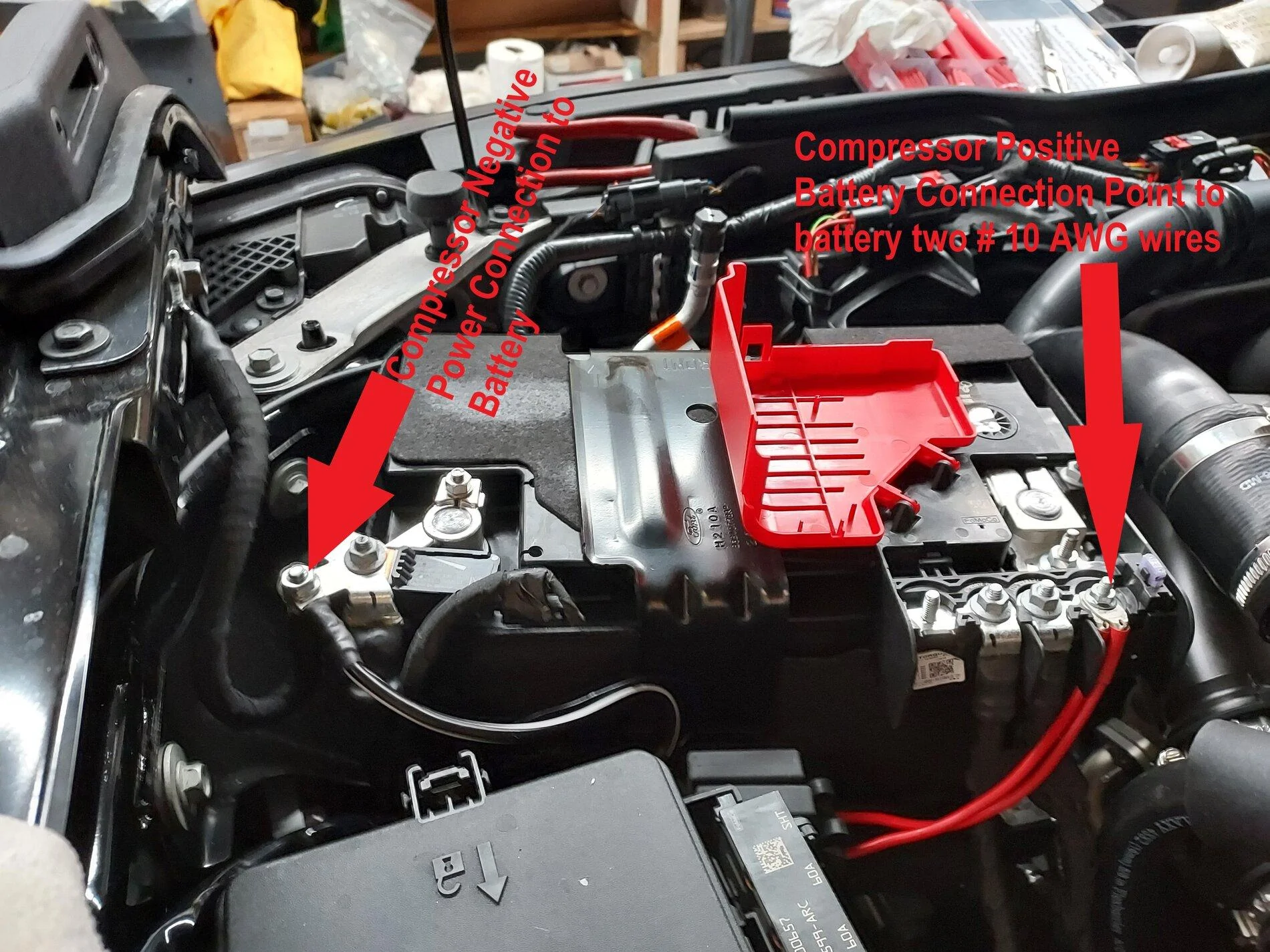

Compressor Power cable connection to battery

Update # 2. Have mounted the 1 gallon air storage tank that will be connected to the compressor for air storage and also mounted the air line quick disconnect on the trailer hitch where it is protected and easy to access. Still need to order airline and fittings to complete installation Plan to installed the electrical tomorrow. Most likely next weekend for the air line installation. Pictures follow for air tank and quick disconnect.

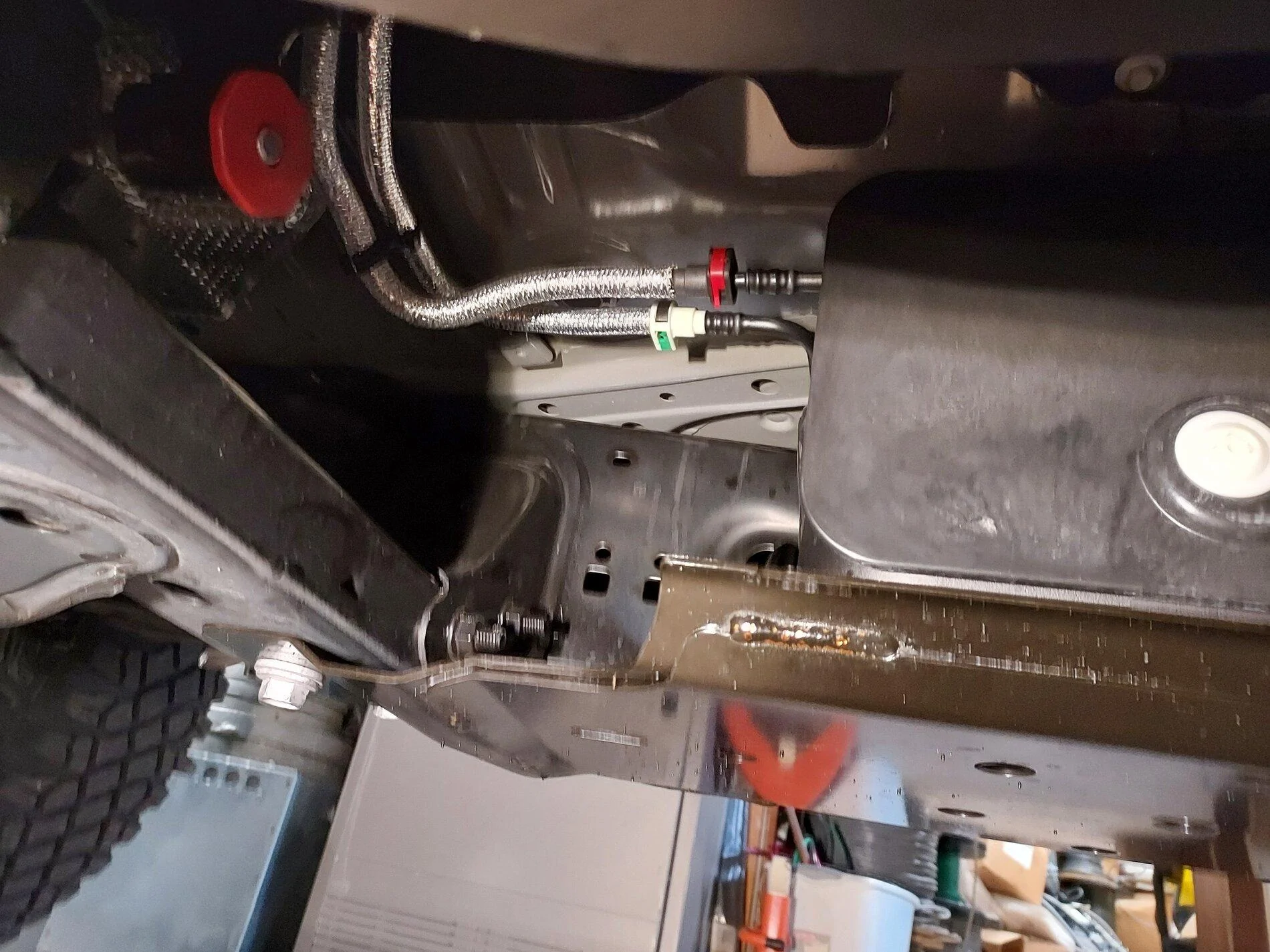

Space for 1 gallon ARB air storage tank in front of the gas tank




Bracket built for tank installation

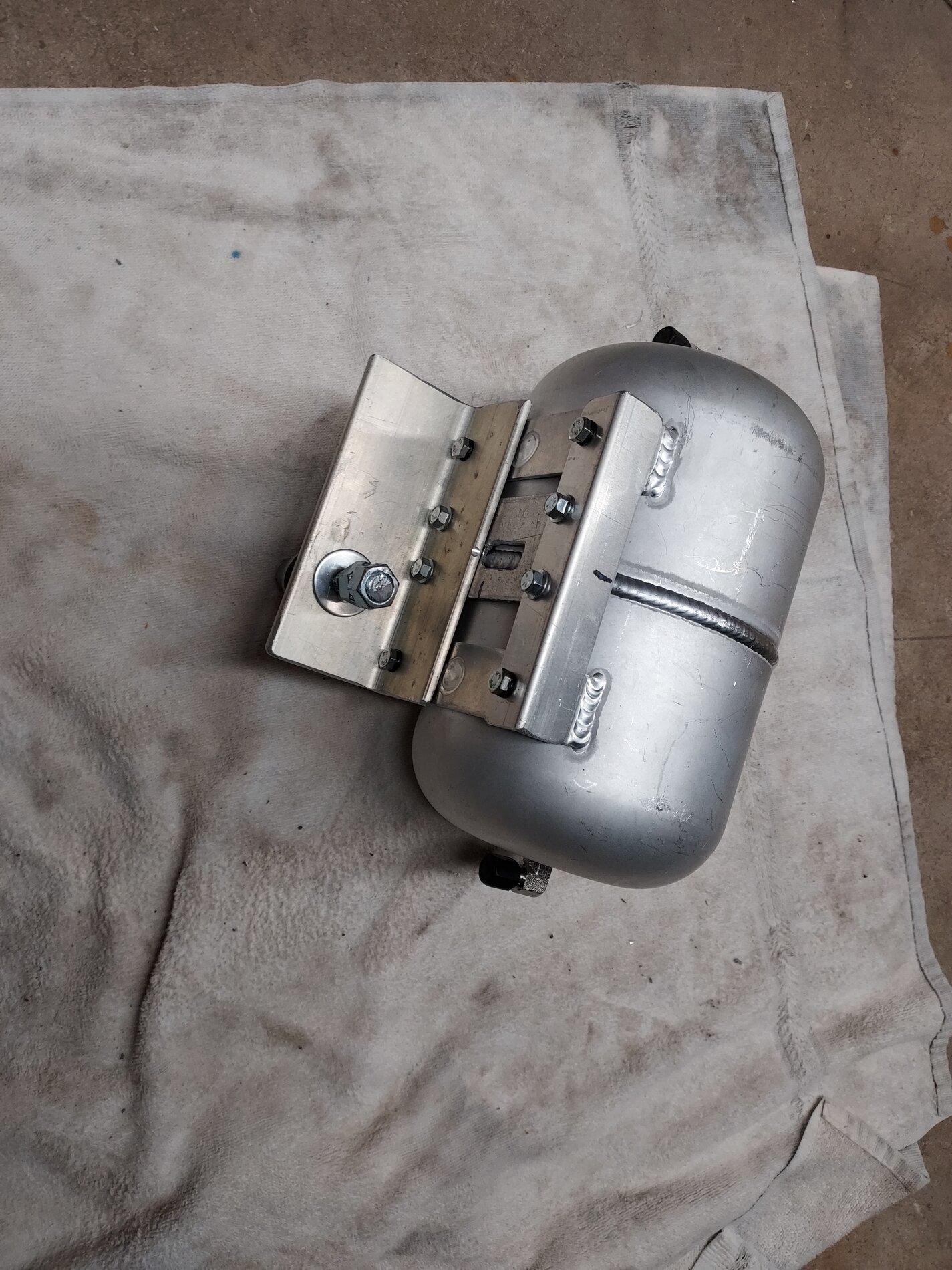

Tank with bracket installed

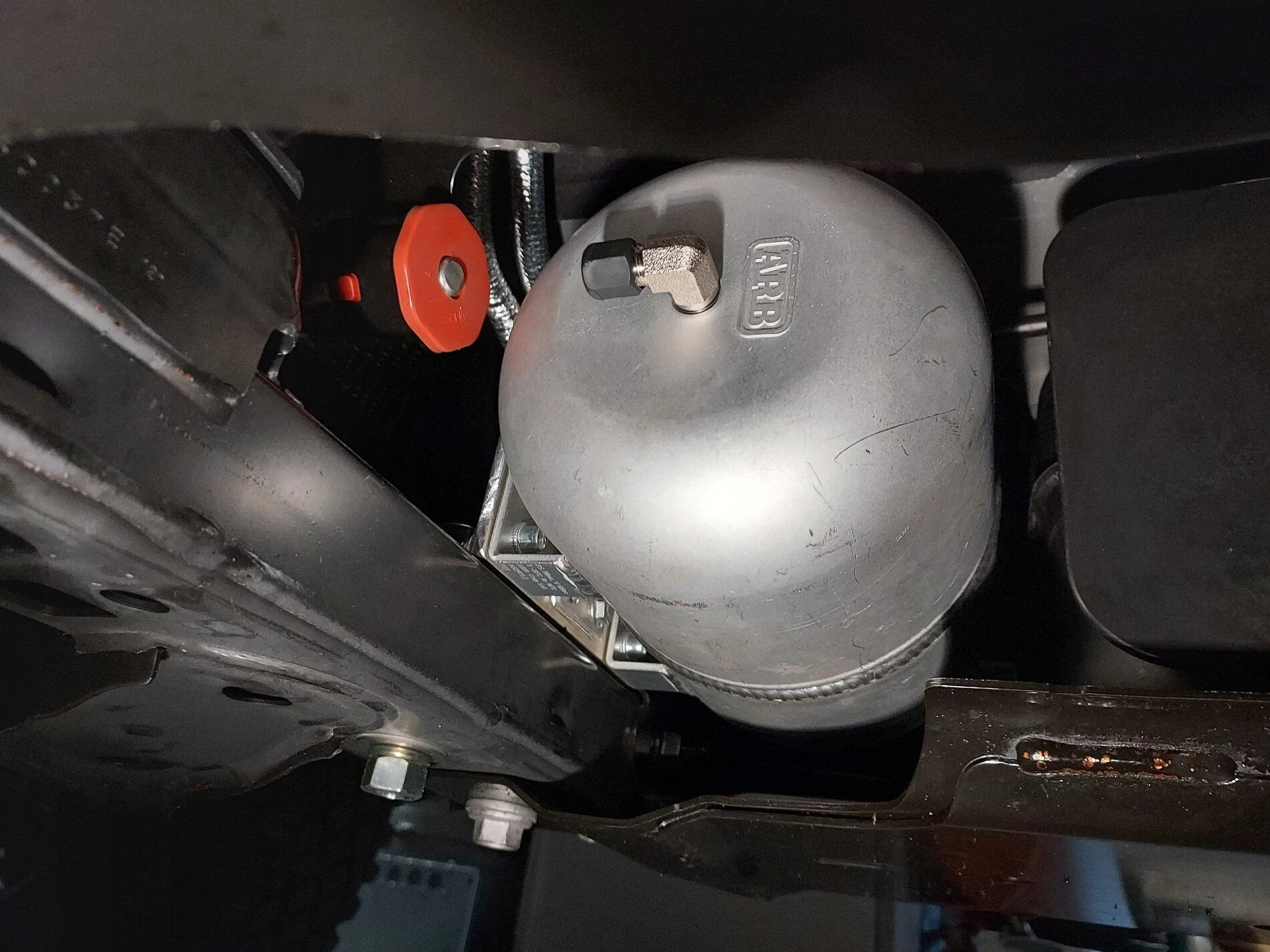

Tank installed

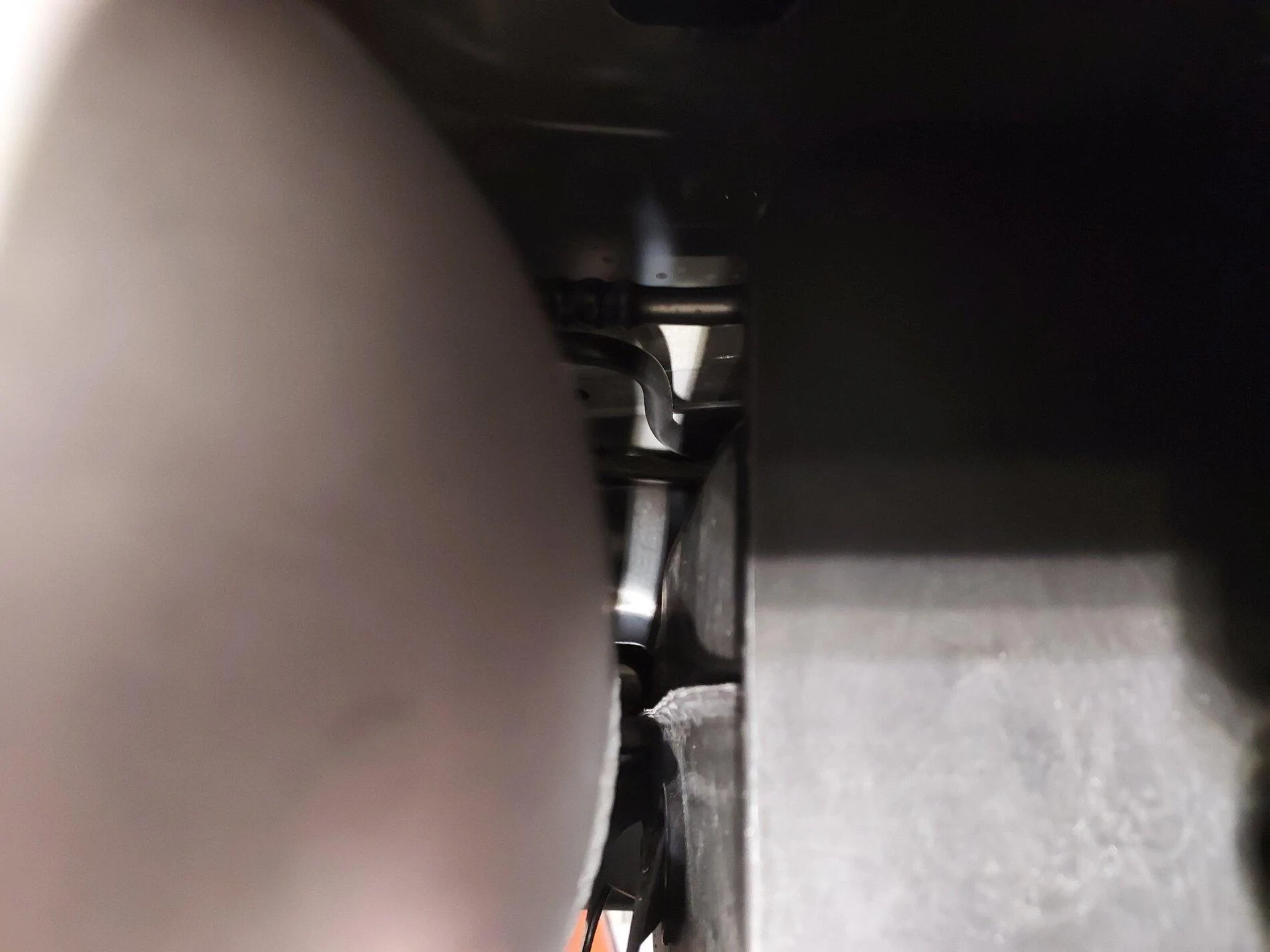

Clearance between air and gas tank

.

Clearance above tank

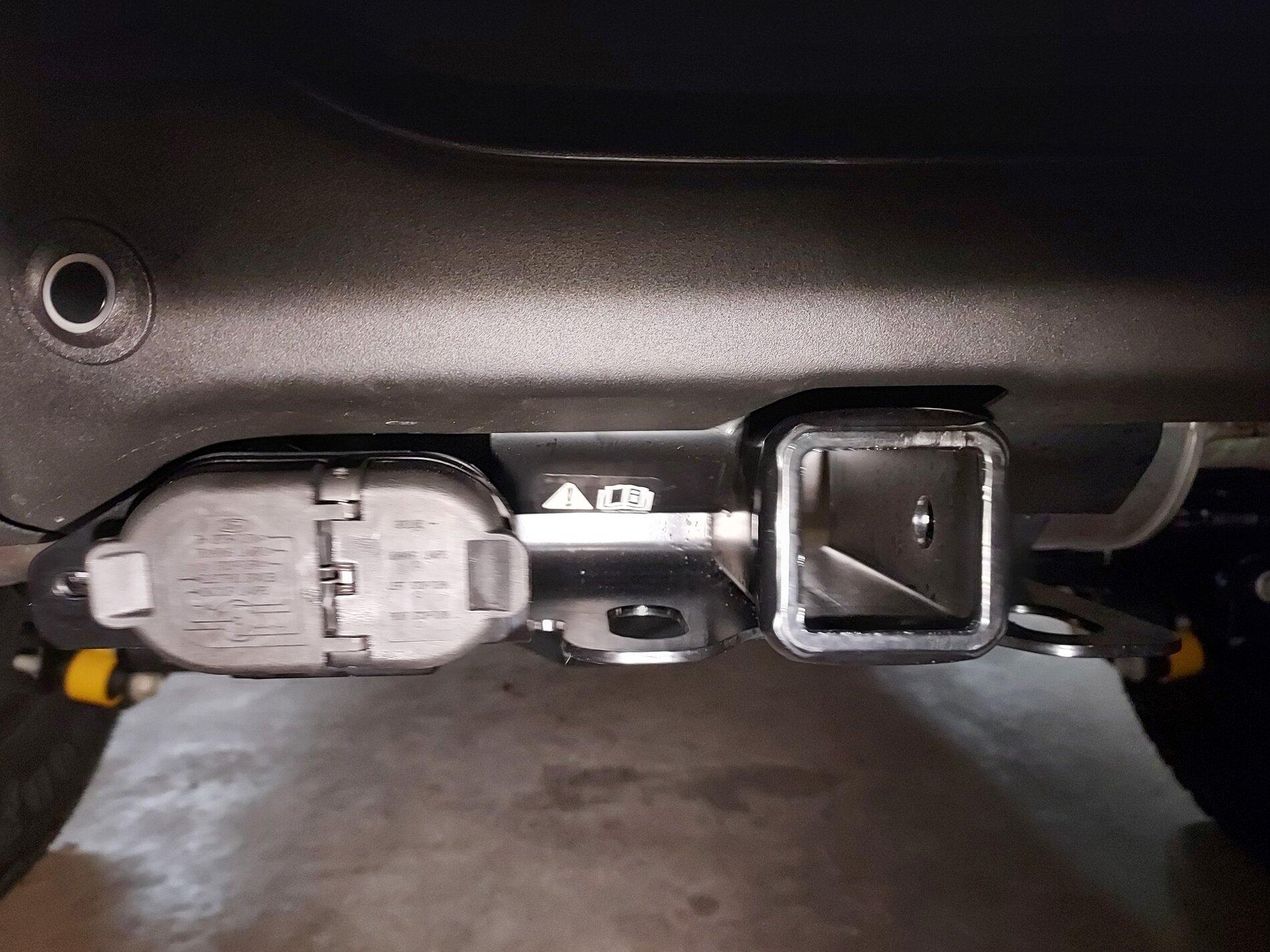

Trailer hitch before quick disconnect installation

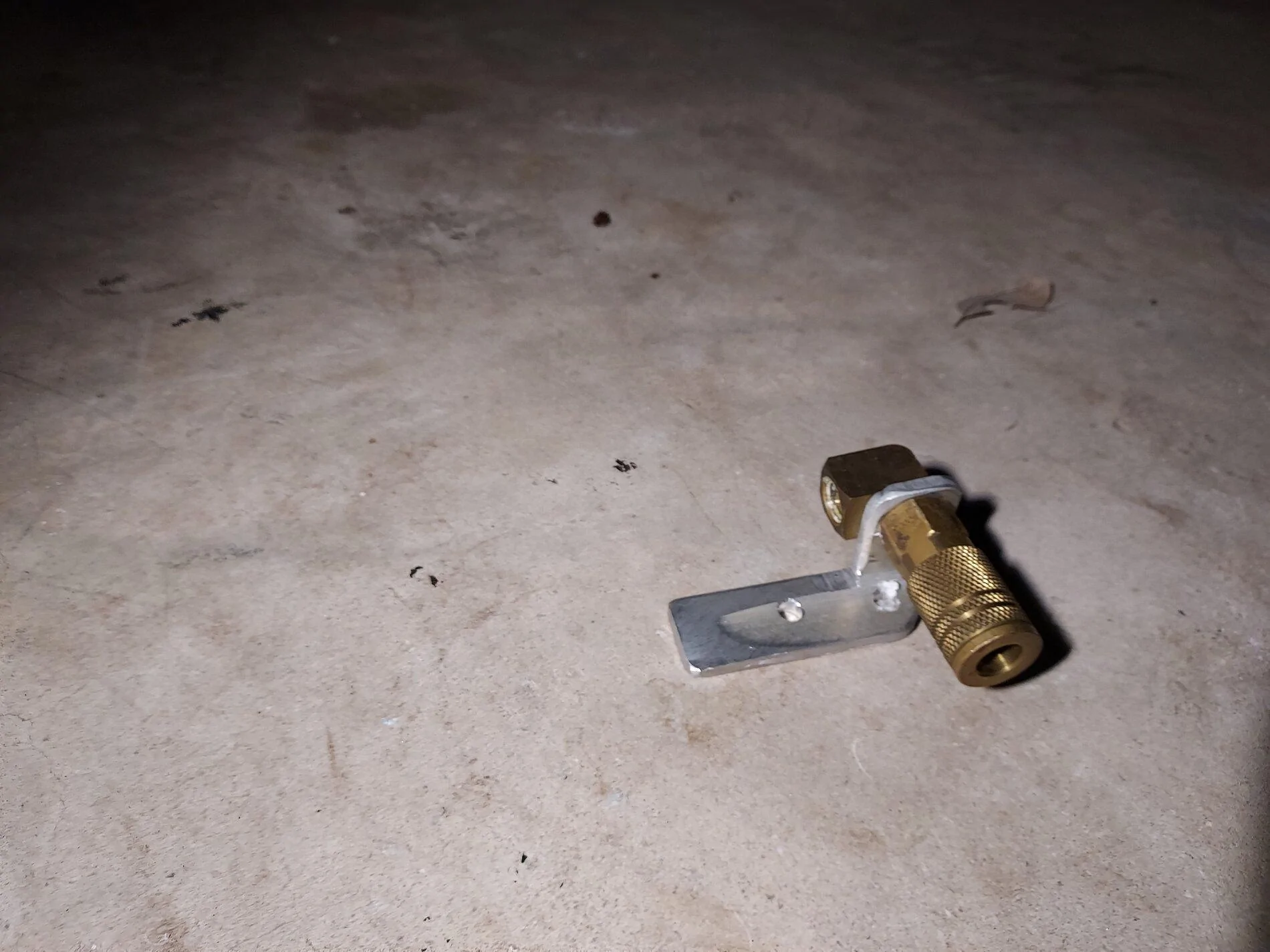

Air line disconnect and bracket that was fabricated

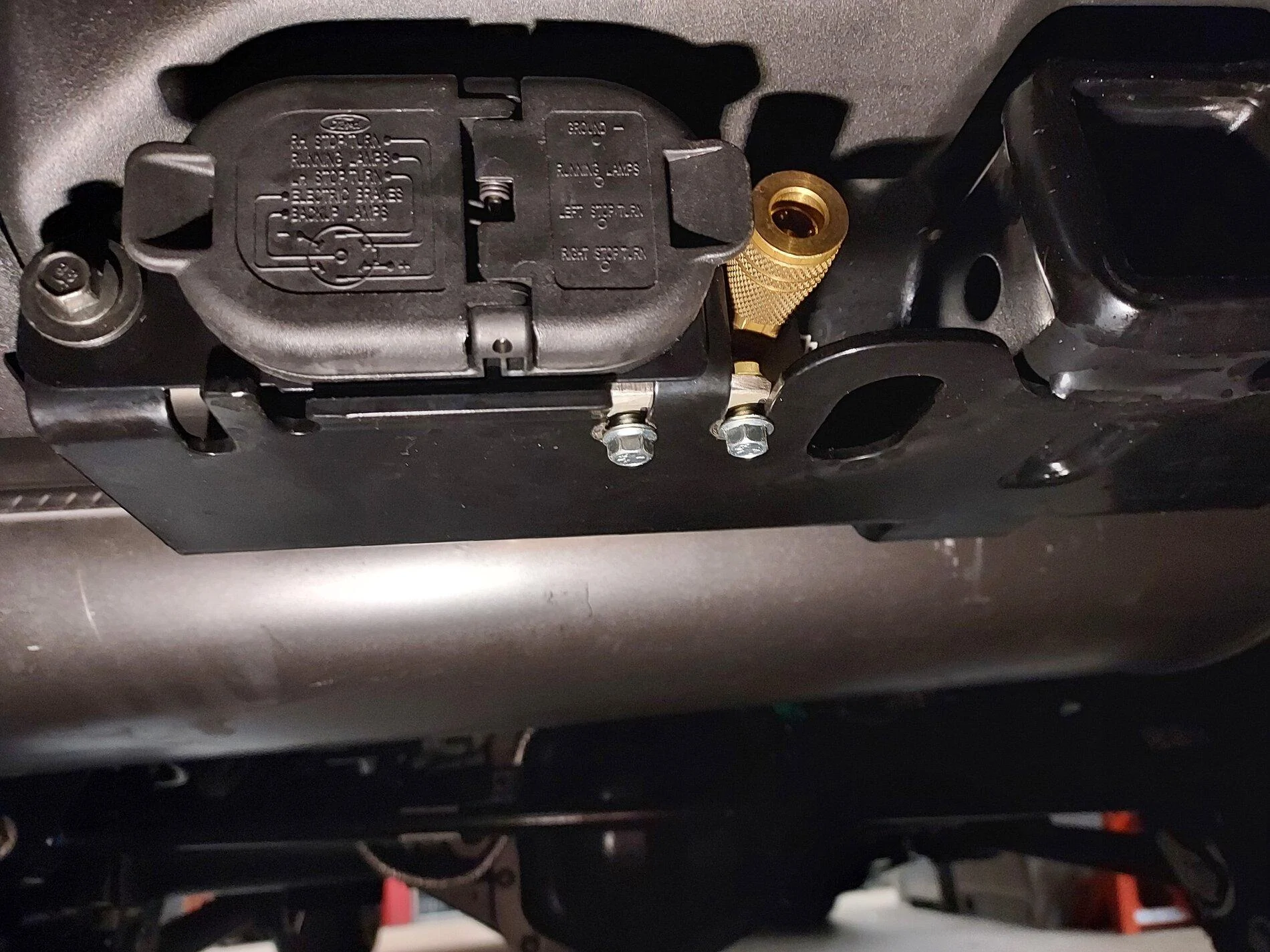

Air line quick disconnect mounted on trailer hitch, will be making a dust cover for quick disconnect.

Update #1. Removed the bracket so I can de-burred the cut edges, then cleaned up and paint. Also insured the air filter access wasn't impeded. Here's some additional pic of the bracket

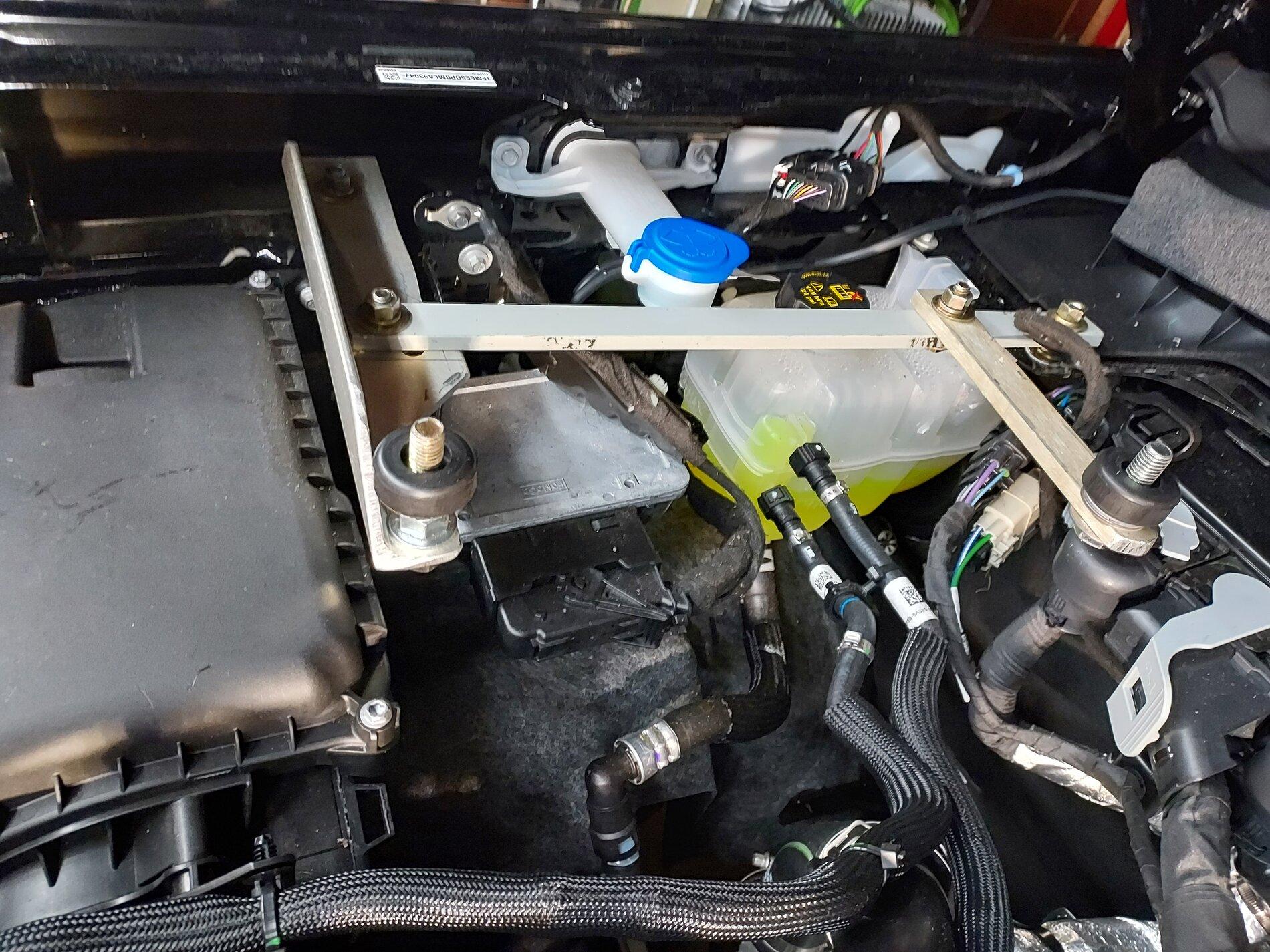

Mount in Vehicle without compressor install

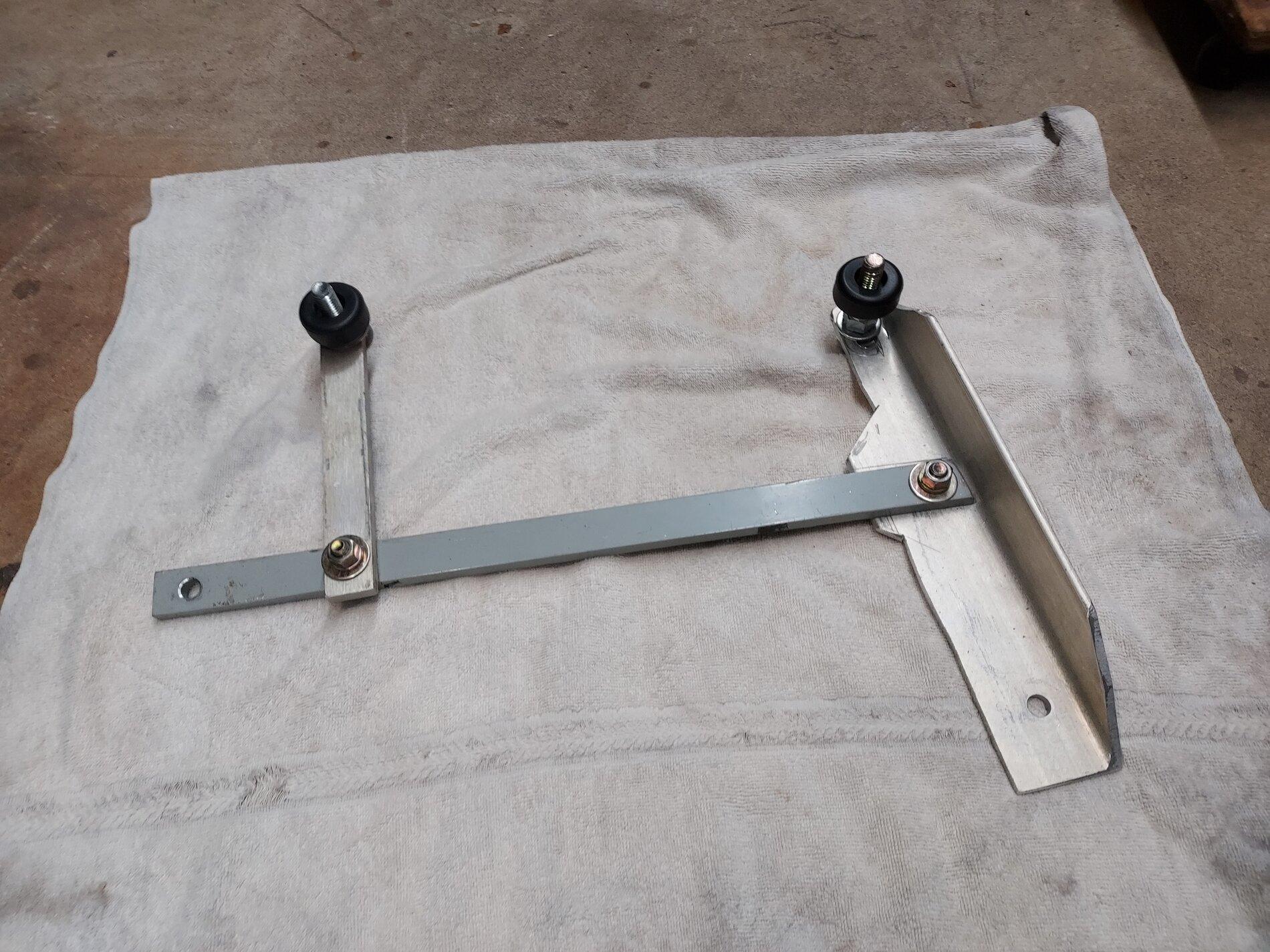

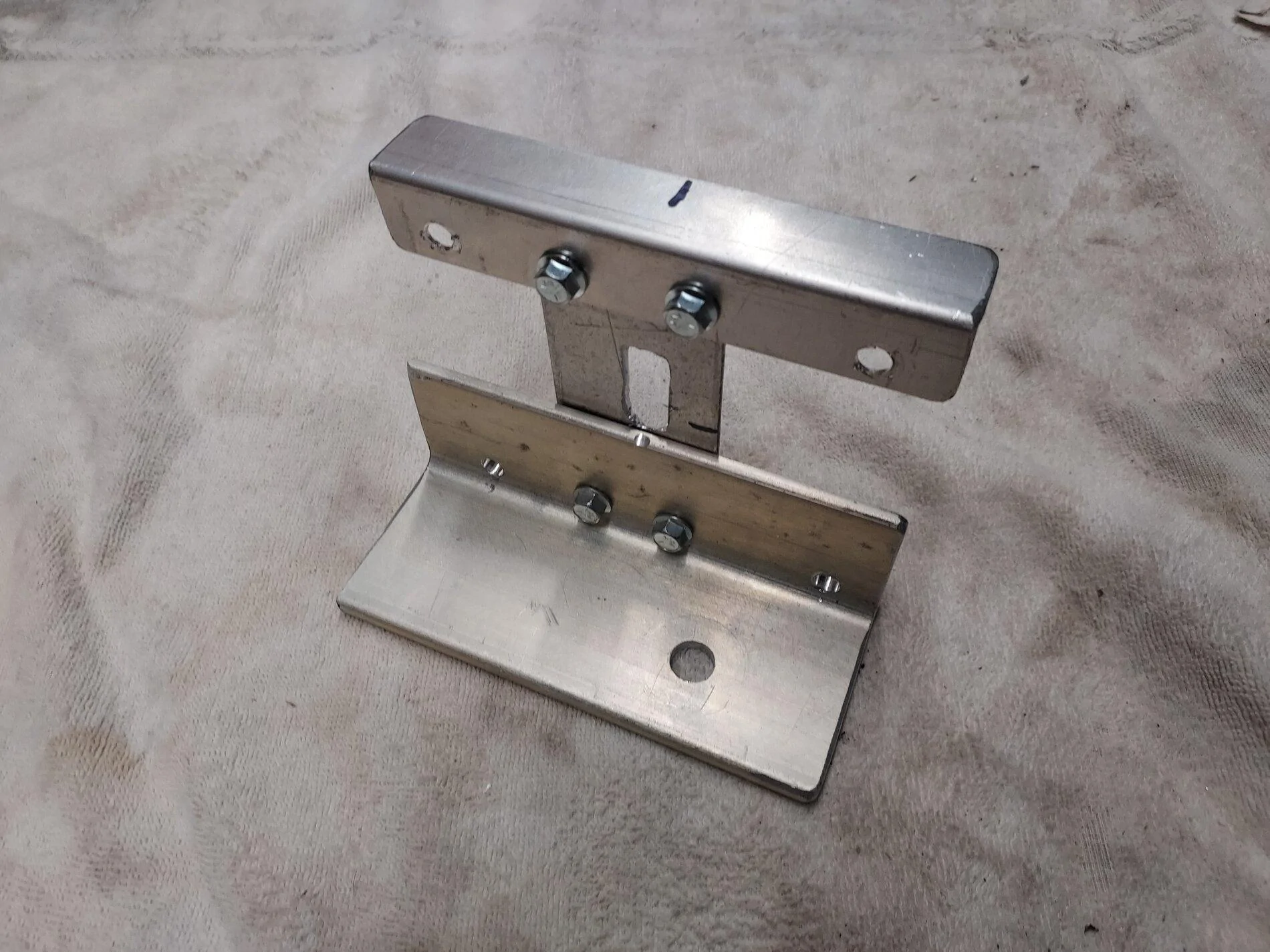

Mount out of bronco

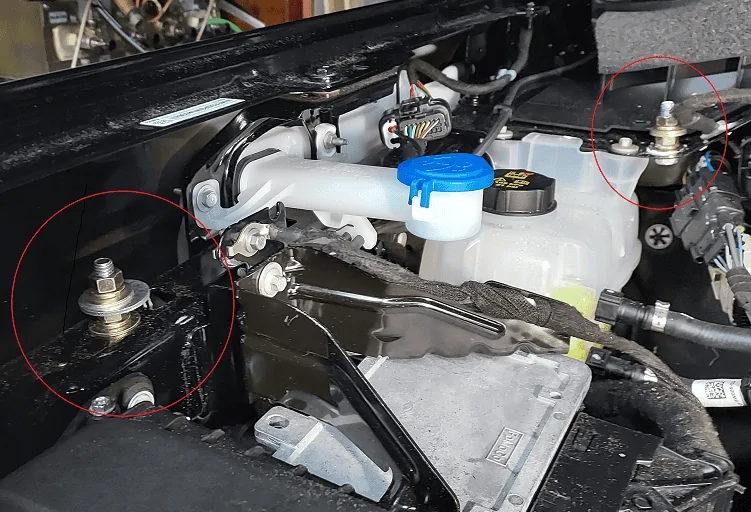

Mounting bracket attachment points to Bronco



[TriggerTX]

Going to be interested in where you can hide a tank. I haven't really spent much time under a new Bronco while thinking about that. Do you think just a gallon is enough?



[Ingridthehorrible]

Going to be interested in where you can hide a tank. I haven't really spent much time under a new Bronco while thinking about that. Do you think just a gallon is enough?

Am considering a second tank, only bought one to start with, if I find room for two, will source a second tank and install.



[MrGreen55]

Nice job
@4x4TruckLEDs.com Look like it fit under the hood of a 2.7.



[BRBlue]

Looks good. You could probably mount a tank where @Theherofails installed his compressor…

https://www.bronco6g.com/arb-dual-c...g-a-location-for-installation-on-2021-bronco/



[Boston182]

The competition to get a compressor in a 2.7 is more interesting to me than most sports.



[4x4TruckLEDs.com]

Awesome, loving see people coming up with ways to mount things.

Nice job
@4x4TruckLEDs.com Look like it fit under the hood of a 2.7.

Yes just got back from test fitting. The compressor will have to be mounted in this fashion. On the 2.3L it can go the other way but on the 2.7L this is the orientation we came up with.



[Ingridthehorrible]

Looks good. You could probably mount a tank where @Theherofails installed his compressor…

https://www.bronco6g.com/arb-dual-c...g-a-location-for-installation-on-2021-bronco/

Saw his post over the weekend, not a bad location for the tank, however plan to mount vertically as I plan to install a drain valve on the bottom port of the tank to drain water. Plus don't want to drill any holes thru the floor / bed of the vehicle



[604Bronco]

@Theherofails - Weren't you looking for this?



[ROKBRNC]

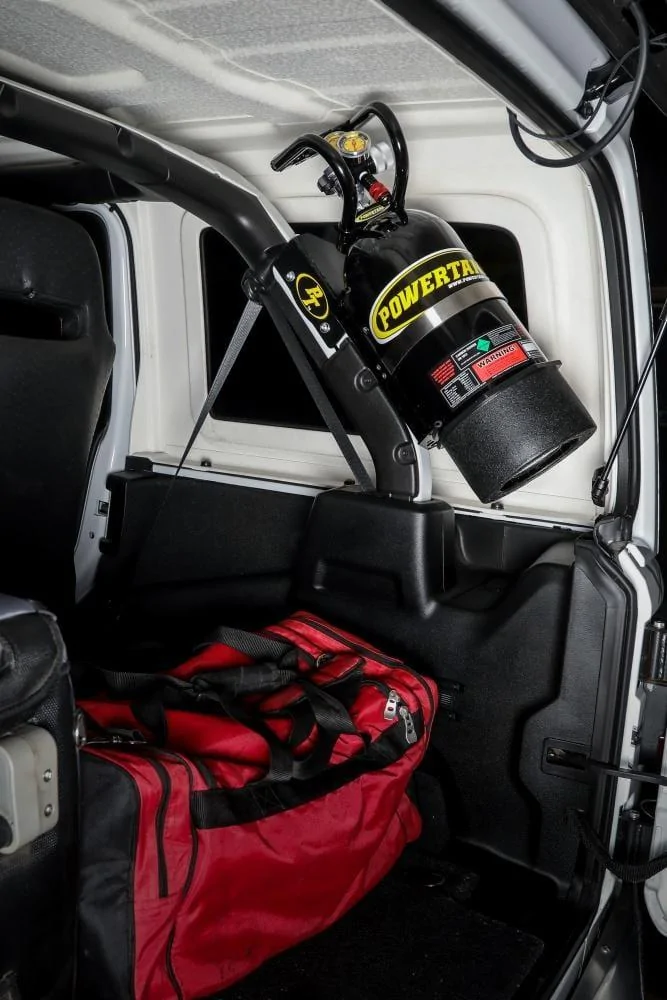

I’ll just wait until Powertank comes out with their Bronco rollbar mount, no loss of floor space, drilling or wiring and can leave the tank at home when not needed and can also move it from vehicle to vehicle. Used about every hard mounted air compressor available over the years and the Powertank handles 90% of what I’ve needed from filling up tires, running air tools, air mattresses, only downside is risk of it running empty so I always refill when it gets to <30%.



[604Bronco]

The competition to get a compressor in a 2.7 is more interesting to me than most sports.

Unsure if you're referring to sports, such as baseball and hockey, or Bronco Sports...



[Shinoko]

Isn't heat an issue mounting it under the hood? I thought they had some kind of thermal cutoff, seems like a few hours of wheeling would cause them to get too hot for use.



[Boston182]

Unsure if you're referring to sports, such as baseball and hockey, or Bronco Sports...

Professional sports. Baseball, basketball, football...

But not hockey. Hockey rules and is the best.

Additional note... I like the Bronco Sport for what it is. I don't understand the shit-talk. Reminds me of my 2010 Escape, but more capable. ¯\_(ツ)_/¯



[jaeggernaut]

Do you need the tank if you have a compressor and vice versa? I thought you needed only one or the other (n00b off-roader)
