ARB Twin Air Compressor and Pressure Control Kit Install

[Aman]

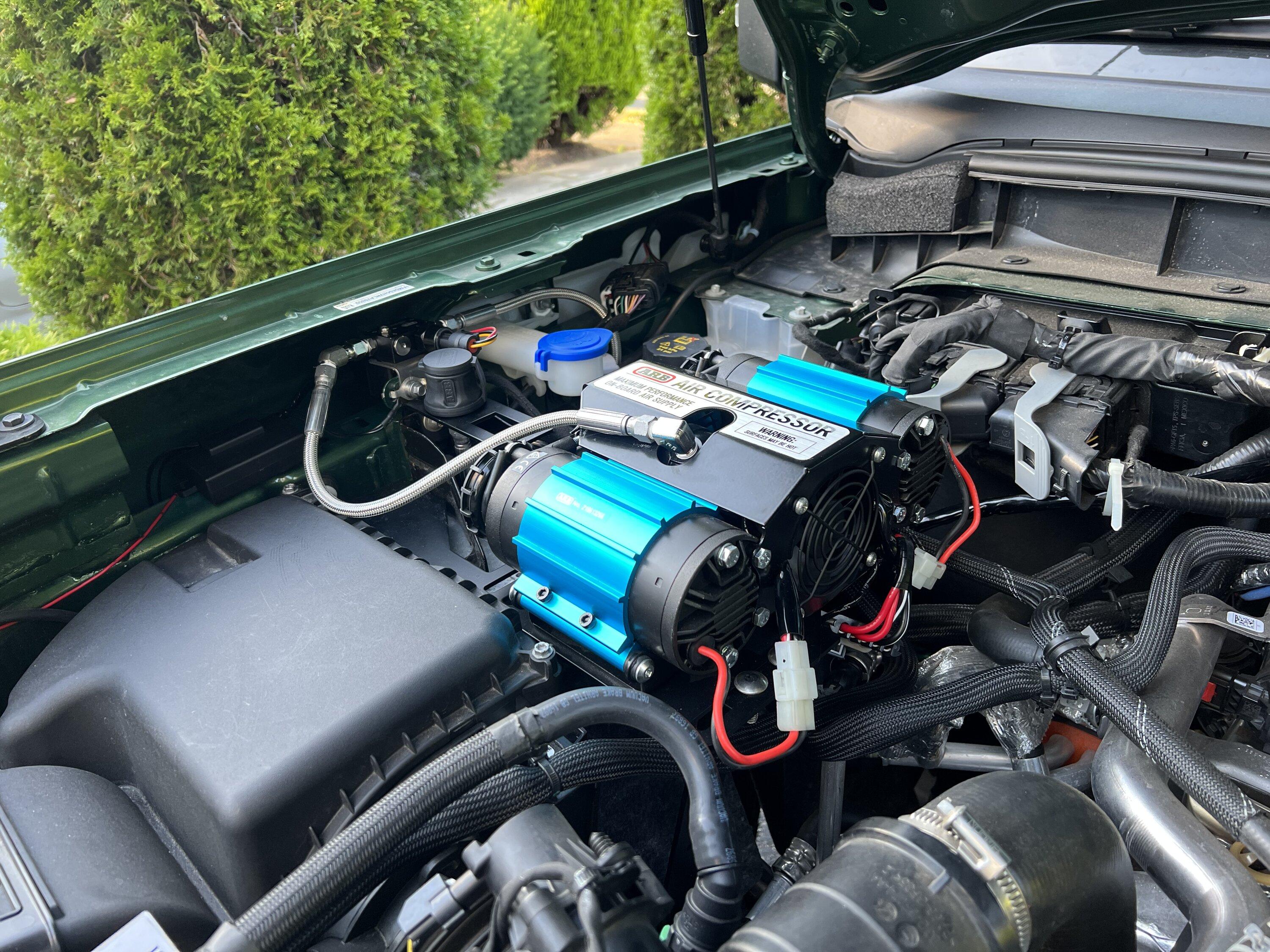

I finally got around to installing the KR Air Coupler Switch Bracket and ARB Pressure Control Kit. I went overboard ordering hoses and couplers from @4x4TruckLEDs.com, but in the end only needed what is listed below to achieve a clean install.

Parts List:
ARB On-Board Twin Air Compressor
ARB Pressure Control Kit
KR Off-Road ARB Compressor Engine Bay Mount
KR Off-Road ARB Compressor & Air Coupler Switch Bracket
ARB Air Hose Coupler (JIC-04 37 Degree Flare Fitting)
ARB Air Hose Coupler Dust Cap
ARB Reinforced Hose JIC-04 0.5m
ARB Reinforced Hose JIC-04 0.3m
ARB Adapter 1/8 BSP (M) JIC-04 (M), 2 Pack
ARB Adapter 1/4 NPT(M) JIC-04(M), 2 Pack - Only 1 required
ARB Air Line Adapter Fitting 45 Elbow, 2 Pack - Only 1 required

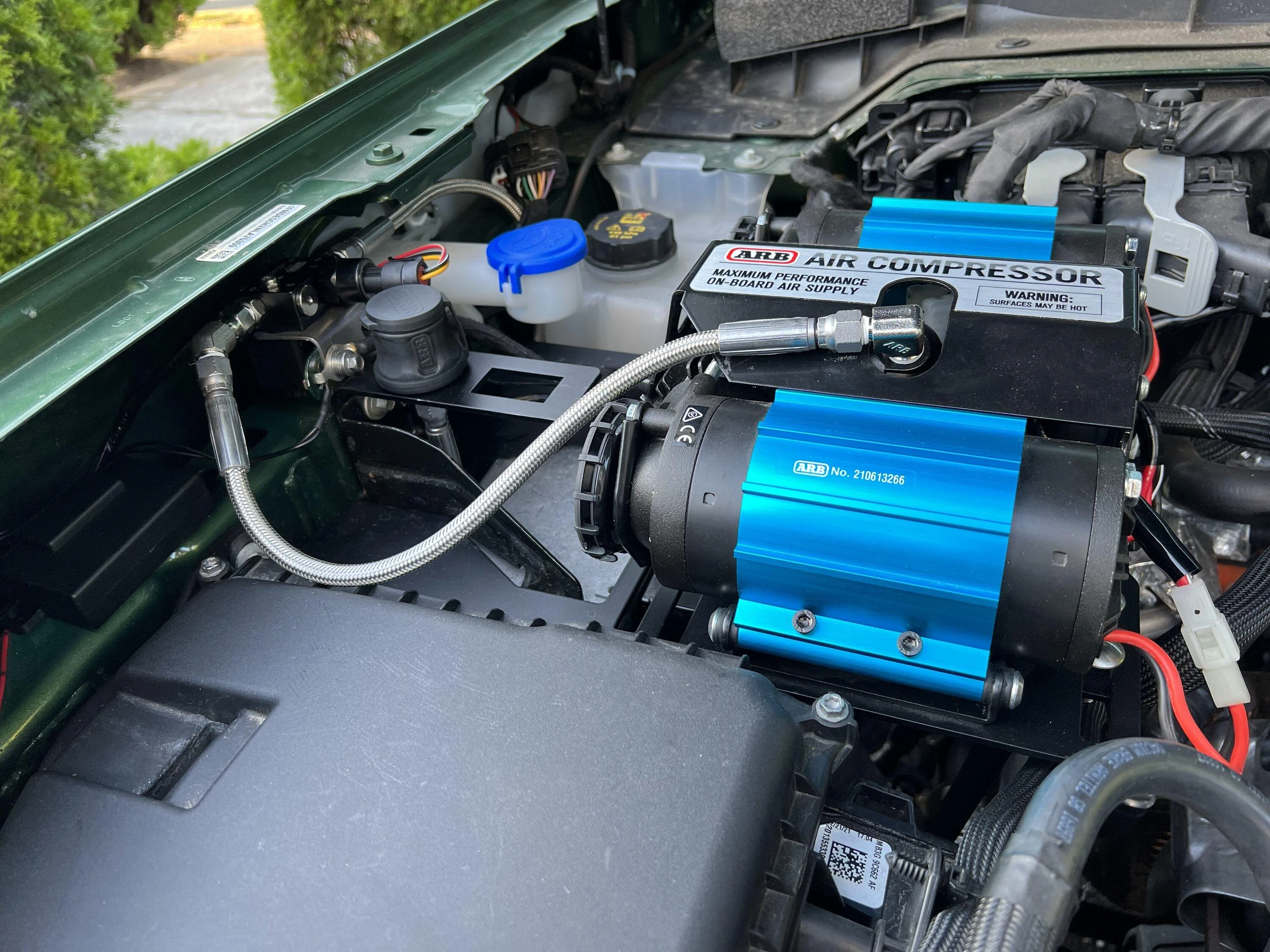

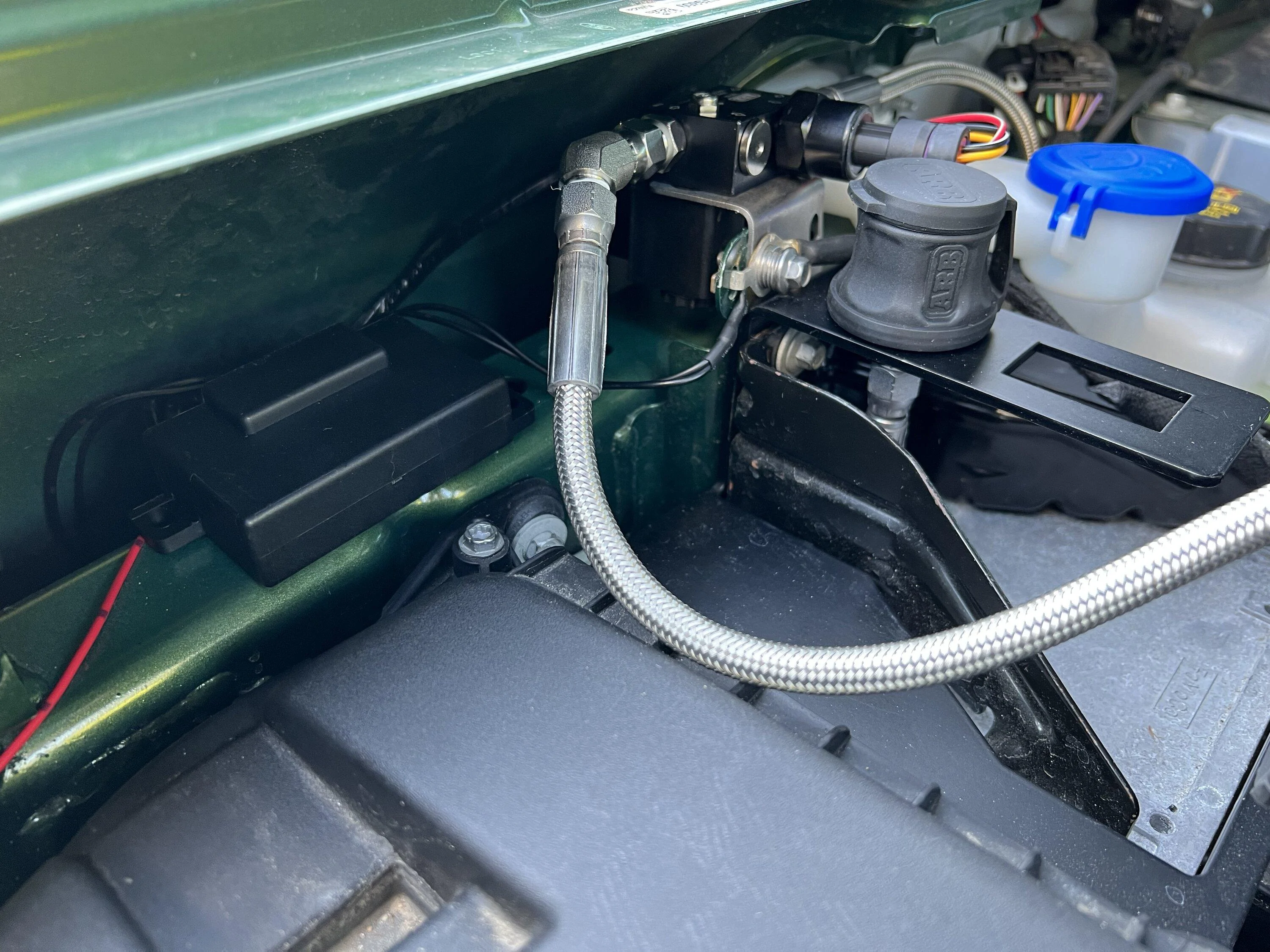

Please note, due to the configuration of the ports on the ARB regulator I was unable to have the input and output hoses on the same side, so the layout is a bit more spread out than I would have preferred. Also, the spot where I mounted the regulator needed to be twisted a bit so the pressure sensor would clear the coupler. Finally, the screw I used for the regulator mount was a bit too long, so I used four washers to take up the extra space.

Initially I planned on using the supplied ARB switch, but I decided to forgo that idea because using the upfitter switches made for a cleaner install.

Sponsored



[4x4TruckLEDs.com]

You basically ordered every single ARB fitting/hose they made, lol. Glad to see the end result



[Ground_zero298]

You basically ordered every single ARB fitting/hose they made, lol. Glad to see the end result

You plan on refunding me my money for the return I sent back 3 weeks ago?



[4x4TruckLEDs.com]

You plan on refunding me my money for the return I sent back 3 weeks ago?

I don't know what return you're talking about. If you have an order specific question the best way to get answers is to email us, message us here, call us or text us



[Aman]

You basically ordered every single ARB fitting/hose they made, lol. Glad to see the end result

Haha, yeah figured I was going to be stuck with a bunch of extra parts, but would have hated to keep buying one-offs. Having everything on hand made it easy to test a number of different configurations and settle on the best one.

Thanks for getting everything to me so quickly!



[4x4TruckLEDs.com]

Haha, yeah figured I was going to be stuck with a bunch of extra parts, but would have hated to keep buying one-offs. Having everything on hand made it easy to test a number of different configurations and settle on the best one.

Thanks for getting everything to me so quickly!

That's what I do. If i'm doing a project I just order a few of everything. Just ask my guys about the fishing rod holder nuts/bolts

I ordered about $1500 worth of nuts/bolts to figure out exactly what I needed for the fishing rod holders. BUT now we have 2 nuts/bolts bins with all types of sizes. Great to have on hand.



[JediMcMuffin]

That's pretty darn cool. A splurge for sure, but time is money right.



[Interior guy]

So with all you had installed what does that run approximately?



[JeebusCripes]

I don't know what return you're talking about. If you have an order specific question the best way to get answers is to email us, message us here, call us or text us

I hear they will even respond to smoke signal or carrier pigeon. Point is they are here for you!!!



[4x4TruckLEDs.com]

I hear they will even respond to smoke signal or carrier pigeon. Point is they are here for you!!!

Indeed. But this person hasn't actually reached out to us... so we're not sure who they are or what return they are speaking about.



[Aman]

So with all you had installed what does that run approximately?

Bluetooth control for your ARB compressor.

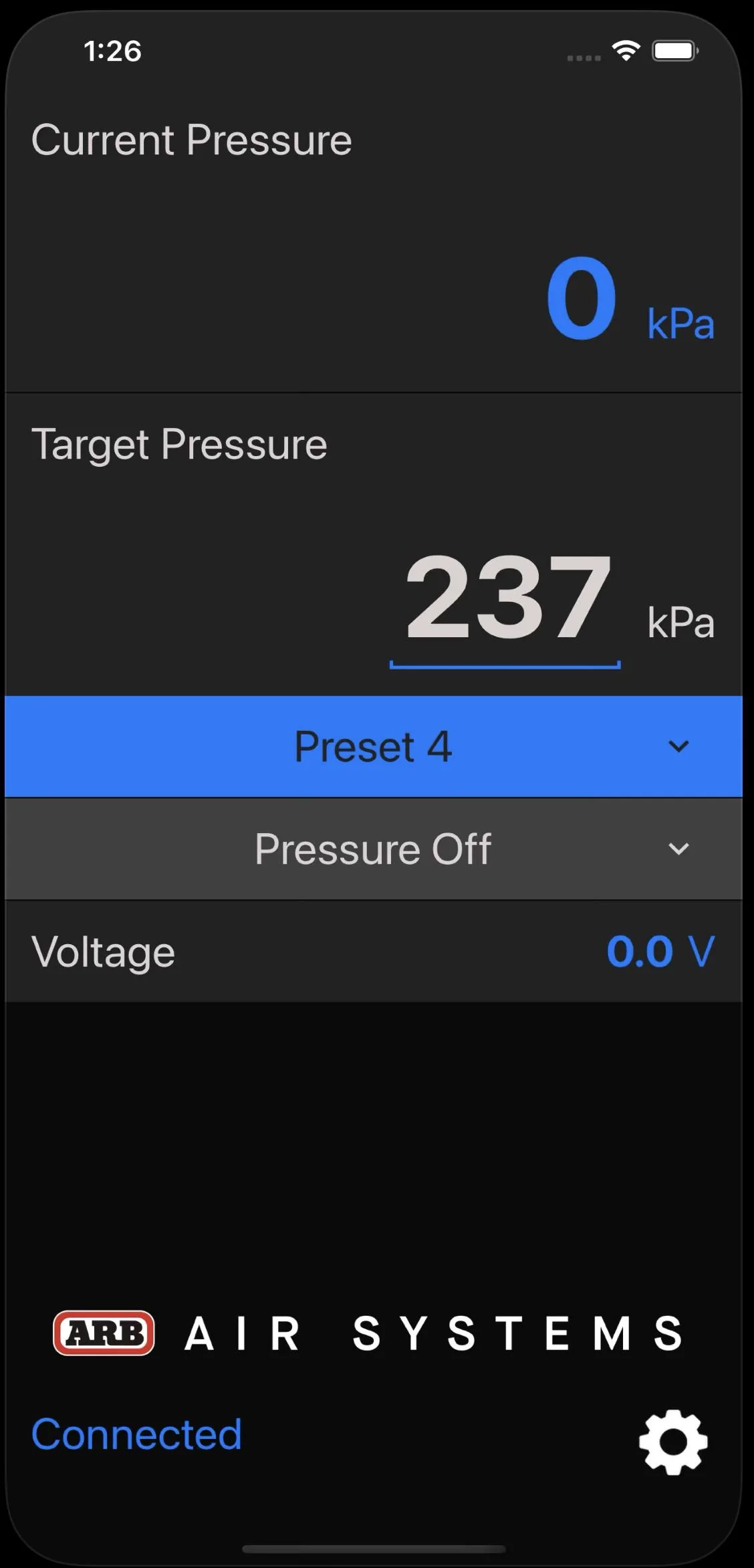

Still have to connect a hose, but if you have a MORRFlate type system, you hook it up, set the PSI via your phone, and walk away.

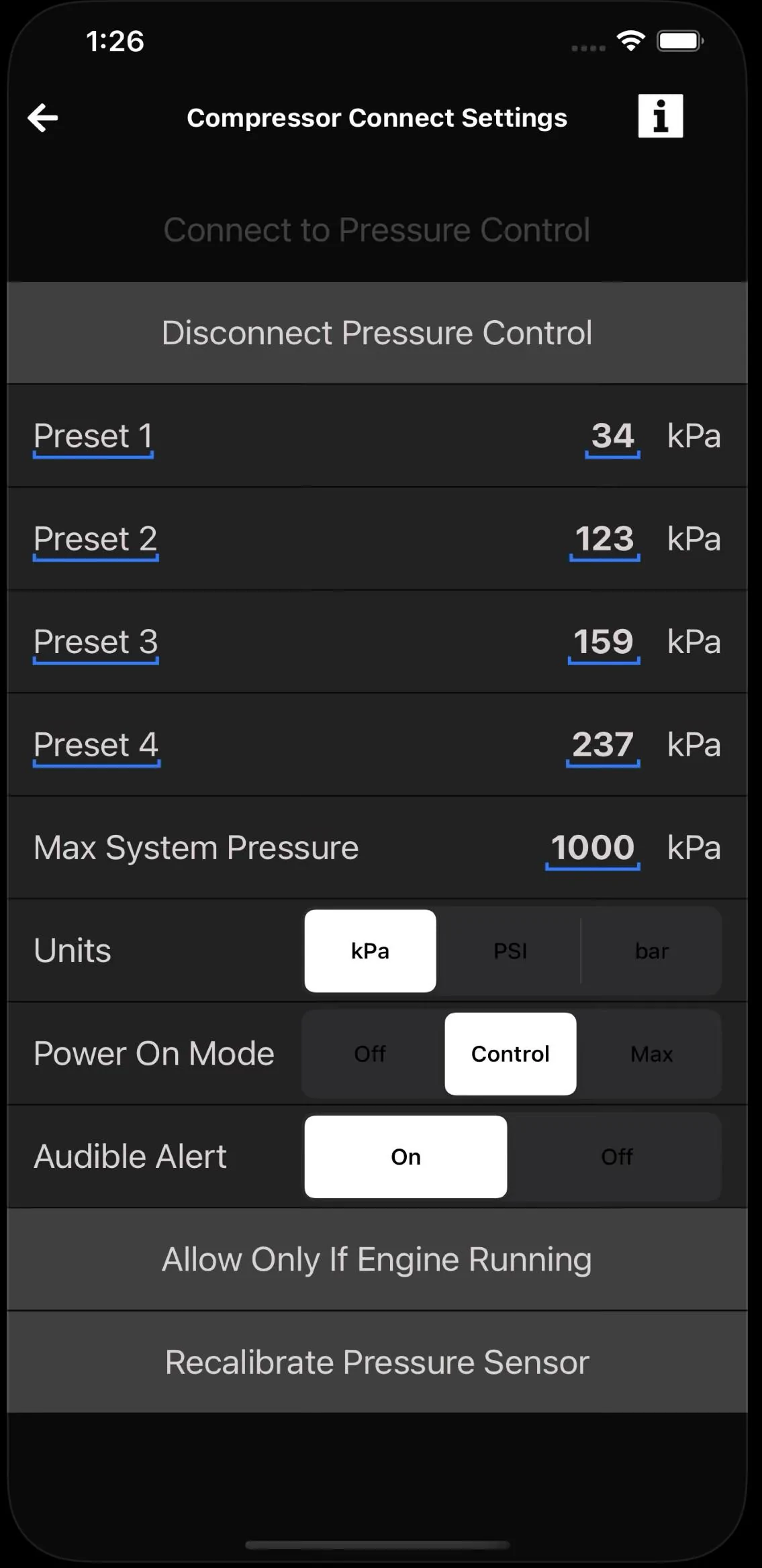

ARB Compressor Connect
