Install guide for Archaic full led tail lights. Lights run $549.99 a set. I went with the smoked version.

Install will be for non led and led swaps. I cannot attest to the non led swap function with these settings. If you have the leds rears already you can expect the same results as the video from this post.

Special shout out to @reechar for informing me of the dip switches. Made the product work 100% as advertised.

Lot of people on here were saying these were a scam. I’m here to set the record straight. Had them delivered in 7 days once my order was placed. They will have to clear customs. I paid for them and bam! 7 days later was looking at the awesomeness in person.
https://www.archaic-direct.com/coll...022-2-4-door-plug-play?variant=40404514111548

Time to install. About 45 minutes if you’re quick. Bout a hour taking your time
install difficult, easy

Tools needed.
10mm socket
8mm socket
Philips screw driver
poly/plastic install tool. (plastic pry bar)

If you have the oem led version you may need depending on forscan settings
laptop
forscan program
forscan connection usb

First we will remove the rubber inner door liner. This will have 4 Phillips plastic retainer pins and a pair of 10mm bolts. After the fasteners are out, just work the rubber piece out.
Ford Bronco Archaic Tail Light Full Led Install 74FAF02A-17C6-4015-BC68-8B955A2FC571
Ford Bronco Archaic Tail Light Full Led Install D543CC27-1F8A-46F3-B4ED-C6C2DDF1E5E0
Ford Bronco Archaic Tail Light Full Led Install 8F65AA0C-3640-498E-9E3C-BB0D8E16D843



Now we’re moving to the outside. Pull the flare off and set aside for now. We’re going to use the pry bar to separate the body panel. Behind this we will remove the upper 10mm bolt.
Ford Bronco Archaic Tail Light Full Led Install D73DBBAB-5FDE-4E12-AC7E-011766EFD97B
Ford Bronco Archaic Tail Light Full Led Install 218A24DB-C2C4-40C8-87C7-627C35CB6C34

Then we will move back to the inside. We’re going to separate the trim piece. You will pry behind the black, not the painted piece. If you got excited and prayed the color piece off I’ve included a fix for that too. After the piece is separated we will remove the 2 8mm bolts. The trim piece will be held on by one lower bolt over the bumper. It is flexible but don’t go leaning on it.
Ford Bronco Archaic Tail Light Full Led Install 698157DC-FC2F-470B-8634-07A9BA25DC45
Ford Bronco Archaic Tail Light Full Led Install BE8A3087-0175-48D0-A862-1736ED4EFC21
Ford Bronco Archaic Tail Light Full Led Install C6830B5E-DB1B-45D4-A622-00938DCCC925

Ford Bronco Archaic Tail Light Full Led Install 1F831BED-87CE-46E2-B886-94A3DB7AB8FE

If you messed this part up, no big deal. Little glue and shoo goo will get it right.
Ford Bronco Archaic Tail Light Full Led Install 4BD0AE1F-7EFB-4FAA-A983-CAD6DDE2B7A7

Next we’re going to take the 2 8mm bolts out. Then unplug the wire harness And wiggle and pull on the light to separate it from the body. Light comes out from the top, so if the bottom comes out on you first, push that back in and work the top out. Then remove the light.
Ford Bronco Archaic Tail Light Full Led Install 71BB2124-4BA4-4150-BD58-8150FFA0E683

Set the old light next to the new. Make sure the harness on the new light is tight. Also make sure the foam rubber grommets are in the correct place.
Ford Bronco Archaic Tail Light Full Led Install 03785101-DC06-44D5-B3B4-7C489EAB6525
Ford Bronco Archaic Tail Light Full Led Install 026B2F58-C252-49EE-8C07-4CFF645A3D8C
Ford Bronco Archaic Tail Light Full Led Install 91823B37-C6D9-4974-8922-E80973B6682C


For those with led rears already we will remove this cap and set both dip switches to on. By default 1 should be on a 2 should be off.

Ford Bronco Archaic Tail Light Full Led Install 25DAFE8D-BBAD-47D8-8B5D-FAFBB3575F7C
Ford Bronco Archaic Tail Light Full Led Install 6A92FE8F-1C7B-49BE-9F35-4BCA09052E22

Light will go back in from the top down. Reverse instructions to reassemble. Do not over tighten the bolts. Hair past snug is good.

If you had the standard lights, this should complete your install and as stated I’m unsure on proper settings on these (dip switch and or forscan) If led, follow the rest of the instructions.

At this point after setting the dip switches, check function. They should operate like the video. If they do not we’re going to check 4 items in forscan. Again this is for those who had leds already.

‘After you get FORScan connected and running we’re going to click on the cpu chip icon, then select the bdycm module.
Ford Bronco Archaic Tail Light Full Led Install C8B46379-CBAA-4EBF-8AC7-7CFF7A93E29C

Ford Bronco Archaic Tail Light Full Led Install 15A4562F-8630-4E4E-9B99-E6543E798B2B
Ford Bronco Archaic Tail Light Full Led Install D5661D75-5D8B-40E8-BFAE-7E6DD2980D35

Once on that screen with it populated we are going to change 4 parameters. Change them to what’s showing in the pics.
Ford Bronco Archaic Tail Light Full Led Install 47B74EDD-CBAB-4DC4-A6C9-AA816F4734F0
Ford Bronco Archaic Tail Light Full Led Install 4A8CC357-FFD9-4ED9-85FF-656AED35756C


Make sure to save and follow the FORScan prompts. Gratz on your new light install! These things are sexy.
Ford Bronco Archaic Tail Light Full Led Install ECDC8FE7-BE42-40F6-B9A9-8A8938015291
Ford Bronco Archaic Tail Light Full Led Install ADCBAFB1-2DC5-4F90-A44D-C59AD4C4BE6D


If anyone around the Detroit metro area or within a hour or so doing a non led swap let me know if you would like a hand. I am interested in figuring out the correct settings for the halogen swap.
Sponsored


Last edited:
OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
38
Messages
2,161
Reaction score
5,348
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

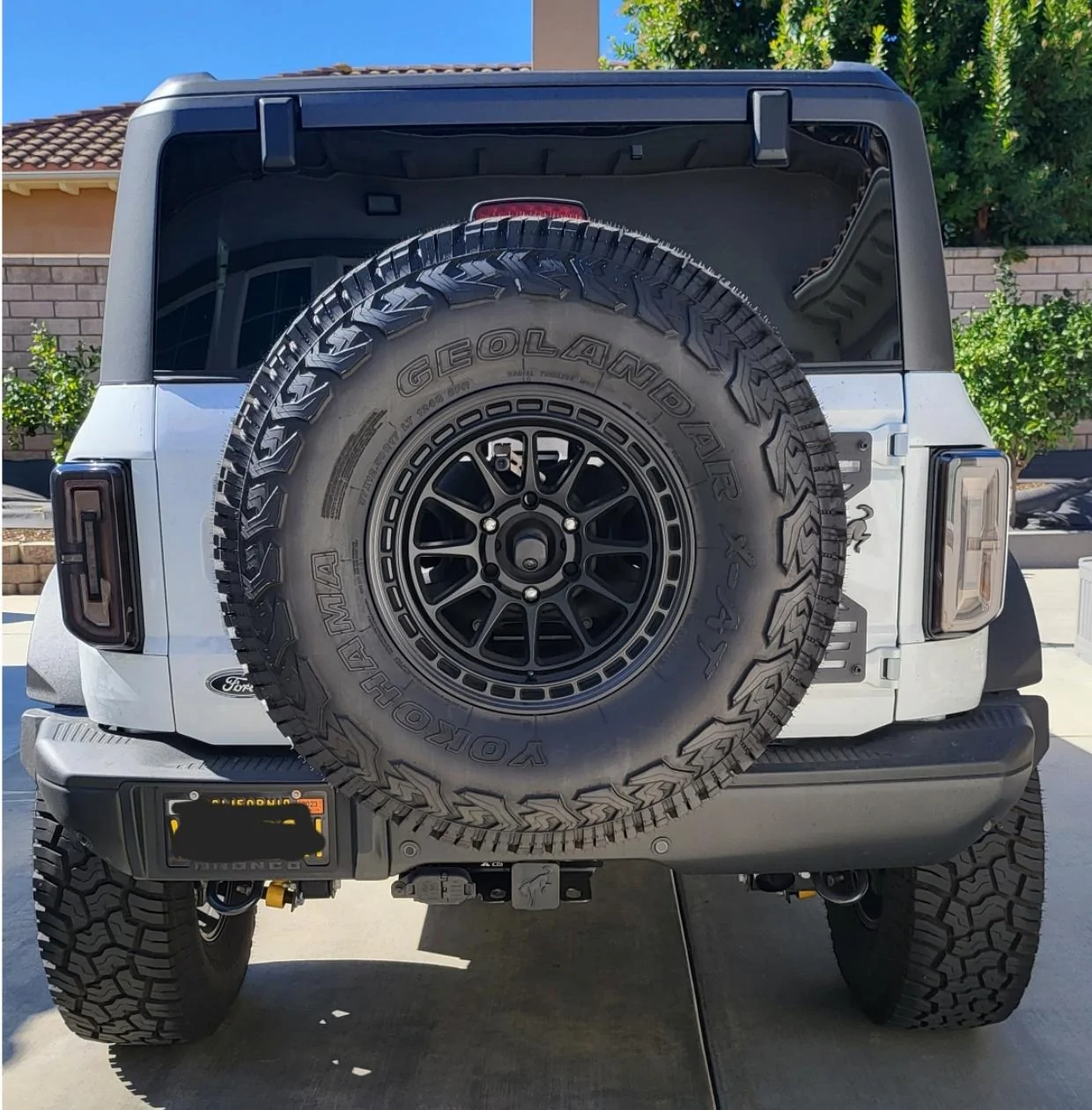

Ford Bronco Archaic Tail Light Full Led Install Screenshot_20221125_124618_Gallery
