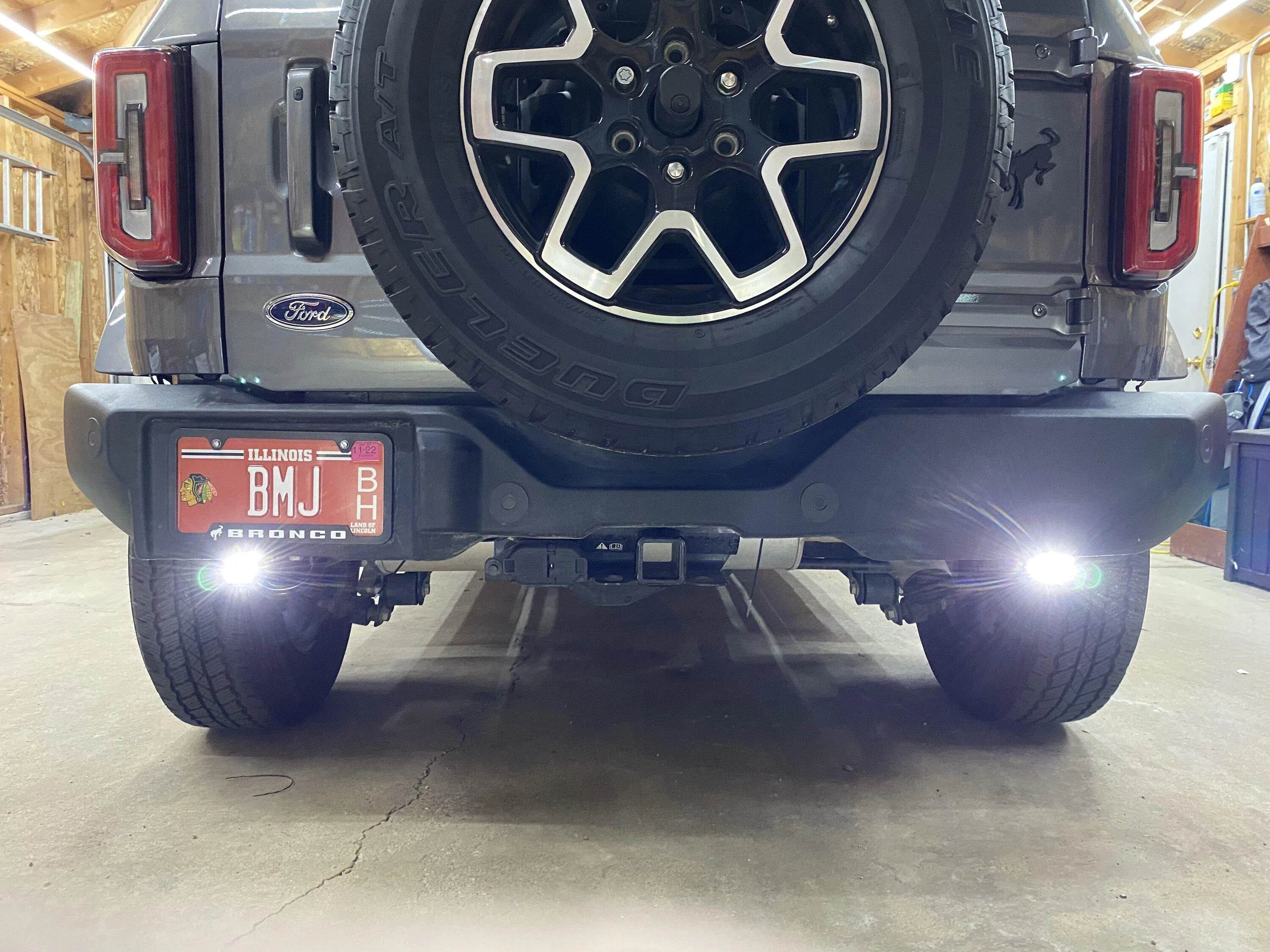

I am installing the ZroadsZ rear bumper/dust lights and it came with a massive wiring harness with a switch, relay, fuse, and leads to the battery for power.

I have the auxiliary switches and would I be right to assume that the power box that all the aux wire runs though would already be set up with fuses, relays, and power that I can just hook to the wiring harness in the bronco? I already installed pod light by the side mirrors and hooked right to the aux wires and works great.

I’m not a mechanic so just looking for advice.

Ford Bronco Aux Switches D2CDC5B2-7431-4B85-9F86-A5460CB33F72


Ford Bronco Aux Switches E59BD685-FEB7-494E-AE63-DB1EF8B4C832
Sponsored



Regan

Wildtrak
Well-Known Member
First Name
Regan
Joined
Jul 25, 2020
Threads
7
Messages
110
Reaction score
128
Location
Bend, Oregon
Vehicle(s)
Murano and 08 chev Duramax
Your Bronco Model
Wildtrak
Clubs

Yep, each color coded wire is fused, I know yellow is 30 amp at #1, then a 15 and I think the rest are 10 amp. This is on Bronco Nation, not sure who is correct. Owers manual consistent with this also. Bottom line, first two are higher amps 3-5 the lower amp fuses.

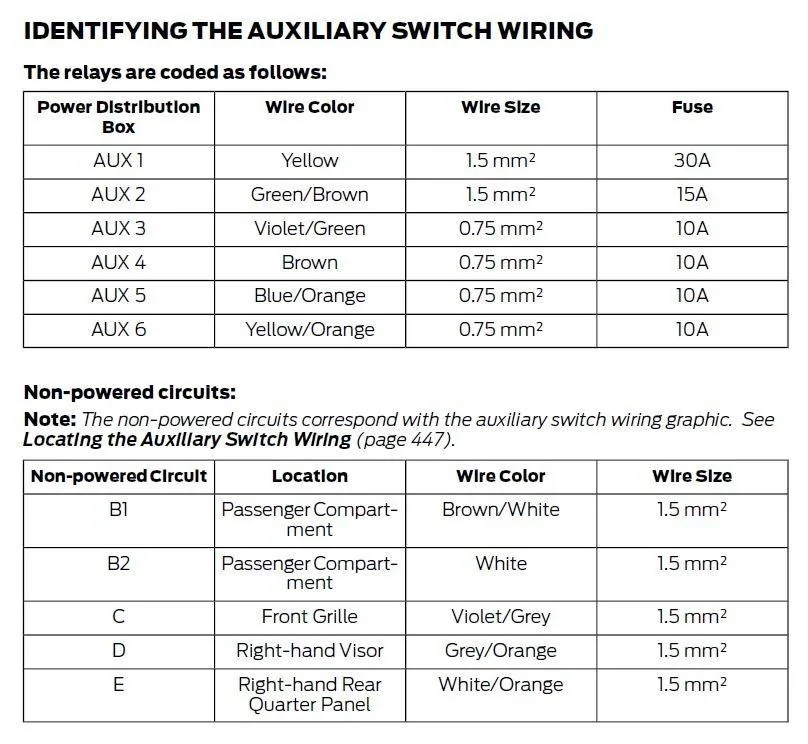

Ford Bronco Aux Switches Bronco Switches

Last edited:

da_jokker

Wildtrak
Well-Known Member
Joined
Jul 14, 2020
Threads
125
Messages
6,173
Reaction score
7,085
Location
California
Vehicle(s)
Jeep Wrangler JKUR
Your Bronco Model
Wildtrak
Clubs

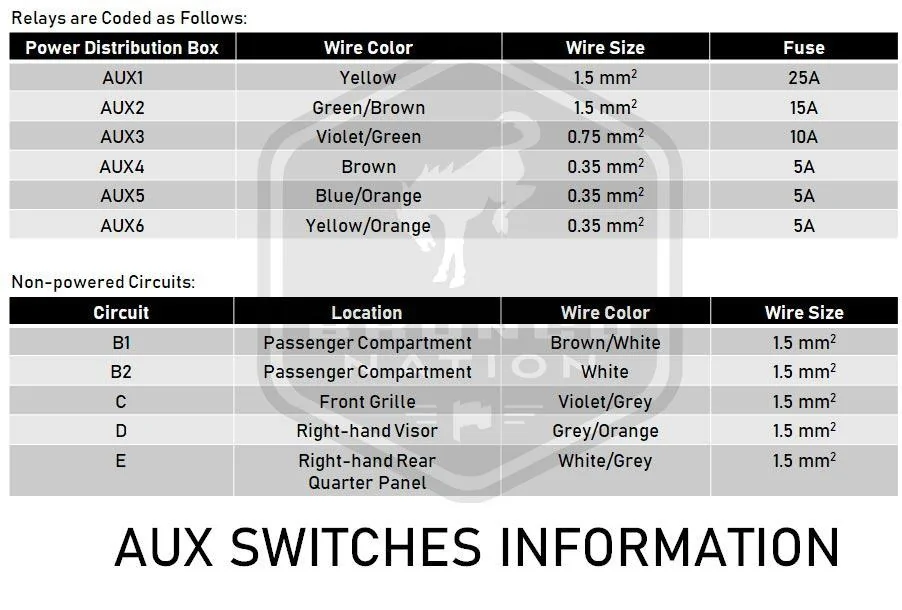

Ford Bronco Aux Switches aux switches diagram
