Badlands Badge to Grill Relocation Kit

BroncoBuckaroo

Badlands
Well-Known Member
First Name
Joe
Joined
Feb 29, 2020
Threads
44
Messages
1,293
Reaction score
1,956
Location
Missouri
Vehicle(s)
2017GT350-SOLD, 2013 Ford Edge, 1969 Torino Cobra
Bronco
Badlands
Clubs

12/27 product update.
I'm taking orders for these again and will be releasing a Wildtrak kit soon. Any Wildtrak owners that want to test please shoot me a PM.

I had a kit returned from USPS due to a "security concern." I couldn't get any reason what that would be but the employee at USPS suggested I use boxes instead. So, I'll now be shipping in boxes instead of a padded envelope. Being in a box, I'm including the hardware and preassembling the kits. To account for these changes, the price has been increased from $10 to $20 with free shipping.

The grill insert piece has also been modified to ease installation.

With the new hardware installation will only require a #2 Phillips drive screwdriver.
good to know


OP
OP
colintrax

colintrax

Badlands
Well-Known Member
Base Sponsor (Level 1)
Joined
Jul 11, 2020
Threads
5
Messages
235
Reaction score
546
Location
Georgia
Vehicle(s)
Chevy Colorado, Ford Explorer, KTM 890 ADV
Bronco
Badlands
Any Wildtrak owners interested in testing it out? I have a model ready to go.


Also, I now have a website. It's still a work in progress as I have more to add. But these kits are on there and ready to be ordered. Make sure to use code B6G to get the forum price and help me track where orders come from.
Thanks all!
https://five8products.myshopify.com/products/ford-bronco-badge-relocation-kit


BroncoBuckaroo

Badlands
Well-Known Member
First Name
Joe
Joined
Feb 29, 2020
Threads
44
Messages
1,293
Reaction score
1,956
Location
Missouri
Vehicle(s)
2017GT350-SOLD, 2013 Ford Edge, 1969 Torino Cobra
Bronco
Badlands
Clubs

Any Wildtrak owners interested in testing it out? I have a model ready to go.


Also, I now have a website. It's still a work in progress as I have more to add. But these kits are on there and ready to be ordered. Make sure to use code B6G to get the forum price and help me track where orders come from.
Thanks all!
https://five8products.myshopify.com/products/ford-bronco-badge-relocation-kit
very cool, I’ll check it out

update:

website looks great...looking forward to more great Bronco products from you


Kluch

Badlands
Well-Known Member
First Name
Jorge
Joined
Jan 5, 2022
Threads
1
Messages
45
Reaction score
56
Location
Massachusetts
Vehicle(s)
2021 Ford Bronco, 1958 Chevy Corvette
Bronco
Badlands
Clubs

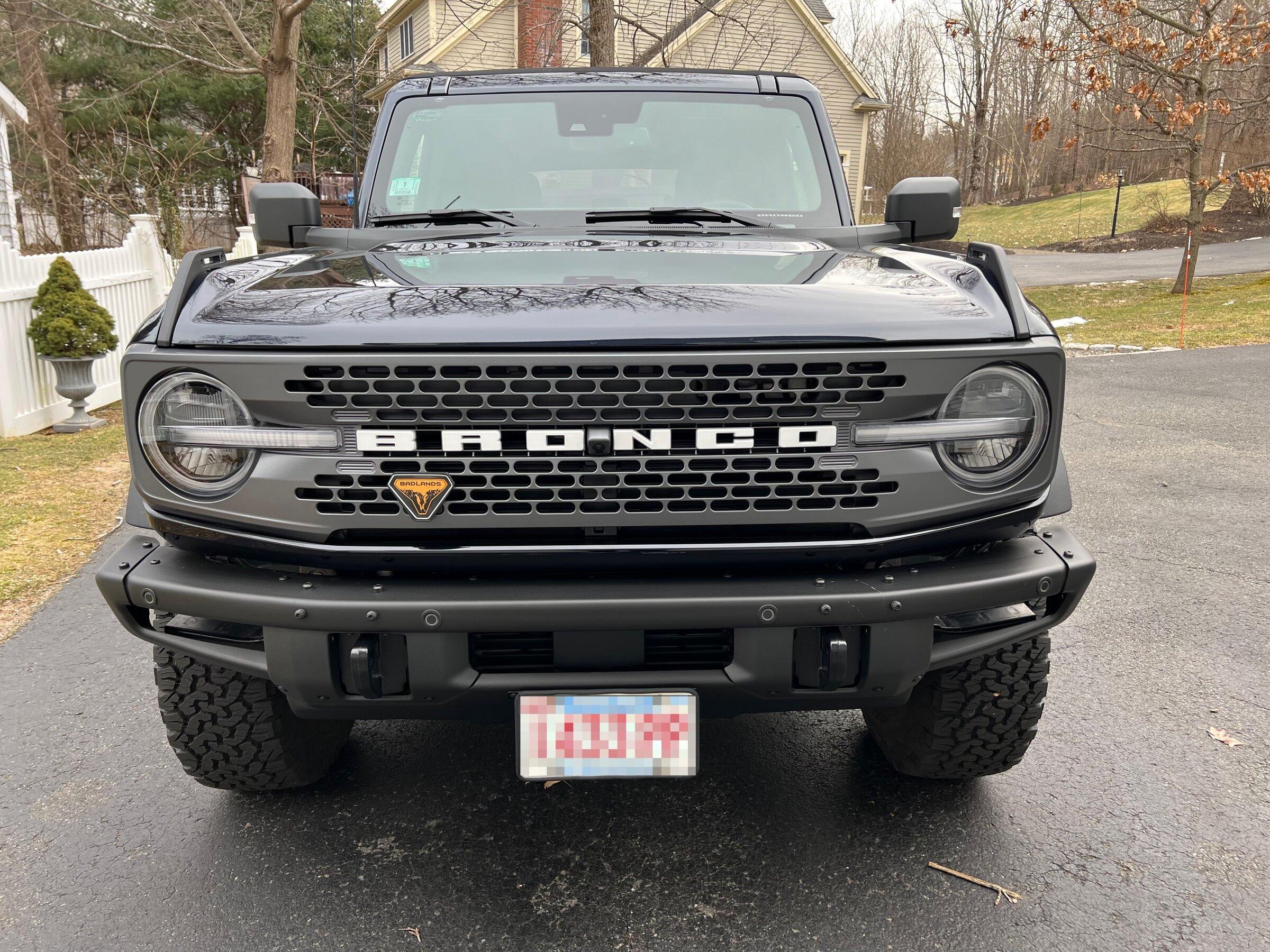

Got my first badge done on the front. Waiting for delivery of second mount to put on trailer hitch. Thanks to @conlintrax for the FANTASTIC customer service.



patch1103

Wildtrak
Well-Known Member
First Name
P.
Joined
Jun 30, 2021
Threads
0
Messages
221
Reaction score
448
Location
Chicagoland
Vehicle(s)
2017 JKU 75th Anniv. Edition
Bronco
Wildtrak
Clubs

OP
OP
colintrax

colintrax

Badlands
Well-Known Member
Base Sponsor (Level 1)
Joined
Jul 11, 2020
Threads
5
Messages
235
Reaction score
546
Location
Georgia
Vehicle(s)
Chevy Colorado, Ford Explorer, KTM 890 ADV
Bronco
Badlands

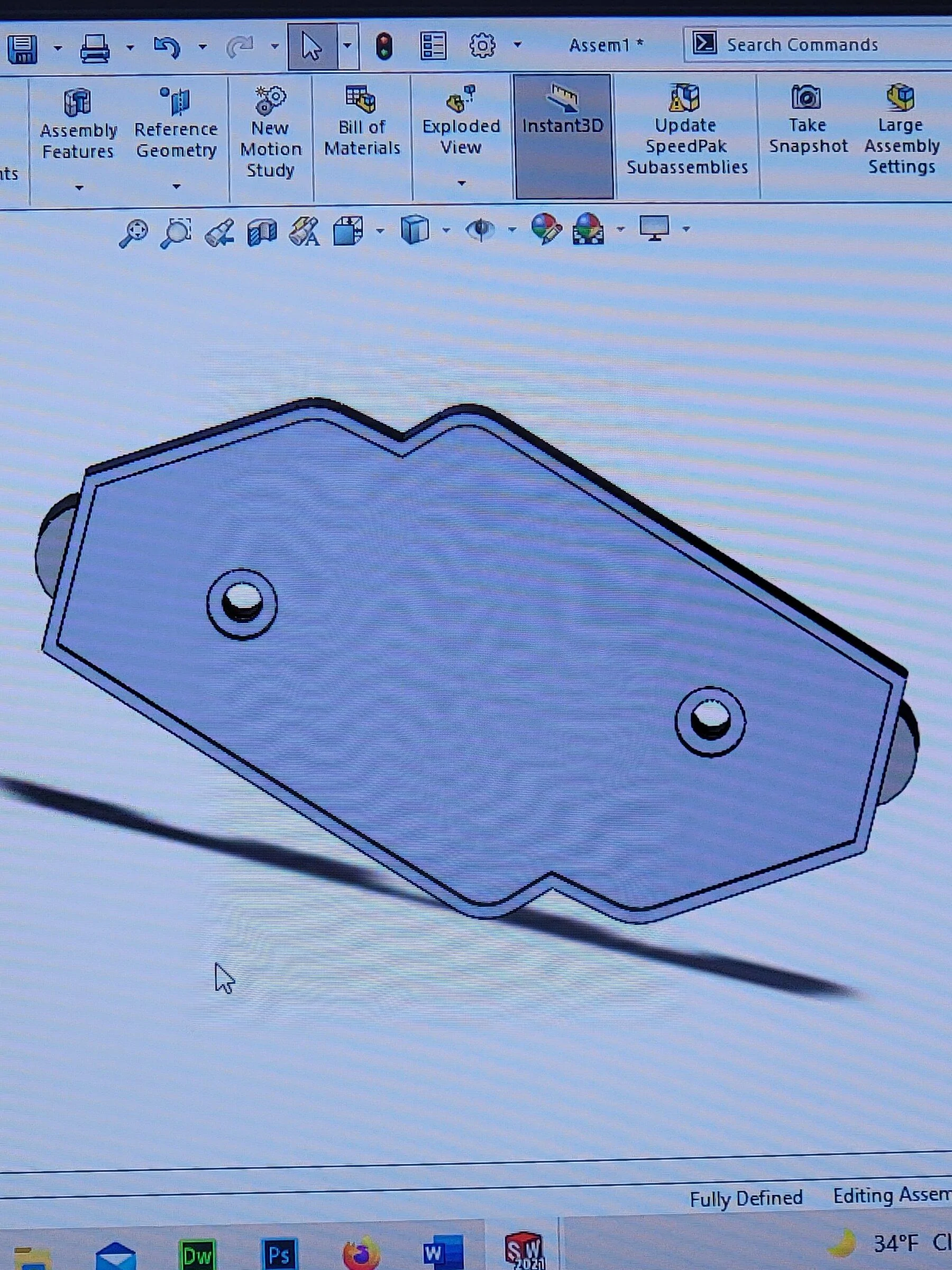

Are you going to be selling the Wildtrak kit on your website?
Thanks for asking! I'll be posting the Wildtrak on Monday, have more black filament coming so I ought to be ready to print off several then.


Gtrekker

Wildtrak
Well-Known Member
First Name
Gary
Joined
Dec 22, 2020
Threads
19
Messages
450
Reaction score
527
Location
NJ
Vehicle(s)
Audi / own
Bronco
Wildtrak
Clubs

Kit will require (2) M5x30 cap head screws and (2) M5 nuts. I recommend using threadlocker on the screws to ensure they don't vibrate loose.

Assemble the kit by inserting nuts into the small locking bars. A dab of hot glue will keep the nut in place, just thread the screw in first to keep glue out of the threads!
Now put the screws through the holes of the badge plate. Push the grill inserts over the screws with the cut outs facing the rear. Then thread the locking bars on but not tight. Completed assembly should look like the image below but with both pieces assembled.


Next find the right spot on your grill! With the the inserts in the grill, spin the screws 90* and then use a screw driver, magnet, or similar to pull the screw head forward. With the screw pulled forward starting tightening the screw. Be careful not to over-tighten, remember these are plastic parts tightening onto a plastic grill.

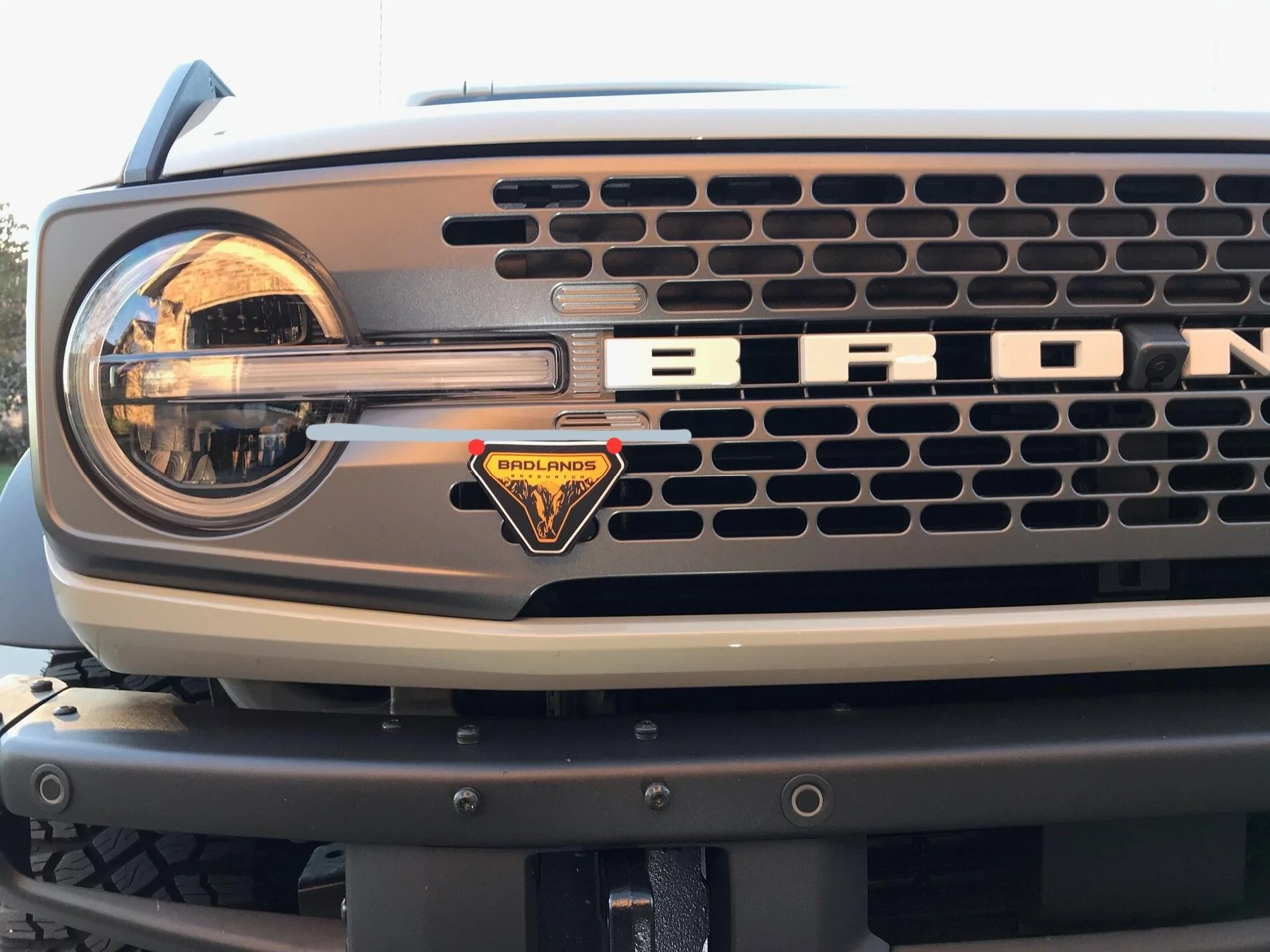

With the badge relocation kit properly affixed to the grill, give it a wipe with alcohol and then adhere the badge. I recommend a spray adhesive to help the badge adhere to the rough texture of the 3D printed surface. That's it!
Nice relocation bracket! I'm in once you release a Wildtrak version. Also think with stock flat plate it could be use other types of badges, clubs, etc...


patch1103

Wildtrak
Well-Known Member
First Name
P.
Joined
Jun 30, 2021
Threads
0
Messages
221
Reaction score
448
Location
Chicagoland
Vehicle(s)
2017 JKU 75th Anniv. Edition
Bronco
Wildtrak
Clubs

Thanks for asking! I'll be posting the Wildtrak on Monday, have more black filament coming so I ought to be ready to print off several then.
Awesome, thanks! Will check on Monday.
