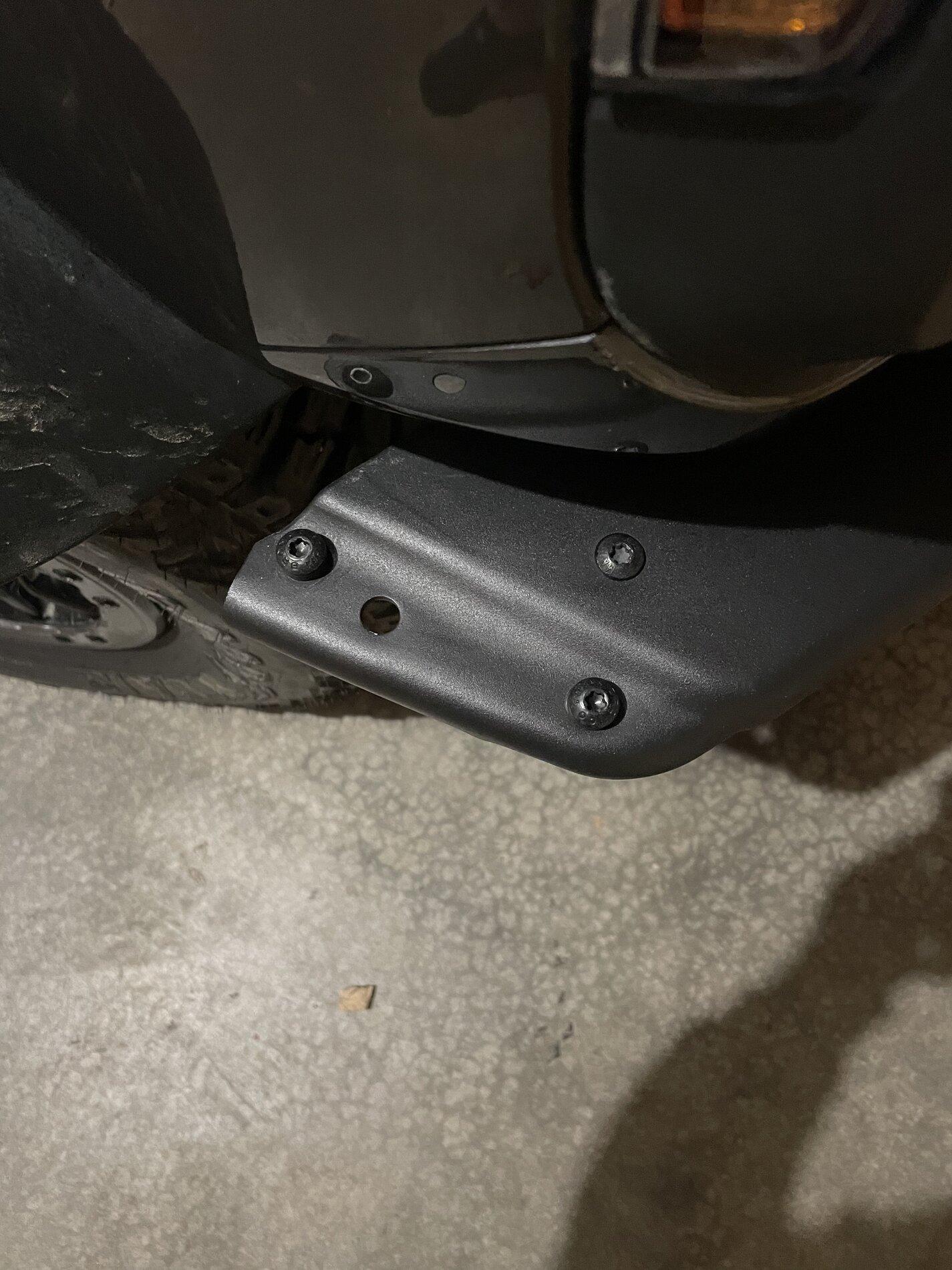

Badlands modular bumper torx bolt size?

Rahkmalla

Base
Well-Known Member
First Name
Jim
Joined
Aug 4, 2021
Threads
4
Messages
475
Reaction score
1,834
Location
NJ
Vehicle(s)
15 K900
Bronco
Base
Clubs

That's crazy if that's the actual specification. The non-plus Torx security bit (in the same picture) has the same six lobes as a regular Torx bit. I've got a new set of non-security Torx plus (confirmed 6 lobes in the product picture) on the way from Amazon. Will report back.
It's like a cartoon I saw one time

Panel one: There are 17 competing standards
Panel two: "That's stupid, why doesn't someone unify everything?"
Panel three: There are now 18 competing standards

Only with fasteners it's exacerbated by the idea of "security" and the fact that no one can agree on naming conventions. Typically a 5 lobe drive is referred to as pentalobe, or in your case pentalobe security. Why people starting calling it TPsecurity is beyond me, and frankly incorrect as far as I'm concerned, but no one asks my opinion on these things.

The idea behind using oddball fasteners like "security" versions is either to make customer self service more difficult, thus channeling business towards "authorized repair shops", or keep novices away from electrical parts. For example Nintendo uses tri-wing screws on their stuff for both reasons.

For the record, Torx Plus is not one of those use cases. TP is actually designed as an addition to the Torx family, and the heads of the bolts are meant to accept regular torx drivers, which is why a T40 driver can turn a TP40 head, though as it's not perfect there is a little looseness. TP is superior to T is pretty much every way, as when applying the proper TP driver it reduces cam-out, and allows more torque to be applied. The downside is TP drivers do not fit in T heads. If T had been skipped completely and only TP been used, the world would have been a better place.

As a side note, buying the "security" versions of all torx bits is not a short cut to having to buy the non-security versions. Security bits are weaker by nature of lack of material, and if you ever get a stuck non-security bolt, you could easily break a security head trying to get it free.


Advertisement

OP
OP

RJC

Badlands
Well-Known Member
First Name
Robert
Joined
Sep 10, 2021
Threads
7
Messages
67
Reaction score
32
Location
Alabama
Vehicle(s)
2021 Badlands
Bronco
Badlands
Clubs

hi
i have same problem with a transmission bolt on BRP unit. i go on BRP dealer and i buy one bolt, after i go on a specialized tools shop with this brand new bolt to try different torx brand name compagny like JET, SNAP ON, HUSKY, SK, and i have found the perfect fit tool torx size with JET. the other brand not fit the bolt perfectly and cost more $$$ they call them tolerance in built tool.
i hope you understand,, my language is french i just try to help you
TRACKTOY
Thank you

OP
OP

RJC

Badlands
Well-Known Member
First Name
Robert
Joined
Sep 10, 2021
Threads
7
Messages
67
Reaction score
32
Location
Alabama
Vehicle(s)
2021 Badlands
Bronco
Badlands
Clubs

It's like a cartoon I saw one time

Panel one: There are 17 competing standards
Panel two: "That's stupid, why doesn't someone unify everything?"
Panel three: There are now 18 competing standards

Only with fasteners it's exacerbated by the idea of "security" and the fact that no one can agree on naming conventions. Typically a 5 lobe drive is referred to as pentalobe, or in your case pentalobe security. Why people starting calling it TPsecurity is beyond me, and frankly incorrect as far as I'm concerned, but no one asks my opinion on these things.

The idea behind using oddball fasteners like "security" versions is either to make customer self service more difficult, thus channeling business towards "authorized repair shops", or keep novices away from electrical parts. For example Nintendo uses tri-wing screws on their stuff for both reasons.

For the record, Torx Plus is not one of those use cases. TP is actually designed as an addition to the Torx family, and the heads of the bolts are meant to accept regular torx drivers, which is why a T40 driver can turn a TP40 head, though as it's not perfect there is a little looseness. TP is superior to T is pretty much every way, as when applying the proper TP driver it reduces cam-out, and allows more torque to be applied. The downside is TP drivers do not fit in T heads. If T had been skipped completely and only TP been used, the world would have been a better place.

As a side note, buying the "security" versions of all torx bits is not a short cut to having to buy the non-security versions. Security bits are weaker by nature of lack of material, and if you ever get a stuck non-security bolt, you could easily break a security head trying to get it free.
Thanks


Gangstead

Black Diamond
Well-Known Member
Joined
Jul 5, 2020
Threads
13
Messages
221
Reaction score
508
Location
Texas
Vehicle(s)
'21 BD 4DR 7MT Soft
Bronco
Black Diamond
Clubs

OK the bolts are 100% Torx Plus TP-40. Just make sure not to get Torx Plus Security/Tamper Resistant which has the wrong number of sides (5 vs 6). Regular Torx Security bits are the same in every way except adding a hole, but TP Security has a hole and 5 sides.

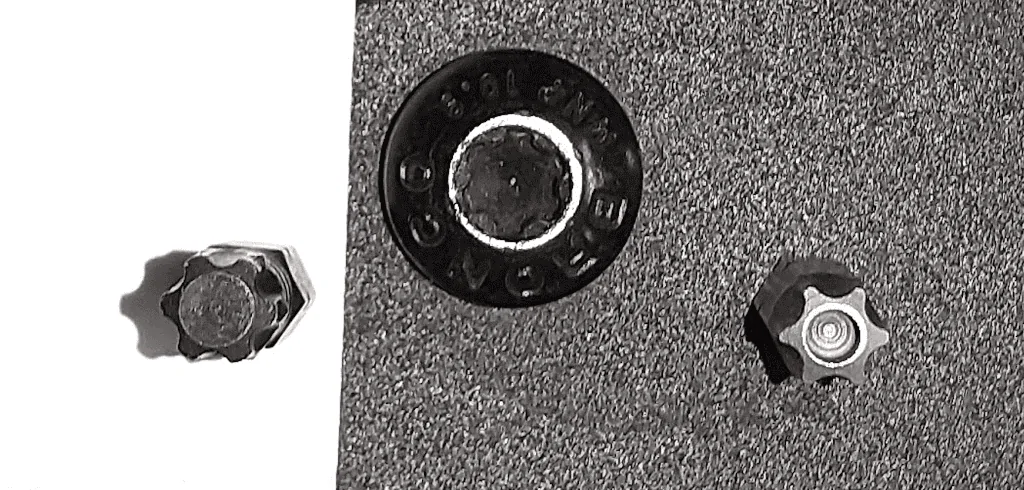

Torx Plus 40 on the left, regular Torx 40 Security on the right. Regular T40 bit will work in a pinch, that's what I've been using before getting the plus bits.

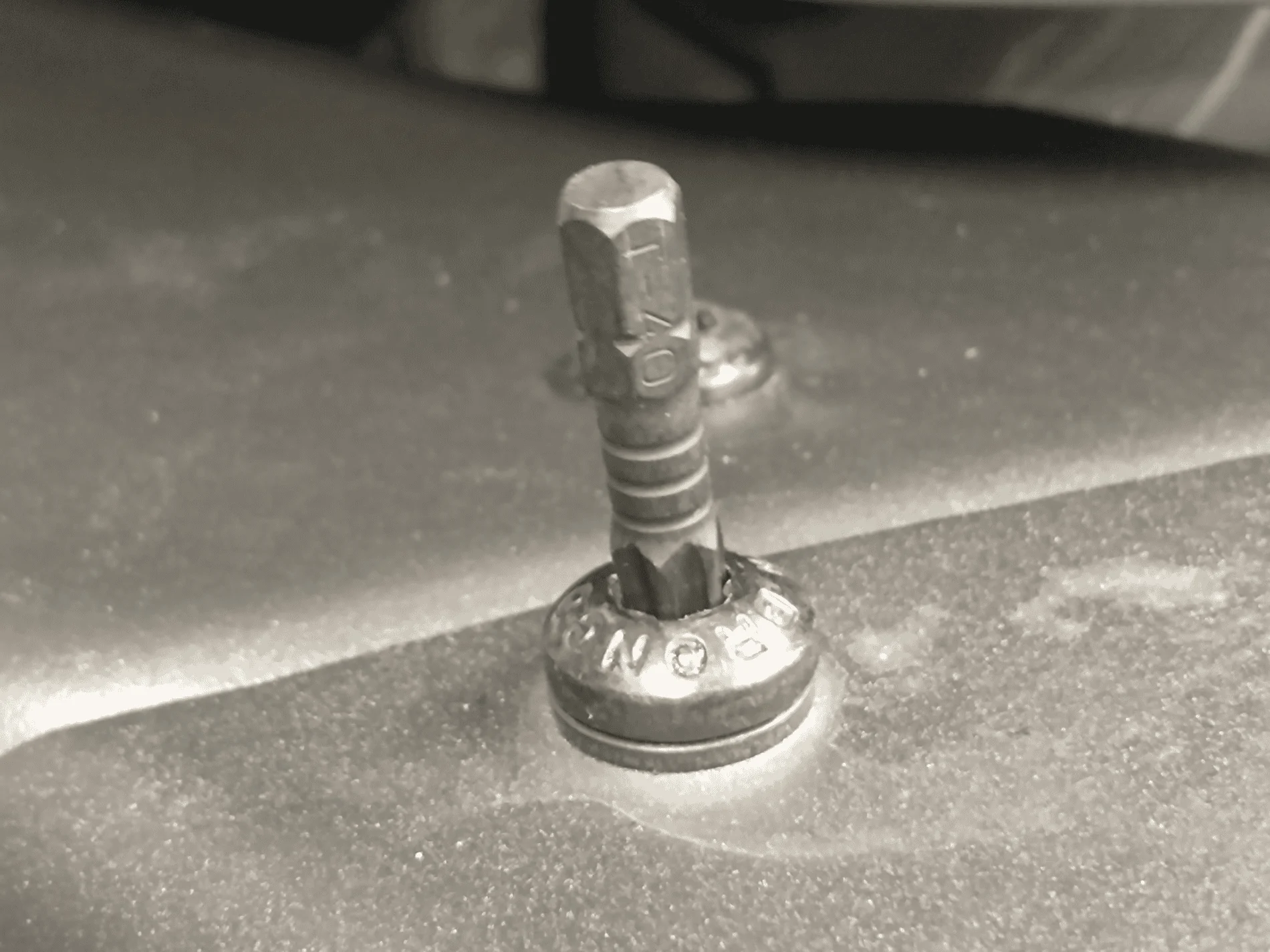

I know the bit says "T-40" but I promise it's Torx Plus. Here's the set I got from Amazon:
