Easy upgrade for those that like to see what’s going on under the bronco.

Why you ask? I like to see in real time my under lines, wheel angle, suspension load/angle, split high spots, which tire is slipping/lifted and anything falling off the truck or dragging.

Looked at a lot of kits. Settled on this wireless one. Screen and camera quality are really good. It comes with 2 cameras and is capable of supporting 4. Can we say rear trailer view?
Also supports a memory card for full hd recording. Has all the mirror flip options, supports split view.

Unit
https://www.amazon.com/gp/aw/d/B07FM3YLT5?psc=1&ref=ppx_pop_mob_b_asin_title
$199.99
Additional cams
https://www.amazon.com/gp/aw/d/B096ZB181Z?psc=1&ref=ppx_pop_mob_b_asin_title
$99.99

Hook up is straight forward. They have 2 wires. Pos and neg. That’s it. Camera stream connection is wireless and damn near instant. Refresh rate is great, no blur. They have sufficient ir lights to see everything underneath at night.

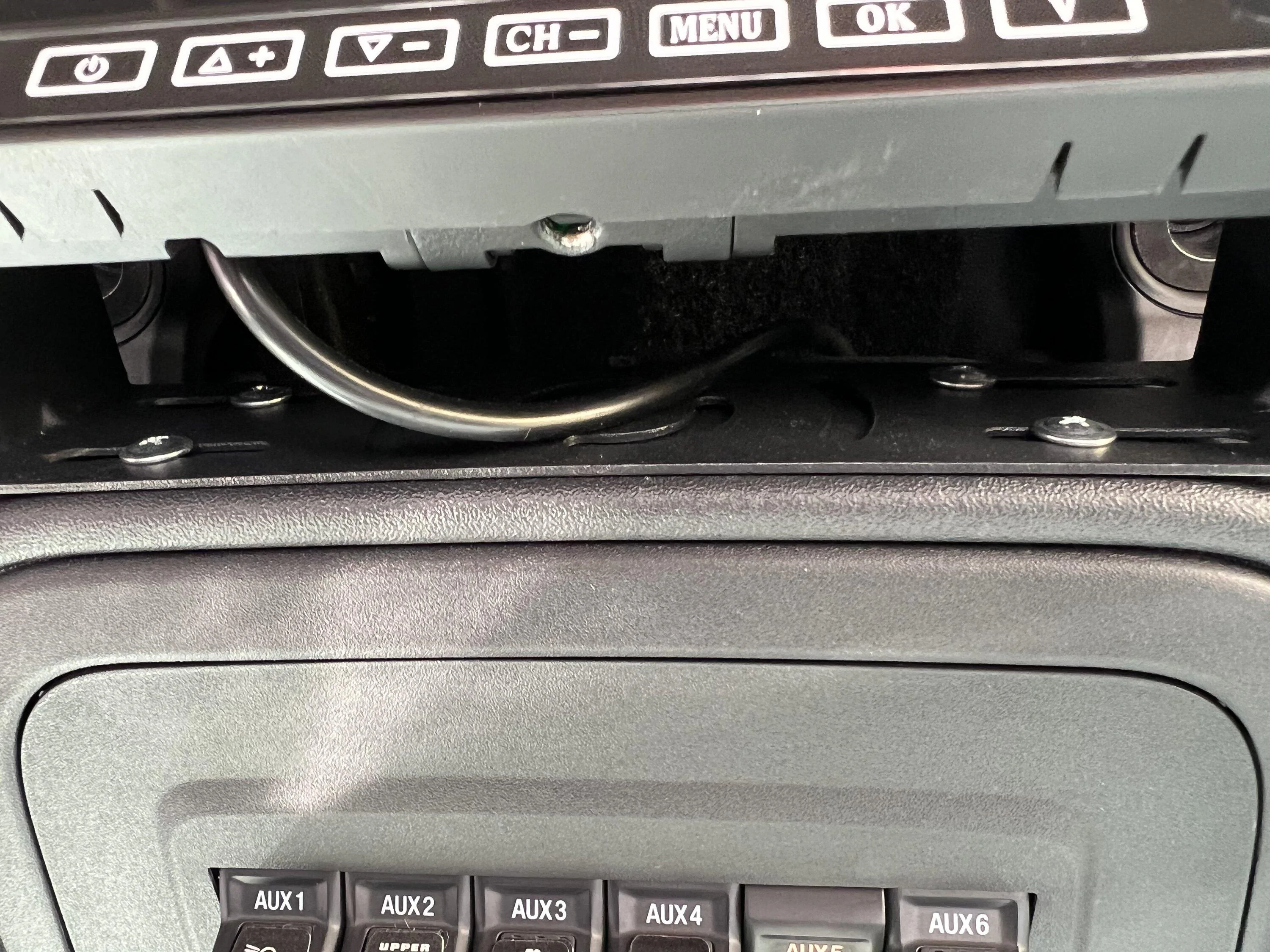

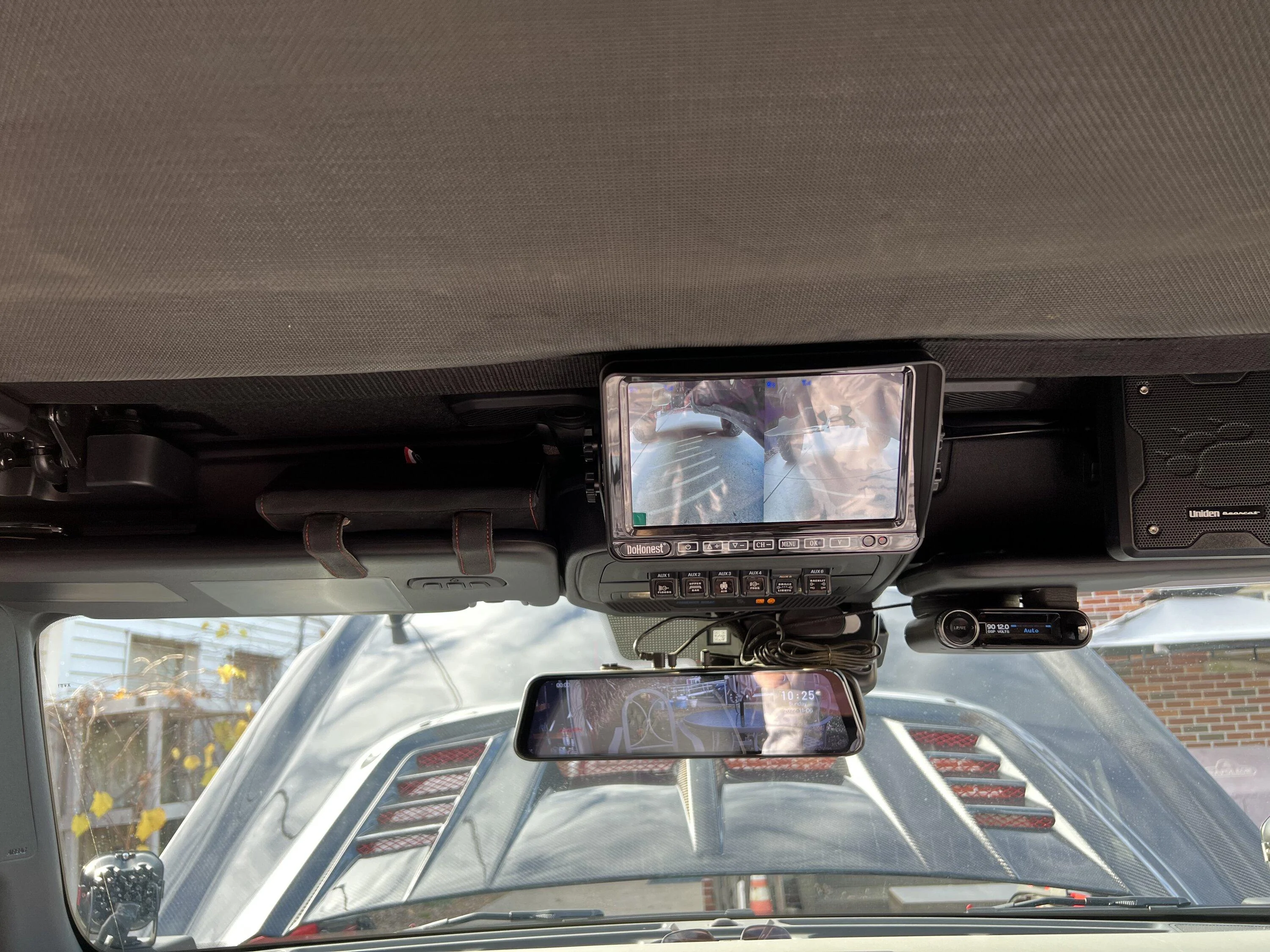

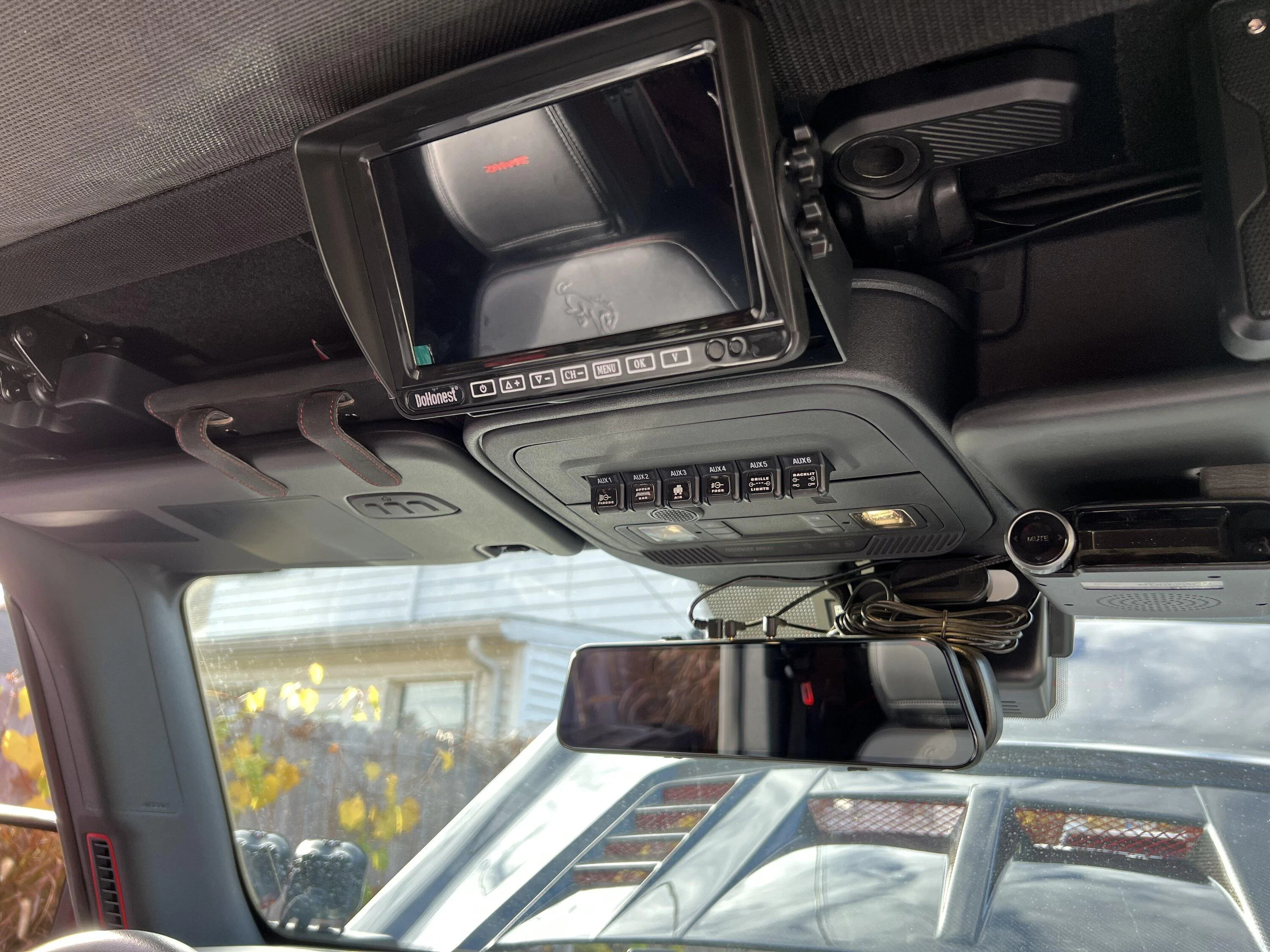

I first mounted the screen above my lifter switched. Unit fits perfect in that spot. I just used 4 short screws to mount it

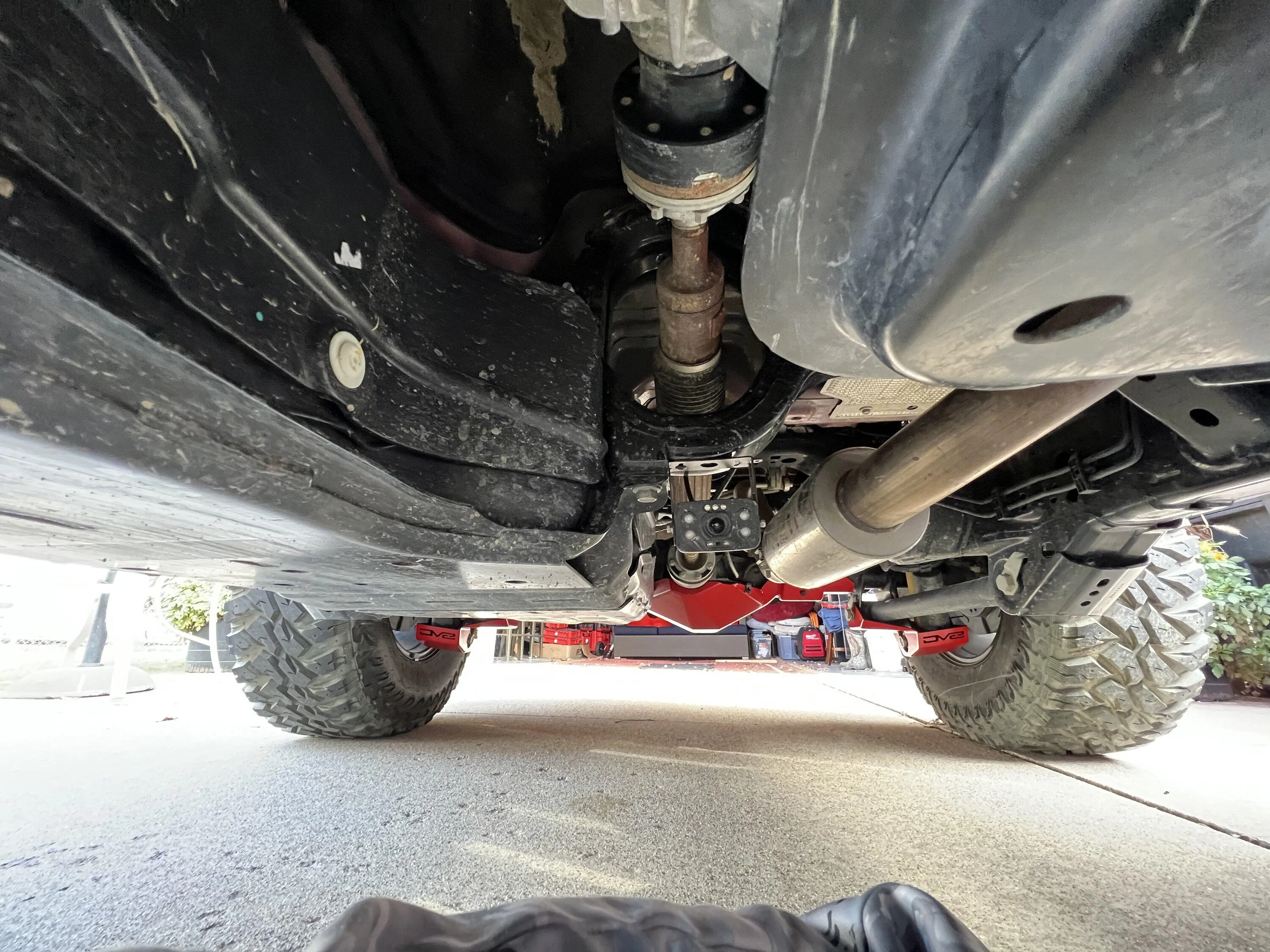

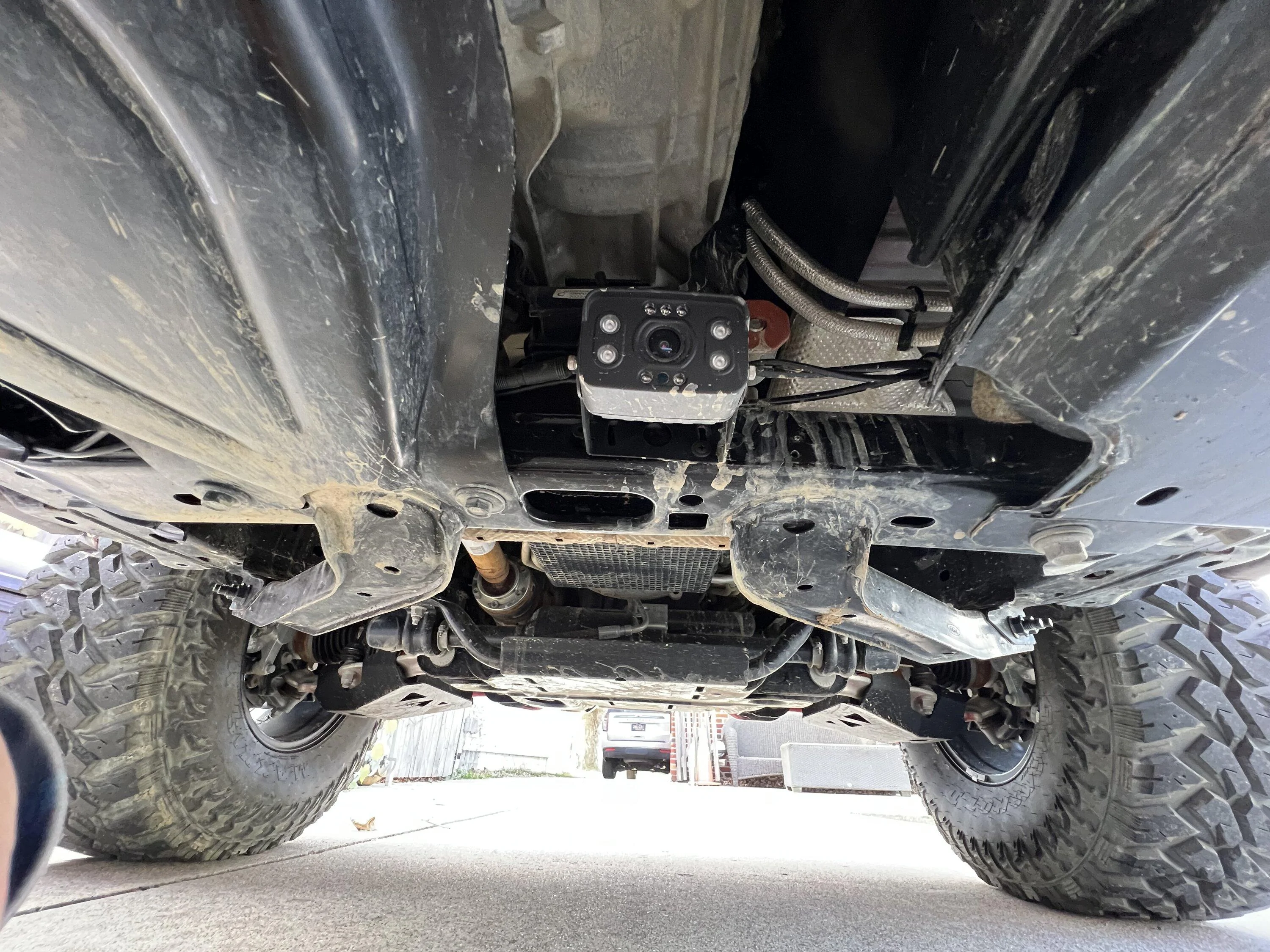

Then I tested and picked out 2 semi protected spots for the belly cams. Higher than the skids but can still see the wheels. I did hit 2 known spots at holly for dragging the belly. Cameras never hit, but did drag the mid skid and tank skid.

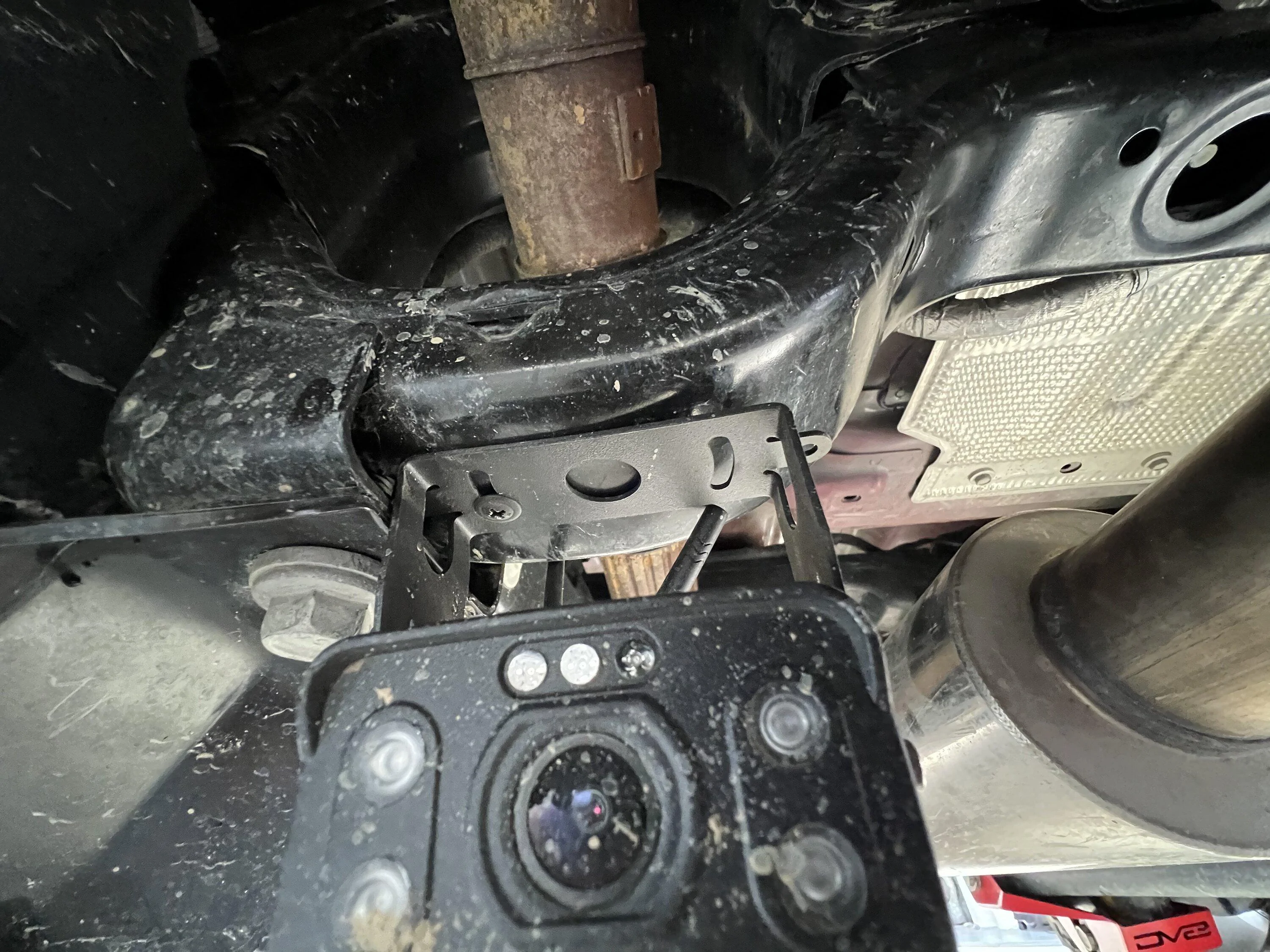

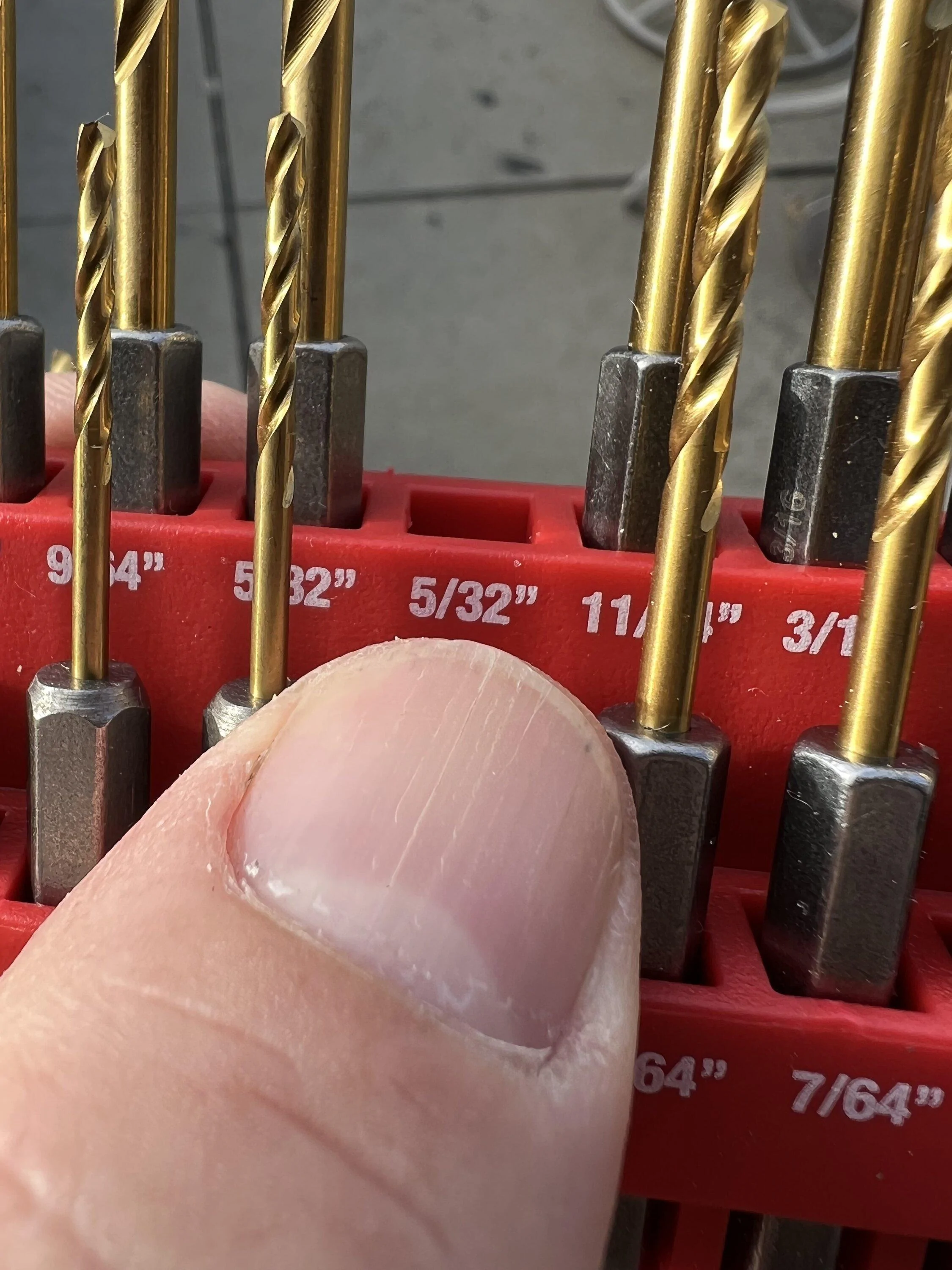

I mounted the brackets with a single self taper. That way the screw head should snap off before the camera get damaged. I used a 5/32 bit to pre drill the cross bars. Front bar you have to stay in the bottom 1” where my finger is. Above that, it’s doubled. Metal is thick but soft.

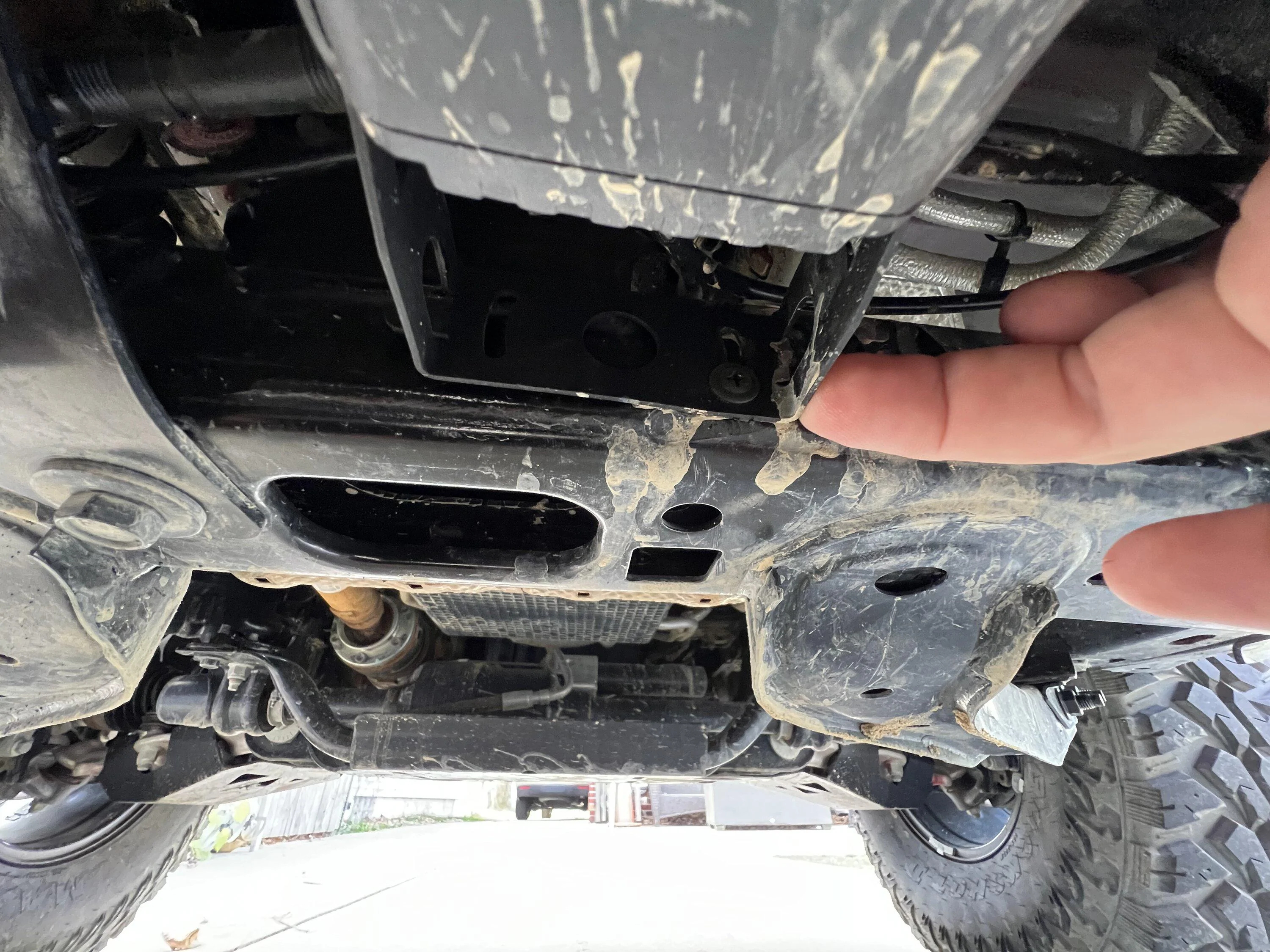

Rear cam facing forward is the same 5/32 pre drill with 1 self taper. This metal is a lot thinner. No restriction for hole location on this one.



I ran the wires through the frame on the drivers side then into the engine bay and hooked the cameras into my grill and visor backlights on a lifter.

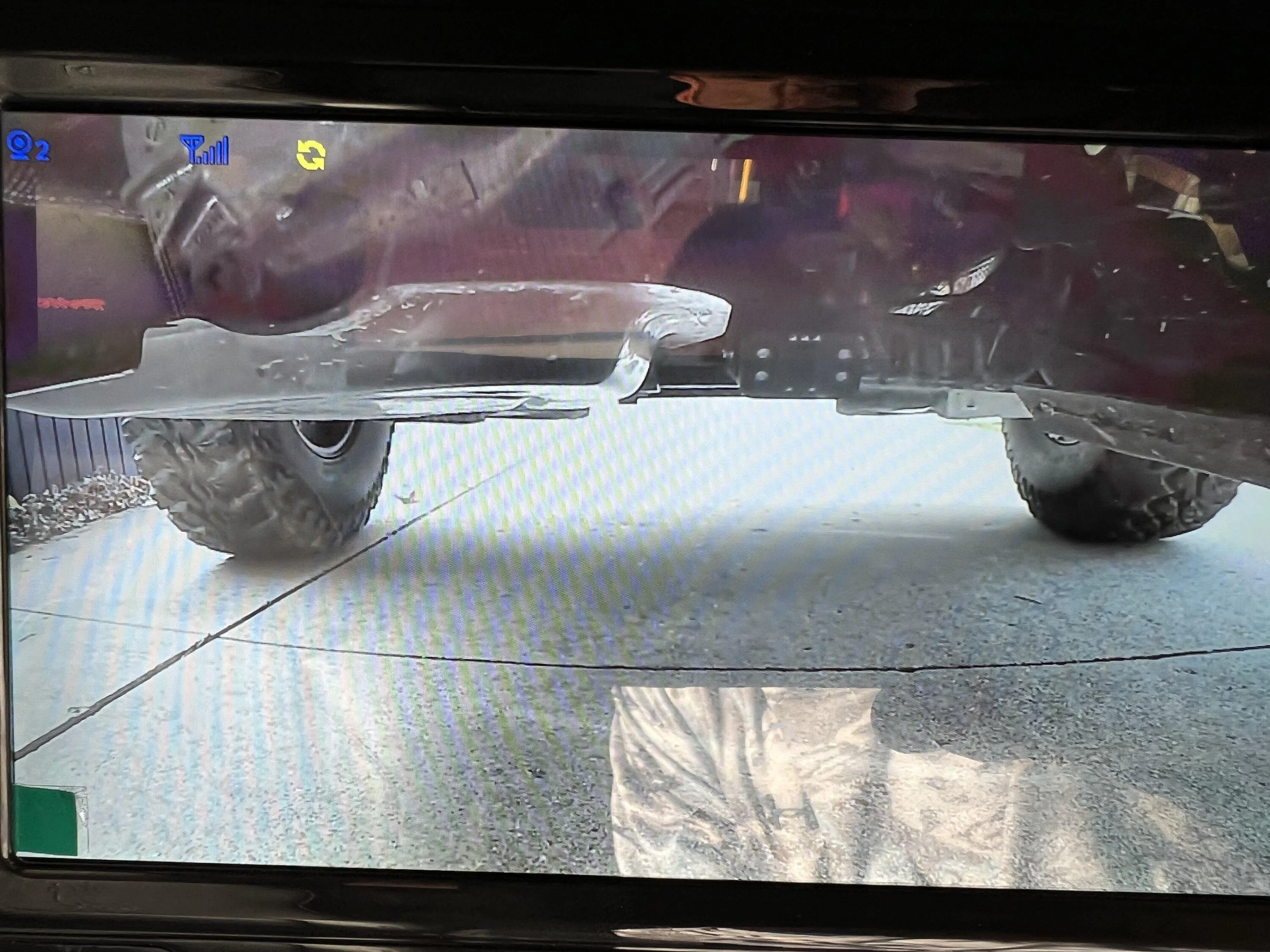

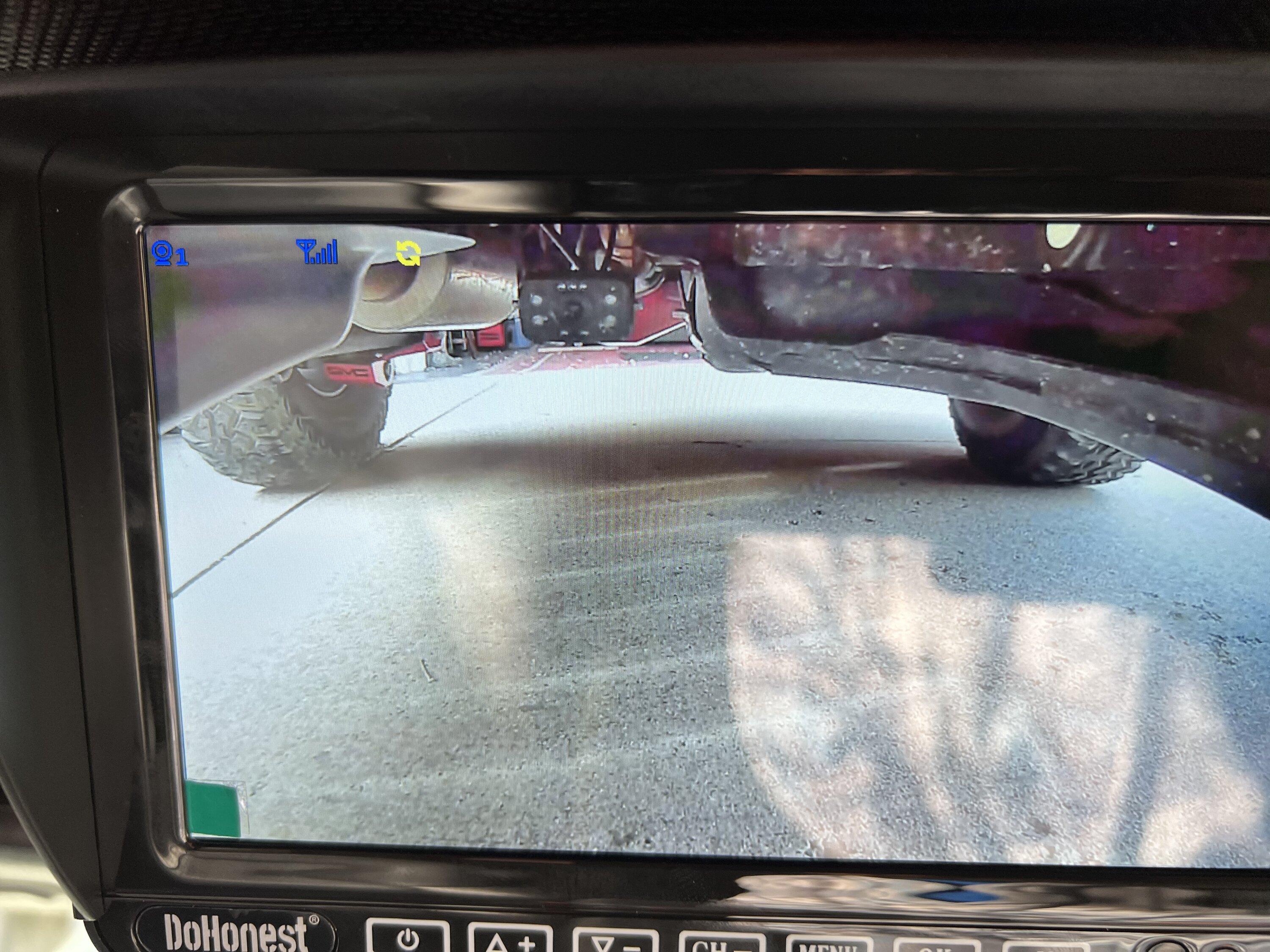

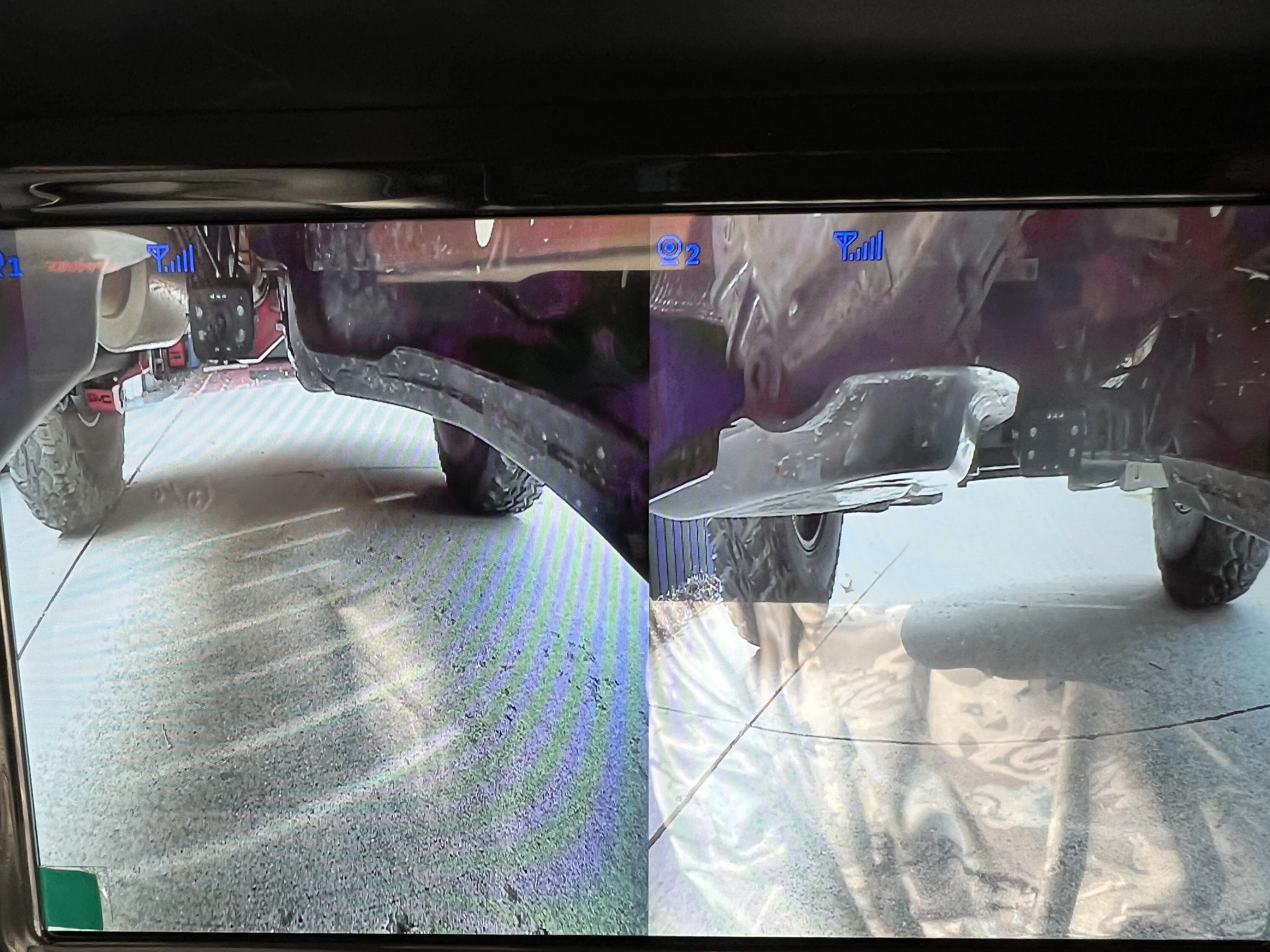

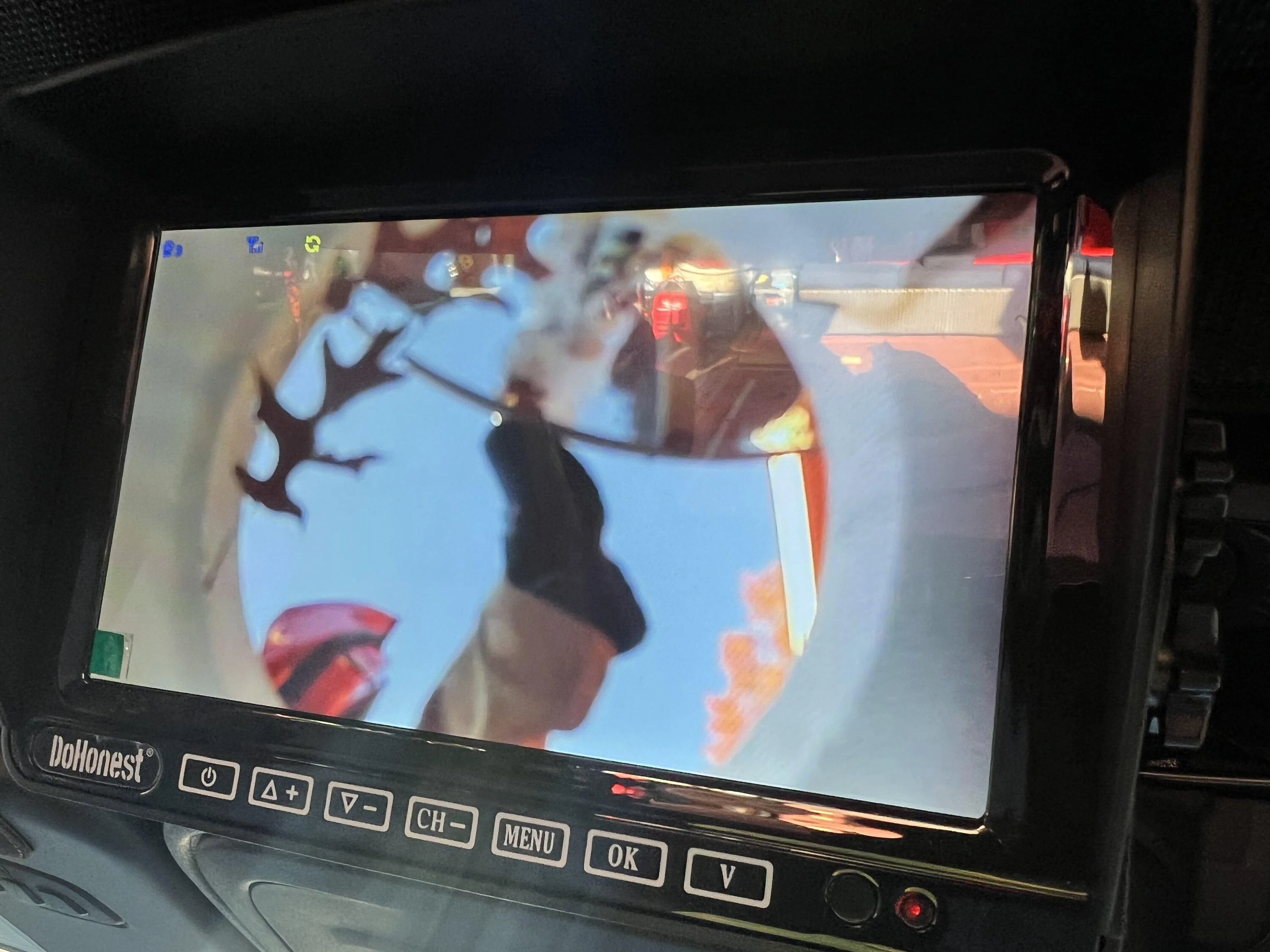

This setup performed above my initial expectations for quality, blurring, and not getting hit. If you wheel alone like I do most the time, this is a very worthwhile upgrade. Specially adding in 2 more cameras for trailers. Can do a inside and rear. Leave them attached. When you hook up to the trailer, they will auto connect.

Sponsored



604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Threads
164
Messages
8,347
Reaction score
29,058
Location
British Columbia
Website
www.bronco6g.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Badlands
Clubs

Interesting setup. I can see how this could be helpful for sure.

Dumb question, but won't that become useless really quickly once it's dirty? It won't take long whether it's dust or mud.

Edit: I wonder if you could attach and run a windshield washer line to that camera - Similar to the front camera?

Last edited:
OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

Interesting setup. I can see how this could be helpful for sure.

Dumb question, but won't that become useless really quickly once it's dirty? It won't take long whether it's dust or mud.
I was worried about that also. My back up plan for that is to run the rear wiper line down under and mount a spray head by each. Seeing I’ll never use my rear wiper.

After a day out, I only had a real thin layer on the rear facing forward. Front one was still shiny, at least the lens was. Pics of the screen, though look like crap from taking them with my phone, we’re taken without cleaning the cam lenses. No mud splashed on them.
Going to put some cerama coat on them today. Down pipes first though.


Aztec1382

Base
Well-Known Member
First Name
Sam
Joined
Apr 11, 2022
Threads
25
Messages
926
Reaction score
1,324
Location
California
Vehicle(s)
F350
Your Bronco Model
Base
Cool


2020FordRaptor

Wildtrak
Well-Known Member
First Name
Ty
Joined
Aug 14, 2022
Threads
18
Messages
1,670
Reaction score
1,064
Location
Nevada
Vehicle(s)
2020 Ford Raptor
Your Bronco Model
Wildtrak
Easy upgrade for those that like to see what’s going on under the bronco.

Why you ask? I like to see in real time my under lines, wheel angle, suspension load/angle, split high spots, which tire is slipping/lifted and anything falling off the truck or dragging.

Looked at a lot of kits. Settled on this wireless one. Screen and camera quality are really good. It comes with 2 cameras and is capable of supporting 4. Can we say rear trailer view?
Also supports a memory card for full hd recording. Has all the mirror flip options, supports split view.

Unit
https://www.amazon.com/gp/aw/d/B07FM3YLT5?psc=1&ref=ppx_pop_mob_b_asin_title
$199.99
Additional cams
https://www.amazon.com/gp/aw/d/B096ZB181Z?psc=1&ref=ppx_pop_mob_b_asin_title
$99.99

Hook up is straight forward. They have 2 wires. Pos and neg. That’s it. Camera stream connection is wireless and damn near instant. Refresh rate is great, no blur. They have sufficient ir lights to see everything underneath at night.

I first mounted the screen above my lifter switched. Unit fits perfect in that spot. I just used 4 short screws to mount it

Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF


Then I tested and picked out 2 semi protected spots for the belly cams. Higher than the skids but can still see the wheels. I did hit 2 known spots at holly for dragging the belly. Cameras never hit, but did drag the mid skid and tank skid.

Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF


I mounted the brackets with a single self taper. That way the screw head should snap off before the camera get damaged. I used a 5/32 bit to pre drill the cross bars. Front bar you have to stay in the bottom 1” where my finger is. Above that, it’s doubled. Metal is thick but soft.

Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF


Rear cam facing forward is the same 5/32 pre drill with 1 self taper. This metal is a lot thinner. No restriction for hole location on this one.

Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF


I ran the wires through the frame on the drivers side then into the engine bay and hooked the cameras into my grill and visor backlights on a lifter.

This setup performed above my initial expectations for quality, blurring, and not getting hit. If you wheel alone like I do most the time, this is a very worthwhile upgrade. Specially adding in 2 more cameras for trailers. Can do a inside and rear. Leave them attached. When you hook up to the trailer, they will auto connect.

Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
Ford Bronco Belly / underbody cam installed 🎥 E4F0B420-647B-45C7-BBEE-B9564A46DBBF
That's awesome!


Sponsored

Lcubed

Badlands
Well-Known Member
First Name
l
Joined
Jul 27, 2020
Threads
22
Messages
1,755
Reaction score
2,652
Location
UsA
Vehicle(s)
VW golf r, 2023 ManBadSquatch
Your Bronco Model
Badlands
Clubs

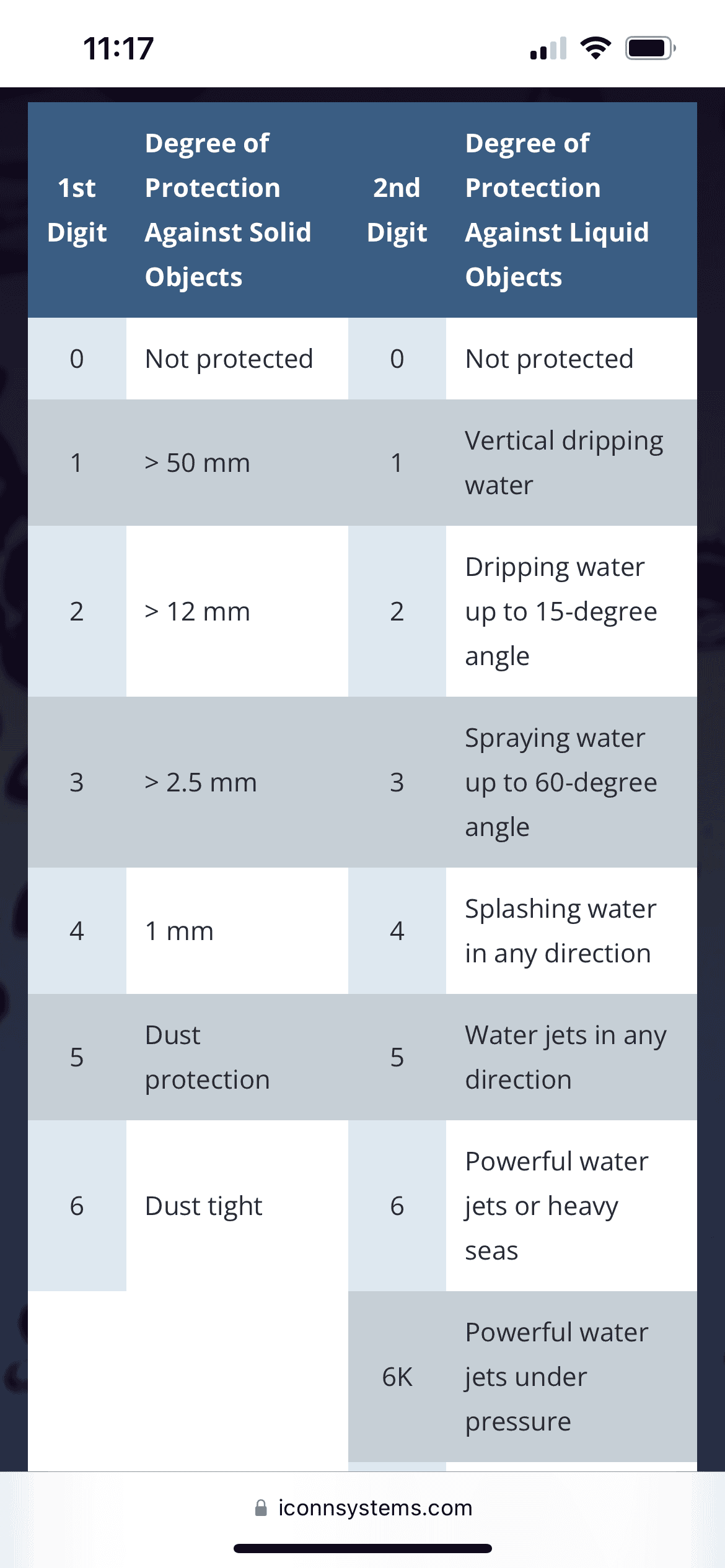

how waterproof is IP69 for the cameras?
would love to know how it fares after a few water-fordings!

OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

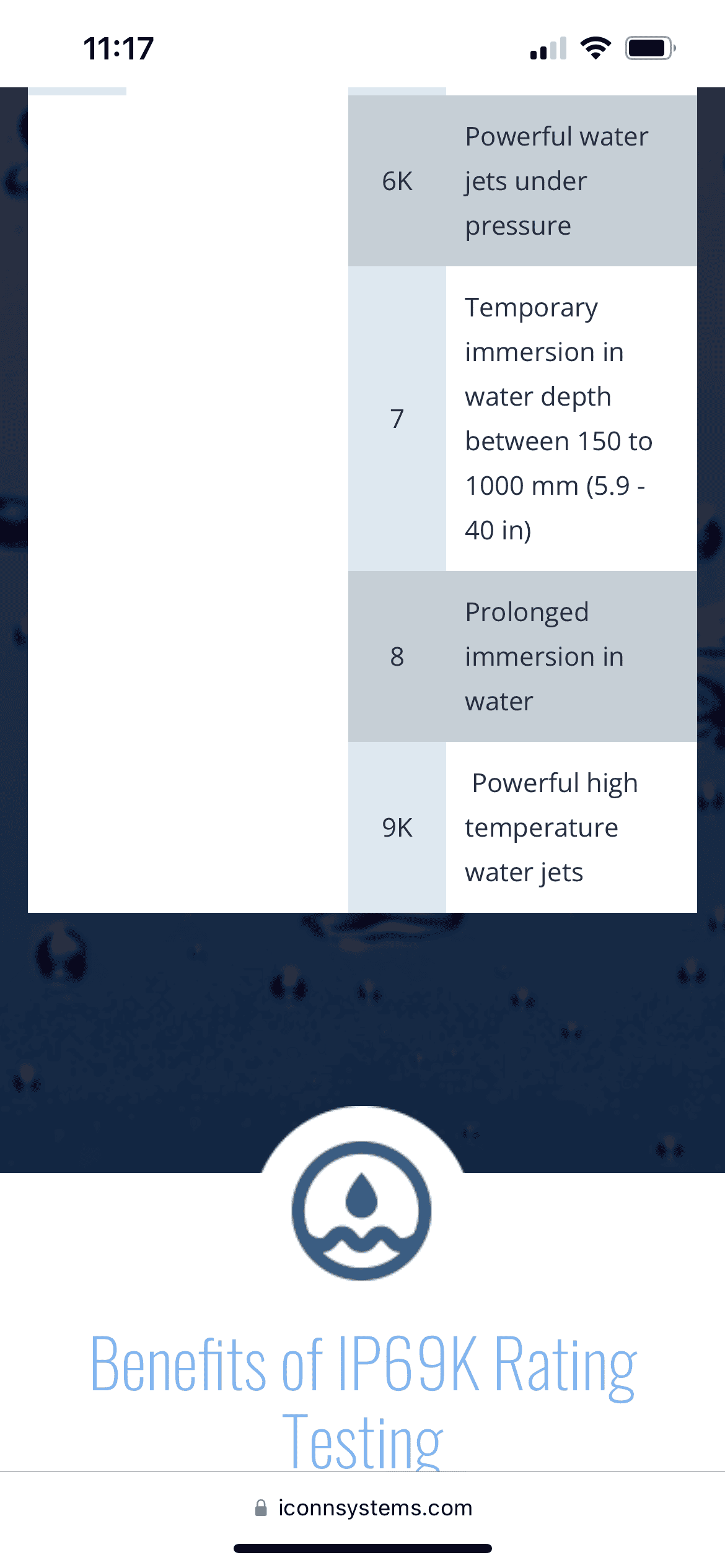

how waterproof is IP69 for the cameras?
would love to know how it fares after a few water-fordings!

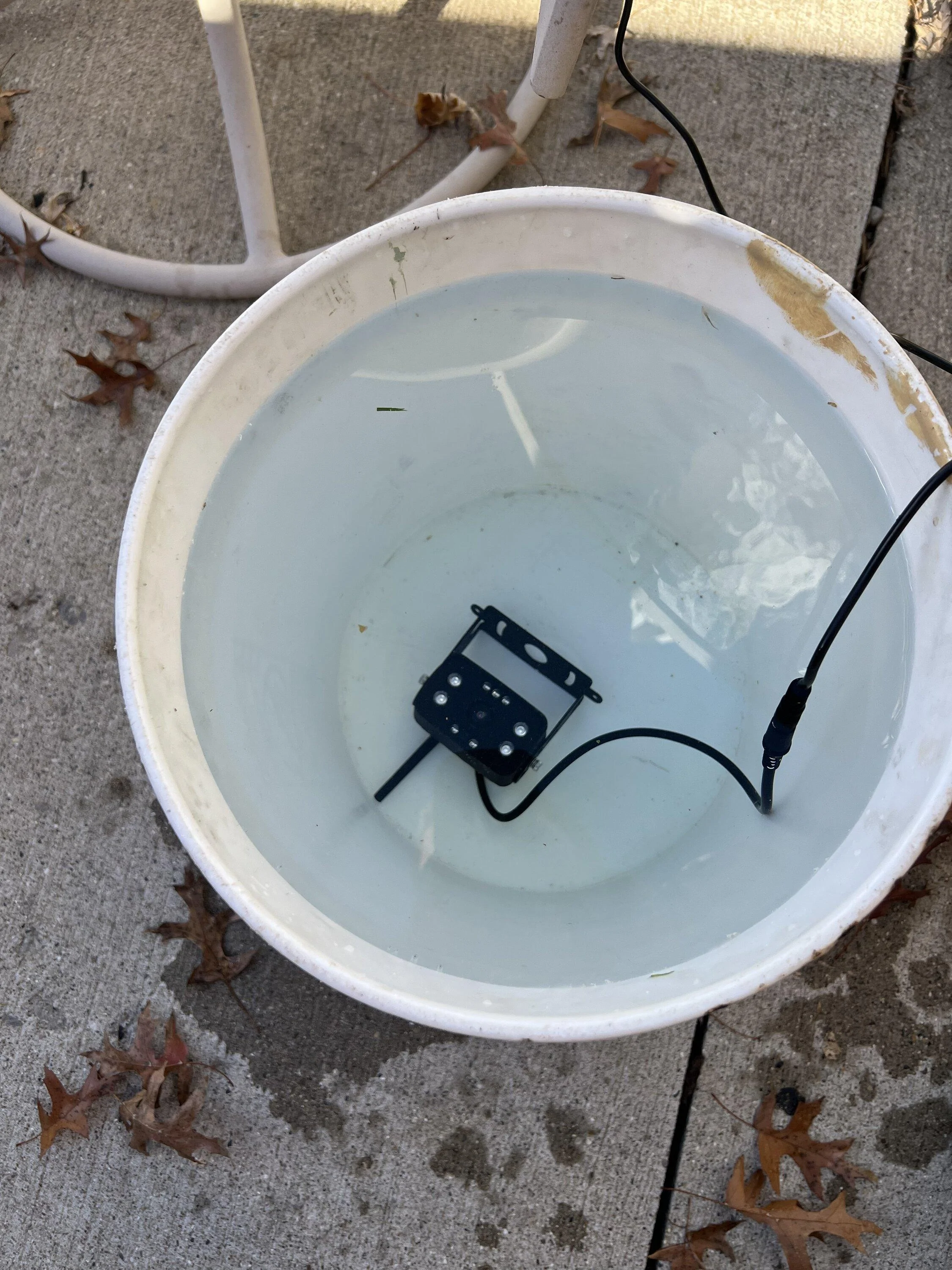

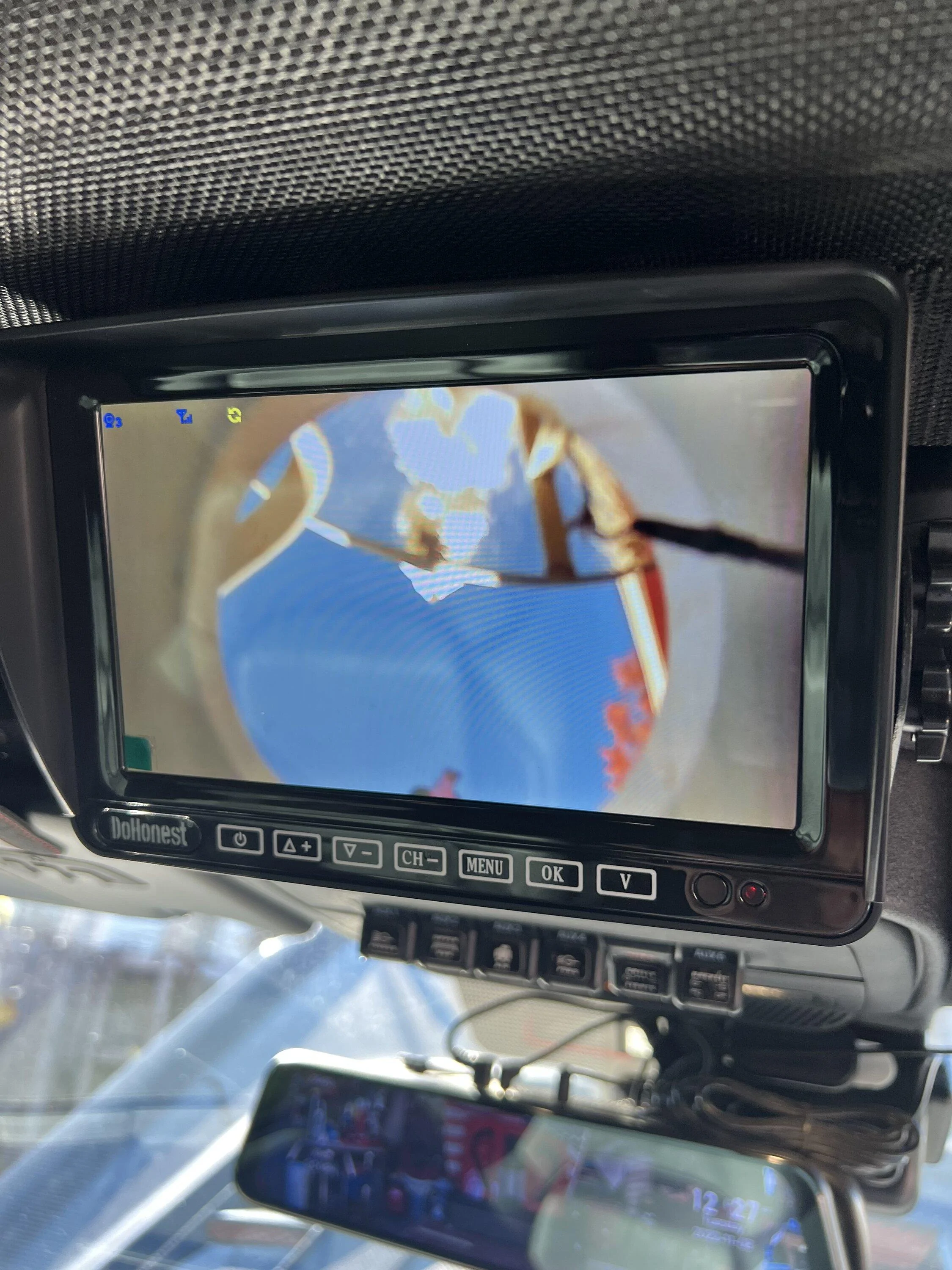

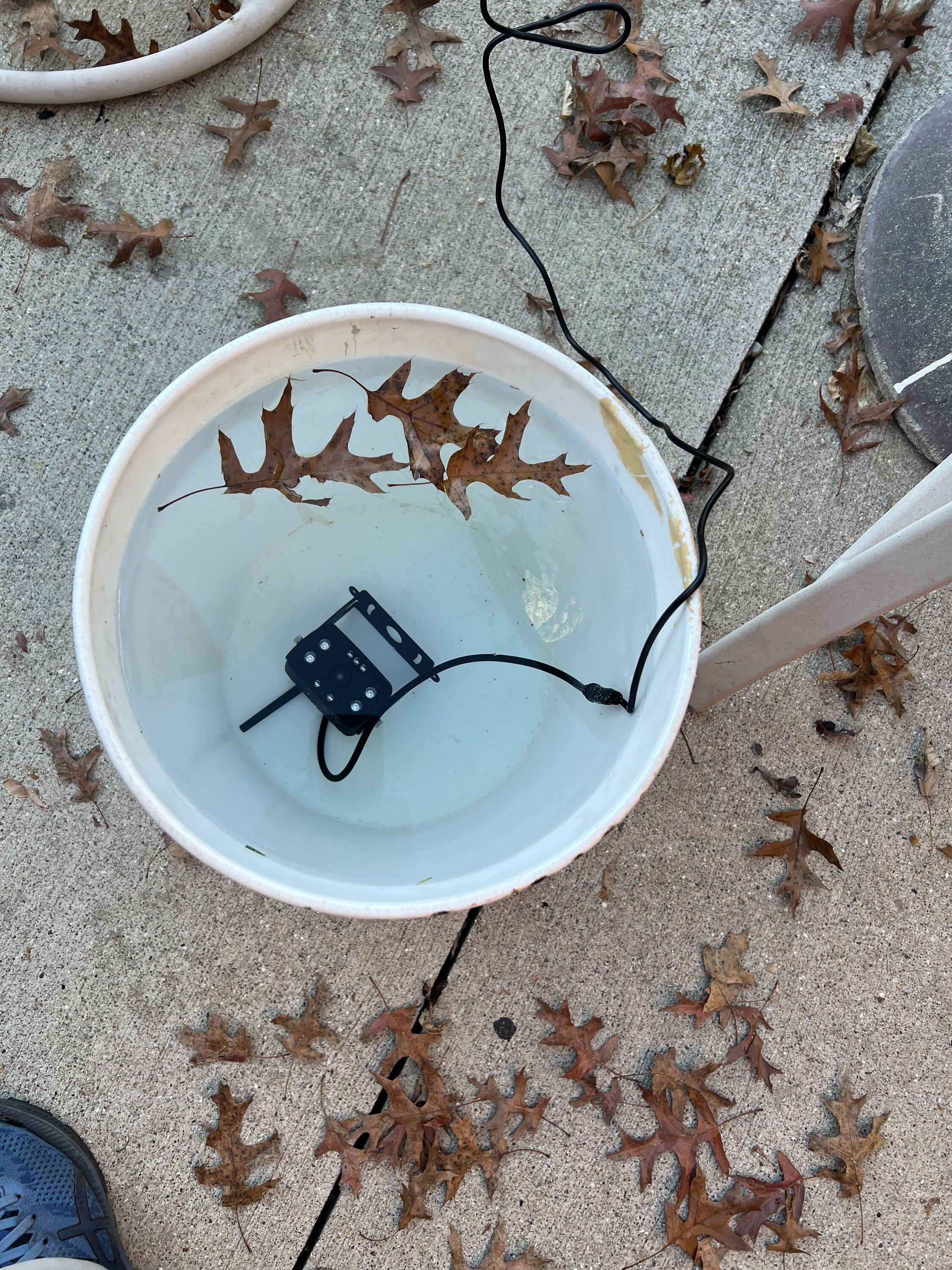

Put the third camera in a 5 gallon bucket of ware. Will let it sit in there for today. Was transmitting.





Big Rig

Big Bend
Well-Known Member
Joined
Jan 22, 2022
Threads
2
Messages
56
Reaction score
83
Location
California
Vehicle(s)
2001 Silverado 1500
Your Bronco Model
Big Bend
Clubs

Easy upgrade for those that like to see what’s going on under the bronco.

Why you ask? I like to see in real time my under lines, wheel angle, suspension load/angle, split high spots, which tire is slipping/lifted and anything falling off the truck or dragging.

Looked at a lot of kits. Settled on this wireless one. Screen and camera quality are really good. It comes with 2 cameras and is capable of supporting 4. Can we say rear trailer view?
Also supports a memory card for full hd recording. Has all the mirror flip options, supports split view.

Unit
https://www.amazon.com/gp/aw/d/B07FM3YLT5?psc=1&ref=ppx_pop_mob_b_asin_title
$199.99
Additional cams
https://www.amazon.com/gp/aw/d/B096ZB181Z?psc=1&ref=ppx_pop_mob_b_asin_title
$99.99

Hook up is straight forward. They have 2 wires. Pos and neg. That’s it. Camera stream connection is wireless and damn near instant. Refresh rate is great, no blur. They have sufficient ir lights to see everything underneath at night.

I first mounted the screen above my lifter switched. Unit fits perfect in that spot. I just used 4 short screws to mount it

Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22


Then I tested and picked out 2 semi protected spots for the belly cams. Higher than the skids but can still see the wheels. I did hit 2 known spots at holly for dragging the belly. Cameras never hit, but did drag the mid skid and tank skid.

Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22


I mounted the brackets with a single self taper. That way the screw head should snap off before the camera get damaged. I used a 5/32 bit to pre drill the cross bars. Front bar you have to stay in the bottom 1” where my finger is. Above that, it’s doubled. Metal is thick but soft.

Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22


Rear cam facing forward is the same 5/32 pre drill with 1 self taper. This metal is a lot thinner. No restriction for hole location on this one.

Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22


I ran the wires through the frame on the drivers side then into the engine bay and hooked the cameras into my grill and visor backlights on a lifter.

This setup performed above my initial expectations for quality, blurring, and not getting hit. If you wheel alone like I do most the time, this is a very worthwhile upgrade. Specially adding in 2 more cameras for trailers. Can do a inside and rear. Leave them attached. When you hook up to the trailer, they will auto connect.

Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
Ford Bronco Belly / underbody cam installed 🎥 ACB97C6D-C682-4596-A060-E4FB8038EF22
This is a really creative idea! Nicely done.


adrewpower

Black Diamond
Well-Known Member
First Name
Drew
Joined
Jul 8, 2020
Threads
8
Messages
127
Reaction score
158
Location
California
Vehicle(s)
F150 & Bronco
Your Bronco Model
Black Diamond
Clubs

Have you timed the delay? Curious how long it is. I thought about mounting a GoPro to the front since a BD couldn’t be upgraded to have a front facing camera. But the GoPro delay is about 3-5 seconds. Obviously not ideal. Curious to know if this has a shorter delay.


Sponsored
OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

If you need to run power to the camera then is there a big advantage of a wireless transmitter?
Instal wise, Yes. No physical wires from the cameras to the screen. Just from the cameras to a 12v source. Quality wise, hard wired is always the best option. I have not had one of these cameras not display full signal yet.

OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

Have you timed the delay? Curious how long it is. I thought about mounting a GoPro to the front since a BD couldn’t be upgraded to have a front facing camera. But the GoPro delay is about 3-5 seconds. Obviously not ideal. Curious to know if this has a shorter delay.
Maybe a 1/10 of a second. Can’t even notice it when turning the front wheels.

OP
OP
Ground_zero298

Ground_zero298

Badlands
Well-Known Member
Joined
Apr 5, 2022
Threads
39
Messages
2,179
Reaction score
5,460
Location
Scs michigan
Vehicle(s)
22 badlands 2 door. 22 Burban Z71
Your Bronco Model
Badlands
Clubs

how waterproof is IP69 for the cameras?
would love to know how it fares after a few water-fordings!
3 1/2 hours in the bucket. Still transmitting.





Bad_Bronco

Wildtrak
Well-Known Member
First Name
Peter
Joined
Aug 2, 2021
Threads
22
Messages
374
Reaction score
862
Location
Port Coquitlam, BC
Vehicle(s)
1963 Chevy Nova SS, 2021 Ford Bronco WildTrak
Your Bronco Model
Wildtrak
Clubs

Very nice job as always...... If I go this way, I will look at making a bracket for the cameras. I will see what I come up with and let you know.
