Hey All,

Starting this thread to track progress on my "build," though I'm hesitant to call it a build compared to many of the others here.

My wife and I currently reside in MO but take trips out to CO 2-3 times a year to see her family, camp, and off-road (not to mention what we do here locally). We have plans to move there so most of the mods I've been doing are in line with camping & off-roading more often when we do relocate.

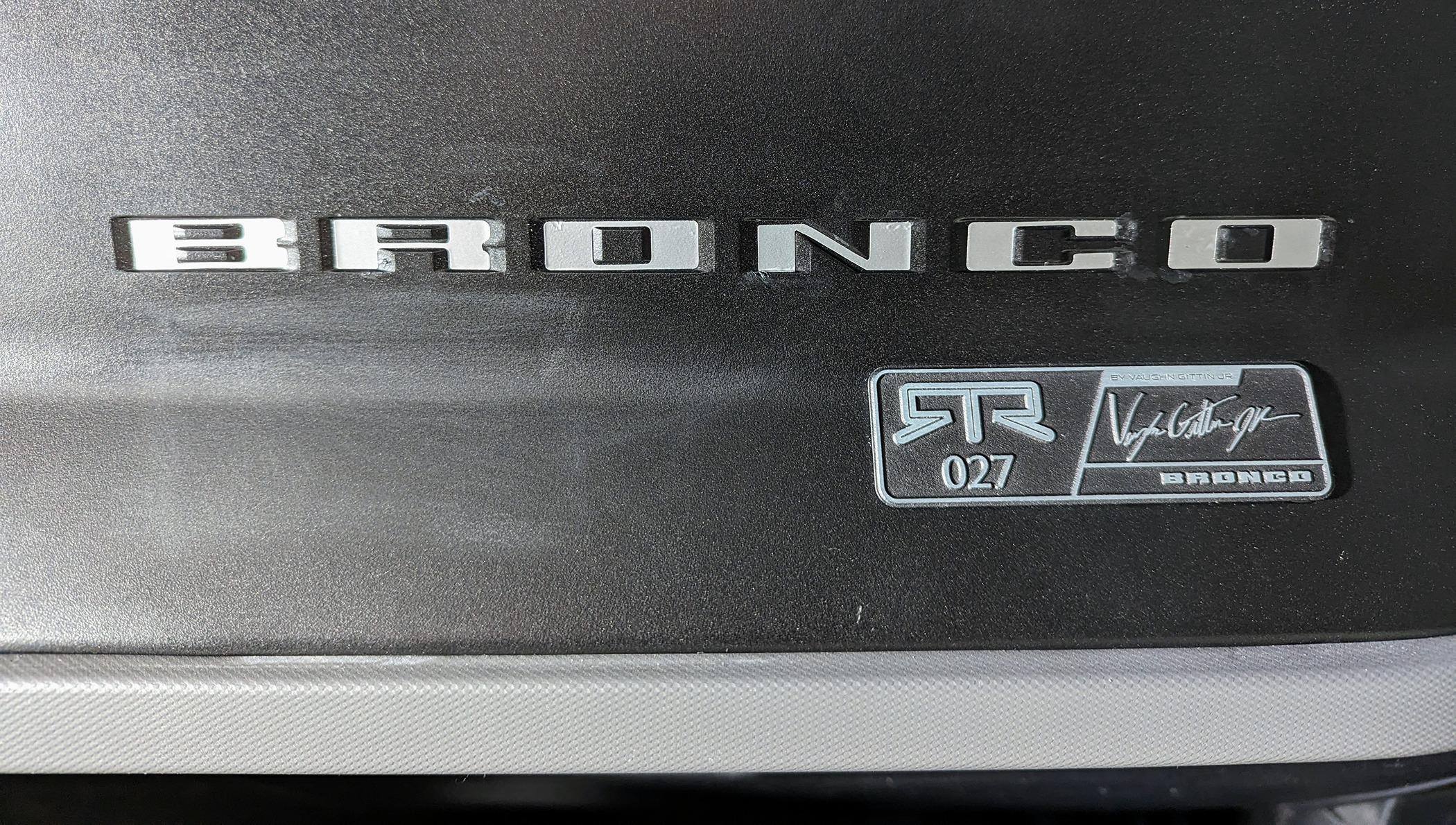

I bought my 2022 black diamond used on 12/02/2023 with about 24k miles - It is RTR #27, auto, soft top, sas, and the 2.7L.

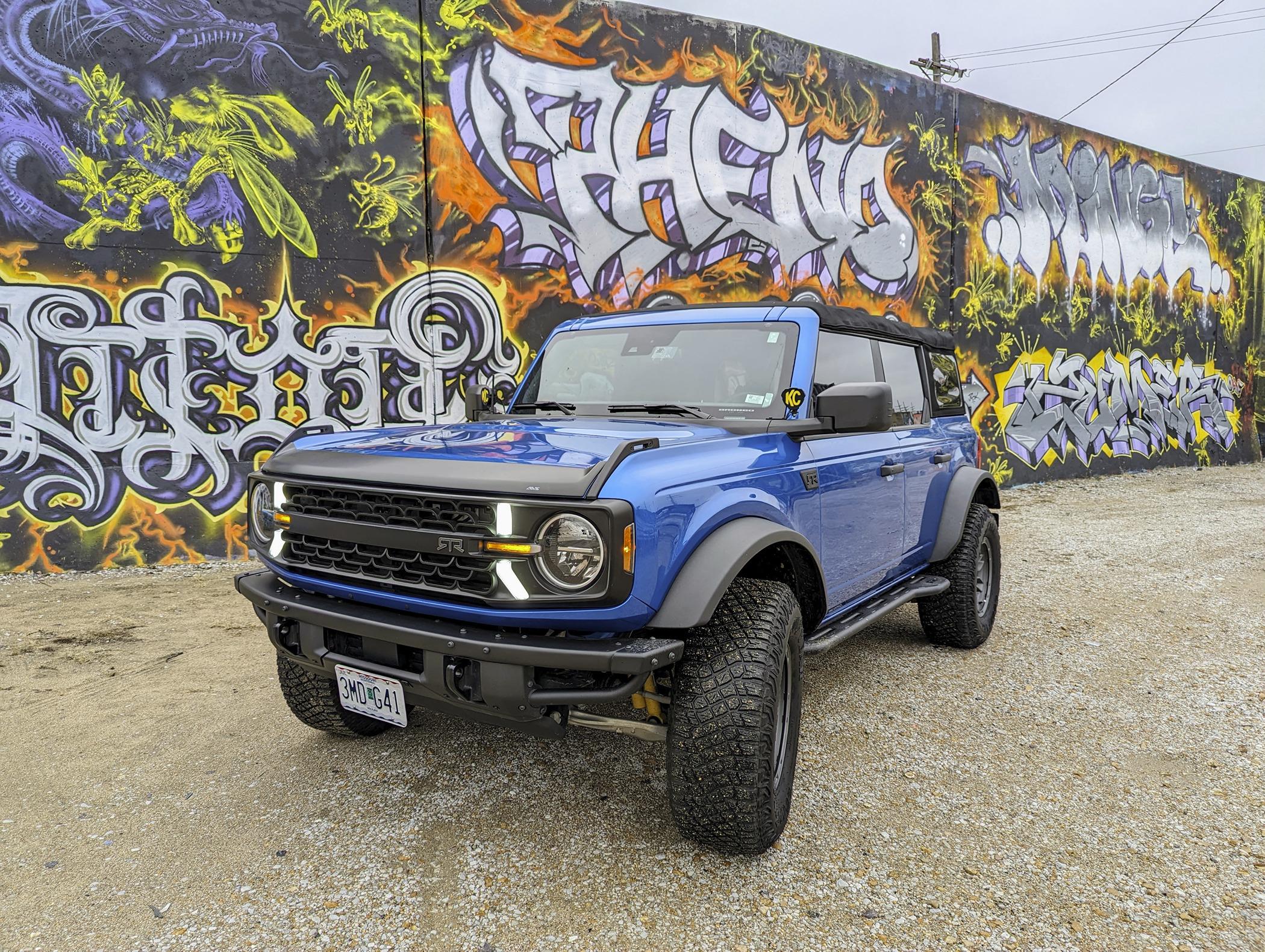

Here's how it looks as of today:

Below is a list of what I've done so far, along with what is on order, and what is planned.

Completed:

• Redline Hood Struts

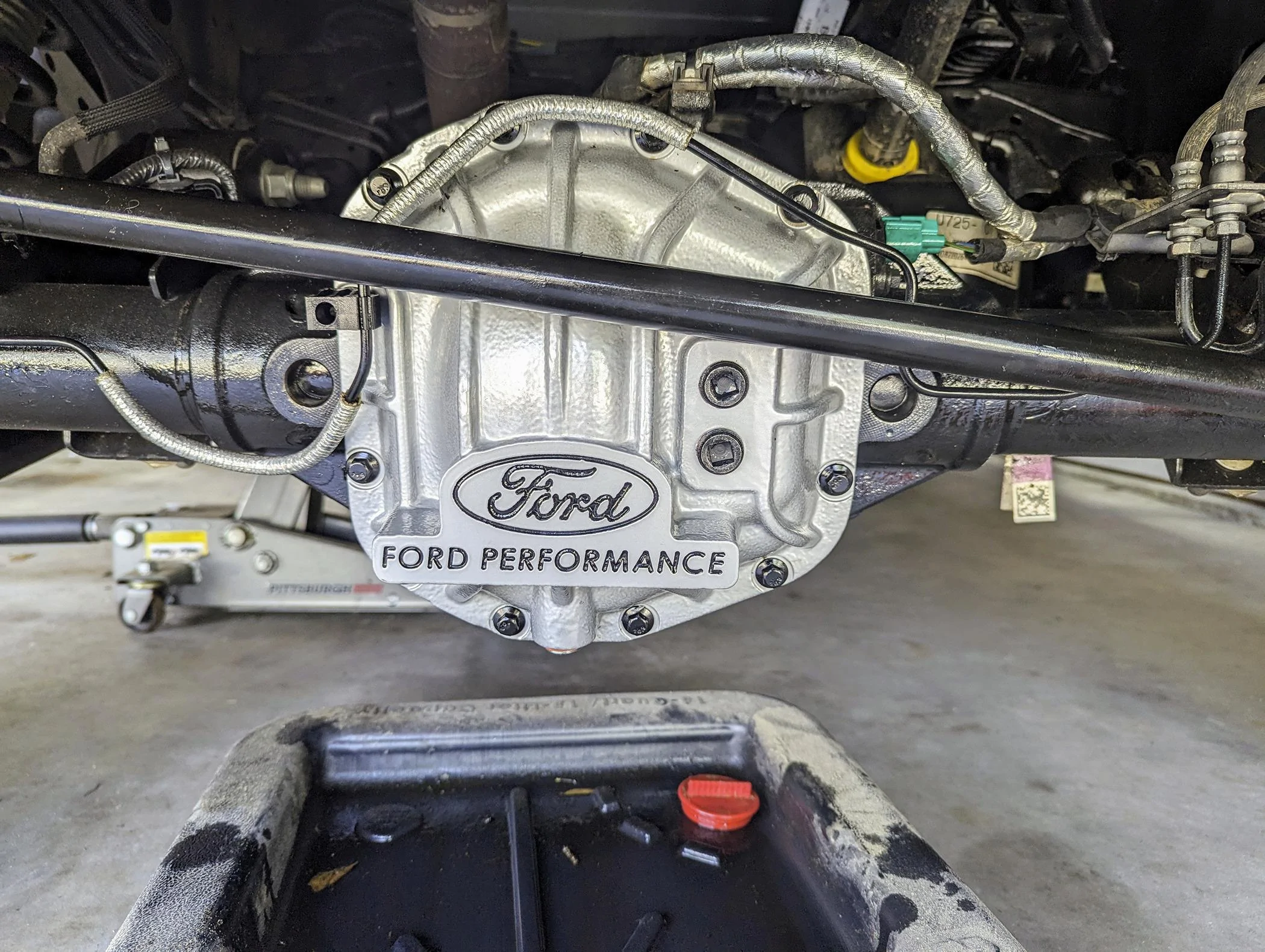

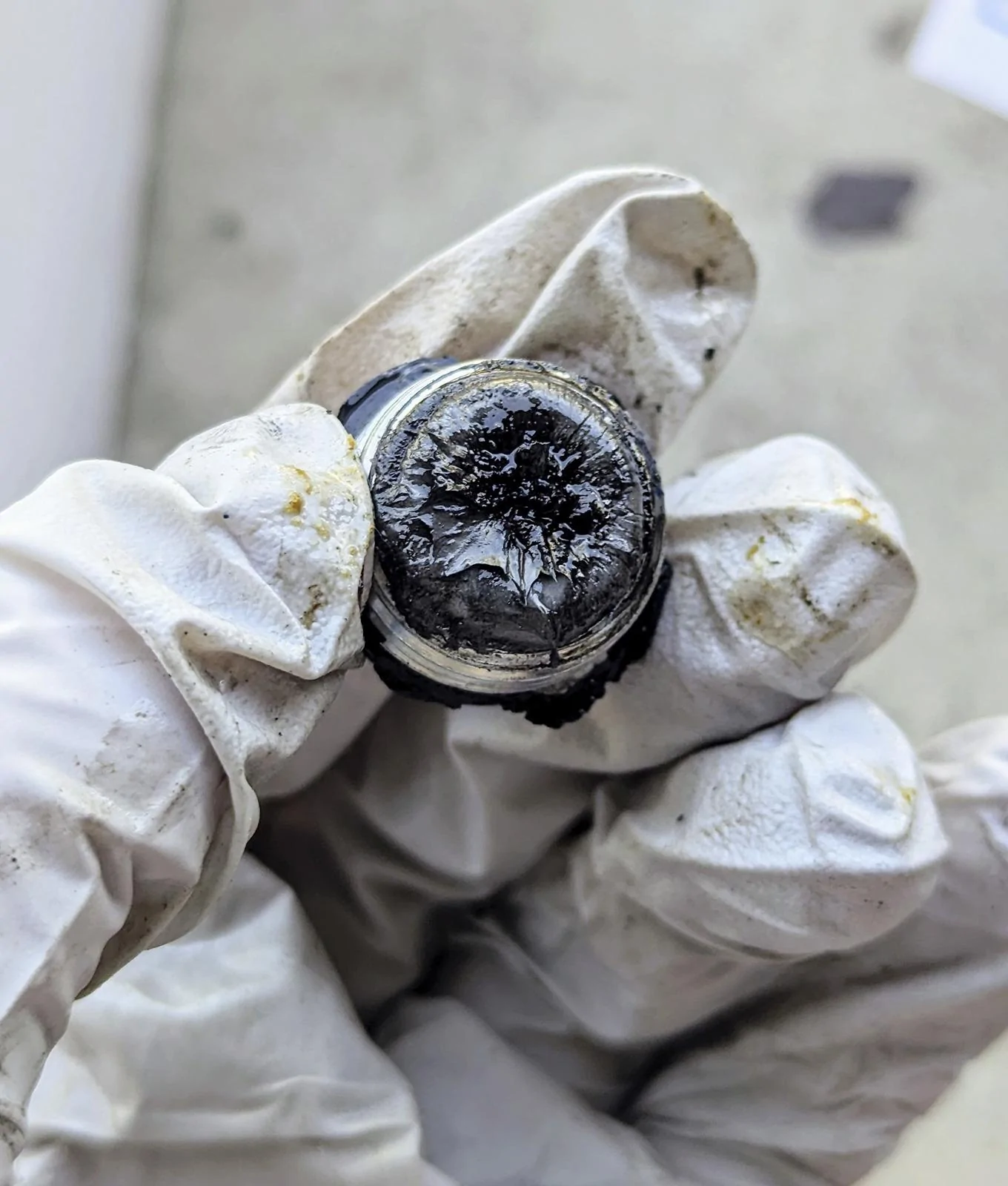

• Ford Performance Rear Diff Cover (also changed fluids on the rear diff, front diff, and transfer case at 20k)

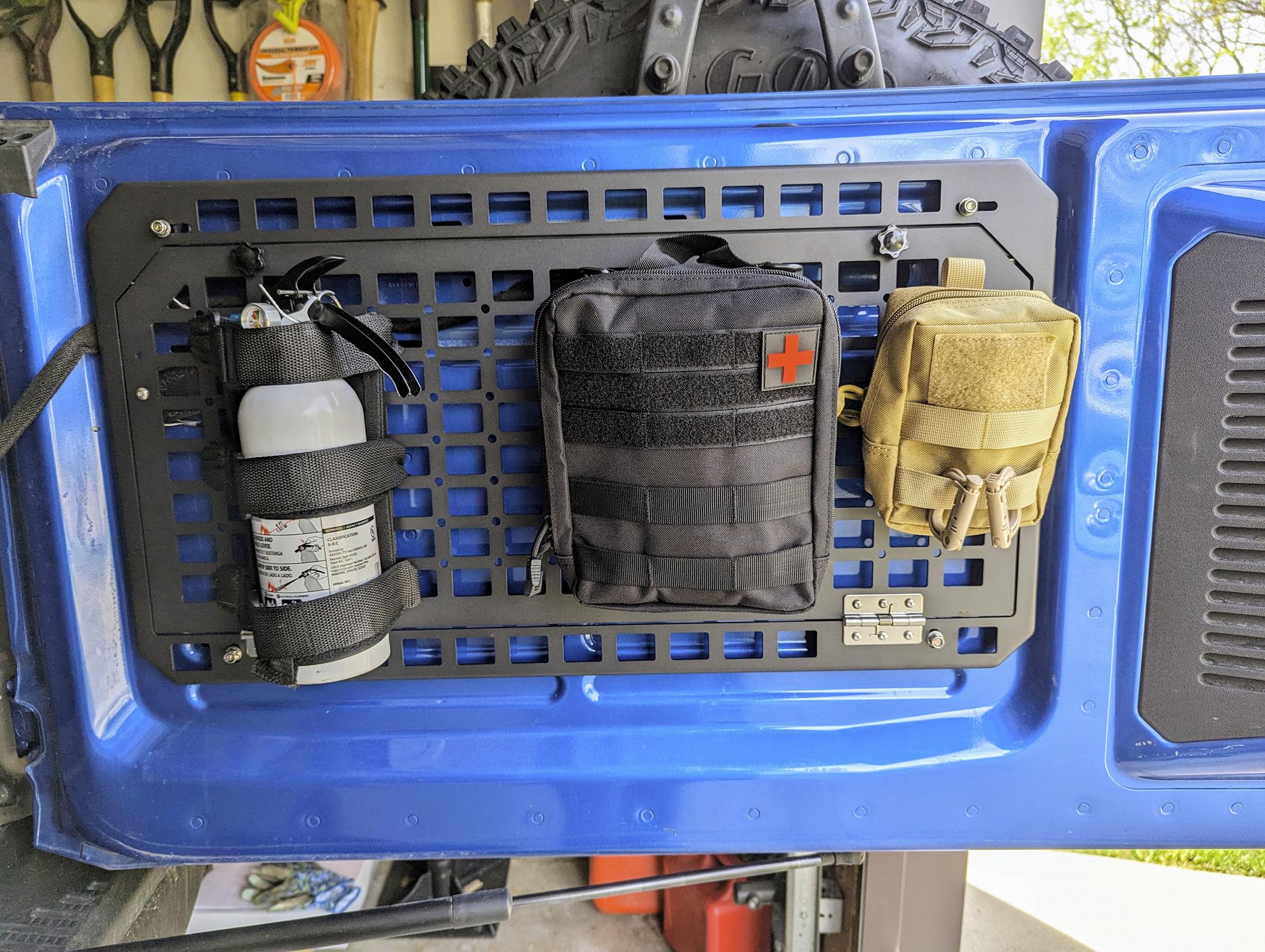

• Tailgate Molle Panel/Table
• Ford Deluxe Tailgate Enclosure Removed

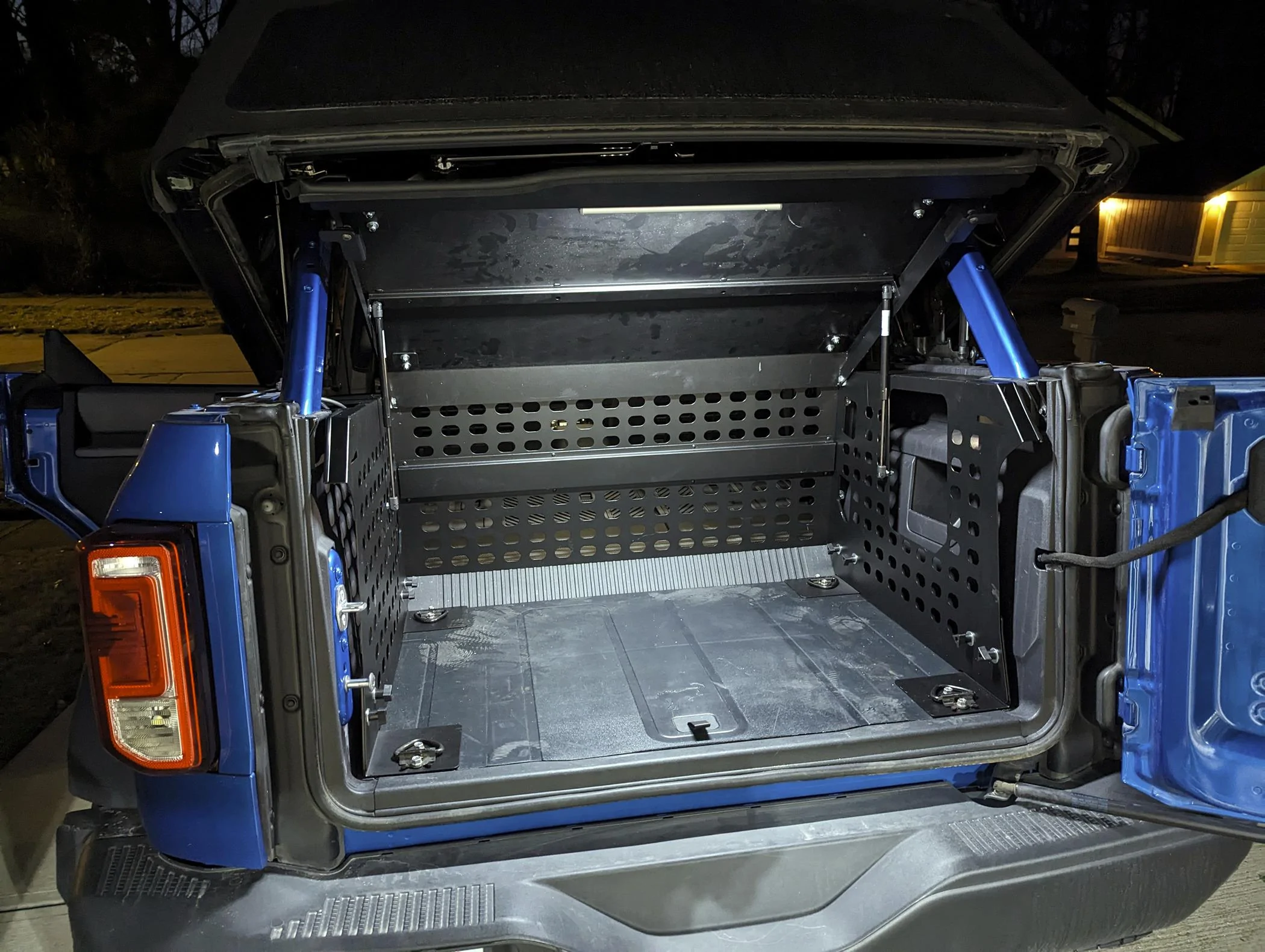

• Ford Rear Cargo Drawer
• Sunshade top (from previous owner)

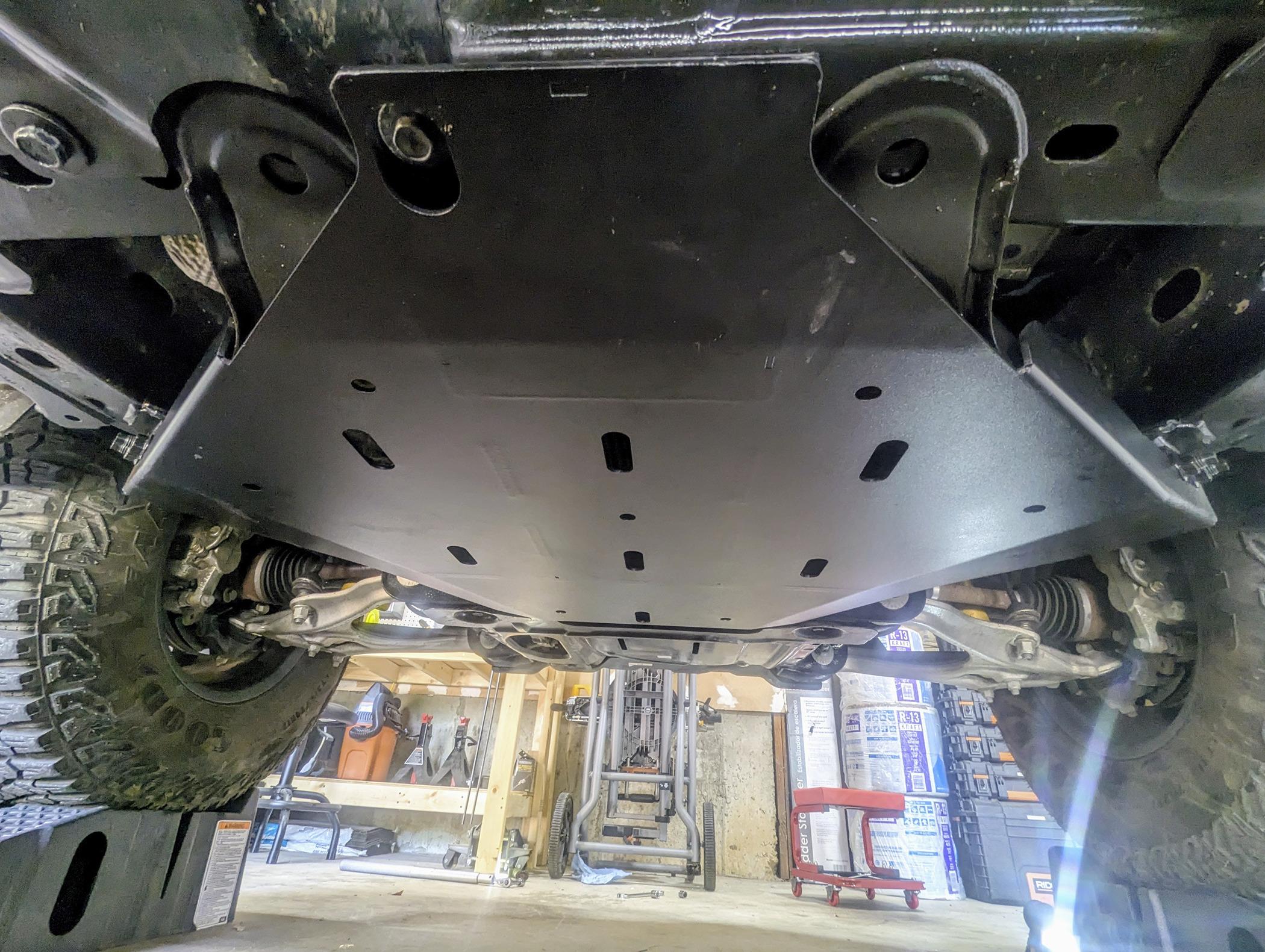

• LOD Transmission Skid Plate
• Diode Dynamic Fog Lights (SS3 sport and 2 SS2 sports, JCR bracket)
• KC HiLites Flex Era 3 Ditch lights (from previous owner)
• KC HiLites Apollo Pro 6" Halogen
• Westin XTS Brush Guard

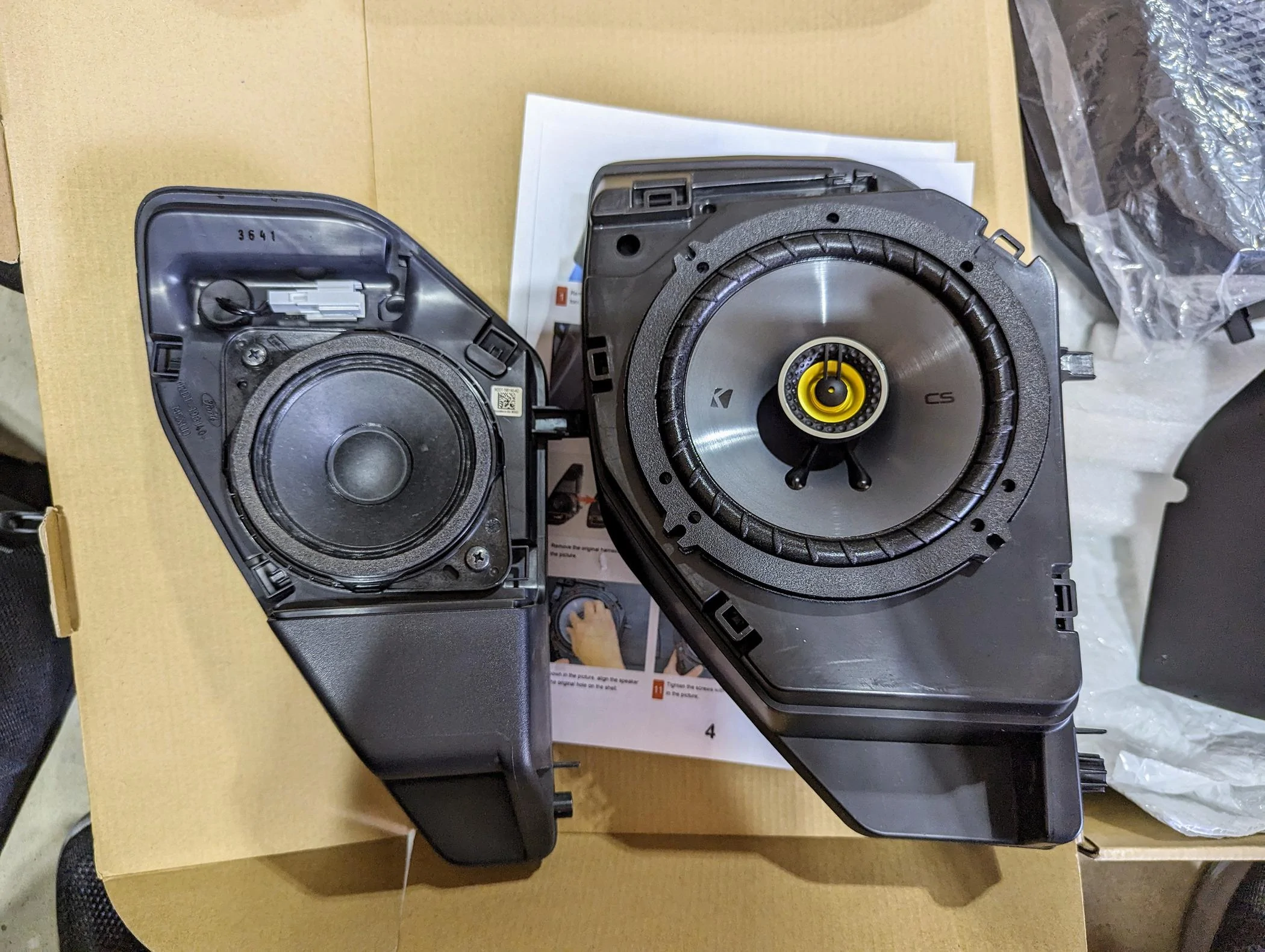

• Speaker Upgrade
  • Kicker Key 200.4
  • Bass Blockers
  • Mabett Rear Speaker Pods
  • Kicker CS Speakers
  • Plug N Play Kits Harness
• Rough Country Overhead Molle Panel
• Mabett Interior Lights & Dome Light
• Mabett Rear Cupholder
• Curt Trailer Hitch (for bikes)

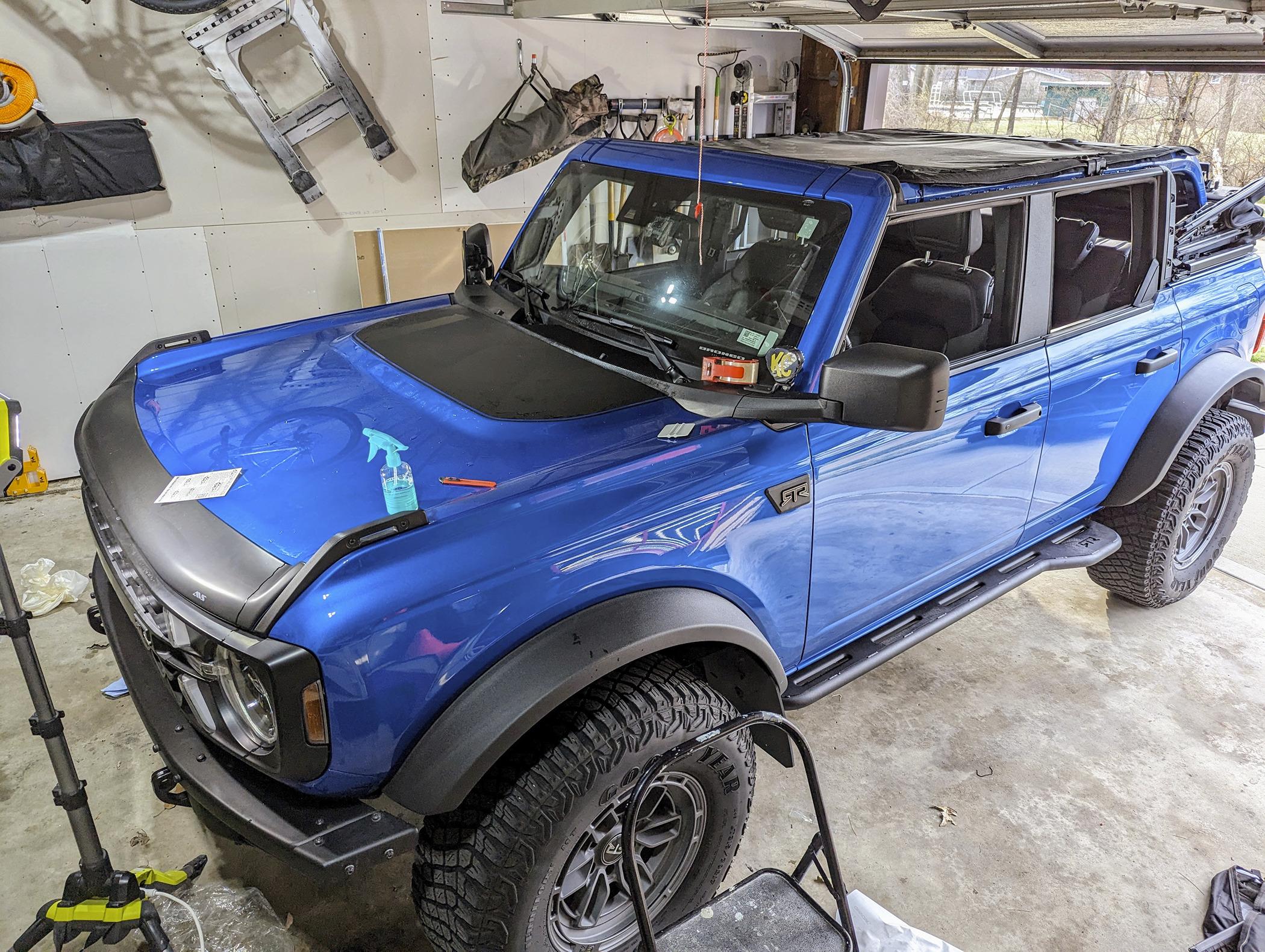

• Etsy Hood Graphic with Pinstripe
• Shorty Antenna
• Center Console Lockbox
• Hood Bug Deflector
• War Horse Off-Road Tailgate Limiter
• Tricky Motorsports Tie Rod Repair Kit & SKP Inner Tie Rod
• Midland MXT115 GMRS Radio
• Broaddict Window Molle Panels
• Ford Performance 10k winch Kit
• Ford Performance/Factor 55 Ultrahook
• Turn Offroad Tailgate Reinforcement
• Turn Offroad Jerry Can Mount
• Turn Offroad Tire Carrier
• Turn Offroad Spare Tire Basket
• Trailer wiring harness
• RedArc Trailer Brake Controller

Need to Install:

• Rough Country Rack & Pinion Bushing Kit

Planned:

• 6100's
• Severe Duty Steering Upgrade
• Ford Performance Tune
• Upgrade to 12" Screen

Since I started this thread late into my mods, here's a photo dump!

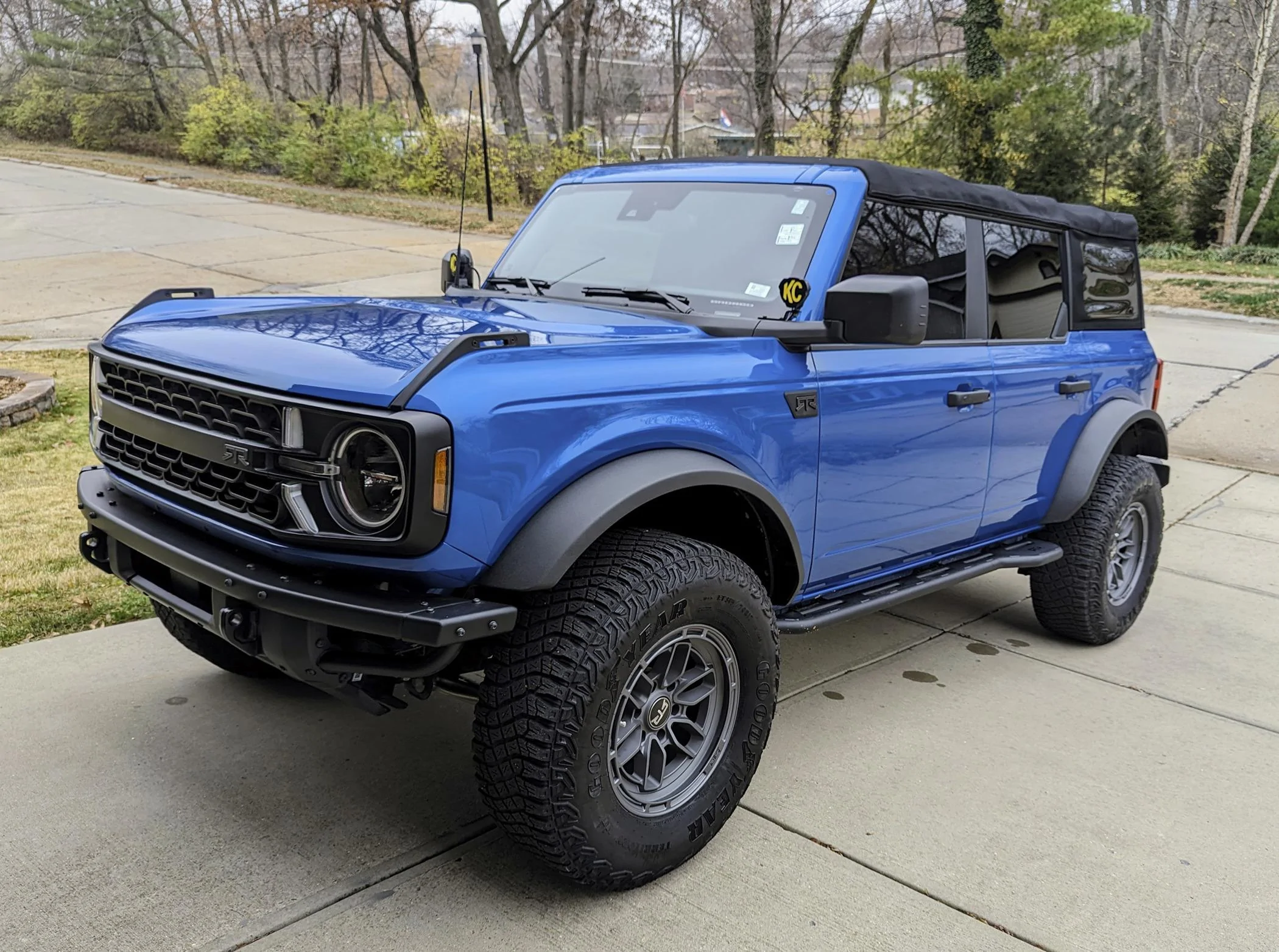

First day and week since bringing it home:

Various Mods:

Sponsored



[BKinn]

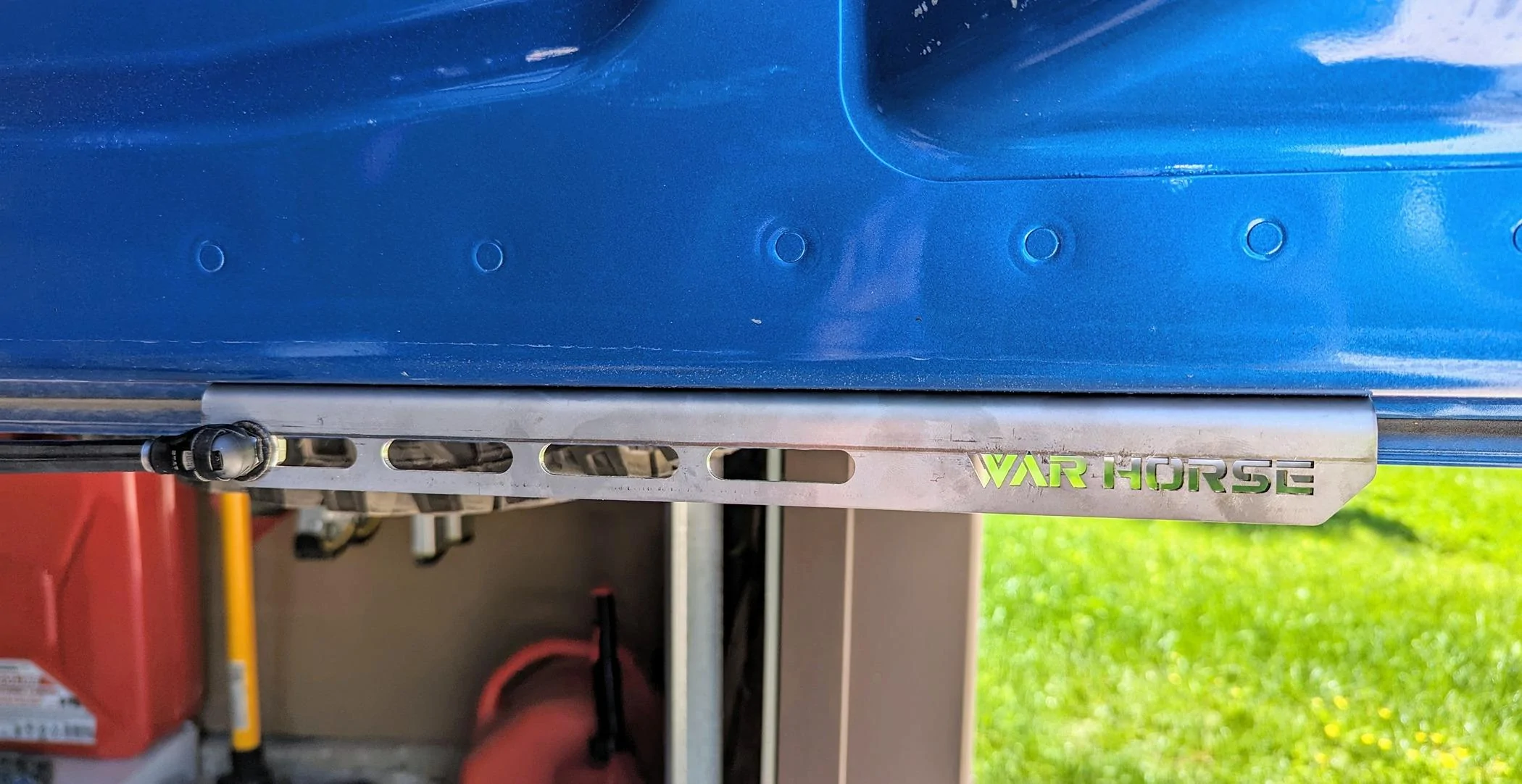

The War Horse Off-Road tailgate limiter arrived just before lunch today, got it installed in just a couple of minutes. Works great, highly recommend!



[Ford Motor Company]

The War Horse Off-Road tailgate limiter arrived just before lunch today, got it installed in just a couple of minutes. Works great, highly recommend!

Your Bronco looks great. Thanks for sharing!



[Reidt131]

Great looking build, love the RTR grill!

Question, would you be interested in selling your takeoff BD grill?



[cbrenthus]

Love the brush guard! Exactly what I'm looking for and will add to my list!



[BKinn]

Great looking build, love the RTR grill!

Question, would you be interested in selling your takeoff BD grill?

I would if I could! Unfortunately (or fortunately for me), it's an actual numbered RTR bronco, so I didn't purchase any of the parts, RTR did the build. So I don't have any of the stock parts, no idea what RTR did with them.



[Reidt131]

I would if I could! Unfortunately (or fortunately for me), it's an actual numbered RTR bronco, so I didn't purchase any of the parts, RTR did the build then resold it. So I don't have any of the stock parts, no idea what RTR did with them.

Gotcha! I didn't realize that RTR did full upfit builds.



[BKinn]

Love the brush guard! Exactly what I'm looking for and will add to my list!

Thanks! I'm quite happy with it! I hit a deer in my last truck so I wanted a bit more protection from them and branches.

The install wasn't the easiest, the mounting holes didn't line up exactly, but I found that leaving the entire assembly loose (specifically the horizontal braces) rather than torqued tight before installing made it so much easier. Install then torque, counter to the instructions.

It also allows you to mount lights on either the top or bottom, which is ideal for me since I want to add a winch later and don't want to block them.



[BKinn]

Gotcha! I didn't realize that RTR did full upfit builds.

Yep! Though I'm not sure how many they do each year, certainly less than 50. I keep meaning to follow up with them and figure out how many they've made each year.



[604Bronco]

Yep! Though I'm not sure how many they do each year, certainly less than 50. I keep meaning to follow up with them and figure out how many they've made each year.

@RTR Vehicles - How many of these vehicles do you build each year?

You’re welcome



[sutherland55555]

Looks great and love the RTR rims. They make some great products.



[mikeeshim]

Not my favorite grill, but it goes so well with that bull bar.
Everyone with that grill needs that bull bar.



[5GENIDN]

Hey All,

Starting this thread to track progress on my "build," though I'm hesitant to call it a build compared to many of the others here.

My wife and I currently reside in MO but take trips out to CO 2-3 times a year to see her family, camp, and off-road (not to mention what we do here locally). We have plans to move there so most of the mods I've been doing are in line with camping & off-roading more often when we do relocate.

I bought my 2022 black diamond used on 12/02/2023 with about 24k miles - It is RTR #27, auto, soft top, sas, and the 2.7L.

Here's how it looks as of today:

Below is a list of what I've done so far, along with what is on order, and what is planned.

Completed:

• Redline Hood Struts
• Ford Performance Rear Diff Cover (also changed fluids on the rear diff, front diff, and transfer case)
• Tailgate Molle Panel/Table
• Ford Deluxe Tailgate Enclosure
• Sunshade top (from previous owner)
• LOD Transmission Skid Plate
• Diode Dynamic Fog Lights (SS3 sport and 2 SS2 sports, JCR bracket)
• KC HiLites Flex Era 3 Ditch lights (from previous owner)
• KC HiLites Apollo Pro 6" Halogen (to melt snow when in CO)
• Westin XTS Brush Guard
• Speaker Upgrade
  • Kicker Key 200.4
  • Bass Blockers
  • Mabett Rear Speaker Pods
  • Kicker CS Speakers
  • Plug N Play Kits Harness
• Rough Country Overhead Molle Panel
• Mabett Interior Lights & Dome Light
• Mabett Rear Cupholder
• Curt Trailer Hitch (for bikes)
• Etsy Hood Graphic with Pinstripe
• Shortty Antenna
• Center Console Lockbox
• Hood Bug Deflector
• War Horse Off-Road Tailgate Limiter

Ordered:

• Icon Extreme Duty Tie Rods
• Rough Country Rack & Pinion Bushing Kit
• Midland MXT115 GMRS Radio
• Replacement Front Plate Mount (the one I have is too low, scrapes when off-roading)

Planned:

• Rough Country High Winch Mount
• Smitttybilt 10k Synthetic Winch
• Turn Offroad Tailgate Reinforcement
• Turn Offroad Jerry Can Mount (when released)
• LOD Frame Tie-In Brackets

Since I started this thread late into my mods, here's a photo dump!

First day and week since bringing it home:

Various Mods:

That sir, is an awesome build!



[Aonarch]

Very nice!

I also really like that grill with the brush guard.



[GroovyGeek]

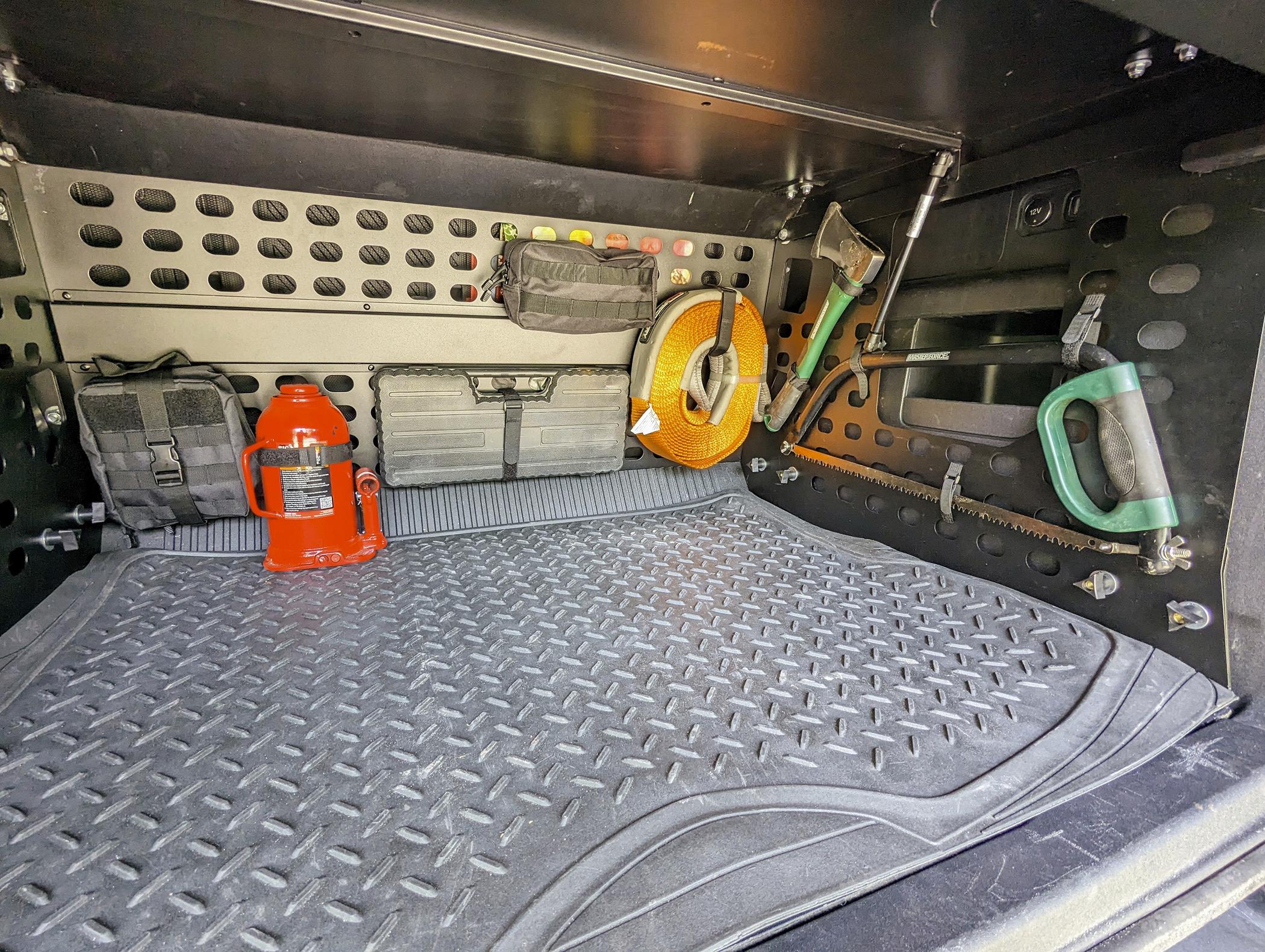

What is that cargo mat that works with the molle panels?
