To promote our Panhard Relocation Brackets, we'd like to give one away to someone who needs it the most! To enter, simply post a picture of your lifted Bronco showing the angle of the rear panhard/track bar. The worst angle wins!

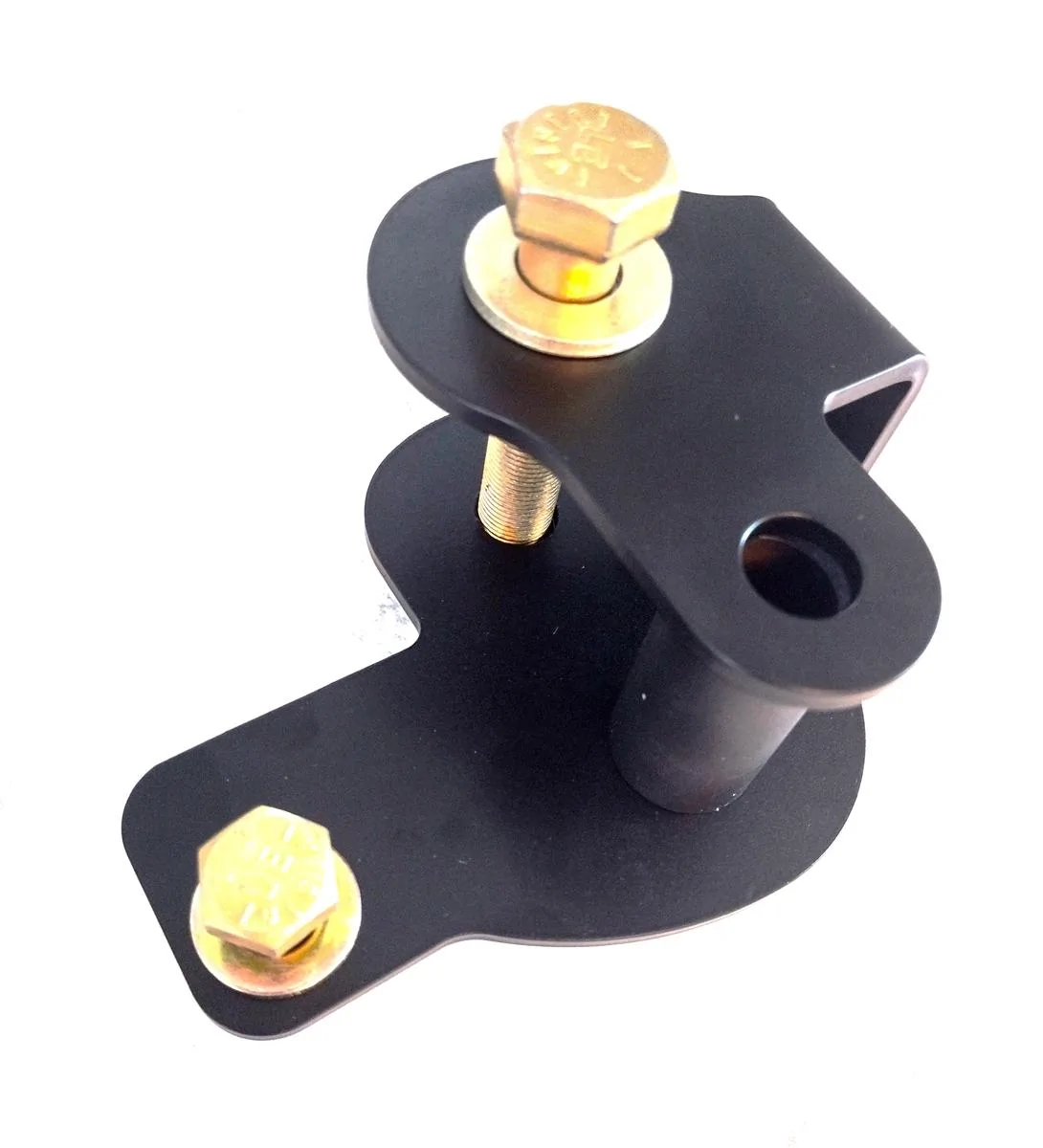

Ford Bronco BOSS Panhard Relocation Bracket GIVE-A-WAY!  Enter to win by 9/20/24. BB8-PRB-2


Here's more info on the brackets:

5% OFF INTRODUCTORY PRICING WITH FREE SHIPPING FOR A LIMITED TIME!
Only $109!

What is a Panhard Bar?
In the off-road world, Pandhard Bars, or Rods, are often referred to as "Track Bars". The Panhard bar was named for its first manufacturer and is essential for control and maneuverability. It is used to retain a solid axle laterally, or side to side. It acts as a stabilizer, reducing the side-to-side roll of a vehicle by restricting lateral movement and better aligning the wheels with the center of the vehicle. It's bolted to the rear axle and frame of the vehicle, allowing the rear wheels to move up and down, but not left to right (laterally).

Why do I need a Relocation Bracket?
Panhard issues can occur when you lift your vehicle, causing the angle to change. An adjustable bar and/or relocation bracket can solve this by restoring the lateral geometry. The BOSS relocation bracket moves the axle housing mounting point upward to correct the alignment, restoring the geometry, and bringing the rear suspension roll center to your Bronco's center of gravity.

Features:
  • CNC cut and formed 3/16" thick steel
  • Grade 8 hardware included
  • Easy, bolt-on installation
  • Durable black powdercoating
  • Fits OE and aftermarket bars
  • Restores lateral geometry & improves handling
  • Made in the USA
Short video explanation:


**PLEASE NOTE: Contest ends 9/20/24. We may use the winner's photo in future promotions.
Sponsored



cgv

Badlands
Well-Known Member
First Name
Chris
Joined
Apr 21, 2022
Threads
16
Messages
248
Reaction score
338
Location
Apex, NC
Vehicle(s)
Bronco Badsquatch, Explorer ST
Your Bronco Model
Badlands
There is at least one other relocation bracket maker that states a required minimum compressed strut length to avoid contacing the frame with the bracket during articulation. Are there any such restrictions with your setup?

OP
OP
Boss Broncos

Boss Broncos

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Sarah
Joined
Sep 19, 2022
Threads
19
Messages
203
Reaction score
375
Location
CA
Website
www.boss4x4.com
Vehicle(s)
'22 Sasquatch 2DR; '78 FJ40; '85 T4R
Your Bronco Model
Base
There is at least one other relocation bracket maker that states a required minimum compressed strut length to avoid contacing the frame with the bracket during articulation. Are there any such restrictions with your setup?
The bracket moves the mounting point up by 2 3/8". Our bracket has a little more clearance due to the rounded shape. We measured our stock 2-door sasquatch suspension at 22.25"L at ride height. Currie says 18.15" min. collapsed length for clearance with their bracket, so that would equate to 4.1" of clearance needed, and we have 4.5". We've had it on for over a year now on some hard trails, fully flexed, and no contact with the frame.

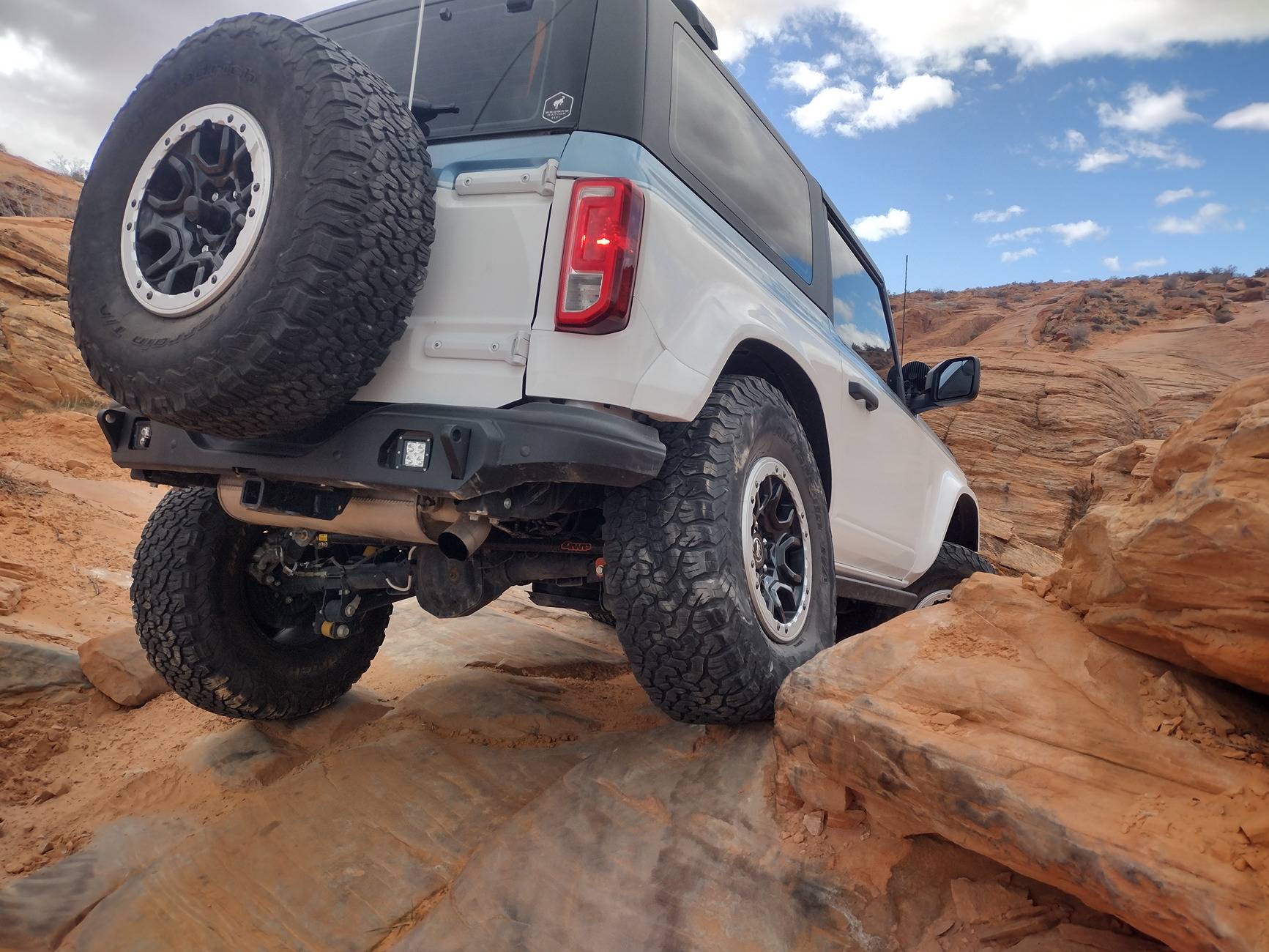

Ford Bronco BOSS Panhard Relocation Bracket GIVE-A-WAY!  Enter to win by 9/20/24. IMG_20240302_111636349_HDR


Sponsored

Alanp970

Base
Well-Known Member
First Name
Alan
Joined
May 24, 2023
Threads
4
Messages
171
Reaction score
318
Location
78657
Vehicle(s)
2023 4 Door Base Sasquatch Hardtop
Your Bronco Model
Base
Mine just showed up. I paid for mine like a sucker!

OP
OP
Boss Broncos

Boss Broncos

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Sarah
Joined
Sep 19, 2022
Threads
19
Messages
203
Reaction score
375
Location
CA
Website
www.boss4x4.com
Vehicle(s)
'22 Sasquatch 2DR; '78 FJ40; '85 T4R
Your Bronco Model
Base

emaier

Outer Banks
Well-Known Member
First Name
eric
Joined
Jul 28, 2020
Threads
1
Messages
59
Reaction score
111
Location
ca
Vehicle(s)
Ram 1500 Laramie
Your Bronco Model
Outer Banks
Clubs

At what point is a Panhard Relocation Bracket recommended?


Sponsored

Poppavein

Black Diamond
Well-Known Member
First Name
Michael
Joined
Nov 10, 2023
Threads
2
Messages
273
Reaction score
378
Location
WA
Vehicle(s)
Harleys, Ducatis, 2024 Bronco
Your Bronco Model
Black Diamond
Clubs

Does this eliminate the need for an adjustable track bar?


Fordified1

Black Diamond
Well-Known Member
First Name
Bob
Joined
Nov 1, 2023
Threads
19
Messages
2,114
Reaction score
5,406
Location
Mid South Texas
Vehicle(s)
‘15 Mustang ecoboost, 4wd Excursion, ‘69 Mach 1
Your Bronco Model
Black Diamond
Clubs


Fordified1

Black Diamond
Well-Known Member
First Name
Bob
Joined
Nov 1, 2023
Threads
19
Messages
2,114
Reaction score
5,406
Location
Mid South Texas
Vehicle(s)
‘15 Mustang ecoboost, 4wd Excursion, ‘69 Mach 1
Your Bronco Model
Black Diamond
Clubs

Is there a winner yet?

I believe @j_marinelli has the worst so far, and needs one bad.

OP
OP
Boss Broncos

Boss Broncos

Base
Well-Known Member
Base Sponsor (Level 1)
First Name
Sarah
Joined
Sep 19, 2022
Threads
19
Messages
203
Reaction score
375
Location
CA
Website
www.boss4x4.com
Vehicle(s)
'22 Sasquatch 2DR; '78 FJ40; '85 T4R
Your Bronco Model
Base
Last day to get your entries in! Winner will be announced at 5pm PST. All entries will win runner-up prizes! :wait:
