i just used the shop manual and snipping tool had to do something while it was raining.
Can you pleas show me how you wired into and out of the tailgate? Did you drill a hole through the grommets for the camera wire?
OP
OP
- Thread starter
- #19

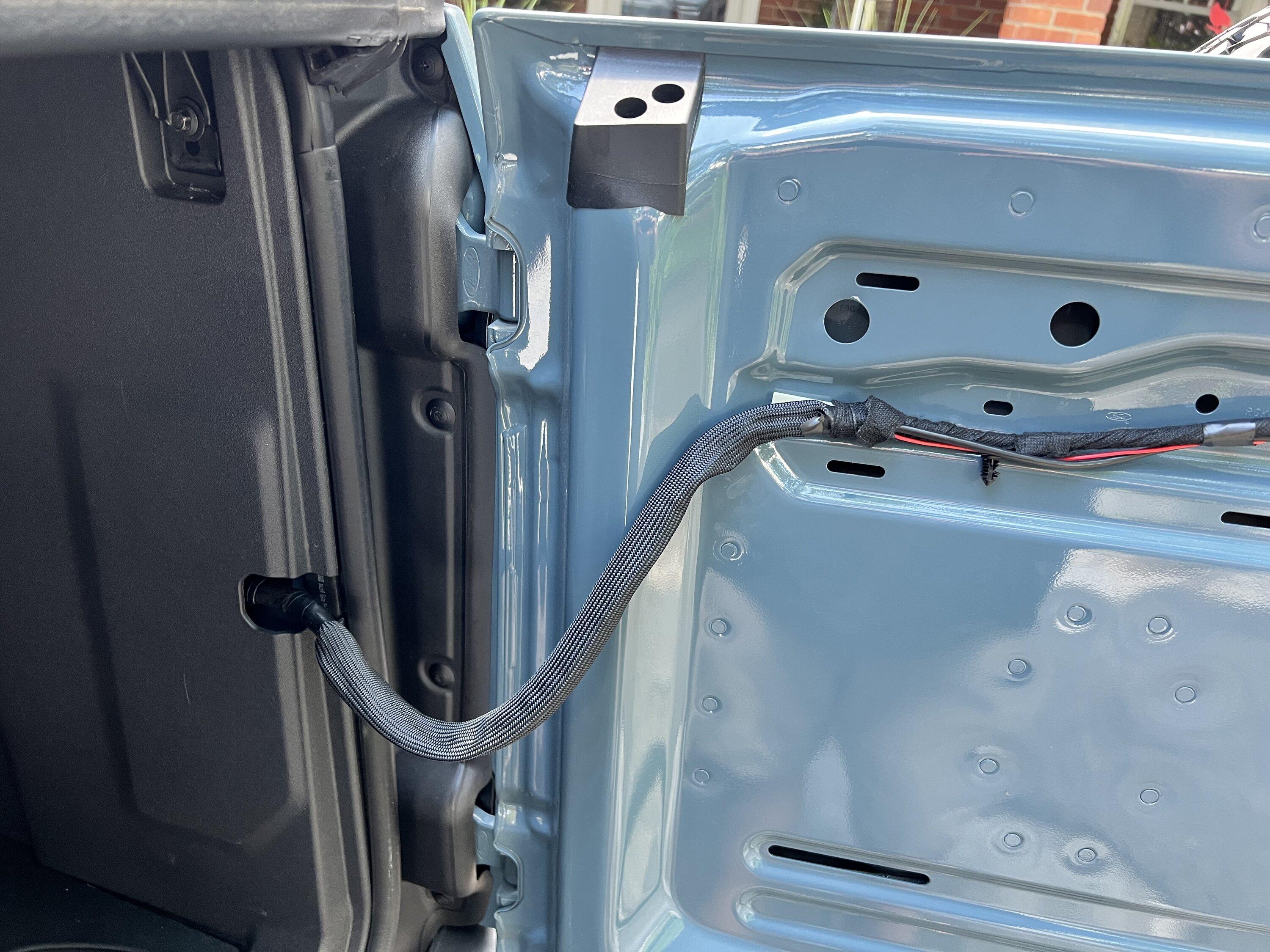

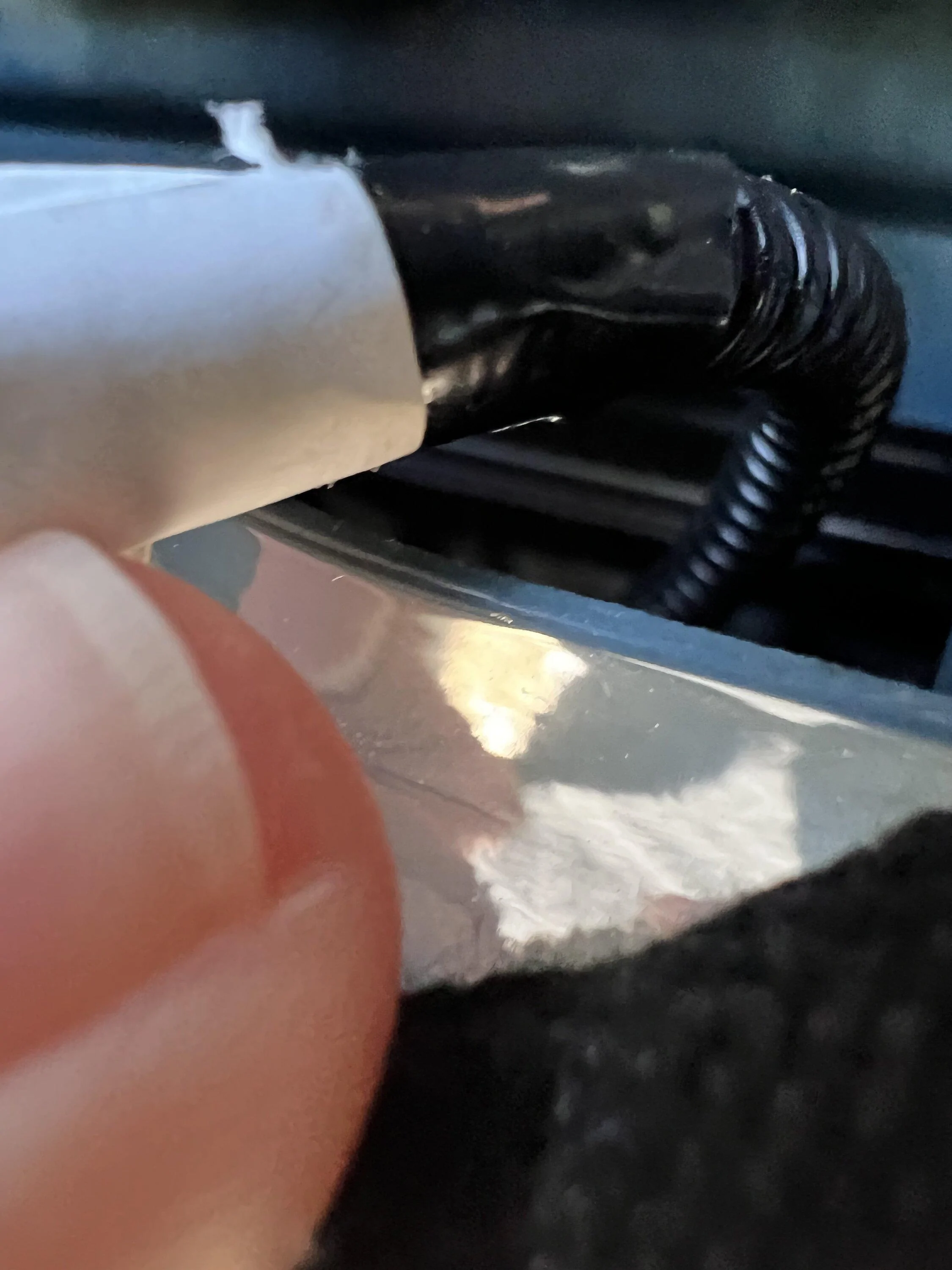

I I taped the shroud for the door wiring and ran the new wires through it.

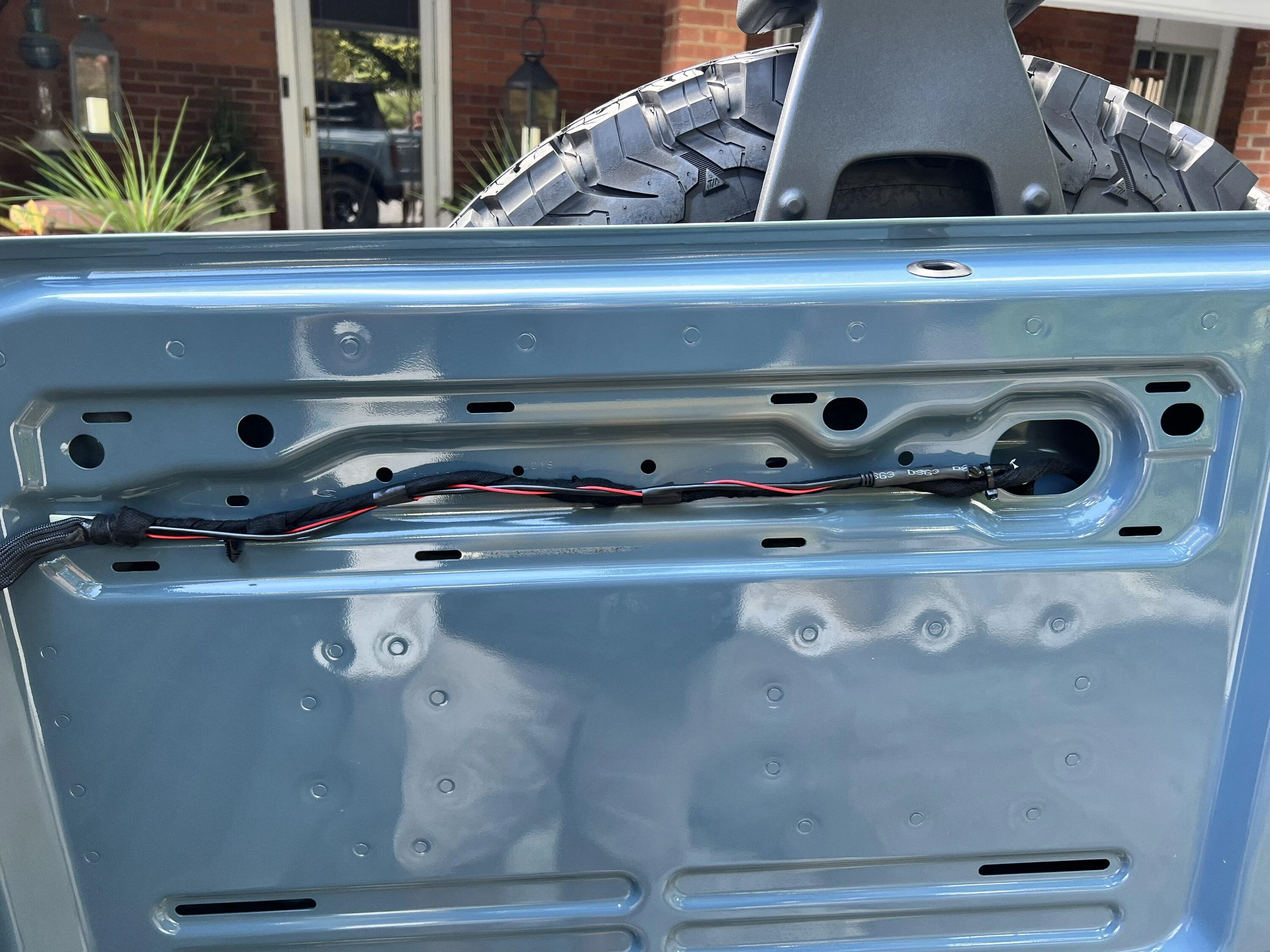

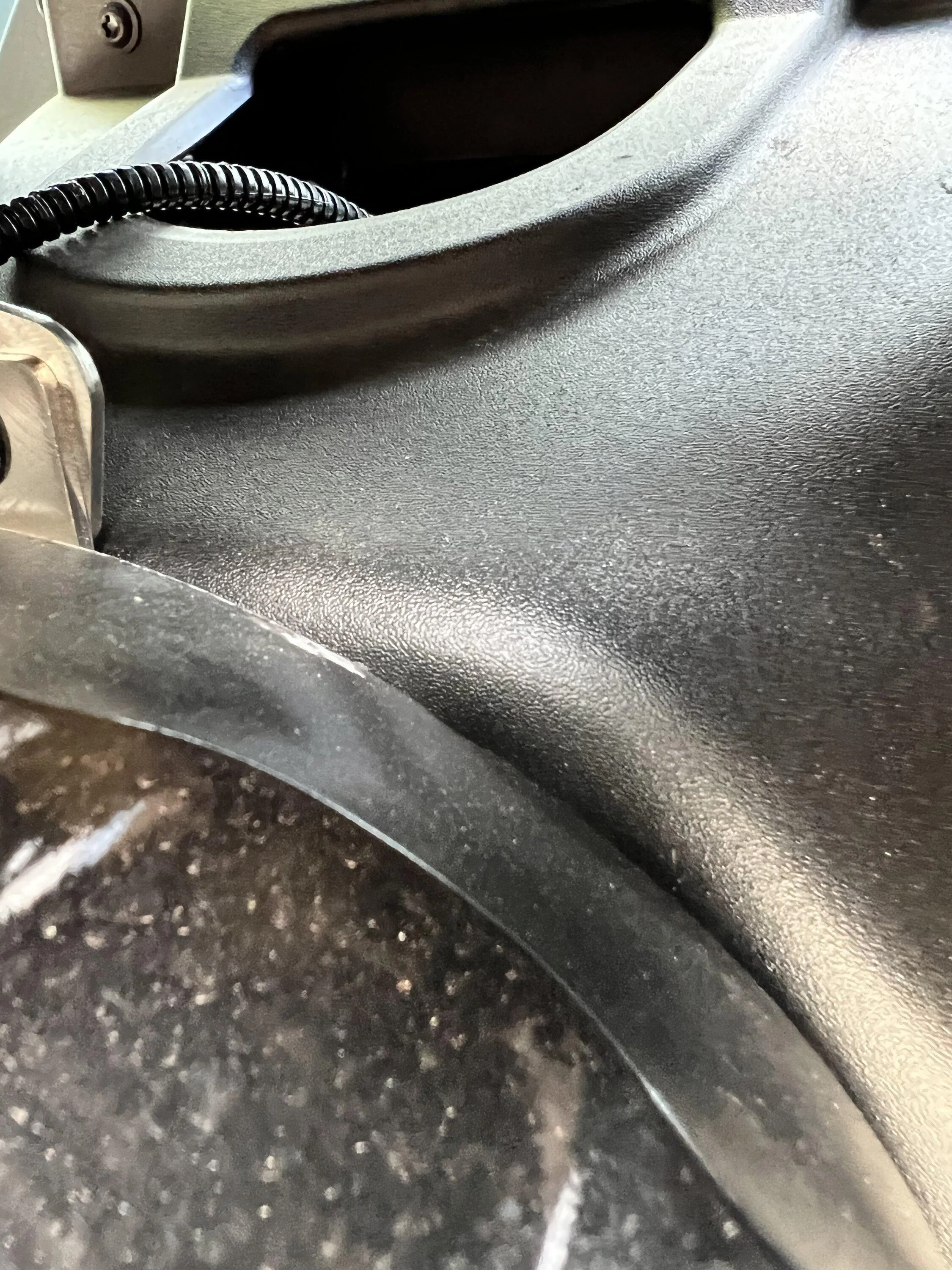

I then ran it along the existing wiring I just attached it with electrical tape except for where it went into the door. I used a zip tie there.

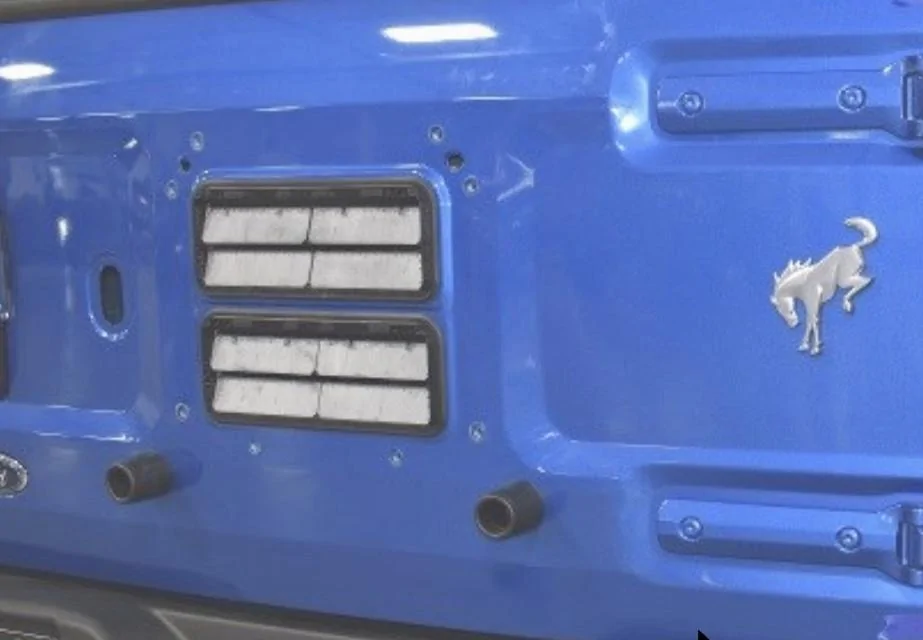

per the instructions I then routed it out through the vent behind the spare tire carrier.
I then ran it along the existing wiring I just attached it with electrical tape except for where it went into the door. I used a zip tie there.
per the instructions I then routed it out through the vent behind the spare tire carrier.
Just finished my install. Everything works great, except my sunvisor lights and homelink garage door opener no longer work. Any ideas?
Sponsored
OP
OP
- Thread starter
- #21
I would check the electrical connector for the visor. More than likely, it is not plugged it all the way.
Thanks! What did you do with the red wire on the lead that plugs into the rear camera? I assume this is for back up function and should be spliced with reverse lights or something? Not mentioned at all in the instructions.....I I taped the shroud for the door wiring and ran the new wires through it.
I then ran it along the existing wiring I just attached it with electrical tape except for where it went into the door. I used a zip tie there.
per the instructions I then routed it out through the vent behind the spare tire carrier.
Can someone be so kind to post a picture of your fuse panel tapped for the mirror. Did you tap per instructions?? I am not so good with electrical but no the taps have to go in a certain orientation.
OP
OP
- Thread starter
- #24
I just taped it off. Like you said it is for the reverse features which is redundant on the Bronco since we already have a backup camera.
OP
OP
- Thread starter
- #25
I followed the instructions. The bottom tap will only go in with the fuses facing up. The lip of the block interferes with them facing down.
Sponsored
Ok got it installed. If you can do this is 1-1.5 hrs you are amazing. Took my time to route wires cleanly etc....at least 4 hrs! Works great. Only thing bugging me is the 90 degree fuse connectors. Feels like the bottom one doesn't sit flush. Feel like it could pop out. System works great though!
Definitely getting one before my rear bumper with swing outs is installed. This will remedy not being able to see anything with the rear view mirror. Thank you for the post!
I couldn't figure it out, so I had to take it to the dealership. They say that I damaged a wiring harness during the install. So, I paid the dealership to fix it for about the same price as I would have paid someone to install the Brandmotion mirror...
- Joined
- Dec 2, 2021
- Threads
- 4
- Messages
- 89
- Reaction score
- 133
- Location
- Pittsburgh
- Vehicle(s)
- 2021 Bronco
- Your Bronco Model
- Badlands
Would it be possible to get a picture of your fuse box? I've had this since before they included the taps and it's never quite worked right. it would always show the date as 2054 and would never hold a new date. now that I installed my own taps it seems to let me change the date, then on reboot will reset the date to 2020 upon the GUI loading. the brandmotion people seem stumped too.
OP
OP
- Thread starter
- #30

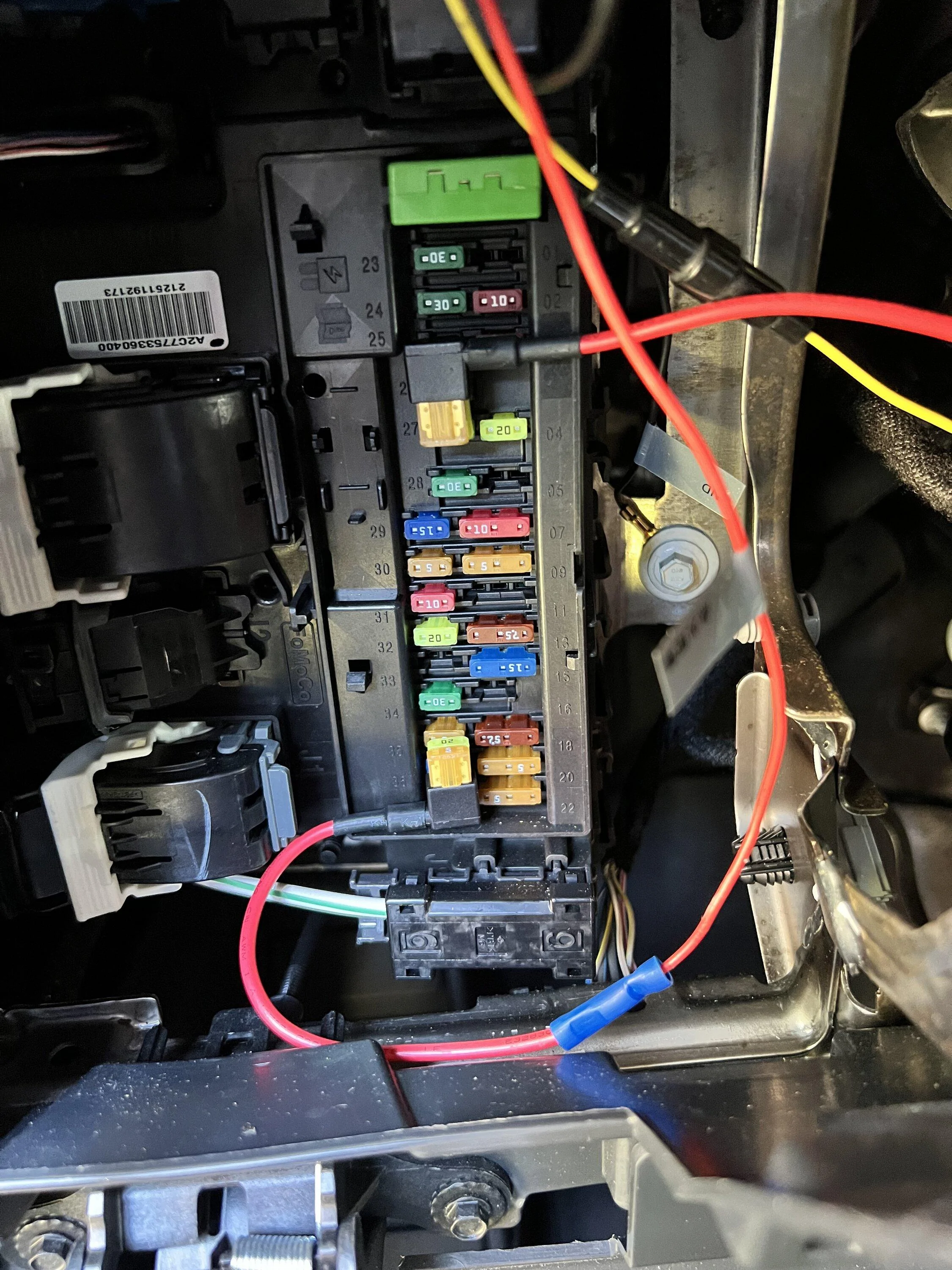

here you go. I haven’t had any issues with the mirror losing the date settings. As you can see the fuses are facing each other the top one is the constant and the bottom is the switched
