Broken door bolt during door reinstall!

First Name
Justin
Joined
Jul 13, 2022
Threads
1
Messages
5
Reaction score
2
Location
Ohio
Vehicle(s)
2020 Lincoln Navigator L, 2019 VW Jetta GLI manual
Your Bronco Model
Wildtrak

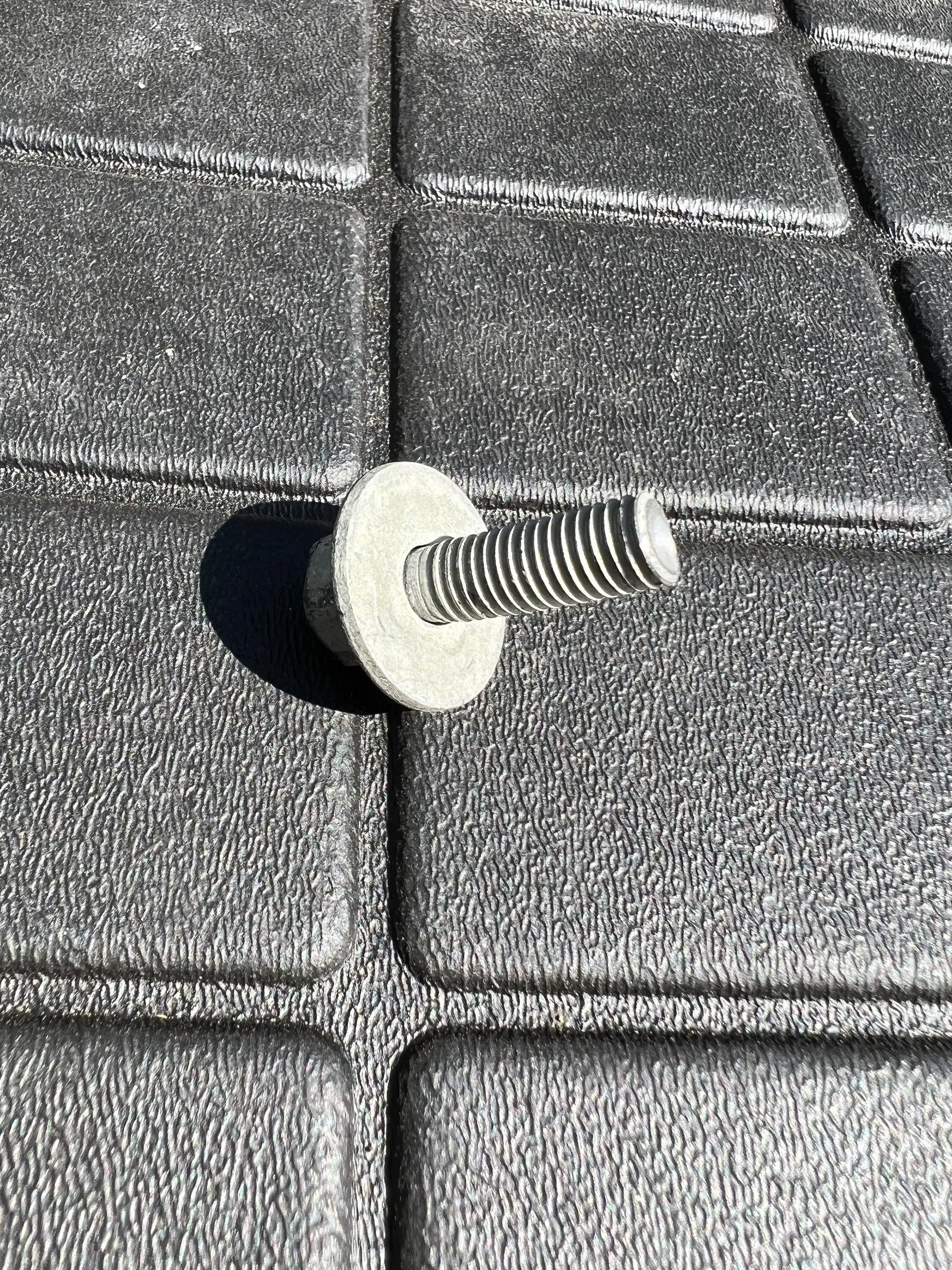

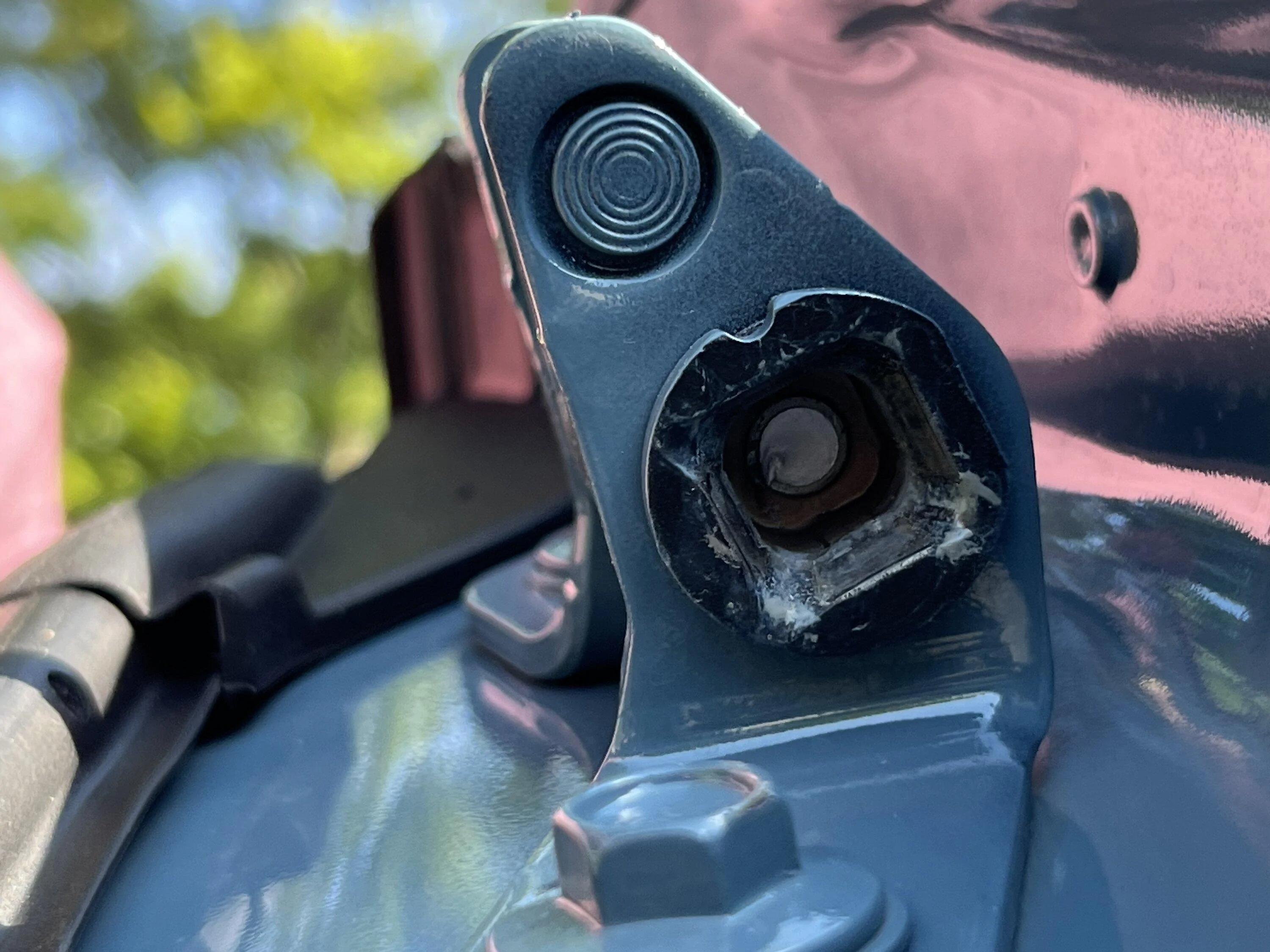

Our bronco is one week old, at home. This morning we were putting the doors back on, and the upper bolt for the back left (drivers side) door was not going in very well. We took that bolt in and out then eventually used the bronco tool kit to tighten it down. When tightening it down the bolt snapped!!! Upon talking to our local dealership and scheduling a appt for next week, they’re not sure this is something under warranty!!!!! Curious to hear all of your thoughts. I’m guessing the bolt is cross threaded and will need to be drilled out. If not, ford may have to replace the part on the door or the entire door. The below picture shows the bolt broken in the door and the actual bolt after it broke. Thoughts?



Advertisement


Hkak45

Black Diamond
Well-Known Member
First Name
Harold K
Joined
Aug 6, 2020
Threads
13
Messages
1,029
Reaction score
2,321
Location
Illinois
Vehicle(s)
21 Bronco Black Diamond
Your Bronco Model
Black Diamond
Clubs

Sorry to hear that. I just noticed yesterday that using the bronco tool kit my door bolt head is starting to get stripped. Seems like the bolts are not great quality


Tarheel_Wes

Black Diamond
Well-Known Member
First Name
Wesley
Joined
Feb 10, 2021
Threads
13
Messages
1,232
Reaction score
2,229
Location
North Carolina
Vehicle(s)
FJ
Your Bronco Model
Black Diamond
Clubs

Sorry to hear that. I just noticed yesterday that using the bronco tool kit my door bolt head is starting to get stripped. Seems like the bolts are not great quality
Mine have quite a bit of wear on the heads as well.

wondering if @flip can tell us if JUST replacement bolts can be ordered..?


centra28

Badlands
Well-Known Member
First Name
Dale
Joined
Jul 24, 2020
Threads
13
Messages
636
Reaction score
1,363
Location
Kansas City, MO
Vehicle(s)
2021 Jeep Gladiator Mojave
Your Bronco Model
Badlands
Clubs

Have you tried matching the bolt at the hardware store? Definitely worth a look.


Letagoavs710

Banned
Banned
Banned
First Name
Bill
Joined
Jun 6, 2022
Threads
2
Messages
404
Reaction score
1,335
Location
Boulder
Vehicle(s)
2021 Jeep Gladiator
Your Bronco Model
Undecided
Any hardware store bolt, same thread/length that’s galvanized should work.


Advertisement

rgalvinmi

Base
Well-Known Member
First Name
Bob
Joined
Sep 29, 2020
Threads
54
Messages
313
Reaction score
850
Location
48060
Vehicle(s)
2019 F150
Your Bronco Model
Base
I mean really...we can't expect ford to eat the cost of someone cross threading the bolt on reinstallation...especially, if it is "more than just a bolt" to repair. "not going in very well", should have given you indication to REVIEW before moving forward.


Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
12
Messages
1,926
Reaction score
3,077
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2022 Wildtrak
Your Bronco Model
Wildtrak
Clubs

Any hardware store bolt, same thread/length that’s galvanized should work.
The factory bolts are not galvanized. It's actually an Epoxy coating such as Magni-565. Galvanized/Zinc plating is a very poor corrosion inhibitor.


Advertisement

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
28
Messages
2,837
Reaction score
9,778
Location
IN
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs


Letagoavs710

Banned
Banned
Banned
First Name
Bill
Joined
Jun 6, 2022
Threads
2
Messages
404
Reaction score
1,335
Location
Boulder
Vehicle(s)
2021 Jeep Gladiator
Your Bronco Model
Undecided
The factory bolts are not galvanized. It's actually an Epoxy coating such as Magni-565. Galvanized/Zinc plating is a very poor corrosion inhibitor.
I’ve never heard galvanized being poor for corrosion as that’s what most lifts use? I won’t argue, if I’m wrong i’m wrong. But that’s a first for me.


Silver-Bolt

Wildtrak
Well-Known Member
First Name
Bill
Joined
Jul 15, 2020
Threads
12
Messages
1,926
Reaction score
3,077
Location
Portland, OR & Eureka, MT
Vehicle(s)
2018 Ford Raptor, 2020 Audi SQ5, 2022 Wildtrak
Your Bronco Model
Wildtrak
Clubs

I’ve never heard galvanized being poor for corrosion as that’s what most lifts use? I won’t argue, if I’m wrong i’m wrong. But that’s a first for me.
What you are calling galvanized is actually a zinc plating. Zinc plating offers less than 50 hours of salt spray (unit of measure for corrosion) protection before red rust forms. The Epoxy/Poly coats give up to 1000 hours. Automotive went away from zinc coating decades ago.

Lift kits come with zinc because it's cheap in easy.


Letagoavs710

Banned
Banned
Banned
First Name
Bill
Joined
Jun 6, 2022
Threads
2
Messages
404
Reaction score
1,335
Location
Boulder
Vehicle(s)
2021 Jeep Gladiator
Your Bronco Model
Undecided
What you are calling galvanized is actually a zinc plating. Zinc plating offers less than 50 hours of salt spray (unit of measure for corrosion) protection before red rust forms. The Epoxy/Poly coats give up to 1000 hours. Automotive went away from zinc coating decades ago.

Lift kits come with zinc because it's cheap in easy.
Ah, that’s interesting. I didn’t know they were zinc coated.


Mikey D

Outer Banks
Well-Known Member
First Name
Mike
Joined
Dec 8, 2021
Threads
7
Messages
61
Reaction score
84
Location
Ormond Beach, FL
Vehicle(s)
2005 Ford Explorer
Your Bronco Model
Outer Banks
I live beachside. Quality stainless for everything.
