Bronco Completely Drained New Battery!

Kalieb

Big Bend
New Member
First Name
Kalie
Joined
Dec 6, 2022
Threads
1
Messages
3
Reaction score
0
Location
Utah
Vehicle(s)
2021 Bronco
Your Bronco Model
Big Bend
I have a 21' Big Bend Sasquatch 2.7L with ~27k miles.

About 6 months ago, I went to start my Bronco and it was dead. Dead dead. Wouldn't even light up the dash. I hadn't driven it for maybe 2 weeks at that point. I jumped it with my Ram 3500 and even after it had been running for about 10 minutes, went to drive away and it died again. Completely dead, wouldn't light up the dash. I pulled the battery and went to O'reilly down the road and got a new battery, haven't had an issue since.

Two days ago I opened the door to grab something, and my rockslide steps didn't deploy. So I went around to the driver side to start it, and nothing. No lights, nothing AT ALL. It has had a 4 amp battery charger on it for 2 days now and still no lights even light up. I called my local Ford dealer and the gal said there aren't any recalls open for that issue but they can try to figure it out. One problem, unless I go and get a new battery (again) I can't move this thing! And I'm not paying the high rates so they can try and figure it out for who knows how long. I have unhooked the battery completely and put it on the 4A charger again but there has to be a root cause here. Help? Please?
Sponsored



vicorjh

Wildtrak
Well-Known Member
First Name
Jay
Joined
Nov 14, 2022
Threads
2
Messages
239
Reaction score
416
Location
New England
Vehicle(s)
2023 Bronco Wildtrack
Your Bronco Model
Wildtrak
Clubs

I have a 21' Big Bend Sasquatch 2.7L with ~27k miles.

About 6 months ago, I went to start my Bronco and it was dead. Dead dead. Wouldn't even light up the dash. I hadn't driven it for maybe 2 weeks at that point. I jumped it with my Ram 3500 and even after it had been running for about 10 minutes, went to drive away and it died again. Completely dead, wouldn't light up the dash. I pulled the battery and went to O'reilly down the road and got a new battery, haven't had an issue since.

Two days ago I opened the door to grab something, and my rockslide steps didn't deploy. So I went around to the driver side to start it, and nothing. No lights, nothing AT ALL. It has had a 4 amp battery charger on it for 2 days now and still no lights even light up. I called my local Ford dealer and the gal said there aren't any recalls open for that issue but they can try to figure it out. One problem, unless I go and get a new battery (again) I can't move this thing! And I'm not paying the high rates so they can try and figure it out for who knows how long. I have unhooked the battery completely and put it on the 4A charger again but there has to be a root cause here. Help? Please?

Check out the following:

https://www.bronco6g.com/forum/threads/battery-issues.90135/post-2180855


JediMcMuffin

Badlands
Well-Known Member
First Name
Tommy
Joined
Jun 15, 2021
Threads
29
Messages
1,706
Reaction score
3,103
Location
San Diego
Vehicle(s)
2021 Bronco Badlands
Your Bronco Model
Badlands
Clubs

Sounds like a parasitic drain, the link above is probably your culprit with those power steps. My own issue turned out to be a combination of a weak battery (original OEM on a 2021) and a module needing updates. Good luck.


Haelous

Wildtrak
Well-Known Member
Joined
Dec 29, 2022
Threads
13
Messages
403
Reaction score
643
Location
US
Vehicle(s)
2016 Mustang GT, 2023 Bronco Wildtrak
Your Bronco Model
Wildtrak
I had the same thing happen, was also a software issue.

Have you kept the car up to date?


Brian_B

Big Bend
Well-Known Member
First Name
Brian
Joined
Sep 14, 2023
Threads
15
Messages
1,440
Reaction score
2,132
Location
Central CA
Vehicle(s)
'23 BB 4dr 7MT, '22 BSport OBX, '87 B-II XL
Your Bronco Model
Big Bend
Clubs

There was an older revision of RSE steps that drained the battery, even with the switch off. Had to pull the fuse to prevent it. If you contact them they were working out replacement controllers if I heard correctly.


Sponsored

C6ZZGT

Heritage
Well-Known Member
First Name
Brian
Joined
Aug 17, 2023
Threads
1
Messages
230
Reaction score
284
Location
Seattle
Vehicle(s)
66 GT Mustang,94 Escort wagon,
Your Bronco Model
Heritage
I have a 21' Big Bend Sasquatch 2.7L with ~27k miles.

About 6 months ago, I went to start my Bronco and it was dead. Dead dead. Wouldn't even light up the dash. I hadn't driven it for maybe 2 weeks at that point. I jumped it with my Ram 3500 and even after it had been running for about 10 minutes, went to drive away and it died again. Completely dead, wouldn't light up the dash. I pulled the battery and went to O'reilly down the road and got a new battery, haven't had an issue since.

Two days ago I opened the door to grab something, and my rockslide steps didn't deploy. So I went around to the driver side to start it, and nothing. No lights, nothing AT ALL. It has had a 4 amp battery charger on it for 2 days now and still no lights even light up. I called my local Ford dealer and the gal said there aren't any recalls open for that issue but they can try to figure it out. One problem, unless I go and get a new battery (again) I can't move this thing! And I'm not paying the high rates so they can try and figure it out for who knows how long. I have unhooked the battery completely and put it on the 4A charger again but there has to be a root cause here. Help? Please?

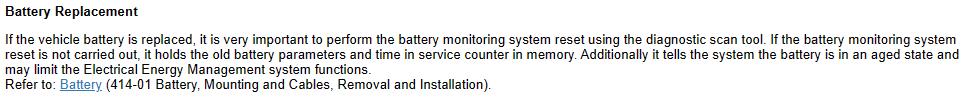

Battery replacement needs more than just a battery...........

Ford Bronco Bronco Completely Drained New Battery! 1713845135792-jx


Bellime

Outer Banks
Well-Known Member
First Name
Keith
Joined
Nov 12, 2022
Threads
52
Messages
540
Reaction score
463
Location
San Diego
Vehicle(s)
2022 Ford Bronco
Your Bronco Model
Outer Banks
Clubs

Start finding the drain, something is pulling more than normal
