    Press release:

    Hinting at upcoming Bronco production model, Ford’s Bronco R race prototype debuts in the desert to celebrate 50th anniversary of Rod Hall’s historic Baja 1000 win, an overall victory in a 4x4 that’s never been duplicated in 50 years

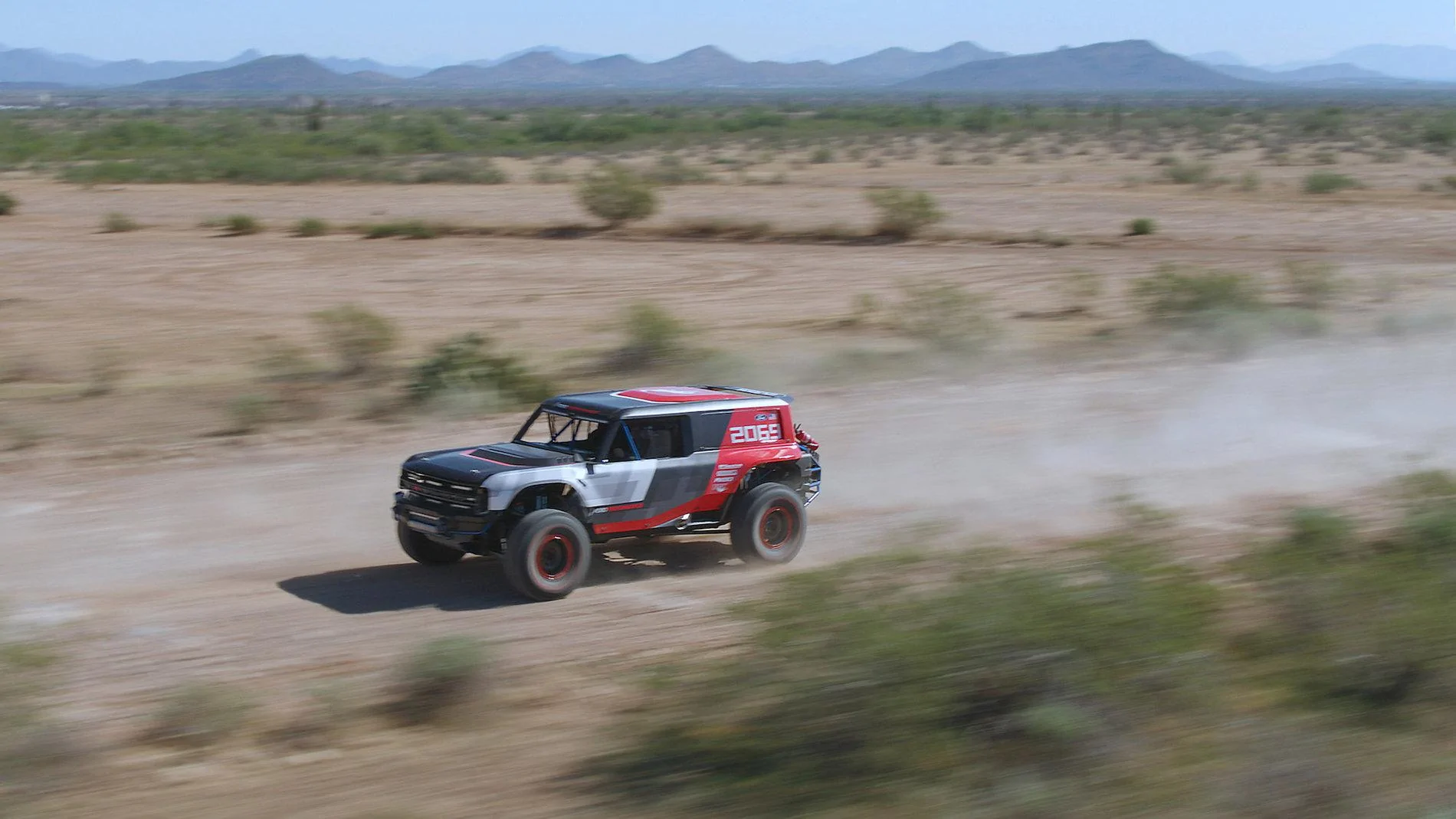

    It was built for this, its engine roaring through the heat of the Mojave and its racing tires spraying desert sand. As the last grain settled, the vehicle that is all at once a tribute and a test and a tease, came in to focus. It was no mirage. Bronco – in the form of a race-inspired Bronco R prototype – is back.

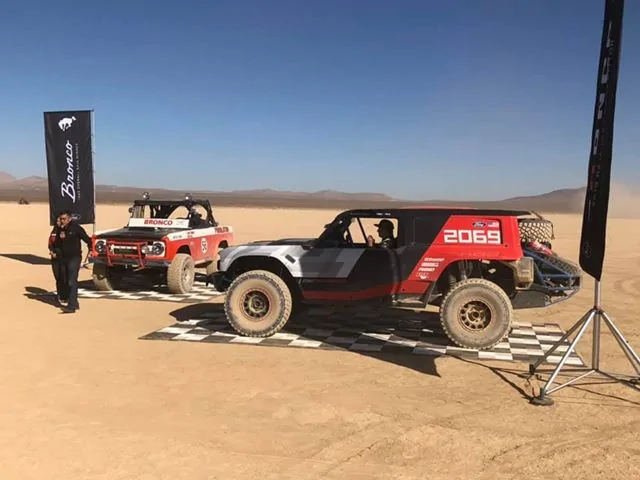

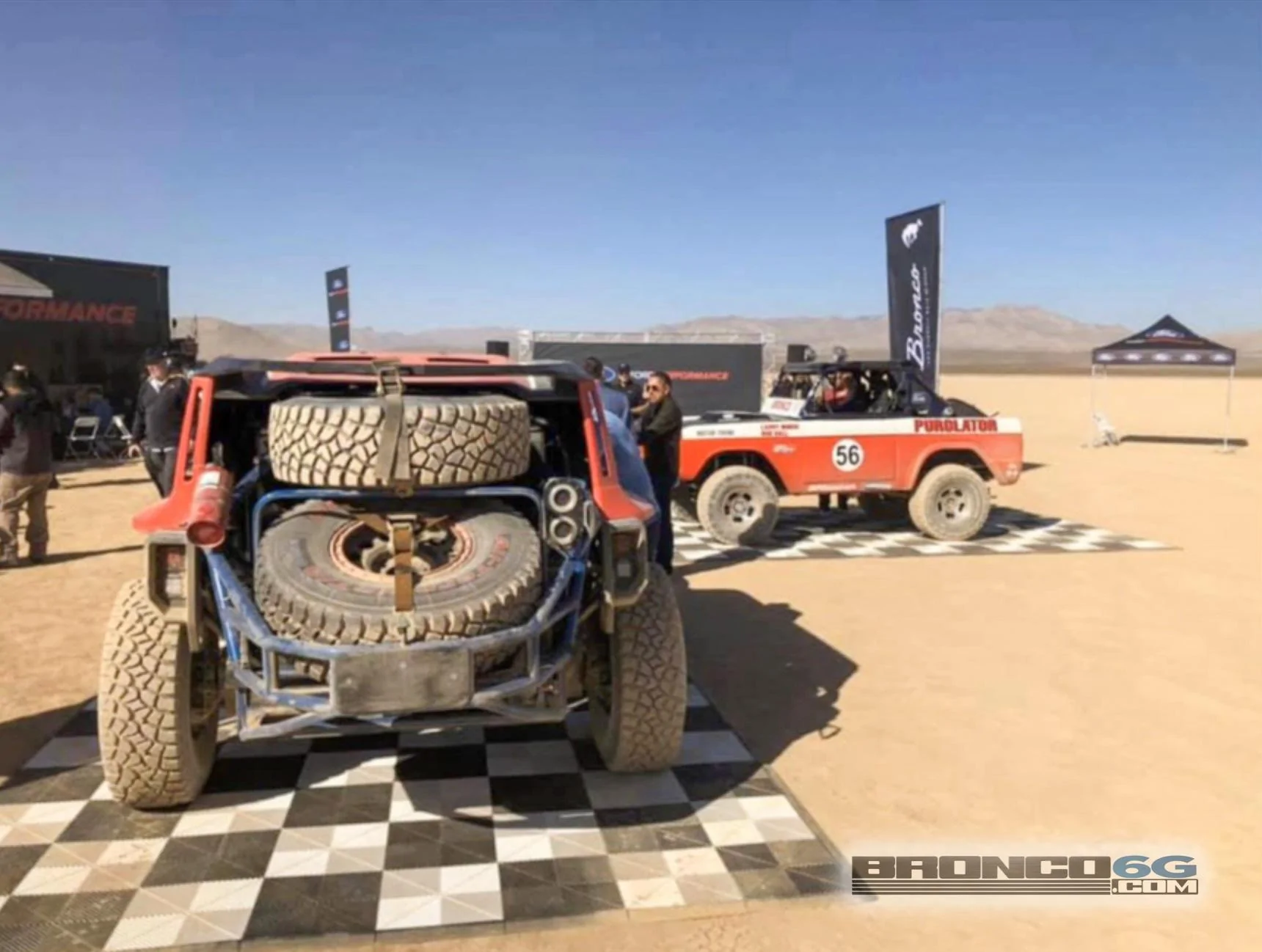

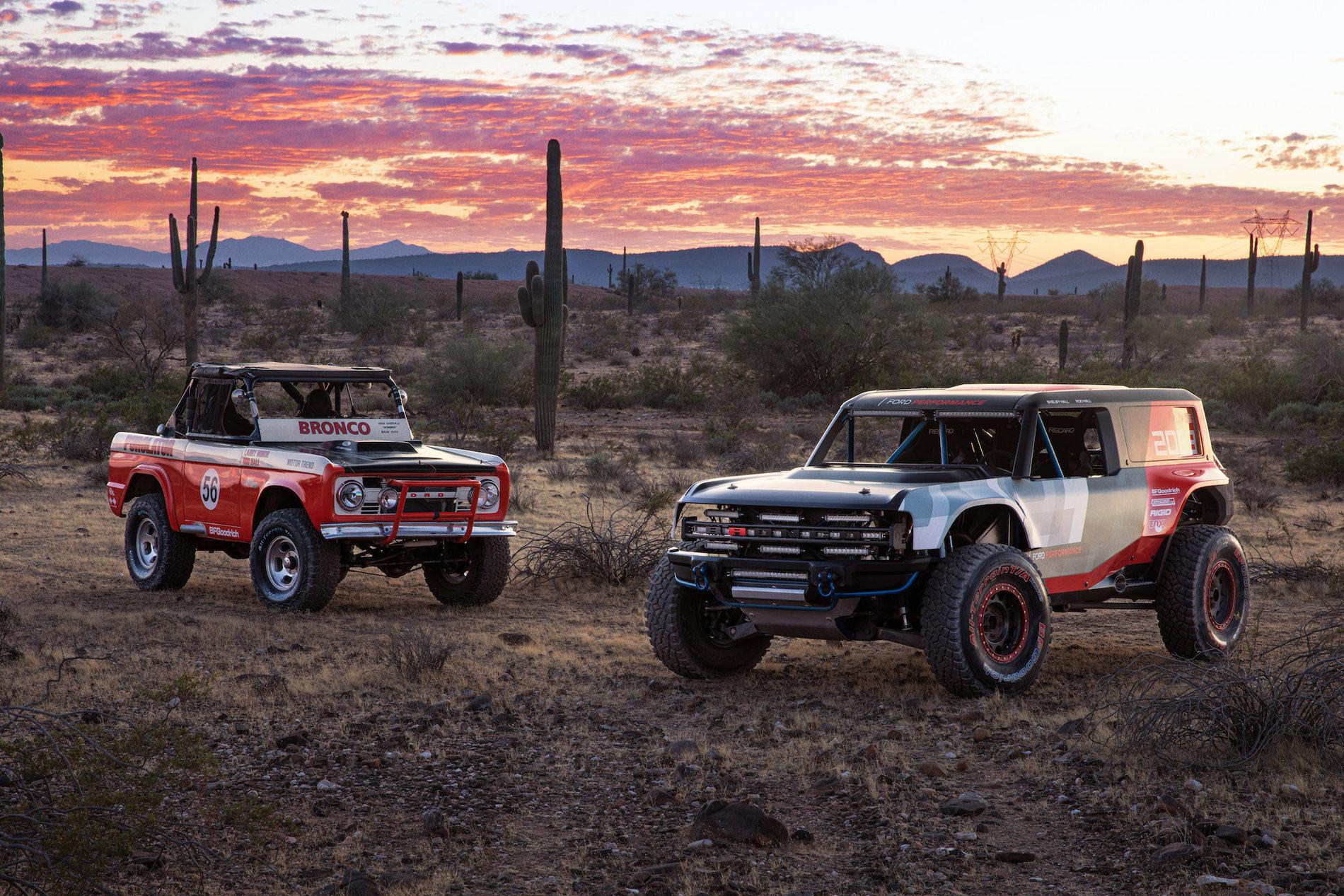

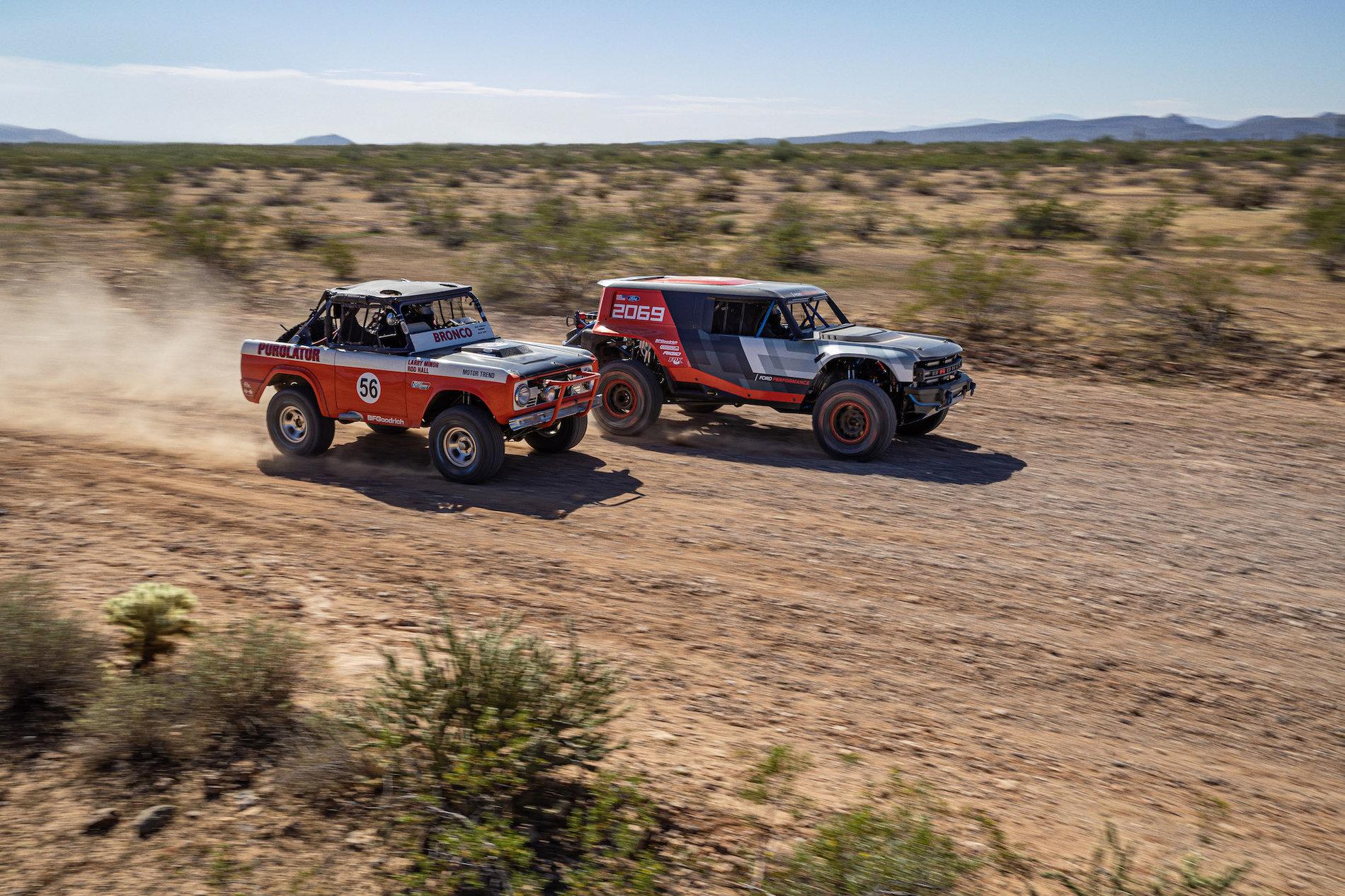

    As a tribute, it was appropriately parked alongside the Bronco that Rod Hall and Larry Minor famously drove to an overall win 50 years ago at the 1969 Baja 1000 – a victory that no other 4x4 has replicated. Featuring a race livery inspired by Hall’s winning vehicle, Bronco R passes the torch to off-road racer Shelby Hall, Rod’s granddaughter, who will drive it for portions of this year’s prestigious race in honor of her late grandfather.

    As a test, the Bronco R will head back to the Baja Peninsula later this month to take on the near 1,000-mile grueling off-road course and challenge the production Bronco’s powertrain and architecture.

    And as a tease, the Bronco R – developed by Ford Performance in collaboration with builder Geiser Bros Design and Development and Baja 1000 Trophy Truck champion Cameron Steele – drops heritage-inspired design and proportion hints of what enthusiasts can expect to see when the future Bronco makes its world premiere next spring

    “Bronco’s win at Baja in 1969 was epic, something that even after 50 years has not been repeated,” said Hau Thai-Tang, Ford chief product development and purchasing officer. “Rugged endurance racing is such a big part of Bronco heritage. The Baja 1000 gives us not only the perfect setting to honor Rod Hall’s win, it also provides an authentic test bed to demonstrate our upcoming Bronco’s desert racing capability and durability.”


    Iconic Bronco design at first sight

    Hidden behind an innocuous security door in a Ford studio basement, a small team led by Paul Wraith, Bronco chief designer, worked since July to make the race prototype unmistakably Bronco at first sight. The team worked in secret to create a one-off build that hints at the all-new Bronco to come, while paying homage to the first-generation Bronco’s styling and proportions that made the nameplate an instant off-road icon a half-century ago.

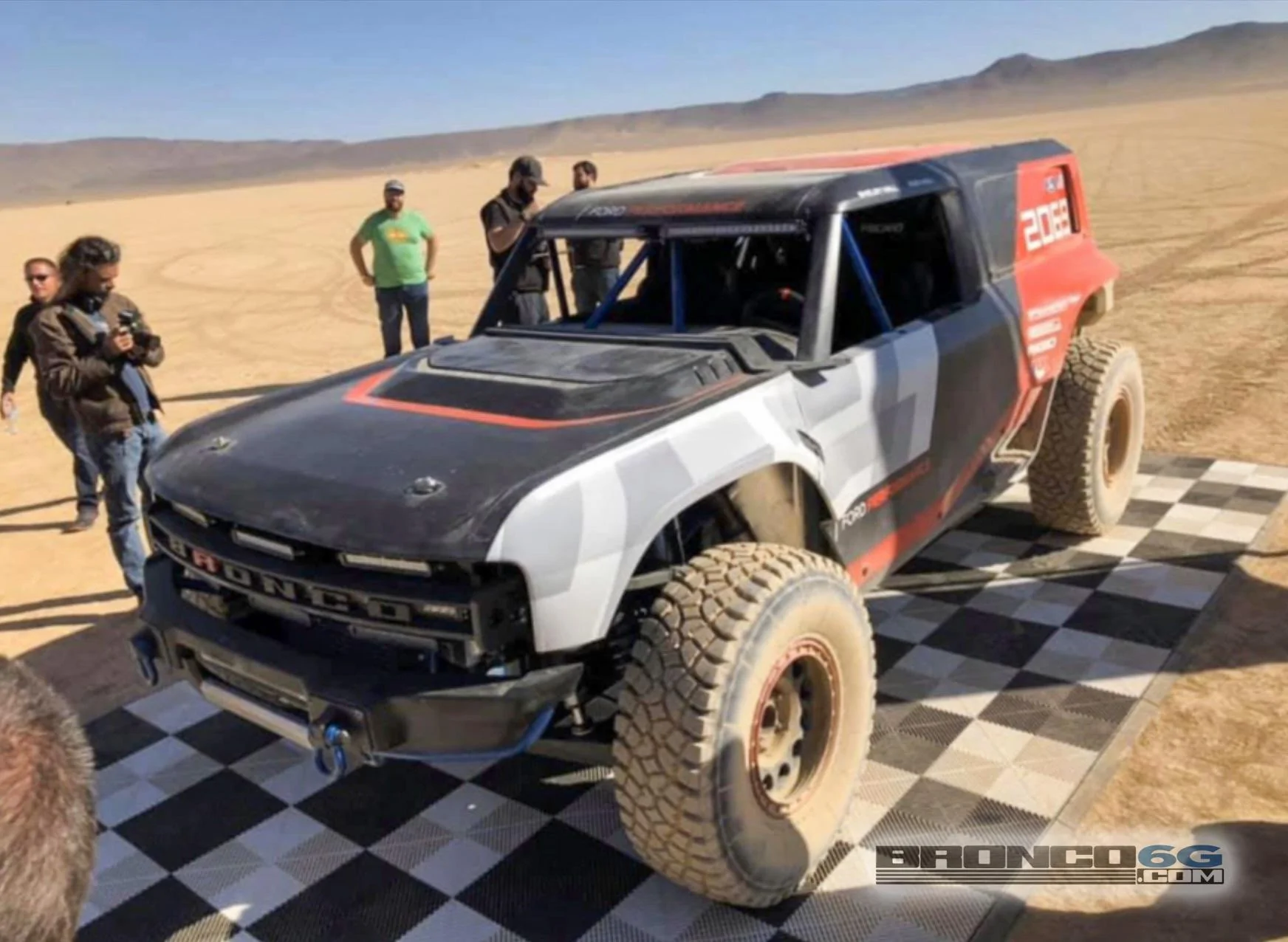

    The team focused on creating a race-ready look with an overall heritage-inspired design language. With its compressed body height and long-travel suspension, Bronco R features an ultra-wide stance, while a variety of aero components reinforce its performance intent. The prototype’s lightweight composite body includes a clamshell hood and roof, as well as clean body panels that harken back to the first-generation Bronco models (1966 – 1977). A cut-roof design allows rear seat passengers to use a second-row hatch for access.

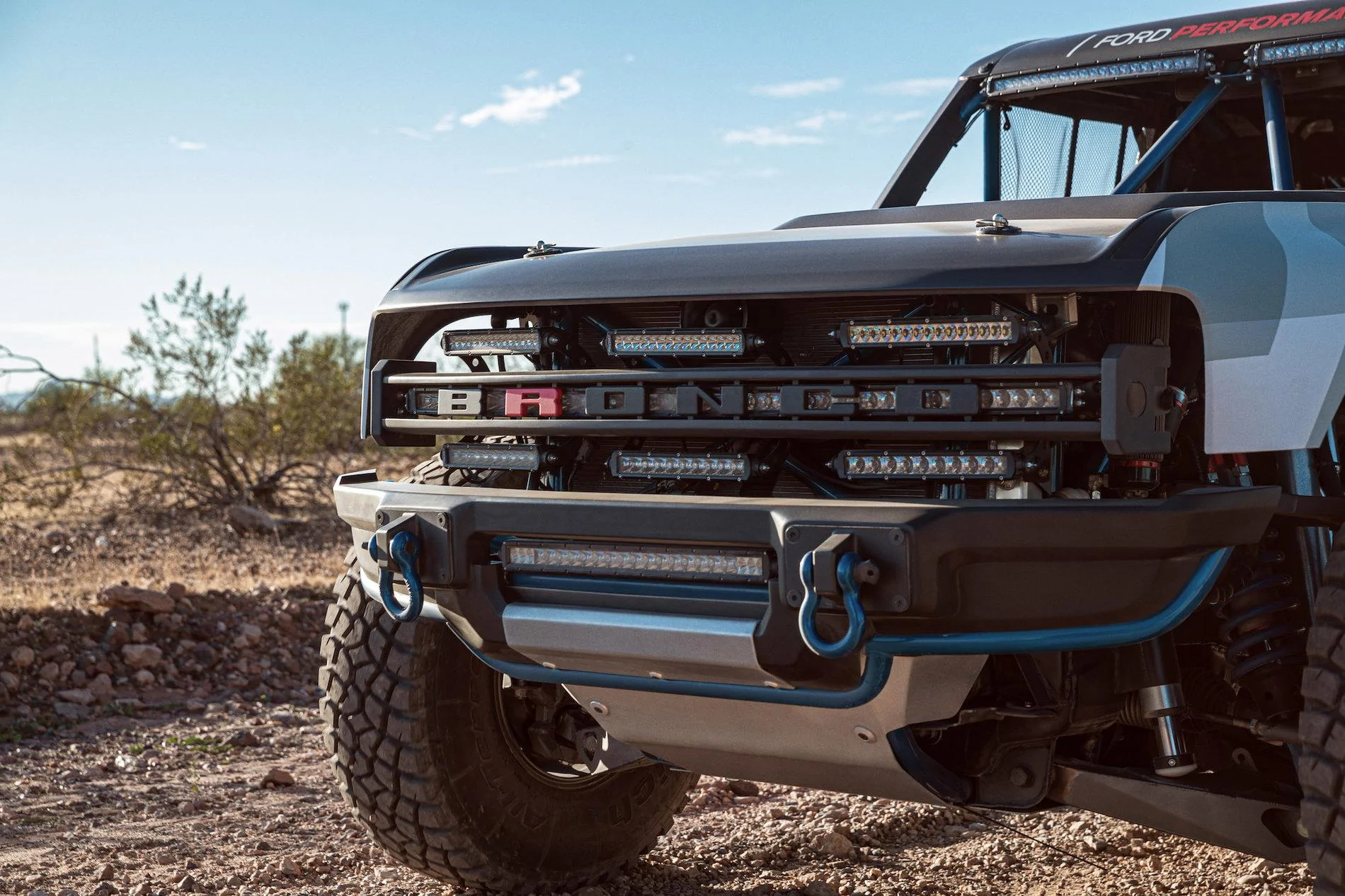

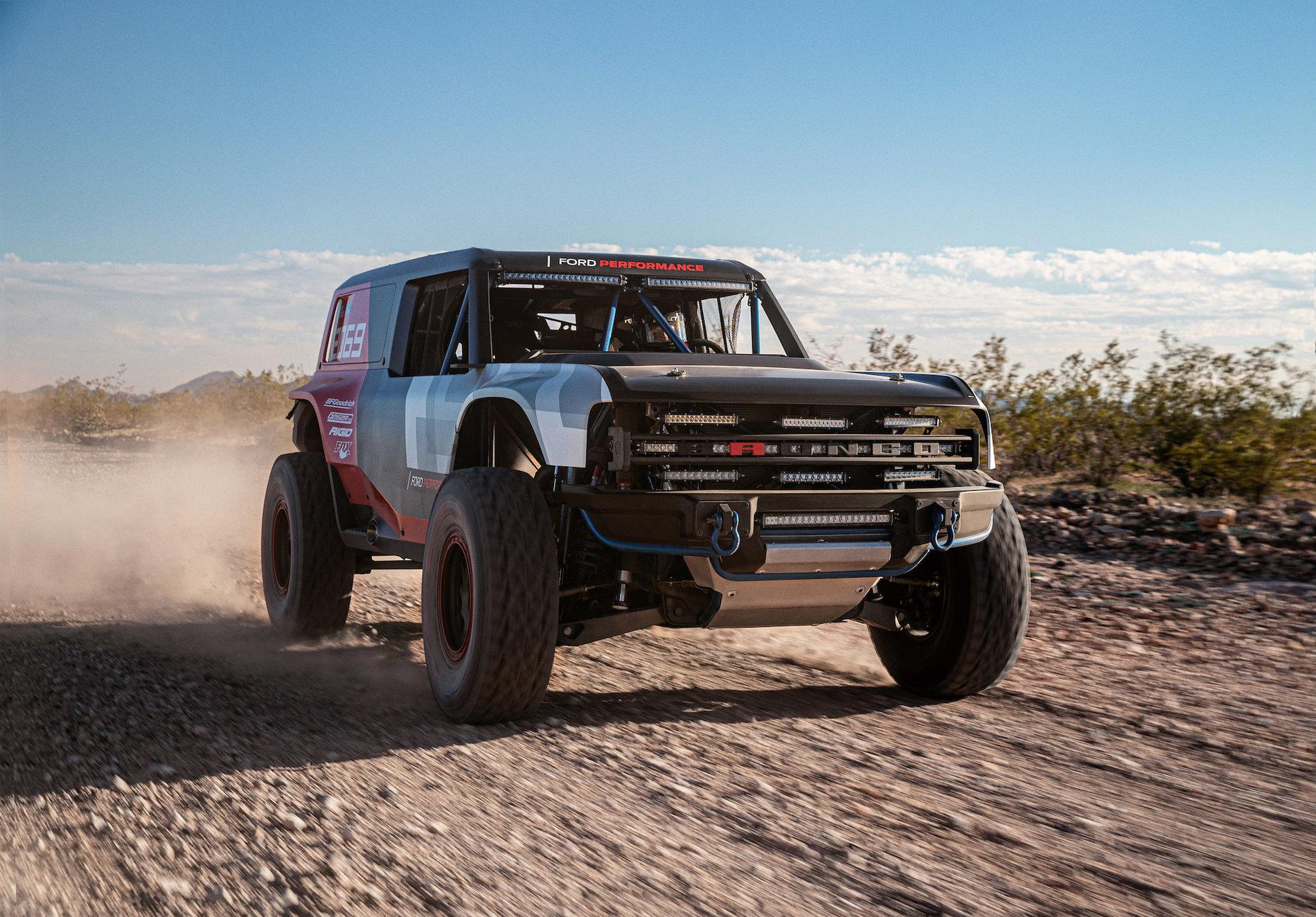

    The exterior incorporates 15 LED lightbars from Rigid, including a grille sequence framing the new BRONCO brand lettering boldly. To underscore that this is a one-of-a-kind racing prototype, the “R” is given a sharp graphic treatment. Washers inscribed with the Bronco name are visible at various points around the exterior and secure the composite skin to the roll cage beneath it.

    A unique race-focused interior features lightweight off-road racing shells from Recaro for all three seating positions. Simple surfaces of the instrument panel nod to the first-generation Bronco, and the integration of a MoTeC data acquisition system enables real-time monitoring and measurement of the prototype’s performance attributes.

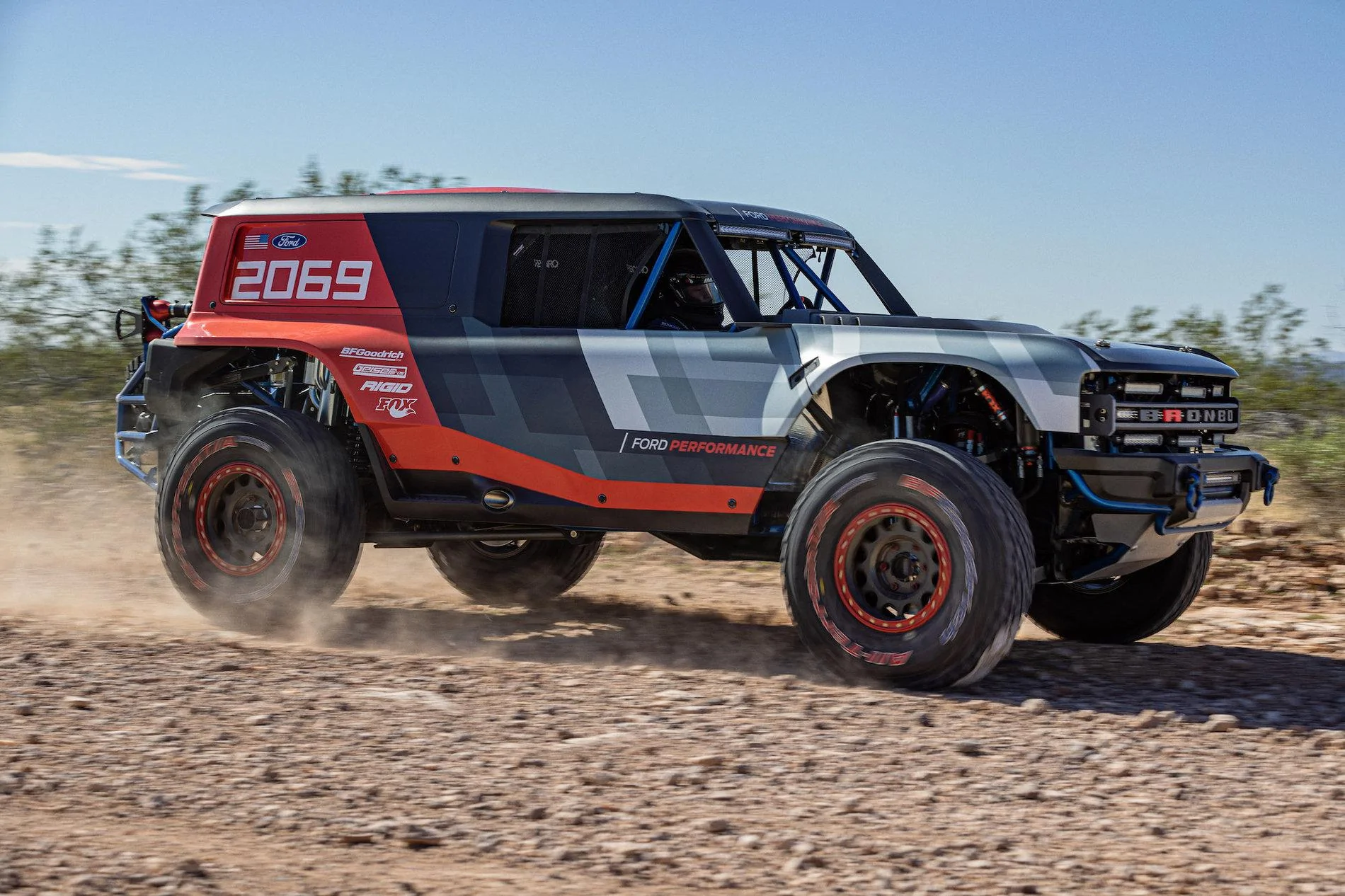

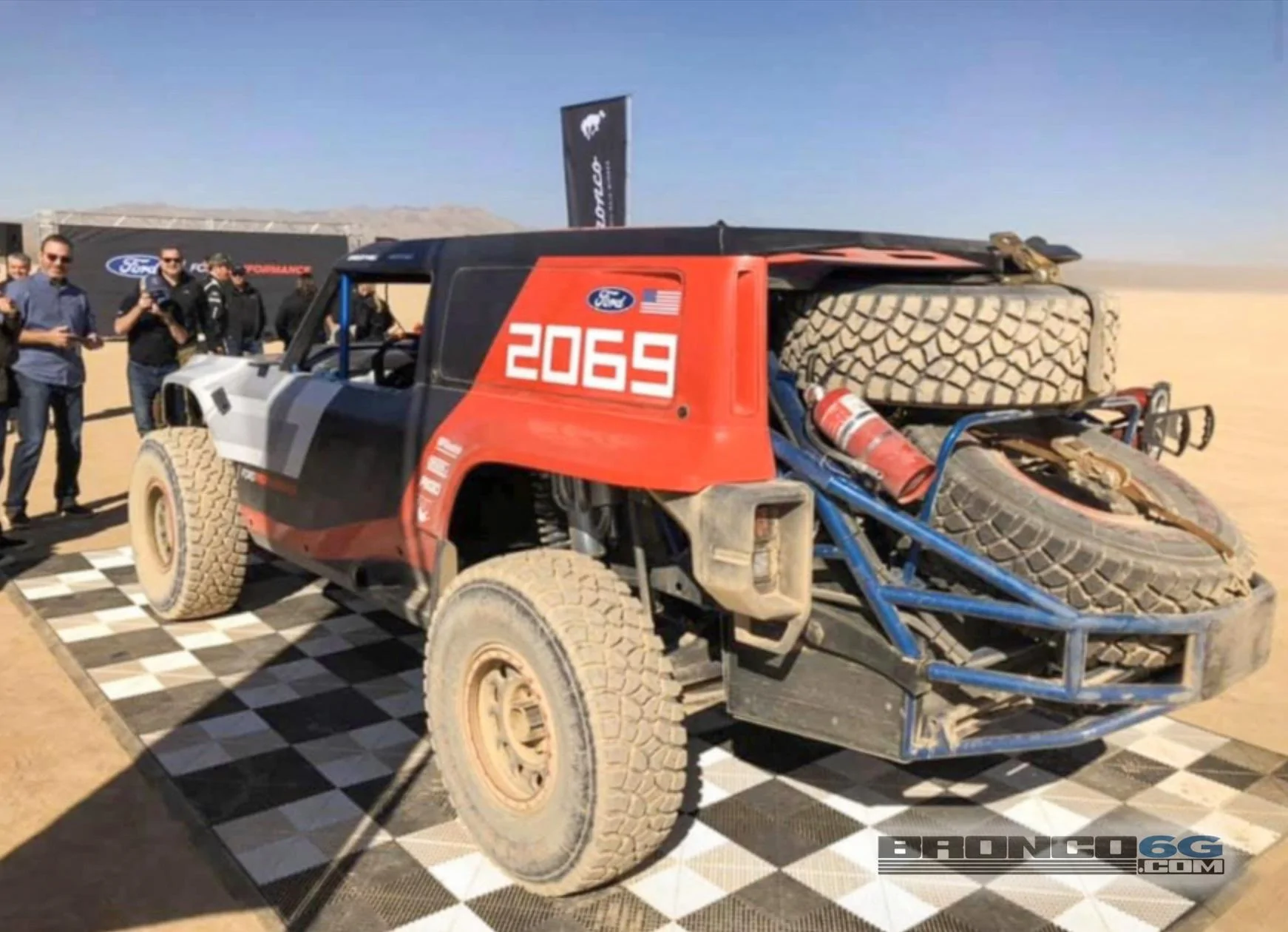

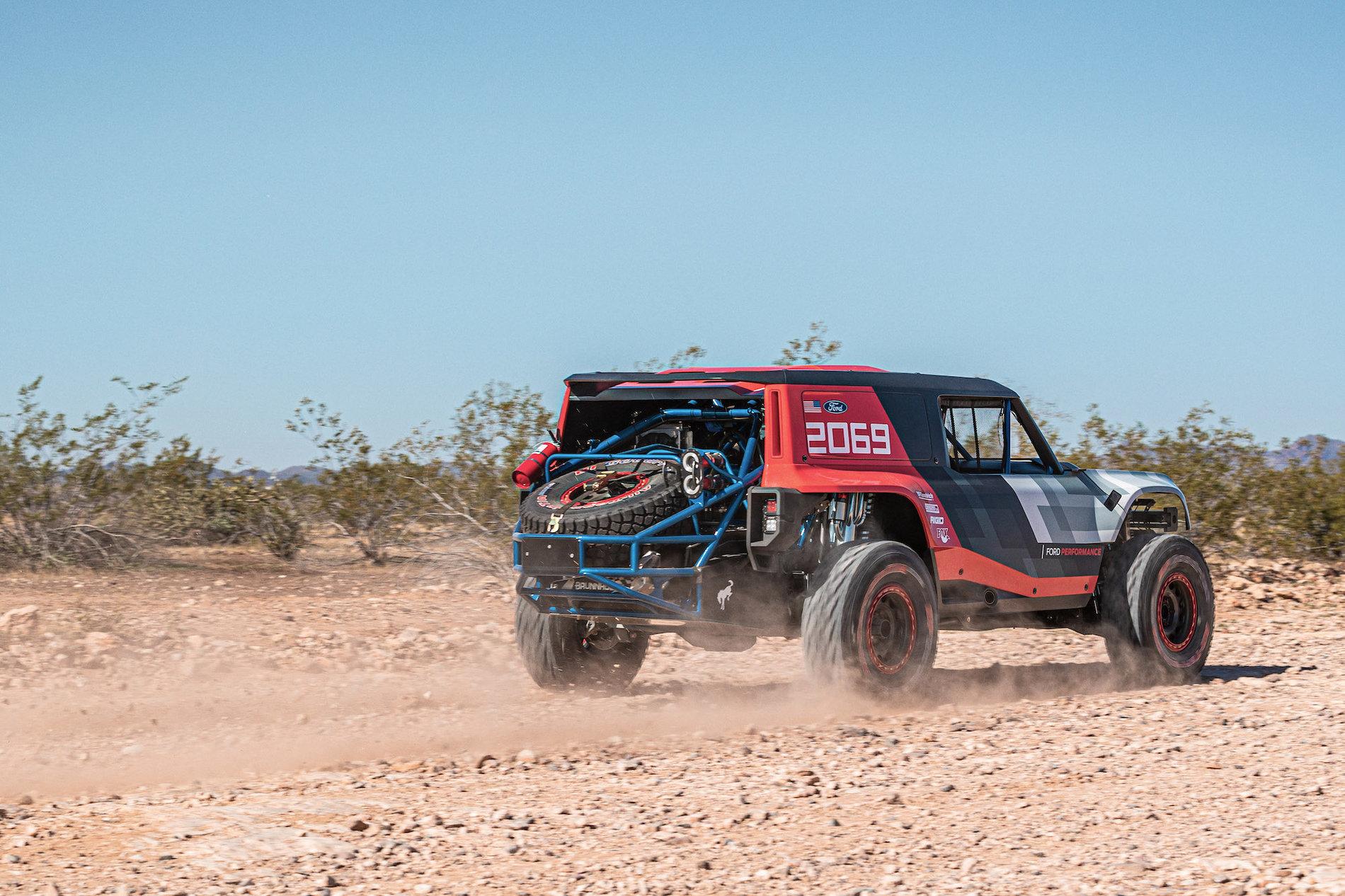

    With its exterior inspired by the winning 1969 Baja 1000 Bronco livery, the Ford Performance Bronco R race prototype pays tribute with its red, white and black colors accented by its blue space frame. No. “2069” stretches across its rear quarter-panel and wing – “20” to signal the class in which it will race and “69” in honor of the year in which Hall and Minor roared to an overall victory in the Mexican 1000 (now SCORE-International Baja 1000).

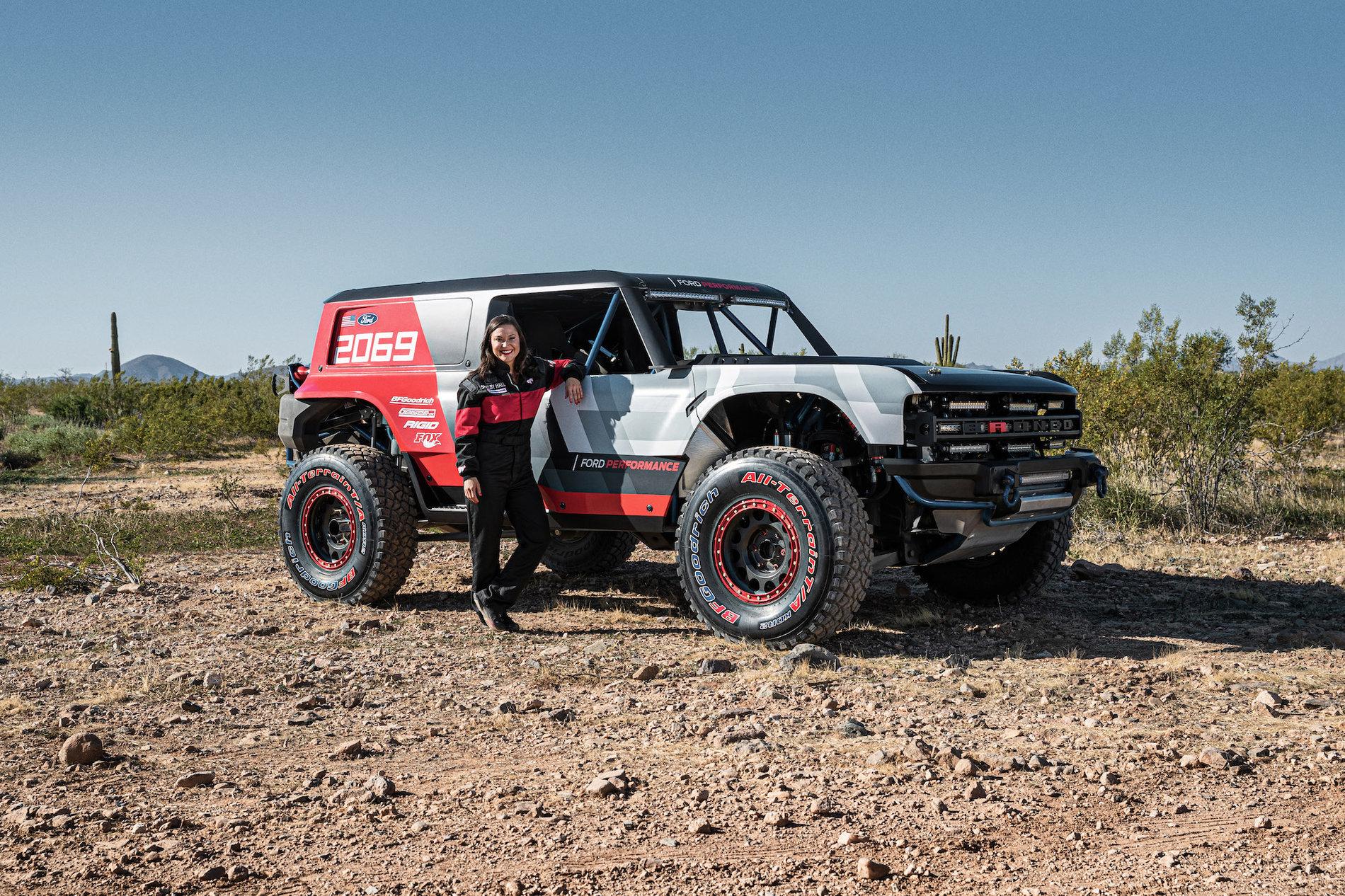

    “My grandfather was so proud of the 1969 Baja race and of his Bronco,” said Shelby Hall. “More than just the memory of winning Baja, he loved that Bronco. I have no doubt he would be blown away by the Bronco R race prototype.”


    Sketch to race prototype in six months

    To mark the 50th anniversary of Bronco’s Baja 1000 win, Wraith and team worked in concert with Ford Performance, builder Geiser Bros Design and Development of Phoenix, Arizona, and Baja 1000 Trophy Truck champion Cameron Steele to make the Nov. 22 race start. They used cutting-edge tools such as high-tech virtual reality, polygon modeling and 3D printing to develop parts, but also incorporated low-fidelity prototyping and role-playing to aid problem-solving and swift decision-making.

    “This wasn’t our usual development process, but it was the right process for this project,” said Wraith. “We found, created or adapted the right tool for the task at hand – a cool and exciting blend of old and new creative techniques. We stretched ourselves, but it was worth it – and great fun.”

    More than a celebration of Hall’s 1969 win, the Bronco R race prototype is designed with the production model’s body-on-frame architecture to test its capability and durability, while also energizing off-road enthusiasts who eagerly await the return of America’s original sport utility vehicle.

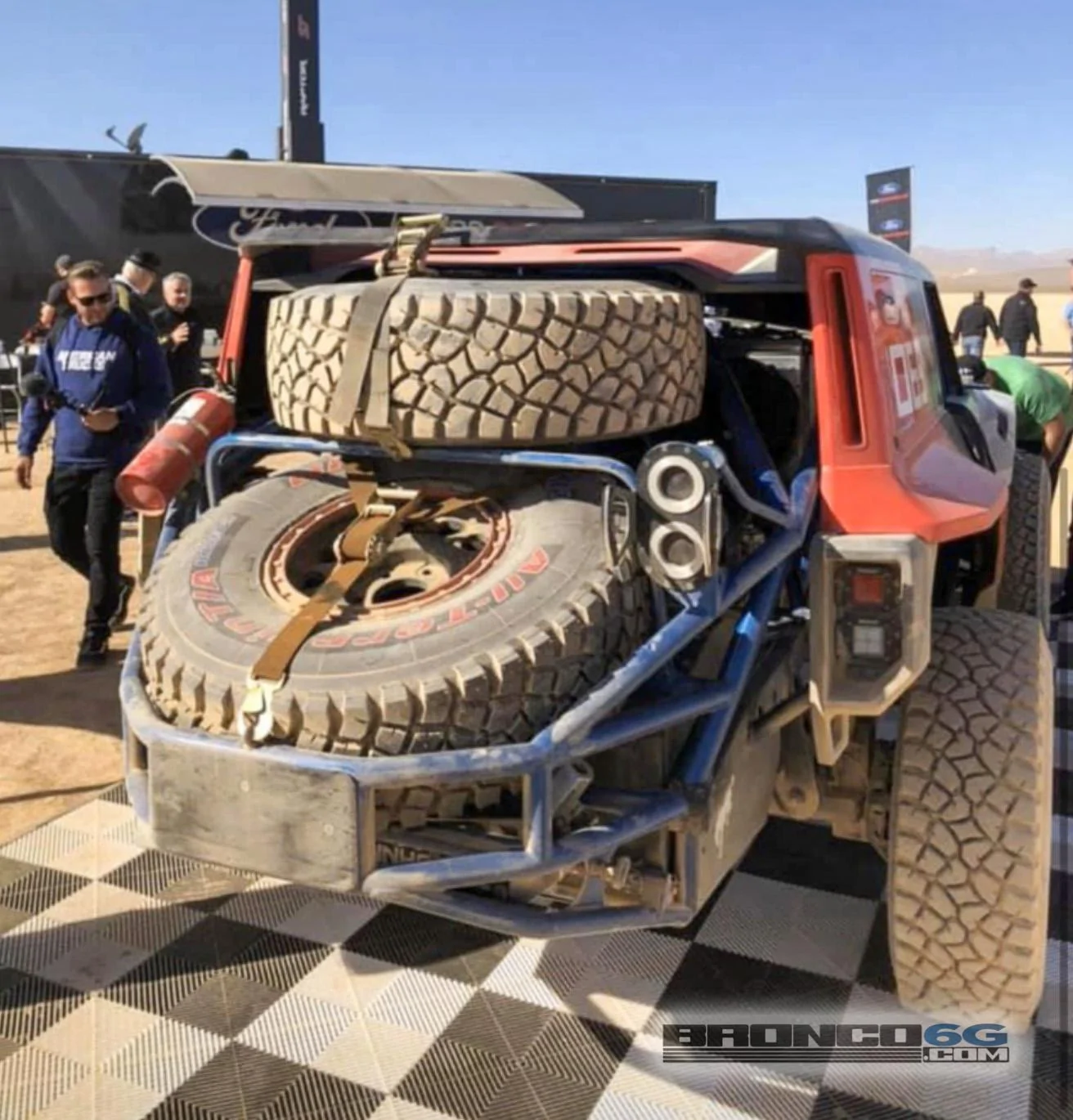

    The race prototype is built on a modified Ford T6 architecture that will provide the base for the production model. Beefed up for Baja, Bronco R features an independent front suspension with 14 inches of travel and a production-based five-link rear chassis design with up to 18 inches of travel, plus custom Fox shocks, 17-inch beadlock-capable aluminum wheels and 37-inch BFGoodrich tires.

    “Like the original Bronco, we kept Bronco R’s design authentic and simple, with a roll cage on a production-style frame, and a five-piece lightweight body on top,” said Brian Novak, Ford Performance off-road racing supervisor. “For the endurance needs of Baja’s 1,000 grueling miles, we built in a limited number of race-focused parts. But even the twin turbos of the EcoBoost® engine are representative of what the production Bronco will offer.”

    For the vehicle that was, and the vehicle that will be – it’s the vehicle that is. The Bronco R race prototype is no mirage. The sand is flying again, and the heat is on. It was built for this.

    21_FRD_BRO_48764_HR.jpg 21_FRD_BRO_48780_HR.jpg 21_FRD_BRO_48740_HR.jpg 21_FRD_BRO_48760_HR.jpg 21_FRD_BRO_48761_HR.jpg 21_FRD_BRO_48765_HR.jpg 21_FRD_BRO_48763_HR.jpg 21_FRD_BRO_48762_HR.jpg Bronco-R-Race-Prototype-Baja-1000-1.jpg Bronco-R-Race-Prototype-Baja-1000-2.jpg Bronco-R-Race-Prototype-Baja-1000-3.jpg Bronco-R-Race-Prototype-Baja-1000-4.jpg

  2. Nickp

    Nickp Well-Known Member

    Joined:
    Jan 13, 2019
    Posts:
    385
    Likes Received:
    731
    Location:
    Phoenix
    First Name:
    Nick
    Vehicle(s):
    2010 JK UNLIMITED
    Not able to see, post removed.

    NM Design likes this.
  3. Jalisurr

    Jalisurr Well-Known Member

    Joined:
    Jun 21, 2019
    Posts:
    188
    Likes Received:
    364
    Location:
    Vancouver,BC
    First Name:
    Dave
    Vehicle(s):
    1997 Mitsubishi Pajero Evolution, 2009 Corvette Z06, 2008 ZX-6R
    Ah, dangit. I should have taken screenshots in the 5 minutes that those pictures were visible. That was a very cool looking Bronco thing that clearly somebody didn't want us to see

    NM Design likes this.
  4. snipes243

    snipes243 Member

    Joined:
    Jul 30, 2019
    Posts:
    11
    Likes Received:
    24
    Location:
    North Carolina
    Vehicle(s):
    68 ford Bronco, 06 ford Ranger, couple of jeeps and F250
    That was quick

    NM Design likes this.
  5. Mustang313

    Mustang313 Well-Known Member

    Joined:
    Mar 2, 2015
    Posts:
    81
    Likes Received:
    30
    Location:
    Michigan
    Vehicle(s):
    Mustang GT (s197)
    Search your browsing history for the images!

  6. Sherminiator

    Sherminiator Well-Known Member

    Joined:
    Aug 21, 2017
    Posts:
    54
    Likes Received:
    38
    Location:
    Central NJ
    First Name:
    Scott
    Vehicle(s):
    2013 Taurus SHO
  7. OP
    OP
    NM Design

    NM Design Member

    Joined:
    Mar 29, 2017
    Posts:
    7
    Likes Received:
    12
    Location:
    Nebraska
    Vehicle(s):
    2010 Raptor
    Yep, that didn't take long at all.

  8. Jalisurr

    Jalisurr Well-Known Member

    Joined:
    Jun 21, 2019
    Posts:
    188
    Likes Received:
    364
    Location:
    Vancouver,BC
    First Name:
    Dave
    Vehicle(s):
    1997 Mitsubishi Pajero Evolution, 2009 Corvette Z06, 2008 ZX-6R
    Trying. They were linked to a Facebook page unfortunately so I can't just use the url or a cached image

  9. snipes243

    snipes243 Member

    Joined:
    Jul 30, 2019
    Posts:
    11
    Likes Received:
    24
    Location:
    North Carolina
    Vehicle(s):
    68 ford Bronco, 06 ford Ranger, couple of jeeps and F250

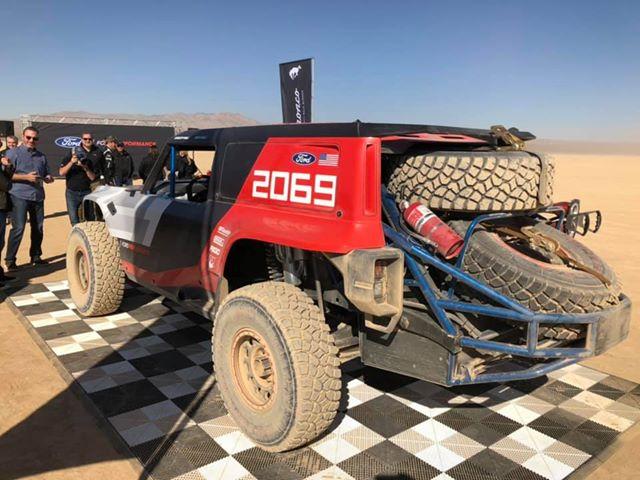

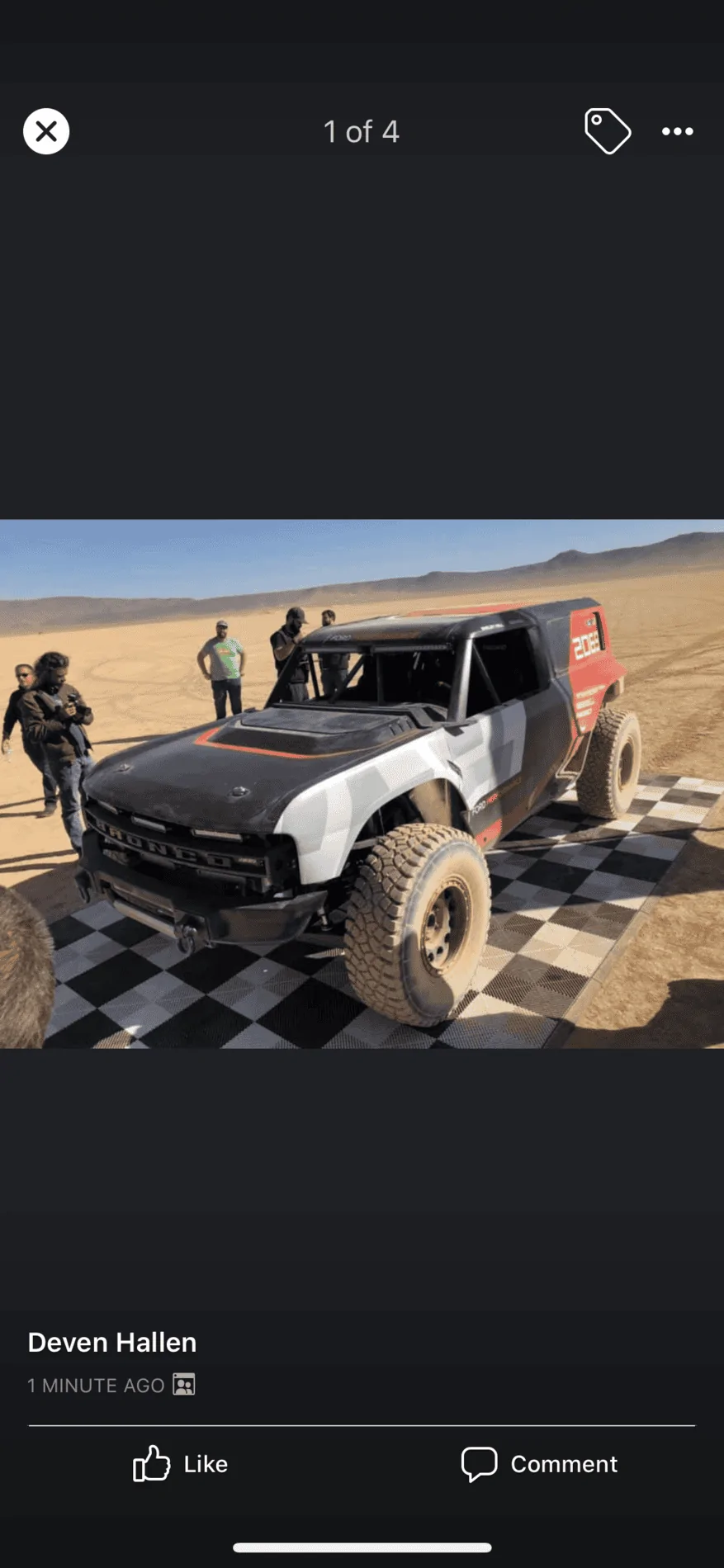

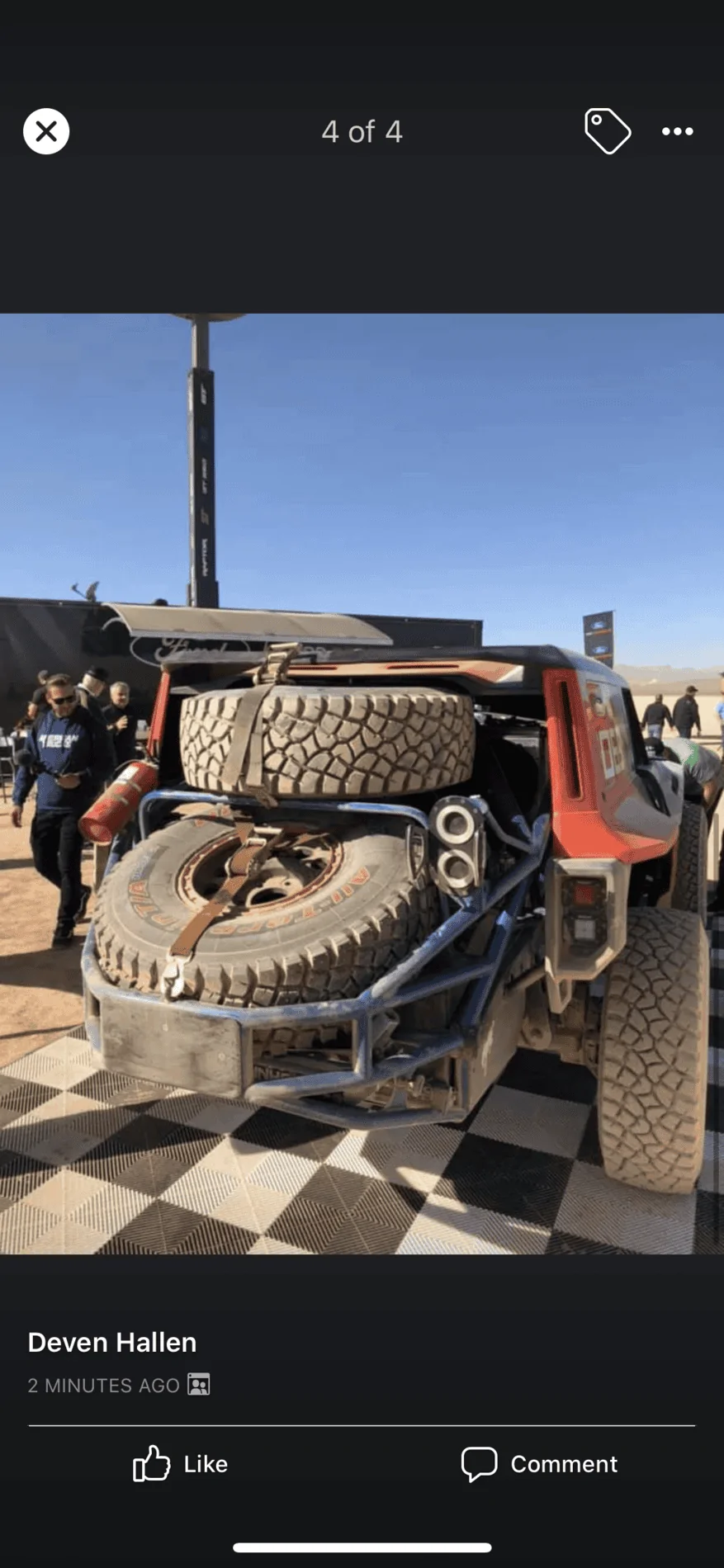

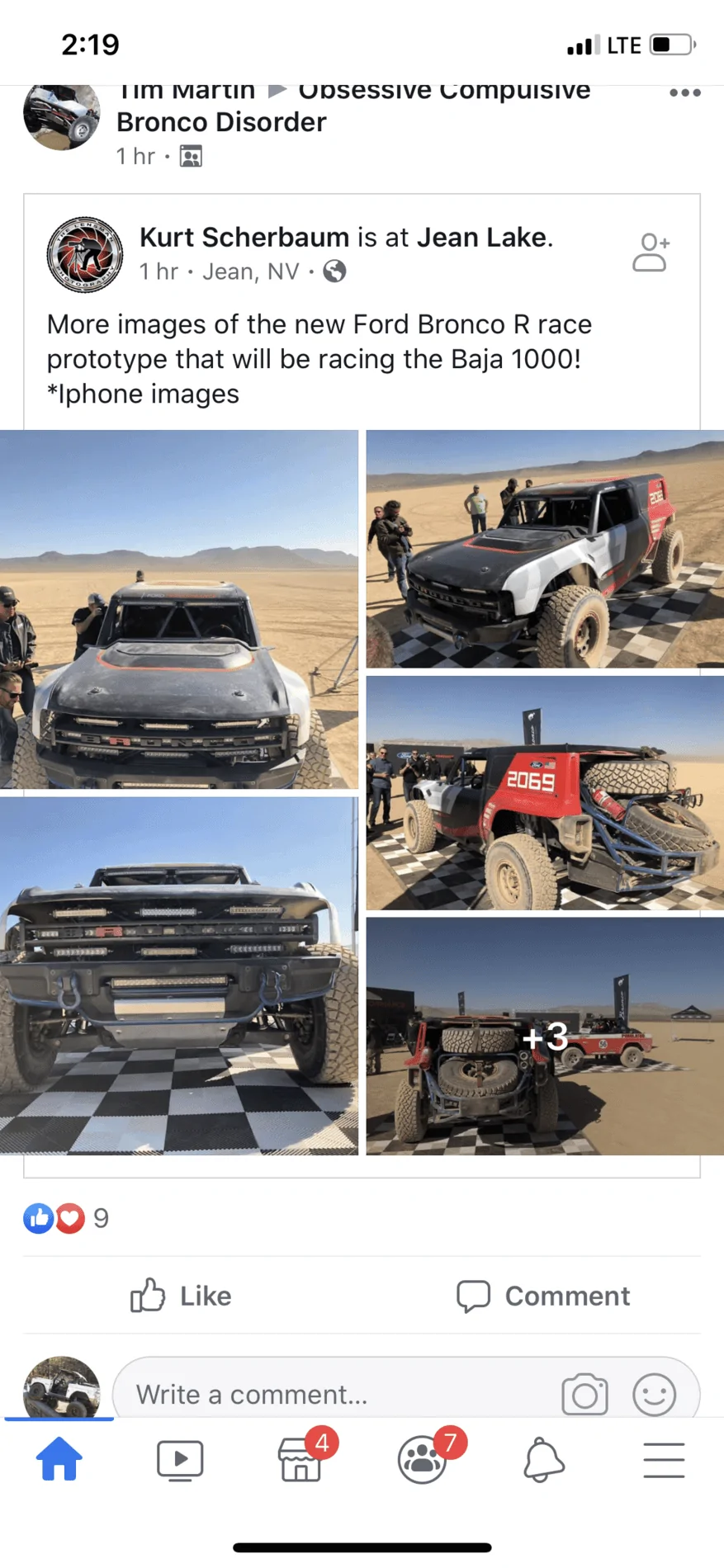

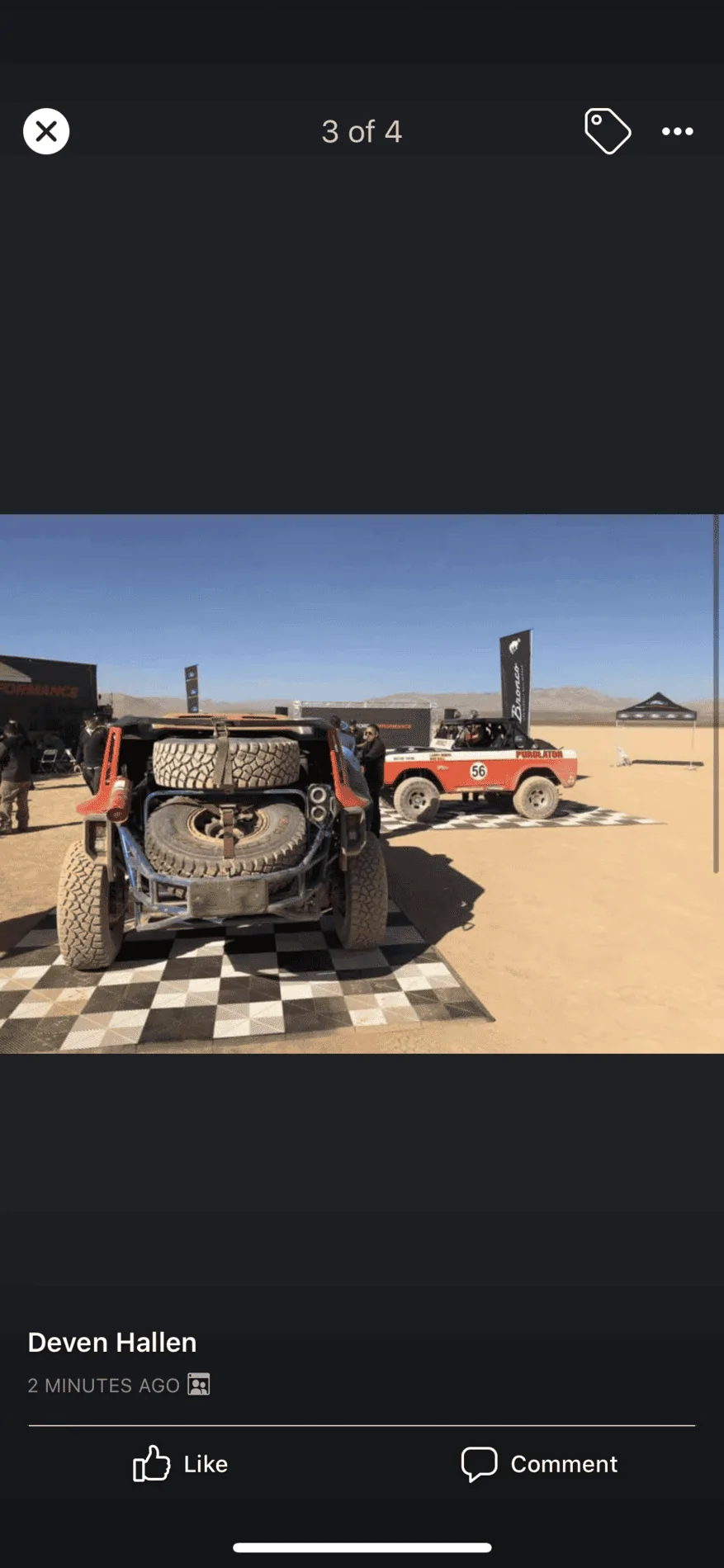

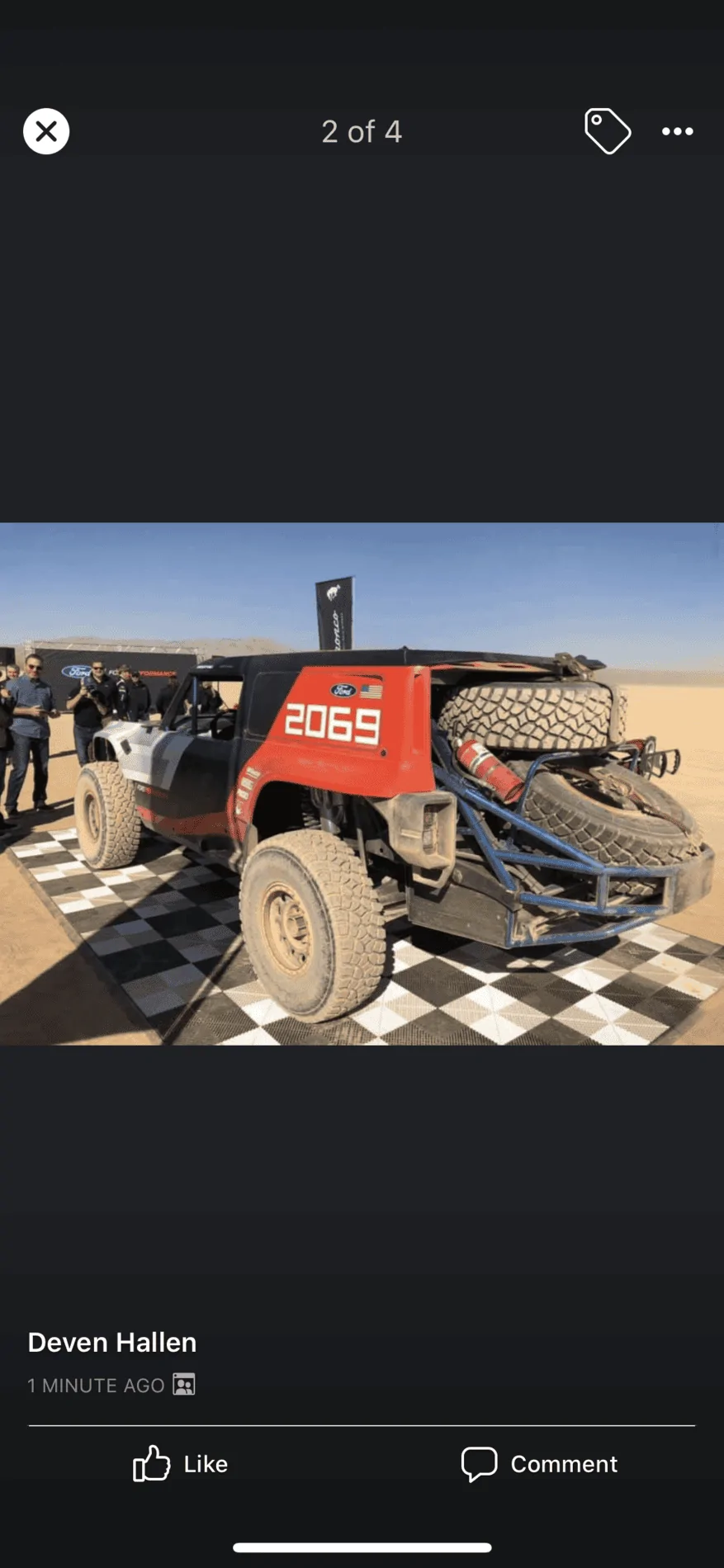

    Can’t stop us hah Found some on Facebook and screenshot them





  10. BroncoBill

    BroncoBill New Member

    Joined:
    Mar 5, 2019
    Posts:
    2
    Likes Received:
    6
    Location:
    Illinois
    First Name:
    Will
    Vehicle(s):
    1995 Eddie Bauer Ford Bronco
    Holy cow, first photo of what body possibly might look like?

    Nanook, BroncoBoy22 and TeocaliMG like this.
  11. Jalisurr

    Jalisurr Well-Known Member

    Joined:
    Jun 21, 2019
    Posts:
    188
    Likes Received:
    364
    Location:
    Vancouver,BC
    First Name:
    Dave
    Vehicle(s):
    1997 Mitsubishi Pajero Evolution, 2009 Corvette Z06, 2008 ZX-6R
    Dug these up from my Chrome Cache

  12. Jalisurr

    Jalisurr Well-Known Member

    Joined:
    Jun 21, 2019
    Posts:
    188
    Likes Received:
    364
    Location:
    Vancouver,BC
    First Name:
    Dave
    Vehicle(s):
    1997 Mitsubishi Pajero Evolution, 2009 Corvette Z06, 2008 ZX-6R
  13. Nickp

    Nickp Well-Known Member

    Joined:
    Jan 13, 2019
    Posts:
    385
    Likes Received:
    731
    Location:
    Phoenix
    First Name:
    Nick
    Vehicle(s):
    2010 JK UNLIMITED
    If this is the Bronco then holy shit yes. IFS but looks strong as shit if it’s holding those tires.

  14. snipes243

    snipes243 Member

    Joined:
    Jul 30, 2019
    Posts:
    11
    Likes Received:
    24
    Location:
    North Carolina
    Vehicle(s):
    68 ford Bronco, 06 ford Ranger, couple of jeeps and F250

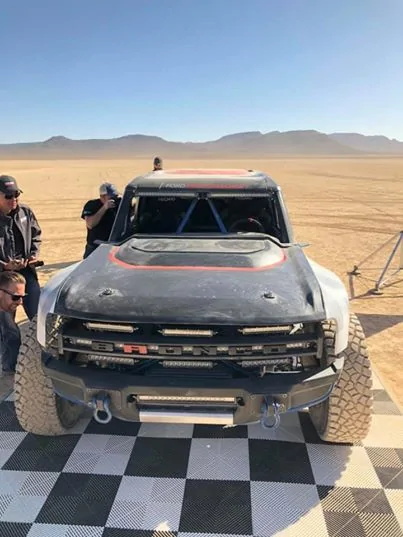

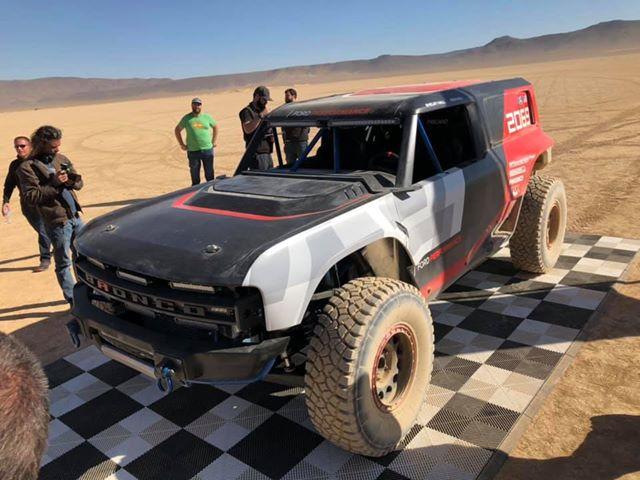

    Found this one too of the front end


  15. Midnight Blue

    Midnight Blue Well-Known Member

    Joined:
    May 22, 2019
    Posts:
    199
    Likes Received:
    196
    Location:
    Los Angeles
    Vehicle(s):
    ‘15 Accord
    With the Ford and Bronco flags, banners, and official branding all around, this looks legit. Certainly not a home build like the SEMA full size thread.

    But there’s no way much of this body is the same as a production vehicle. The front, though, probably a dead ringer for the Raptor version.

    Nanook, BroncoBoy22 and BroncoBill like this.
