Hi All,

First post on the forums, so figure we'll make it a good one. Got the raptor steering wheel swapped with functional paddles thanks to BoostedGreyGooseDesigns and a prototype harness from him.

Below is a little write up from install. (I wrote this up for another purpose in a pdf prior, so sorry for all the captions inbedded in the pics*)
As always, before completing work like this...disconnect the battery.

Give a follow on instagram to show some support...gonna be working on some other better mods here in the future.
IG: Bronc.fifty_

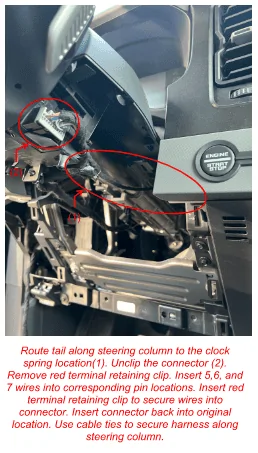

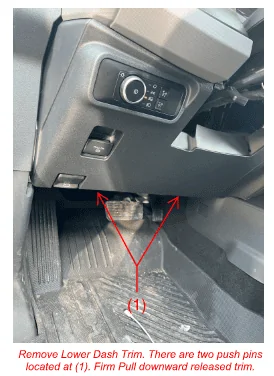

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134928428

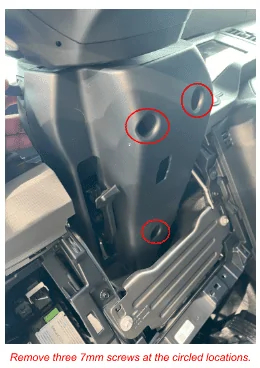

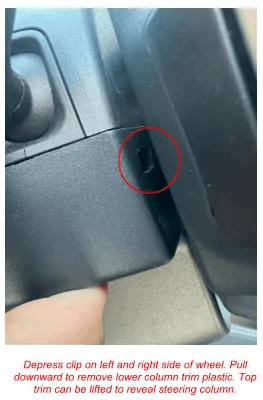

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134943474

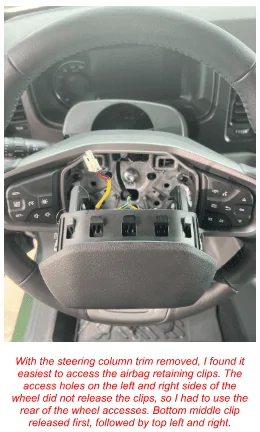

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134955232


Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134968519


Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134983891


Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686134998317

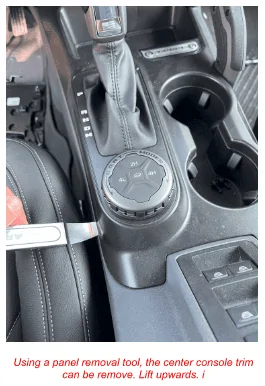

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686135008659

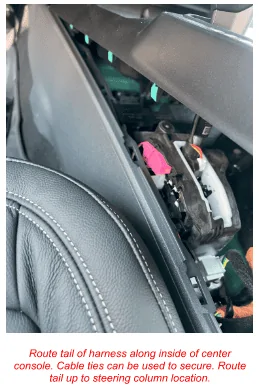

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686135019268

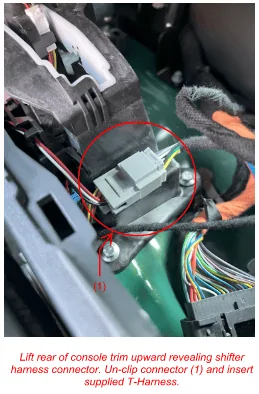

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686135029513


Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup 1686135040710


Repeat disassembly steps to reassemble.

If you choose to not swap over the steering controls and use the ones that come on the raptor wheel, Forscan updates should be made to the SCCM to enable the steering wheel controls. There is a left and right steering wheel control line that will need adjusted. This will vary depending on what model Bronco you have. You can disassemble the controls and swap over the original, but I did not at this time. I was able to enable everything on my model.


Here's a little teaser pic. hopefully we get the 12" screen working next.

Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup IMG_1552.JPG


Ford Bronco Bronco Raptor Steering Wheel Swap w/ Functional Paddles -- DIY installation writeup IMG_1668.JPG

Happy modding everybody!

-Pat
