Like many 2-door Bronco owners, I found only expensive options when it came to rock rails. It seemed everywhere I looked all I could find were 4-door rails, and even if a pair of OEM 2-door rails showed up, they were across the country. Fortunately, as I demonstrate below, you can chop the factory 4-door rails to fit your 2-door, with minimal skills and tools required.



First off I sourced a pair of OEM rock rails for a 4-door, which should cost you around $200 used (or less). Make sure to have them include all the hardware and brackets, I forgot to grab the pair of center OEM brackets which will be needed. Part numbers for those are M2DZ-54200B39-A, M2DZ-54200B38-A.

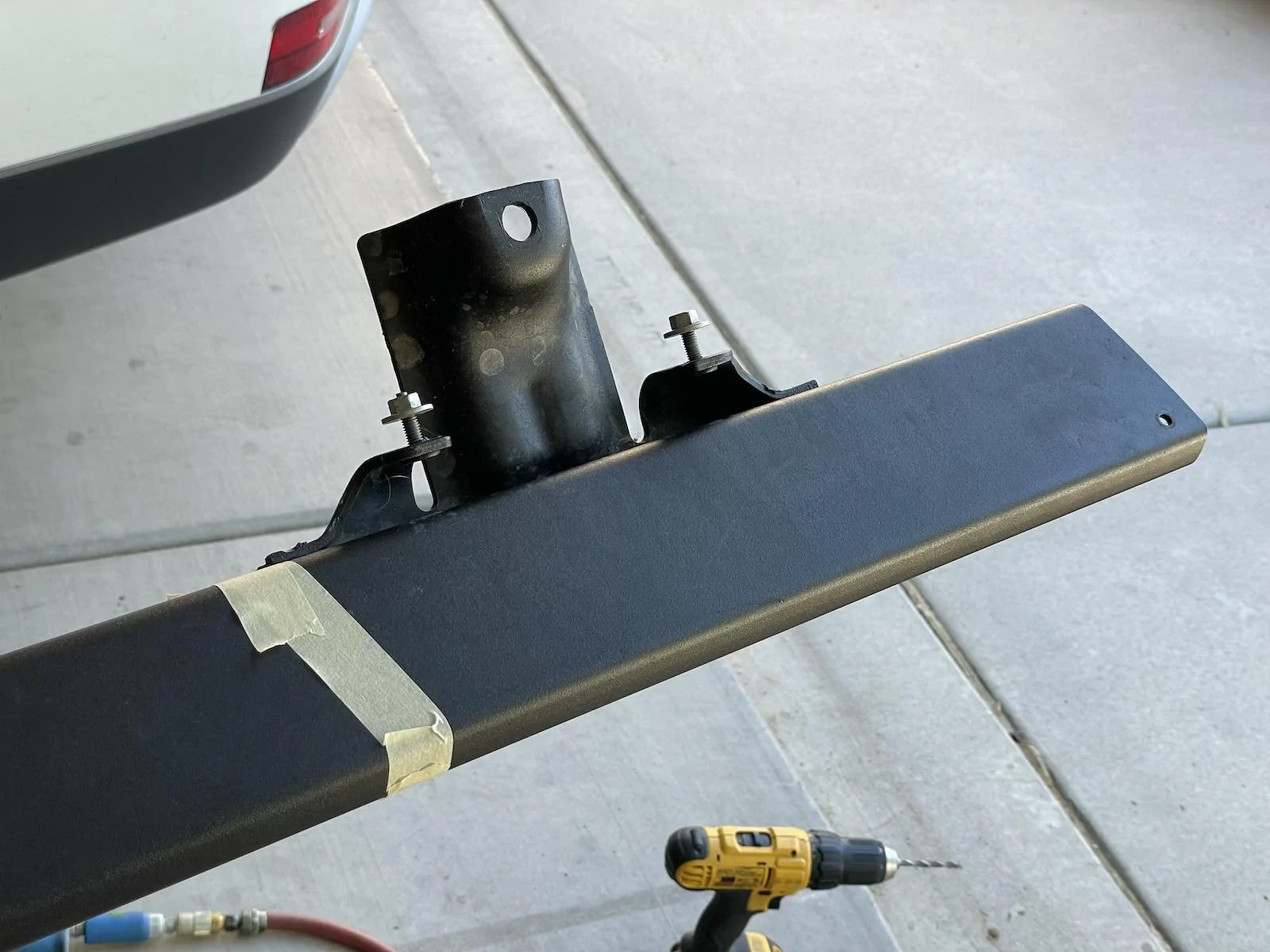

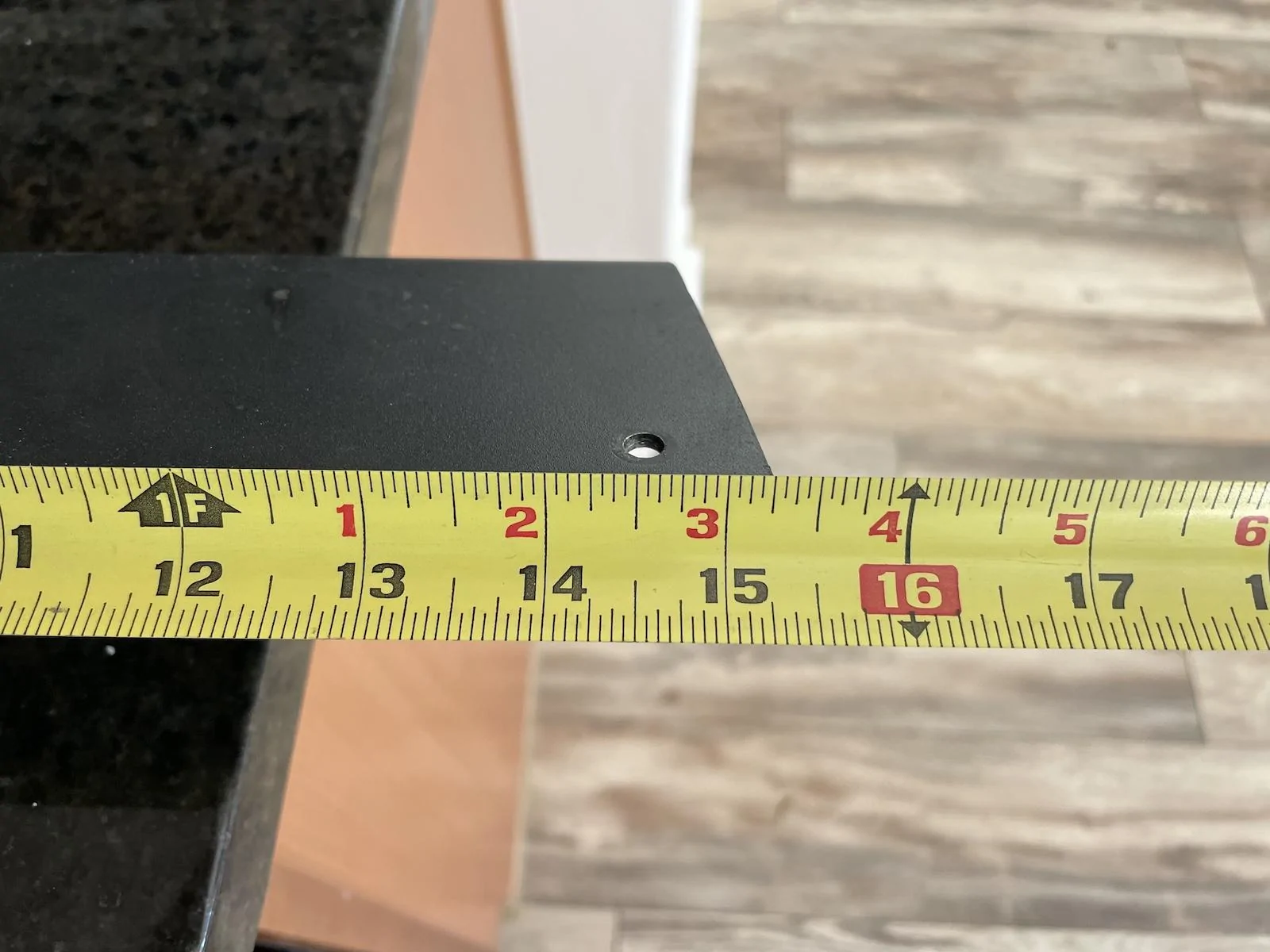

Clean them up and remove end caps. These are held in with a single torx screw and a plastic clip. After removing the caps, mark where you want to make your cut. I cut mine right at the rear bracket, which was roughly 15.5in of material removed. Measure your angles carefully as there's no going back now.

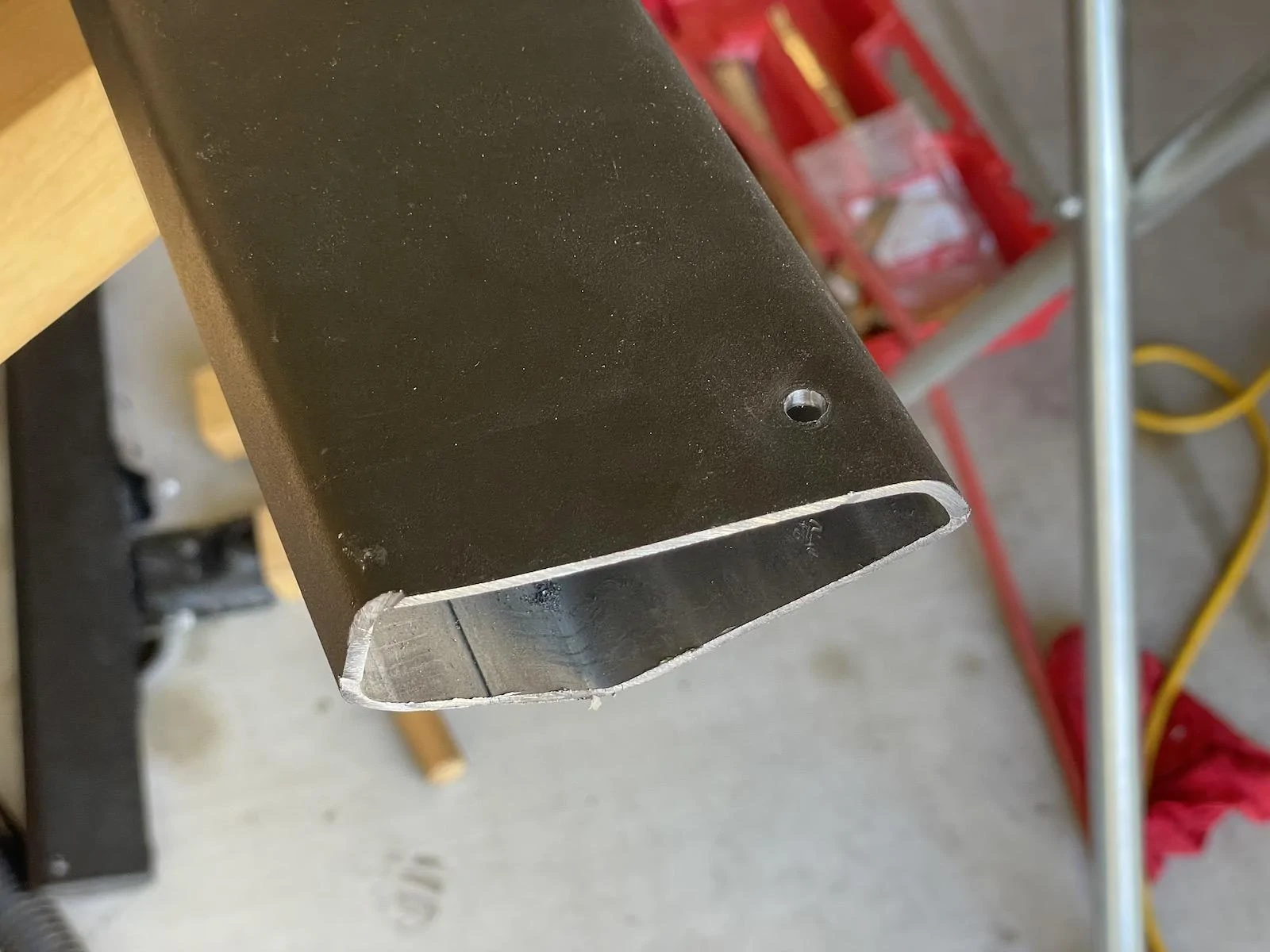

Using a sawzall or other cutting tool, carefully cut through the metal along the tape lines. The metal closest to the bracket mounts is thick, and will take some time to get through. After removing the rail portion, go over it with a grinding tool to flatten out any rough edges. At this time, you can mark out where the holes should go for the torx screw and plastic clips. Simply drill them out and it will start looking like the OEM panel!

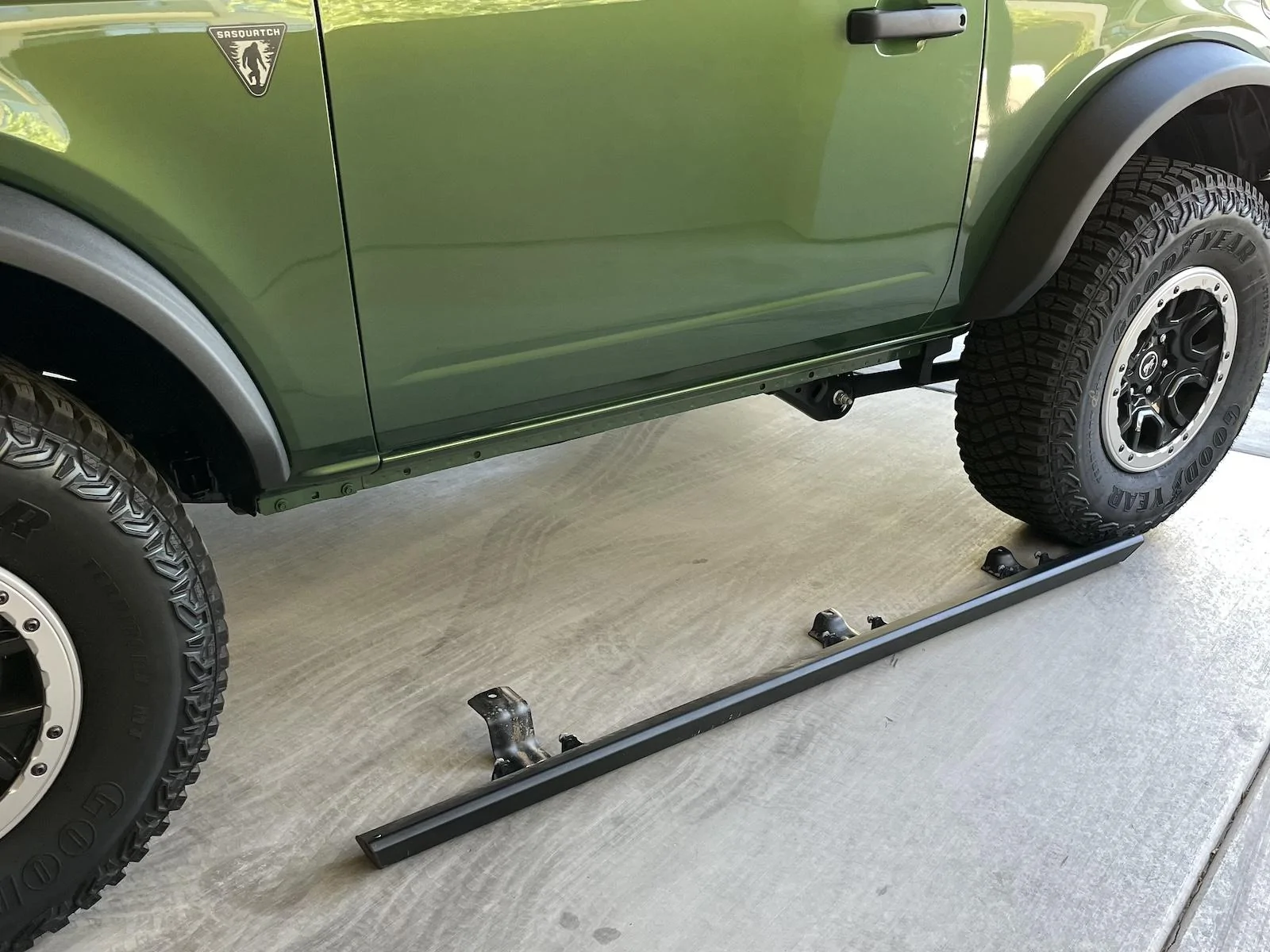

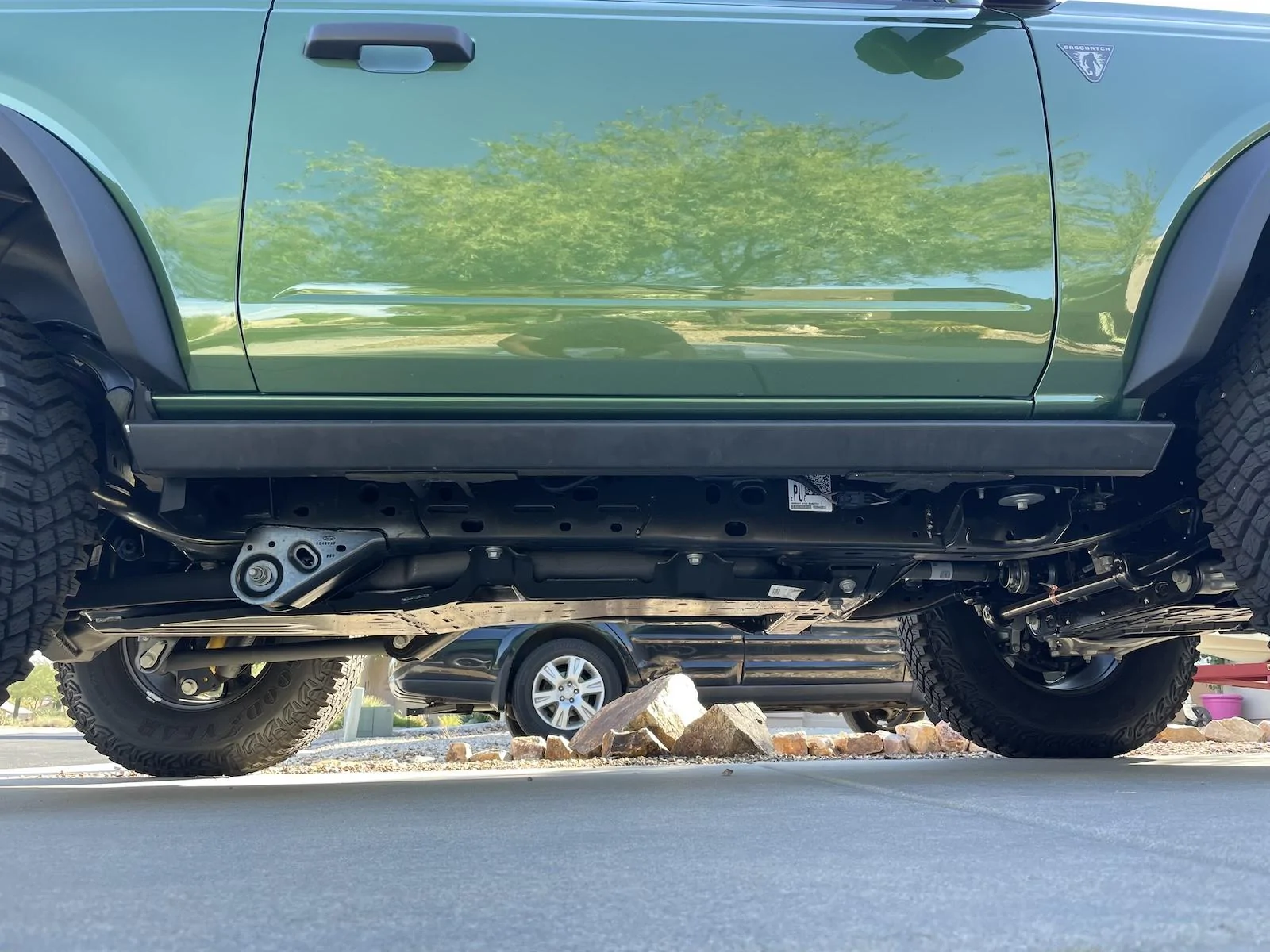

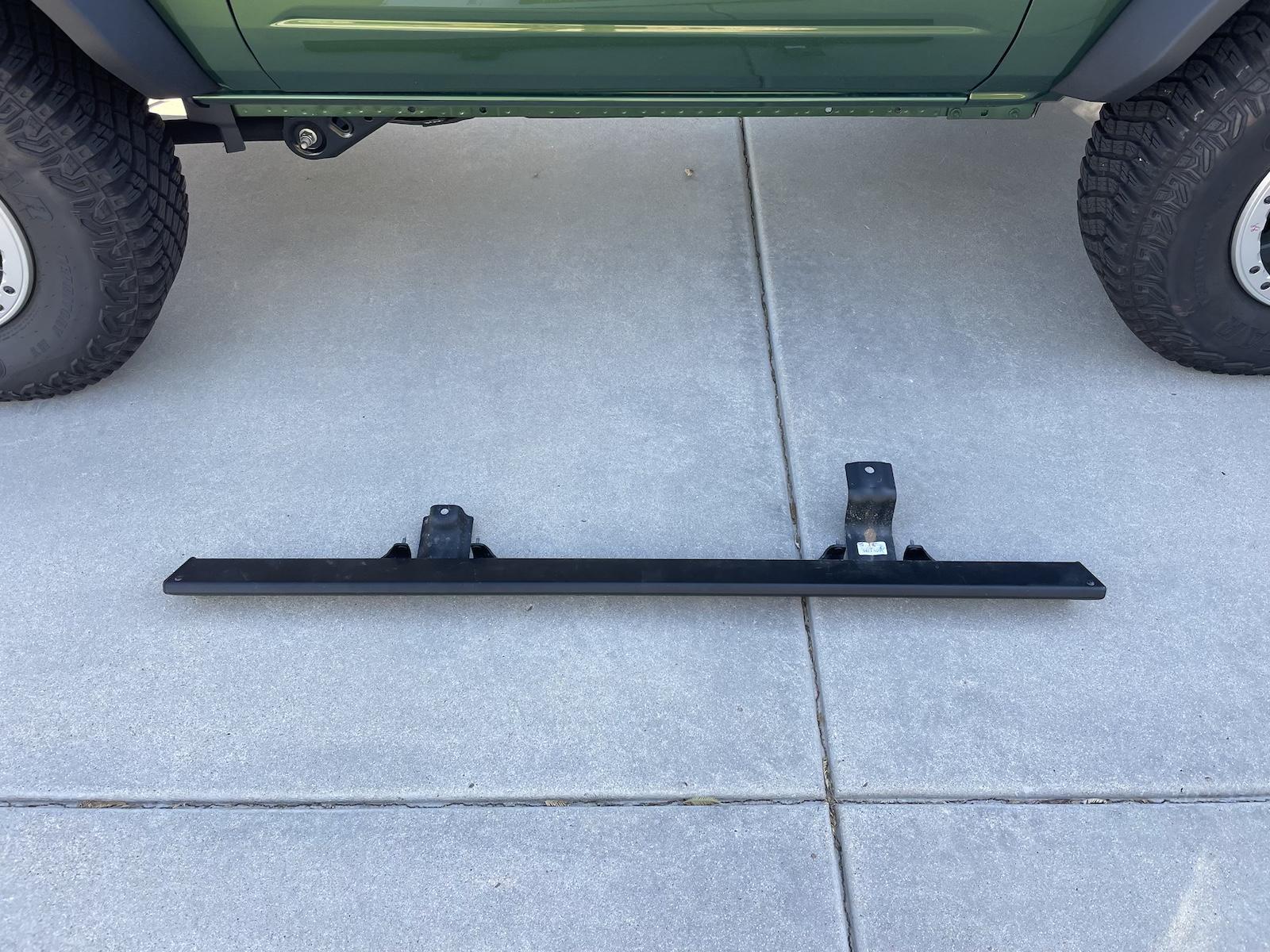

After you've finished cutting and drilling, test fit the end caps to make sure everything lines up. If all is well, you can go ahead and mount the rails to the car. The front brackets are identical to the 4dr, and the (formerly center) rear brackets will line up perfectly using the brackets I mentioned earlier.

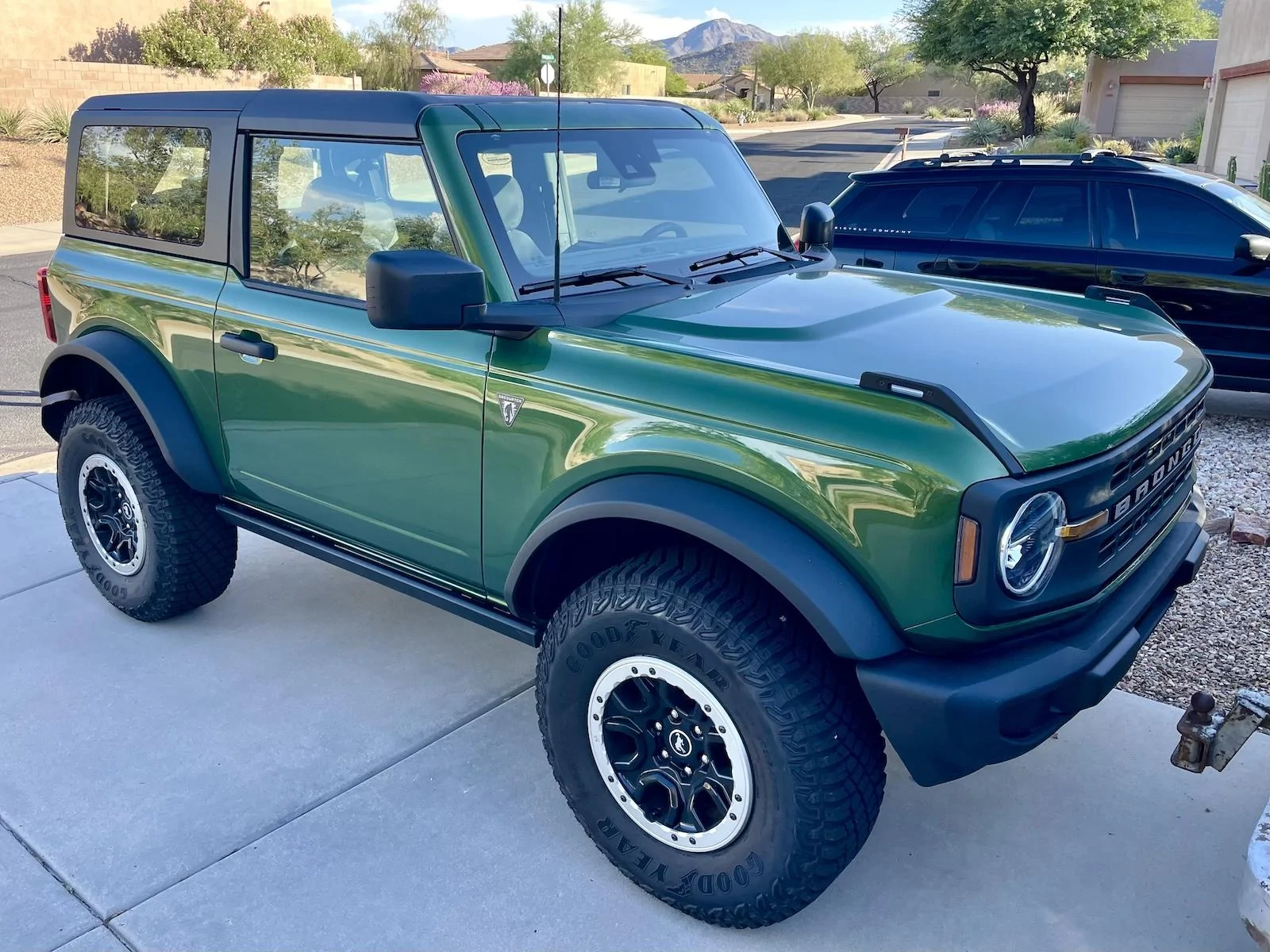

Considering a new set will run nearly $700 or more with tax and shipping, this was an excellent mod for $100 and about an hour of work. This method may also work for some aftermarket rail options, but I can't verify that right now. I hope this helps some of you, I think it really helps clean up the look of the 2-door!


Advertisement


Lab00Rat

Badlands
Well-Known Member
Joined
Jul 21, 2020
Threads
20
Messages
1,550
Reaction score
4,317
Location
MS
Vehicle(s)
2022 BL 2-Door, 2021 Ford Ranger
Your Bronco Model
Badlands
Looks sweet, nice job!


Aztec1382

Base
Well-Known Member
First Name
Sam
Joined
Apr 11, 2022
Threads
12
Messages
419
Reaction score
552
Location
California
Vehicle(s)
F350
Your Bronco Model
Base
Very nice


ROKBRNC

Badlands
Well-Known Member
Joined
May 2, 2020
Threads
5
Messages
319
Reaction score
1,178
Location
NorCal
Vehicle(s)
2004 LJ on tons, 1970 Bronco, 2019 Tacoma TRD
Your Bronco Model
Badlands
Clean…..😎


Advertisement

hotrodtim

Wildtrak
Well-Known Member
First Name
TIM
Joined
Dec 17, 2020
Threads
0
Messages
151
Reaction score
159
Location
Florida
Vehicle(s)
2019 EXPEDITION,2009 F150,2003 LINCOLN AVIATOR
Your Bronco Model
Wildtrak
Vehicle Showcase
1
American ingenuity; the best. Excellent job.:cool:


helifino16

Wildtrak
Well-Known Member
First Name
Ron
Joined
Aug 12, 2021
Threads
3
Messages
889
Reaction score
1,865
Location
Mount Sinai, NY (Long Island)
Vehicle(s)
2009 Dodge Challenger, 2007 FLHTC "Classic"
Your Bronco Model
Wildtrak
Clubs

@Wampa If you want a front mudflap option for these, check with @Biltwild - he has something he’s been working on.


Butzy

Base
Well-Known Member
First Name
Butzy
Joined
Jan 23, 2021
Threads
16
Messages
892
Reaction score
1,480
Location
Brookfield, Ohio
Vehicle(s)
f150 & wrangler
Your Bronco Model
Base
Clubs

Cool! Now get to work on factory sidesteps!


Tricky Dick

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Dick
Joined
Apr 12, 2021
Threads
64
Messages
5,245
Reaction score
17,808
Location
PNW
Website
www.TD-Distributing.com
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Your Bronco Model
Badlands
Clubs

Nice work! At least moar doors can be useful for parts.

Last edited:

Advertisement

JT58Bronc

Base
Well-Known Member
First Name
JT
Joined
Jul 14, 2020
Threads
13
Messages
706
Reaction score
860
Location
Fl
Vehicle(s)
2022 Bronco, 2006 C6 Corvette
Your Bronco Model
Base
Are there any other options to cover up that area on the 2 door? It looks naked as it is from the factory- especially with the slots and threaded holes showing. This rock rails are super pricey to me for what you get. I was thinking to fabricate some aluminum or steel strips, nice coat of black paint and just bolt them on?


AZMikeL

Badlands
Well-Known Member
First Name
Mike
Joined
Aug 12, 2020
Threads
8
Messages
211
Reaction score
566
Location
AZ
Vehicle(s)
2022 Bronco Badlands 4dr, 2016 BMW 435i
Your Bronco Model
Badlands
Glad you got that figured out. Nice to see my factory rails live on!


kodiakisland

Black Diamond
Well-Known Member
Joined
Jul 10, 2020
Threads
21
Messages
4,203
Reaction score
12,113
Location
Arkansas
Vehicle(s)
12 Tacoma, 18 Indian, 23 GV70
Your Bronco Model
Black Diamond
Clubs

Are there any other options to cover up that area on the 2 door? It looks naked as it is from the factory- especially with the slots and threaded holes showing. This rock rails are super pricey to me for what you get. I was thinking to fabricate some aluminum or steel strips, nice coat of black paint and just bolt them on?
Sure if all you want is looks and no function.
