Detailed Roof Rack Dimensions & diagram -- 2021 Bronco 2-Door

Boxer4

Base
Well-Known Member
Joined
Aug 8, 2020
Threads
32
Messages
1,097
Reaction score
1,995
Location
USA
Vehicle(s)
TRUCK
Bronco
Base
As requested, I made a rough sketch of the Roof Rack Dimensions.
@dejones64

ID between the rails = 38 1/2"
Rail length between caps = 56 3/4"
Center between fixed back cross rail to mid cross rail = 27 1/2"
Center between Mid cross mount and Front cross mount = 27 1/2"

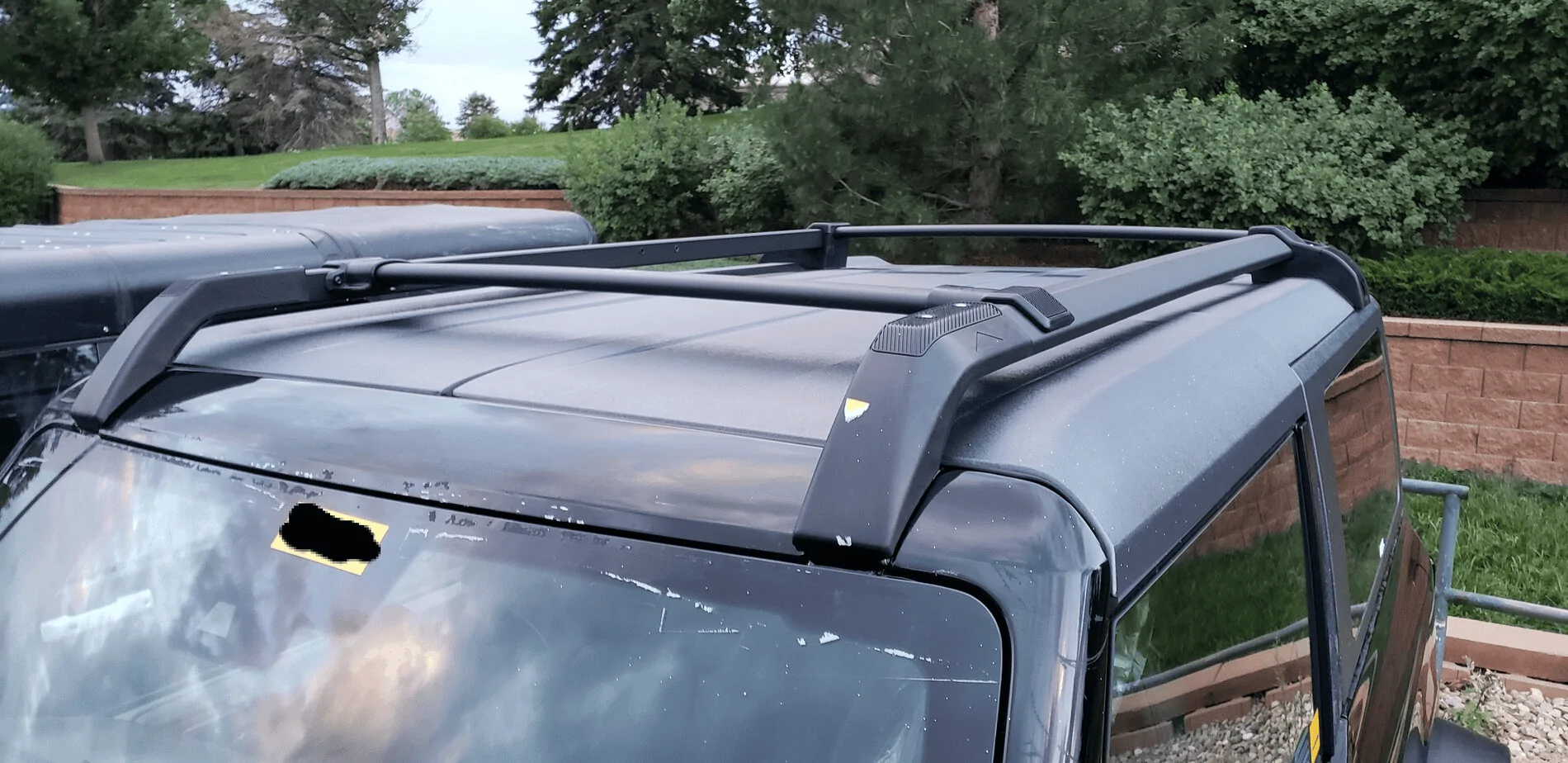

Photo shows the tie-off points where the cross rail meets the main rail

These dimensions were taken with the rack mounted.
Will update / refine as needed when I post on the rack removal.

ROOF RACK DIMENSIONS.jpg


MID RAIL.JPG
