Diode Dynamics SS5 Bronco Kits Available for Pre-Order

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

The new Diode Dynamics SS5 Kits were very popular at this years SEMA show. Unless you live under a rock, you saw their new SS5 installed on a few Broncos at the show. We're happy to announce that we're taking pre-orders on these kits. We're one of the largest stocking Diode Dynamics dealers so rest assured you're in good hands with your purchase. These kits are expected to be arriving January 21, 2022 so we're be taking pre-orders right now

We recommend getting your orders in ASAP to secure your spot in line and be one of the first to get these on your new Bronco!

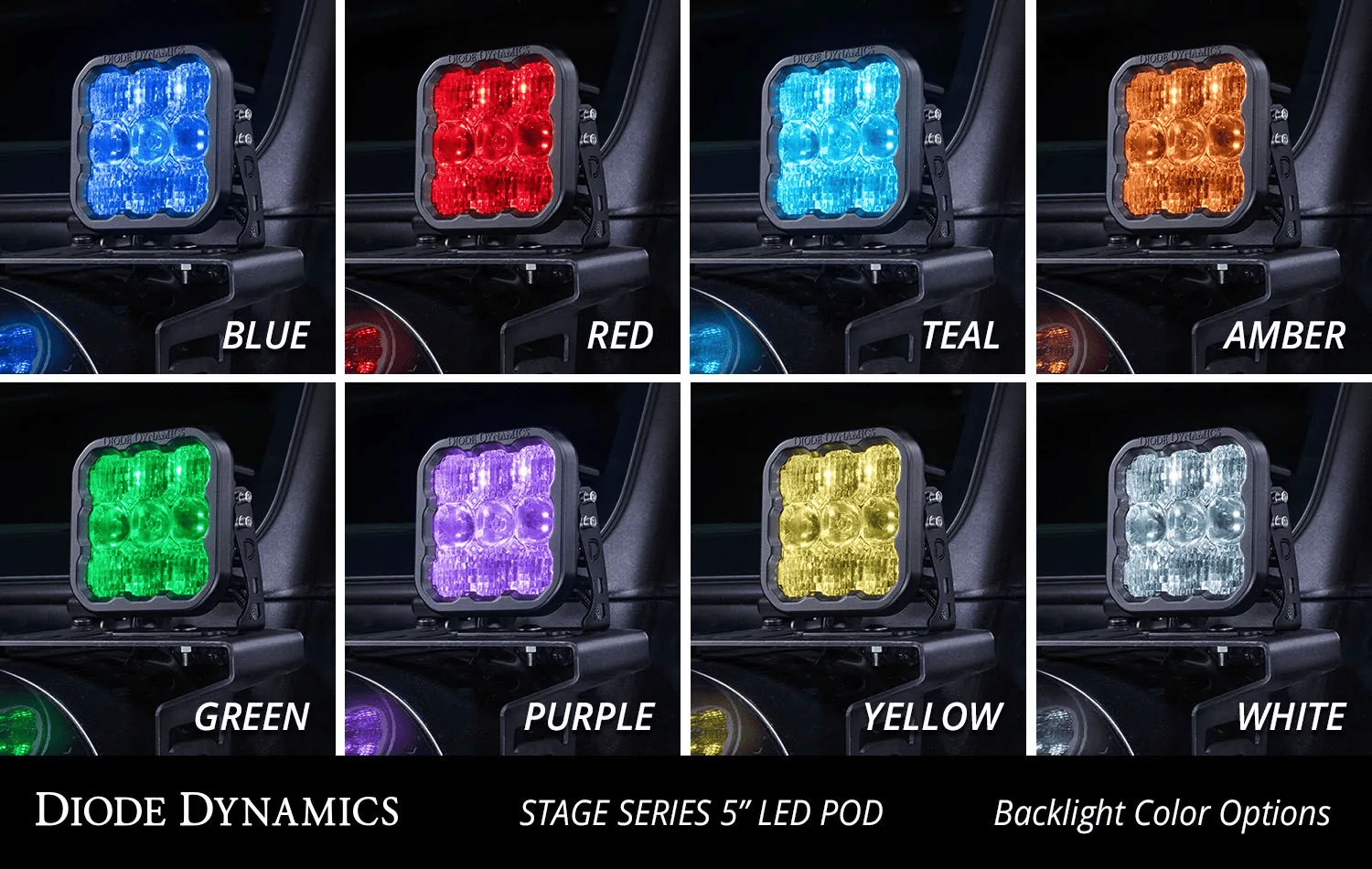

The biggest feature (we feel) on the SS5 is the selectable backlight color. With eight color options it's easy to select the color you want.

Ford Bronco Diode Dynamics SS5 Bronco Kits Available for Pre-Order 1637116020212


SS5 Grille CrossLink Lightbar Kit for 2021 Ford Bronco
https://www.4x4truckleds.com/diode-dynamics-ss5-grille-crosslink-lightbar-kit-for-2021-ford-bronco/
Sport Level: $1,399.95
Pro Level: $2,099.95
Available in White or Yellow

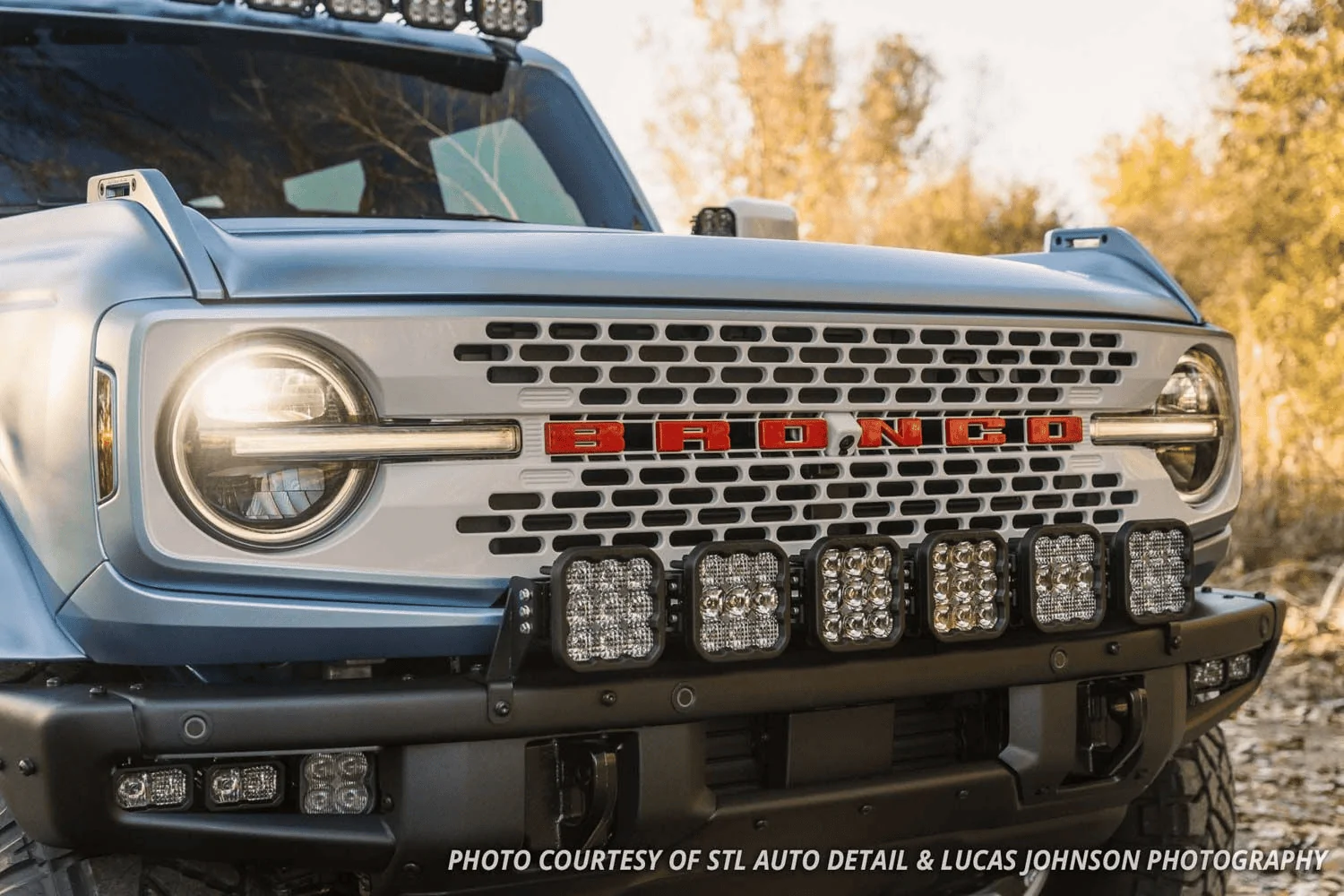

Ford Bronco Diode Dynamics SS5 Bronco Kits Available for Pre-Order 1637115672965

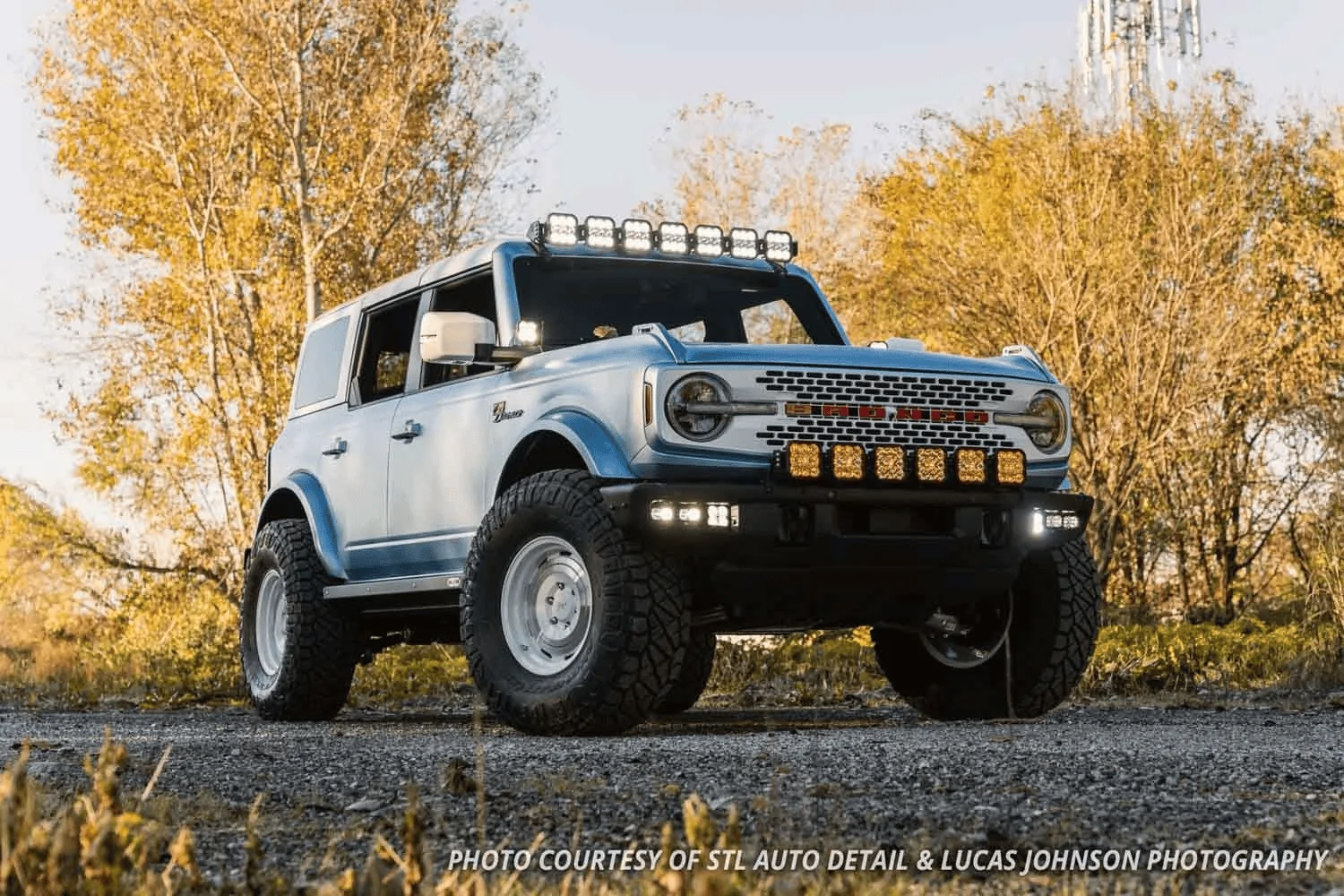

Ford Bronco Diode Dynamics SS5 Bronco Kits Available for Pre-Order 1637115678907

Features
  • Bolt-on fitment on 2021 Ford Bronco
  • Ultra-high intensity, with custom-engineered TIR optics
  • Selectable backlight color, with eight color options
  • Torture-tested, heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Assembled in USA
Overview

Perfect Fitment.
The Grille CrossLink Lightbar Kit for the 2021 Ford Bronco from Diode Dynamics allows you to mount six linked SS5 LED pods in front of the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the factory grille. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Selectable Backlight. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.

Control through OEM Aux Switches. Included with the kit is our OEM Auxiliary Switch Wiring Harness. This harness allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, our Heavy Duty Wiring Harness is also included to mount a switch and connect directly to the battery.

SS5 Windshield CrossLink Lightbar Kit for 2021 Ford Bronco
https://www.4x4truckleds.com/diode-...-crosslink-lightbar-kit-for-2021-ford-bronco/
Sport Level: $1,699.95
Pro Level: $2,599.95
Available in White or Yellow

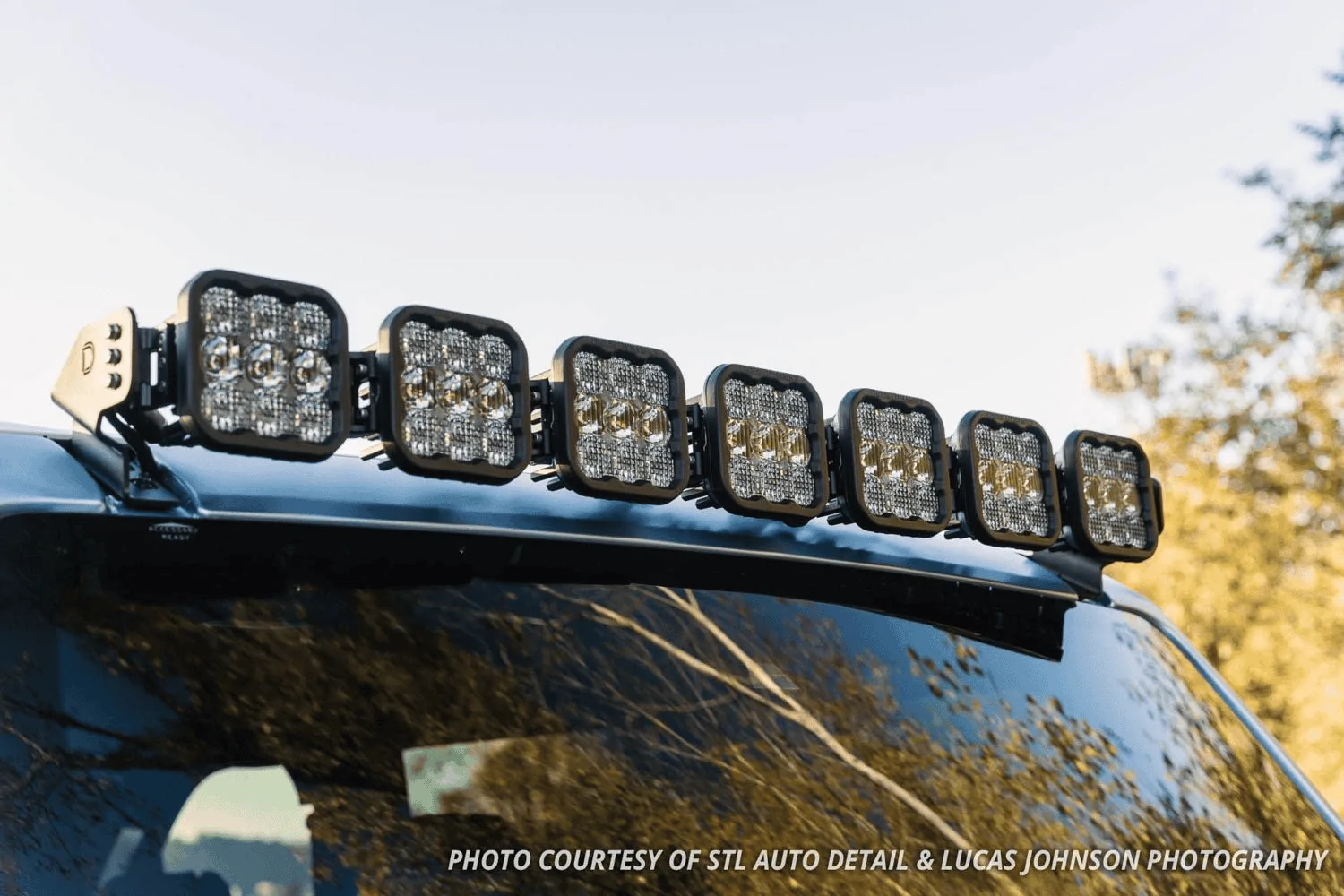

Ford Bronco Diode Dynamics SS5 Bronco Kits Available for Pre-Order 1637115773624

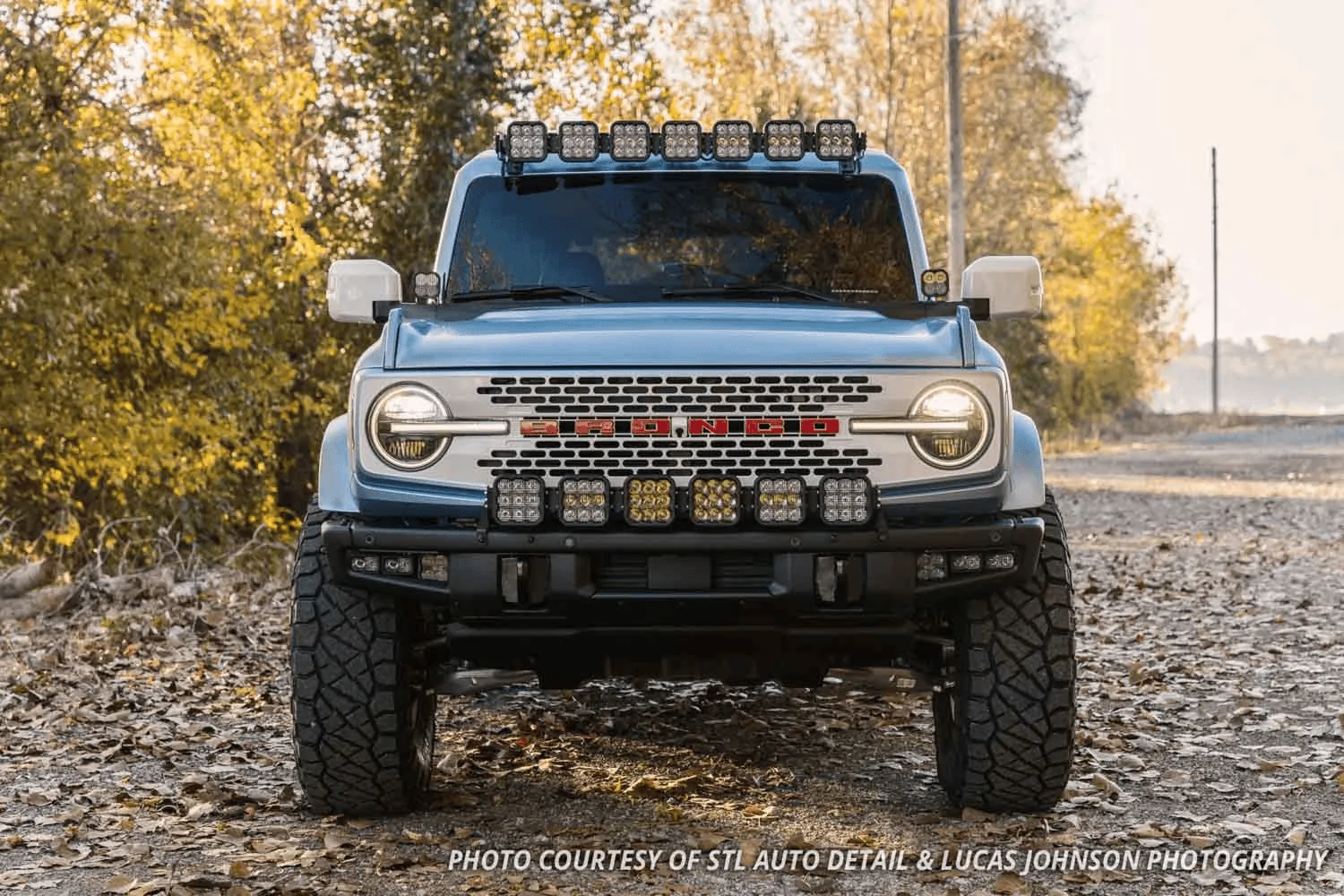

Ford Bronco Diode Dynamics SS5 Bronco Kits Available for Pre-Order 1637115909957

Features
  • Bolt-on fitment on 2021 Ford Bronco
  • Ultra-high intensity, with custom-engineered TIR optics
  • Selectable backlight color, with eight color options
  • Torture-tested, heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Assembled in USA
Overview

Perfect Fitment.
The Windshield CrossLink Lightbar Kit for the 2021 Ford Bronco from Diode Dynamics allows you to mount seven linked SS5 LED pods above the factory windshield. These application-specific brackets were CAD-designed to bolt into place using factory mounting points above the factory windshield. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Selectable Backlight. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.

Control through OEM Aux Switches. Included with the kit is our OEM Auxiliary Switch Wiring Harness. This harness allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, our Heavy Duty Wiring Harness is also included to mount a switch and connect directly to the battery.

Functional Output. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

Check out this video from Diode Dynamics for an overview on the new SS5 LED Lights
Sponsored


Last edited:

dweskamp

Badlands
Well-Known Member
First Name
Dan
Joined
Apr 23, 2020
Threads
25
Messages
528
Reaction score
891
Location
Missouri
Vehicle(s)
2016 GMC truck
Your Bronco Model
Badlands
Clubs

Will they block any part of the camera?

OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

Will they block any part of the camera?
Sort of. You'll see the bar in front as the camera looks down and when in a 360 view you'll see the bar sticking out.


privateer35

Badlands
Well-Known Member
Joined
Jul 21, 2020
Threads
33
Messages
624
Reaction score
808
Location
Seattle
Vehicle(s)
Ford Bronco 2021
Your Bronco Model
Badlands
Clubs

This looks great!

How is the light bar only about $300 more than the kit that goes in the opening of the mod bumper? 🥴


TXNavy

Badlands
Well-Known Member
First Name
Christopher
Joined
Jan 25, 2021
Threads
11
Messages
389
Reaction score
1,282
Location
Spring, TX
Vehicle(s)
GMC Yukon XLT 1500 4x4, Jeep Liberty Limited
Your Bronco Model
Badlands
Clubs

This looks great!

How is the light bar only about $300 more than the kit that goes in the opening of the mod bumper? 🥴
Because I'm pretty sure that is just the holding bar and not the actual LEDs. Other companies have been teasing them also with price being revealed Friday


Sponsored
OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

This looks great!

How is the light bar only about $300 more than the kit that goes in the opening of the mod bumper? 🥴
typo… I had the wrong price list up their are actually lots of SS5 kits where you can do 2 , 3, 4 5 and more pods to make a light at - so there’s a lot skus and options for other Vehicles too

OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs


joeramirez

Badlands
Well-Known Member
Joined
Jul 15, 2020
Threads
10
Messages
305
Reaction score
752
Location
New Mexico
Vehicle(s)
Ram Truck
Your Bronco Model
Badlands
@4x4TruckLEDs.com Can we replace the fogs in the capable bumper with these or are they too big?

OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

@4x4TruckLEDs.com Can we replace the fogs in the capable bumper with these or are they too big?
The capable bumper is not on the market yet, so we're not sure if any of the fog kits currently out there will work or not. We just don't know since there are no capable bumpers out there yet.

I'd like to imagine they will work but we just don't know what Ford changed, hopefully not a lot.

But the SS5 will not fit in your fog opening, way too big of a light.


Sponsored

Mdh186

Badlands
Well-Known Member
Joined
Jul 30, 2020
Threads
1
Messages
124
Reaction score
152
Location
PA
Vehicle(s)
Truck
Your Bronco Model
Badlands
Ditch lights SS5s not available for preorder?

OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

Does the harness for the windshield light bar run down the windshield like the BD harness does?
Yes, due to the amperage requirements we DO NOT recommend you use the tiny wire Ford has left you on the inside (you'd also need to drill a hole through your roof to utilize their wire)

OP
OP
4x4TruckLEDs.com

4x4TruckLEDs.com

Outer Banks
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Adam
Joined
Aug 30, 2021
Threads
341
Messages
4,286
Reaction score
5,730
Location
Lindenhurst, NY
Website
www.4x4TruckLEDs.com
Vehicle(s)
2018 Raptor & 2021 Bronco Outer Banks
Your Bronco Model
Outer Banks
Clubs

Ditch lights SS5s not available for preorder?
We're currently still populating them to the site. Dealers were not allowed to add the products until today. Diode isn't the only one who released products today so it's been a bit of a chaotic mess trying to get all the manufactures new products added to our site.
