UPDATE: 1 month later I've gone through 2 drive through car washes and offroading through brambles and the mudflaps are holding firm. And so is my paint job!

Eventually someone will come out with a proper mudflap for an SAS with factory side step bars. But my paintjob won't wait that long. Someone else had posted a pic of modifying the factory mudflaps so I purchased them. Ford part #M2DZ16A550AA. Here's how easy it is to mount them. I'm just a garage mechanice:

1. Turn the wheel to get it out of the way. For right side flap turn it left. For left side flap turn it right.

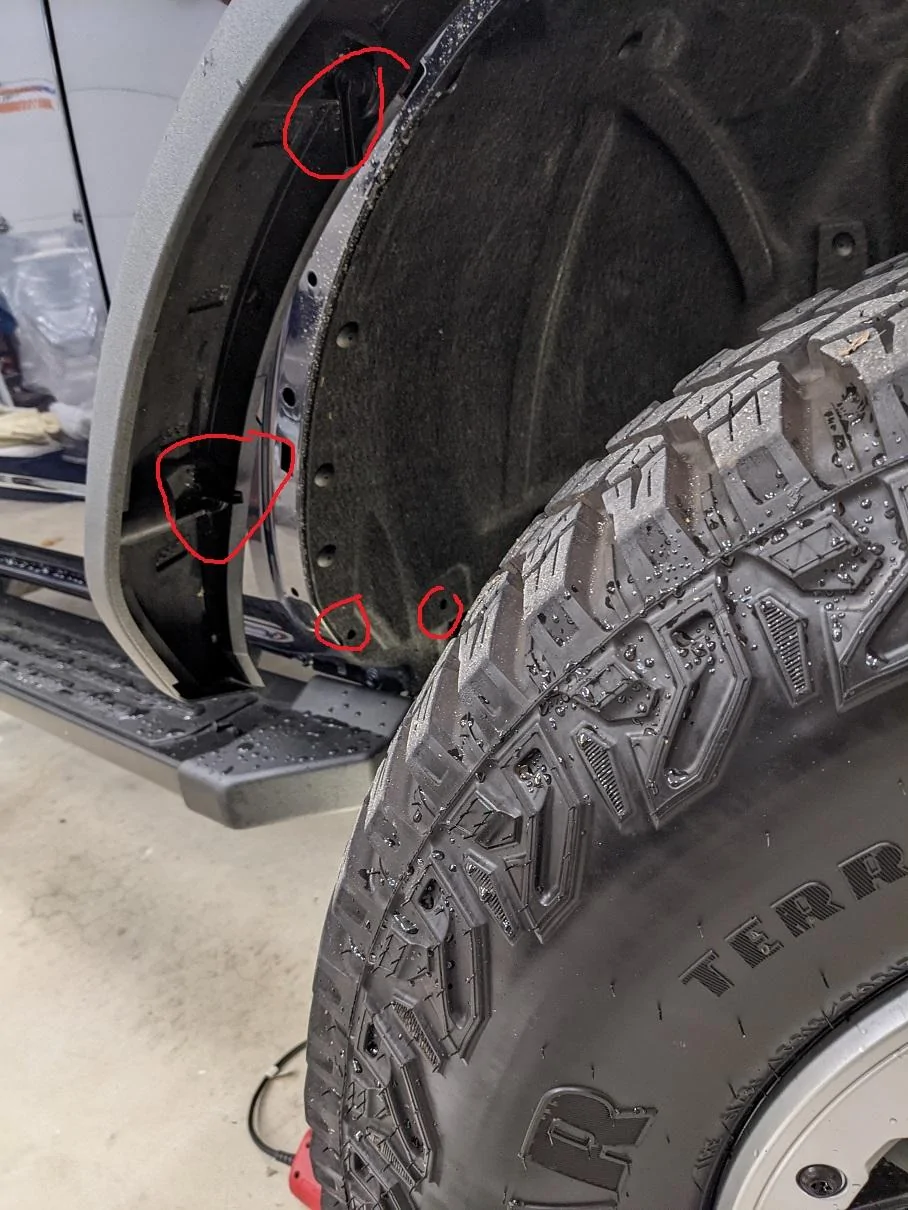

2. Remove the 2 screw plugs from the bottom of the inner fender lining and either remove the fender flare or at least the first 2 latches:

2. Line the holes in the flap with the 2 holes in the inner fender. I put a screwdriver in each hole to keep them aligned.

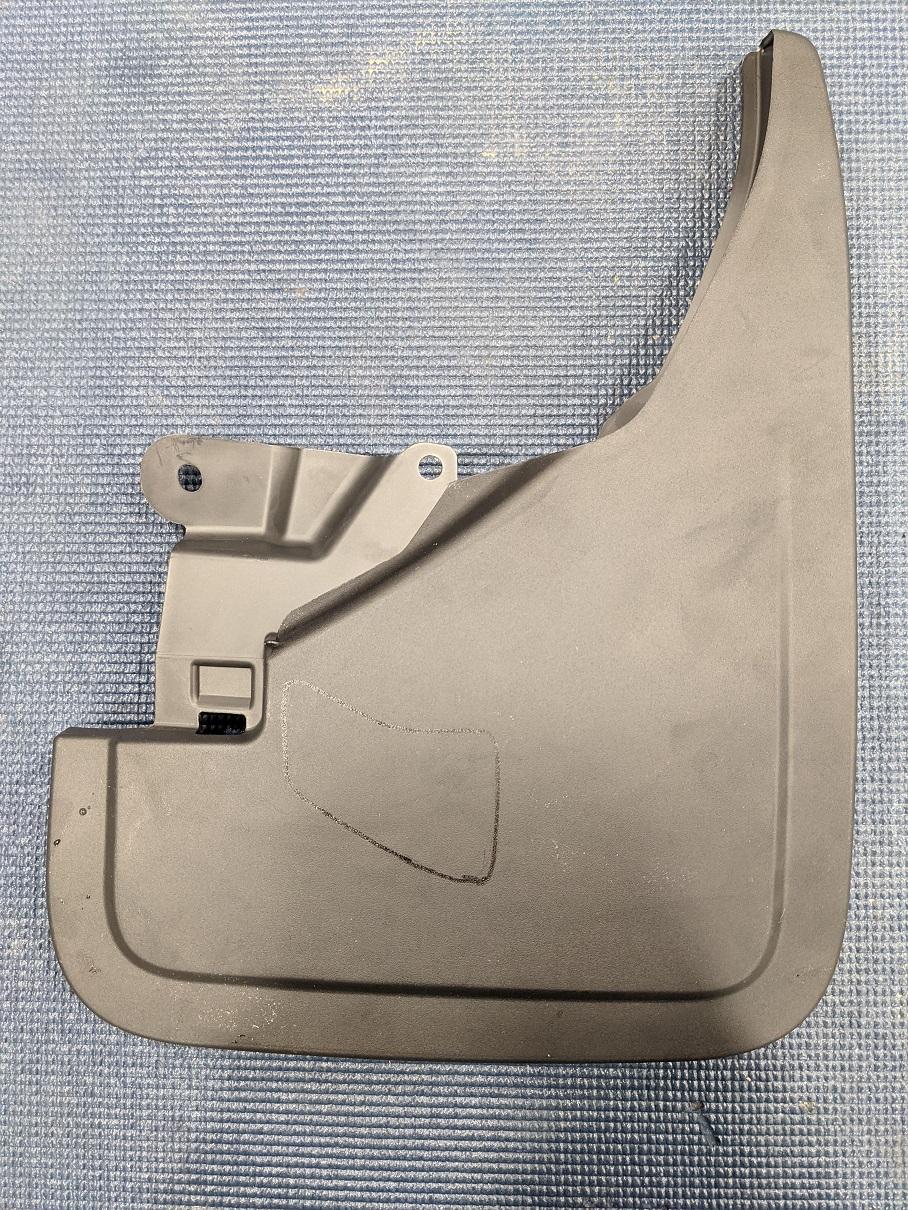

3. Using a pencil, trace the area you'll need to cut to clear the step. Remove from the car and then use a sharpie of the pencil so you can see the line better:

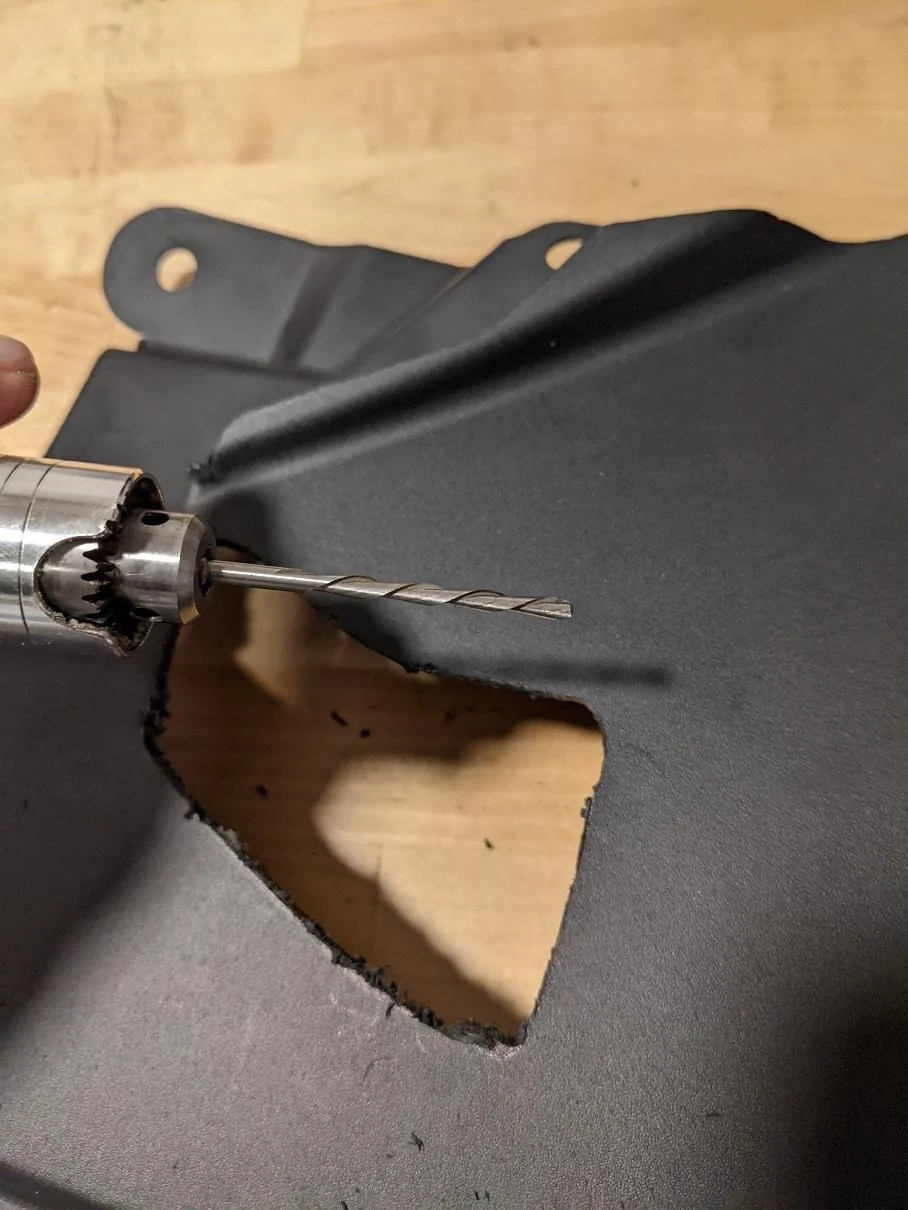

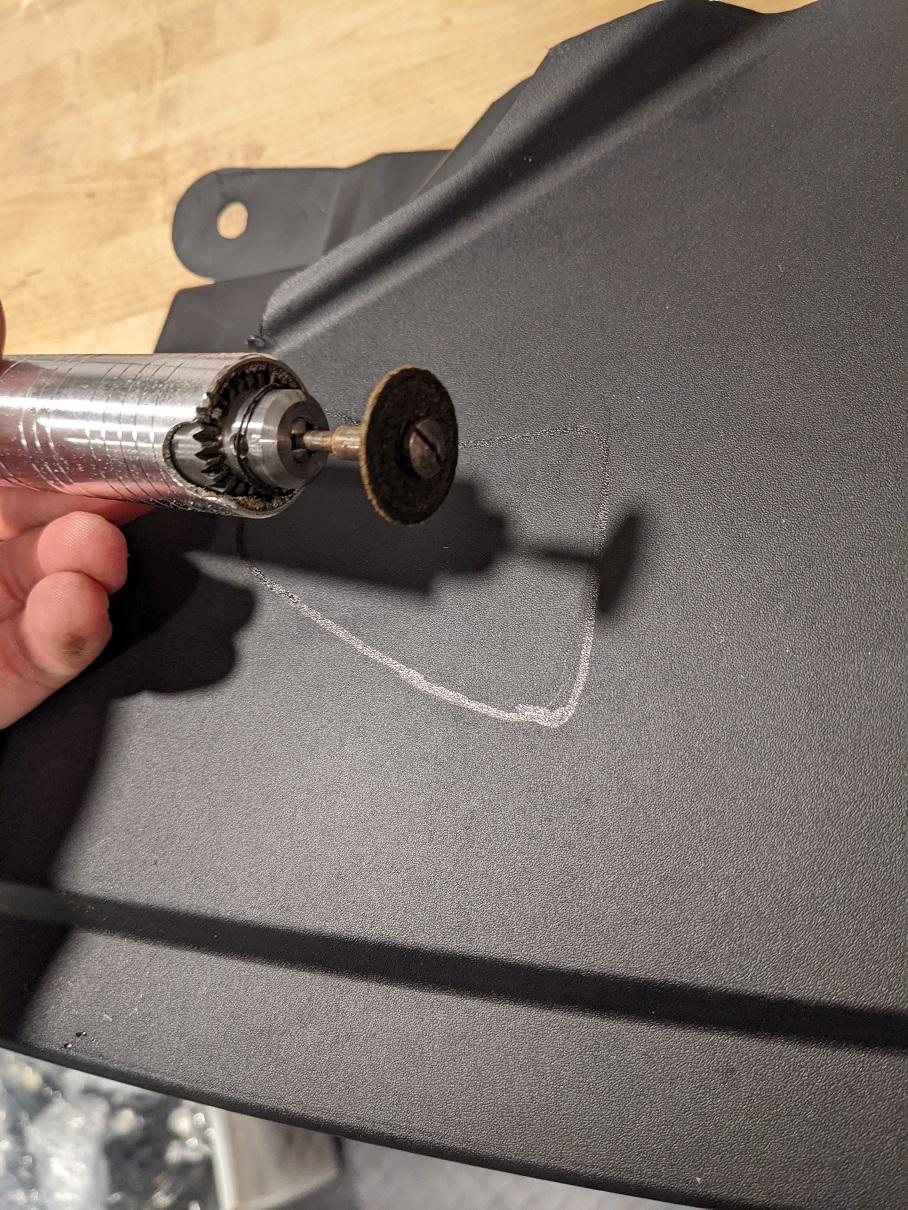

4. Using a Dremel tool or your favorite cutting device, cut the hole. Better to cut small and then have to go back and cut more:

I used a side cutter to make neat corners:

Test fit. You'll find that the the further you slide the flap onto the step the larger the hole will need to be. You'll want the flap to rest against the inner fender without flexing it. Once you're done you can clean up the edges of your hole with a file or sandpaper.

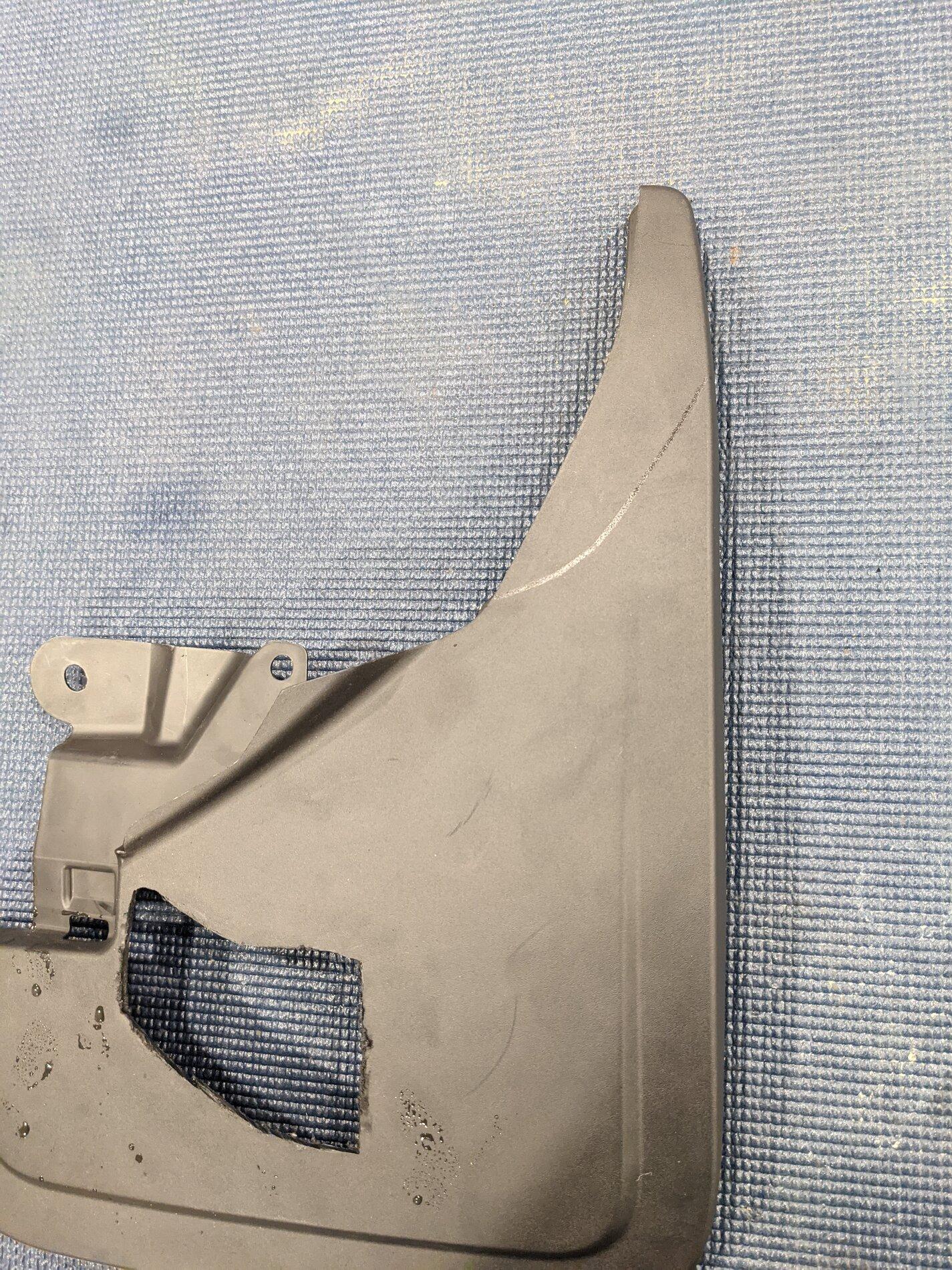

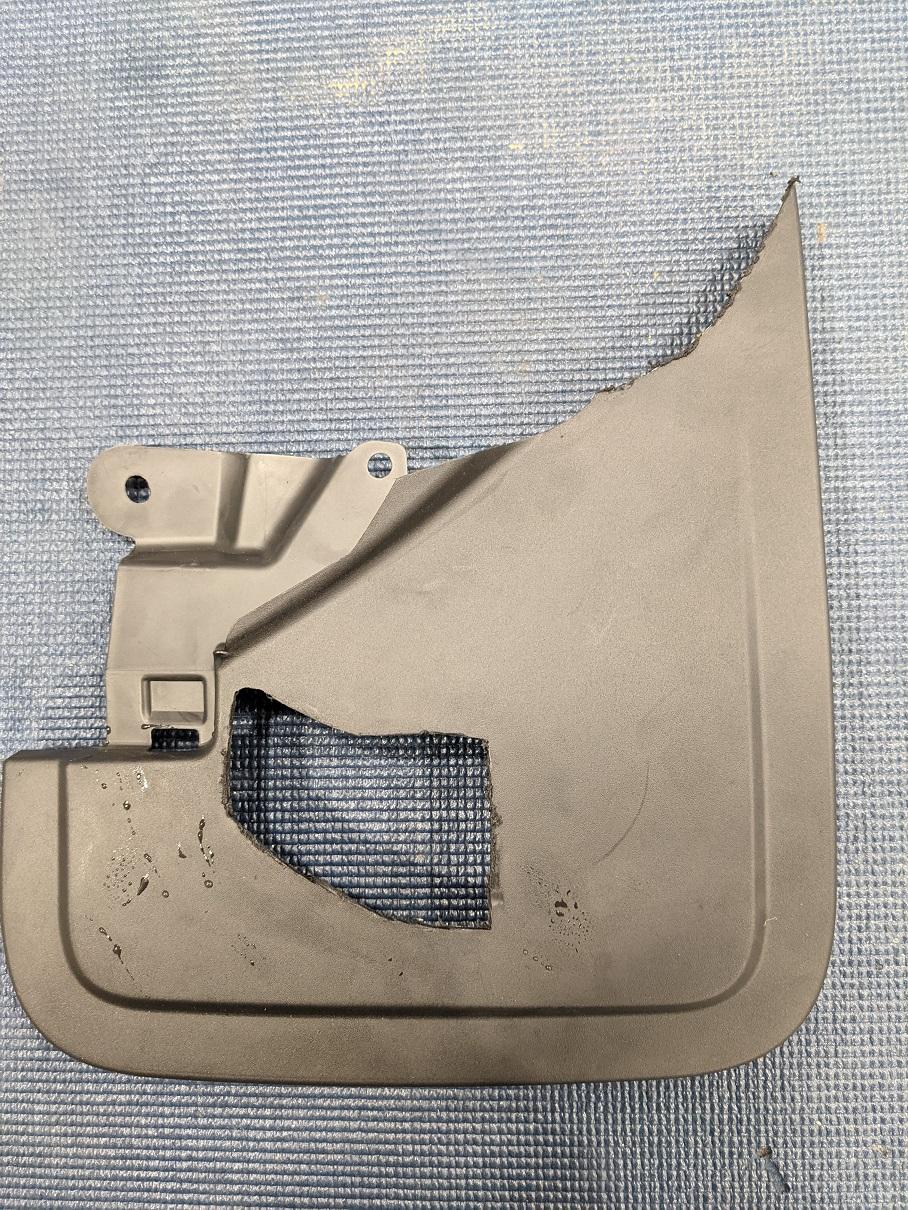

5. You'll need to trim the top of the flap off in order to clear the fender flare. Put the fender flare back in place, line the flap up with the 2 holes again, and now you can trace out the cut to the flap:

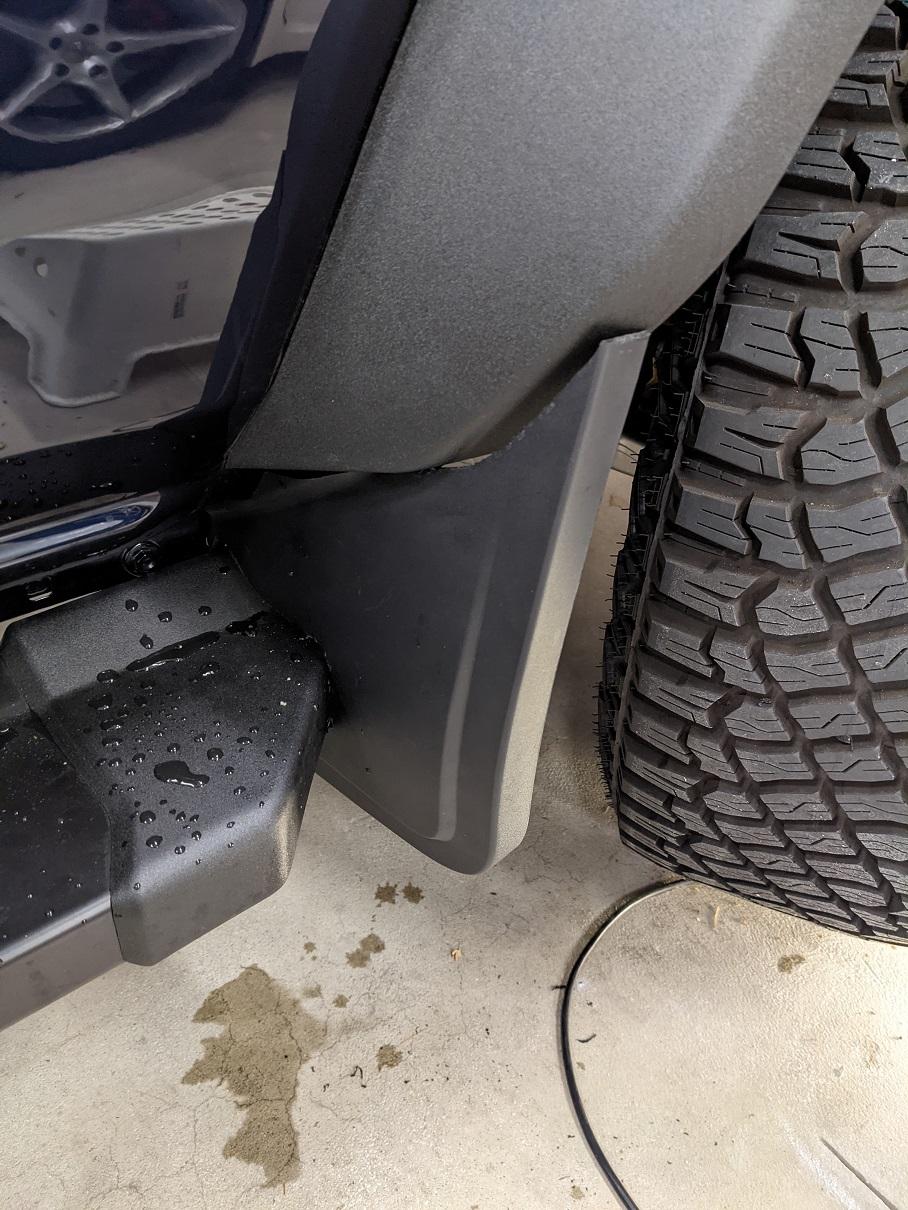

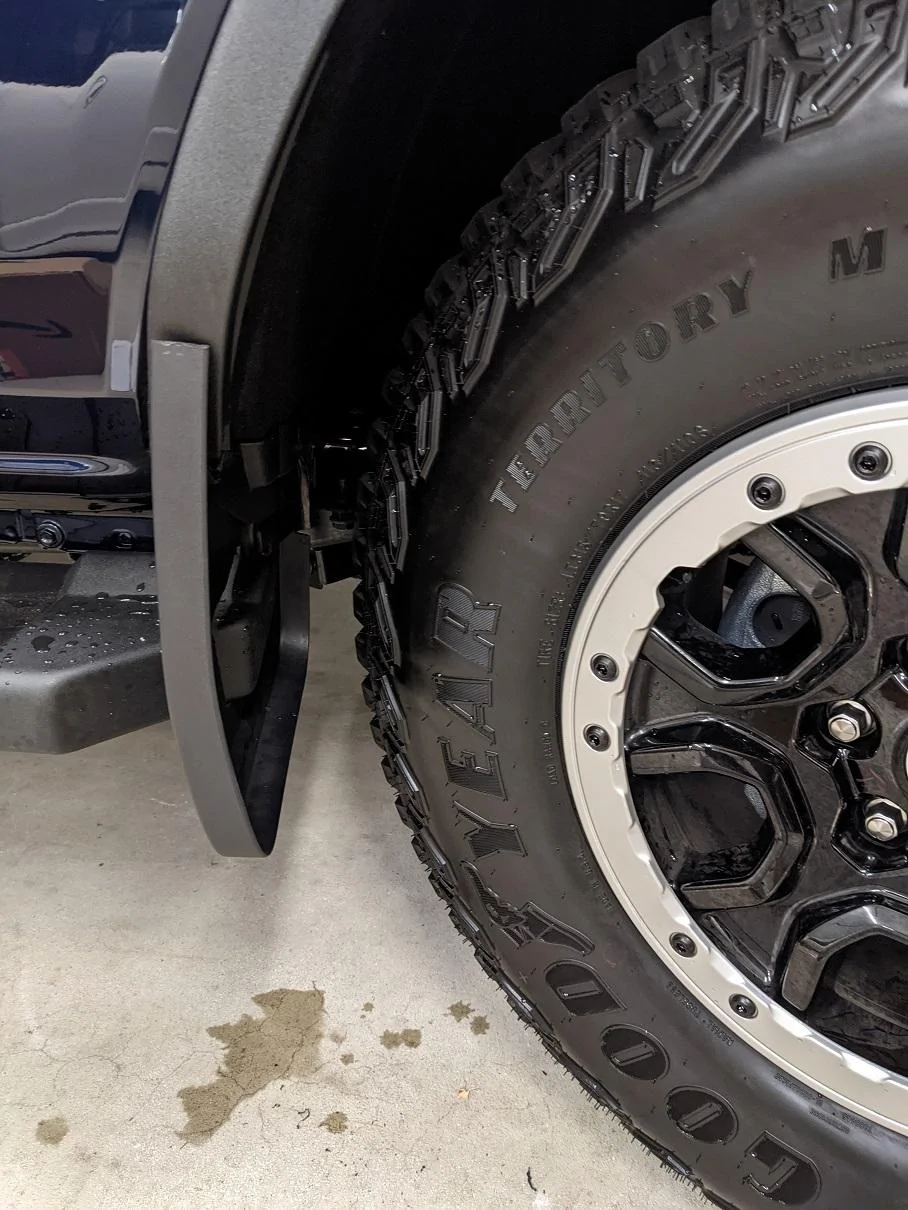

That's it. Put it all together now. The mudflap kit comes with some extra bolts if you want to secure it in place with more then the 2 screws. I did a test drive at 85mph and they didn't loosen. And there's no rub on the tires lock to lock. Easy peasy!








Note that the rear mudflaps part #M2DZ16A550BB have 3 screwholes that you'd think would line up with the 3 screwholes in the rear bumper but they don't. So you'll need to drill new holes to mount those. Should be easy peasy with no cutting but I haven't done so yet.
Advertisement


Last edited:

dcaero

Outer Banks
Well-Known Member
Joined
Aug 26, 2021
Messages
197
Reaction score
277
Location
Colorado
Vehicle(s)
Mazda CX5
Bronco
Outer Banks
Very clever, I expect others to follow as this is a cheap fix!


geoking

Outer Banks
Well-Known Member
First Name
george
Joined
Aug 2, 2020
Messages
103
Reaction score
106
Location
Huntsville,AL
Vehicle(s)
2020 GT500 , 2020 F150, 1934, 1948, 1958 , 1966
Bronco
Outer Banks
Eventually someone will come out with a proper mudflap for an SAS with factory side step bars. But my paintjob won't wait that long. Someone else had posted a pic of modifying the factory mudflaps so I purchased them. Ford part #M2DZ16A550AA. Here's how easy it is to mount them. I'm just a garage mechanice:

1. Turn the wheel to get it out of the way. For right side flap turn it left. For left side flap turn it right.
2. Remove the 2 screw plugs from the bottom of the inner fender lining and either remove the fender flare or at least the first 2 latches:

2. Line the holes in the flap with the 2 holes in the inner fender. I put a screwdriver in each hole to keep them aligned.
3. Using a pencil, trace the area you'll need to cut to clear the step. Remove from the car and then use a sharpie of the pencil so you can see the line better:

4. Using a Dremel tool or your favorite cutting device, cut the hole. Better to cut small and then have to go back and cut more:

I used a side cutter to make neat corners:

Test fit. You'll find that the the further you slide the flap onto the step the larger the hole will need to be. You'll want the flap to rest against the inner fender without flexing it. Once you're done you can clean up the edges of your hole with a file or sandpaper.
5. You'll need to trim the top of the flap off in order to clear the fender flare. Put the fender flare back in place, line the flap up with the 2 holes again, and now you can trace out the cut to the flap:

That's it. Put it all together now. The mudflap kit comes with some extra bolts if you want to secure it in place with more then the 2 screws. I did a test drive at 85mph and they didn't loosen. And there's no rub on the tires lock to lock. Easy peasy!








Note that the rear mudflaps part #M2DZ16A550BB have 3 screwholes that you'd think would line up with the 3 screwholes in the rear bumper but they don't. So you'll need to drill new holes to mount those. Should be easy peasy with no cutting but I haven't done so yet.


Thank you Alan..... and the rear set M2DZ16A550BB. I appreciate your post as I just went on line and ordered . I'm still always surprised at how different the prices are when searching .

First Name
Brian
Joined
Oct 1, 2021
Messages
22
Reaction score
37
Location
Roswell
Vehicle(s)
Bronco
Bronco
Outer Banks
Clubs

Thanks for the details. This great.


Cat

Wildtrak
Well-Known Member
First Name
Cat
Joined
Jul 26, 2020
Messages
1,221
Reaction score
3,188
Location
Whidbey Island, WA
Vehicle(s)
1986 F150 Stepside, MB 500SL, HD Road King Custom
Bronco
Wildtrak
Vehicle Showcase
1
Clubs

Eventually someone will come out with a proper mudflap for an SAS with factory side step bars. But my paintjob won't wait that long. Someone else had posted a pic of modifying the factory mudflaps so I purchased them. Ford part #M2DZ16A550AA. Here's how easy it is to mount them. I'm just a garage mechanice:

1. Turn the wheel to get it out of the way. For right side flap turn it left. For left side flap turn it right.
2. Remove the 2 screw plugs from the bottom of the inner fender lining and either remove the fender flare or at least the first 2 latches:

2. Line the holes in the flap with the 2 holes in the inner fender. I put a screwdriver in each hole to keep them aligned.
3. Using a pencil, trace the area you'll need to cut to clear the step. Remove from the car and then use a sharpie of the pencil so you can see the line better:

4. Using a Dremel tool or your favorite cutting device, cut the hole. Better to cut small and then have to go back and cut more:

I used a side cutter to make neat corners:

Test fit. You'll find that the the further you slide the flap onto the step the larger the hole will need to be. You'll want the flap to rest against the inner fender without flexing it. Once you're done you can clean up the edges of your hole with a file or sandpaper.
5. You'll need to trim the top of the flap off in order to clear the fender flare. Put the fender flare back in place, line the flap up with the 2 holes again, and now you can trace out the cut to the flap:

That's it. Put it all together now. The mudflap kit comes with some extra bolts if you want to secure it in place with more then the 2 screws. I did a test drive at 85mph and they didn't loosen. And there's no rub on the tires lock to lock. Easy peasy!








Note that the rear mudflaps part #M2DZ16A550BB have 3 screwholes that you'd think would line up with the 3 screwholes in the rear bumper but they don't. So you'll need to drill new holes to mount those. Should be easy peasy with no cutting but I haven't done so yet.
Omg...your adorable. Thank you.

Last edited:

Blue's B6G

Banned
Outer Banks
Banned
Banned
First Name
Jeremy
Joined
Aug 24, 2021
Messages
540
Reaction score
1,403
Location
Los Angeles
Vehicle(s)
2021 Bronco OB 2-Door V6 Sasquatch AMB High Pack
Bronco
Outer Banks
Mud flaps are nearly as pervasive as scripts on four doors.

🤦🏻‍♂️


gizmohd

Badlands
Well-Known Member
First Name
Darren
Joined
Apr 22, 2021
Messages
313
Reaction score
563
Location
Florida
Vehicle(s)
Bronco Sport (Wife), Ram 1500
Bronco
Badlands
Clubs

i'm surprised somebody hasnt made a template that the community can download and use to cut out the flaps.. :)

<hint hint>

LOL


Oceannomad

Badlands
Well-Known Member
First Name
Jonathan
Joined
Apr 15, 2021
Messages
1,346
Reaction score
3,258
Location
SE Virginia
Vehicle(s)
2021 Audi Q7
Bronco
Badlands
Cool, adding a dremel tool to my Christmas wish list


buzpro

Outer Banks
Well-Known Member
First Name
Binky
Joined
Aug 2, 2020
Messages
1,203
Reaction score
1,667
Location
Arizona
Vehicle(s)
Tacoma
Bronco
Outer Banks
Clubs

AGAIN, I'm surprised at Ford .... how can they sell these mud flaps without the cutouts being pre-cut, when they know there is interference!


lakesinai

Outer Banks
Well-Known Member
First Name
John
Joined
Mar 22, 2021
Messages
1,020
Reaction score
1,385
Location
Charleston SC
Vehicle(s)
2021 Bronco 4dr OBX MIC 2.7 Rear Locker A51 Roast
Bronco
Outer Banks
Eventually someone will come out with a proper mudflap for an SAS with factory side step bars. But my paintjob won't wait that long. Someone else had posted a pic of modifying the factory mudflaps so I purchased them. Ford part #M2DZ16A550AA. Here's how easy it is to mount them. I'm just a garage mechanice:

1. Turn the wheel to get it out of the way. For right side flap turn it left. For left side flap turn it right.
2. Remove the 2 screw plugs from the bottom of the inner fender lining and either remove the fender flare or at least the first 2 latches:

2. Line the holes in the flap with the 2 holes in the inner fender. I put a screwdriver in each hole to keep them aligned.
3. Using a pencil, trace the area you'll need to cut to clear the step. Remove from the car and then use a sharpie of the pencil so you can see the line better:

4. Using a Dremel tool or your favorite cutting device, cut the hole. Better to cut small and then have to go back and cut more:

I used a side cutter to make neat corners:

Test fit. You'll find that the the further you slide the flap onto the step the larger the hole will need to be. You'll want the flap to rest against the inner fender without flexing it. Once you're done you can clean up the edges of your hole with a file or sandpaper.
5. You'll need to trim the top of the flap off in order to clear the fender flare. Put the fender flare back in place, line the flap up with the 2 holes again, and now you can trace out the cut to the flap:

That's it. Put it all together now. The mudflap kit comes with some extra bolts if you want to secure it in place with more then the 2 screws. I did a test drive at 85mph and they didn't loosen. And there's no rub on the tires lock to lock. Easy peasy!








Note that the rear mudflaps part #M2DZ16A550BB have 3 screwholes that you'd think would line up with the 3 screwholes in the rear bumper but they don't. So you'll need to drill new holes to mount those. Should be easy peasy with no cutting but I haven't done so yet.
How noisey are those Territory tires at 75-80 mph? Do they handle well?

OP
OP
AlanP

AlanP

Outer Banks
Member
First Name
Alan
Joined
Nov 15, 2021
Messages
15
Reaction score
73
Location
New Jersey
Vehicle(s)
2021 Bronco OBX SAS Antimatter Blue
Bronco
Outer Banks
How noisey are those Territory tires at 75-80 mph? Do they handle well?
Compared to my soft top JK the Bronco 2dr hardtop is quieter. Bir I will go to a quieter BF Goodrich all terrain when these wear out.

OP
OP
AlanP

AlanP

Outer Banks
Member
First Name
Alan
Joined
Nov 15, 2021
Messages
15
Reaction score
73
Location
New Jersey
Vehicle(s)
2021 Bronco OBX SAS Antimatter Blue
Bronco
Outer Banks
AGAIN, I'm surprised at Ford .... how can they sell these mud flaps without the cutouts being pre-cut, when they know there is interference!
Judging by how different the alignment was from the left to the right, I wouldn't trust Ford to have each vehicle built identical enough lol


RogueSqdn

First Edition
Well-Known Member
First Name
Jared
Joined
May 11, 2021
Messages
266
Reaction score
634
Location
Advance, NC
Vehicle(s)
2021 Bronco
Bronco
First Edition
Clubs

I'm glad I ran into this thread. I just got my FE on Friday and had to get the step bars put on for my wife's mobility issues. I've already picked a few rocks out of the tires and am concerned about the paint.
