I know there have been a lot of folks doing various rear seat delete storage systems, but I thought folks might be interested in a bit of a different approach that I wound up taking.

The 2 door's rear seats are not great for a dog, and I don't love having a dog bed on top of them, so I just removed them. This is a 2 people + dog car. It is currently our only car (we also have a bronco sport, but it's back in TX right now, sadly - I miss it and they're underrated). However, I don't need to carry other folks, only us. I also need cargo room, and the back seats take up a fair bit of space. I removed them really early on and have just been throwing a dog bed back there for a long time, often on top of some crates of gear. However, I wanted to be able to put more gear under the dog and also have him a bit higher up so he gets better views. Now that we're fully in spring, I really wanted to be able to have a better camping setup, and the "dog bed on top of stuff" just wasn't cutting it.

For background, I'm in a bit of an odd spot. My wife's job was temporarily relocated (I work remotely anyway), so all of our stuff is back in TX, and we're in UT for a year or so. Hopefully this will become permanent, but we can't actually move until it does and we're in corporate housing until then. Therefore I don't have a ton of tools with me. I needed a rear seat delete dog-seat solution + space for gear underneath the dog, but I also needed to build it with minimal tools. I don't mind buying a duplicate hand saw, and I have a drill with me at least, but I'm not doubling up on other things. That kinda eliminates plywood from the equation.

I also wanted a shelf instead of drawers, as I prefer having camping gear in crates/tubs that I can easily pull out from either side of the car and set on the ground as needed. Drawers are great and all, but they're heavy and more limited than crates in a lot of ways (especially if you want to only have camping gear in the car when you're going camping). I also needed something I could remove easily to put the seats back in case I have to for inspections or if someone visits.

It turns out that 42"x30" is a semi-common NSF wire shelf size because it fits 6 legal document boxes. That happens to also exactly fit the area where the rear seats go in the 2 door. It's also easy to either find short (e.g. 7") wire shelf legs or modify existing ones to the size you want. I used the "off the shelf" shelf (can't help my self) as the basis of this. 42x30 also happens to be a somewhat common size for dog beds, so I was able to find one that exactly fits on top.

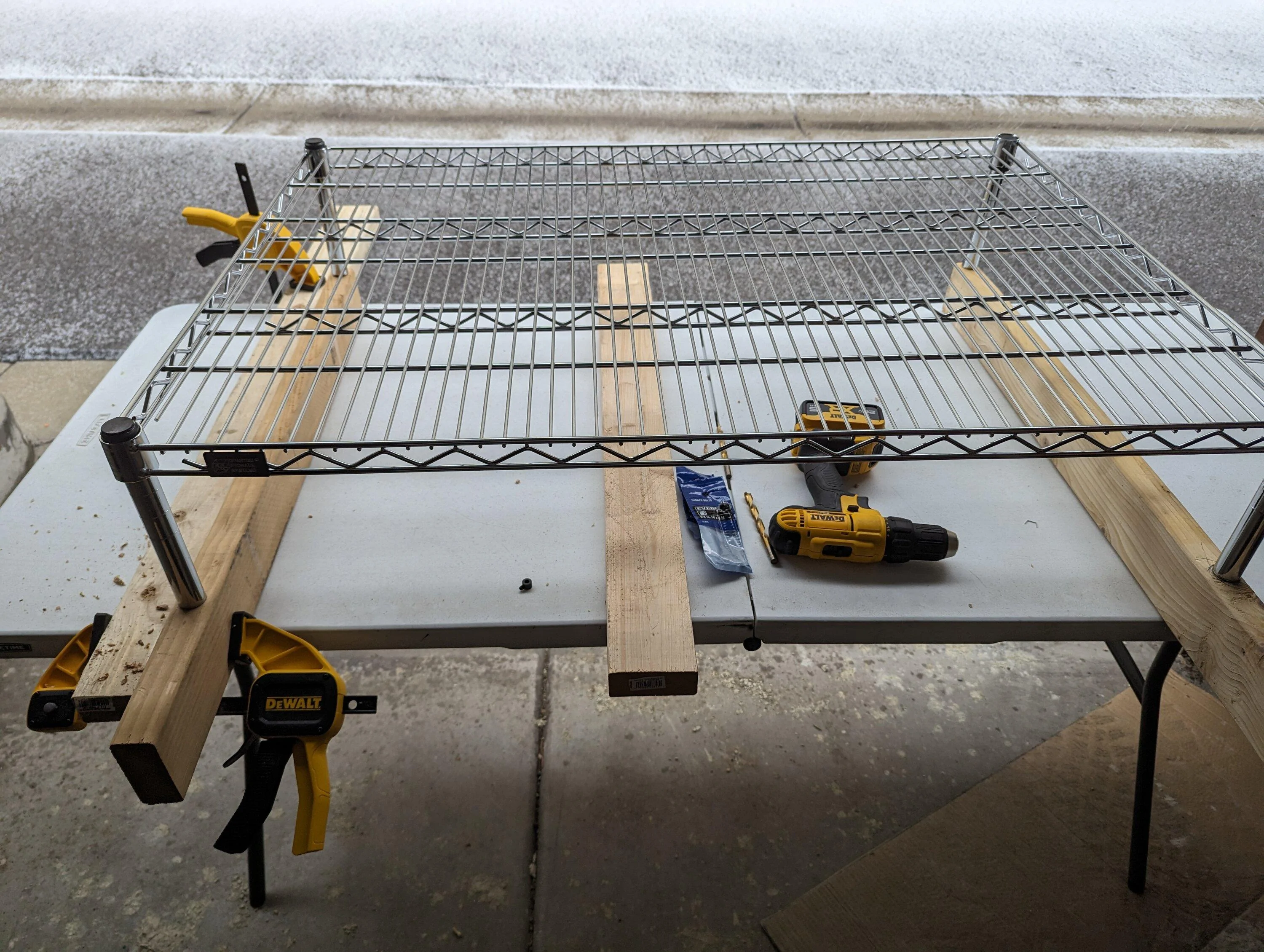

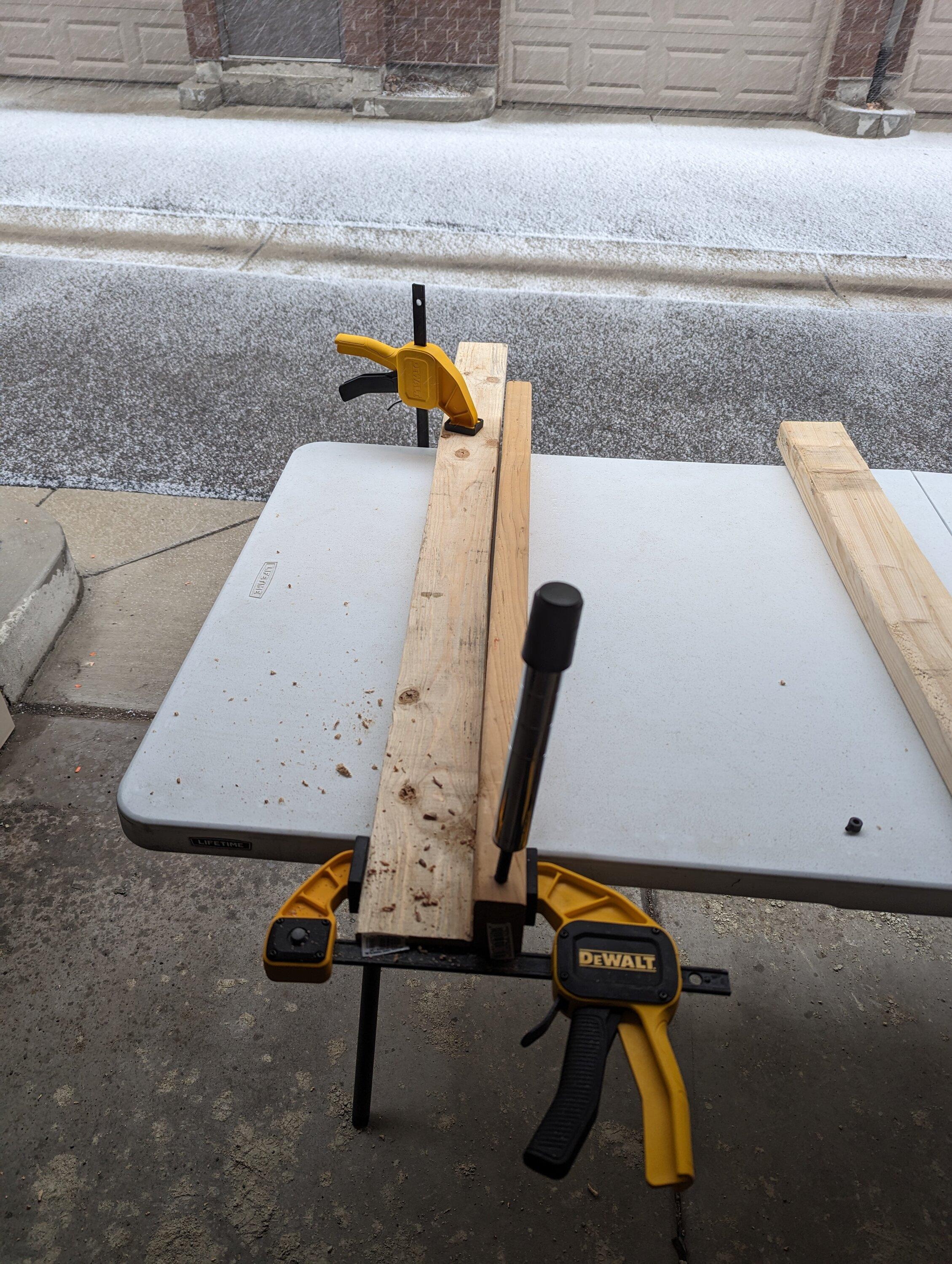

I used some 2x4's and 2x1's and bought some clamps (can never have too many of those) and a hand saw. I some 3/8" diameter hangar bolts (i.e. double-sided screws - one end is a machine screw, one end is a wood screw) to screw into the wood and then have the other thread into the legs for the wire shelf. This would work a lot better with a drill press, obviously, but I was able to use the clamps to at least keep the holes I was drilling somewhat-kinda square. Thankfully the wire shelving system is very tolerant of the legs not being precisely vertical. I used vertical 2x4's as runners down the side to mount the hangar bolts and shelf legs in. It's perhaps a bit high, but I can always shorten the metal shelf legs if needed or move the shelf down on them. I also cut out some notches in the boards to fit them over the seatbelt attachment points on the side (there's another stud poking up there, so even if you detatch them, you'd still need the notch).



Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240406_204207976

Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240406_204404774 (1)

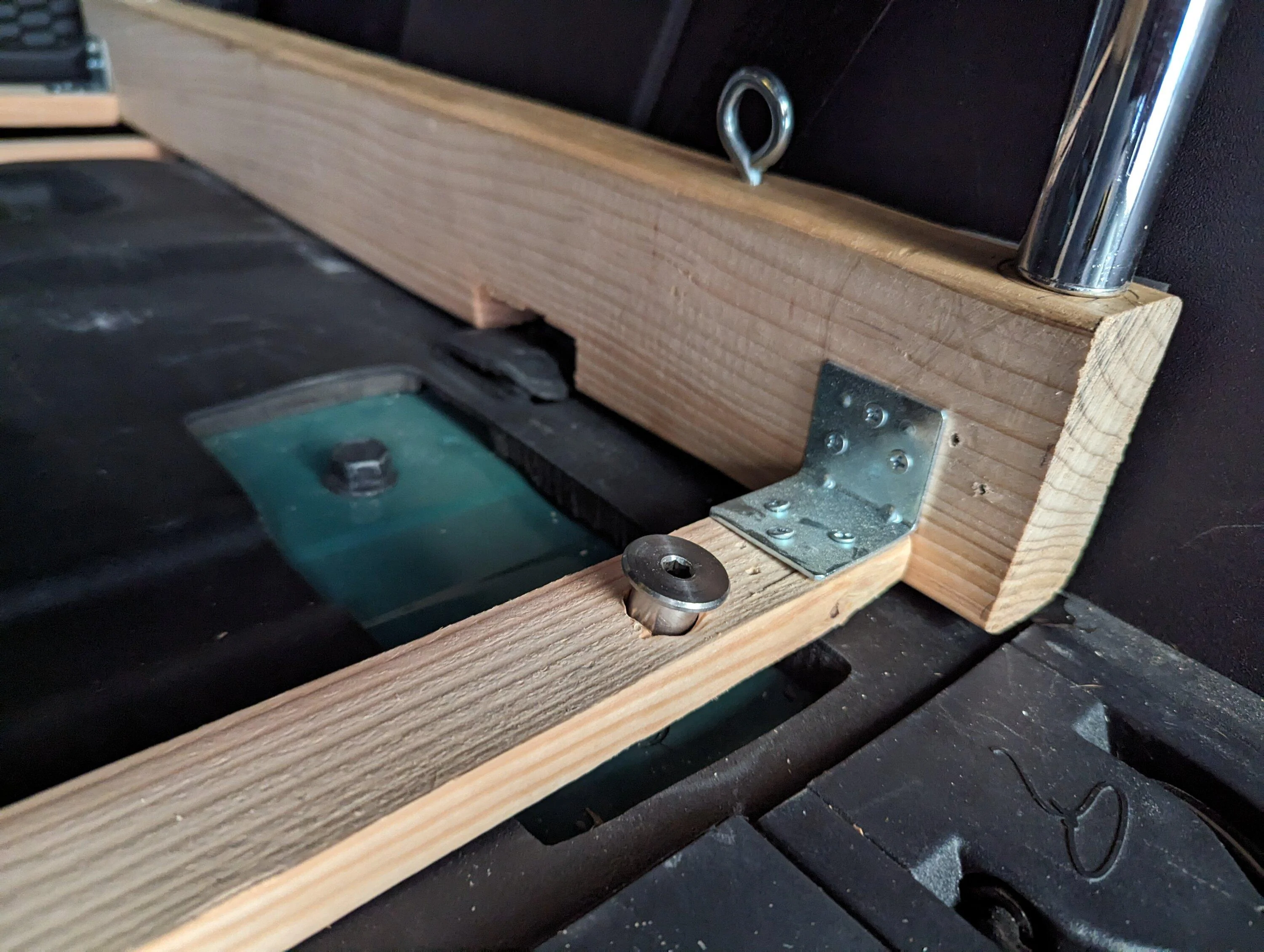

I was able to find some sleeve nuts in the right size to bolt onto the threaded studs that come up from the floor as part of the seat mounts. If you can't find them locally, they're these: https://belmetric.com/ultra-low-profile-allen-sleeve-nut-stainless-steel/?sku=NSLEEVE12LOWSS The nuts were key because they allow mounting the base via a 1x2 going across and still have things essentially flush with the top of the board. The board makes a nice "lip" to keep boxes from being able to too easily slide back while still being low enough to be able to fit a 10" high crate beneath the shelf. I coarsely located the hole locations by assembling the shelf with the 2x4 runners, cutting a 1x2 to the right length to fit inside, inking the top of the studs with a sharpie, and pressing the board down. I knew I couldn't get things too precise with a paddle bit, so I drilled it, then used a dremel tool (hand rasp would have been fine, but I had the dremel with me for other reasons) to smooth things out and expand the holes in the wood as needed to make the nuts thread on. E.g. here's one that's not yet screwed down just to give a sense of it:
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240411_011232826

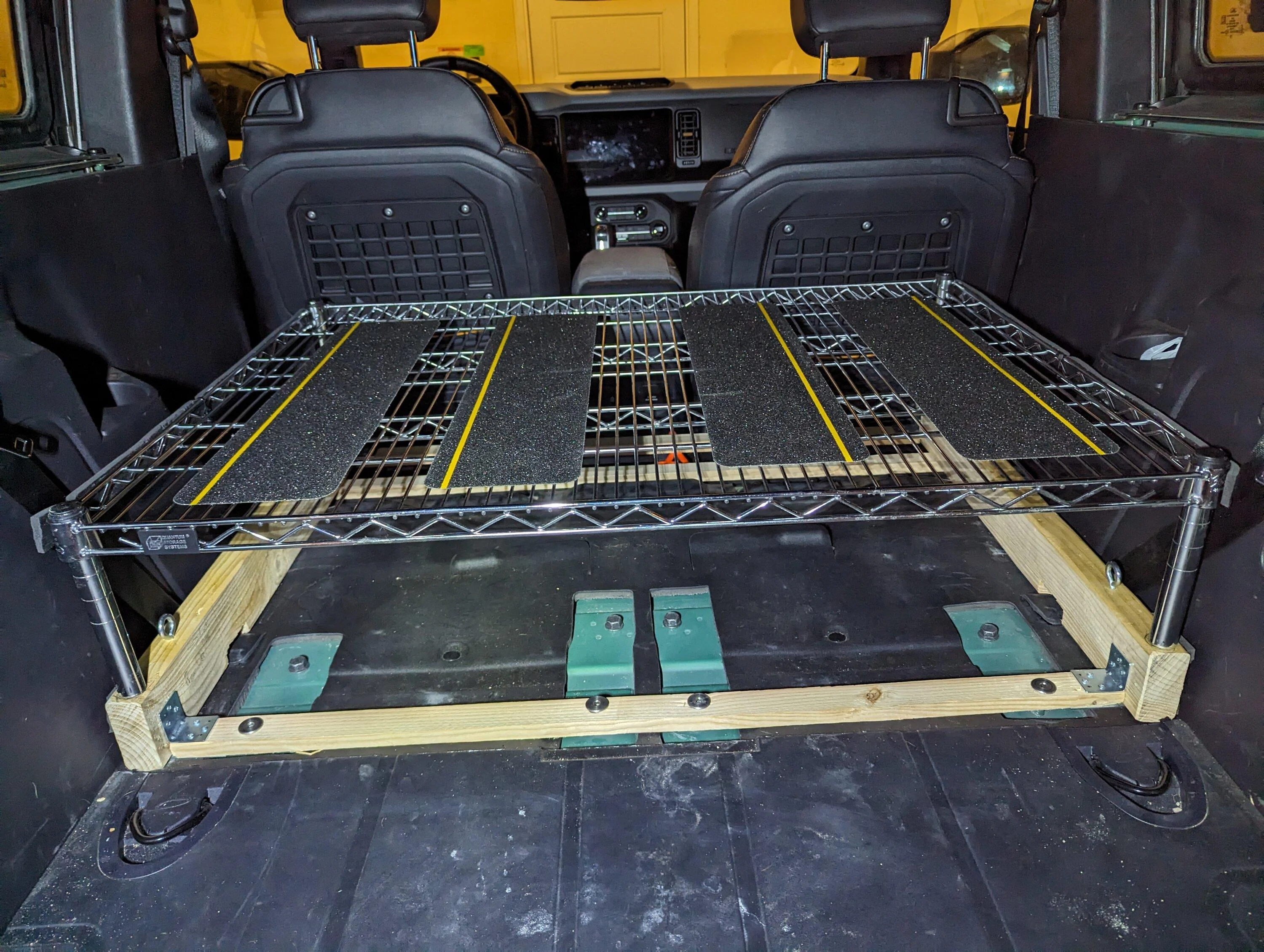

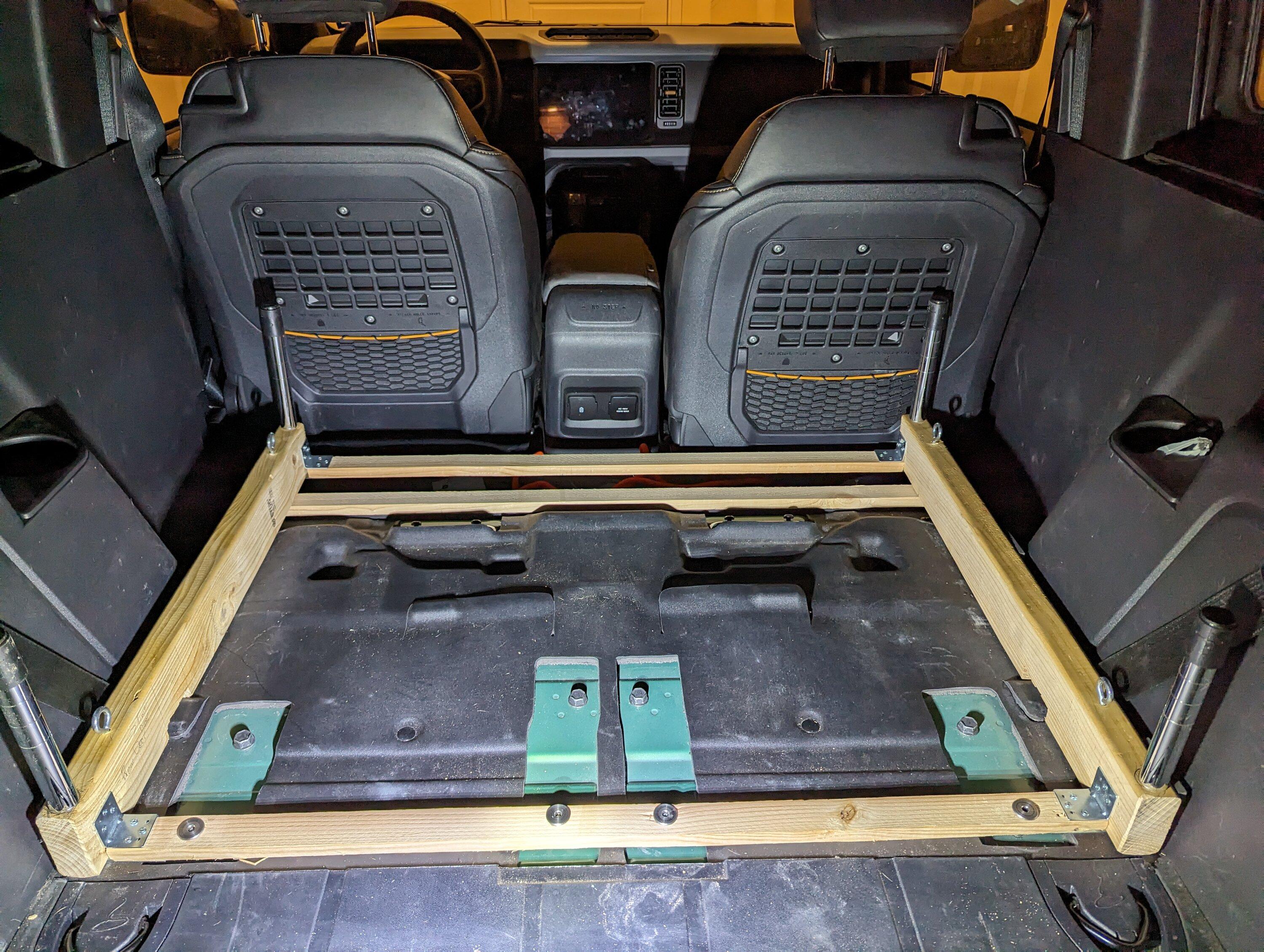

In the end, the base mounted nicely. I added a "dropped down" 1x2 on the back to give some support right before the higher portion of the back ends (there's a bit of a ledge it fits on quite well). I then added some foam tape along the sides and on the bottom where needed. That hopefully will help avoid scuffs when removing the platform and also if it wiggles side to side a bit under load. I also put on some stick-on traction strips for steps to keep the dog bed from sliding around, as well as some eye bolts in the runners to strap down crates if I need to.

Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240411_040146879
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240411_040323490

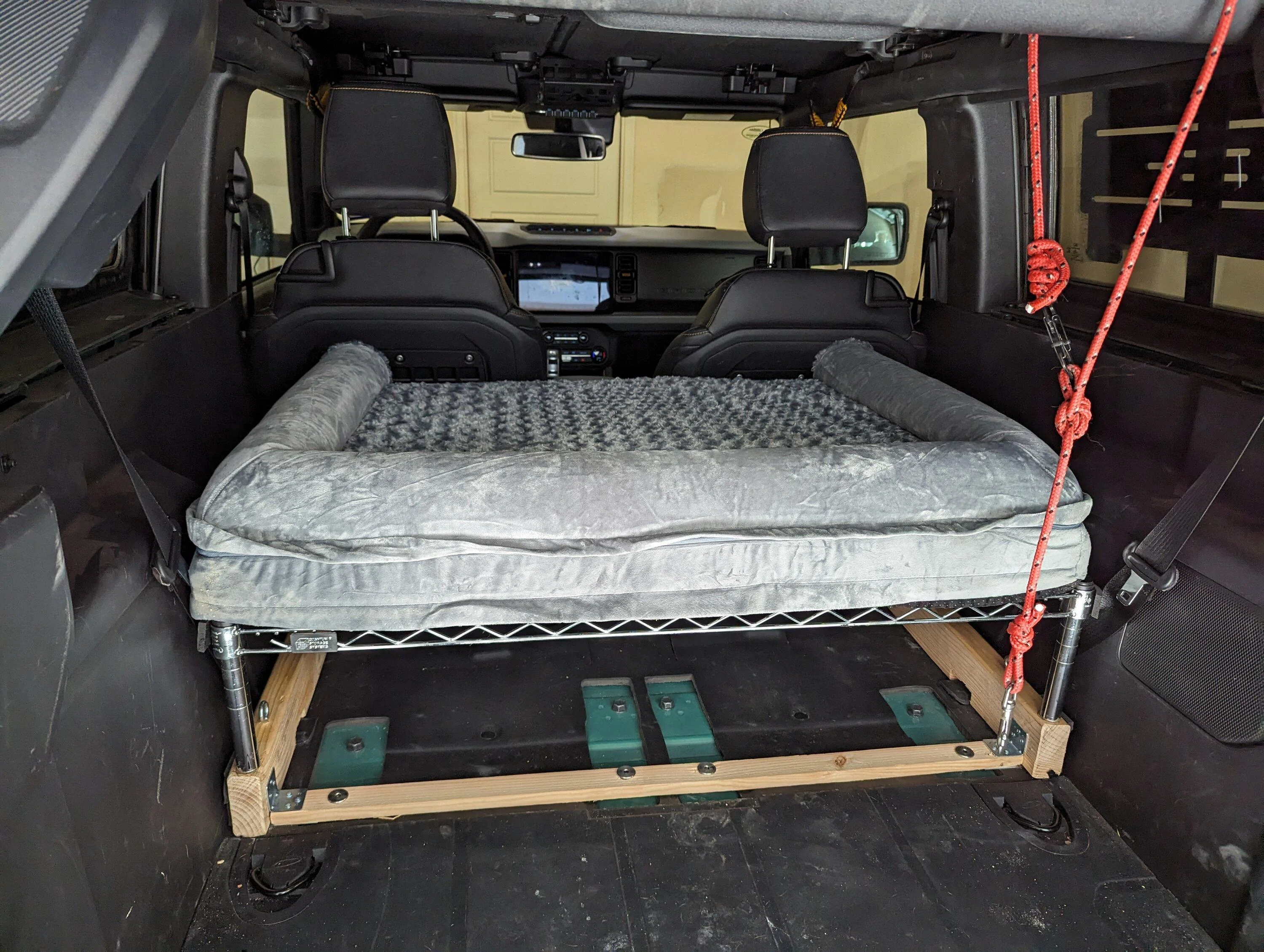

The dog bed fits nicely and it appears Copper approves! He likes being higher up for sure. I have been clipping him to a rigged up leash around the roll bar, which keeps him from climbing into the front seats and avoids him jumping out if we don't want him to. He seems to like the setup, anyway! I'm quite happy with it. We'll see how the plastic shelf mount sleeves around the metal legs hold up to rattling around. They're cheap and easy to get, though, so if I have to replace them now and again, it's no big deal. Things seem very solid and way more than strong enough to support an 80lb dog (the shelf is rated for 800lbs, though I would not want a ton on it in a car - static vs dynamic loads and all that).

Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240411_144209743


Bonus pup pic:
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240411_144218494
Sponsored


Last edited:

KRAKEN

Black Diamond
Well-Known Member
First Name
Andy
Joined
May 23, 2023
Threads
31
Messages
535
Reaction score
1,631
Location
North Alabama
Vehicle(s)
2023 2 DOOR BRONCO, 2014 F150 XLT, 2006 F150 FX4
Your Bronco Model
Black Diamond
Great job... that is a very good idea.


Offroadalliance

Base
Well-Known Member
Lux Sponsor (Level 2)
Joined
Feb 15, 2022
Threads
53
Messages
209
Reaction score
153
Location
Boston
Website
www.offroadalliance.com
Vehicle(s)
Bronco
Your Bronco Model
Base
That was a wonderful solution and turned out great! Pups got the best view in the house!


kojack19

Badlands
Well-Known Member
First Name
John
Joined
Dec 4, 2022
Threads
5
Messages
299
Reaction score
468
Location
CT
Vehicle(s)
Ford F150 Raptor
Your Bronco Model
Badlands
Clubs

great solution, better pup!


Sponsored

Missy

Wildtrak
Well-Known Member
First Name
Melissa
Joined
Oct 25, 2023
Threads
0
Messages
48
Reaction score
59
Location
Lafayette, LA
Vehicle(s)
2022 Bronco 4 door Wildtrak
Your Bronco Model
Wildtrak
Clubs

Wow! You did an amazing job! Pup has to be so happy! Hubby's 2 door, he did seat delete, but purchased a rear system that slides out, we will use it camping for the first time in May, so far it is nice for going to Costco, and the plant nursery. I have a 4 door and my entire back is the kitchen, so mine is useless to haul things, except for extra people.


HotdogThud

Big Bend
Well-Known Member
Joined
Jan 14, 2021
Threads
23
Messages
2,573
Reaction score
14,178
Location
Arizona
Vehicle(s)
mk6 gti, '21 MoarDoor
Your Bronco Model
Big Bend
Clubs

This is pleasing to me, mostly because my mongrel tried to get into the truck about a year and a half ago and failed hilariously, landing square on his ass in the process.

I open the door for him now and he just walks back into the house. What a jerk.


nabronco21

Badlands
Well-Known Member
First Name
Nick
Joined
Jan 8, 2022
Threads
7
Messages
292
Reaction score
454
Location
Pennsylvania
Vehicle(s)
2021 ford bronco/2008 ford ranger
Your Bronco Model
Badlands
Clubs

Looks nice and simple great work. I like the pup too, he's a cool looking dog.


nolimits

Badlands
Well-Known Member
Joined
Sep 25, 2023
Threads
14
Messages
567
Reaction score
746
Location
USA
Vehicle(s)
23 Badlands
Your Bronco Model
Badlands
Clubs

I'm enjoying my bronco much more with my rear seats delete. Lol they should have an option for "no seats included" 2025 edition
Not a very common option. The Dodge Challenger Demon (super charged) and 1320 (similar, but naturally aspirated) both come with standard passenger and rear seat deletes. For $1, there is an option to add the seats back. Not sure of any others offering this option.

Both the Demon and 1320 are drag race variants and the seat deletes are for weight reduction. I personally opted to add the seats on my 1320. It’s easier to remove them when the need arises.

Monetarily, it’s a wash.


DriveAllNight

Wildtrak
Well-Known Member
First Name
Dan
Joined
Aug 17, 2022
Threads
14
Messages
1,124
Reaction score
3,737
Location
N.J.
Vehicle(s)
One Very Cool Ride
Your Bronco Model
Wildtrak
Playing Devil's Advocate here, with the pup up that high, if you hit the break suddenly, it seems he/she may go flying into the windshield.
I could be over-thinking this, but want to keep them safe 😊


Sponsored

nolimits

Badlands
Well-Known Member
Joined
Sep 25, 2023
Threads
14
Messages
567
Reaction score
746
Location
USA
Vehicle(s)
23 Badlands
Your Bronco Model
Badlands
Clubs

Playing Devil's Advocate here, with the pup up that high, if you hit the break suddenly, it seems he/she may go flying into the windshield.
I could be over-thinking this, but want to keep them safe 😊
I also had that same thought/concern but it appears @jofer has a solution. I think the red rope you see in that picture is the rigging he mentioned.


I have been clipping him to a rigged up leash around the roll bar, which keeps him from climbing into the front seats and avoids him jumping out if we don't want him to.


OP
OP
jofer

jofer

Badlands
Member
First Name
Joe
Joined
Oct 1, 2023
Threads
1
Messages
19
Reaction score
145
Location
Salt Lake City, UT (prev Houston, TX)
Vehicle(s)
'21 Bronco Sport, '23 2dr Bronco Badlands+Sasquatc
Your Bronco Model
Badlands
I also had that same thought/concern but it appears @jofer has a solution. I think the red rope you see in that picture is the rigging he mentioned.
Yeah, exactly. He's clipped to the roll bar and he's wearing a harness when he's in the car. The leash currently isn't strong enough for an actual crash, but it's enough to keep him from flying forward if we slam on the brakes (or, more commonly, keep him from trying to climb into the driver's seat because he wants a better view).

You can get a sense of it here:
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240414_173133086


Also, bonus pup plus bronco pic from last weekend:
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240414_015537500


nolimits

Badlands
Well-Known Member
Joined
Sep 25, 2023
Threads
14
Messages
567
Reaction score
746
Location
USA
Vehicle(s)
23 Badlands
Your Bronco Model
Badlands
Clubs

Yeah, exactly. He's clipped to the roll bar and he's wearing a harness when he's in the car. The leash currently isn't strong enough for an actual crash, but it's enough to keep him from flying forward if we slam on the brakes (or, more commonly, keep him from trying to climb into the driver's seat because he wants a better view).

You can get a sense of it here:


Also, bonus pup plus bronco pic from last weekend:
Good looking pup. Our chocolate lab LOVES going for rides in the Bronco.

I've gone back and forth which is better. She seems to appreciate it when I lay down the backseats and she has more room to roam. But she seems more relaxed with the seat up as she has the back to support her (probably define her space).

OP
OP
jofer

jofer

Badlands
Member
First Name
Joe
Joined
Oct 1, 2023
Threads
1
Messages
19
Reaction score
145
Location
Salt Lake City, UT (prev Houston, TX)
Vehicle(s)
'21 Bronco Sport, '23 2dr Bronco Badlands+Sasquatc
Your Bronco Model
Badlands
This is mostly an excuse to post a cute pup+bronco picture, but for anyone else wondering how high up or not he is on the shelf:
Ford Bronco DIY rear seat delete shelf solution for our dog PXL_20240422_221337045
