So after a couple of weeks of driving, I noticed that the top bolts tend to shake themselves loose. Passenger door started making the clicking noise last week and found the top bolt pretty loose so tightened it up (bottom bolt was fine). This week the driver door started clicking and was once again a loose top bolt with the bottom one being fine.

This is my first "doors optional" vehicle so wasn't sure if this was a common issue or not. I guess it shouldn't be surprising since the bolt goes in upside down and gravity is a thing.
Advertisement



BlueBronco

Badlands
Well-Known Member
Joined
Jul 14, 2020
Messages
2,849
Reaction score
11,011
Location
DFW
Vehicle(s)
'16 F150 KR - '13 JKU Moab - '21 Bronco BL
Bronco
Badlands
Have you taken the doors off yet? The first time I took of my doors and put them back on again I snugged the bolts and did not tighten them. After a few days, the drivers side came loose and made a popping noise when opening and closing. I went back and tightened all the door bolts and have not had any problems since (going on several weeks now).


RednWhite89

Badlands
Well-Known Member
First Name
Evan
Joined
Aug 9, 2020
Messages
545
Reaction score
998
Location
DC
Vehicle(s)
1989 Bronco
Bronco
Badlands
Clubs

Curious if there is a torque spec for the door bolts. Anyone know?

OP
OP
Colt Bronco

Colt Bronco

Badlands
Member
First Name
Chris
Joined
Aug 25, 2021
Messages
17
Reaction score
15
Location
Arkansas
Vehicle(s)
2021 Ford Bronco
Bronco
Badlands
I picked it up from the dealer with the doors off, but I put them back on and tightened the bolts down. This is the first time I've retightened them so will wait and see if they walk on me again.


bbarnshaw

Outer Banks
Well-Known Member
First Name
Bill
Joined
Jun 9, 2021
Messages
75
Reaction score
106
Location
Cherry Hill NJ
Vehicle(s)
GMC 1500 Denali
Bronco
Outer Banks
I just had a bolt loosen and fall off while driving. Heard it hit off the running board. Thought it was loose change until I opened the rear door and it made the clicking noise. Noticed the top bolt had fallen out. Front doors haven't been on in a few weeks so I took one of those bolts and used it on the back door but now need to go find a new flange bolt at Home Depot.


Bonnie6G

Badlands
Well-Known Member
First Name
Kyle
Joined
Mar 3, 2021
Messages
233
Reaction score
286
Location
Denver
Vehicle(s)
Badlands LuxSquatch
Bronco
Badlands
Anyone find a fix for this?


jmadsen

Base
Well-Known Member
First Name
Josh
Joined
Sep 30, 2020
Messages
80
Reaction score
198
Location
Utah
Vehicle(s)
2012 F350, 2017 Explorer, 1945 Ford GPW, 53 C6
Bronco
Base
Locktite, threadlocker? any reason not to use it?
I imagine you would never need to remove the bolts? or are we talking about the bolt that is used to remove the door from hinge or the bolt from hinge to body? I dont have my bronco yet so don't know exactly how this works.


Happy

Black Diamond
Well-Known Member
First Name
Jerry
Joined
Nov 13, 2021
Messages
238
Reaction score
218
Location
Kansas
Vehicle(s)
Jeep CJ5, Wagoneer
Bronco
Black Diamond
Orange threadlock for removable bolts.??
Made to keep bolts from backing off but not a true thread lock lock.


HorizonHunter

Badlands
Well-Known Member
First Name
Joseph
Joined
Oct 13, 2020
Messages
320
Reaction score
422
Location
Chapel Hill, NC
Vehicle(s)
Grand Cherokee Trailhawk
Bronco
Badlands
Clubs

Concerning that they're loosening, but credit to Ford for engineering the early warning click that it's loose, or you didn't tighten it enough in the first place.

OP
OP
Colt Bronco

Colt Bronco

Badlands
Member
First Name
Chris
Joined
Aug 25, 2021
Messages
17
Reaction score
15
Location
Arkansas
Vehicle(s)
2021 Ford Bronco
Bronco
Badlands
Since I really cranked them down they haven't re-loosened so there must be some minimum torque spec. We will see how they hold up now that colder weather is here.

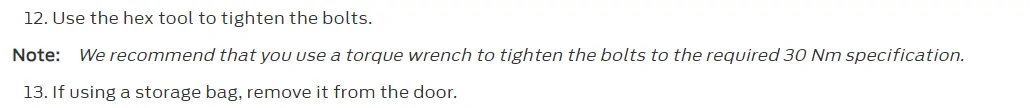

EDIT: just saw the above post on the spec.
