I saw a post on here recently with a very similar idea for door storage, so I decided to give it a shot this weekend because I got tired of hefting my doors around the garage to get to my cabinets...

My garage doubles as my workshop and floor space is at a premium, so instead of making a large 4 door cart, I made 2 2-door carts, that way I can store them more easily when they're not in use. Plus I rarely take off the rear doors (small kids) so I figured this way I can keep one cart up on a storage rack until I need it. Total cost for 2 carts was about $180, including 2 furniture dollies I got at Harbor Freight. The cost of PVC is crazy right now, so fittings are expensive, but overall for my convenience and piece of mind, a very easy $180 to spend.

Anyway, for the important part...

Materials (per cart):
  • one furniture dolly ($17.99 from Harbor Freight)
  • (2) - 3/4" thick scrap wood to fill in sides of dolly, to prevent PVC from sagging
  • (3) - 10' lengths of PVC pipe, I used 1-1/2" ** if you're making 2 carts, 5 lengths will do!** ($30.36)
  • (2) - T-fitting ($8.34)
  • (10) - 90* elbow fittings ($28.50)
  • (4) - 2" pipe straps ($3.12)
  • PVC primer & glue ($10.57)
PVC Pipe Cut List:
  • (6) - 36" - for the vertical pieces
  • (3) - 14" - for the top horizontal pieces
  • (4) - 11" - for the base
I'm still thinking about adding pool noodles for extra insulation, despite having the door bags, but for now they're much more protected than they were leaning against one of my work benches.

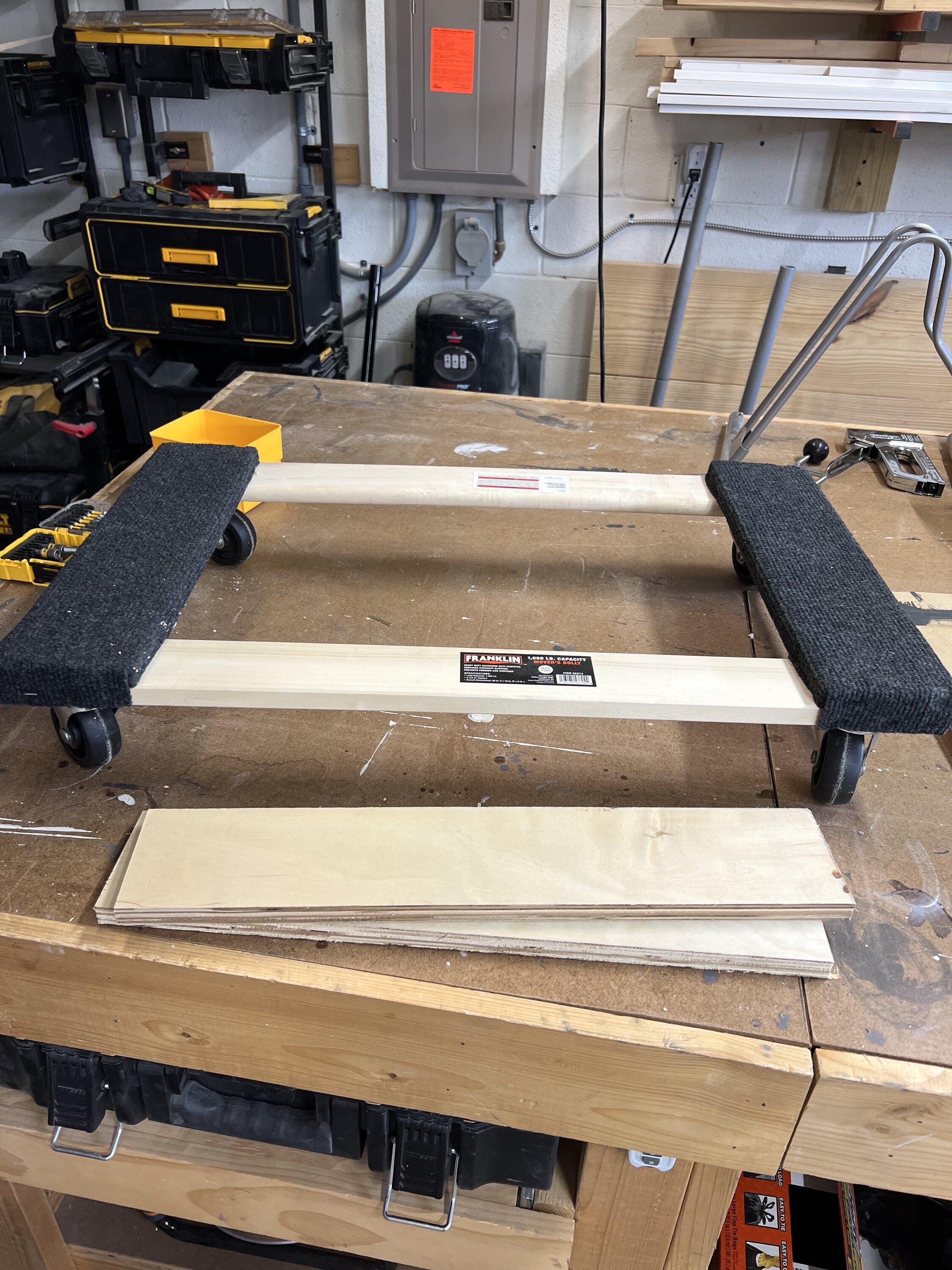

Cart 1.jpg

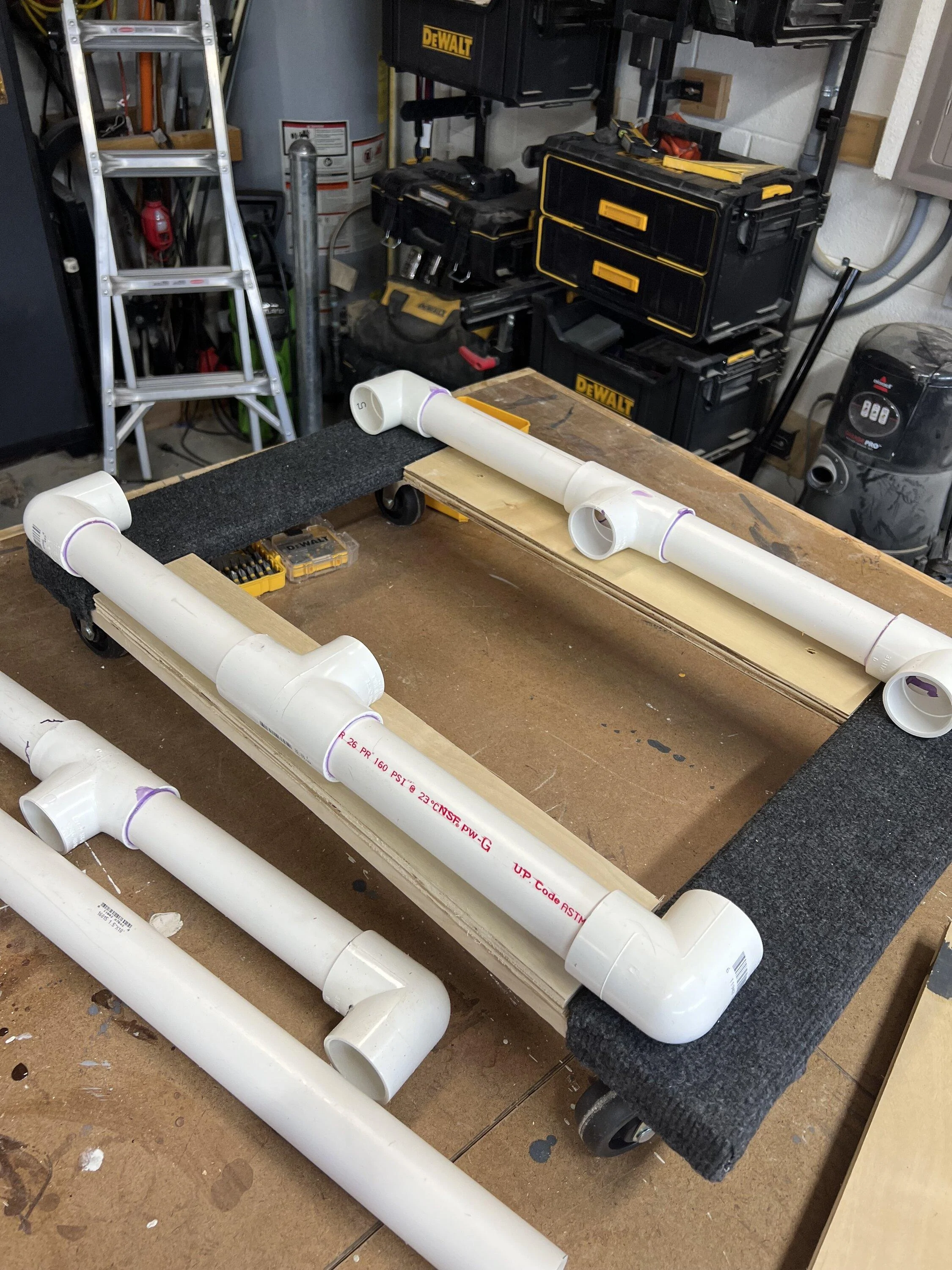

Cart 2.jpg

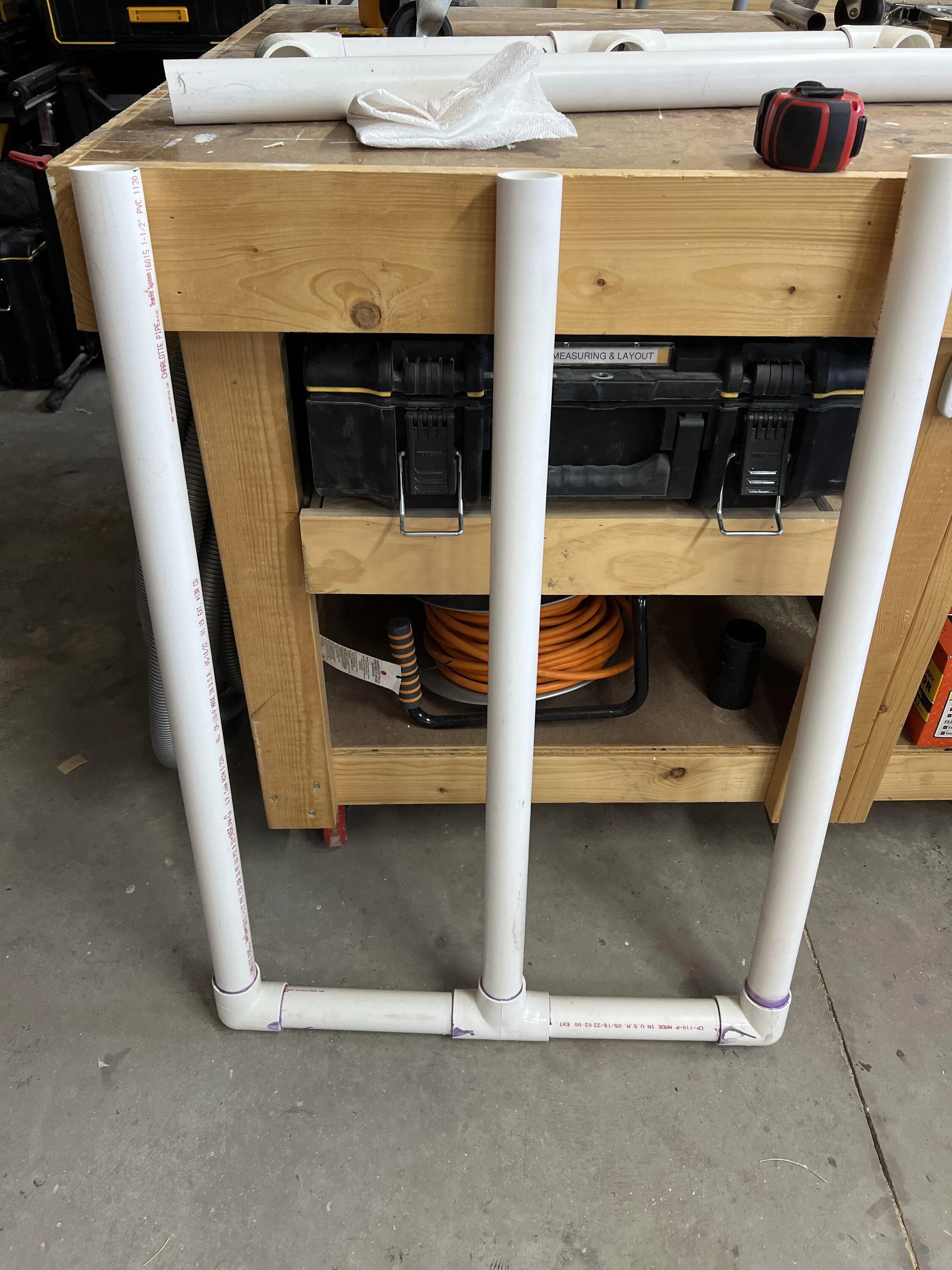

Cart 3.jpg

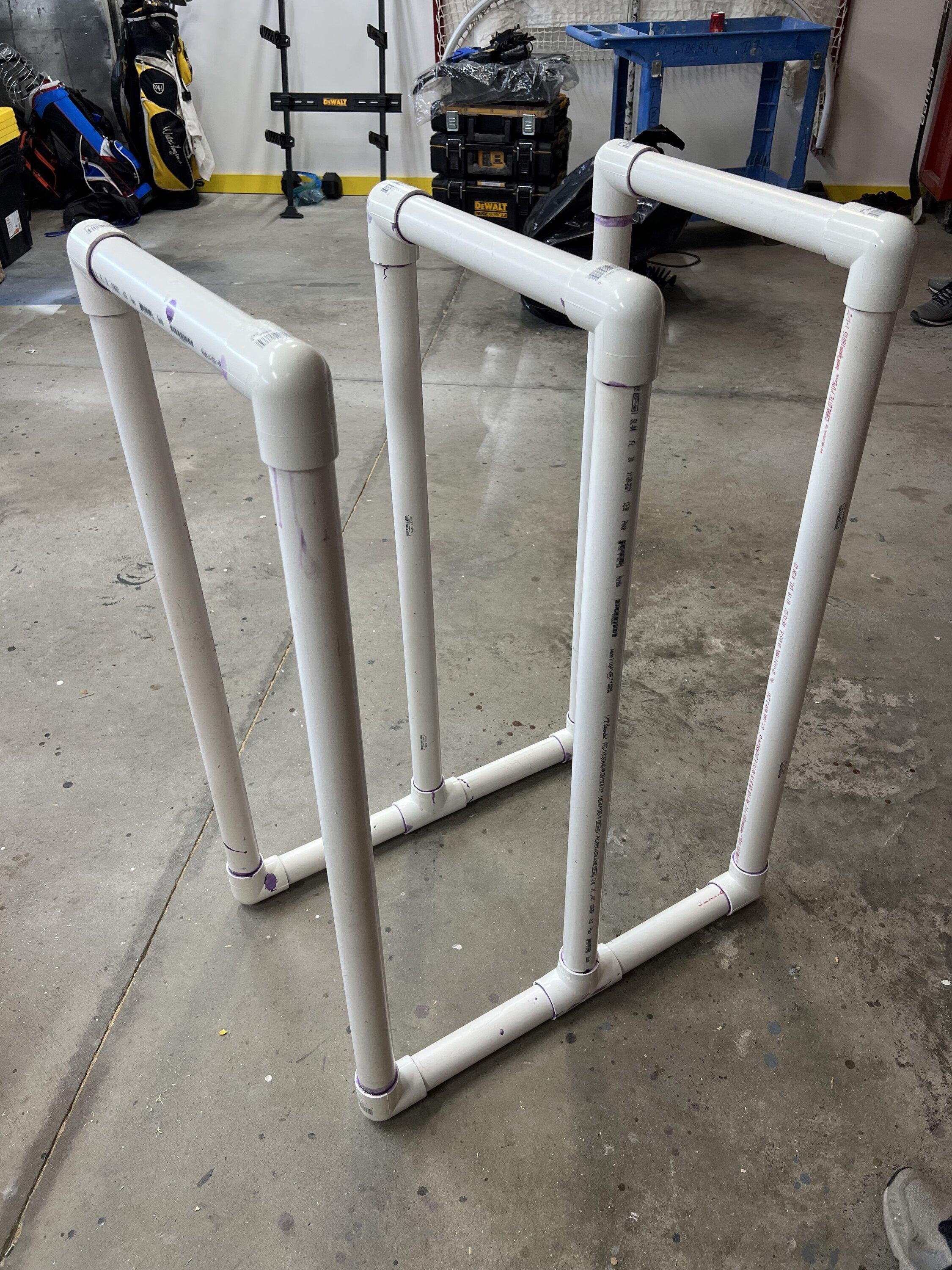

Cart 4.jpg

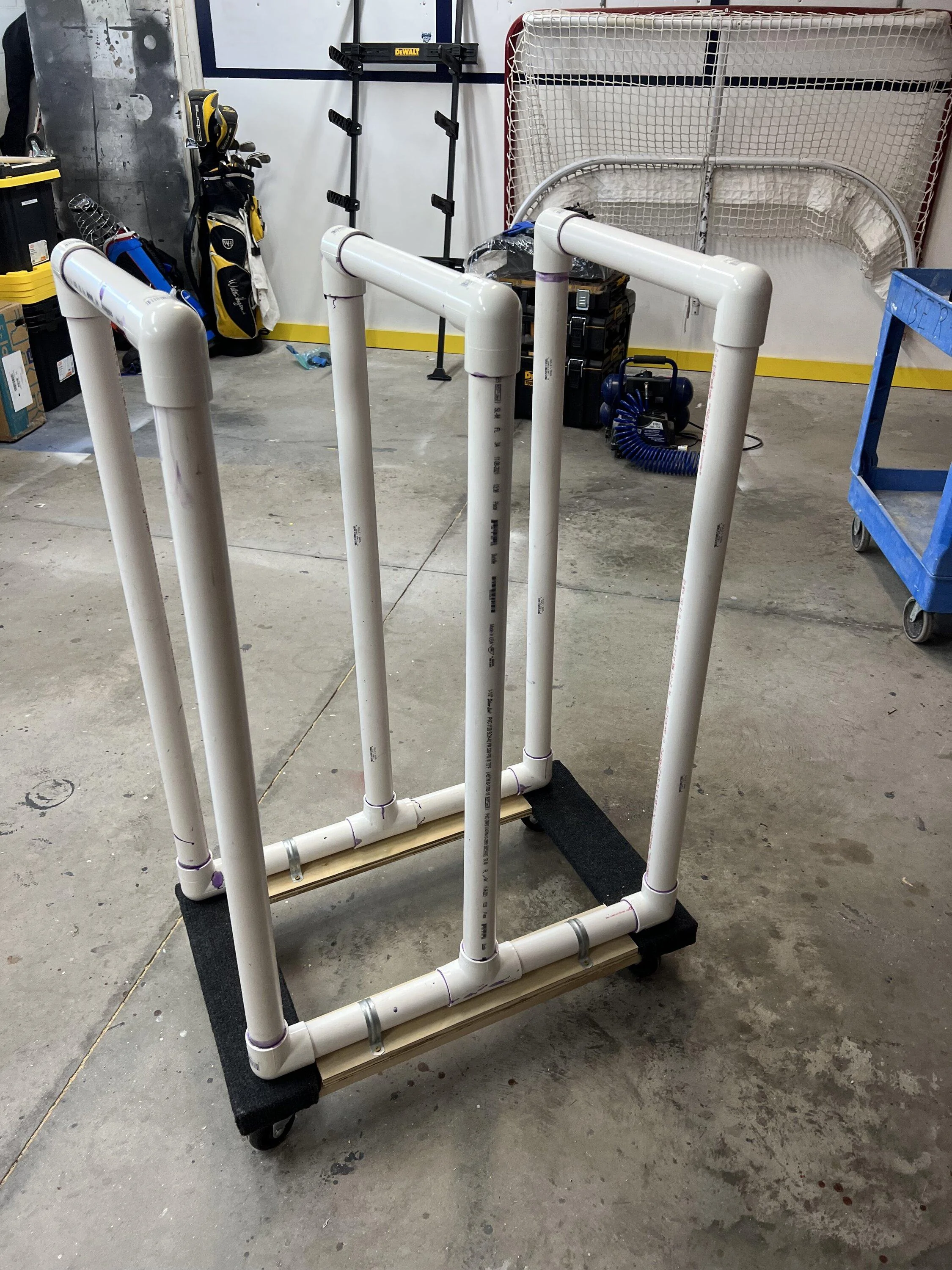

Cart 5.jpg

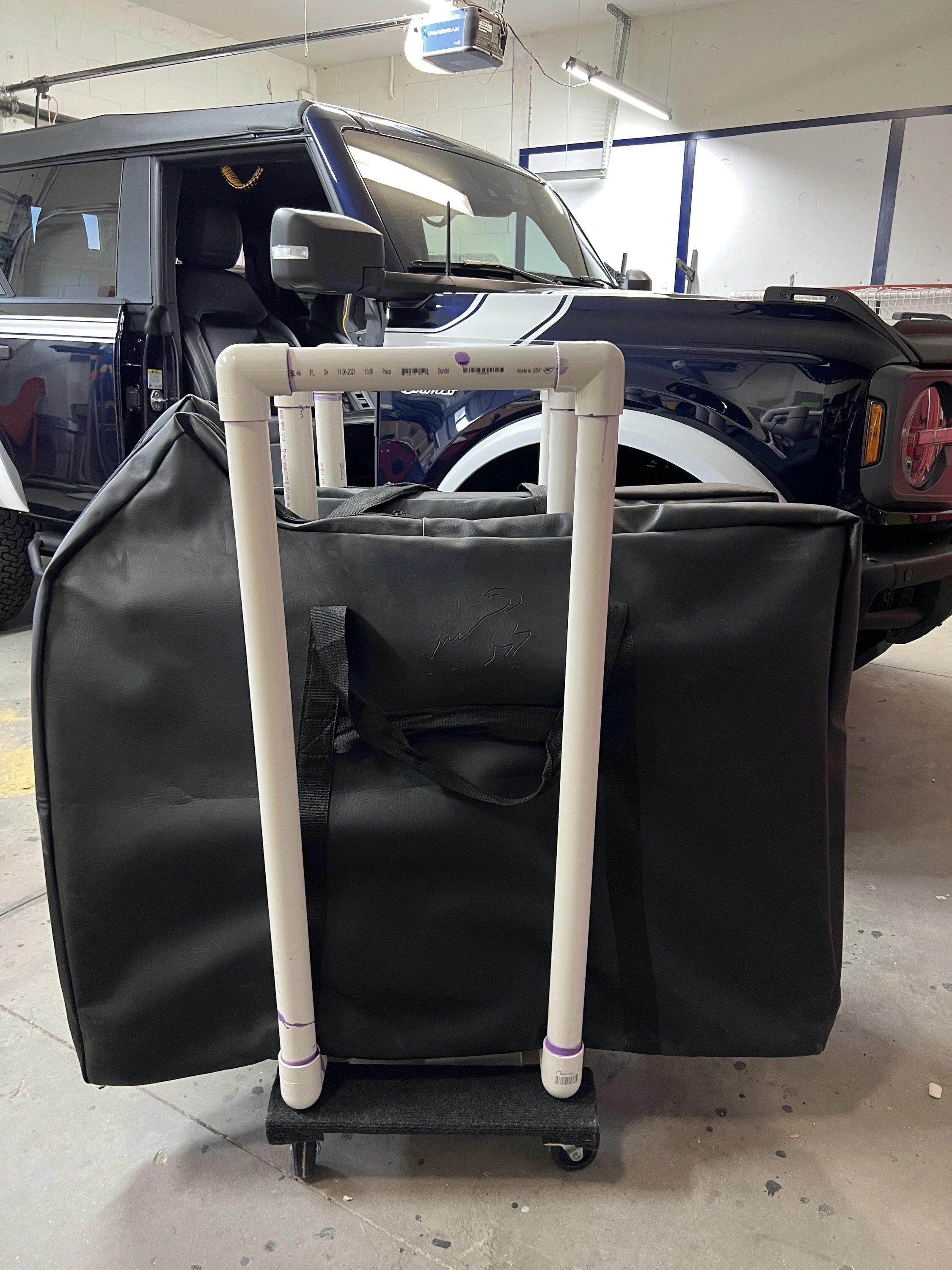

Cart 6.jpg


Cart 7.jpg

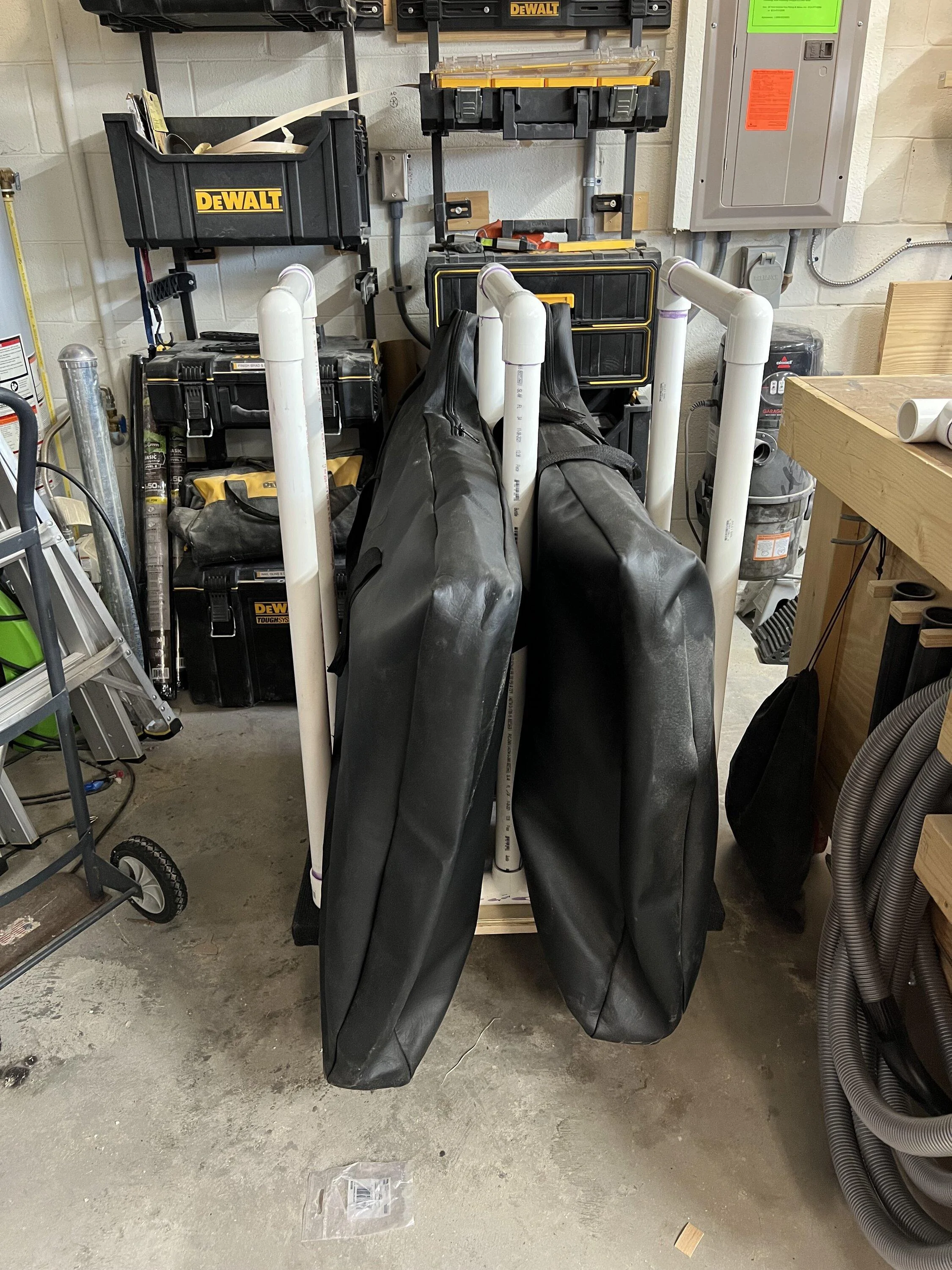

Cart 8.jpg


Advertisement


FormerJeepJunkie

Wildtrak
Well-Known Member
Joined
Jun 3, 2022
Threads
3
Messages
129
Reaction score
286
Location
Texas
Vehicle(s)
2019 Rav4
Your Bronco Model
Wildtrak
So I did this for my jeep years ago and here are some upgrades that will help:
  1. cut some pool noodles to cover the pvc on the bottom and sides. This will prevent the door from resting on a hard surface. (Plus you don’t have to use the bag each time if you don’t want to)
  2. I’d also use a bungie cord around the entire thing once you have the doors in it. Sometimes the weight of the doors will crack your pvc if they are leaning against the unsupported sides (ends). Last thing you want is to have a nice domino chain of your doors


FormerJeepJunkie

Wildtrak
Well-Known Member
Joined
Jun 3, 2022
Threads
3
Messages
129
Reaction score
286
Location
Texas
Vehicle(s)
2019 Rav4
Your Bronco Model
Wildtrak
Oh, and you can get a cheap trolly from harbor freight (they are blue) that is completely flat. Half the price of the wood/carpet option and you can drill directly into the plastic or use zip ties. During the summer I take it apart and store it, so zipping it has been helpful.




OP
OP
ShopGirl24

ShopGirl24

Badlands
Member
First Name
Jessica
Joined
Jul 13, 2020
Threads
5
Messages
19
Reaction score
51
Location
Tampa, FL
Vehicle(s)
2021 Ford Bronco Badlands, 2012 Ford F150 FX2
Your Bronco Model
Badlands
Clubs

So I did this for my jeep years ago and here are some upgrades that will help:
  1. cut some pool noodles to cover the pvc on the bottom and sides. This will prevent the door from resting on a hard surface. (Plus you don’t have to use the bag each time if you don’t want to)
  2. I’d also use a bungie cord around the entire thing once you have the doors in it. Sometimes the weight of the doors will crack your pvc if they are leaning against the unsupported sides (ends). Last thing you want is to have a nice domino chain of your doors
Yes, thank you!! do you believe I couldn't find pool noodles in a store near me in Tampa?? They're on my list tho for sure. And I considered putting a board across the top, attached with the pipe straps again to sure up the ends, and allow storage, but it'll make it harder to store them when not in use, so I love your bungee cord idea! Thanks!


Advertisement

madbaird

Wildtrak
Well-Known Member
First Name
Dave
Joined
Aug 29, 2020
Threads
2
Messages
166
Reaction score
342
Location
LAND O LAKES
Vehicle(s)
F-150 FX4 Supercrew
Your Bronco Model
Wildtrak
Clubs

Nice job @ShopGirl24! Will be adding the pool noodles too. Lots of places around us! I am in the Land O Lakes area.


B_Dmatt

Black Diamond
Member
First Name
Matt
Joined
Jun 20, 2022
Threads
0
Messages
11
Reaction score
18
Location
Midwest
Vehicle(s)
Jeep Grand Cherokee
Your Bronco Model
Black Diamond
Clubs

Nice work man, love to see DIY projects like this. Like Jeep Junkie suggested, I would recommend pool noodles or some foam for padded protection.

OP
OP
ShopGirl24

ShopGirl24

Badlands
Member
First Name
Jessica
Joined
Jul 13, 2020
Threads
5
Messages
19
Reaction score
51
Location
Tampa, FL
Vehicle(s)
2021 Ford Bronco Badlands, 2012 Ford F150 FX2
Your Bronco Model
Badlands
Clubs

Oh, and you can get a cheap trolly from harbor freight (they are blue) that is completely flat. Half the price of the wood/carpet option and you can drill directly into the plastic or use zip ties. During the summer I take it apart and store it, so zipping it has been helpful.



Love it! I did not see that dolly at my HF, only the two wood/carpet ones and a "hardwood" one lol.
Nice work man, love to see DIY projects like this. Like Jeep Junkie suggested, I would recommend pool noodles or some foam for padded protection.
thanks! And yes finally found some pool noodles today (they were out of stock in 3 different stores I tried this weekend), they’ll be going on this week for sure.


Stomper

Outer Banks
Member
Joined
Jul 1, 2022
Threads
0
Messages
5
Reaction score
3
Location
Killearn
Vehicle(s)
Jeep
Your Bronco Model
Outer Banks
Dont go with the really old pool noodles like i did because they start to shed everywhere.


Advertisement

luvtofish

Badlands
Well-Known Member
First Name
Dan
Joined
May 14, 2020
Threads
11
Messages
226
Reaction score
373
Location
Kansas City Area
Vehicle(s)
2012 King Ranch F150 Supercrew.
Your Bronco Model
Badlands
Clubs

I’m going to make a couple of these. Thanks for sharing.


KnoxGnater

Badlands
Well-Known Member
First Name
Nat
Joined
Jan 27, 2021
Threads
5
Messages
358
Reaction score
974
Location
Knoxville, TN
Vehicle(s)
1934 Ford Roadster Pickup, Bronco Badlands
Your Bronco Model
Badlands
Clubs

I saw a post on here recently with a very similar idea for door storage, so I decided to give it a shot this weekend because I got tired of hefting my doors around the garage to get to my cabinets...

My garage doubles as my workshop and floor space is at a premium, so instead of making a large 4 door cart, I made 2 2-door carts, that way I can store them more easily when they're not in use. Plus I rarely take off the rear doors (small kids) so I figured this way I can keep one cart up on a storage rack until I need it. Total cost for 2 carts was about $180, including 2 furniture dollies I got at Harbor Freight. The cost of PVC is crazy right now, so fittings are expensive, but overall for my convenience and piece of mind, a very easy $180 to spend.

Anyway, for the important part...

Materials (per cart):
  • one furniture dolly ($17.99 from Harbor Freight)
  • (2) - 3/4" thick scrap wood to fill in sides of dolly, to prevent PVC from sagging
  • (3) - 10' lengths of PVC pipe, I used 1-1/2" ** if you're making 2 carts, 5 lengths will do!** ($30.36)
  • (2) - T-fitting ($8.34)
  • (10) - 90* elbow fittings ($28.50)
  • (4) - 2" pipe straps ($3.12)
  • PVC primer & glue ($10.57)
PVC Pipe Cut List:
  • (6) - 36" - for the vertical pieces
  • (3) - 14" - for the top horizontal pieces
  • (4) - 11" - for the base
I'm still thinking about adding pool noodles for extra insulation, despite having the door bags, but for now they're much more protected than they were leaning against one of my work benches.

Cart 1.jpg


Cart 2.jpg


Cart 3.jpg


Cart 4.jpg


Cart 5.jpg


Cart 6.jpg


Cart 7.jpg


Cart 8.jpg
Thanks for this just finished mine. I’d prefer to hang them on the wall but have zero space.
here’s the cut list for five 10 foot sticks: (2 carts worth)
3 sticks: [email protected]”, [email protected]”, [email protected]
2 sticks: [email protected]”, [email protected]”.
My dollys were $34 each, most expensive part. But I like the poly versions. Total less than $300, cheaper than a door ding.

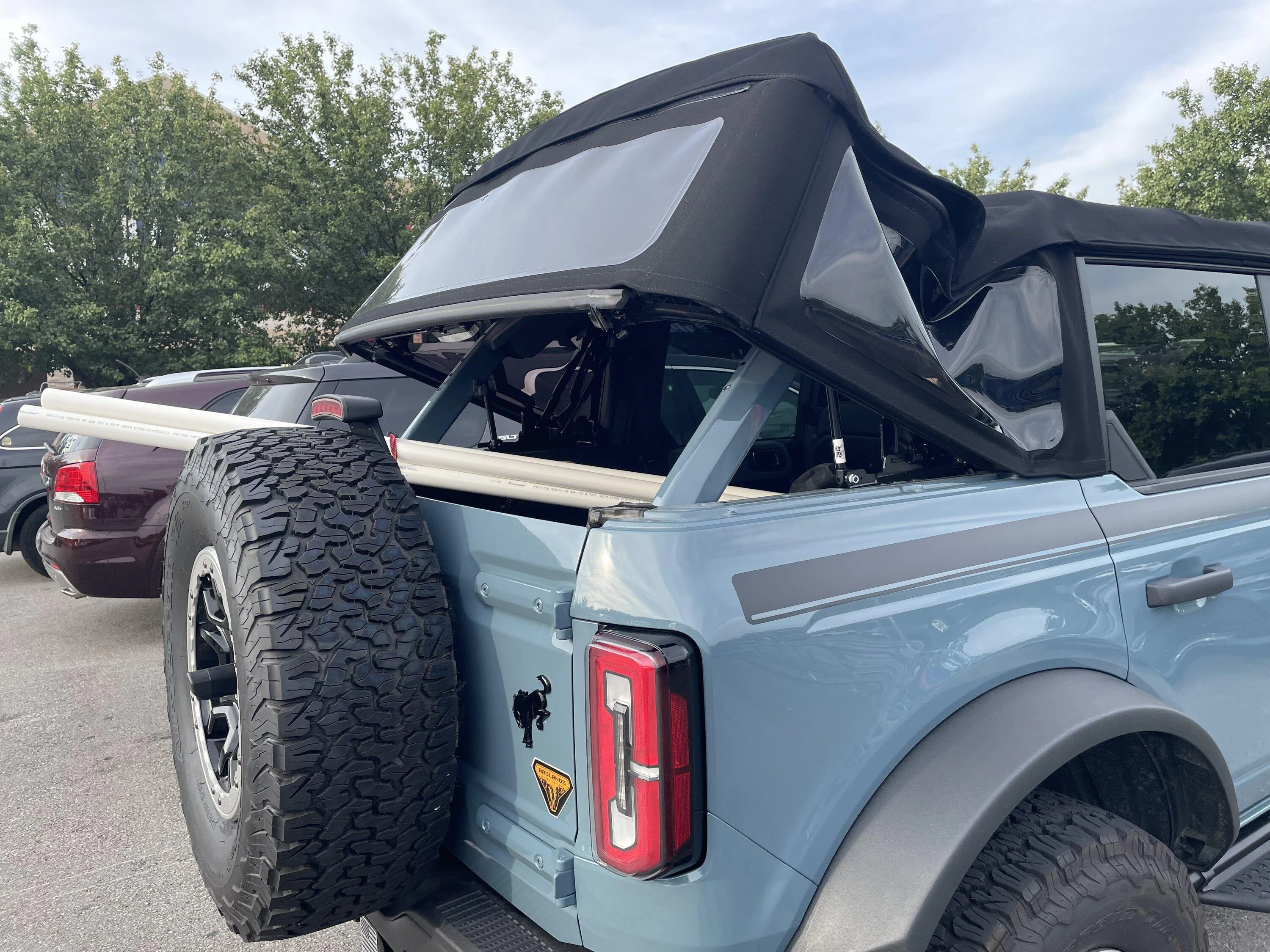

And yes, the 10 footers fit in a 4 door.


Wheelin72

Black Diamond
Member
First Name
Chris
Joined
Mar 20, 2021
Threads
4
Messages
18
Reaction score
7
Location
60481
Vehicle(s)
2021 Bronco
Your Bronco Model
Black Diamond
I've seen pool noodles at the dollar store.. super cheap!
