Experience Buying Wheels and Tires.

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs

Hello all.

I have a base, base 4 door Bronco. I wanted to upgrade tires to 33s and replace the base steelies.

For tires, I was able to find take offs in my area from several new jeep owners. I got a set of five Falken WildPeaks.(285/70r17) for $600 with less than 5k miles on them. They look new.

For wheels, this was a real struggle. Most wheel companies are not set-up for the Bronco yet, Discount Tires include. Several will not let you buy them without verifying fitment by entering your vehicle which blocks the process(Discount Tires).

TireRack does have the Bronco configured for wheels and tires on their web site. I was able to easily find a set of wheels(w/lugs) that I wanted, verify fitment, arrange delivery to a local installer and schedule an install appointment. Wheels and tires are going on this Saturday.
Sponsored



Wanted33

Outer Banks
Well-Known Member
First Name
Jim
Joined
Aug 1, 2018
Threads
20
Messages
4,050
Reaction score
9,240
Location
Down south in Dixie
Vehicle(s)
2018 Mustang GT, 2019 Wrangler, 2020 Ranger
Your Bronco Model
Outer Banks
Clubs

Ron, contact Matt @Discount Tire by PM. He has helped me greatly with wheels, and offsets. He's a good guy.


timhood

Badlands
Well-Known Member
First Name
Tim
Joined
Jul 28, 2020
Threads
16
Messages
2,379
Reaction score
4,582
Location
Utah
Vehicle(s)
Several
Your Bronco Model
Badlands
What did you end up choosing? Before the Bronco was listed for configuration on Tire Rack, I was looking at wheels for the Ranger. I wasn't going to pull the trigger until I actually get the Bronco, but I was concerned about the differences in offsets.


Wanted33

Outer Banks
Well-Known Member
First Name
Jim
Joined
Aug 1, 2018
Threads
20
Messages
4,050
Reaction score
9,240
Location
Down south in Dixie
Vehicle(s)
2018 Mustang GT, 2019 Wrangler, 2020 Ranger
Your Bronco Model
Outer Banks
Clubs

What did you end up choosing? Before the Bronco was listed for configuration on Tire Rack, I was looking at wheels for the Ranger. I wasn't going to pull the trigger until I actually get the Bronco, but I was concerned about the differences in offsets.
@timhood Tim, I showed several to the bride, and she picked the Fuel Shok 17x9 +20. I still undecided right now as I'm between those, or just trying to pick up a set of Badlands take-offs. Matt helped me with the offset as I'm quite uneducated when it comes to that important detail. My build is so far off I'll probably change my mind as least 1M times before it's all over.

Last edited:

Sponsored

Jsullivan

Base
Well-Known Member
First Name
Jay
Joined
May 24, 2021
Threads
2
Messages
246
Reaction score
342
Location
46996
Vehicle(s)
2018 Explorer, 2016 F350 Diesel, 2013 Explorer
Your Bronco Model
Base
Hello all.

I have a base, base 4 door Bronco. I wanted to upgrade tires to 33s and replace the base steelies.

For tires, I was able to find take offs in my area from several new jeep owners. I got a set of five Falken WildPeaks.(285/70r17) for $600 with less than 5k miles on them. They look new.

For wheels, this was a real struggle. Most wheel companies are not set-up for the Bronco yet, Discount Tires include. Several will not let you buy them without verifying fitment by entering your vehicle which blocks the process(Discount Tires).

TireRack does have the Bronco configured for wheels and tires on their web site. I was able to easily find a set of wheels(w/lugs) that I wanted, verify fitment, arrange delivery to a local installer and schedule an install appointment. Wheels and tires are going on this Saturday.
Bronco6G has a 6 lug x 5.5 (139.7 mm) pattern and a 93.1 mm hub bore diameter.
The factory offsets range from +55 mm to +30 mm SAS.
I'd stay within a 8"-9" rim and +30 mm to 0 offset.
This will keep it close to the OEM travel line.

I have 17x9 +25 mm 106.1 mm hub bore and will put 285/70R17's on them.
I have hub centric rings 106.1 to 93.1 installed.

https://lugnutguys.com/products/hub-centric-rings-106mm-to-93-1mm-set-of-4

This link should help a bunch for offset and rim/tire selection.
My OEM and Modified set up is in the link.

https://tiresize.com/wheel-offset-calculator/

No salesman currently recommends going larger than an 8" rim.
IMO 9" will work fine.

OP
OP

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs

OP
OP

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs

Ron, contact Matt @Discount Tire by PM. He has helped me greatly with wheels, and offsets. He's a good guy.
I did. They are aware of the issue with their website and can manually process order for now.


Wanted33

Outer Banks
Well-Known Member
First Name
Jim
Joined
Aug 1, 2018
Threads
20
Messages
4,050
Reaction score
9,240
Location
Down south in Dixie
Vehicle(s)
2018 Mustang GT, 2019 Wrangler, 2020 Ranger
Your Bronco Model
Outer Banks
Clubs

Bronco6G has a 6 lug x 5.5 (139.7 mm) pattern and a 93.1 mm hub bore diameter.
The factory offsets range from +55 mm to +30 mm SAS.
I'd stay within a 8"-9" rim and +30 mm to 0 offset.
This will keep it close to the OEM travel line.

I have 17x9 +25 mm 106.1 mm hub bore and will put 285/70R17's on them.
I have hub centric rings 106.1 to 93.1 installed.

https://lugnutguys.com/products/hub-centric-rings-106mm-to-93-1mm-set-of-4

This link should help a bunch for offset and rim/tire selection.
My OEM and Modified set up is in the link.

https://tiresize.com/wheel-offset-calculator/

No salesman currently recommends going larger than an 8" rim.
IMO 9" will work fine.
@Jsullivan Jay, another thing I don't understand is hub bore. I'm looking at an Icon Rebound 17x8.5 +25 w/108.1 hub bore. I'm just not sure what difference that that hb bore will make. FYI, i'm having to check the Ranger sizing as the Bronco isn't available yet on the site I'm looking at. Thank you for any help you can give. As I said, I'm quite wheel/tire sizing challenged. :)

OP
OP

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs

@Jsullivan Jay, another thing I don't understand is hub bore. I'm looking at an Icon Rebound 17x8.5 +25 w/108.1 hub bore. I'm just not sure what difference that that hb bore will make. FYI, i'm having to check the Ranger sizing as the Bronco isn't available yet on the site I'm looking at. Thank you for any help you can give. As I said, I'm quite wheel/tire sizing challenged. :)
You will need to make sure you can get hub centric rings to close the gap in the 93.1 bore on the Bronco vs the wheel bore.


Sponsored

Wanted33

Outer Banks
Well-Known Member
First Name
Jim
Joined
Aug 1, 2018
Threads
20
Messages
4,050
Reaction score
9,240
Location
Down south in Dixie
Vehicle(s)
2018 Mustang GT, 2019 Wrangler, 2020 Ranger
Your Bronco Model
Outer Banks
Clubs

You will need to make sure you can get hub centric rings to close the gap in the 93.1 bore on the Bronco vs the wheel bore.

It's a lot of work to buy wheels these days. I'm old, and when growing up we had maybe a dozen wheels to choose from. Now it's like a million, and all are dfferent sizes. :)


Jsullivan

Base
Well-Known Member
First Name
Jay
Joined
May 24, 2021
Threads
2
Messages
246
Reaction score
342
Location
46996
Vehicle(s)
2018 Explorer, 2016 F350 Diesel, 2013 Explorer
Your Bronco Model
Base
@Jsullivan Jay, another thing I don't understand is hub bore. I'm looking at an Icon Rebound 17x8.5 +25 w/108.1 hub bore. I'm just not sure what difference that that hb bore will make. FYI, i'm having to check the Ranger sizing as the Bronco isn't available yet on the site I'm looking at. Thank you for any help you can give. As I said, I'm quite wheel/tire sizing challenged. :)
https://www.ebay.com/itm/222278860242
Here is a link to aluminum rings.
I prefer plastic but I didn't do an indebt search.
Hub Centric rings will allow your wheel to sit symmetrical over the hub.
Probably?? The rim you choose will be lug centric but I always like using the rings.
I believe the OEM rims have a 60 deg seat for the lug nuts.
Be sure to get the lug nuts that will work with your wheels.

OP
OP

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs


Attachments

  • 0 bytes Views: 0
OP
OP

survivormanca

Badlands
Well-Known Member
First Name
Ron
Joined
Oct 1, 2020
Threads
22
Messages
491
Reaction score
867
Location
texas
Vehicle(s)
nothing
Your Bronco Model
Badlands
Clubs

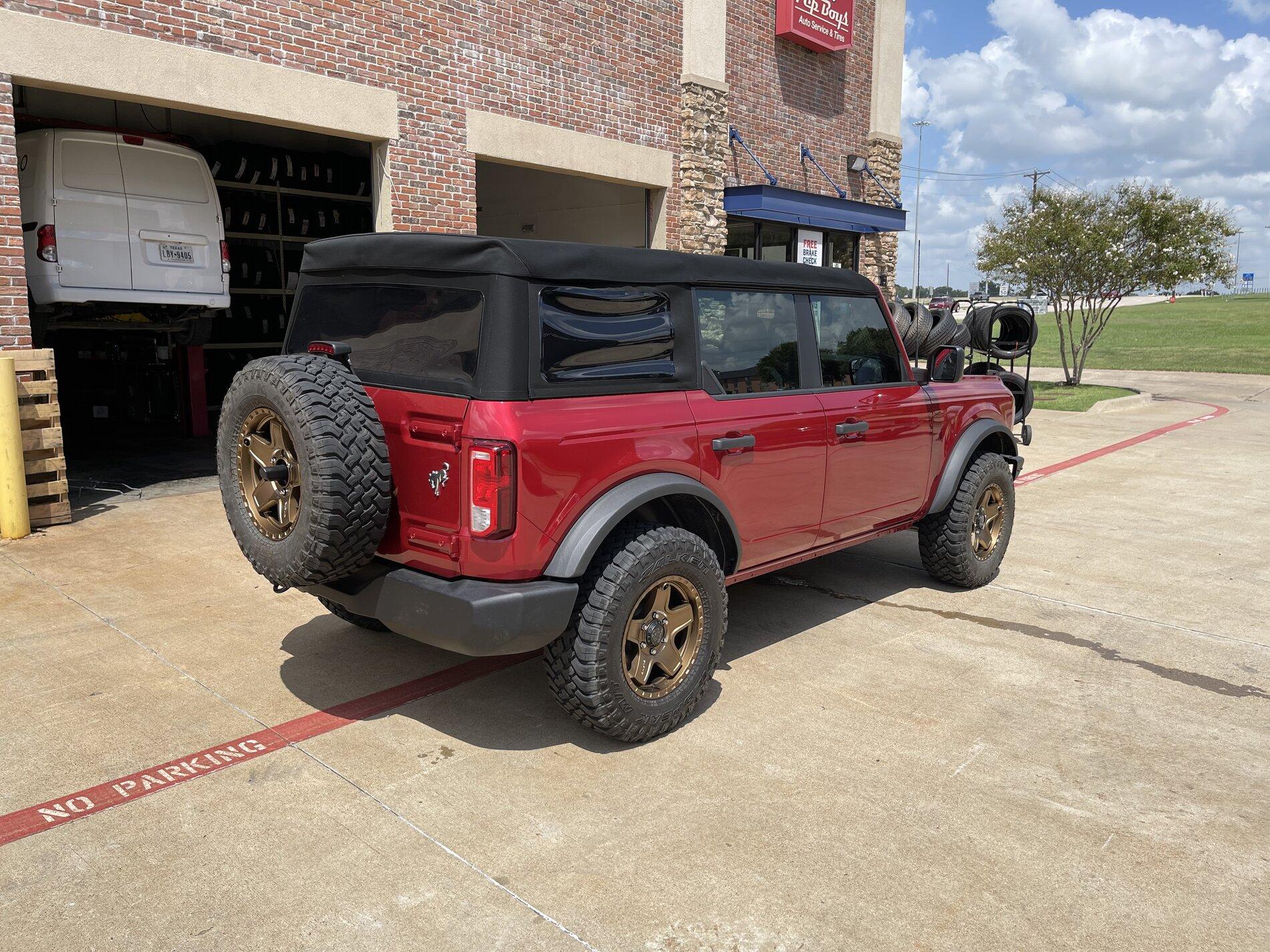

shityea dude alpha! I just ordered alpha deltas for mine. bronze too!
I was supposed to get black lug nuts with the wheels but they shipped me chrome. Something to check.
