OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

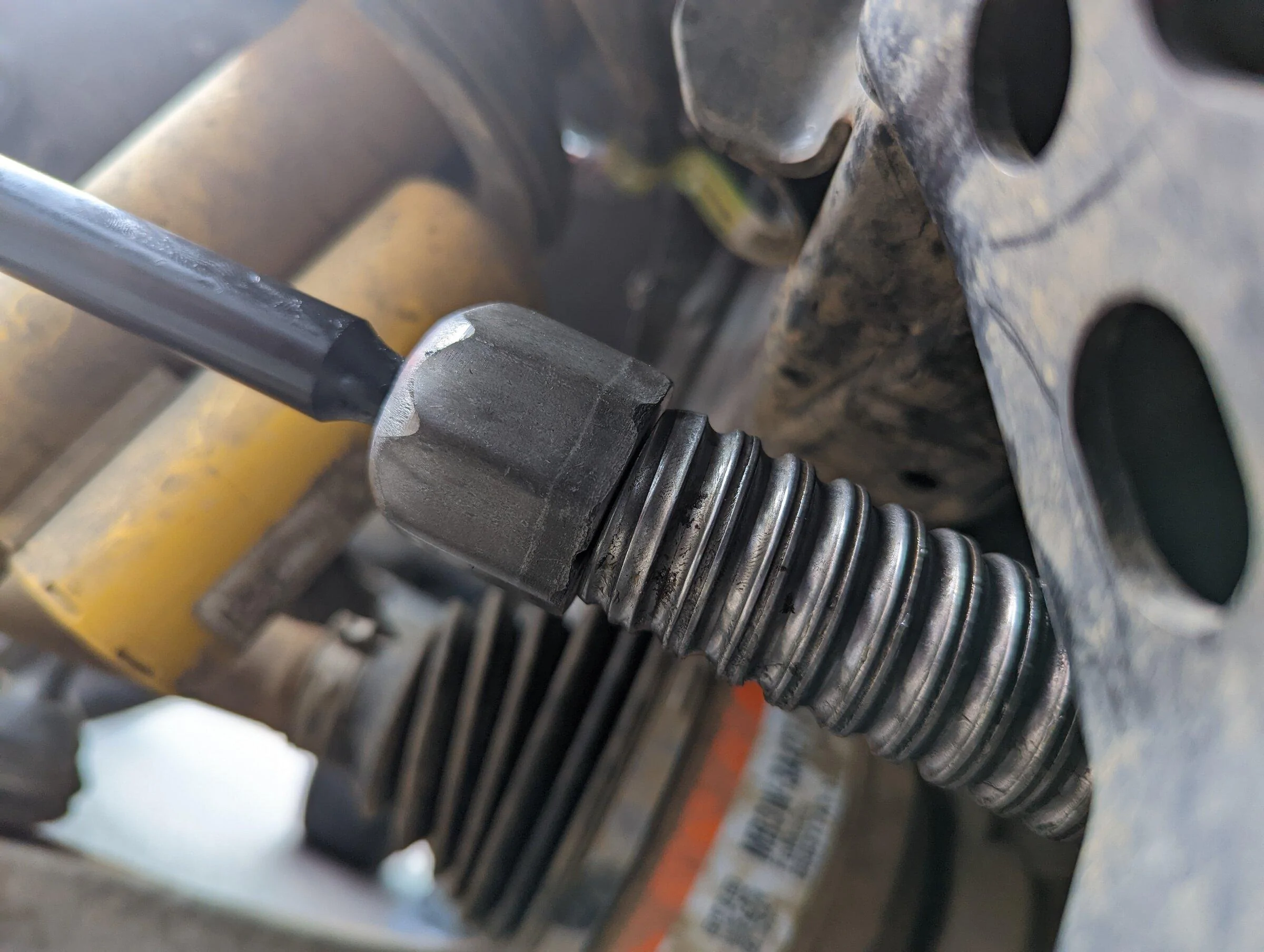

Ladies and gentlemen, we have the correct length, good thread engagement, and correct rack threads. We don't have the correct taper diameter. These will work, but the knuckle must be opened up slightly. I'm going to do it, but this might be where others get uncomfortable.



OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

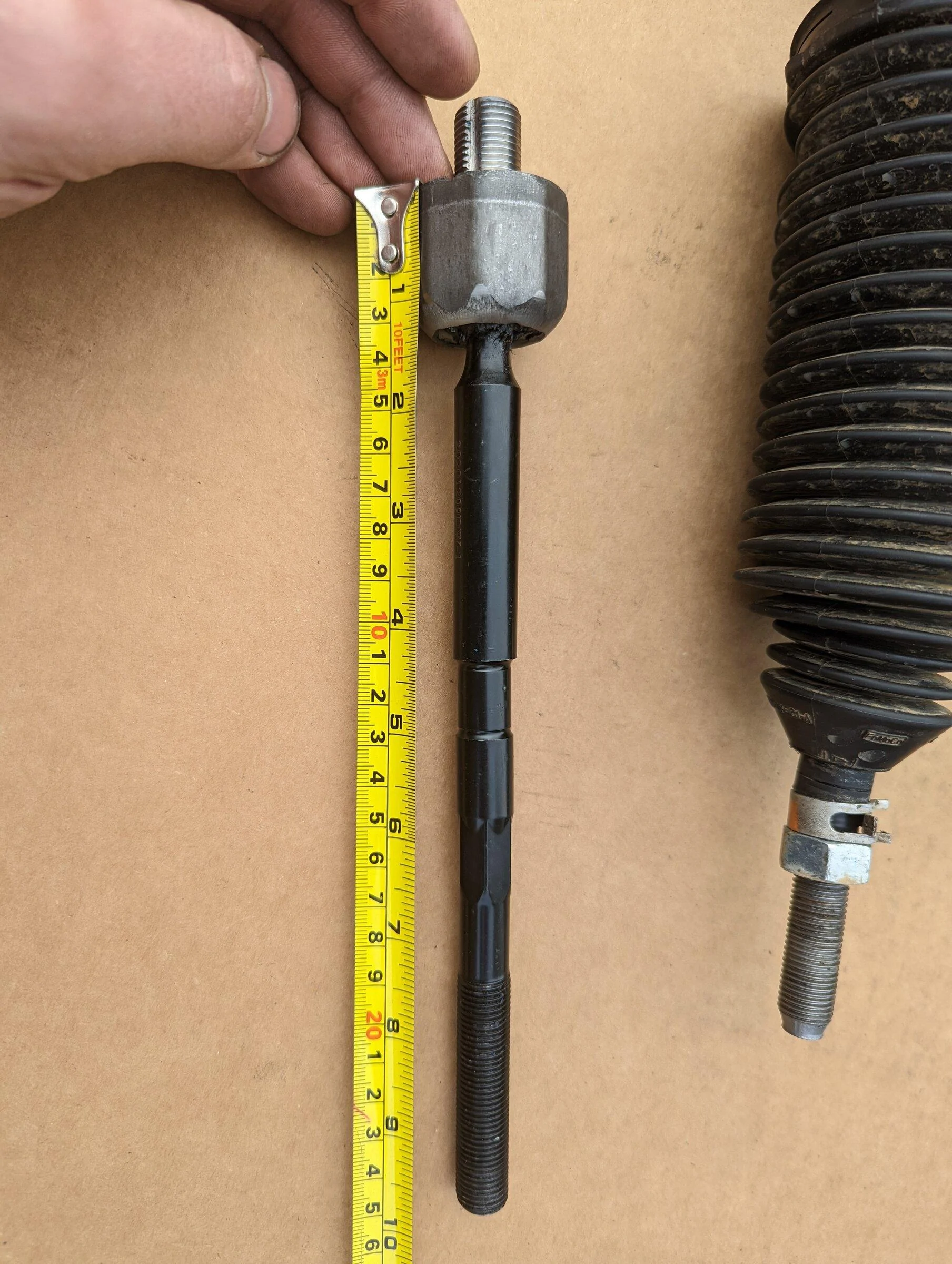

HOWEVER! I have identified a dirt cheap and easy to find trail spare! Yes, the 04ish Ranger inner is a direct fit. It measures 9-15/16 from base to outer threads, vs 9-3/4 for the stock Bronco inner. The difference is insignificant. It threads right into the rack and the outer TRE.








OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

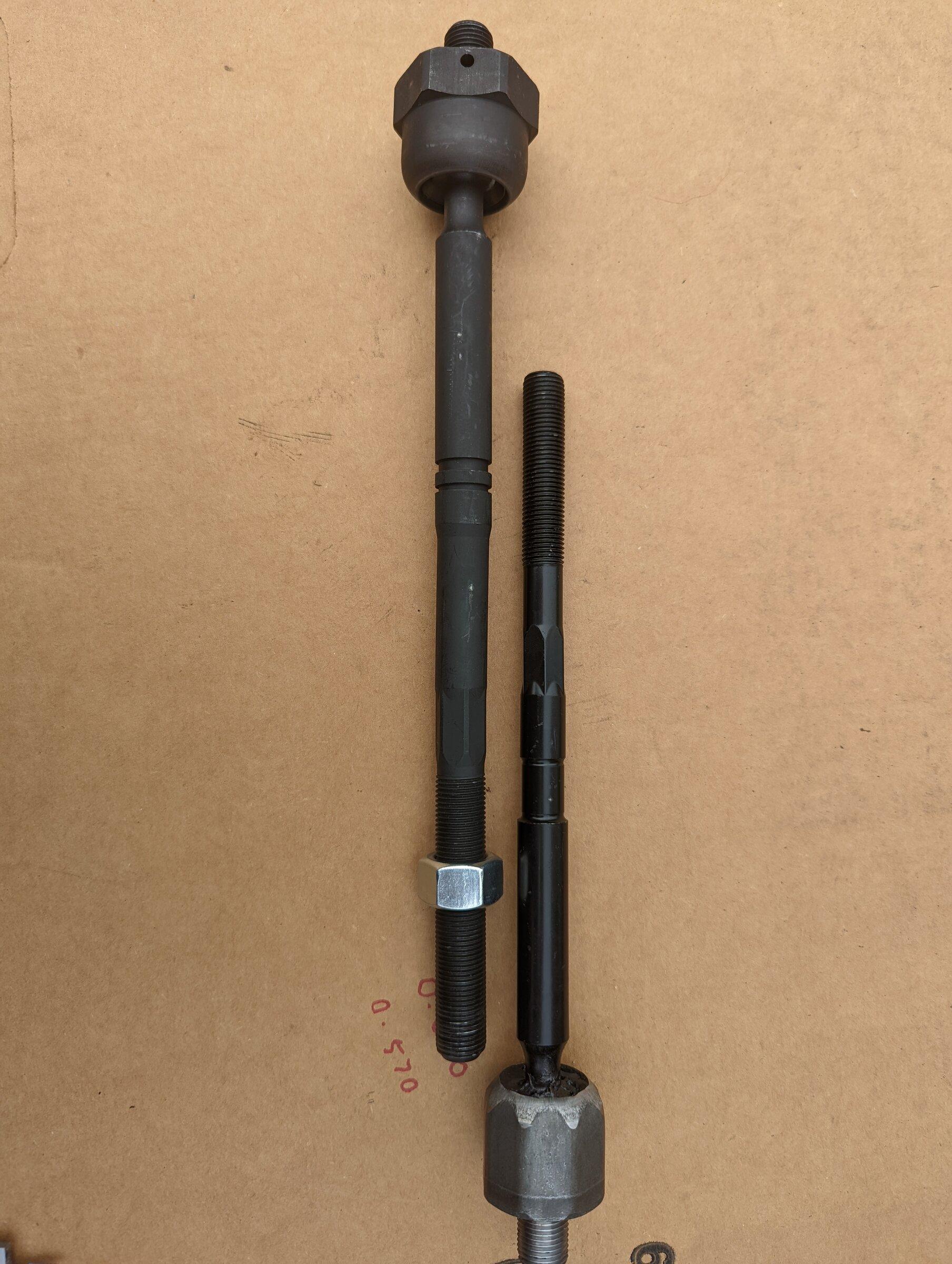

The 04-08 F150 inner and the 09-14 F150 outer. Perfect if it would just go in. The taper needs to be opened up just 0.070" more.


Last edited:

IwannaGOfast

Badlands
Well-Known Member
First Name
Jon
Joined
Jan 6, 2022
Threads
2
Messages
87
Reaction score
100
Location
Brea, CA
Vehicle(s)
1991 Ranger Long Travel, 2014 Cruze Commuter
Bronco
Badlands
So the taper is the same degree? Just need to hit it with a taper reamer for it to sit deeper?

OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

So the taper is the same degree? Just need to hit it with a taper reamer for it to sit deeper?
Yes sir. And not by much. I can't find my reamer or I might have done it right now.

OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

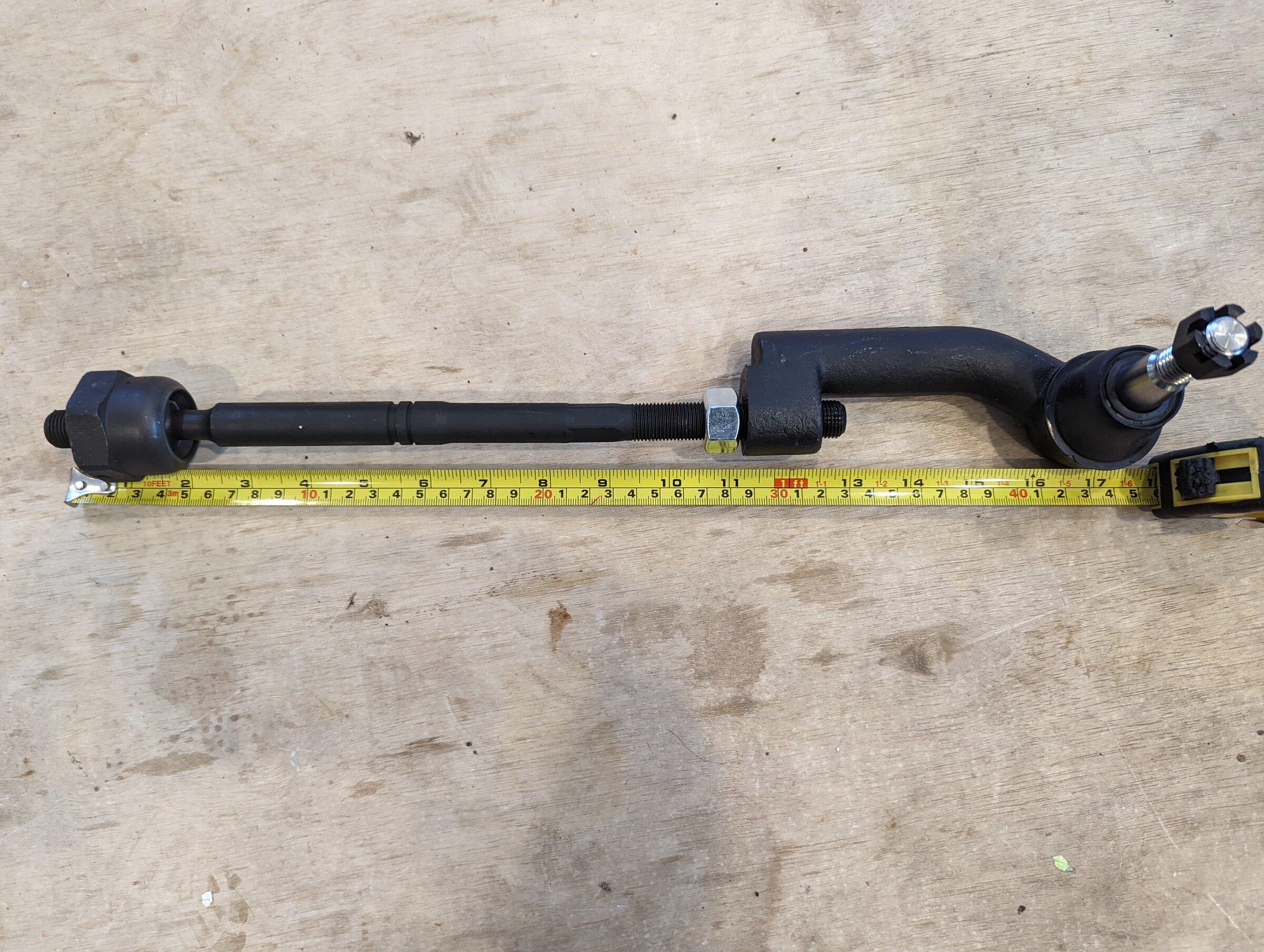

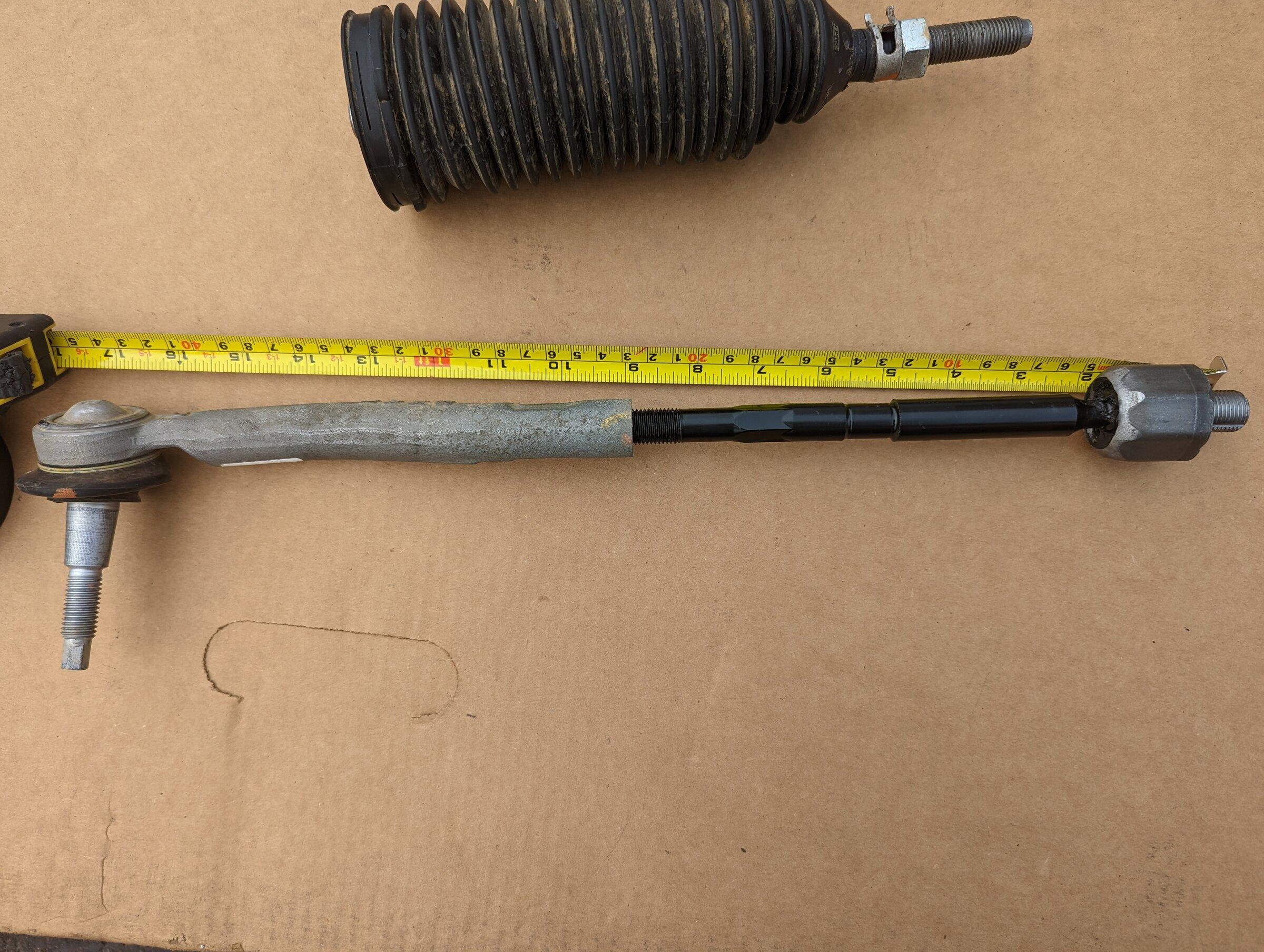

So the 09-14 outer is 5-9/16 from center to end. The 04-08 is exactly 12" from base to end, plus another 3/4 of M16x1.5 threads. This is the combo I will run in the end after finding my reamer or buying another. Disclaimer: if you have stock +55 wheels I think you will have interference with the F150 outer. Sasquatch may be OK.

That's going to do it for my research. I've found 2 solutions, go forth and wheel with these in mind. In the short term I will carry a Ranger inner with me for emergency fixes.


Roll Sound

Wildtrak
Well-Known Member
Joined
Jul 3, 2021
Threads
29
Messages
1,471
Reaction score
2,008
Location
Hollywood
Vehicle(s)
2021 Wildtrack 2DR MIC OW, 2014 KTM RC8R
Bronco
Wildtrak
So the 09-14 outer is 5-9/16 from center to end. The 04-08 is exactly 12" from base to end, plus another 3/4 of M16x1.5 threads. This is the combo I will run in the end after finding my reamer or buying another. Disclaimer: if you have stock +55 wheels I think you will have interference with the F150 outer. Sasquatch may be OK.

That's going to do it for my research. I've found 2 solutions, go forth and wheel with these in mind. In the short term I will carry a Ranger inner with me for emergency fixes.
I think I'll get some Ranger ones too soon. Thanks.

OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

I think I'll get some Ranger ones too soon. Thanks.
You can get a pair of economy grade for under $20 on eBay lol. Or spring for something better like moog and they're still cheap. Can't beat that for insurance. Hopefully I'll never break one but if I can get home with a $10 part that's a win.


BigMeatsBronco

First Edition
Well-Known Member
First Name
Allan
Joined
Nov 25, 2021
Threads
18
Messages
810
Reaction score
1,974
Location
97301
Vehicle(s)
2021 FE 2 door
Bronco
First Edition
Clubs

You can get a pair of economy grade for under $20 on eBay lol. Or spring for something better like moog and they're still cheap. Can't beat that for insurance. Hopefully I'll never break one but if I can get home with a $10 part that's a win.
For that price you could buy 20 of them and still be cheaper than BB band-aid. ROFL 🤣


mcinfantry

Badlands
Well-Known Member
First Name
Lee
Joined
Jun 2, 2021
Threads
9
Messages
312
Reaction score
349
Location
Louisiana
Vehicle(s)
Lexus/Jeep
Bronco
Badlands
I’ll have to look at the tapered reamer I have and see the pitch

I always used it with gm TRE’s

but it’s been 10 years since I’ve used it


VoltageDrop

Base
Well-Known Member
First Name
Eric
Joined
Jul 22, 2020
Threads
11
Messages
1,011
Reaction score
2,812
Location
Arkansas
Vehicle(s)
04 Cummins, 69/21 Broncos
Bronco
Base
Vehicle Showcase
1
Clubs

So the 09-14 outer is 5-9/16 from center to end. The 04-08 is exactly 12" from base to end, plus another 3/4 of M16x1.5 threads. This is the combo I will run in the end after finding my reamer or buying another. Disclaimer: if you have stock +55 wheels I think you will have interference with the F150 outer. Sasquatch may be OK.

That's going to do it for my research. I've found 2 solutions, go forth and wheel with these in mind. In the short term I will carry a Ranger inner with me for emergency fixes.
This is the Pirate6G tech we need, thanks! It's hard to tell but I assume the F150 inner is beefier than the Bronco one? Ranger about same as Bronco?

OP
OP
Tricky Dick

Tricky Dick

Badlands
Well-Known Member
First Name
Dick
Joined
Apr 12, 2021
Threads
49
Messages
4,203
Reaction score
13,805
Location
PNW
Vehicle(s)
87 Suzuki Samurai, 03 Ford F250
Bronco
Badlands
Clubs

Thanks for all your information! How did the VW ones turn out?
No go. Both halves are too short to do anything with. I found it odd enough that the 09-14 inner was shorter than 04-08 too, but it made the difference.

This is the Pirate6G tech we need, thanks! It's hard to tell but I assume the F150 inner is beefier than the Bronco one? Ranger about same as Bronco?

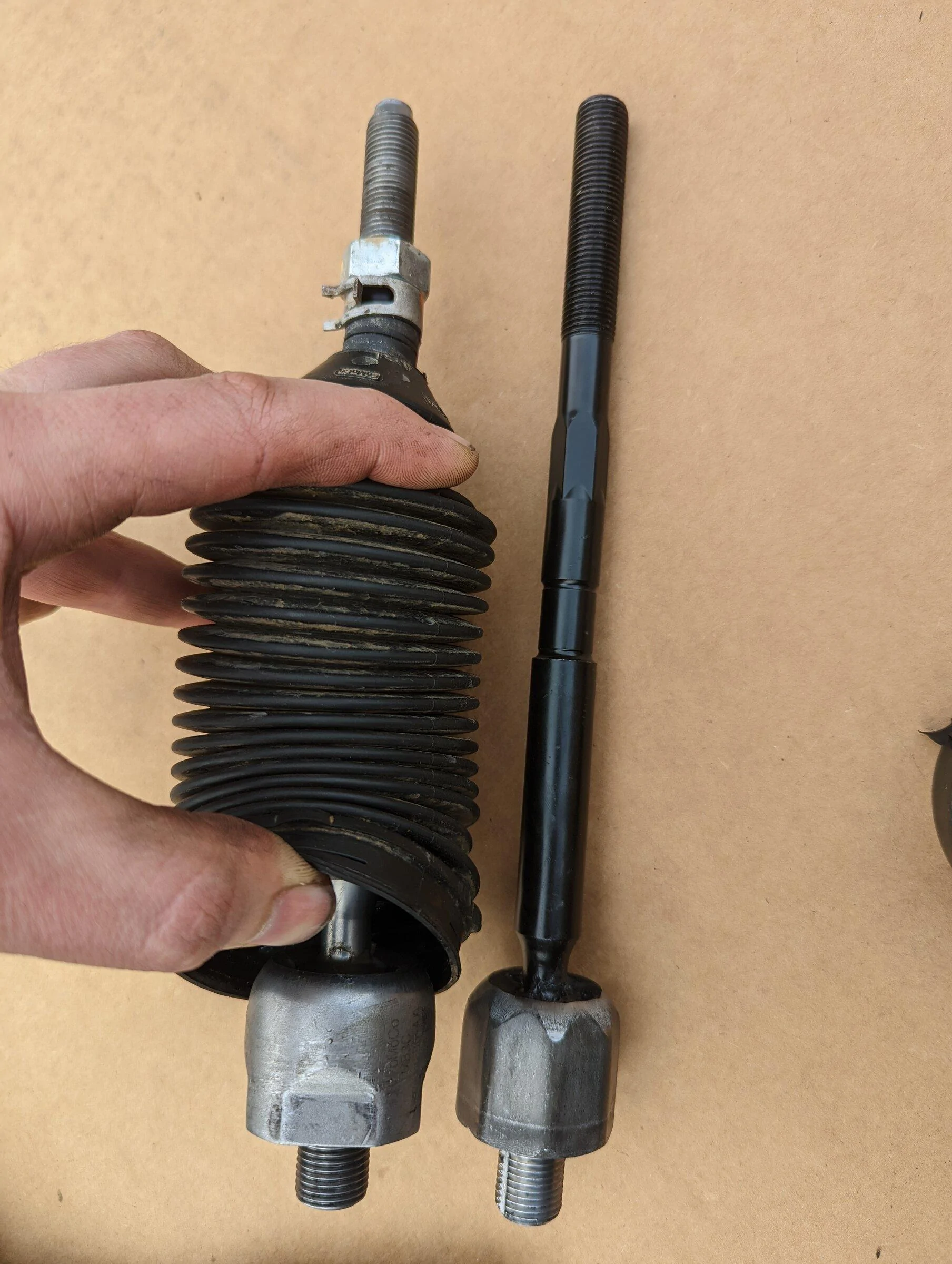

2mm thicker, 16mm threads instead of 14mm.





Top
