Factory Roof Rack Dimensions?

[Kameronatm]

Does anyone have the Dimensions of the Factory roof rack? I am trying to figure out the diameter or height and width of both length and width bars? Any help would be appreciated!

Sponsored



[grayshadow]

I can help but you have me somewhat confused. What are you trying to do?



[Kameronatm]

I can help but you have me somewhat confused. What are you trying to do?

Thanks!

I am trying to determine what size the tubing is. What size of clamps I need to mount my hilift to the top.



[grayshadow]

Hmmm, I’ll get pics and measurements for you tomorrow but I’ll tell you, the crossbars and rails are not round.



[BroncoKong Jr.]

Thanks!

I am trying to determine what size the tubing is. What size of clamps I need to mount my hilift to the top.

Those are for tubing. Don't think they'll work on the OEM roof rack.



[grayshadow]

Thanks!

I am trying to determine what size the tubing is. What size of clamps I need to mount my hilift to the top.

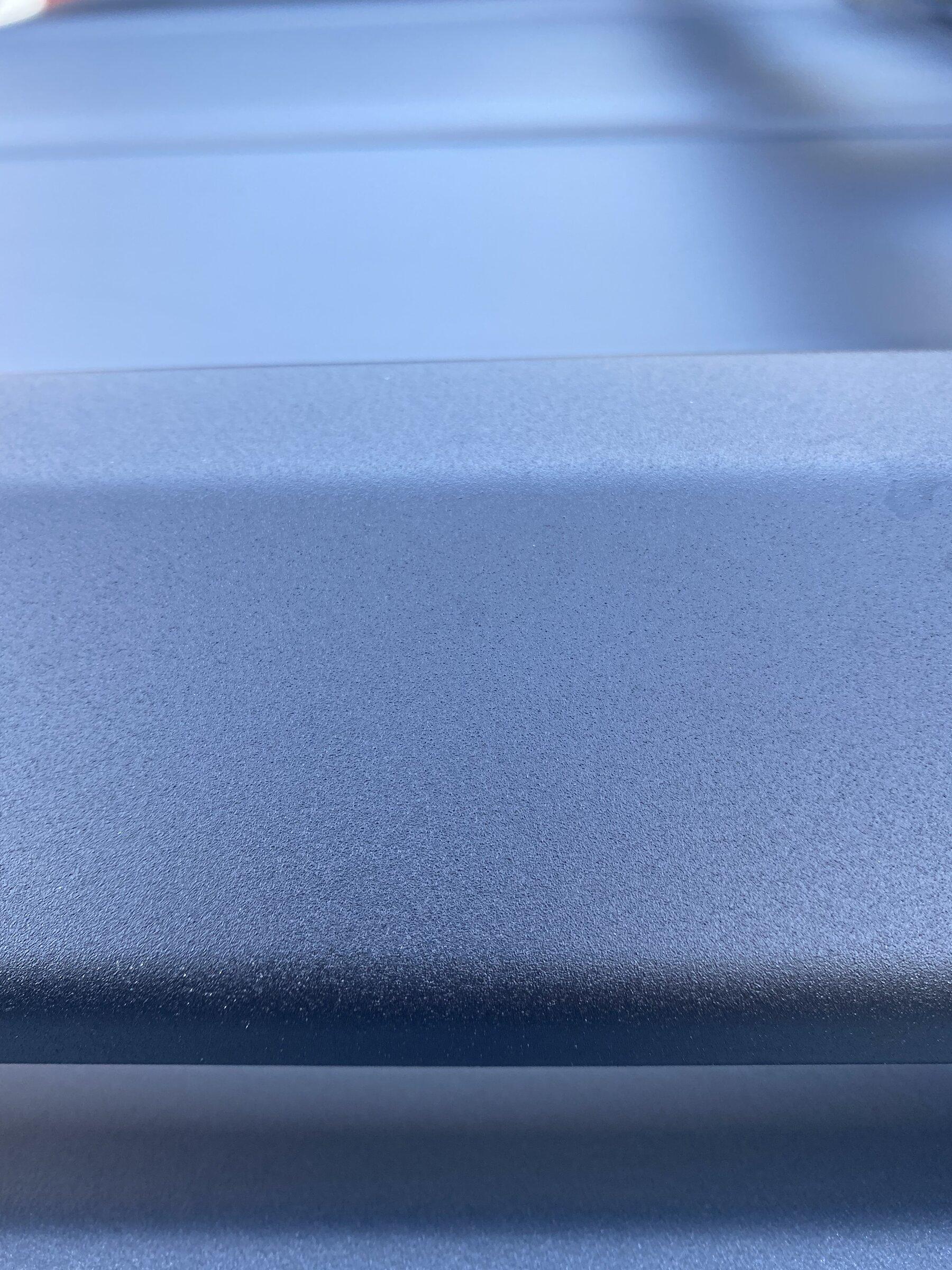

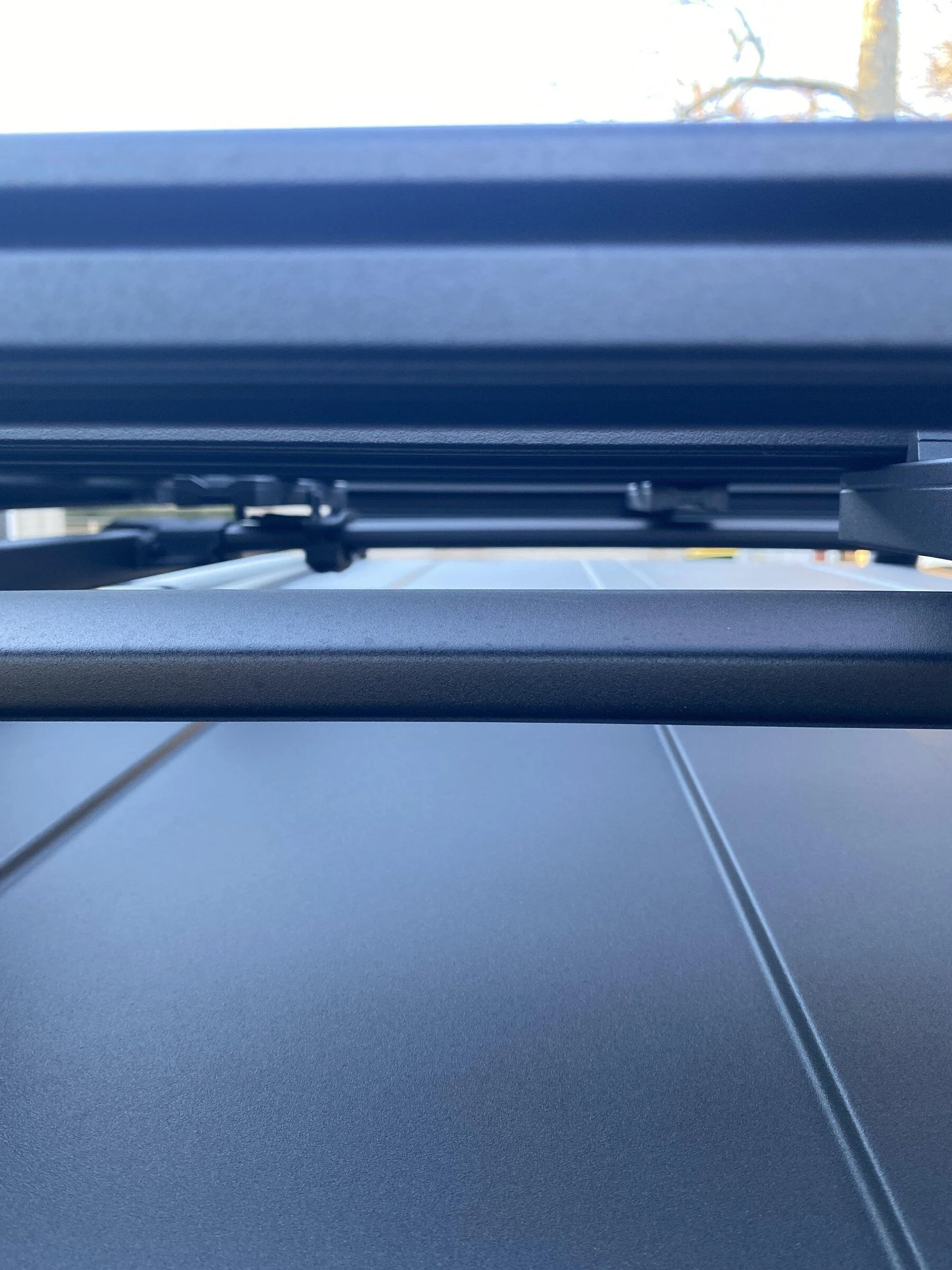

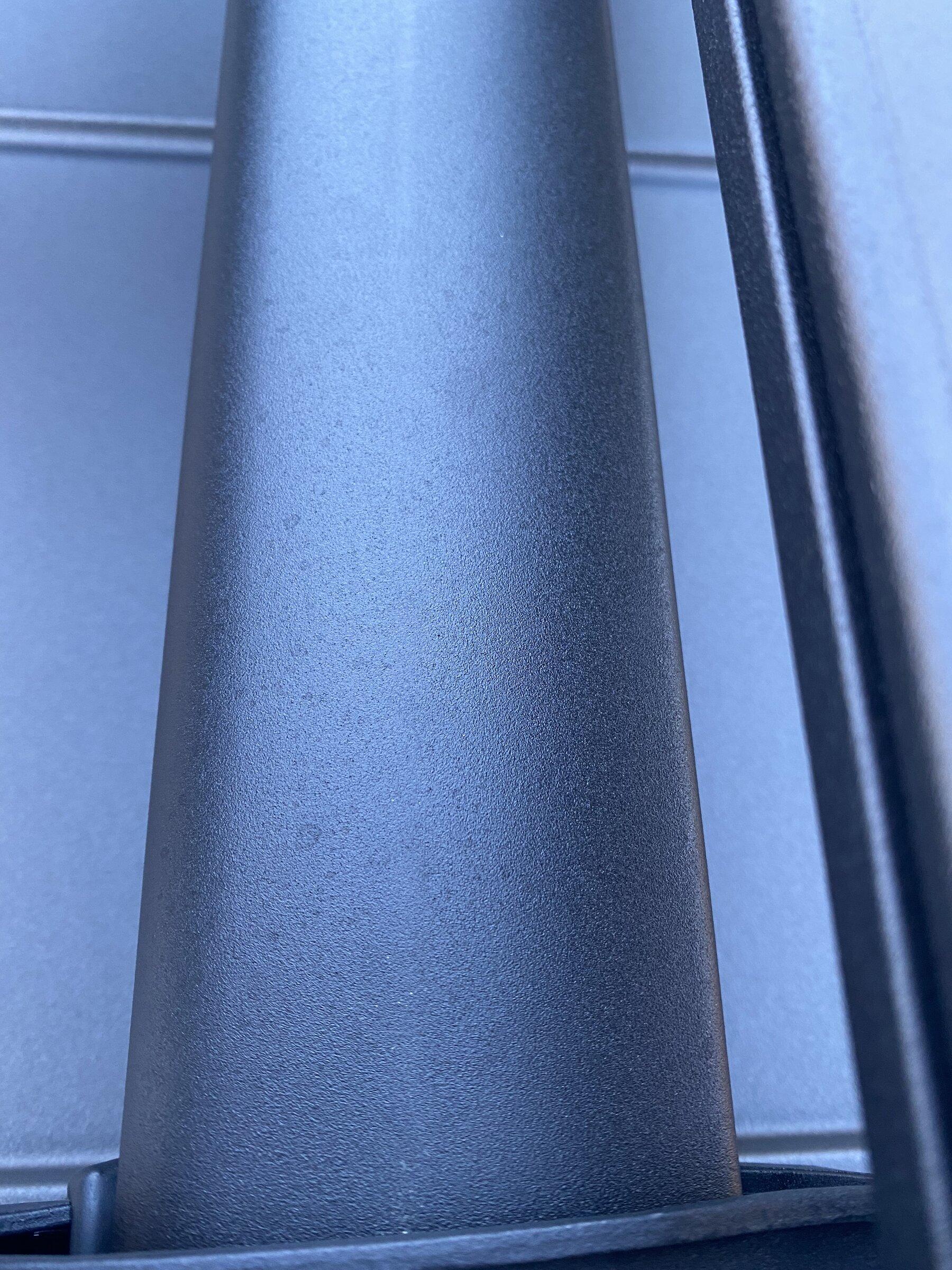

The first two pics are of the cross bar and the last one is from the side of the roof rail that runs front to rear.



[Kameronatm]

Do you have the width and height of each bar?

The first two pics are of the cross bar and the last one is from the side of the roof rail that runs front to rear.

Thanks! do you have the width and height of each bar. The mounts I am looking at are for up to 3in did bars... I hope the cross bar will fit even with the non circular design or its back to the drawing board.



[Koz44]

I have the factory roof rack on my two door. The cross bars are just under 3 inches wide. I didn’t do the height - it’s not much - maybe a half inch.

The side rails are three inches wide and 2 inches high. It’s not square on top. It tapers a bit towards the inside.
