Fender removal for Bronco Raptor - instructions / guide?

[rivasrubicon]

I have a question, does the removal of the Braptors fenders appear in any manual or is there a guide to look at?

Sponsored



[ironmike]

I have a question, does the removal of the Braptors fenders appear in any manual or is there a guide to look at?

Fenders or flares?



[Moribach]

I'm interested in this as well. From a PPF perspective, do those Fender Flares come off on a Raptor and what instructions exist on it.



[rivasrubicon]

Fenders or flares?

Oh I’m sorry, the flares. Fender flares? Am I saying this wrong lol.



[FoxFour281]

Raptor fender flares are not removable.

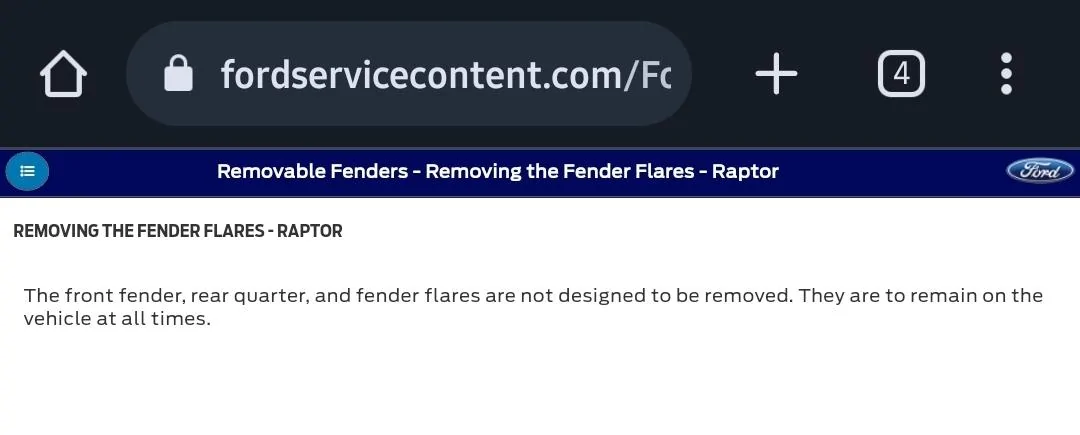

https://www.fordservicecontent.com/...A&div=f&vFilteringEnabled=False&buildtype=web



[JohnGalt]

They are “removable”, but not easily like Sasquatch flares. If you want to install ppf under them it may be worth the effort, my ppf installer has done it on two. But he didn’t like it and needed plenty of replacement clips.

even if you could take them off easily, it’s ugly as sin under there



[Ducati1098]

501-08 Exterior Trim and Ornamentation	2022 - 2023 Bronco​
Removal and Installation	Procedure revision date: 07/5/2022​

Front Fender Moulding - Raptor
Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

1. Remove the LH side front wheel and tire.
   Refer to: Wheels and Tires (204-04A Wheels and Tires, Diagnosis and Testing).

1. Remove the fender splash shield.
   Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

1.
   Remove the front fender moulding.
   1. Press the lugs and release the pushpins from fender.
2. 1. Remove the front fender moulding.

501-08 Exterior Trim and Ornamentation	2022 - 2023 Bronco​
Removal and Installation	Procedure revision date: 07/5/2022​

Rear Quarter Panel Moulding - Raptor
Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

1. Remove the LH side wheel and tire.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Disassembly and Assembly).

1. Remove the bolt and retainers and rear shield wheel splash.
   Torque: 15 lb.in (1.7 Nm)

1. Remove the rear fender splash shield.
   Refer to: Rear Fender Splash Shield - Raptor(501-08 Exterior Trim and Ornamentation, Removal and Installation).

1. Release the tabs and remove the stone cuff.

1.
   Loosen the wheel molding bracket.
   1. Remove the screws.
      Torque: 97 lb.in (11 Nm)
2. 1. Press the lugs and release the pusch pin retainers from pannel body.
3. 1. Remove the retainers.

1.
   Remove the rear quarter panel moulding.
   1. Press the lugs and release pushpins from the quarter panel and remove the rear quarter panel moulding.



[rivasrubicon]

501-08 Exterior Trim and Ornamentation	2022 - 2023 Bronco​
Removal and Installation	Procedure revision date: 07/5/2022​

Front Fender Moulding - Raptor
Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

1. Remove the LH side front wheel and tire.
   Refer to: Wheels and Tires (204-04A Wheels and Tires, Diagnosis and Testing).

1. Remove the fender splash shield.
   Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

1.
   Remove the front fender moulding.
   1. Press the lugs and release the pushpins from fender.
2. 1. Remove the front fender moulding.

501-08 Exterior Trim and Ornamentation	2022 - 2023 Bronco​
Removal and Installation	Procedure revision date: 07/5/2022​

Rear Quarter Panel Moulding - Raptor
Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

1. With the vehicle in NEUTRAL, position it on a hoist.
   Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

1. Remove the LH side wheel and tire.
   Refer to: Wheel and Tire (204-04A Wheels and Tires, Disassembly and Assembly).

1. Remove the bolt and retainers and rear shield wheel splash.
   Torque: 15 lb.in (1.7 Nm)

1. Remove the rear fender splash shield.
   Refer to: Rear Fender Splash Shield - Raptor(501-08 Exterior Trim and Ornamentation, Removal and Installation).

1. Release the tabs and remove the stone cuff.

1.
   Loosen the wheel molding bracket.
   1. Remove the screws.
      Torque: 97 lb.in (11 Nm)
2. 1. Press the lugs and release the pusch pin retainers from pannel body.
3. 1. Remove the retainers.

1.
   Remove the rear quarter panel moulding.
   1. Press the lugs and release pushpins from the quarter panel and remove the rear quarter panel moulding.

Thank you so much!!!



[Silverstrandtek]

I have a question, does the removal of the Braptors fenders appear in any manual or is there a guide to look at?

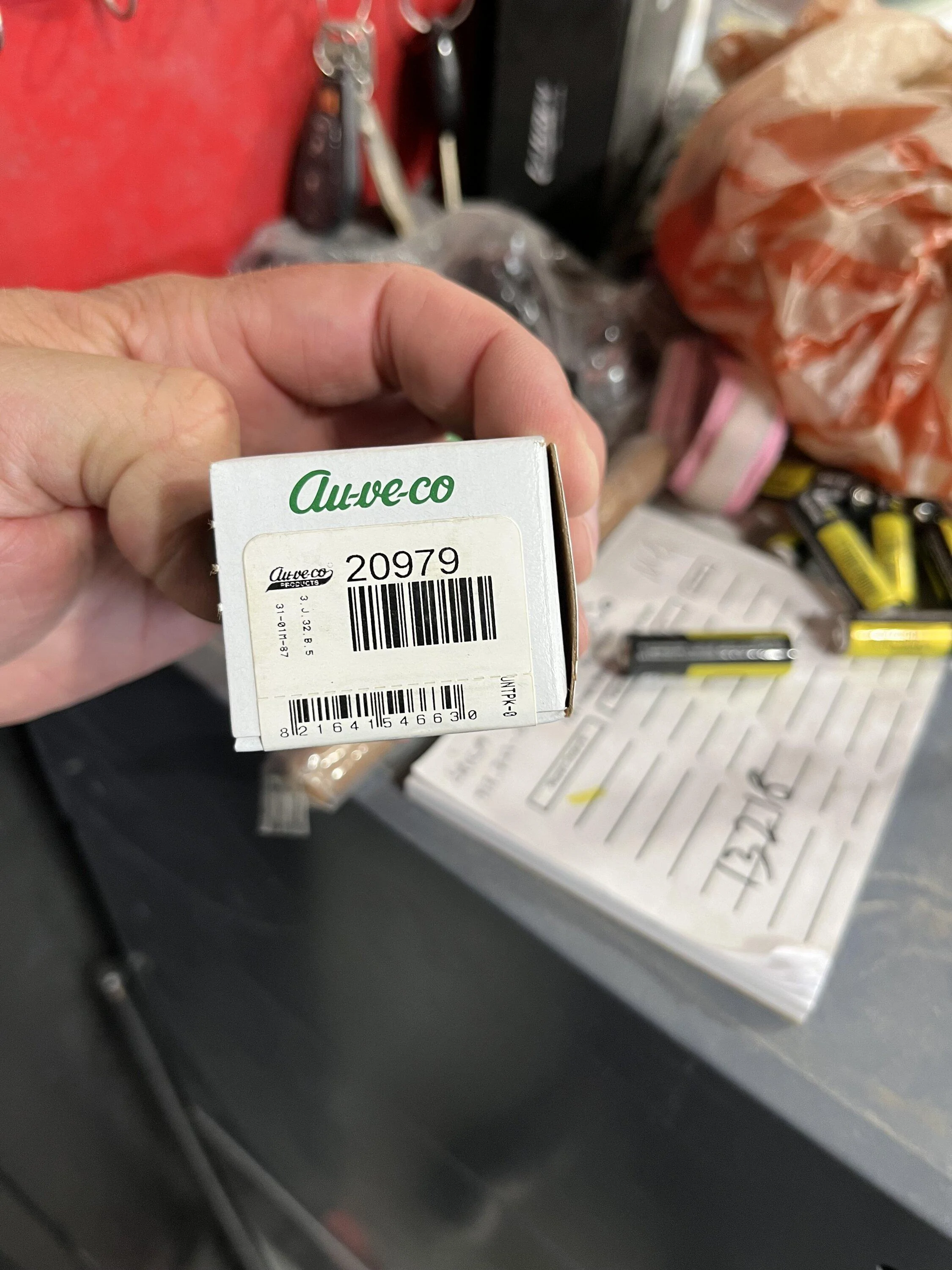

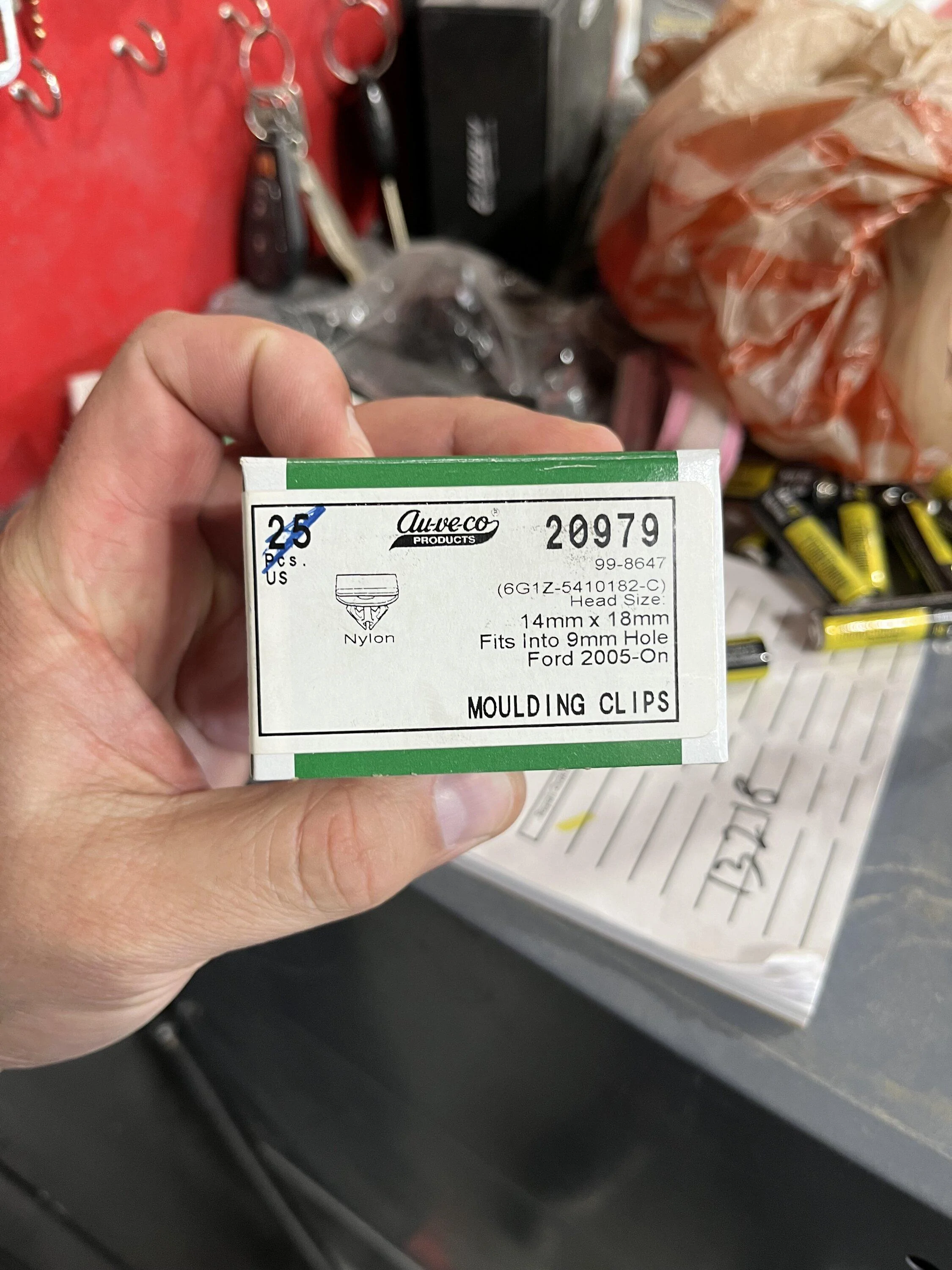

You’ll realize when you’re taking the flares off that there’s bolts and then there’s a bunch of single use plastic clips. You’ll end up destroying a bunch of the clips and Ford doesn’t sell the clips separately of the flares. Here’s a link to the replacement clips that fit close enough.



[swamp2]

You’ll realize when you’re taking the flares off that there’s bolts and then there’s a bunch of single use plastic clips. You’ll end up destroying a bunch of the clips and Ford doesn’t sell the clips separately of the flares. Here’s a link to the replacement clips that fit close enough.

Thanks! Great tip.

Aren't there multiple types of plastic fasteners (clips) used for the attachment of the fenders associated plastic parts?

Perhaps none of them tend to break doing this job except one type?

I'd bet the Ford OEM part(s) is (are) used broadly across many vehicles and is available from Ford somehow.



[FLSTFI Dave]

I guess I just do not under stand the terms used to describe the removal. Is the splash shield the inner flare liner? I know that has to be removed before you can get to the Flare push pins.



[c-dubb]

it’s ugly as sin under there

Indeed!

(22) PSA: Don't let dealer remove fender flares without confirming they have replacement push pins in stock | Bronco6G - 2021+ Ford Bronco & Bronco Raptor Forum, News, Blog & Owners Community



[vrtical]

Just wait until you rip one off then it's a non issue



[FLSTFI Dave]

Just wait until you rip one off then it's a non issue

Didn't rip it off. smacked hit hard when I slid sideways into a wall. Several busted clips. So I need to know how to get it off in proper order to reinstall the broken clips.



[rivasrubicon]

Indeed!

(22) PSA: Don't let dealer remove fender flares without confirming they have replacement push pins in stock | Bronco6G - 2021+ Ford Bronco & Bronco Raptor Forum, News, Blog & Owners Community
