*UPDATE AT END*

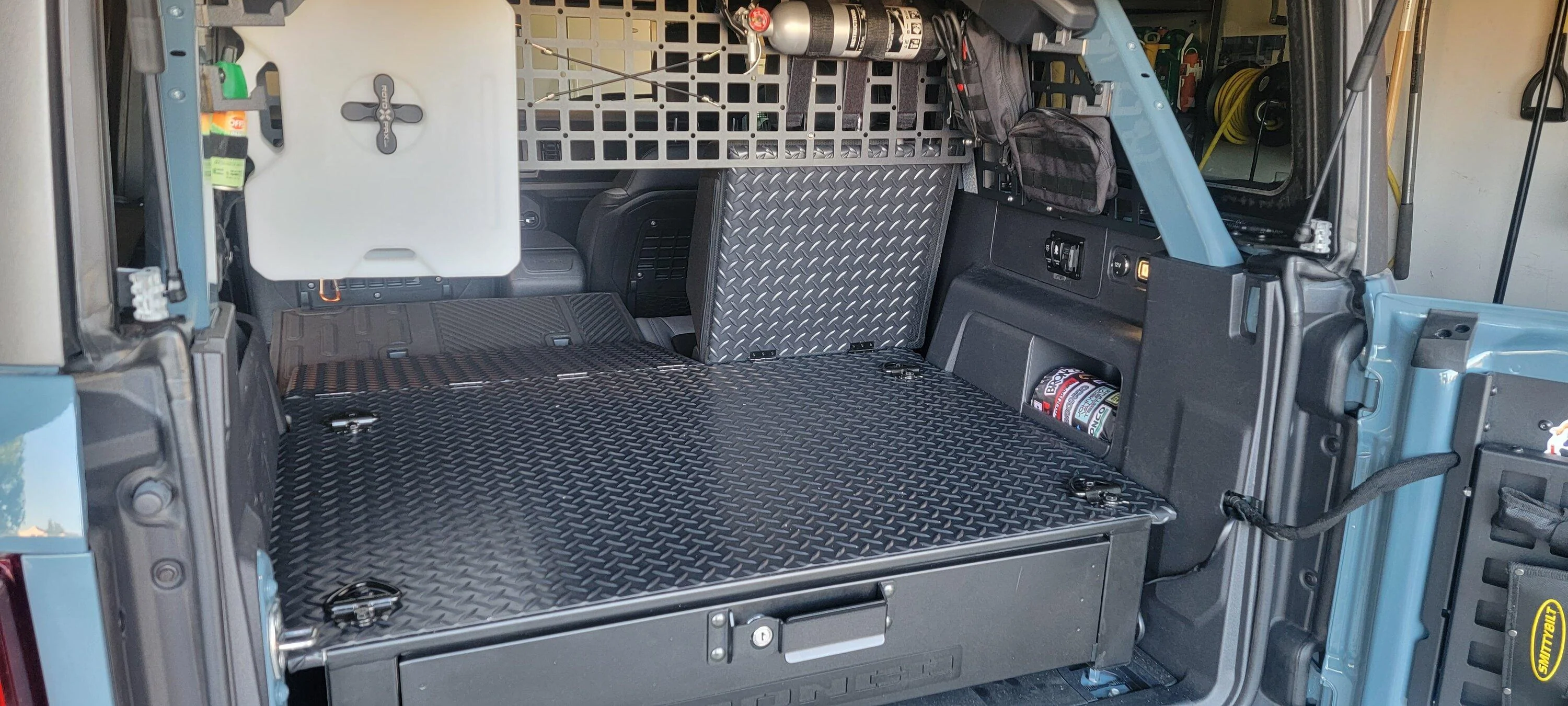

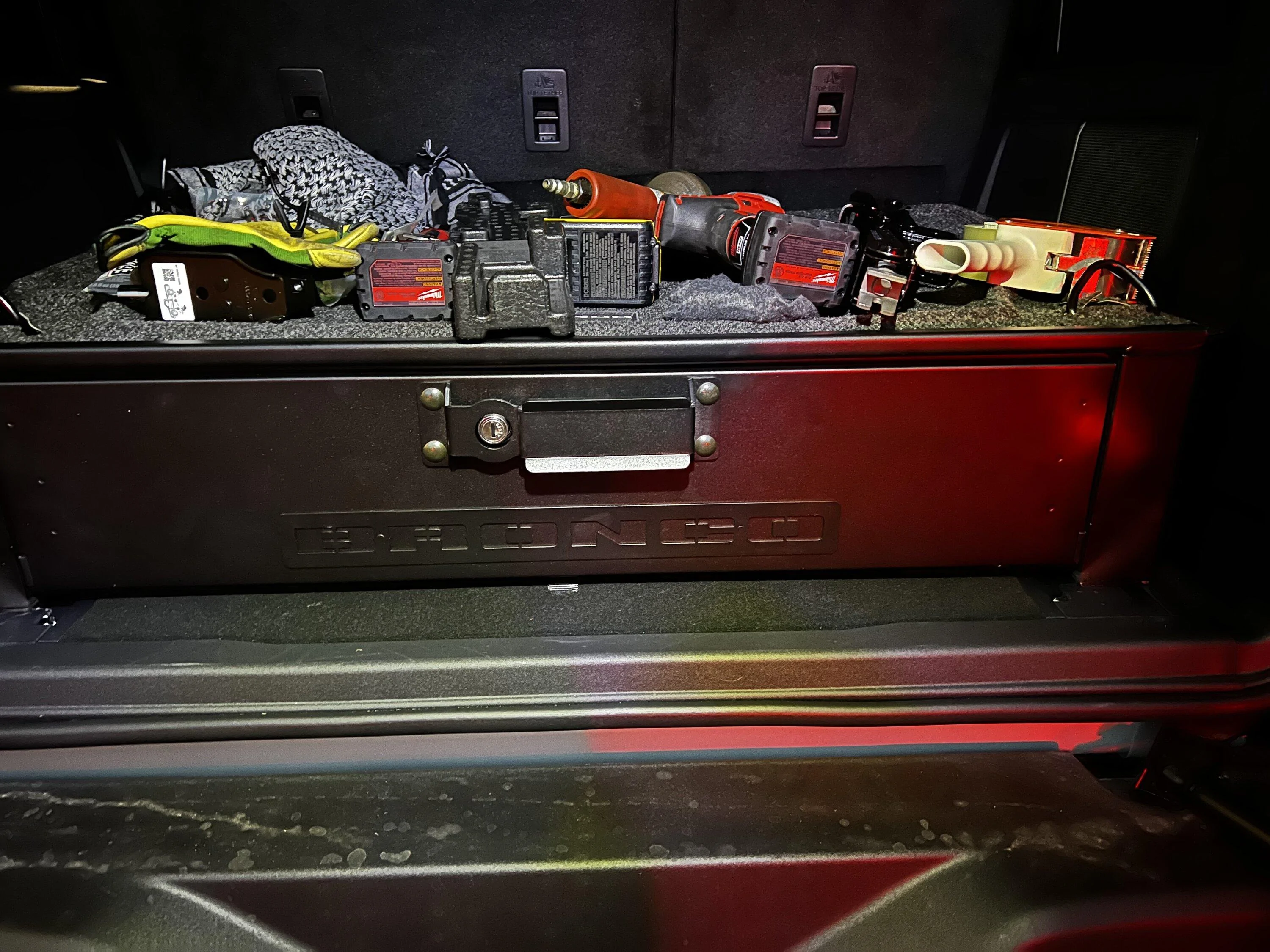

Ordered the Ford (Bronco branded) cargo drawer from the dealer today. Those Ford Pass points covered the cost which was not an insignificant factor in the final decision to go with the Ford box. First, I went back and forth between the drawer and the full enclosure. I ended up with the drawer because I carry more than my fair share of gear and my preference is to organize it. Configurable panels and removable dividers gives a host of options. The drawer actually leaves ample room on top for gear bags, range bags, coolers, etc. I cut the rear rug to size and it's a nice addition. A rubber mat or a piece of automotive carpet would be fine too.



Once I decided on the drawer, I did some research. Over the years for me, TruckVault has been the gold standard. impeccable quality, first-rate security, lots of options. They are also 4x the price of the Ford unit! I got to put eyes on the Ford drawer and I was impressed with the fit and finish. Ball bearing slides, clean welds, carpet on the drawer, and a solid lock. Having used the TruckVault to secure firearms, ammo, tactical gear and the like, the Ford unit gives me the same feeling of security as the TruckVault. Nothing is impenetrable and this post isn't to suggest the Ford unit is any better or worse from that perspective. Like a good safe, the goal is to slow down or deter the attack and this box does that, hands down. I also learned from the instructions that it is made by Tuffy for Ford and Bronco-branded.

The install is super easy and doesn't warrant an entire post. Pop the plastic covers off each of the four tie downs. Remove the bolts, replace with the install hardware, set the box and secure it. Super simple. Use power wrench for the 13mm nuts and torque to the specs on the sheet.

BTW, consider removing your jack and gas filler adapter before you put the drawer in. Now this is optional. I prefer a bottle jack that I'll store in the drawer. But, if you do not remove it, you'll simply have to remove the drawer to access your jack. Given that when you pick up that nail and have to change the tire, it will be dark, wet, dimly lit, muddy, with snow and wind in the forecast, choose wisely.

box wo drawer.jpg

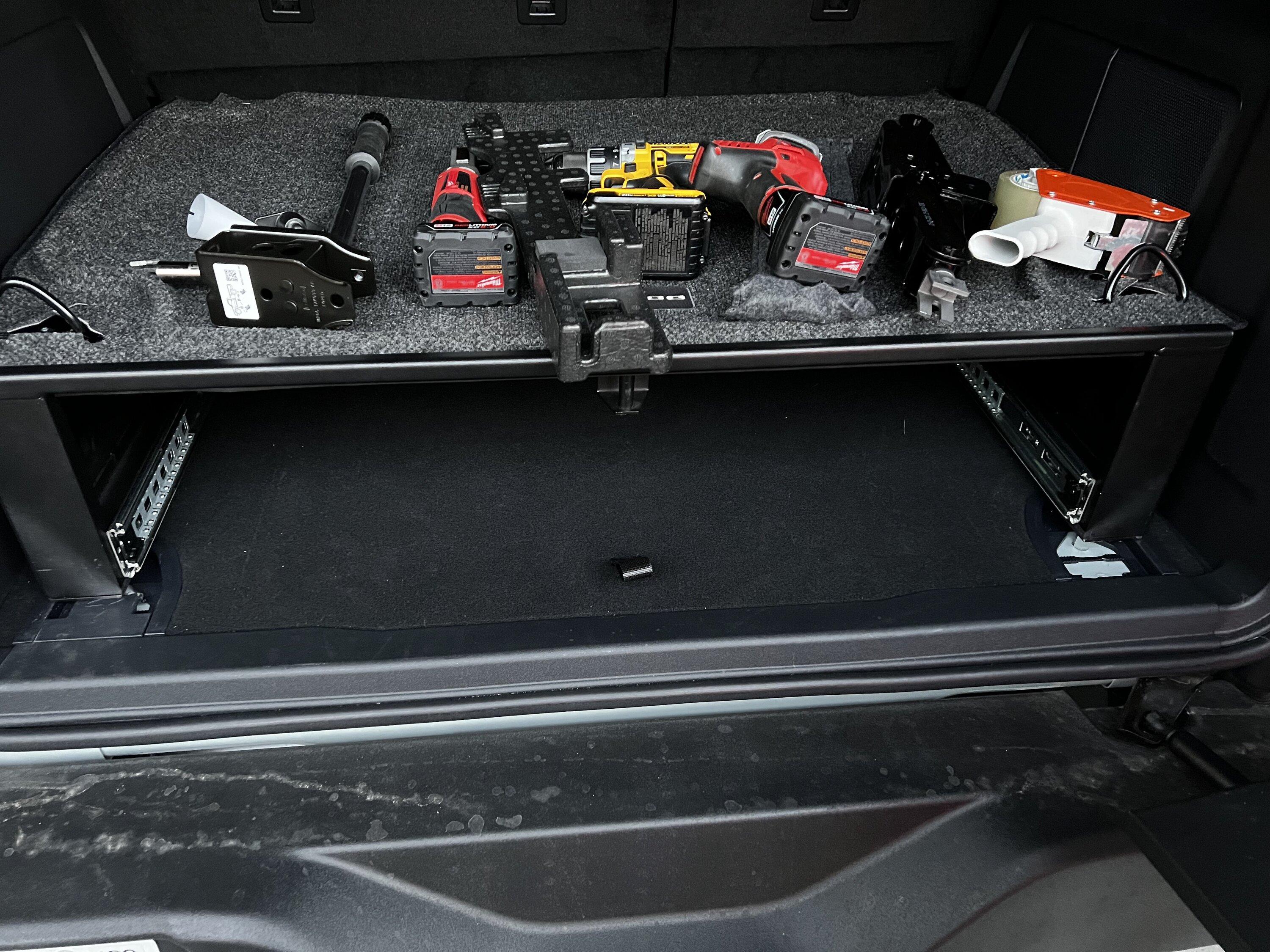

After the install, the front 'gap' where the tie downs where is left exposed. It's really a bad look when everything else is so tight and orderly. In the above photo, the (now custom) cover is in place on the left and the right side is what it would look like w/o a cover.

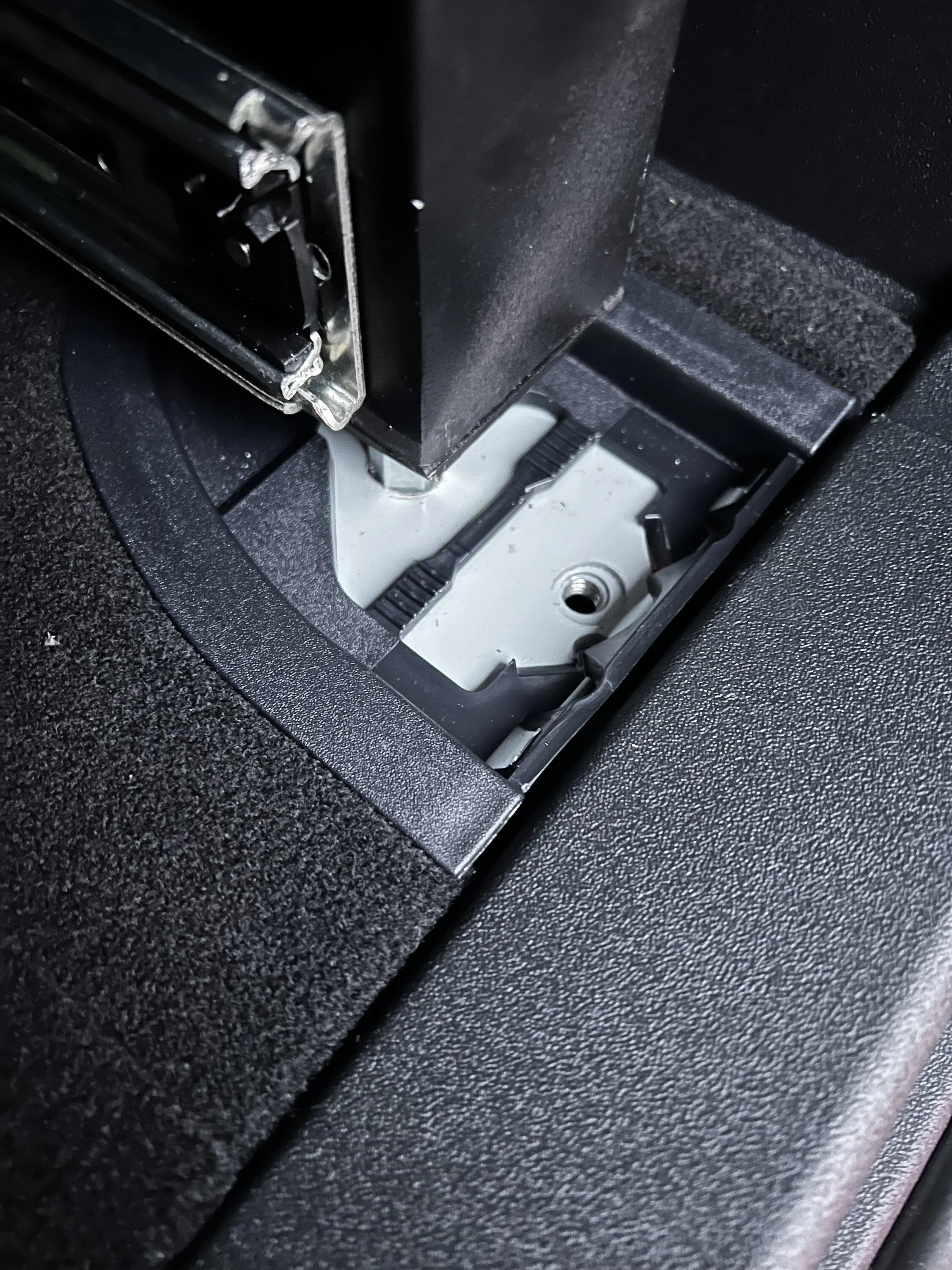

With the drawer installed, the opening and exposed threads are unsightly. And, the plastic cover you removed doesn't snap back in. So...

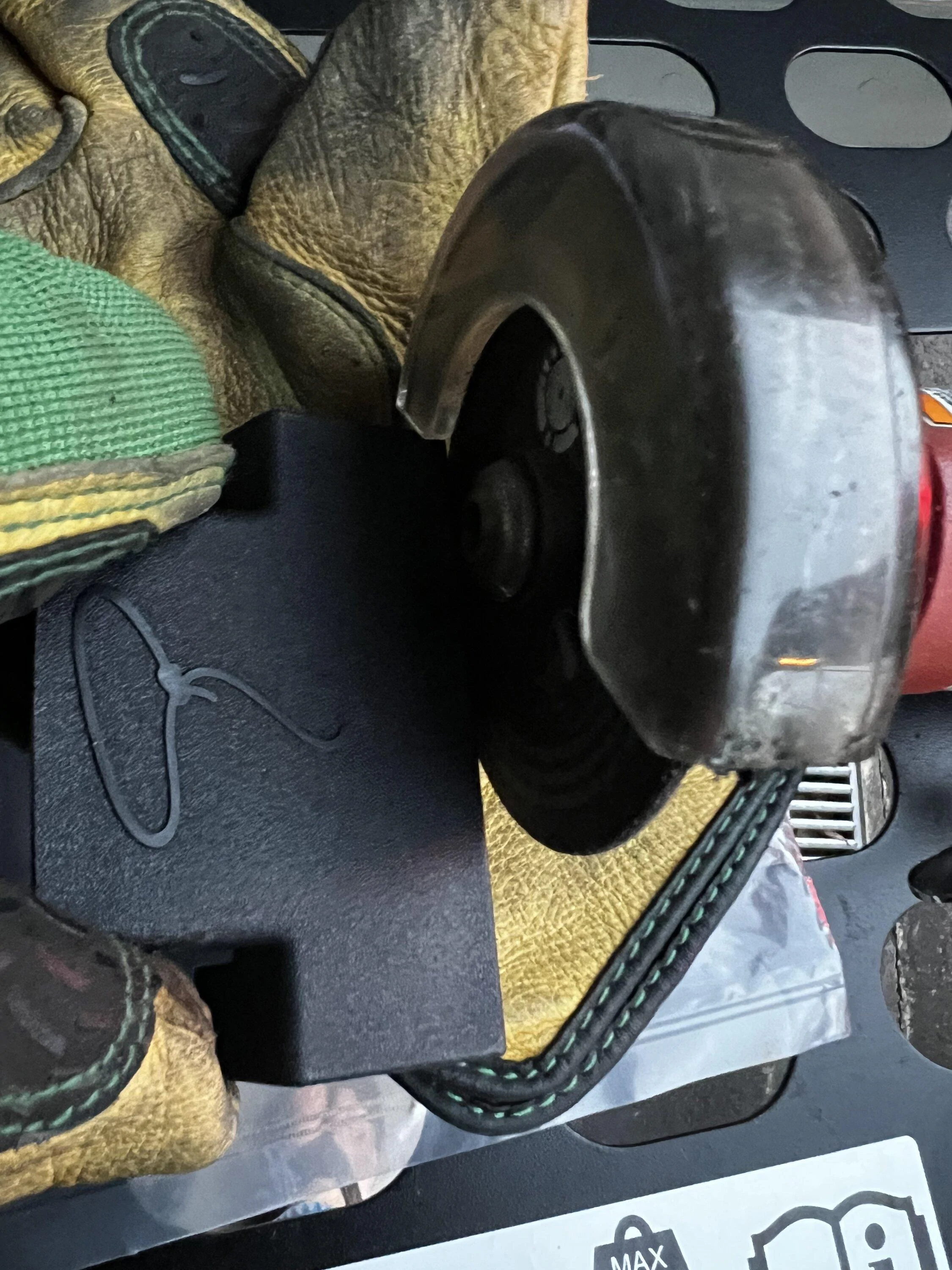

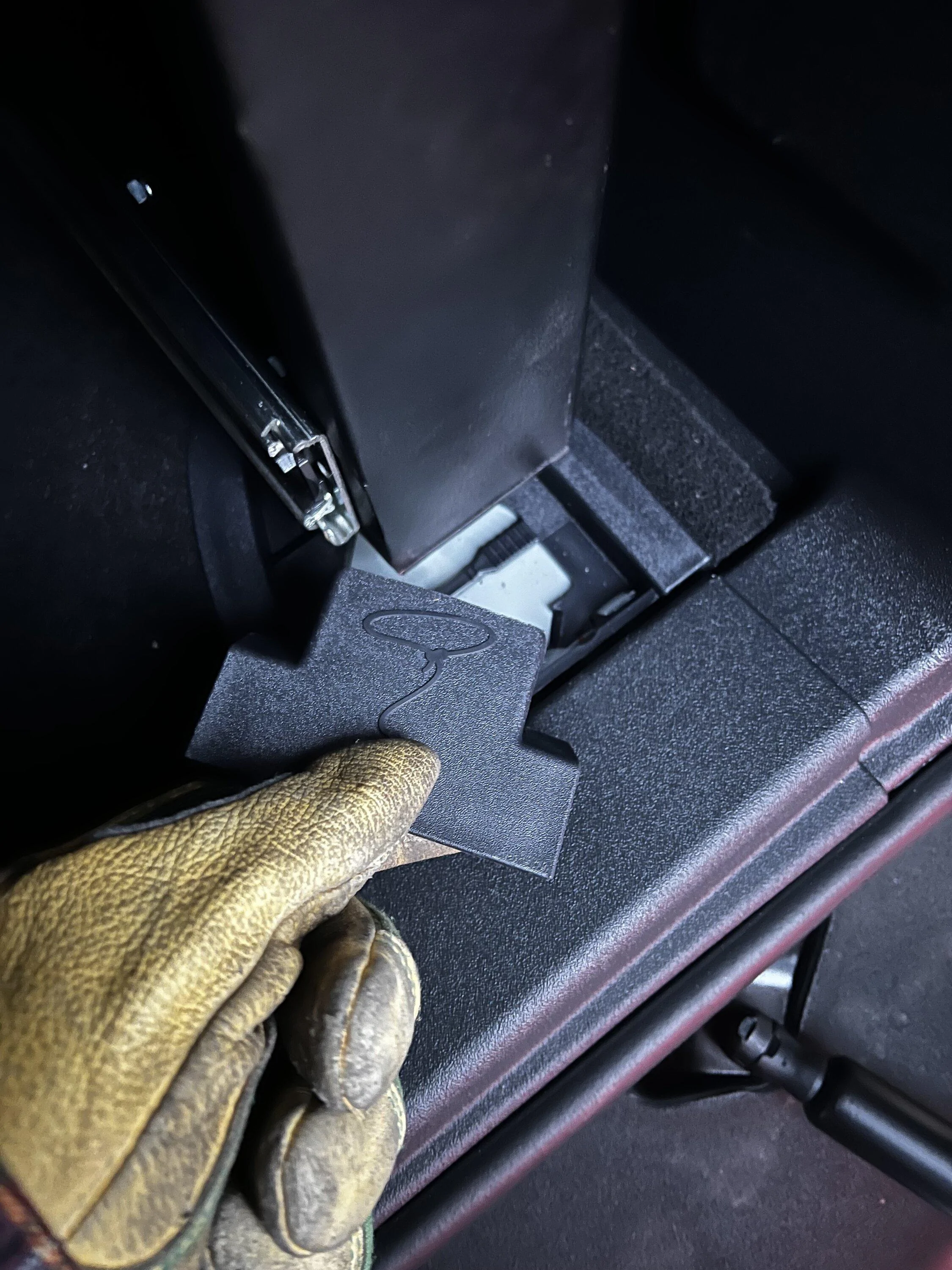

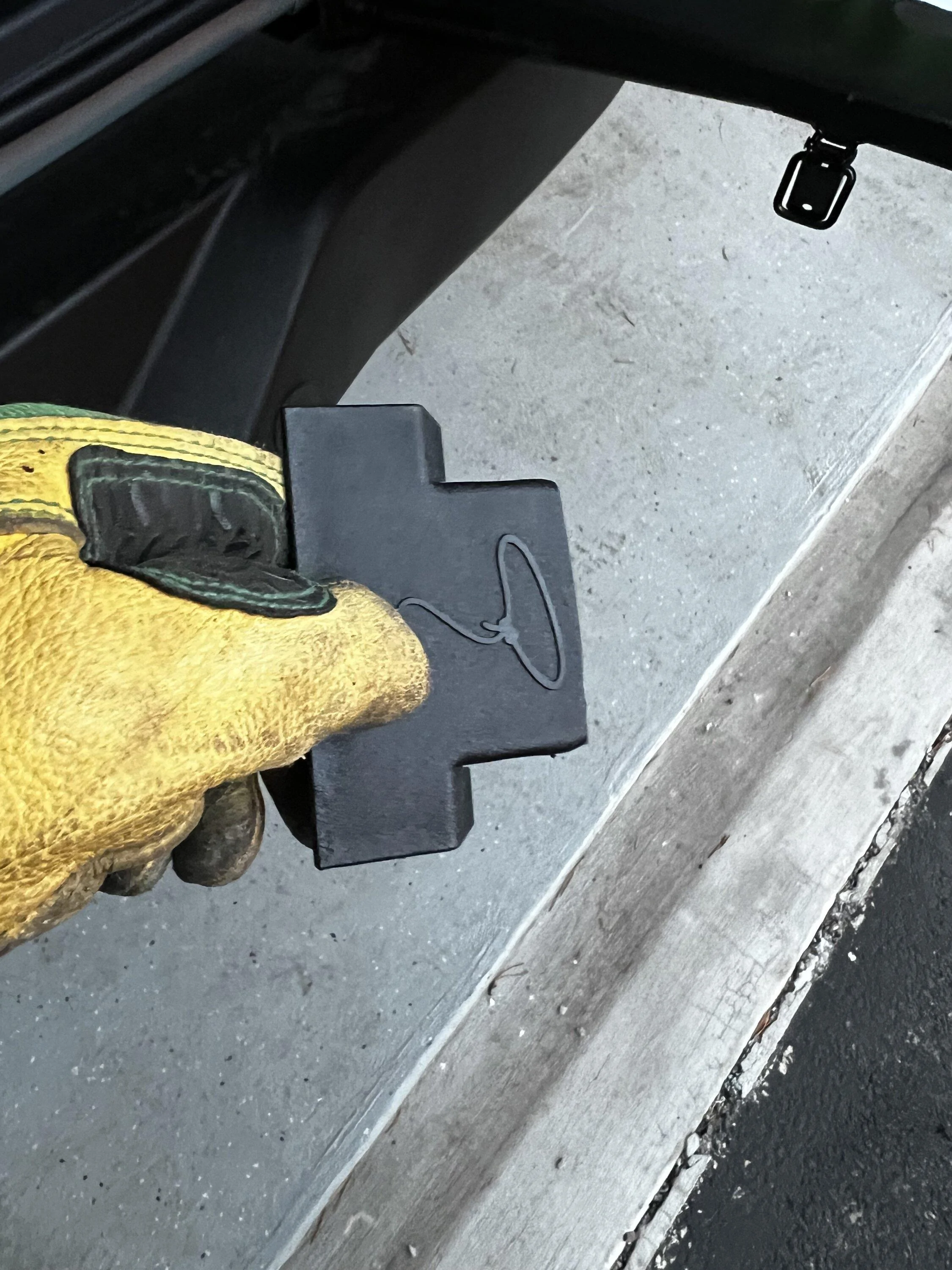

With an air grinder and a couple blasts, I removed everything above the lasso graphic on the plastic cover.



cut piece 1.jpg


cut piece.jpg

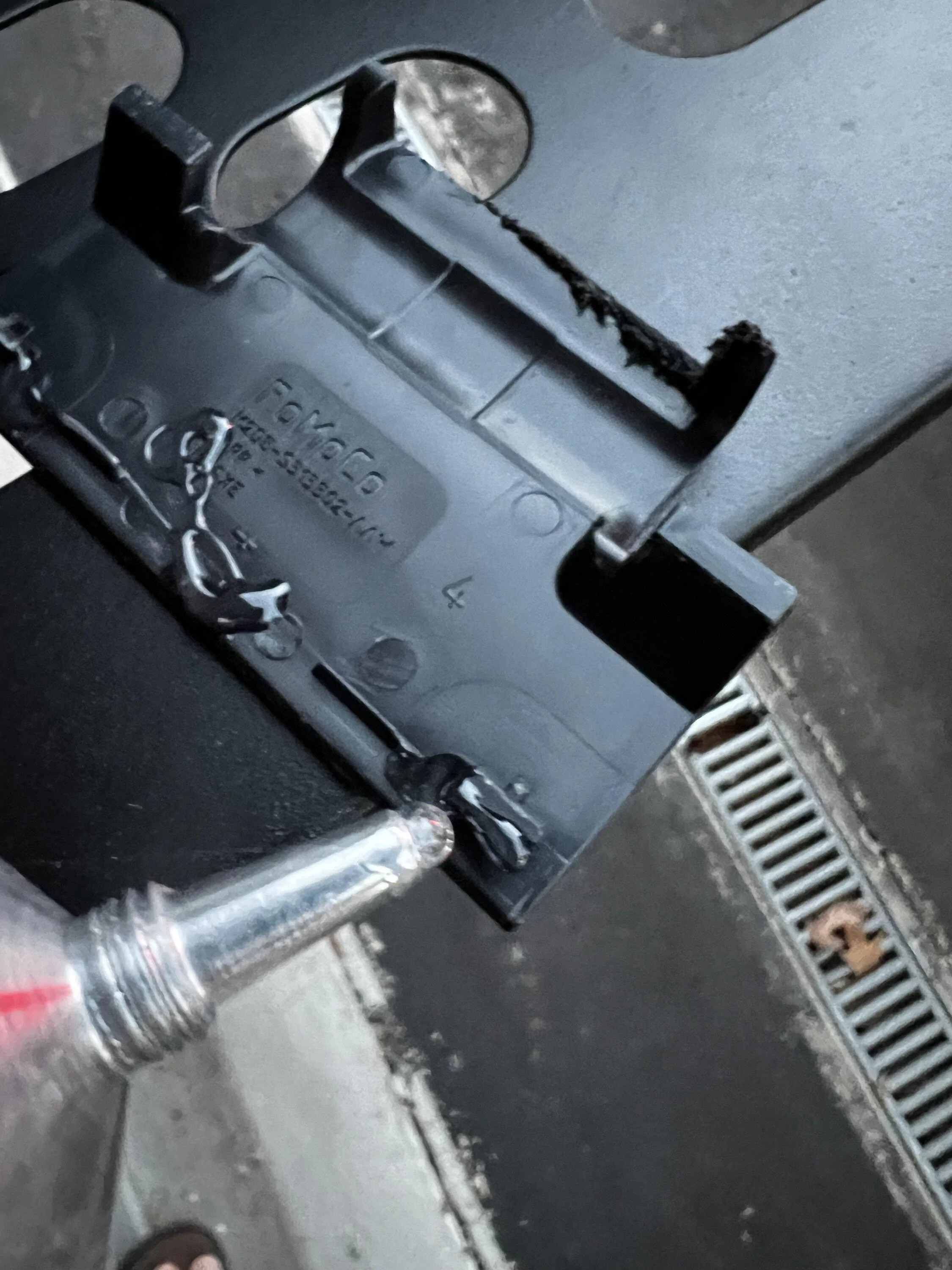

After that, a touch of glue/adhesive and it looks just like it did before the install!



cover right.jpg


left side cover.jpg

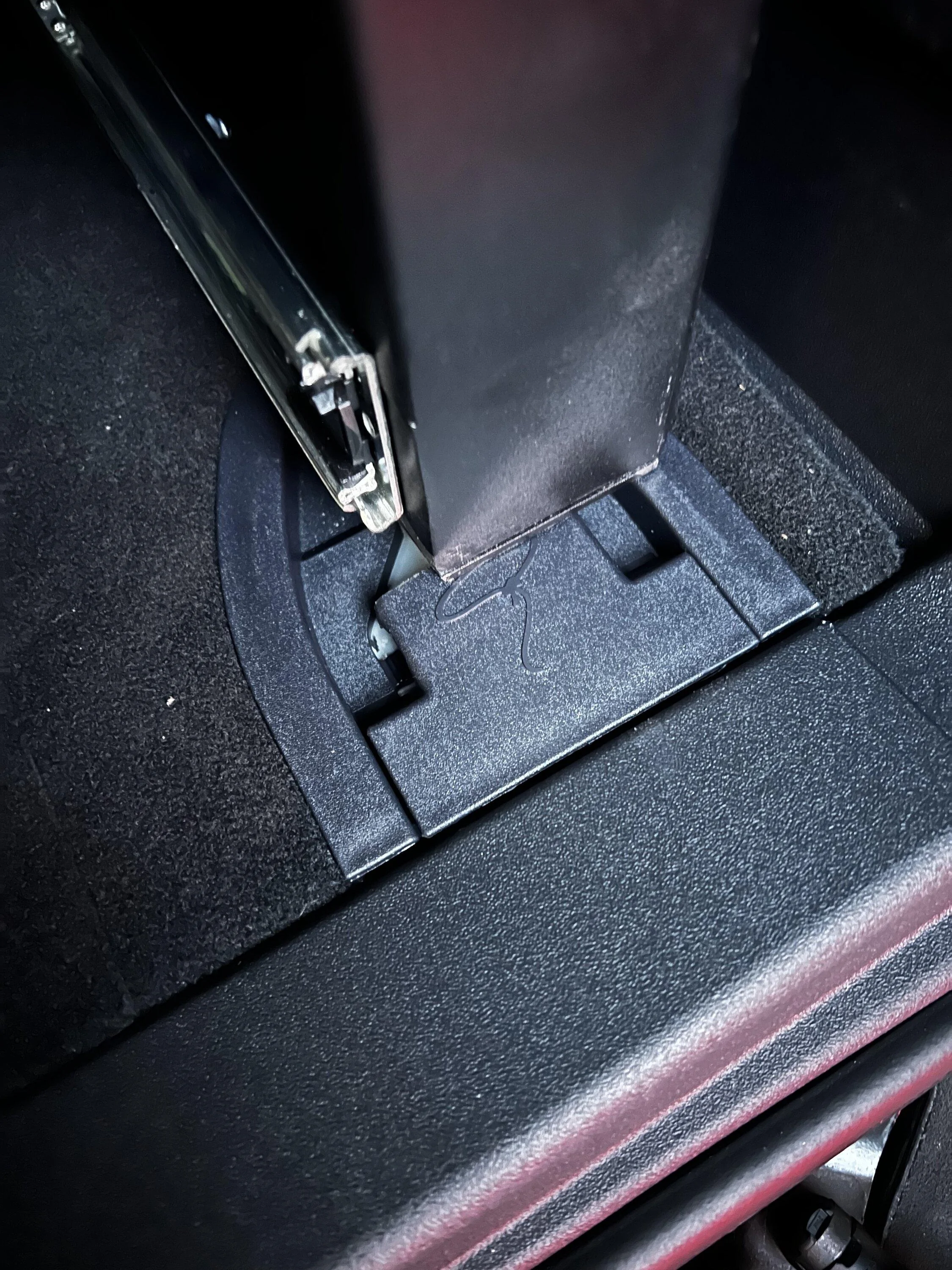

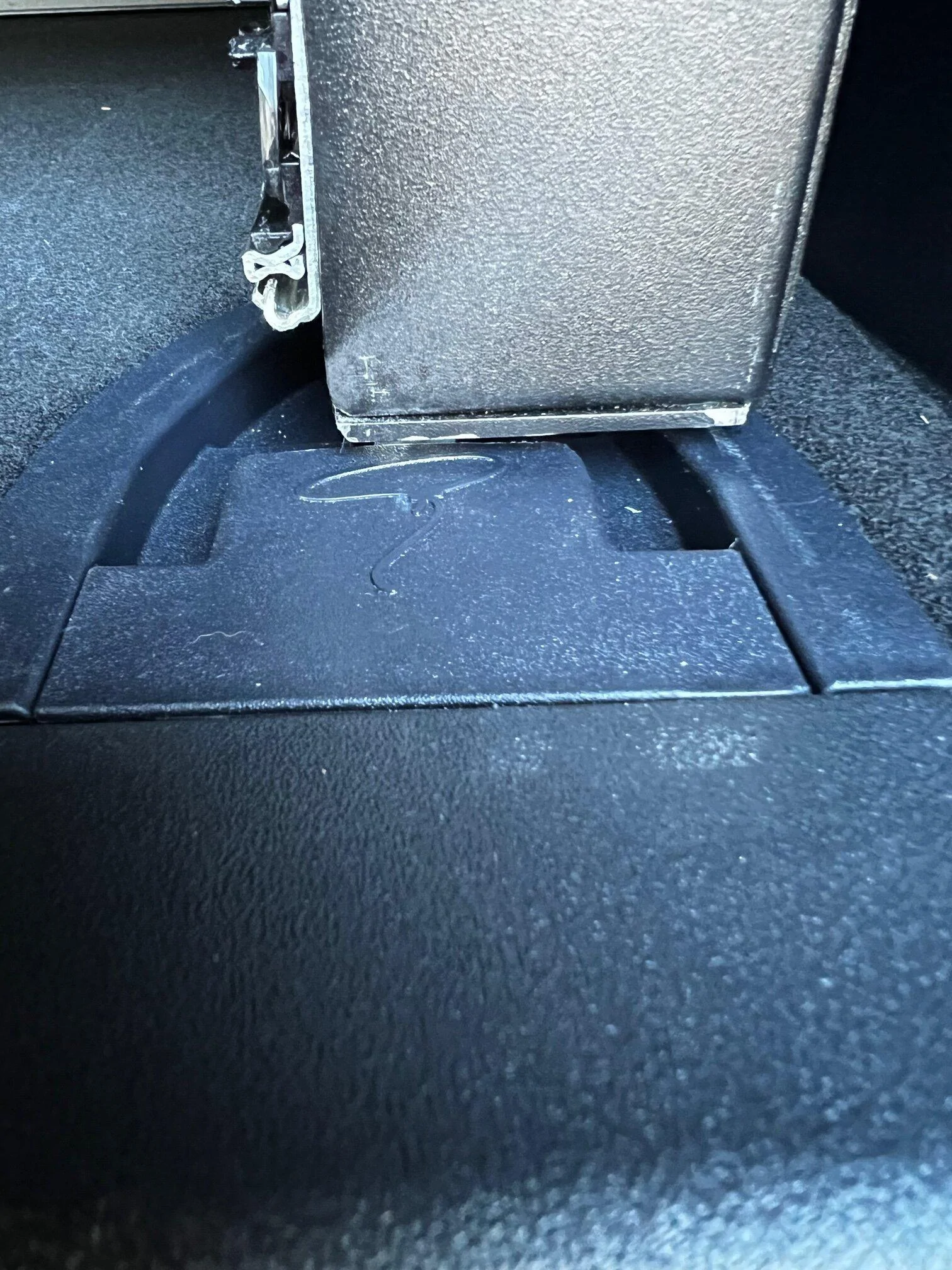

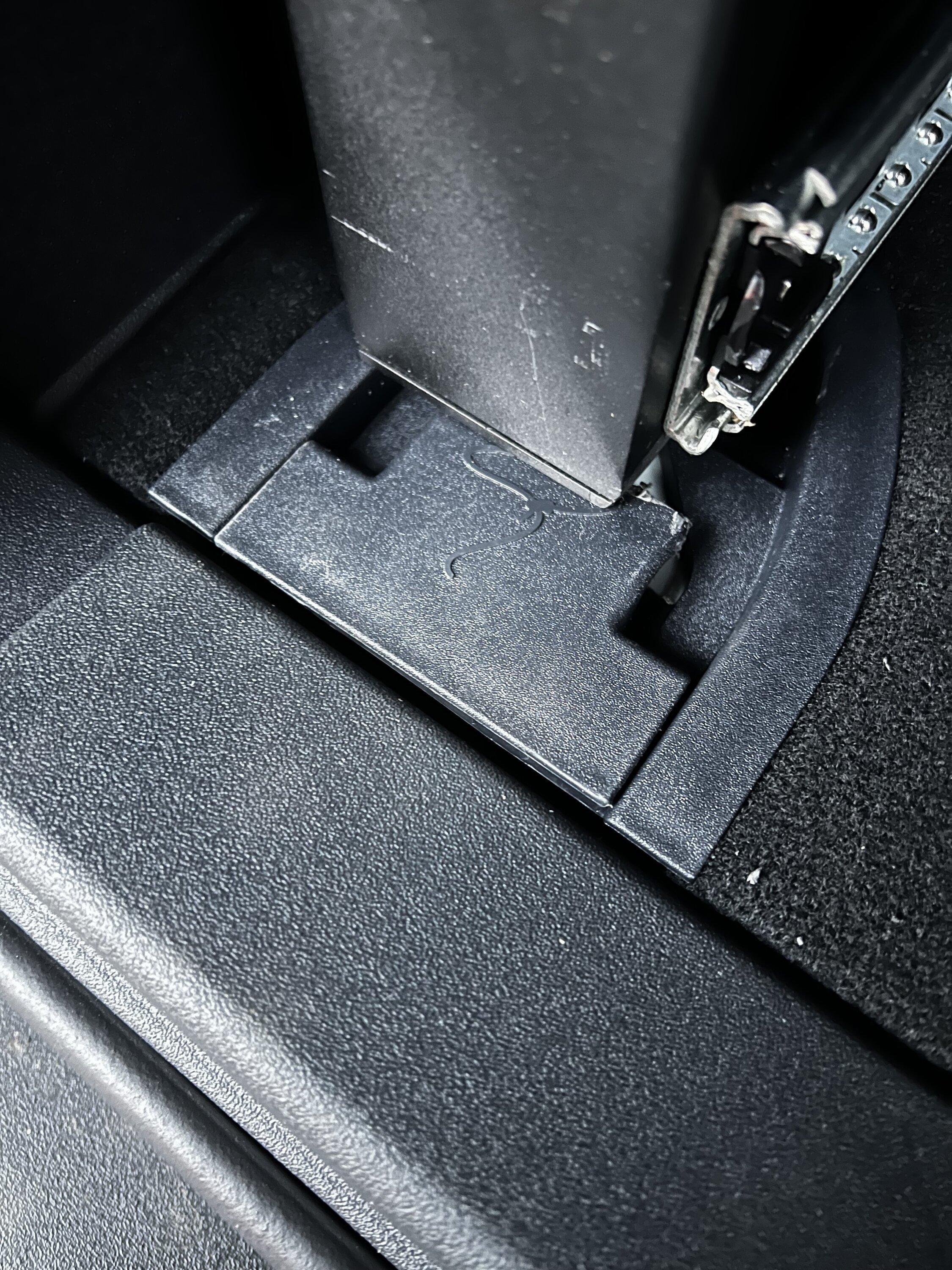

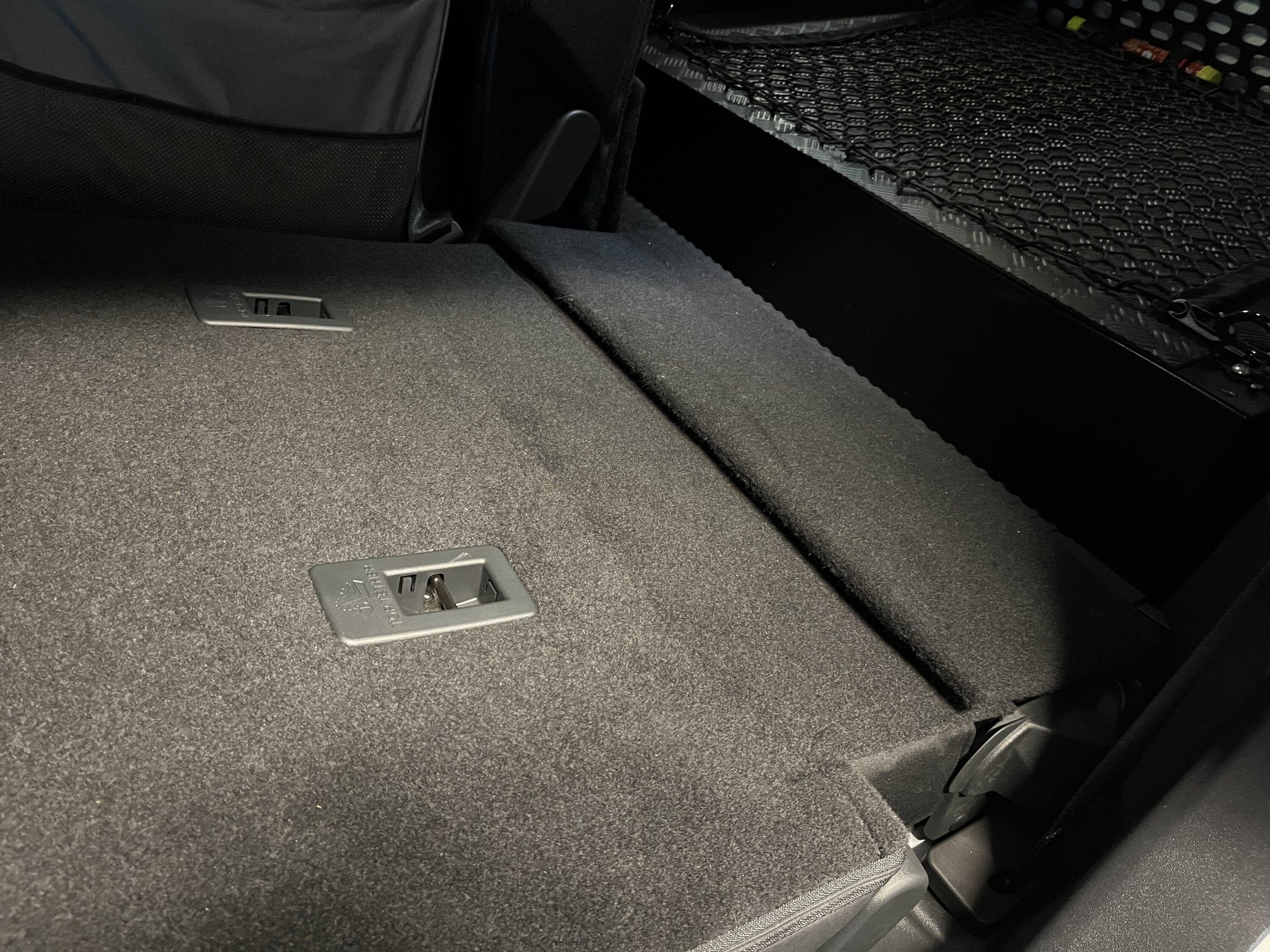

Once the drawer is installed, it's looks stock, again. Hope this helps someone!

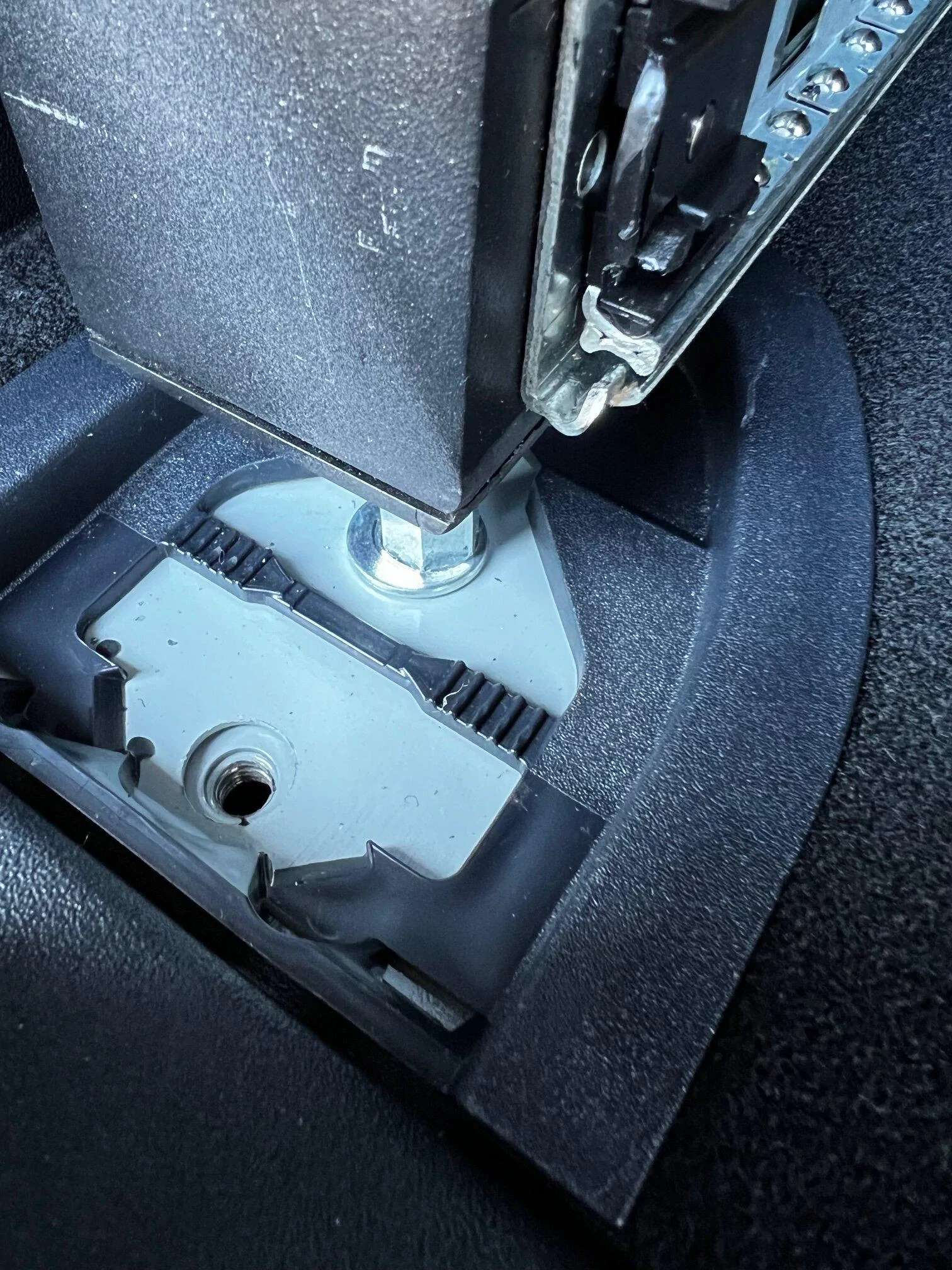

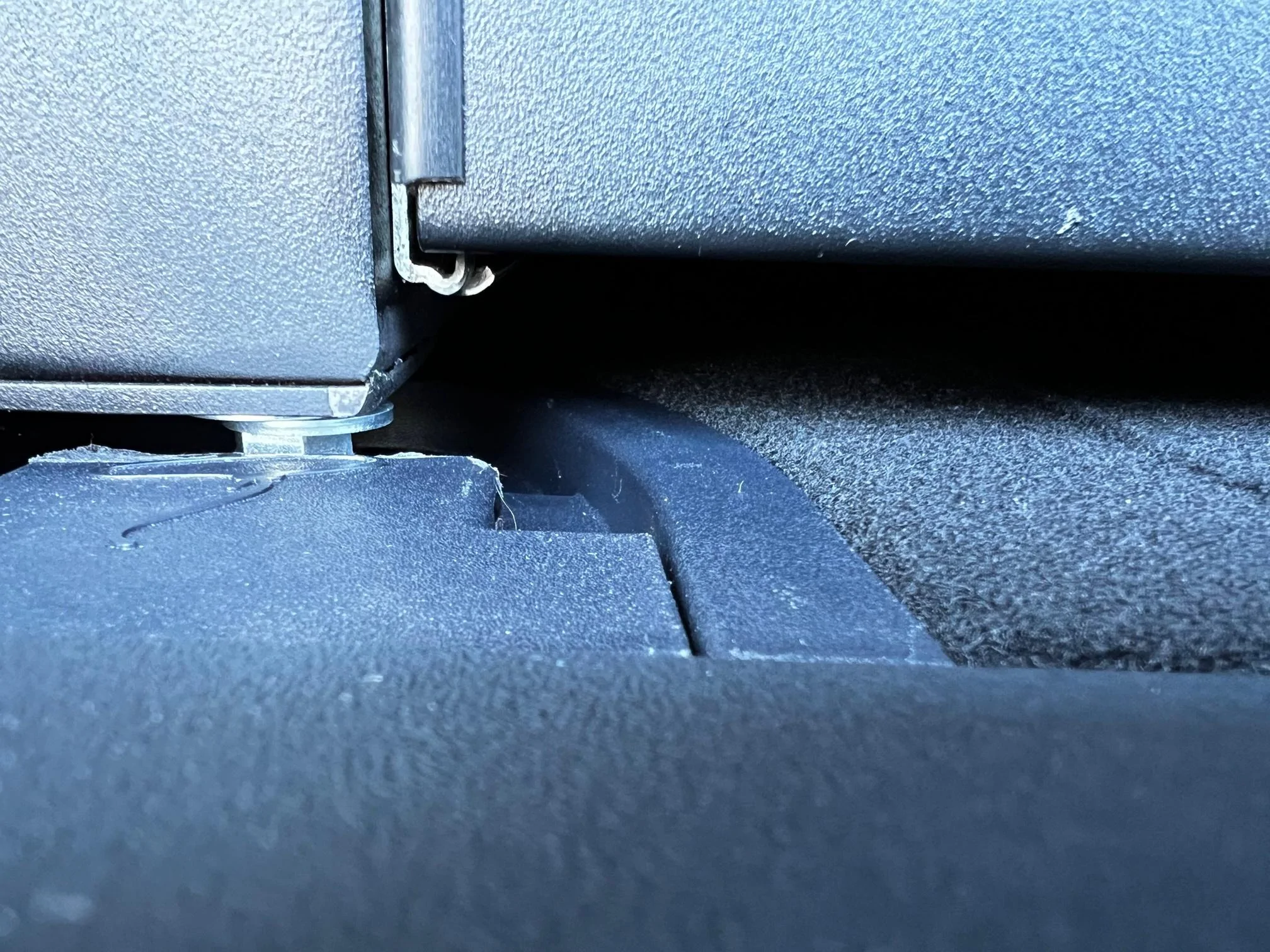

*UPDATE* So after things settled down and I put a few miles on it. I noticed the bottom of the drawer was touching the plastic threshold piece. Over time, that would definitely show signs of wear. The contact point was very small, less than the thickness of a credit card. I'm sure this is just due to some inconsistencies in manufacturing, build, part variations and the like, but it bugs me.

So, in case you find the same condition or you want to avoid it during the initial install. Here's what I did. Remove the drawer and the four nuts holding the box. Remove the box and remove the 'pillars' at each corner. Insert a thick washer under the pillar bolt and one on top of the bolt (under the box). Do not put two washers together at any point or you'll loose the required bite to torque them down. Four washers under, four washers on top. Set the box in place and reinstall the nuts. This lifted the box enough to clear the threshold with no problem.



And that's it. Lifts it just enough. Now if you want to be fancy, put a thinner washer on top of the thick one just on the front pillars. That will give you the slightest amount of upward cant and assist with full drawer closer.

Hope this helps!



Advertisement

Last edited:

Cobrafang

Wildtrak
Well-Known Member
First Name
Thomas
Joined
Jun 9, 2022
Threads
7
Messages
150
Reaction score
157
Location
GA
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Wildtrak
Nice. Looks really good. I am adding a 3/4” plastic board to the top of mine. So I can drill and mount things like slide for cooler...etc. I like the carpet idea...might put it on top of my plastic board.


2020FordRaptor

Wildtrak
Well-Known Member
First Name
Ty
Joined
Aug 14, 2022
Threads
18
Messages
1,209
Reaction score
704
Location
Nevada
Vehicle(s)
2020 Ford Raptor
Your Bronco Model
Wildtrak
Ordered the Ford (Bronco branded) cargo drawer from the dealer today. Those Ford Pass points covered the cost which was not an insignificant factor in the final decision to go with the Ford box. First, I went back and forth between the drawer and the full enclosure. I ended up with the drawer because I carry more than my fair share of gear and my preference is to organize it. Configurable panels and removable dividers gives a host of options. The drawer actually leaves ample room on top for gear bags, range bags, coolers, etc. I cut the rear rug to size and it's a nice addition. A rubber mat or a piece of automotive carpet would be fine too.



Once I decided on the drawer, I did some research. Over the years for me, TruckVault has been the gold standard. impeccable quality, first-rate security, lots of options. They are also 4x the price of the Ford unit! I got to put eyes on the Ford drawer and I was impressed with the fit and finish. Ball bearing slides, clean welds, carpet on the drawer, and a solid lock. Having used the TruckVault to secure firearms, ammo, tactical gear and the like, the Ford unit gives me the same feeling of security as the TruckVault. Nothing is impenetrable and this post isn't to suggest the Ford unit is any better or worse from that perspective. Like a good safe, the goal is to slow down or deter the attack and this box does that, hands down. I also learned from the instructions that it is made by Tuffy for Ford and Bronco-branded.

The install is super easy and doesn't warrant an entire post. Pop the plastic covers off each of the four tie downs. Remove the bolts, replace with the install hardware, set the box and secure it. Super simple. Use power wrench for the 13mm nuts and torque to the specs on the sheet.

BTW, consider removing your jack and gas filler adapter before you put the drawer in. Now this is optional. I prefer a bottle jack that I'll store in the drawer. But, if you do not remove it, you'll simply have to remove the drawer to access your jack. Given that when you pick up that nail and have to change the tire, it will be dark, wet, dimly lit, muddy, with snow and wind in the forecast, choose wisely.

box wo drawer.jpg


After the install, the front 'gap' where the tie downs where is left exposed. It's really a bad look when everything else is so tight and orderly. In the above photo, the (now custom) cover is in place on the left and the right side is what it would look like w/o a cover.



With the drawer installed, the opening and exposed threads are unsightly. And, the plastic cover you removed doesn't snap back in. So...

With an air grinder and a couple blasts, I removed everything above the lasso graphic on the plastic cover.



cut piece 1.jpg


cut piece.jpg


After that, a touch of glue/adhesive and it looks just like it did before the install!



cover right.jpg


left side cover.jpg


Once the drawer is installed, it's looks stock, again. Hope this helps someone!

Looks great!


JediMcMuffin

Badlands
Well-Known Member
First Name
Tommy
Joined
Jun 15, 2021
Threads
17
Messages
1,064
Reaction score
1,964
Location
San Diego
Vehicle(s)
2021 Bronco Badlands
Your Bronco Model
Badlands
Clubs

Nice install, I dig what you did the top. I just removed my drawer. I have found that having no dividers at all on the inside afford you WAY more usable space.


ET13

Wildtrak
Well-Known Member
Joined
Nov 22, 2020
Threads
2
Messages
495
Reaction score
869
Location
Texas
Vehicle(s)
Honda
Your Bronco Model
Wildtrak
does it make the back level when the rear sets are folded down?


Advertisement

604Bronco

Badlands
Well-Known Member
Joined
Apr 9, 2021
Threads
123
Messages
5,591
Reaction score
18,284
Location
British Columbia
Website
www.bronco6g.com
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Badlands
Clubs

does it make the back level when the rear sets are folded down?
No - The box is higher.



Great write-up!

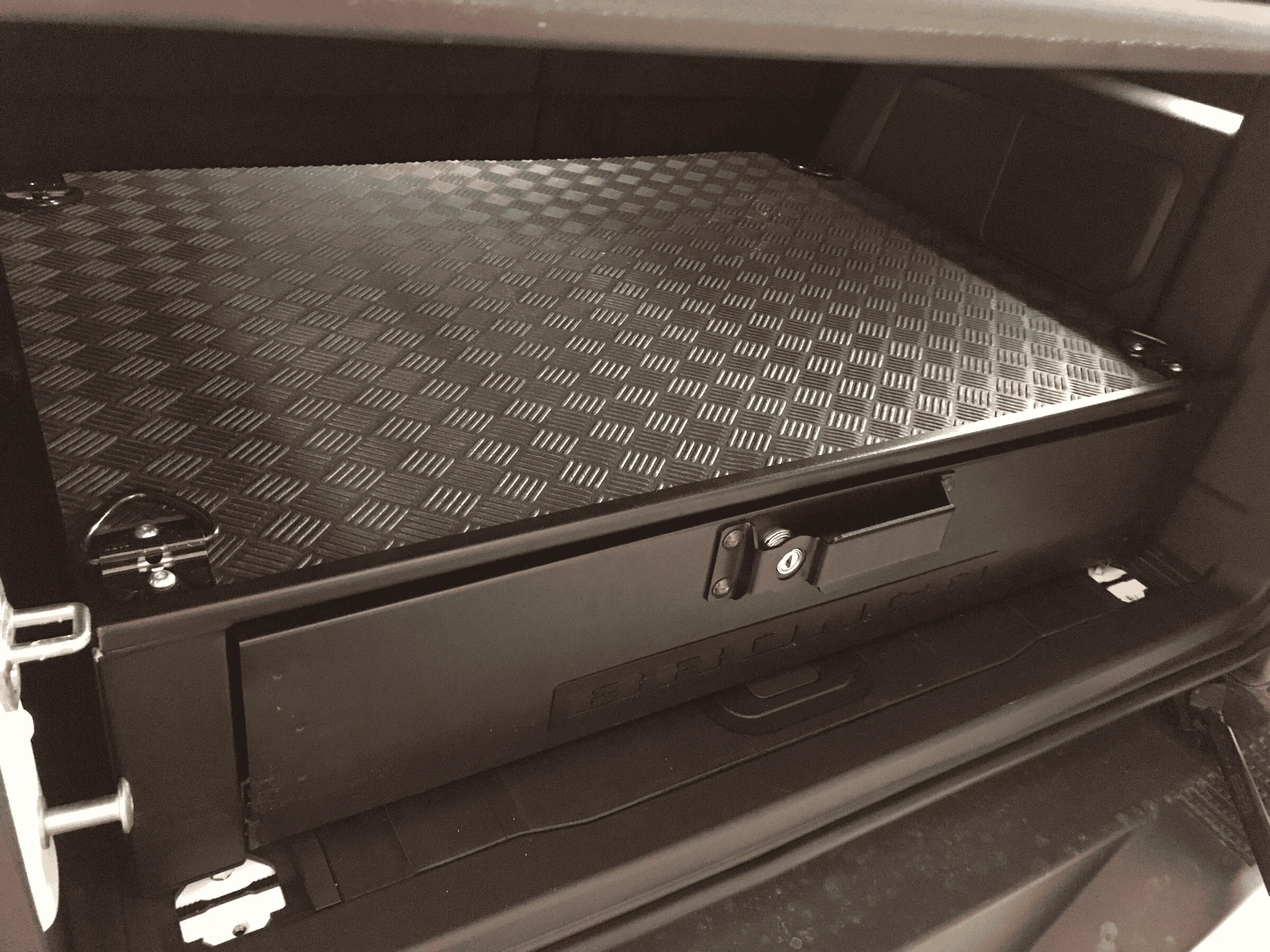

I added a rubber mat on top of mine. Works great for protecting the box and stops stuff from sliding around. I also added the Ford cargo net.


OP
OP
0321_Bronco

0321_Bronco

Wildtrak
Member
First Name
Craig
Joined
Oct 13, 2022
Threads
4
Messages
23
Reaction score
74
Location
Northern Virginia
Vehicle(s)
Bronco, Raptor, Jeep Grand Cherokee
Your Bronco Model
Wildtrak
Nice install, I dig what you did the top. I just removed my drawer. I have found that having no dividers at all on the inside afford you WAY more usable space.
You are right, 100%. I ended up doing that with the TruckVault and I was amazed at how much crap I could cram in there. Good feedback!

OP
OP
0321_Bronco

0321_Bronco

Wildtrak
Member
First Name
Craig
Joined
Oct 13, 2022
Threads
4
Messages
23
Reaction score
74
Location
Northern Virginia
Vehicle(s)
Bronco, Raptor, Jeep Grand Cherokee
Your Bronco Model
Wildtrak
No - The box is higher.



Great write-up!

I added a rubber mat on top of mine. Works great for protecting the box and stops stuff from sliding around. I also added the Ford cargo net.

Looks really good!

OP
OP
0321_Bronco

0321_Bronco

Wildtrak
Member
First Name
Craig
Joined
Oct 13, 2022
Threads
4
Messages
23
Reaction score
74
Location
Northern Virginia
Vehicle(s)
Bronco, Raptor, Jeep Grand Cherokee
Your Bronco Model
Wildtrak

Advertisement

MadeInDetroit

Wildtrak
New Member
First Name
Patrick
Joined
Oct 31, 2021
Threads
0
Messages
3
Reaction score
3
Location
OC
Vehicle(s)
Raptor, 74 Bronco, Tesla, Falcon Spint, Defender
Your Bronco Model
Wildtrak
Looks nice. I ordered the same but need to find a place for the Kicker Hideaway now. Any suggestions?


cigartexan

First Edition
Well-Known Member
First Name
Jack
Joined
Jul 22, 2020
Threads
16
Messages
486
Reaction score
976
Location
Boerne, Texas
Vehicle(s)
2012 F-350 SD - 2021 4D Bronco FE
Your Bronco Model
First Edition
Clubs

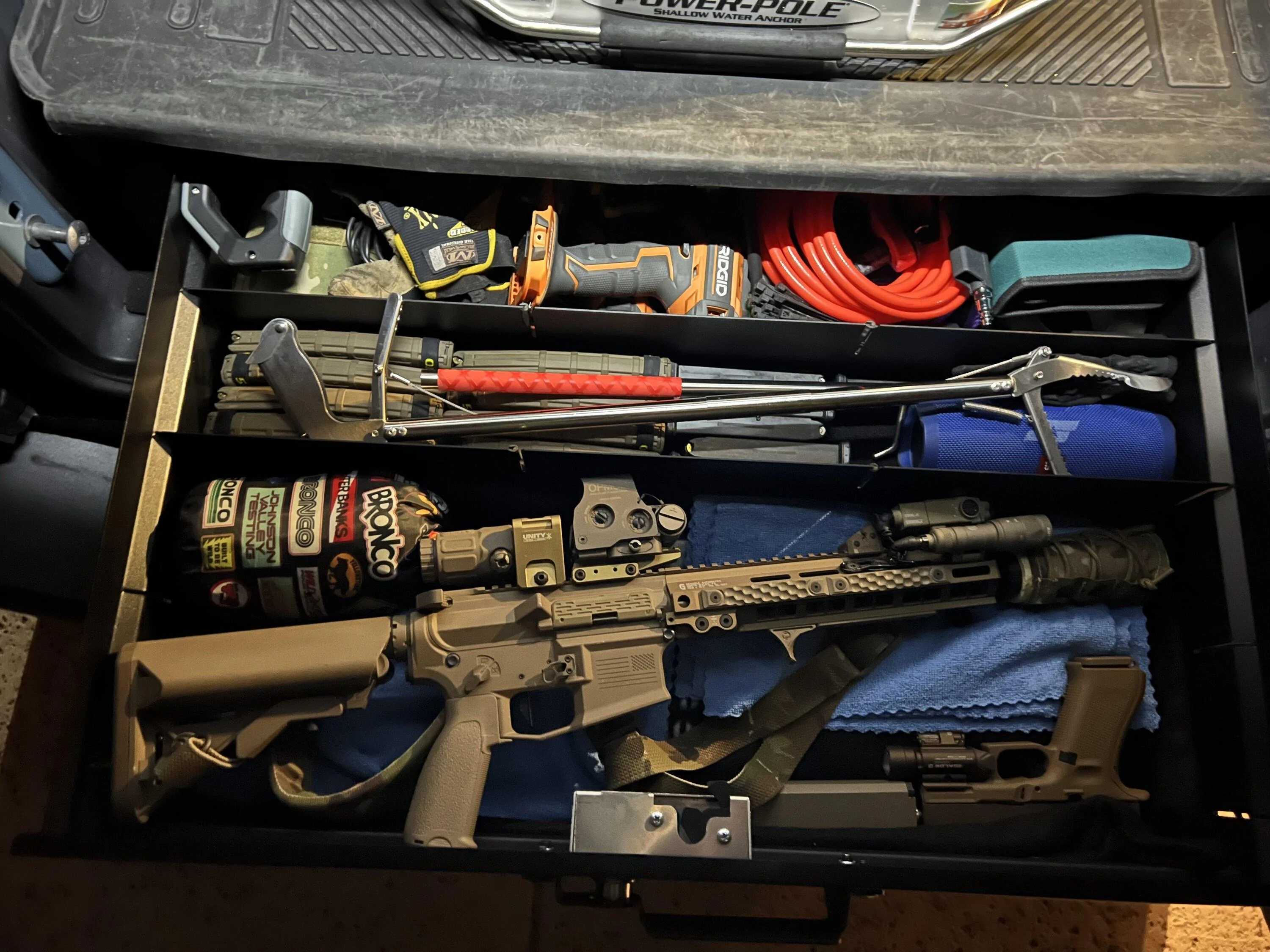

Just installed mine 2 days ago! Fits some firearms nicely too!


tdiddy

Black Diamond
Well-Known Member
First Name
Tommy
Joined
Sep 3, 2021
Threads
1
Messages
113
Reaction score
255
Location
Illinois
Vehicle(s)
2010 Ford F150, 2012 Ford Focus
Your Bronco Model
Black Diamond

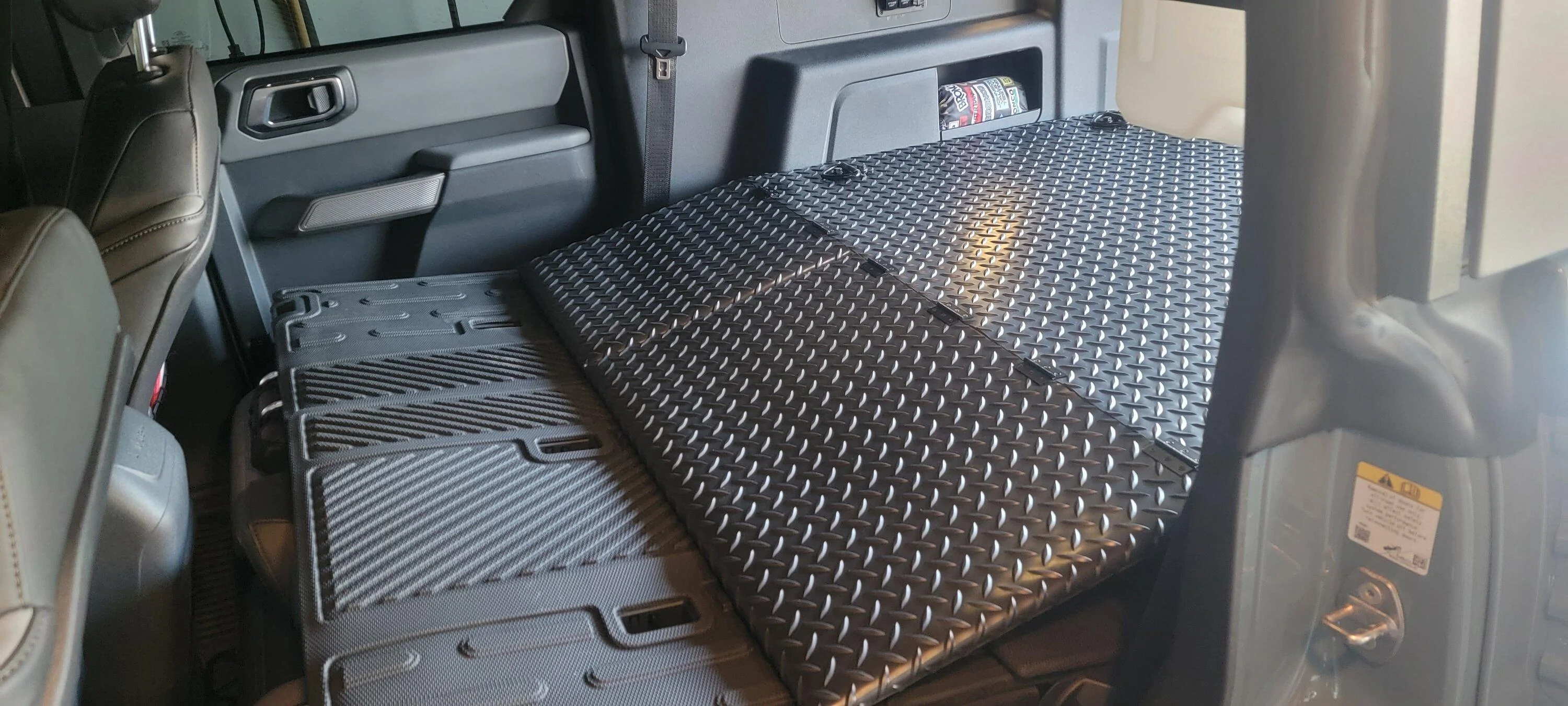

I added a 3/8" sheet of OSB with folding "ramps" to level out the height difference and covered it in rubber mat. Works well for sleeping in the Bronco on the Deepsleep Overland mats!
