Ford Electric Brake Controller testing?

sportcoupe

Wildtrak
Well-Known Member
First Name
John
Joined
Jul 16, 2023
Threads
20
Messages
262
Reaction score
213
Location
Georgia
Vehicle(s)
2023 Bronco
Your Bronco Model
Wildtrak
For those that installed the Ford electric brake controller yourself, can you test it to make sure it's working somewhat without a trailer?

Is there any Forscan programming required?
Sponsored



RagnarKon

Badlands
Well-Known Member
First Name
Bryan
Joined
Aug 5, 2021
Threads
35
Messages
3,790
Reaction score
9,642
Location
New England
Vehicle(s)
Ford Bronco, Escape, Focus
Your Bronco Model
Badlands
Clubs

No programming step is required if you already have the trailer tow module (which is included in the tow package or if you installed this kit).

And you can test to see if it is working with a multimeter, some sort of load (like a headlight lightbulb), and a few spare wires.

OP
OP
sportcoupe

sportcoupe

Wildtrak
Well-Known Member
First Name
John
Joined
Jul 16, 2023
Threads
20
Messages
262
Reaction score
213
Location
Georgia
Vehicle(s)
2023 Bronco
Your Bronco Model
Wildtrak
I do have factory tow so the module should be there.


RagnarKon

Badlands
Well-Known Member
First Name
Bryan
Joined
Aug 5, 2021
Threads
35
Messages
3,790
Reaction score
9,642
Location
New England
Vehicle(s)
Ford Bronco, Escape, Focus
Your Bronco Model
Badlands
Clubs

I do have factory tow so the module should be there.
Yup, you'll have it.

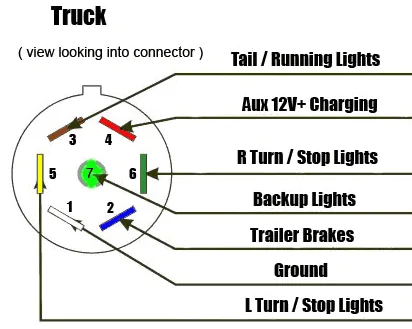

So you just need to put some sort of a load on the trailer brake wire out of the 7-pin (like an auto lightbulb). Connect one lead of the bulb to the Trailer Brake pin, and the other onto the ground. Those two blades should be right next to each other (refer to the diagram).
