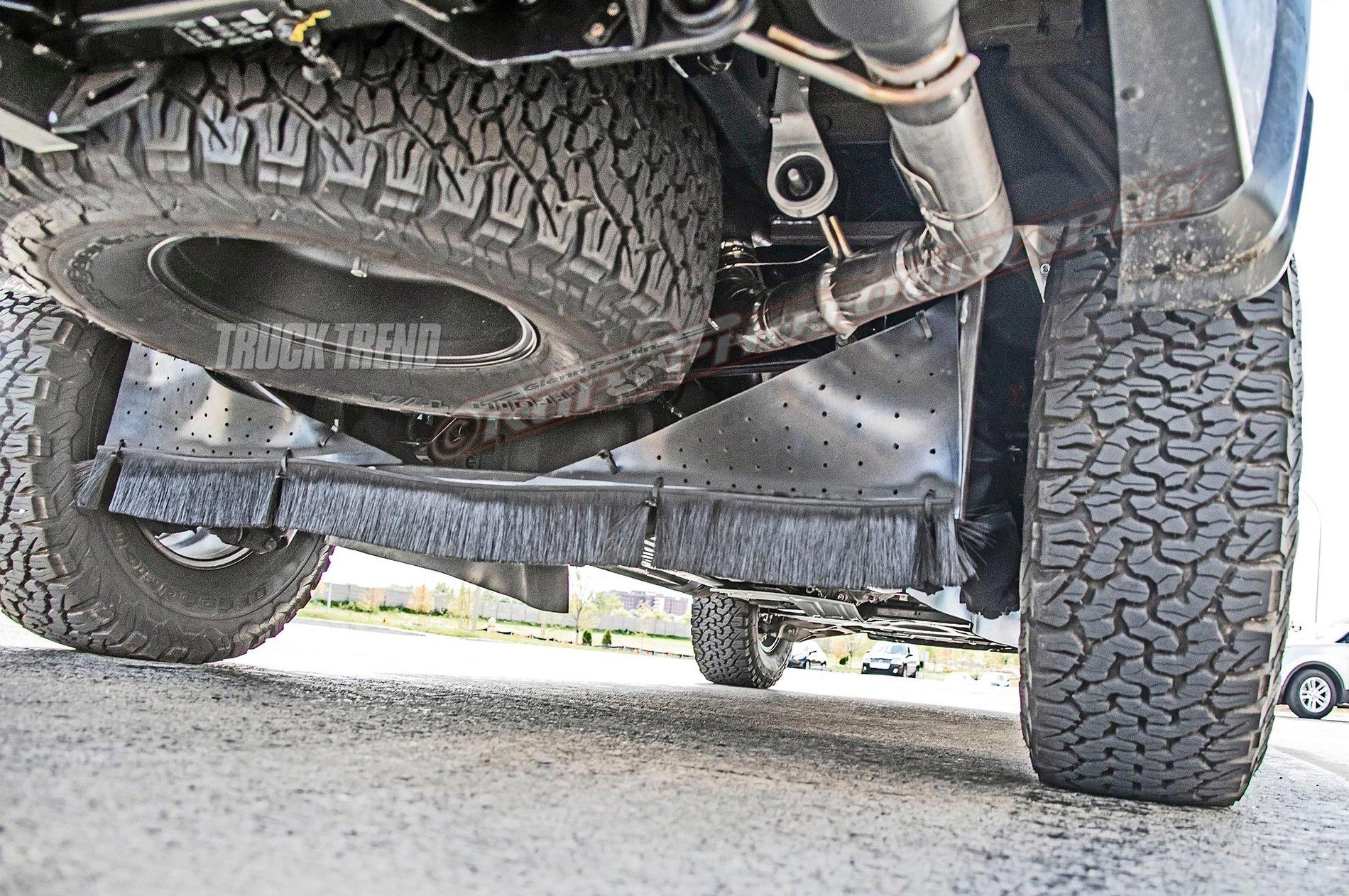

Wearing current-generation Raptor bodywork, wheels, and tires, this mule for the next-gen F-150 is also sporting significant rear suspension camouflage. Plainly obvious is the lack of rear leaf springs, which have been found under the Raptor since it was introduced for 2010. Instead, we see a Panhard bar and pivot bolt, suggesting, the 2021 F-150 (or at least the F-150 Raptor) will get a five-link rear suspension like its rival, the Ram 1500.

http://www.trucktrend.com/news/1909-spied-2021-ford-f-150-raptor-camouflaged-suspension-bits

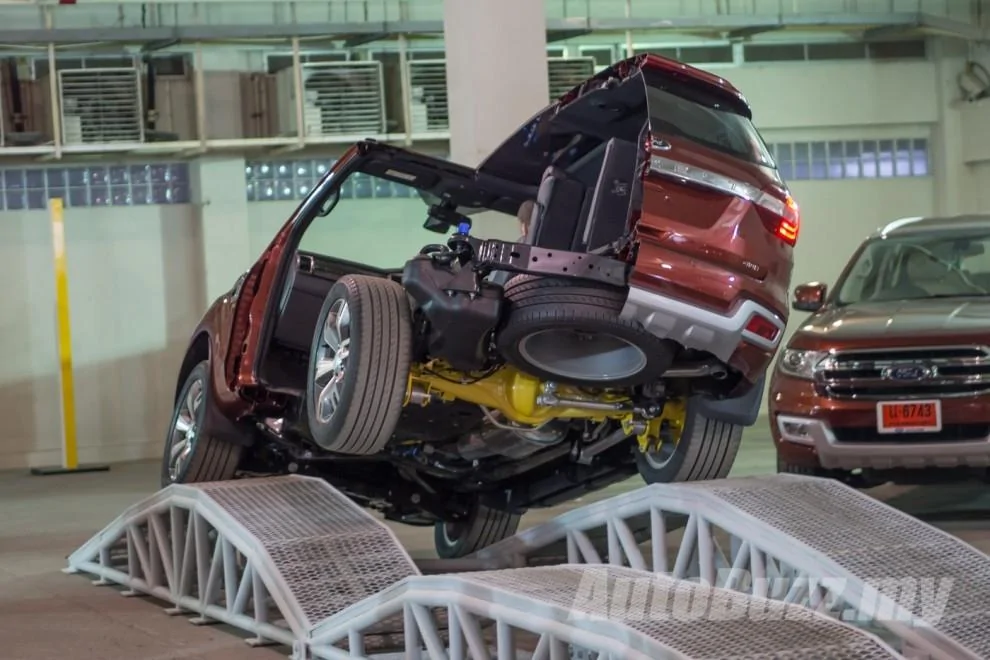

The rear of the Bronco mules have been heavily camouflaged, were they hiding something similar? The Watt's link that current gen Rangers and Everests use doesn't really seem to offer much articulation.






Advertisement


OP
Stampede.Offroad

Stampede.Offroad

Badlands
Well-Known Member
Joined
Oct 31, 2018
Messages
1,896
Reaction score
3,085
Location
SD
Vehicle(s)
junk
  • Thread starter
  • Thread Starter
  • #2
A 2019 Ranger example here starting at 7:11


Some of the disparity is attributed to a 'purposely flexible' frame on the Tacoma, and this level of rigidity might do well for a pickup meant to do work with heavy payloads and towing, but if a Bronco was sharing the Ranger configuration it wouldn't seem favorable for articulation.


JimmyDean

Badlands
Well-Known Member
Joined
Jun 10, 2019
Messages
1,694
Reaction score
3,839
Location
Louisiana
Vehicle(s)
82 Bronco, 513 ci; 71 mach 1, 351C; 06 F-250, 6.0; 56 800, 172c.i. gas
A 2019 Ranger example here starting at 7:11


Some of the disparity is attributed to a 'purposely flexible' frame on the Tacoma, and this level of rigidity might do well for a pickup meant to do work with heavy payloads and towing, but if a Bronco was sharing the Ranger configuration it wouldn't seem favorable for articulation.
I would rather have zero articulation in the frame, and have it all in the suspension. For a pickup, I don't mind less articulation as that lowers payload and towing. But on the Bronco, screw the payload, I want as much f'in travel as they can fit.


Tslater1989

Badlands
Well-Known Member
First Name
Tyler
Joined
Jul 19, 2019
Messages
375
Reaction score
721
Location
Central Michigan
Vehicle(s)
2001 f150, 2016 explorer, 97 f150
Wearing current-generation Raptor bodywork, wheels, and tires, this mule for the next-gen F-150 is also sporting significant rear suspension camouflage. Plainly obvious is the lack of rear leaf springs, which have been found under the Raptor since it was introduced for 2010. Instead, we see a Panhard bar and pivot bolt, suggesting, the 2021 F-150 (or at least the F-150 Raptor) will get a five-link rear suspension like its rival, the Ram 1500.

http://www.trucktrend.com/news/1909-spied-2021-ford-f-150-raptor-camouflaged-suspension-bits



The rear of the Bronco mules have been heavily camouflaged, were they hiding something similar? The Watt's link that current gen Rangers and Everests use doesn't really seem to offer much articulation.

Believe it or not, a watts link suspension can get a lot of flex. The limits on the Everest are the actual springs. The center pivot can be made longer, allowing higher ride height and overall travel. Rock crawling is more about individual wheel "droop" than overall travel of the entire axle. Google image search watts link articulation jeeps and you will see its entirely possible to get a lot of movement

Last edited:

BroncoBuyer

Base
Well-Known Member
Joined
Apr 18, 2019
Messages
352
Reaction score
618
Location
Phoenix AZ
Vehicle(s)
GMC
Geezus!! Talk about upskirt photography. I’m guessing that photographer carries a creeper at the ready and has grease under his nails. No photographer I know would ever get dirty to get the shot like that.. lol!


Motorpsychology

Well-Known Member
First Name
Chris
Joined
Jan 6, 2020
Messages
179
Reaction score
206
Location
Prescott, Wisconsin
Vehicle(s)
'18 Ford Escape '09 Mercury Mariner
Geezus!! Talk about upskirt photography. I’m guessing that photographer carries a creeper at the ready and has grease under his nails. No photographer I know would ever get dirty to get the shot like that.. lol!
...Unless commissioned by Ford to take "leak" ;) shots...


Dads_bronze_bronco

Badlands
Well-Known Member
Joined
Feb 18, 2020
Messages
1,347
Reaction score
2,031
Location
NC
Vehicle(s)
08 JKUR / 00 TJ
Clubs


BuckWildOffRoad

First Edition
Well-Known Member
First Name
Austin
Joined
Dec 10, 2019
Messages
341
Reaction score
1,416
Location
Arkansas
Vehicle(s)
King Ranch F250, Taurus SHO
I though we've already seen the rear on the Bronco and it is either struts or coilovers / we couldn't see any coil springs (or leaf) under there.
This thread is from September 2019. We have seen the undercarriage of the Bronco since this was posted. 🍻


evoaire

First Edition
Well-Known Member
First Name
Evoaire
Joined
Mar 16, 2020
Messages
82
Reaction score
90
Location
VA
Vehicle(s)
maybe a bronco
Believe it or not, a watts link suspension can get a lot of flex. The limits on the Everest are the actual springs. The center pivot can be made longer, allowing higher ride height and overall travel. Rock crawling is more about individual wheel "droop" than overall travel of the entire axle. Google image search watts link articulation jeeps and you will see its entirely possible to get a lot of movement

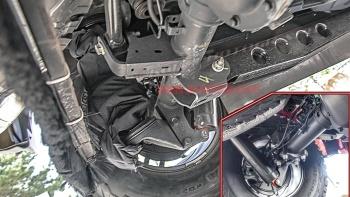

Another peek under the new coil sprung F150-Raptor. How much in common will the coil sprung rear of the BroncoBronco have?

https://www.autoblog.com/photos/next-generation-ford-f-150-raptor-suspension/#slide-2172347
.

.
Is the above Ford pic a set up of watts link or a Panhard.

Love this explanation of the Panhard.


dmtndan

Well-Known Member
First Name
Dave
Joined
Jan 2, 2020
Messages
366
Reaction score
741
Location
Texas
Vehicle(s)
1991 Silverado, 2014 Malibu
Clubs

Is the above Ford pic a set up of watts link or a Panhard.

Love this explanation of the Panhard.
Looking at it I think that is a safe bet,
