GMRS radio mount location?

wilmerfjohnson

First Edition
Well-Known Member
First Name
Wilmer
Joined
Jul 7, 2020
Messages
154
Reaction score
198
Location
Moore Twp, PA
Vehicle(s)
2018 Fusion, 2009 Mariner, 2000 Taurus, 1996 Bronco, 1994 F-150, 1988 F-150, 1984 Bronco II, 1978 F-350, 1974 VW Thing
Bronco
First Edition
Hi! Looking for pics and tips from thise who've "been there done that" and installed a gmrs radio - I'm looking at the Midland 40 watt. I can't find a good place to mount it without ripping out the glove box door or center console lid.
Advertisement



Bonnie6G

Badlands
Well-Known Member
First Name
Kyle
Joined
Mar 3, 2021
Messages
233
Reaction score
286
Location
Denver
Vehicle(s)
Badlands LuxSquatch
Bronco
Badlands
Hi! Looking for pics and tips from thise who've "been there done that" and installed a gmrs radio - I'm looking at the Midland 40 watt. I can't find a good place to mount it without ripping out the glove box door or center console lid.
I ended up going with the Wouxun 50w due to it having a removable faceplate. I plan to mount the full radio body in the console and mount the faceplate on the BYOD rail on the dash.

https://www.buytwowayradios.com/wouxun-kg-1000g.html


mountainbronco

Black Diamond
Well-Known Member
First Name
Thomas
Joined
Oct 2, 2021
Messages
204
Reaction score
449
Location
Colorado
Vehicle(s)
Toyota Supra
Bronco
Black Diamond
I ended up going with the Wouxun 50w due to it having a removable faceplate. I plan to mount the full radio body in the console and mount the faceplate on the BYOD rail on the dash.

https://www.buytwowayradios.com/wouxun-kg-1000g.html
Bonnie, i got same radio. How are you going to get the faceplate cable on top of dash?
I am thinking of whole radio in center console storage (has power) and only need to bring in antenna. That lid has a cable indent for the mic cable, so invisible to prying eyes.


mtap

Black Diamond
Well-Known Member
First Name
Mervin
Joined
Jul 23, 2020
Messages
1,307
Reaction score
3,109
Location
Cape Coral, FL
Vehicle(s)
Toyota Tundra, Hummer H3, Harley Sportster
Bronco
Black Diamond
Clubs

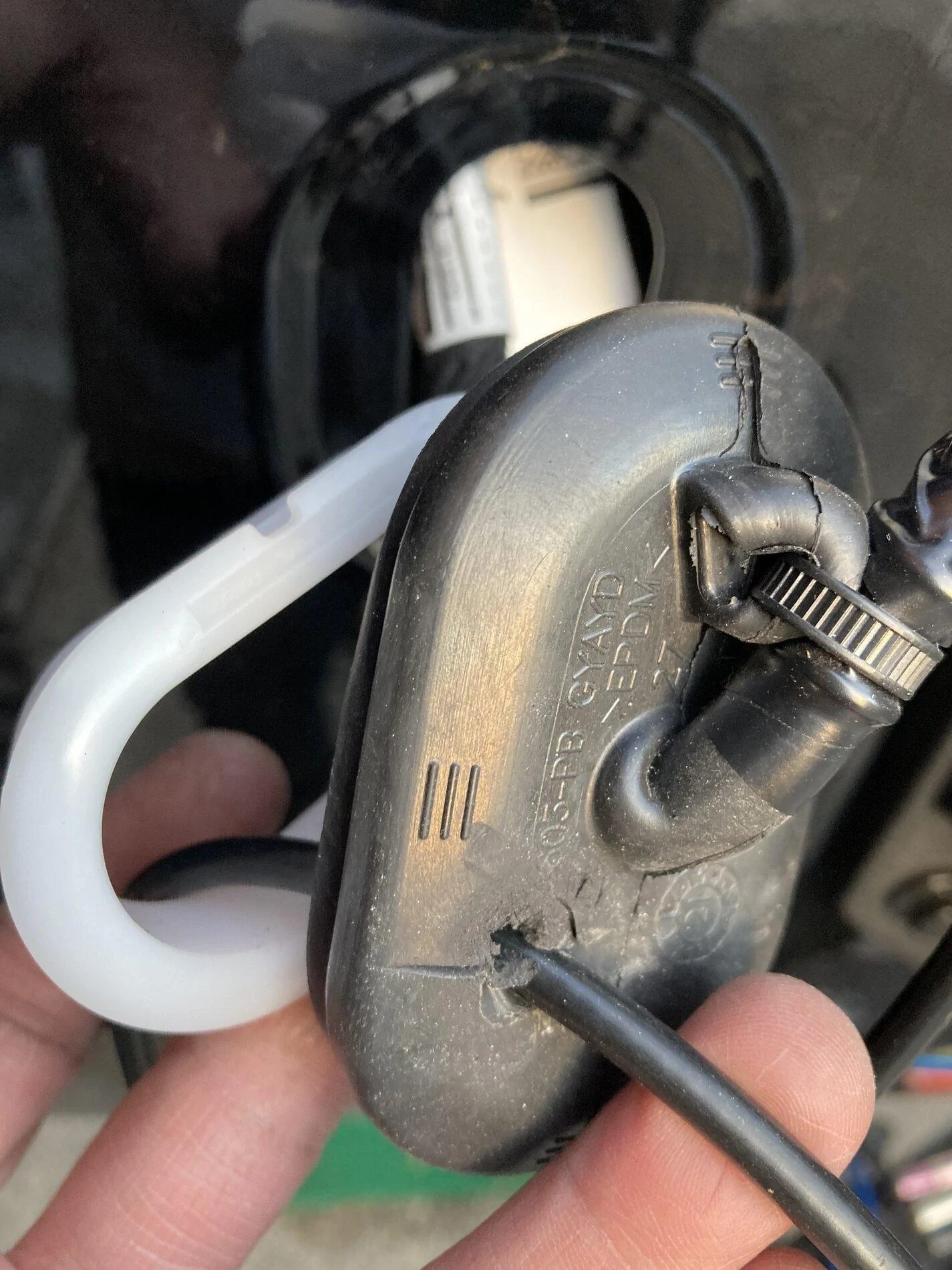

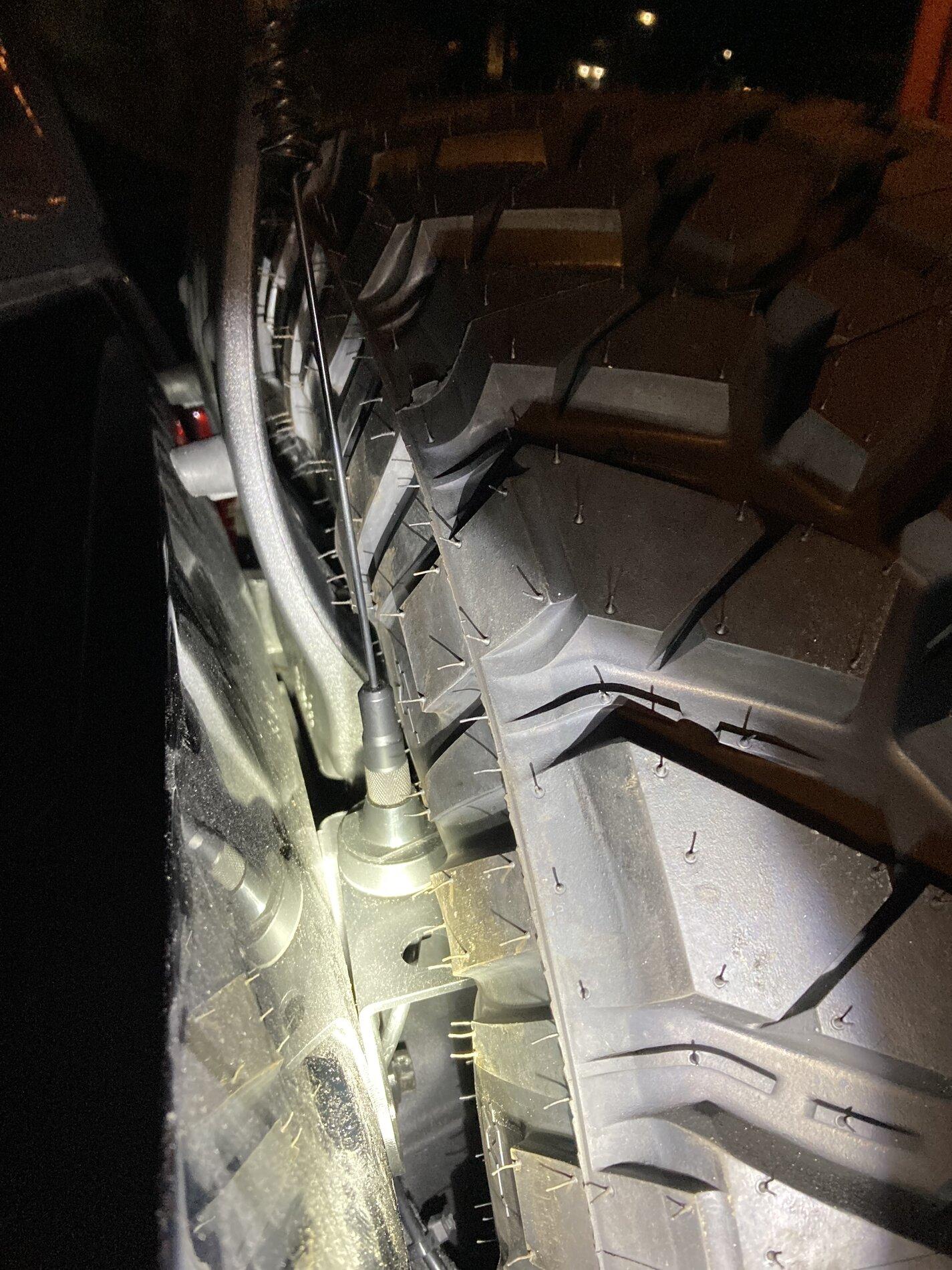

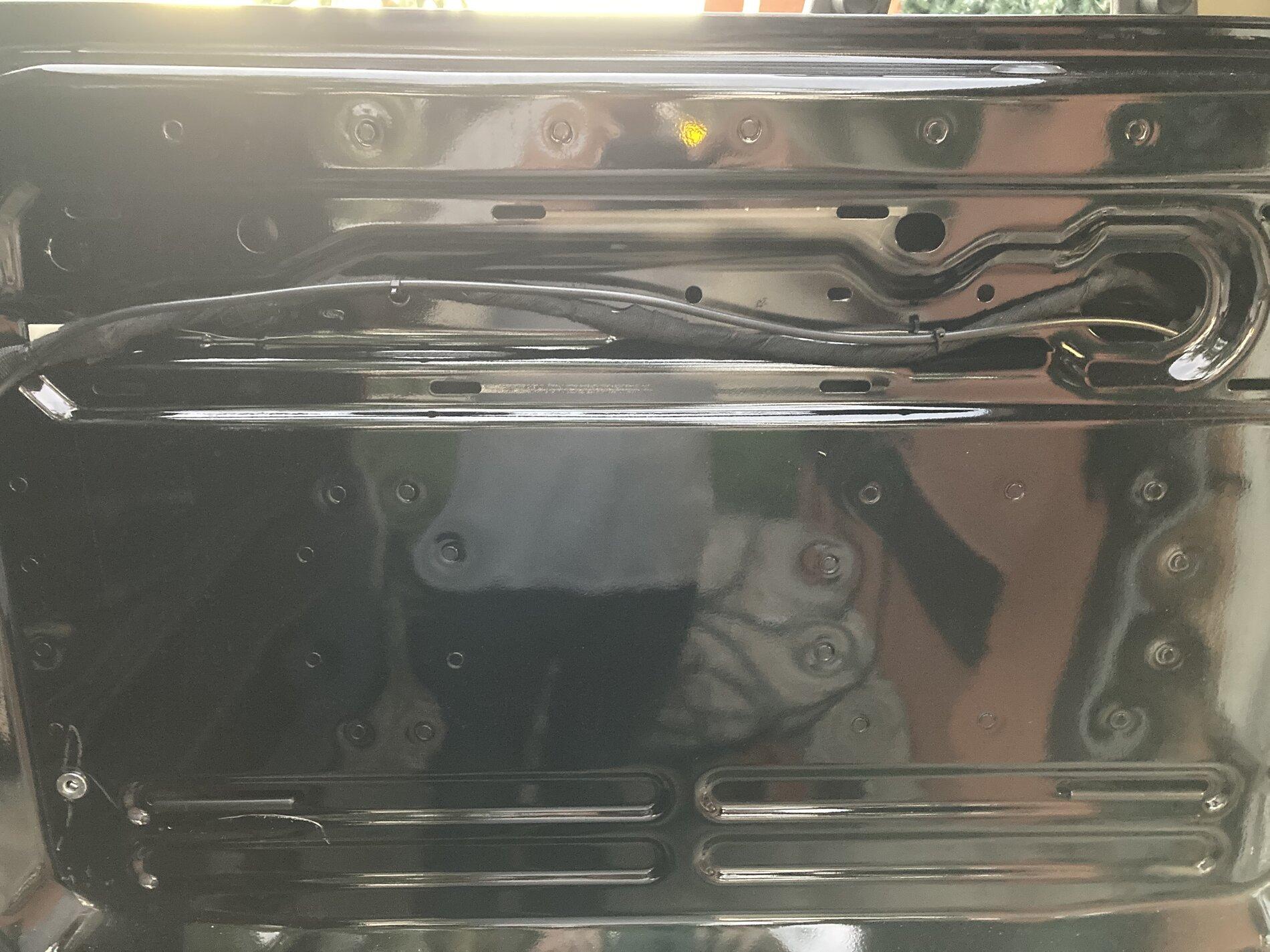

I went with MXT275…planning to mount the base unit towards the rear by the tailgate and running a mic extension to center console. So far i have the antenna done and ran the antenna wire already. Working on the rest on Thursday.







Bonnie6G

Badlands
Well-Known Member
First Name
Kyle
Joined
Mar 3, 2021
Messages
233
Reaction score
286
Location
Denver
Vehicle(s)
Badlands LuxSquatch
Bronco
Badlands
Bonnie, i got same radio. How are you going to get the faceplate cable on top of dash?
I am thinking of whole radio in center console storage (has power) and only need to bring in antenna. That lid has a cable indent for the mic cable, so invisible to prying eyes.
Yeah, that’s my plan B. I have to remove part of the dash to install the Auto Start Eliminator cable, so I figured I’d find somewhere to route it then. Not sure if I’ll be successful, but Plan A is to route the cable under the entire center console and up through the dash so it comes out near the windshield. If it’s too much of a pain in the ass, then I’ll just put the whole thing in the console.


Felix808

Badlands
Well-Known Member
Joined
Jul 19, 2020
Messages
1,341
Reaction score
2,676
Location
SRV CA
Vehicle(s)
Waiting on a 4-door Badlands Bronco since day 2
Bronco
Badlands
Clubs

I went with MXT275…planning to mount the base unit towards the rear by the tailgate and running a mic extension to center console. So far i have the antenna done and ran the antenna wire already. Working on the rest on Thursday.





Curious as to how the TX/RX is with that location.


mountainbronco

Black Diamond
Well-Known Member
First Name
Thomas
Joined
Oct 2, 2021
Messages
204
Reaction score
449
Location
Colorado
Vehicle(s)
Toyota Supra
Bronco
Black Diamond
Curious as to how the TX/RX is with that location.
I think it will be fine, we either have MIC or softtop, both cant handle a antenna, but both are not signal blockers either. I am lip-mounting my antenna to the hood, which is just as good or bad, I guess.


ICUGAZN

Badlands
Well-Known Member
First Name
Kevin
Joined
Apr 11, 2021
Messages
550
Reaction score
570
Location
Woodbridge, Virginia
Vehicle(s)
2019 Raptor
Bronco
Badlands

NVCowboy

Black Diamond
Well-Known Member
First Name
William
Joined
Jul 27, 2020
Messages
493
Reaction score
559
Location
Henderson, NV
Vehicle(s)
2002 F350. 2019 Explorer (Bronco Starter Kit),
Bronco
Black Diamond
Can someone bend up a mount that attaches to the screw holes where the passenger console grab handle is? I don’t know if it would seriously affect the passenger legroom in this position or not, or if there’s enough room. Just brainstorming.


kodiakisland

Black Diamond
Well-Known Member
Joined
Jul 10, 2020
Messages
2,910
Reaction score
8,256
Location
Arkansas
Vehicle(s)
12 Tacoma, 18 Indian, 22 GV70
Bronco
Black Diamond
Clubs

Going with the MXT275 as well. Haven’t decided on exact mounting yet, but may mount under seat or behind console.


ICUGAZN

Badlands
Well-Known Member
First Name
Kevin
Joined
Apr 11, 2021
Messages
550
Reaction score
570
Location
Woodbridge, Virginia
Vehicle(s)
2019 Raptor
Bronco
Badlands
Can someone bend up a mount that attaches to the screw holes where the passenger console grab handle is? I don’t know if it would seriously affect the passenger legroom in this position or not, or if there’s enough room. Just brainstorming.
here are a couple of examples

GMRS Installed in 2021 Bronco Base | Bronco6G - 2021+ Ford Bronco & Bronco Raptor Forum, News, Blog & Owners Community

Mobile Ham Radio (FTM-400XDR) Install - DIY How-To / Writeup / Pics | Bronco6G - 2021+ Ford Bronco & Bronco Raptor Forum, News, Blog & Owners Community


Lazerus

Well-Known Member
First Name
Sean
Joined
Jul 1, 2021
Messages
177
Reaction score
866
Location
Las Vegas, NV
Vehicle(s)
Wrangler JL. Land Rover Discovery Sport
Bronco
Undecided

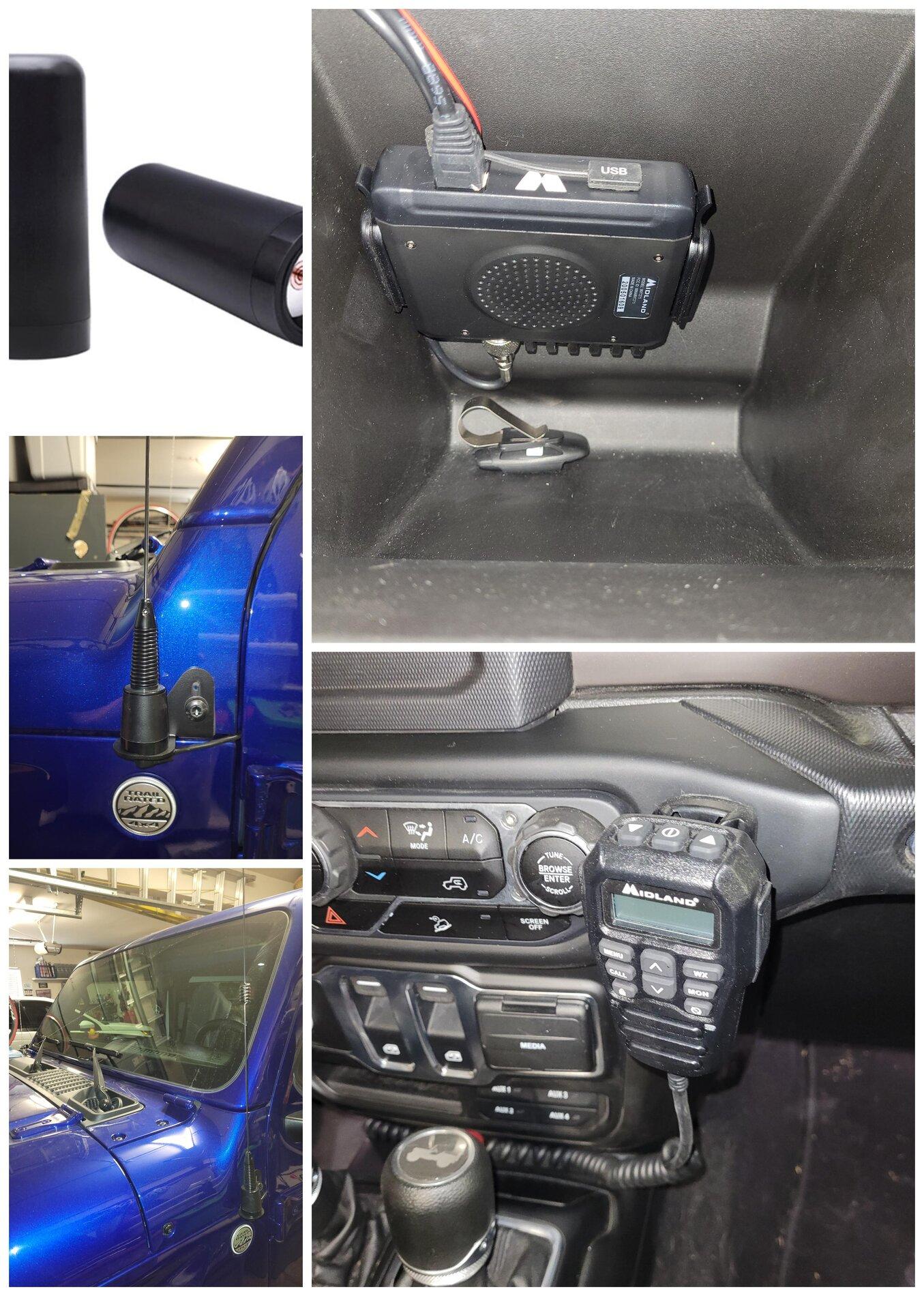

I have the MXT275 in my Wrangler mounted in the glove box. It takes up almost no room, and with the controls on the handset, don't need access to the base.
I use the 6db antenna, side mounted on the driver's side and it works great. Even with only 15 watts, I can easily hit local (line of sightish) repeaters out to 40 or 50 miles.


7722 Bronco

Wildtrak
Well-Known Member
First Name
John
Joined
Apr 7, 2021
Messages
218
Reaction score
319
Location
Kentucky
Vehicle(s)
2020 Explorer ST/ 2019 F350 CC DRW 4x4
Bronco
Wildtrak
I have the MXT275 in my Wrangler mounted in the glove box. It takes up almost no room, and with the controls on the handset, don't need access to the base.
I use the 6db antenna, side mounted on the driver's side and it works great. Even with only 15 watts, I can easily hit local (line of sightish) repeaters out to 40 or 50 miles.
Did the 6db whip require tuning or was it good to go out of the box? I also have the MXT275 and the ghost antenna with the lip mount for the hood. Got both antennas to see which works the best.


Lazerus

Well-Known Member
First Name
Sean
Joined
Jul 1, 2021
Messages
177
Reaction score
866
Location
Las Vegas, NV
Vehicle(s)
Wrangler JL. Land Rover Discovery Sport
Bronco
Undecided
Did the 6db whip require tuning or was it good to go out of the box? I also have the MXT275 and the ghost antenna with the lip mount for the hood. Got both antennas to see which works the best.
It is supposed to be tuned right out of the box. Mine was. I have an SWR of 1.03 to 1.07 through the entire band, so I know I'm tossing a good, clear signal.
That being said, from the reviews I've seen, QC let's about 5-10% through that aren't quite in tune out of the box.
You'll hear lot's of talk about needing a ground plane as well. I've found this to not really be affected by a lack of one. I've tested it from 35 miles in both the 'best' and 'worst' orientation and the listener couldn't tell a difference in signal strength or quality. That gives you more flexibility in mounting locations.


7722 Bronco

Wildtrak
Well-Known Member
First Name
John
Joined
Apr 7, 2021
Messages
218
Reaction score
319
Location
Kentucky
Vehicle(s)
2020 Explorer ST/ 2019 F350 CC DRW 4x4
Bronco
Wildtrak
It is supposed to be tuned right out of the box. Mine was. I have an SWR of 1.03 to 1.07 through the entire band, so I know I'm tossing a good, clear signal.
That being said, from the reviews I've seen, QC let's about 5-10% through that aren't quite in tune out of the box.
You'll hear lot's of talk about needing a ground plane as well. I've found this to not really be affected by a lack of one. I've tested it from 35 miles in both the 'best' and 'worst' orientation and the listener couldn't tell a difference in signal strength or quality. That gives you more flexibility in mounting locations.
Thank you.

Was planning on the 6db going on the driver's side hood edge similar to ICUGAZN location. Balance out the look with the radio antenna on passenger side. If it gets to hitting the A pillar while wheeling, I'll switch out to the ghost in the same location.
