Green Mountain Bronco Build on 37s, 3" Lift + more

[GreenMtnBronco]

Edited for updates on 9/3/22
Reserved on day 2, took deliver day before thanksgiving. Getting parts to do a proper build is tough. I am also a JK owner, so have a little experience with these things.

Badlands Sasquatch 2.7 Antimatter Blue
did the 3" spacer lift from icon as a holder until the Coilovers are available. Also have read here on the forums that the squatch spare tire holder is bigger than the standard and will hold most 37s depending on offset, looks like mine worked out fine. I had ordered the 4WP realignment bracket just in case.

Upgrades

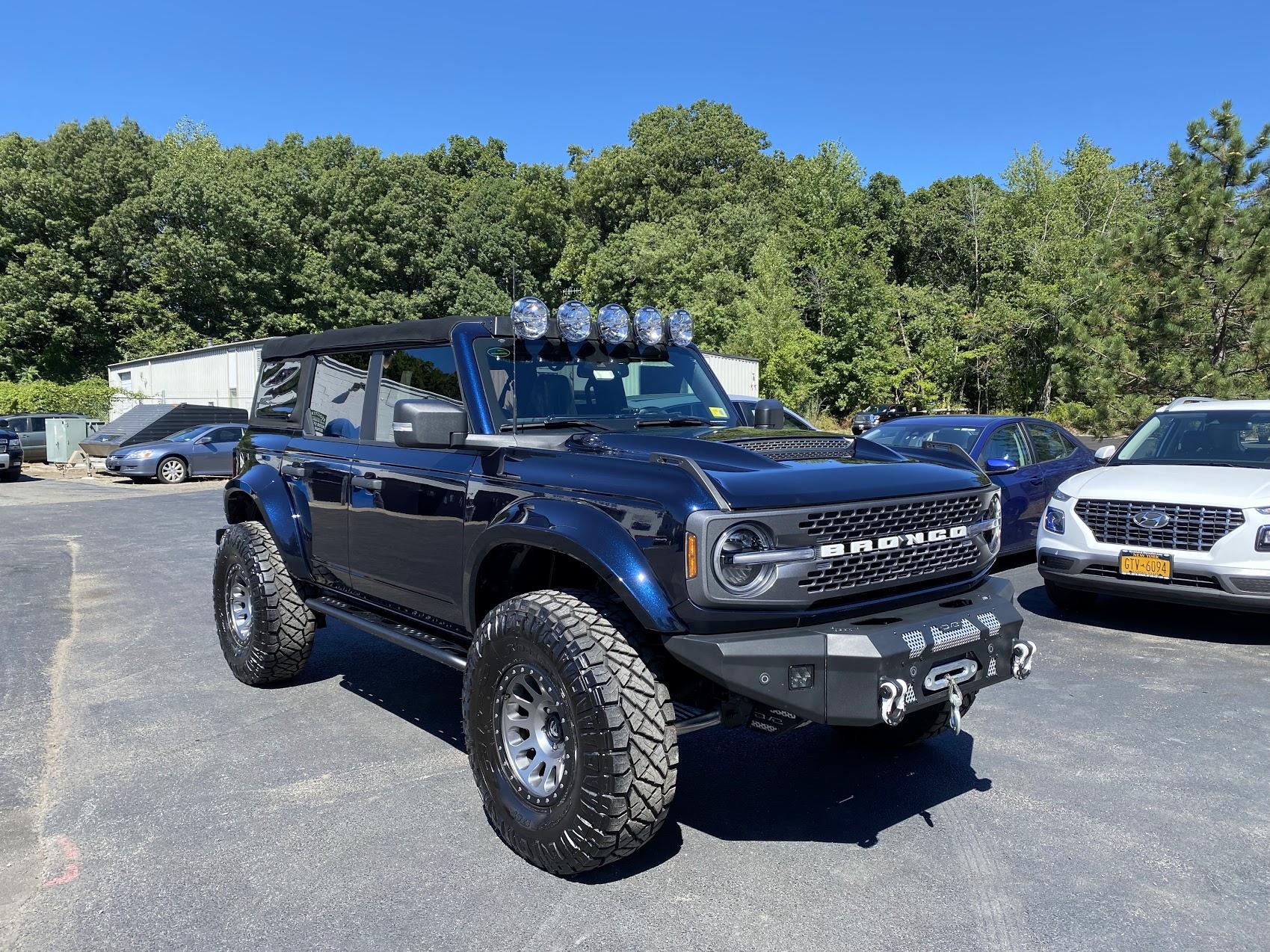

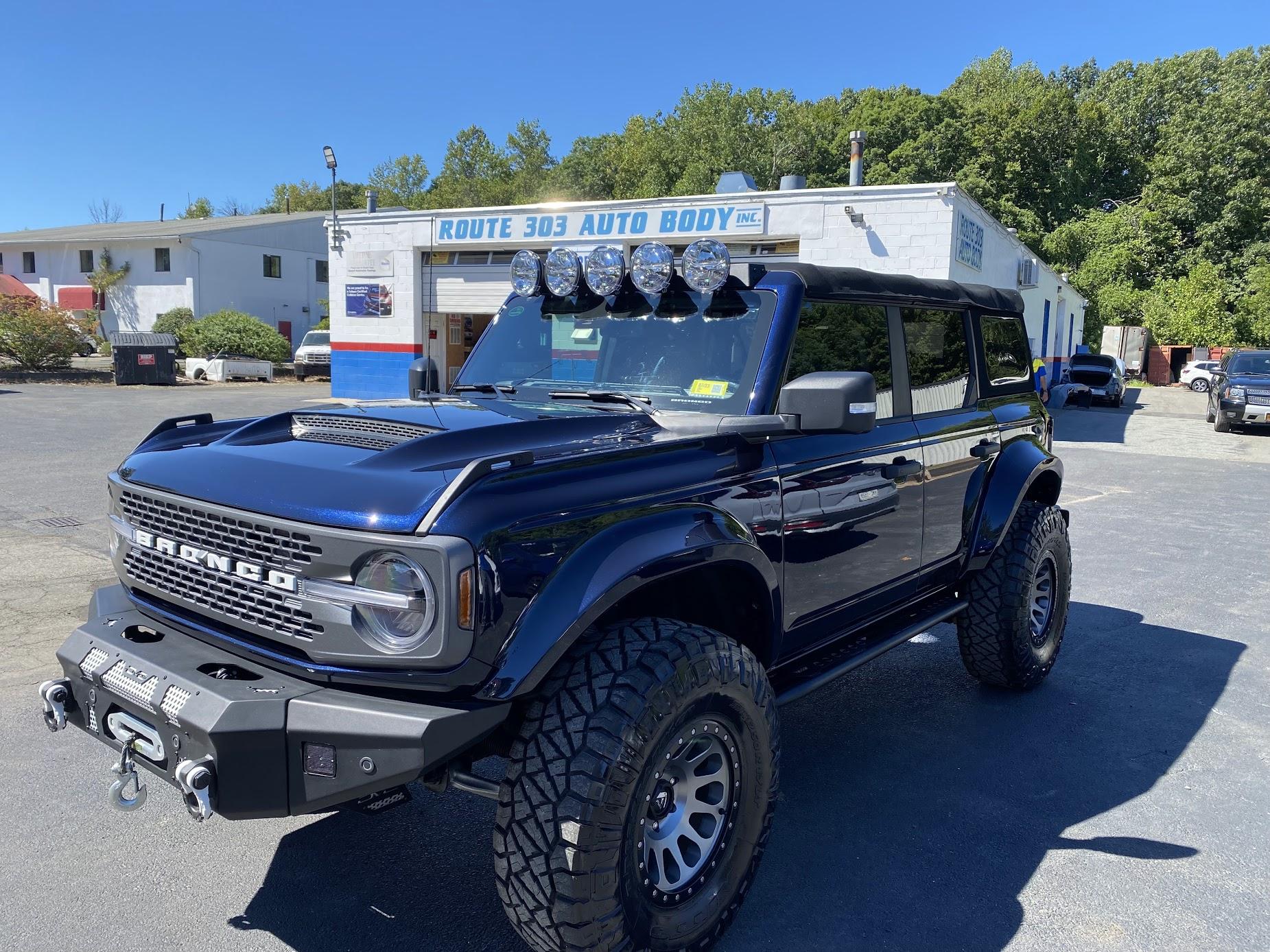

DV8 MTO Series front bumper w 2x 3" lights
DV8 ACC relocation bracket
DV8 Winch

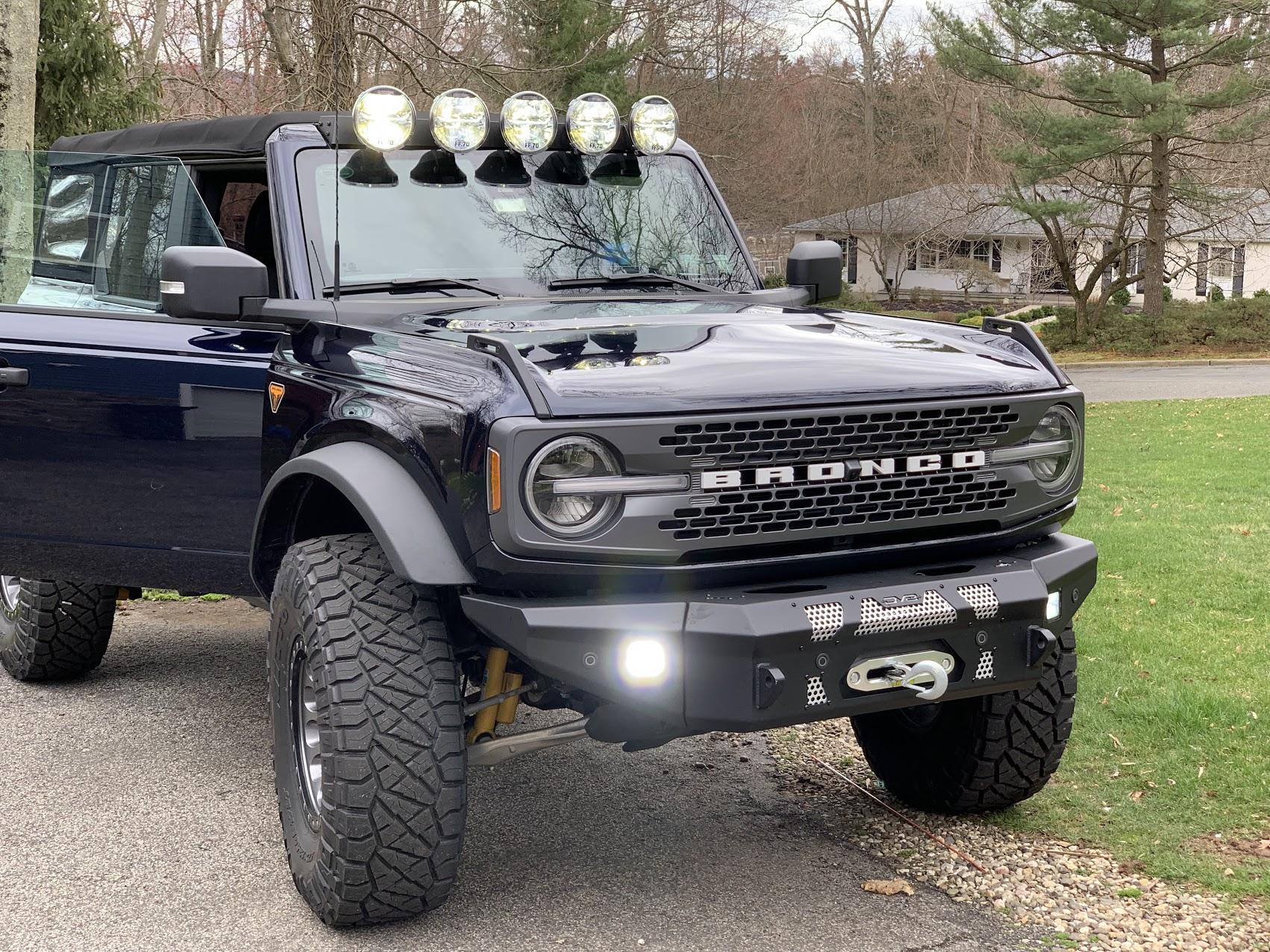

RTR Light bar w 5 Project X Lights
Fuel Vector wheels, 17x9 -12OS 4.5BS -

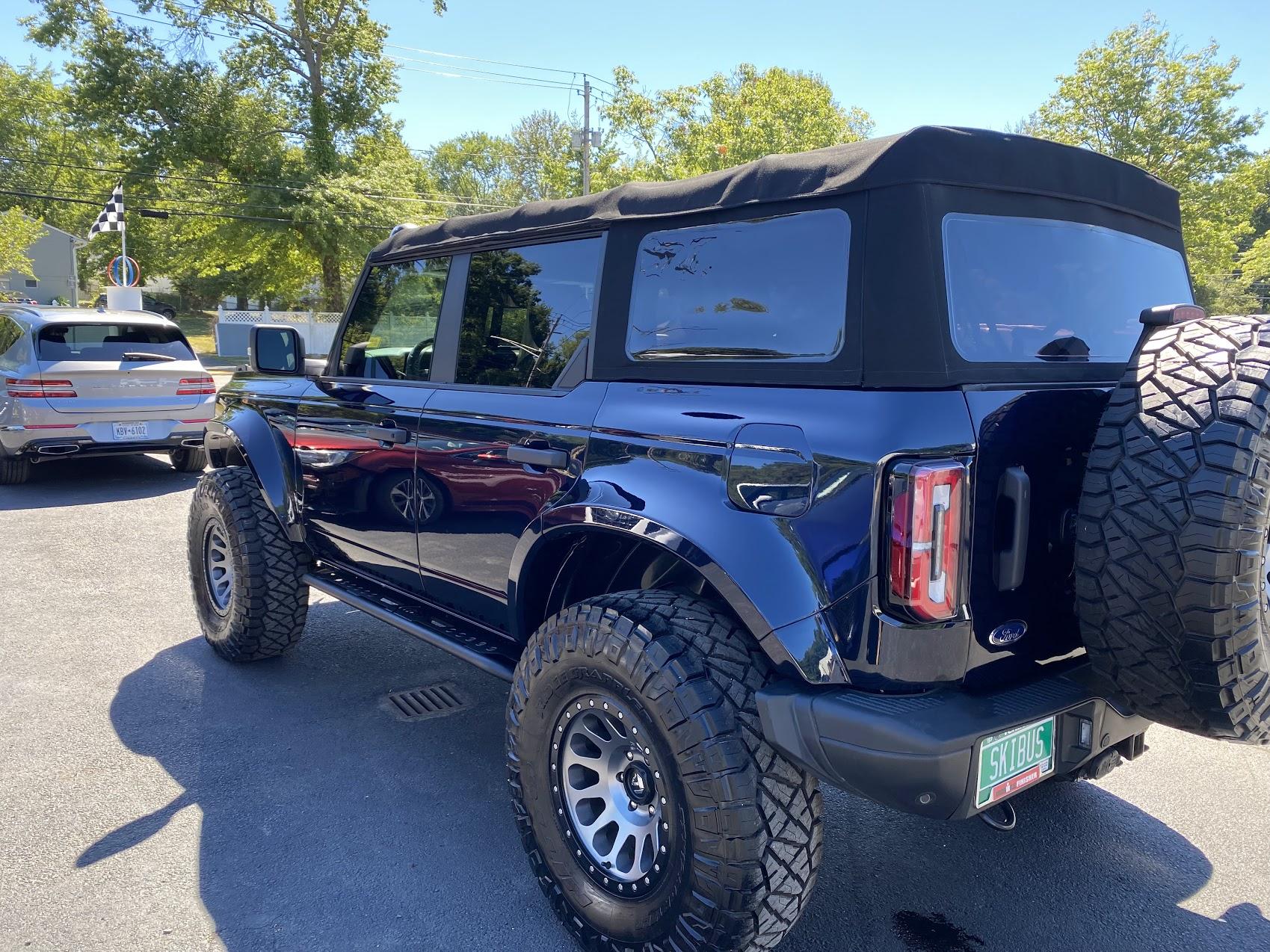

Nitto Ridge Grapplers 37x12.5r17TL - No rear tire carrier adjustment needed with the Sasquatch rear tire carrier which is different than nonSquatch
BYOD Rail from Archetype Racing -
Grab handles - paracord

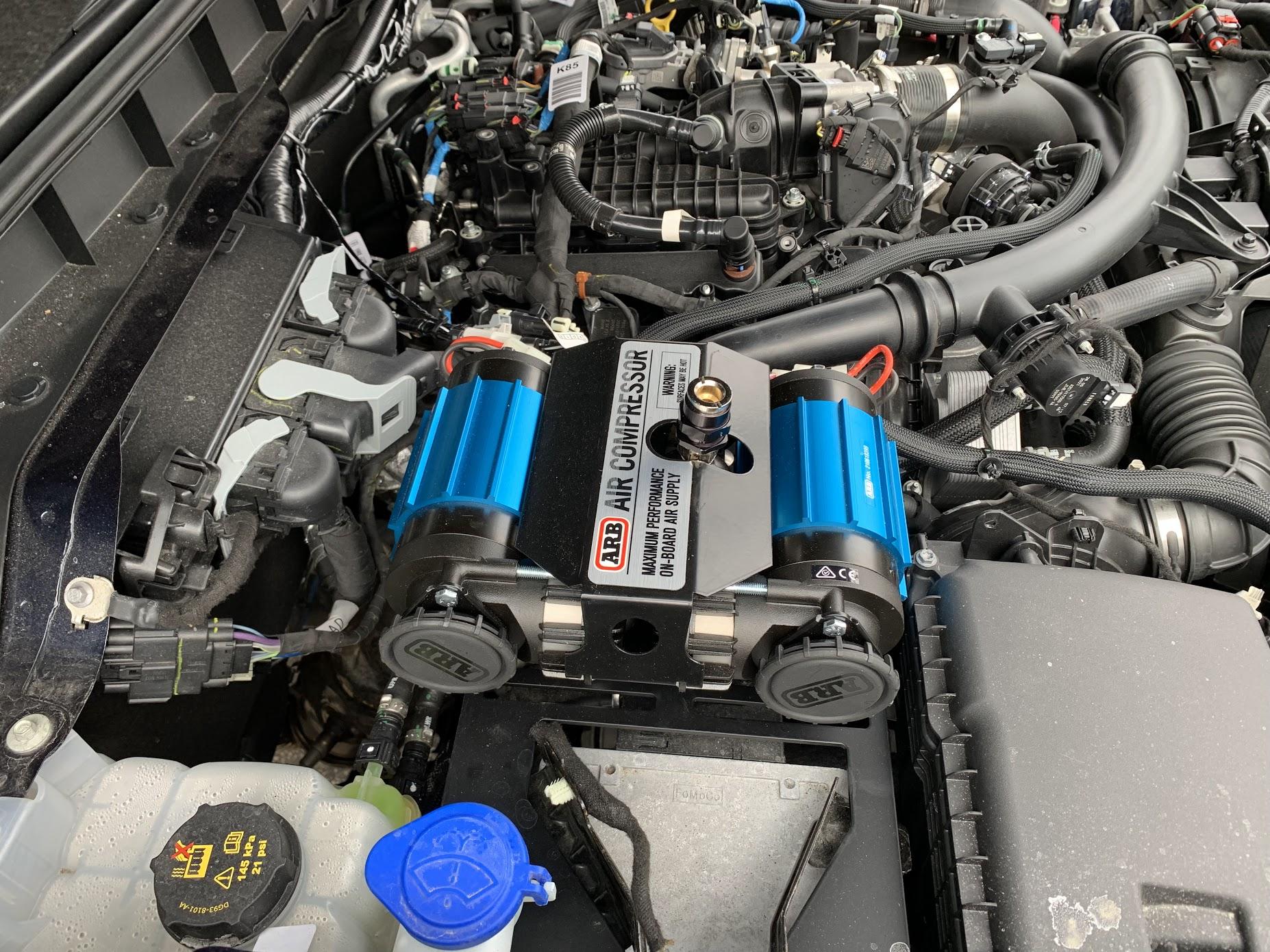

ARB underhood compressor
Frame mounted Sliders – L.O.D. offroad signature series

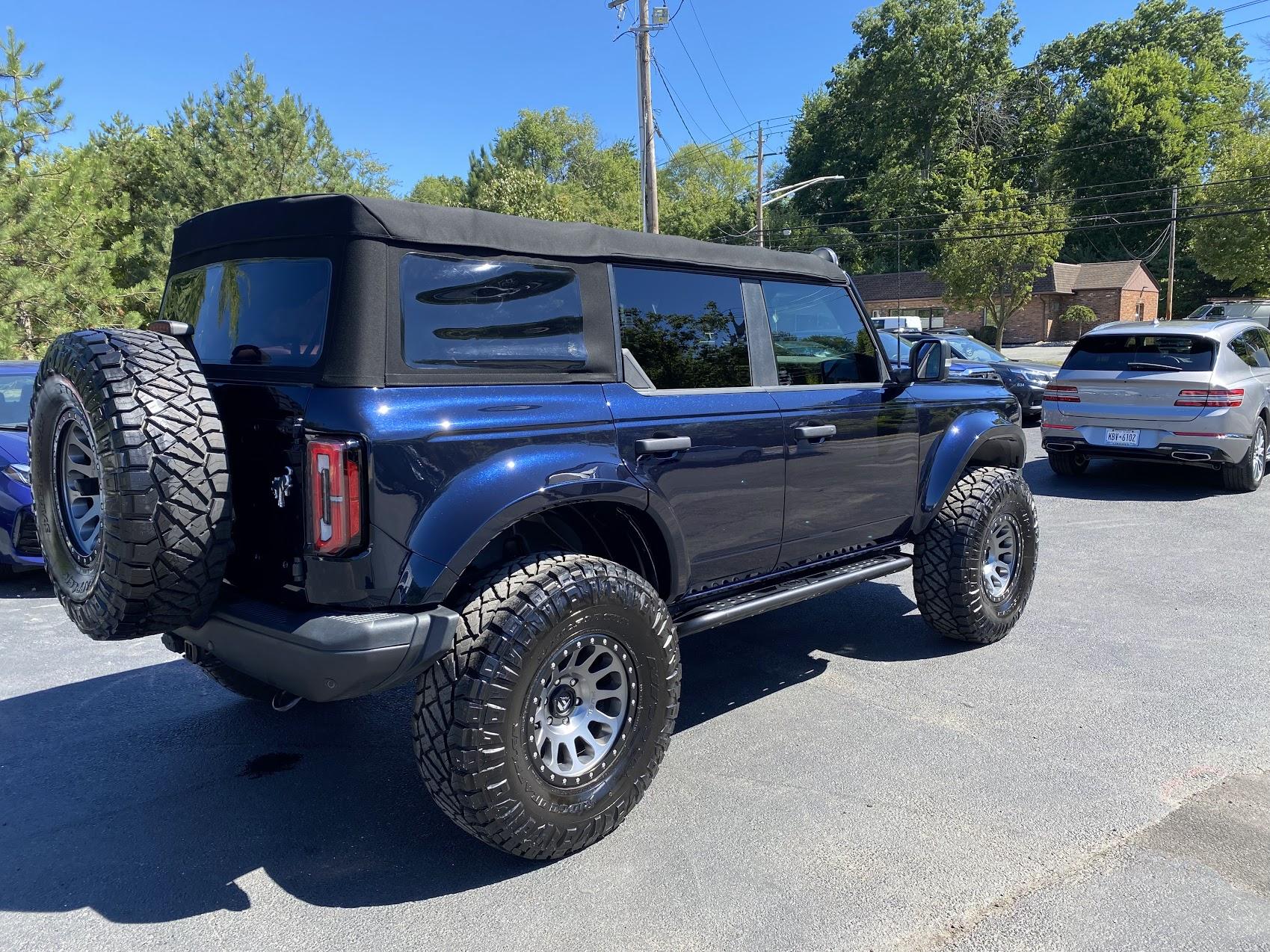

Advanced Fiberglass Hood & fenders w 5” (squatch sized flares)
DV8 Front Skid Plate
Fabtech TieRods
Icon coilover 3-4” kit with UCAs (Stage 4)
Getting ready to install Braptor rear hinges & tailgate reinforcement plate

Future Planned Upgrades
Rear bumper with lights & integrated tire carrier, hi lift jack carrier
DV8 bashplates
Engine/exhaust Mods TBD
Hoss 3.0 steering rack

btw, Sold the Squatch wheels & tires as well as front bumper, rock rails & Squatch suspension

Sponsored



[PatientlyWaiting]

How much was the light bar kit? Says it’s sold out on their website



[GreenMtnBronco]

How much was the light bar kit? Says it’s sold out on their website

$1800 - I think this is the best looking one out there.. lights have a daytime filament that i tried to capture in the picture.



[alexprzybylo]

I'd love to see a picture of the grab handles, and where'd you get the phone mount and the bracket thing it's attached to?

Also how much are you selling the rock rails for?

Sick rig!



[Jmaher]

How much would you want for the Sasquatch suspension?



[GreenMtnBronco]

How much would you want for the Sasquatch suspension?

I think the going rate is about $750, I will also have the Icon 3" spacer lift to sell. Hoping to have my COs when Icon releases the first batch in a few weeks, otherwise it could be months.



[GreenMtnBronco]

I'd love to see a picture of the grab handles, and where'd you get the phone mount and the bracket thing it's attached to?

Also how much are you selling the rock rails for?

Sick rig!

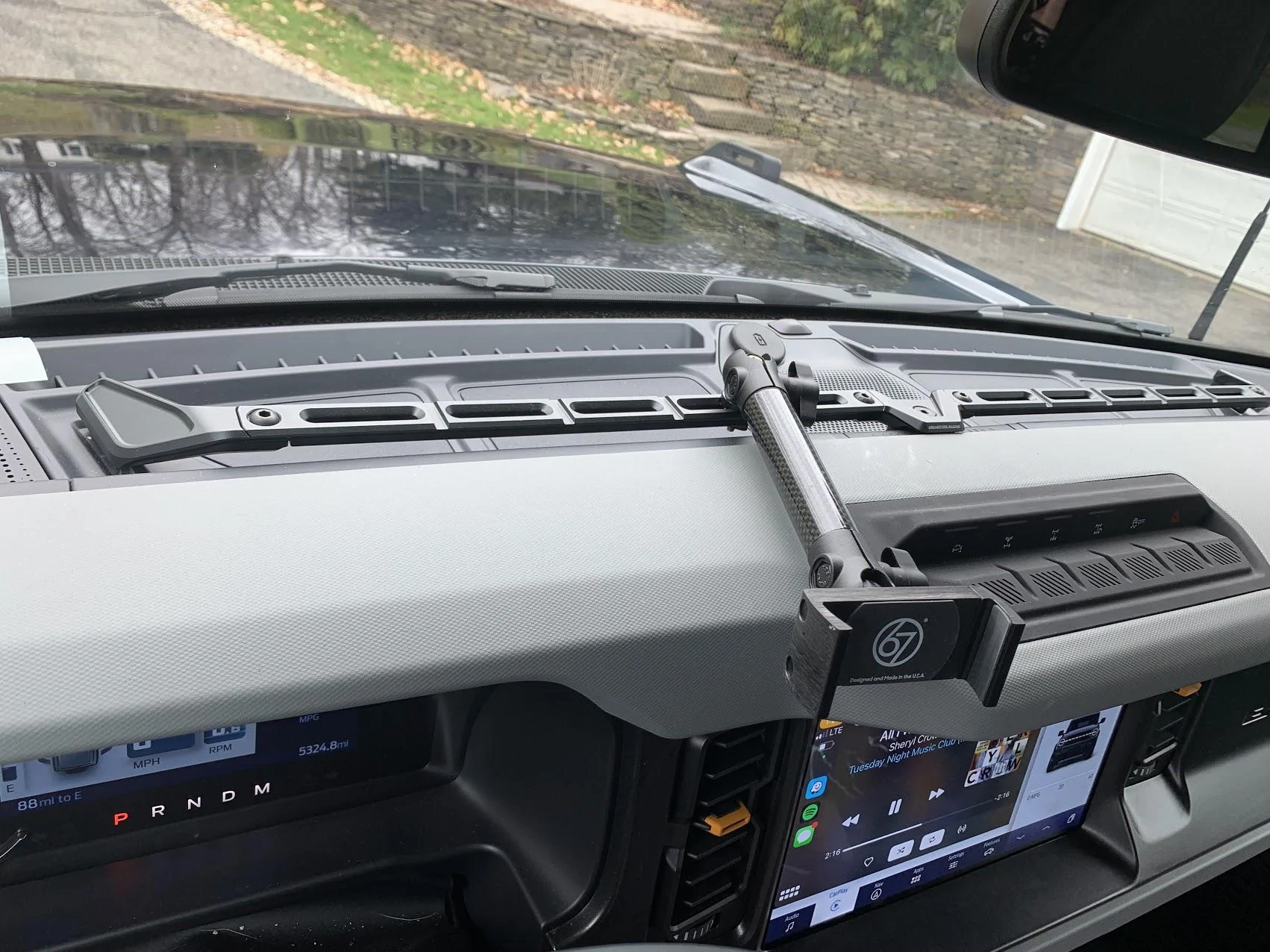

got the arm & balls for the phone mount from https://www.67d.com/ - the rail is from archetype racing. The rail mount ball from 67 had a screw that was too short, solved that at HD, but archetype now has ball mounts out that should work.

Rock rails asking $300 - I am near the tappan zee bridge, no idea where you are, but I am going to Amherst Mass on Saturday and could hand off somewhere along the way if that worked. I also routinely go to VT via Albany NY.



[GreenMtnBronco]

Sick rig!

thank you! more to come!



[BlackBeauty1]

Reserved on day 2, took deliver day before thanksgiving. Getting parts to do a proper build is tough. I am also a JK owner, so have a little experience with these things.

Badlands Sasquatch 2.7 Antimatter Blue
did the 3" spacer lift from icon as a holder until the Coilovers are available. Also have read here on the forums that the squatch spare tire holder is bigger than the standard and will hold most 37s depending on offset, looks like mine worked out fine. I had ordered the 4WP realignment bracket just in case, so that's on the returns pile.

Upgrades
DV8 MTO Series front bumper w 2x 3" lights
DV8 ACC relocation bracket
DV8 Winch
RTR Light bar w 5 Project X Lights
Fuel Vector wheels, 17x9 -12OS 4.5BS -
Nitto Ridge Grapplers 37x12.5r17TLNo rear tire carrier adjustment needed with the Sasquatch rear tire carrier which is different than nonSquatch
BYOD Rail from Archetype Racing -
Icon 3” spacer lift
Grab handles - paracord
ARB underhood compressor

Future Planned Upgrades
Icon coilover 3-4” kit with UCAs (Stage 4)
Frame mounted Sliders – L.O.D. offroad signature series
Rear bumper with lights & integrated tire carrier, hi lift jack carrier
Advanced Fiberglass Hood & fenders w 5” (squatch sized flares)
Fender liners
DV8 bashplates
Engine/exhaust Mods TBD
RPG Tie Rods or Ford Performance upgraded tie rods & steering rack

btw, Sold the Squatch wheels & tires as well as front bumper
have the factory rock rails for sale as well
expecting I should be able to sell the Squatch suspension & Ikon 3" Spacers once I get my coilovers


View attachment 294769 View attachment 294770 View attachment 294784

View attachment 294773

Any issues with rubbing with the 37s on that 3” lift? Beautiful Bronco



[GreenMtnBronco]

Any issues with rubbing with the 37s on that 3” lift? Beautiful Bronco

thank you!

there was slight rub on the plastic fender liner of the front and oddly on the front of the factory rock rails. I have new rockrails coming so hopefully not an issue. I do have some type of rub at full lock that I need to investigate..



[firelo724]

Looks damn good. How much did you get for the SAS wheels/tires and Mod Bumper? Will be doing the same soon.



[GreenMtnBronco]

Looks damn good. How much did you get for the SAS wheels/tires and Mod Bumper? Will be doing the same soon.

Thank you!
got $2500 for the wheels/tires. asked $2750. From what I can tell, $2500 is the right #.
got $600 for the bumper, though I think that $400 is probably fair. I did tell the guy I will give him the skid plate when I replace it with the one that DV8 just came out with..



[FrostedNuts]

Nice to see another Green plate Bronco. Not many of us around. Let's go wheeling this summer, maybe we can get a local group going. I know some places



[2wheel-Lee]

Reserved on day 2, took deliver day before thanksgiving. Getting parts to do a proper build is tough. I am also a JK owner, so have a little experience with these things.

Badlands Sasquatch 2.7 Antimatter Blue
did the 3" spacer lift from icon as a holder until the Coilovers are available. Also have read here on the forums that the squatch spare tire holder is bigger than the standard and will hold most 37s depending on offset, looks like mine worked out fine. I had ordered the 4WP realignment bracket just in case, so that's on the returns pile.

Upgrades
DV8 MTO Series front bumper w 2x 3" lights
DV8 ACC relocation bracket
DV8 Winch
RTR Light bar w 5 Project X Lights
Fuel Vector wheels, 17x9 -12OS 4.5BS -
Nitto Ridge Grapplers 37x12.5r17TLNo rear tire carrier adjustment needed with the Sasquatch rear tire carrier which is different than nonSquatch
BYOD Rail from Archetype Racing -
Icon 3” spacer lift
Grab handles - paracord
ARB underhood compressor

Future Planned Upgrades
Icon coilover 3-4” kit with UCAs (Stage 4)
Frame mounted Sliders – L.O.D. offroad signature series
Rear bumper with lights & integrated tire carrier, hi lift jack carrier
Advanced Fiberglass Hood & fenders w 5” (squatch sized flares)
Fender liners
DV8 bashplates
Engine/exhaust Mods TBD
RPG Tie Rods or Ford Performance upgraded tie rods & steering rack

btw, Sold the Squatch wheels & tires as well as front bumper
have the factory rock rails for sale as well
expecting I should be able to sell the Squatch suspension & Ikon 3" Spacers once I get my coilovers


View attachment 294769 View attachment 294770 View attachment 294784

View attachment 294773

Hey your build looks great. Would you mind answering some questions?

How does the ACC work after the relocation?
Could you take a picture of how far the front bumper comes away from the grill? How much front poke?
How much view is blocked in the front camera?

Thanks ahead of time and your build really does look amazing.

Jason



[Itchysquatch]

Nice to see another Green plate Bronco. Not many of us around. Let's go wheeling this summer, maybe we can get a local group going. I know some places

Also soon to be green plate bronco owner. Know of only a couple trails up by me, be nice to explore some more with fellow bronco drivers.
