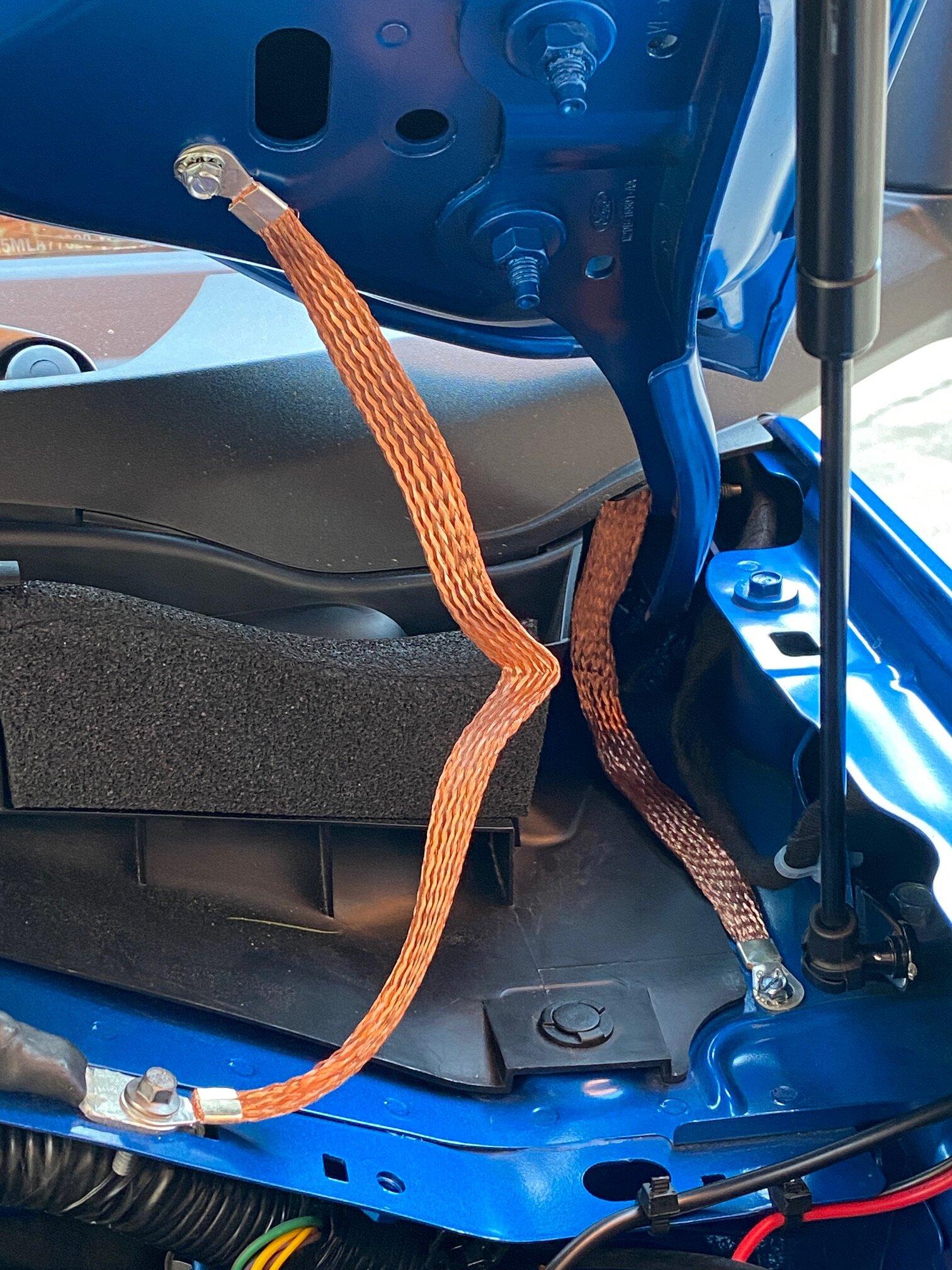

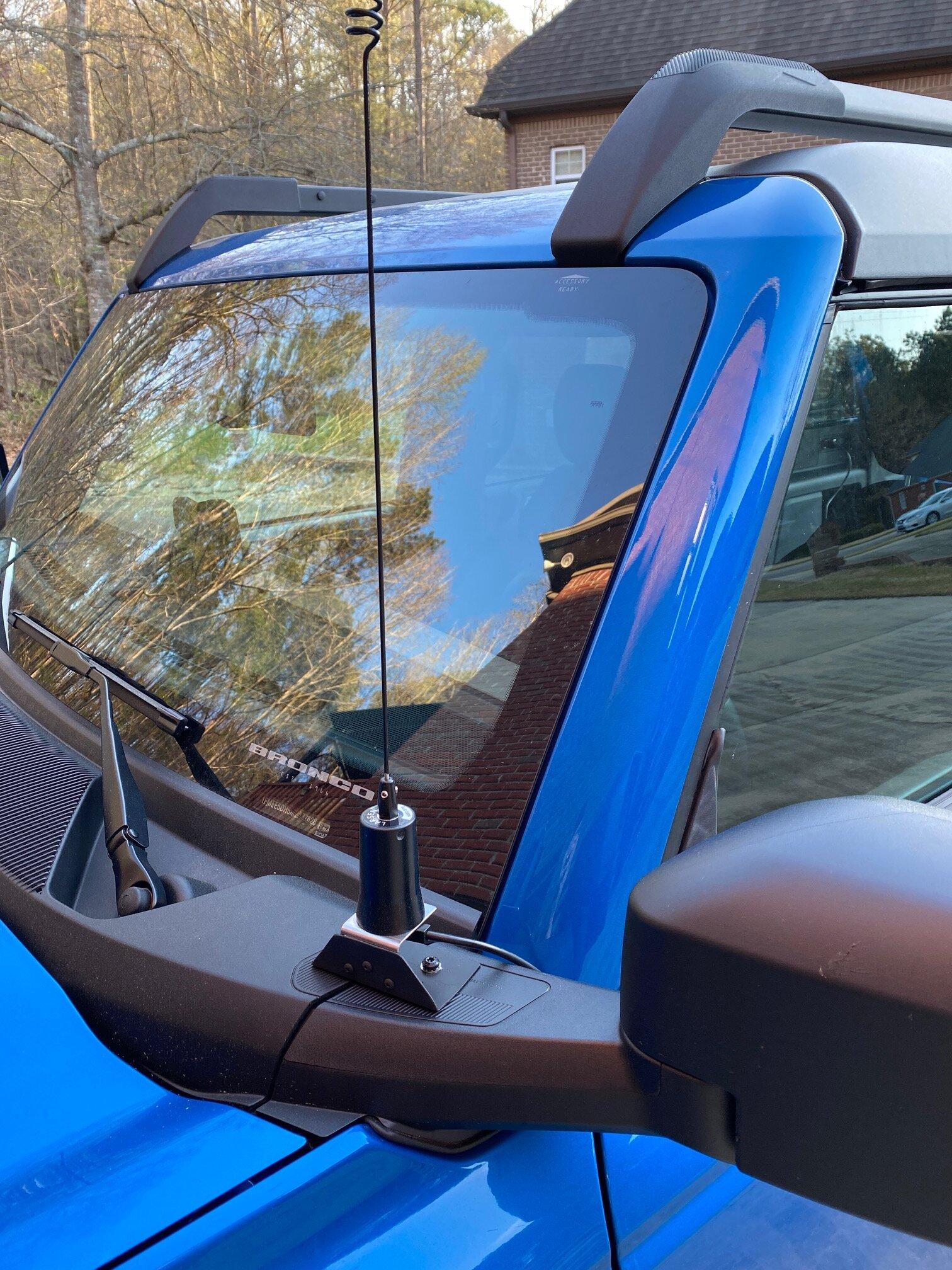

Here's my Ham radio installlation. Antenna and mount are both Larson NMO type. Mount is DIY from scrap stainless. Structure under the accessory mount is grounded to the chassis under the hood with the braided copper, and both sides of the hood are bonded to the chassis with two more copper braids.

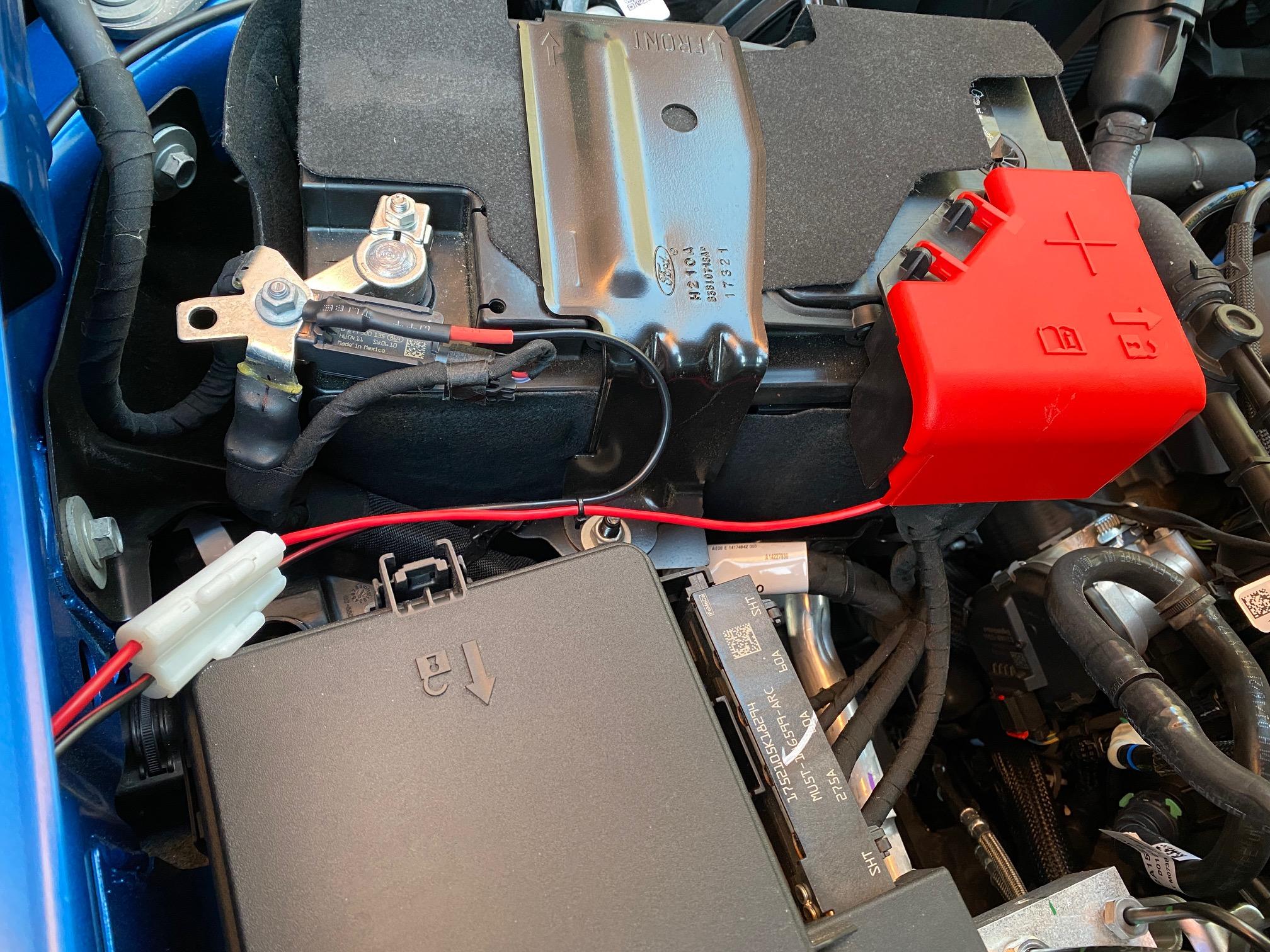

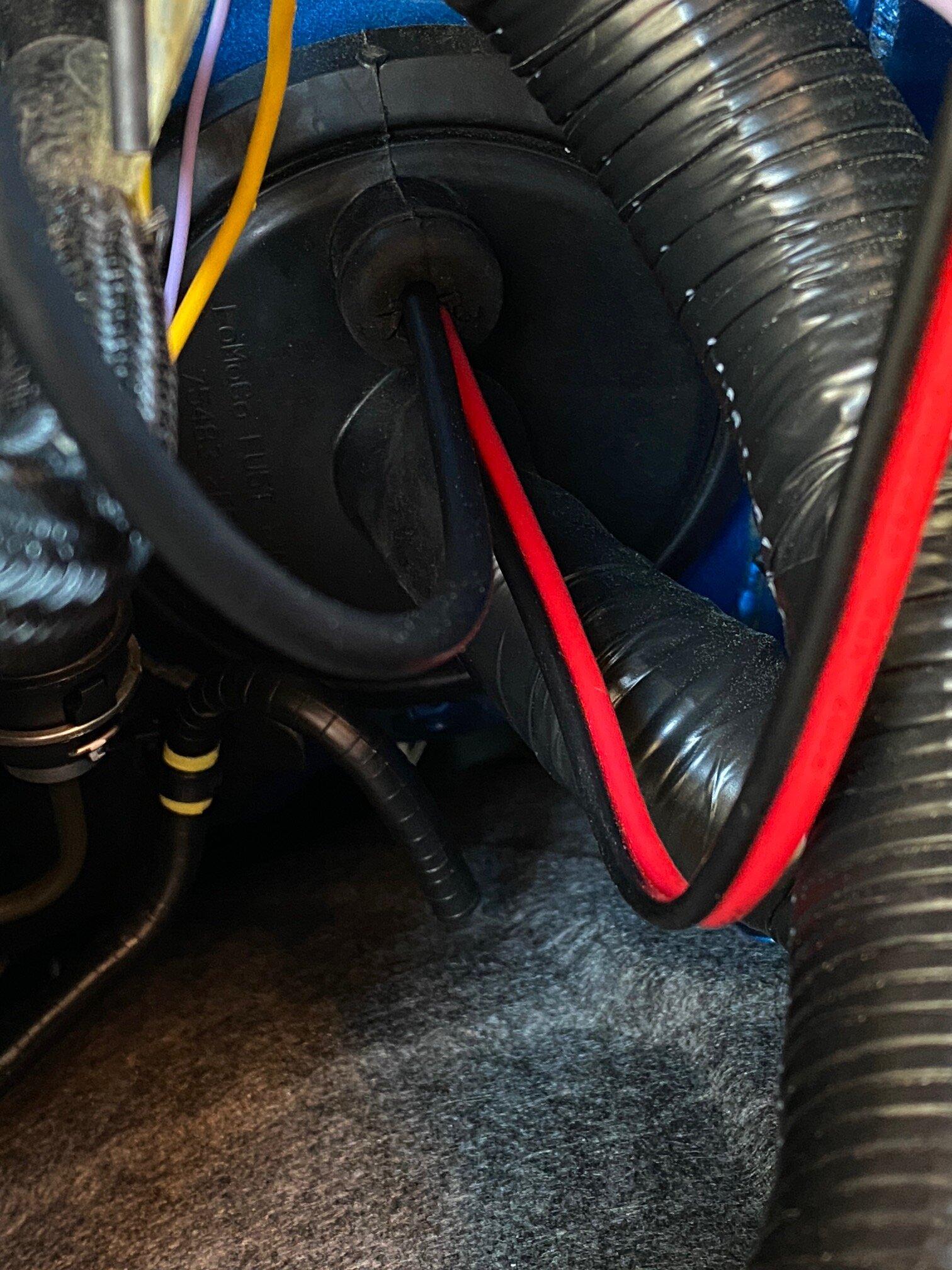

Power is directly to the battery, through the available grommet above the main harness. Tests out with zero noise - contact said it was as quiet as a base station.

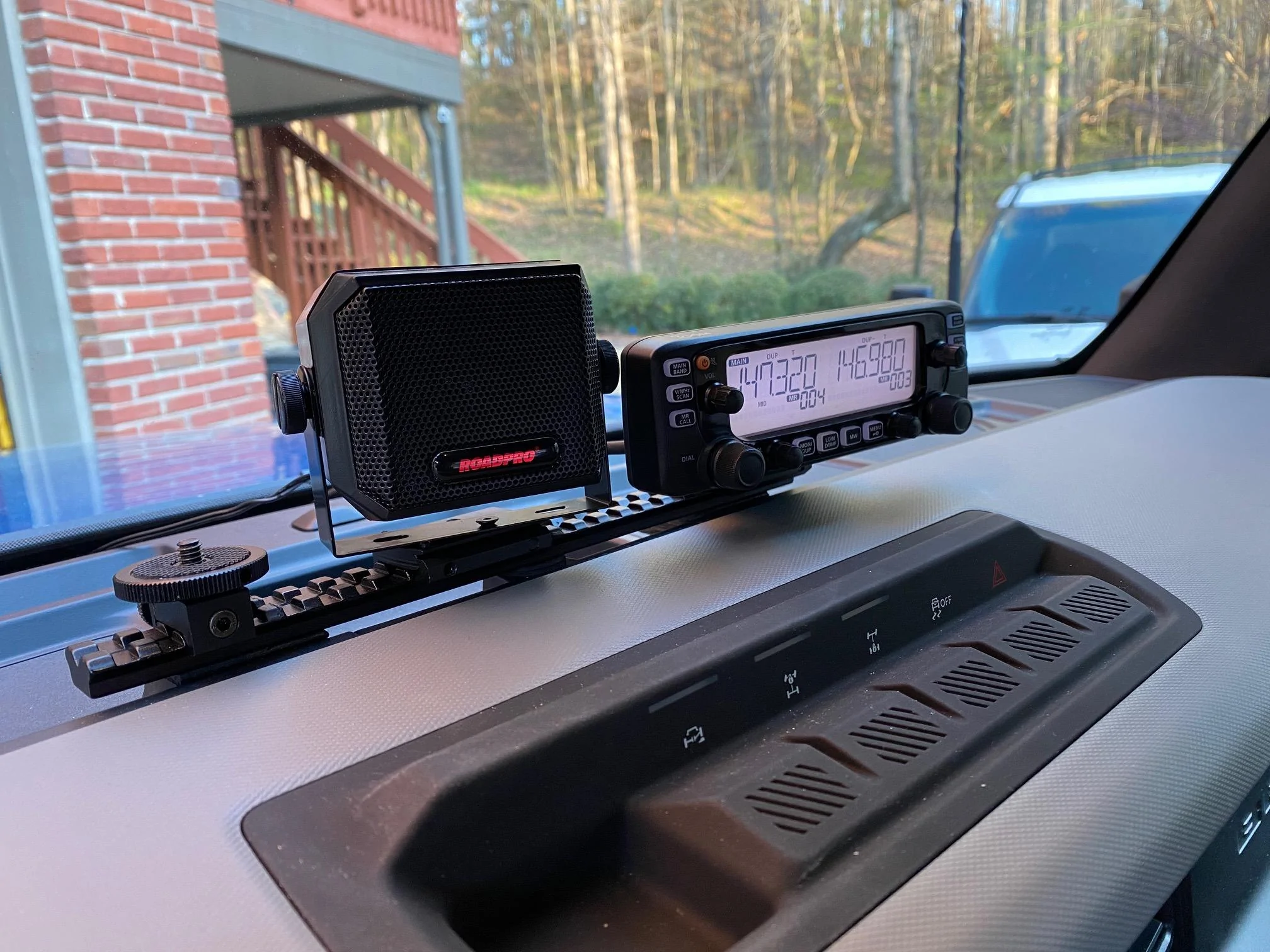

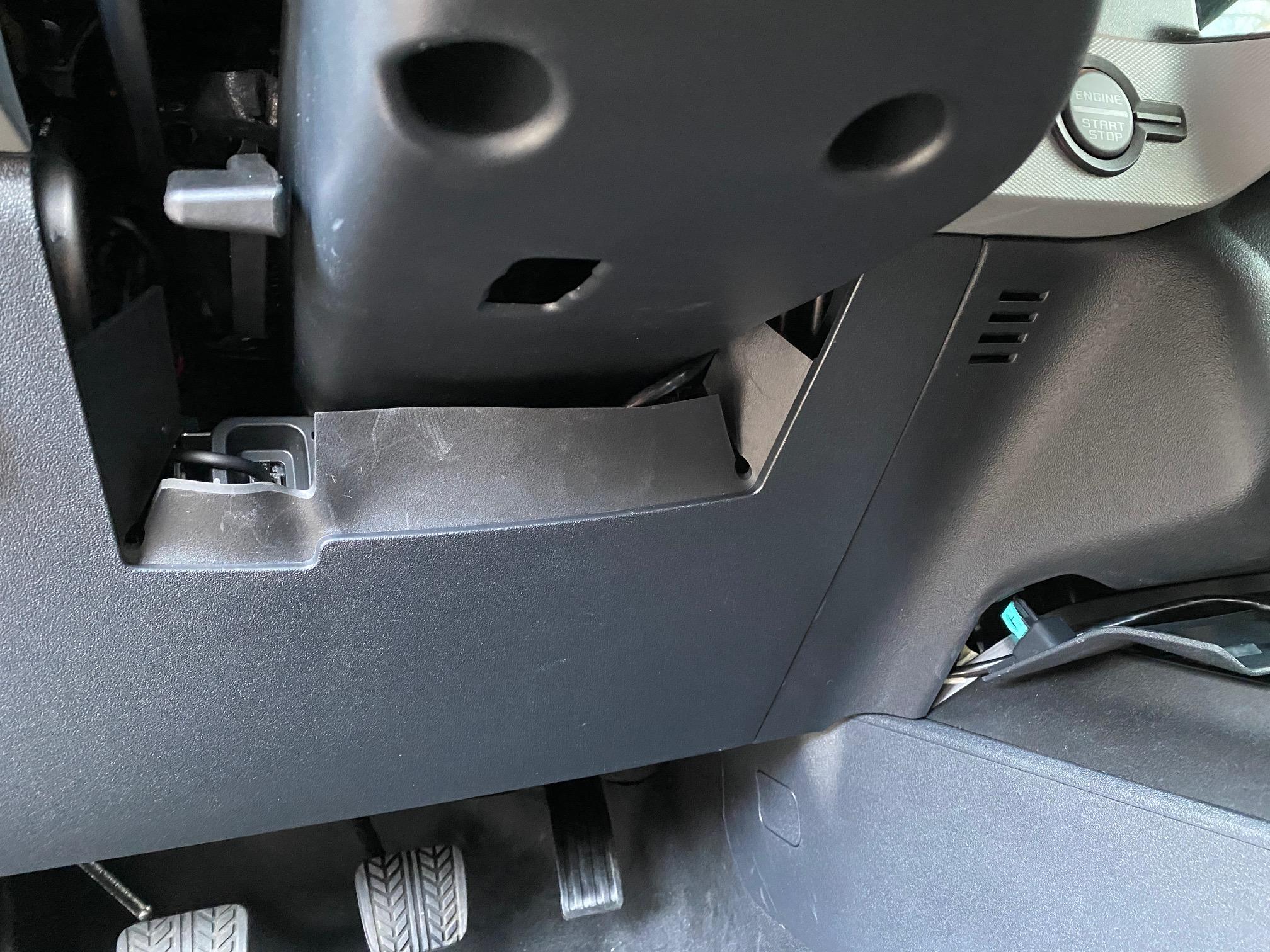

Control mounted to the dash accesory rail (also DIY) and the base unit under the steering column.

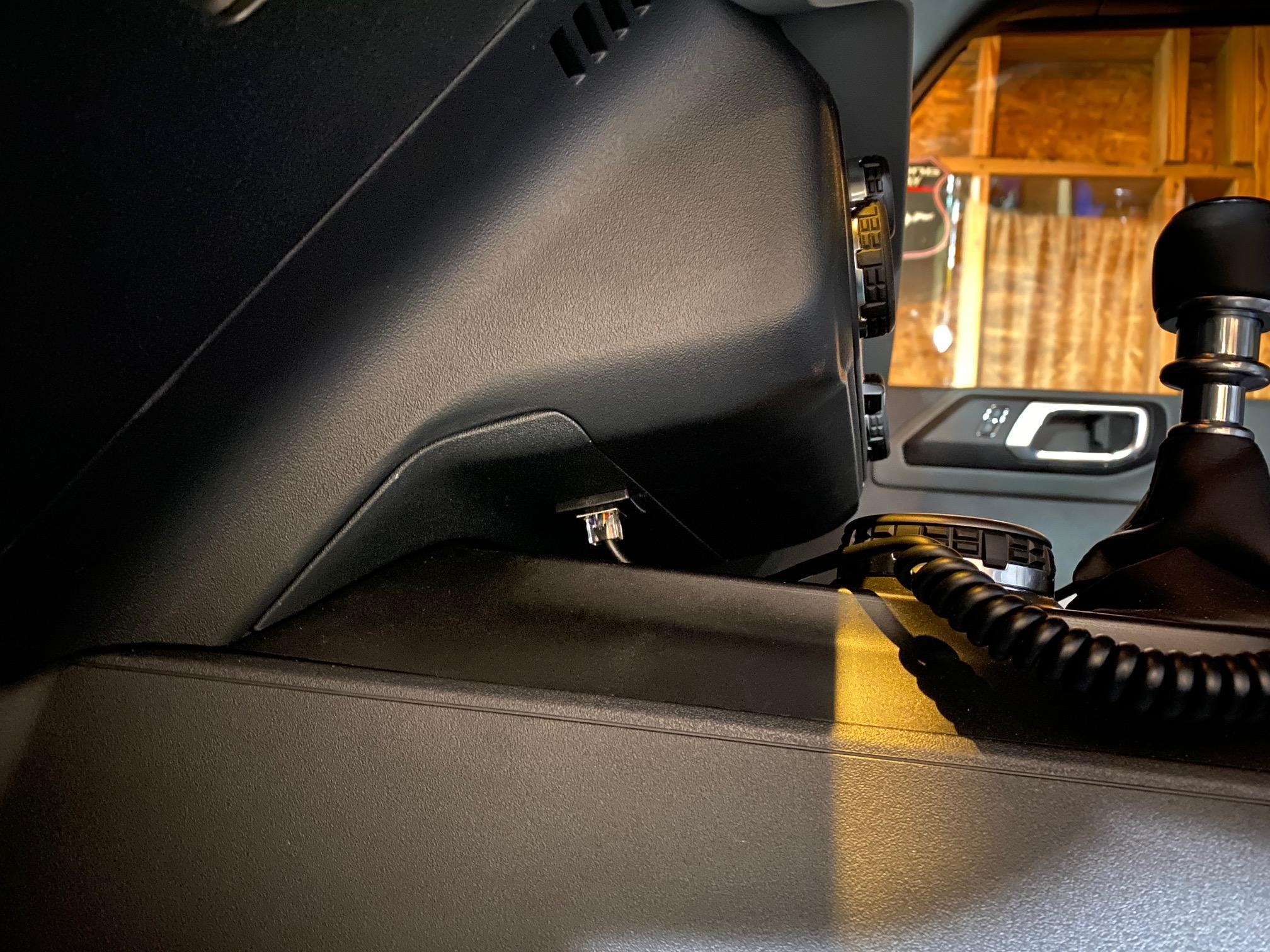

Mic panel mount extension in that pop-out panel above the console.

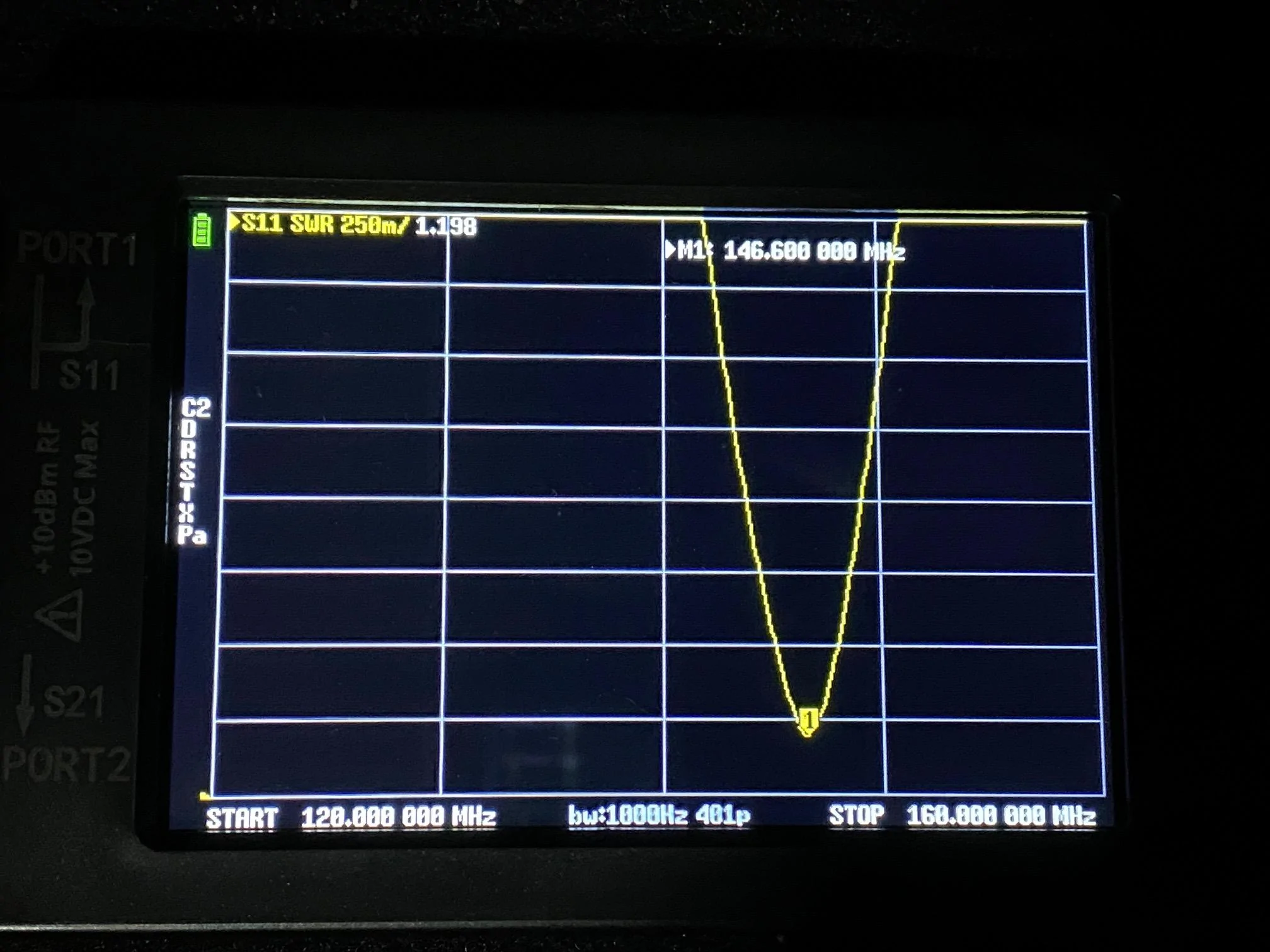

Antenna SWR trace is nearly perfect.



Advertisement


Happy

Black Diamond
Well-Known Member
First Name
Jerry
Joined
Nov 13, 2021
Threads
34
Messages
504
Reaction score
547
Location
Missouri
Vehicle(s)
CJ5, Wagoneer
Your Bronco Model
Black Diamond
Bonding strap are a great idea!! Thanks for posting


Razorbak86

Badlands
Well-Known Member
Joined
Jul 19, 2020
Threads
38
Messages
2,998
Reaction score
11,231
Location
Northwest Arkansas
Vehicle(s)
Ford Bronco, BMW R1150 GS
Your Bronco Model
Badlands
Clubs

Here's my Ham radio installlation. Antenna and mount are both Larson NMO type. Mount is DIY from scrap stainless. Structure under the accessory mount is grounded to the chassis under the hood with the braided copper, and both sides of the hood are bonded to the chassis with two more copper braids.



Power is directly to the battery, through the available grommet above the main harness. Tests out with zero noise - contact said it was as quiet as a base station.



Control mounted to the dash accesory rail (also DIY) and the base unit under the steering column.



Mic panel mount extension in that pop-out panel above the console.



Antenna SWR trace is nearly perfect.

Beautiful install! Love your work. Congrats! 👏 😎


Advertisement

PAULWESTSKI

First Edition
Well-Known Member
First Name
Paul
Joined
Jul 13, 2020
Threads
1
Messages
266
Reaction score
534
Location
VIRGINIA BEACH
Vehicle(s)
00 F350 PSD, 05 Excursion, 21 Bronco Sport FE
Your Bronco Model
First Edition
Clubs

Here's my Ham radio installlation. Antenna and mount are both Larson NMO type. Mount is DIY from scrap stainless. Structure under the accessory mount is grounded to the chassis under the hood with the braided copper, and both sides of the hood are bonded to the chassis with two more copper braids.



Power is directly to the battery, through the available grommet above the main harness. Tests out with zero noise - contact said it was as quiet as a base station.



Control mounted to the dash accesory rail (also DIY) and the base unit under the steering column.



Mic panel mount extension in that pop-out panel above the console.



Antenna SWR trace is nearly perfect.


Where did you find the long Picatinny rail?

Last edited:
OP
OP
LA Pick

LA Pick

Badlands
Well-Known Member
First Name
Mark
Joined
Nov 25, 2020
Threads
2
Messages
52
Reaction score
197
Location
Alabama
Vehicle(s)
Badlands, Mustang, Explorer, S2000, Cobra
Your Bronco Model
Badlands

PAULWESTSKI

First Edition
Well-Known Member
First Name
Paul
Joined
Jul 13, 2020
Threads
1
Messages
266
Reaction score
534
Location
VIRGINIA BEACH
Vehicle(s)
00 F350 PSD, 05 Excursion, 21 Bronco Sport FE
Your Bronco Model
First Edition
Clubs


WheelMe

Badlands
Well-Known Member
First Name
Patrick
Joined
Mar 10, 2020
Threads
5
Messages
93
Reaction score
224
Location
Northern California
Vehicle(s)
2022 Bronco Badlands Sasquatch 2.7L
Your Bronco Model
Badlands
Clubs

I have the same exact radio (ICOM IC-2730A), and have been planning to install it - this is very helpful. I have some questions, if you don't mind responding to:

How is the control unit attached to the dash rail, how is the cable routed to the main unit, and where did you get the dash rail?

Can you show how the RJ45 plug is installed in the pop-out console panel?

Why not use one of the AUX switches for power?

Thanks.

OP
OP
LA Pick

LA Pick

Badlands
Well-Known Member
First Name
Mark
Joined
Nov 25, 2020
Threads
2
Messages
52
Reaction score
197
Location
Alabama
Vehicle(s)
Badlands, Mustang, Explorer, S2000, Cobra
Your Bronco Model
Badlands
I have the same exact radio (ICOM IC-2730A), and have been planning to install it - this is very helpful. I have some questions, if you don't mind responding to:

How is the control unit attached to the dash rail, how is the cable routed to the main unit, and where did you get the dash rail?

Can you show how the RJ45 plug is installed in the pop-out console panel?

Why not use one of the AUX switches for power?

Thanks.
Hey, Patrick. The control unit is attached via an aluminum bracket I made from light sheet scrap I had laying around, just wide enough to cover the threaded inserts. I attached to the dash rail with a gunsight mount: https://www.amazon.com/gp/product/B01H3XE18S I ground off the little alignment post. The control mount requires M2.6x5mm fasteners. No local store had those, so I had to mail order, if you have trouble, ping me.

The dash rail is described in post #7 above. The cables are pressed into the gap below the windshield to the driver A pilllar. Removed the handle and trim and routed the cable under the dash to the head end.

The RJ45 plug is this one: https://www.amazon.com/gp/product/B01MY04R2N
That's the best picture I have. Make sure the hole is big enough - the tabs on the plug break easily if the hole is too small.

As I was preparing for this install, I read a ton about grounding, bonding, and interference. Every source (every) said to power it directly from the battery. Now, none had a new Bronco, so it's possible that one of the circuits has sufficient isolation to work well. I didn't try it. But wires in a bundle WILL couple to their neighbors to some degree. So I kept mine away from others as much as I could, and I went directly the the battery, + and -. Overkill? Maybe. But it works. Operationaly, the only difference is that I don't have to throw the aux switch before turning it on. The radio has a setting to automatically power down after a period of non-use, although I keep forgetting to set it. I just turn off the radio...

Good luck!


Advertisement

8cam

Badlands
Well-Known Member
First Name
Mark
Joined
Mar 30, 2022
Threads
9
Messages
158
Reaction score
305
Location
Georgia
Vehicle(s)
Corvette
Your Bronco Model
Badlands
Clubs

Very nice install. My last ham radio went with my Land Cruiser and I'm planning on getting a remote unit like yours. Does anyone know if the aux switches have relays to the battery? If so, that would be a good solution because you'd have direct power.


WheelMe

Badlands
Well-Known Member
First Name
Patrick
Joined
Mar 10, 2020
Threads
5
Messages
93
Reaction score
224
Location
Northern California
Vehicle(s)
2022 Bronco Badlands Sasquatch 2.7L
Your Bronco Model
Badlands
Clubs

Thanks very much for your detailed response, Mark @LA Pick .

I was using this radio in my 2019 Ranger, where I ran the power directly to the battery - I'll do that again with the Bronco since that firewall grommet is just screaming to be used.

Two additional questions:

Where to buy the picatinny mount for the 2730A's head unit?

Also, how did you route the antenna cable down under the hood - the photo you posted above doesn't show clearly. I recently installed a Rigid A-pillar Series 360 light, and couldn't find any way to route the cable into the engine compartment except through the big gap behind the hood (not too tidy-looking, imo).

Thanks again.


chtucker

First Edition
Well-Known Member
Joined
Nov 24, 2019
Threads
151
Messages
1,728
Reaction score
3,308
Location
Kirkland, WA
Vehicle(s)
FJ Cruiser
Your Bronco Model
First Edition
Just an fyi, those braided straps have proven to be noise makers/not ideal grounds. The industry as switched to fine multi strand wire, tinned preferably in an automotive environment.

What antenna analyzer? I love my Bird Sitehawk


VoltageDrop

Base
Well-Known Member
First Name
Eric
Joined
Jul 22, 2020
Threads
14
Messages
1,202
Reaction score
3,312
Location
Arkansas
Vehicle(s)
04 Cummins, 69 Bronco
Your Bronco Model
Base
Vehicle Showcase
1
Clubs

Very nice install. My last ham radio went with my Land Cruiser and I'm planning on getting a remote unit like yours. Does anyone know if the aux switches have relays to the battery? If so, that would be a good solution because you'd have direct power.
Yes, they each have a relay.


NewBroncoOwner

Base
Well-Known Member
Joined
Jun 4, 2021
Threads
64
Messages
1,148
Reaction score
2,459
Location
Good Ol USA!!!
Vehicle(s)
2021 Ford Bronco Base
Your Bronco Model
Base
Clubs

is that setup bothersome being in the field of view of driving?
