The installation date for my ARB dual compressor (100% duty cycle) finally arrived for my 2021 "unicorn" bronco. I had a local shop (Asheville Vehicle Outfitters) do the installation. This is the same 2 door Bronco that had the rear seats deleted from an earlier thread of mine.

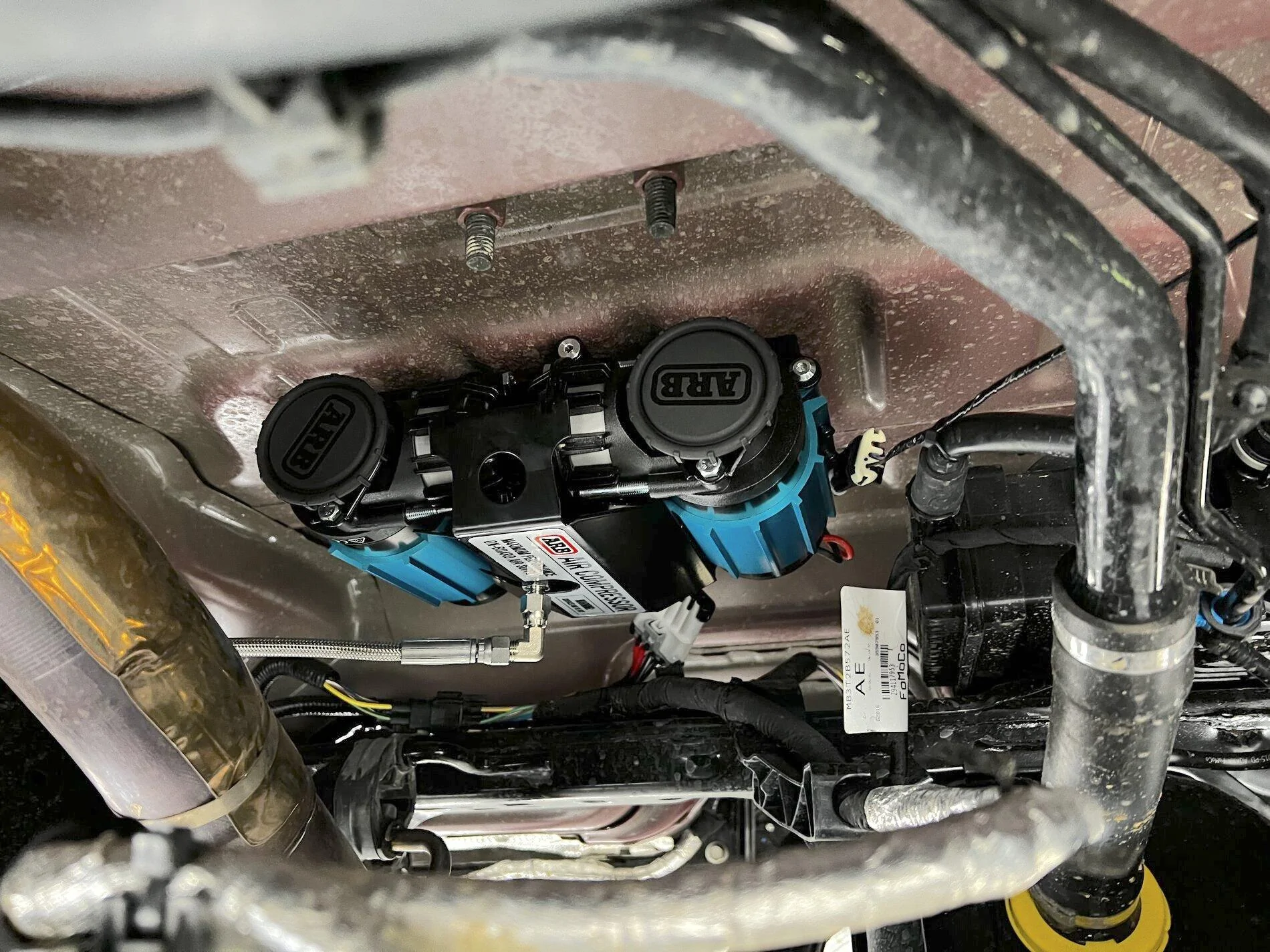

The compressor was installed to the underside of the body, centered and towards the rear:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 2021 Bronco Hardmounted ARB dual air compressor with quick connect port installed


It was mounted by drilling holes up through the body and bolting everything in, underneath the rear factory carpet.

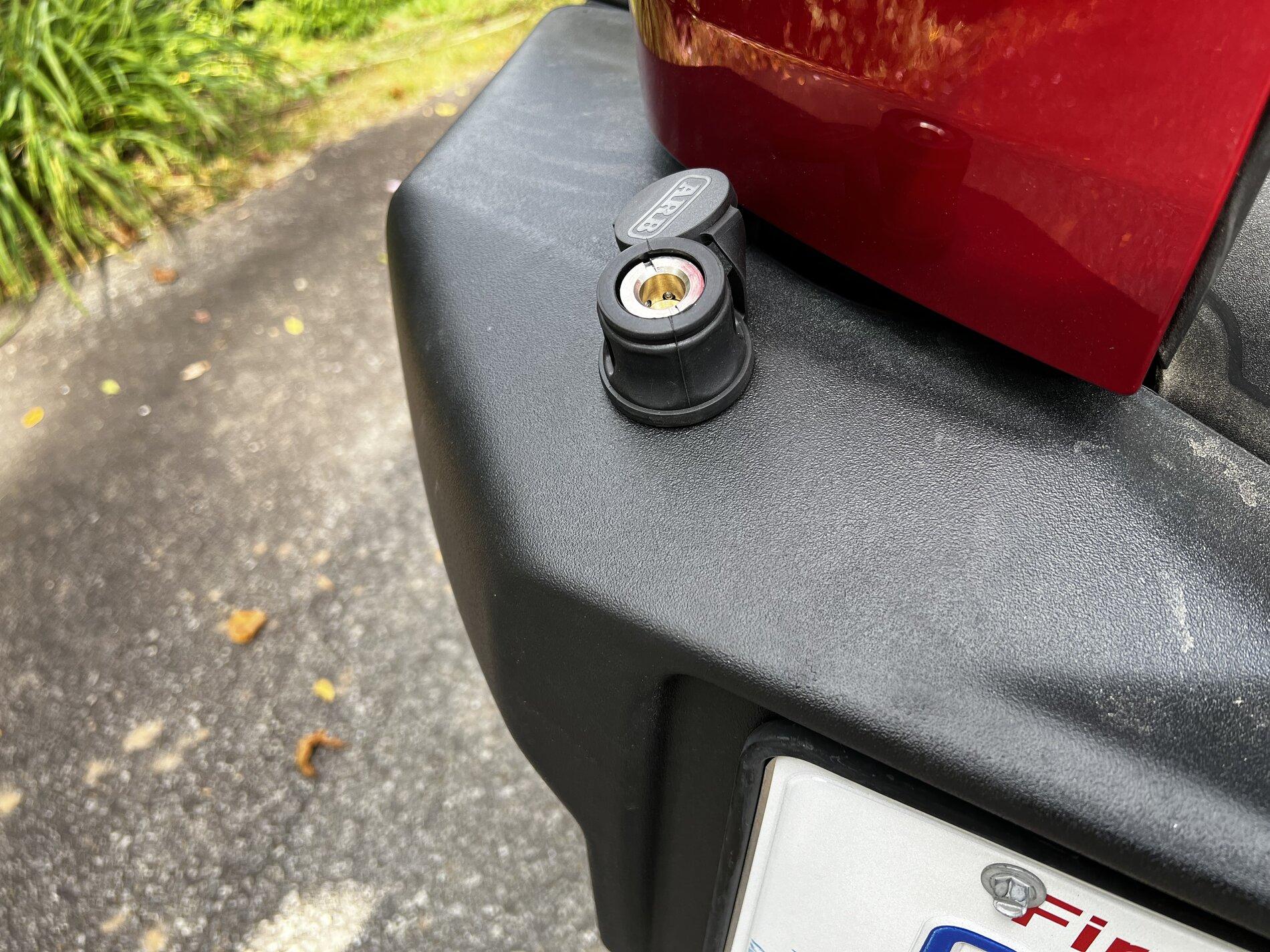

The output air line was run to a quick disconnect port on the rear bumper using braided tubing, and comes out on the drivers side above the license plate:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 2021 Bronco Hardmounted ARB dual air compressor with quick connect port installed 1


So when you need to air up you can just plug in the hose:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 2021 Bronco Hardmounted ARB dual air compressor with quick connect port installed

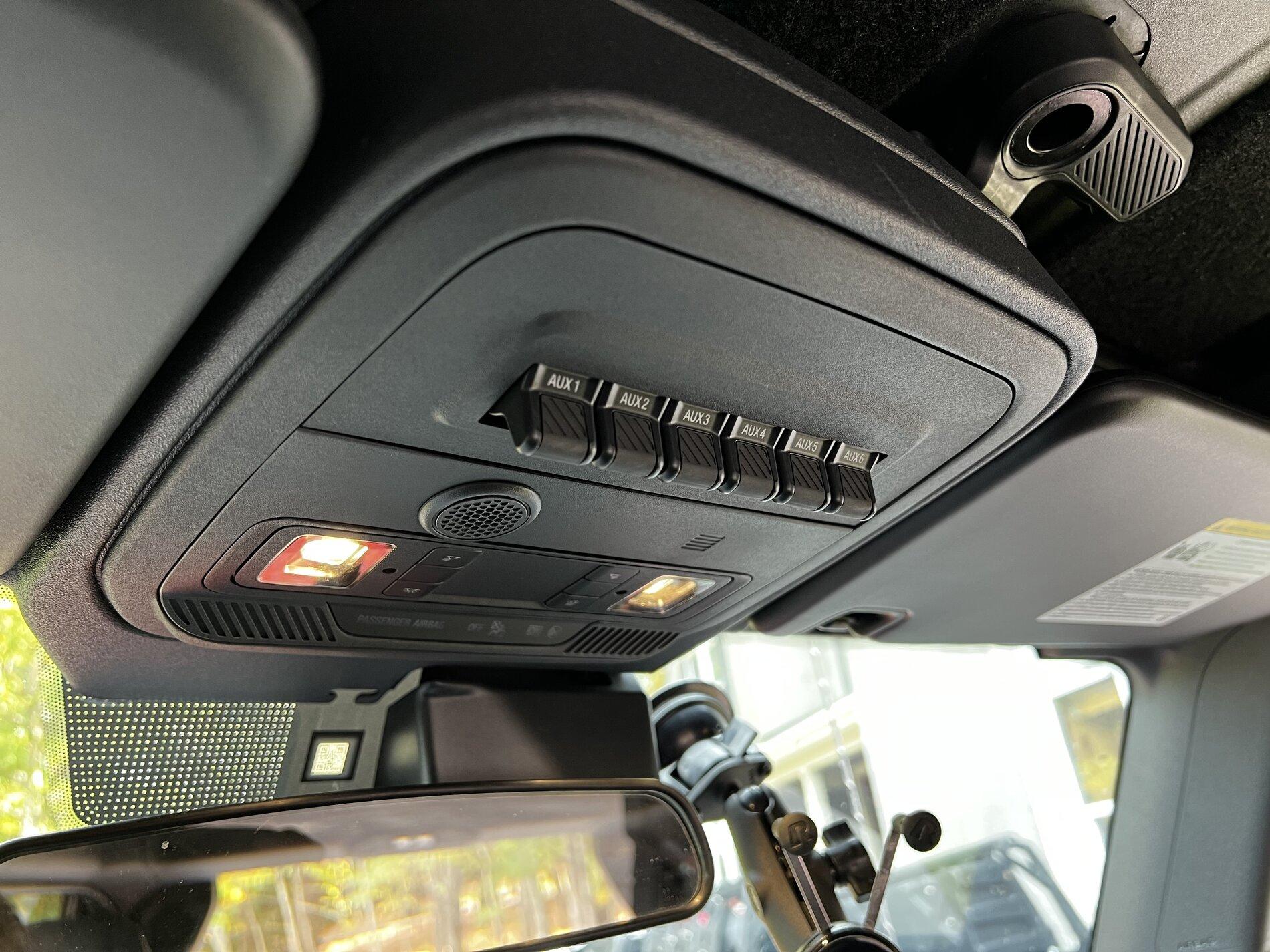

And turn on aux switch 1:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 9C3C1AE2-8E0D-4A3A-A9C7-3760E501DC7B


Eventually I will be upgrading the front and rear bumpers with steel versions, but that will have to wait until later. I also plan to buy or make one of the 4-way inflater hoses so I can air up all tires to the same PSI at the same time. This is a 100% duty cycle compressor, so no worries about overheating or cool down cycles on larger tire sizes.
Sponsored


Last edited by a moderator:

Tech Tim

Base
Well-Known Member
Squatch Sponsor (Level 3)
First Name
Tim
Joined
Feb 19, 2021
Threads
3
Messages
334
Reaction score
611
Location
Wet Side of WA
Vehicle(s)
Jeep JKU
Your Bronco Model
Base
Clubs

OP
OP
BroncoUnicorn

BroncoUnicorn

Base
Well-Known Member
Joined
Aug 25, 2021
Threads
5
Messages
49
Reaction score
777
Location
USA
Vehicle(s)
Ford Bronco Base 2dr Manual
Your Bronco Model
Base
Clubs


Sponsored

Broncodave

Black Diamond
Well-Known Member
First Name
Dave
Joined
Nov 5, 2020
Threads
26
Messages
1,846
Reaction score
5,088
Location
Seattle
Vehicle(s)
Dodge Challenger/Nissan Xterra
Your Bronco Model
Black Diamond
Clubs

The installation date for my ARB dual compressor (100% duty cycle) finally arrived for my 2021 "unicorn" bronco. I had a local shop (Asheville Vehicle Outfitters) do the installation. This is the same 2 door Bronco that had the rear seats deleted from an earlier thread of mine.

The compressor was installed to the underside of the body, centered and towards the rear:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 9C3C1AE2-8E0D-4A3A-A9C7-3760E501DC7B


It was mounted by drilling holes up through the body and bolting everything in, underneath the rear factory carpet.

The output air line was run to a quick disconnect port on the rear bumper using braided tubing, and comes out on the drivers side above the license plate:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 9C3C1AE2-8E0D-4A3A-A9C7-3760E501DC7B


So when you need to air up you can just plug in the hose:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 9C3C1AE2-8E0D-4A3A-A9C7-3760E501DC7B


And turn on aux switch 1:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 9C3C1AE2-8E0D-4A3A-A9C7-3760E501DC7B


Eventually I will be upgrading the front and rear bumpers with steel versions, but that will have to wait until later. I also plan to buy or make one of the 4-way inflater hoses so I can air up all tires to the same PSI at the same time. This is a 100% duty cycle compressor, so no worries about overheating or cool down cycles on larger tire sizes.
That is slick!

OP
OP
BroncoUnicorn

BroncoUnicorn

Base
Well-Known Member
Joined
Aug 25, 2021
Threads
5
Messages
49
Reaction score
777
Location
USA
Vehicle(s)
Ford Bronco Base 2dr Manual
Your Bronco Model
Base
Clubs

Did you consider mounting it in the engine bay?
I did, but I didn't like any of the possible engine mount locations. The engine bay is pretty messy and the dual compressor is a bit fat. There was unused space here under the body, and it's closer to the rear where I wanted the quick connect port. Time will tell if this was a good location or not..


Sponsored

Designkid

Badlands
Well-Known Member
First Name
Kris
Joined
Jul 21, 2020
Threads
9
Messages
754
Reaction score
2,322
Location
New Jersey
Vehicle(s)
2021 Bronco Badlands
Your Bronco Model
Badlands
Clubs

Clean install. Any particular reasoning behind using the only 30amp switch available to activate it when it, in all intents and purposes, is only firing a relay?


fschael

Base
Well-Known Member
First Name
Federico
Joined
Jan 10, 2021
Threads
1
Messages
702
Reaction score
1,219
Location
Houston, Tx
Vehicle(s)
2002 F-150 Supercrew FX4
Your Bronco Model
Base
My wife is going to kill me now.


Rick Astley

Raptor
Well-Known Member
Joined
Jul 24, 2020
Threads
70
Messages
5,019
Reaction score
18,563
Location
Up Doug's ass
Vehicle(s)
d
Your Bronco Model
Raptor
Get the ARB remote air kit for that and get those air filters moved into a safe dry place.

https://www.northridge4x4.com/part/...essories/171319-arb-air-filter-relocation-kit
Curious what you've seen from your own crew and also customers in terms of compressor life on these ARB units when they are mounted in locations which will see being fully submerged, lots of water, mud and impacts?

I've got the ARB twin on my short list but intend an engine-bay mount with aerospace grade quick disconnects on the terminals so that for daily driving I don't subject the compressor to constant heat cycles.

Or are these units so bulletproof that you're getting 5-10 years hard life out of them without issue?

OP
OP
BroncoUnicorn

BroncoUnicorn

Base
Well-Known Member
Joined
Aug 25, 2021
Threads
5
Messages
49
Reaction score
777
Location
USA
Vehicle(s)
Ford Bronco Base 2dr Manual
Your Bronco Model
Base
Clubs

Clean install. Any particular reasoning behind using the only 30amp switch available to activate it when it, in all intents and purposes, is only firing a relay?

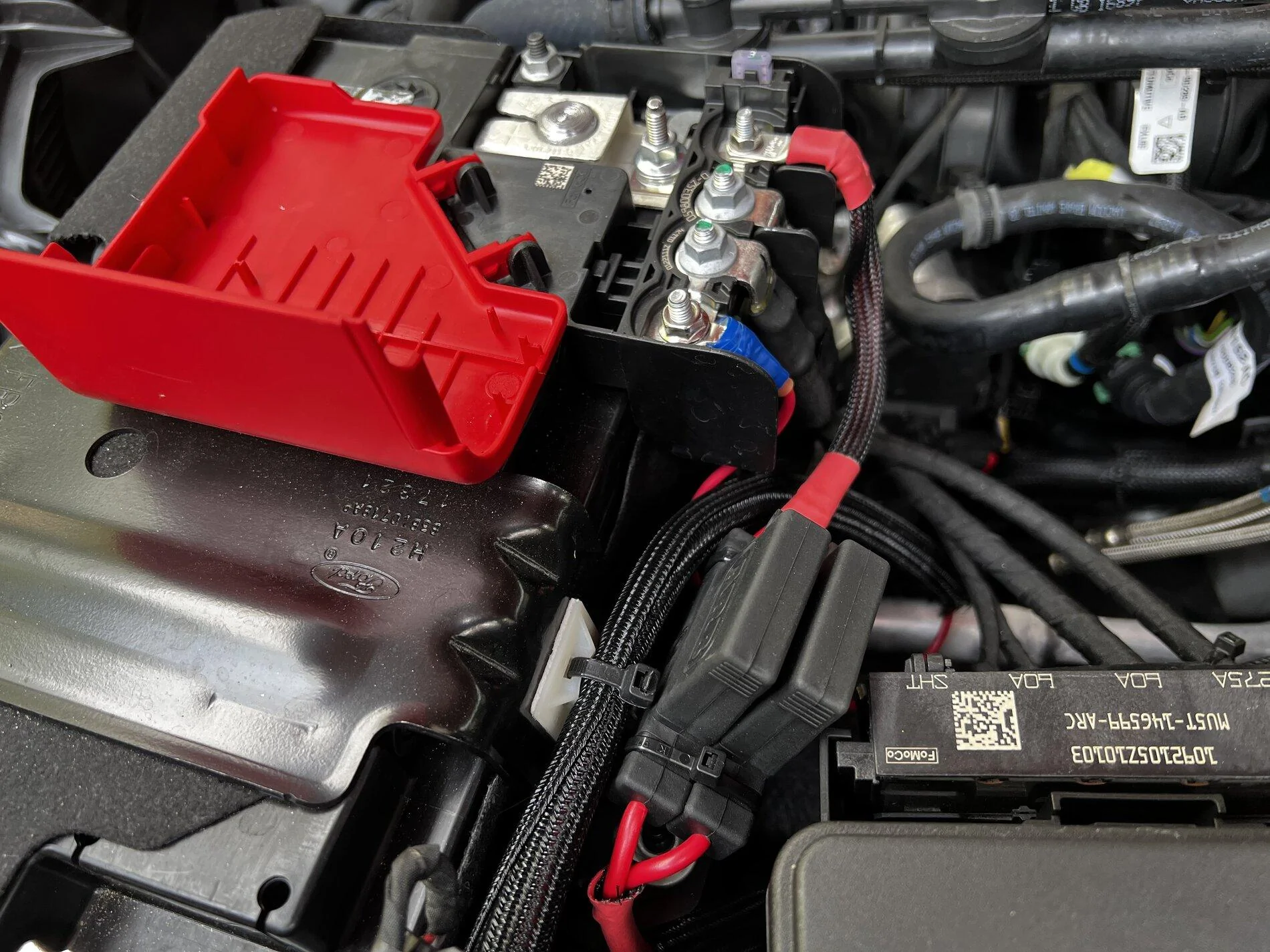

My understanding of the install is that the aux switch triggers the relay on the compressor side, and the power is pulled from the battery directly:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 0586CBB3-17A2-4F30-BC0B-5701B72D9E16

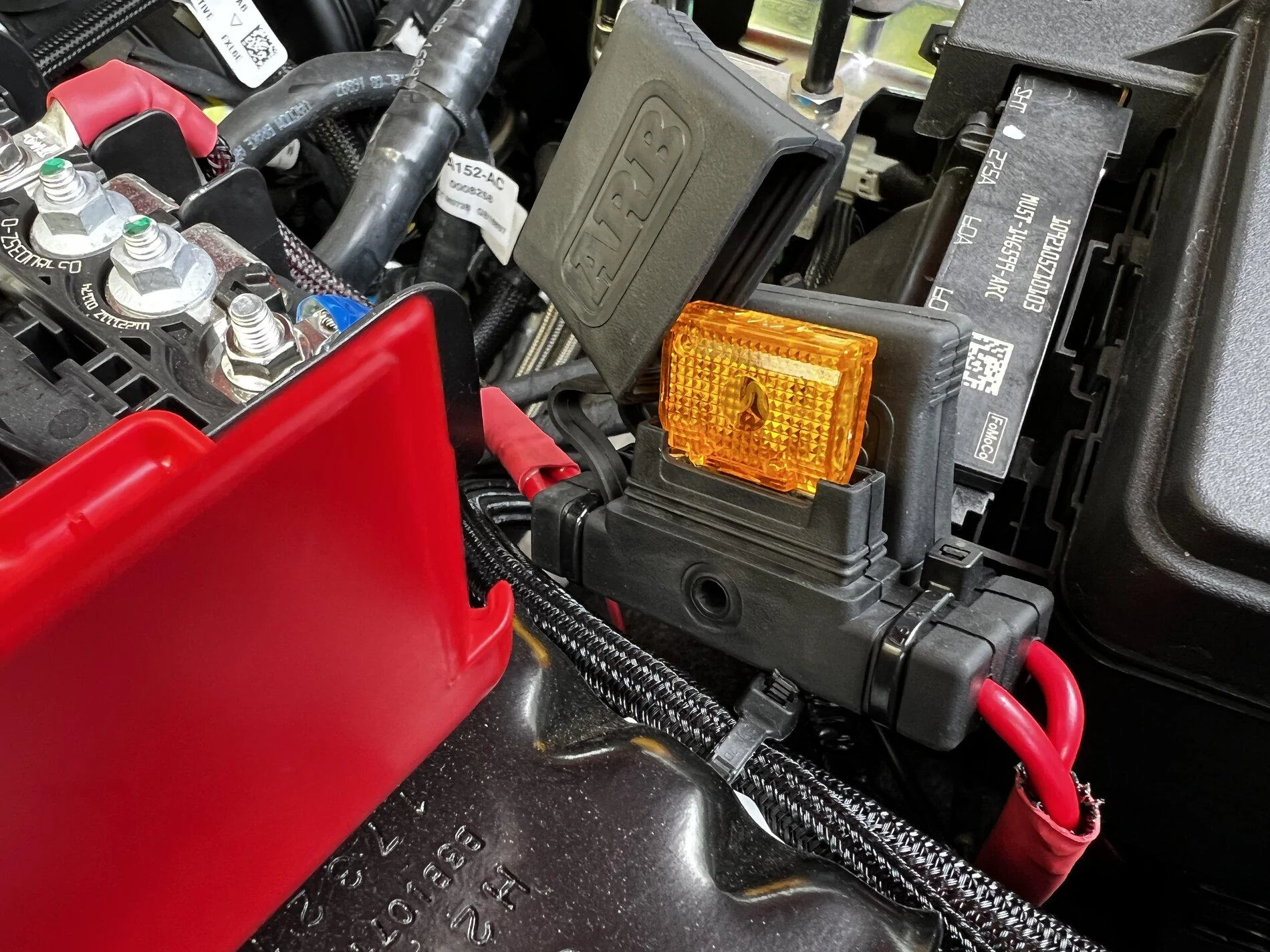

There seem to be two fuses. I assume that is one per compressor:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed 28494F82-381F-4315-9E2B-248B642E6A62

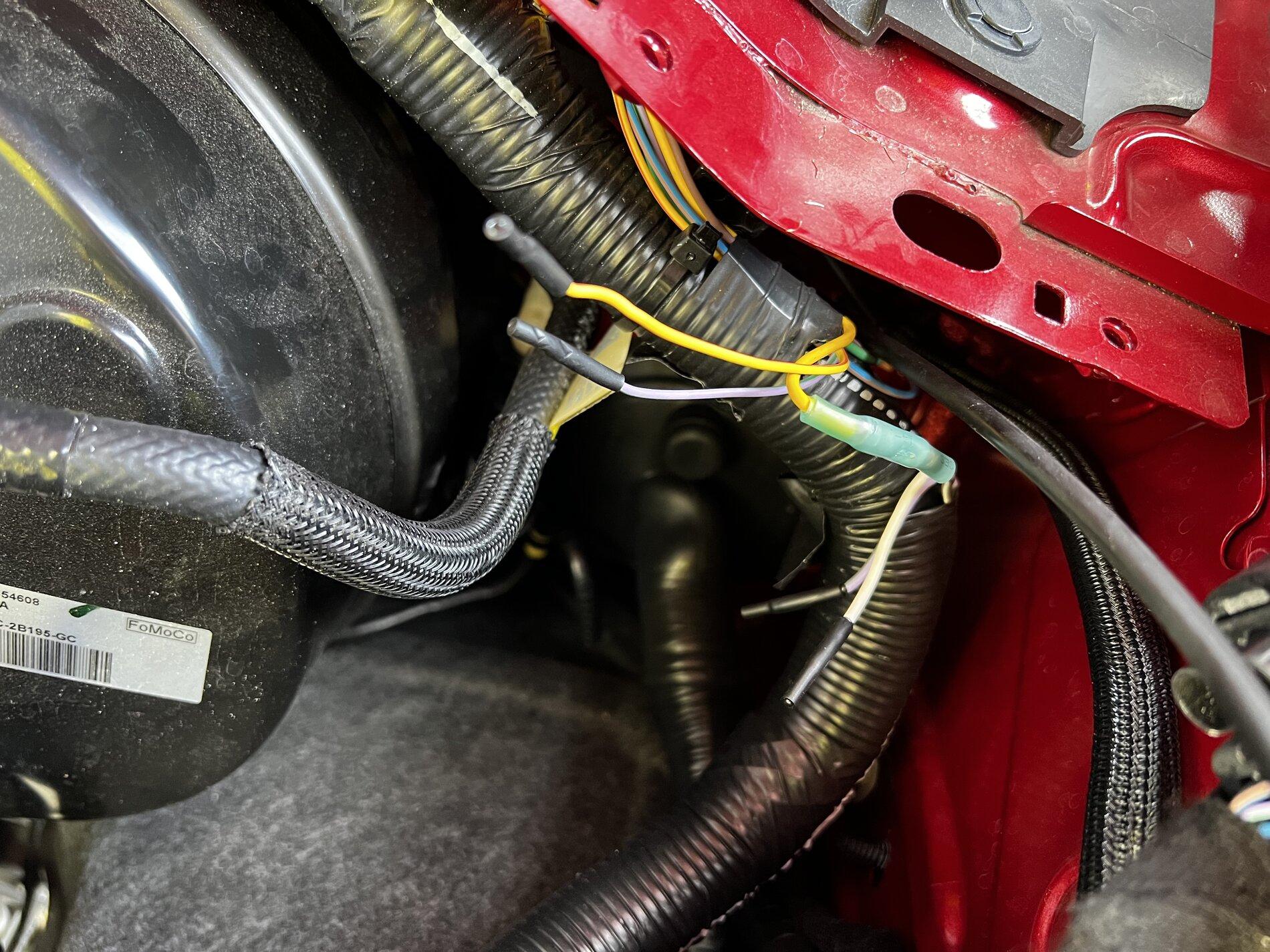

I was told by the installers that Ford doesn't map a specific wire harness wire to a specific switch, but they deadend everything to a single location in the engine bay so you can connect to the switch of your choice.

I assume that is what this is:

Ford Bronco Hardmounted ARB dual compressor with quick connect port installed BA81593F-2260-4213-8DD5-47309FA22A28
