I've searched the forums, and read up on all of the posts related to the idea of swapping grills between vehicles with and without cameras, but haven't seen any instance of someone actually doing it.
Has anyone with a front-facing camera installed a Big Bend grill and gotten the camera to mount?
Additionally, has anyone with a Badlands installed a Big Bend or OBX grill, along with the new grill's latch surround assembly? (since the BB and OBX grill openings are different than BL and WT, the air intake channels differ [green parts in picture])

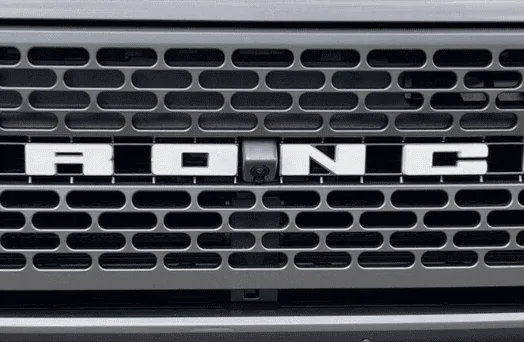

Badlands Grill w/ Camera

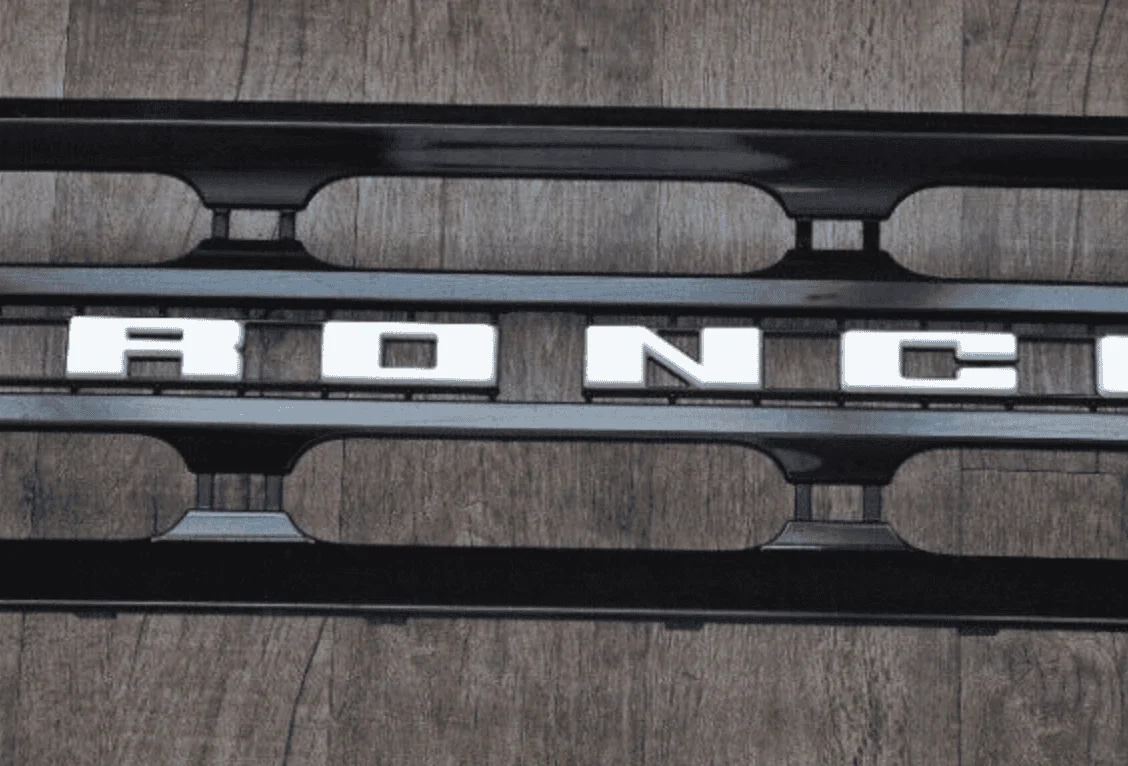

Outer Banks Grill w/ Camera Opening

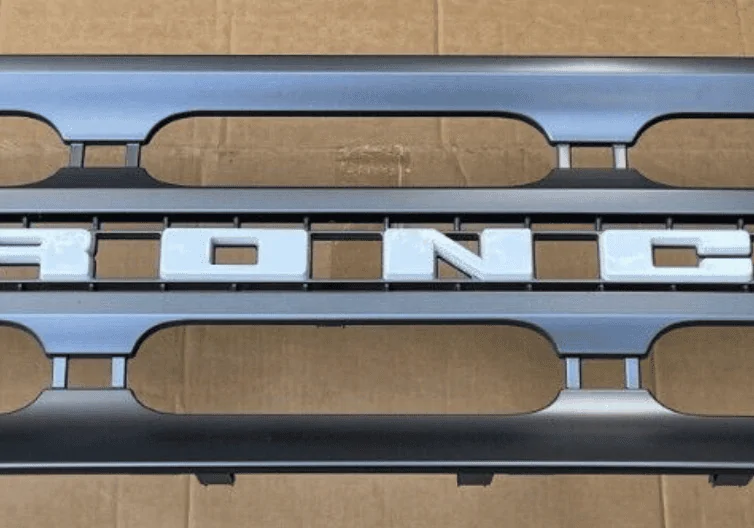

Big Bend Grill w/o Camera
Could it be as simple as trimming that horizontal bar in the opening between the "O" and "N", to mimc the OBX grill?

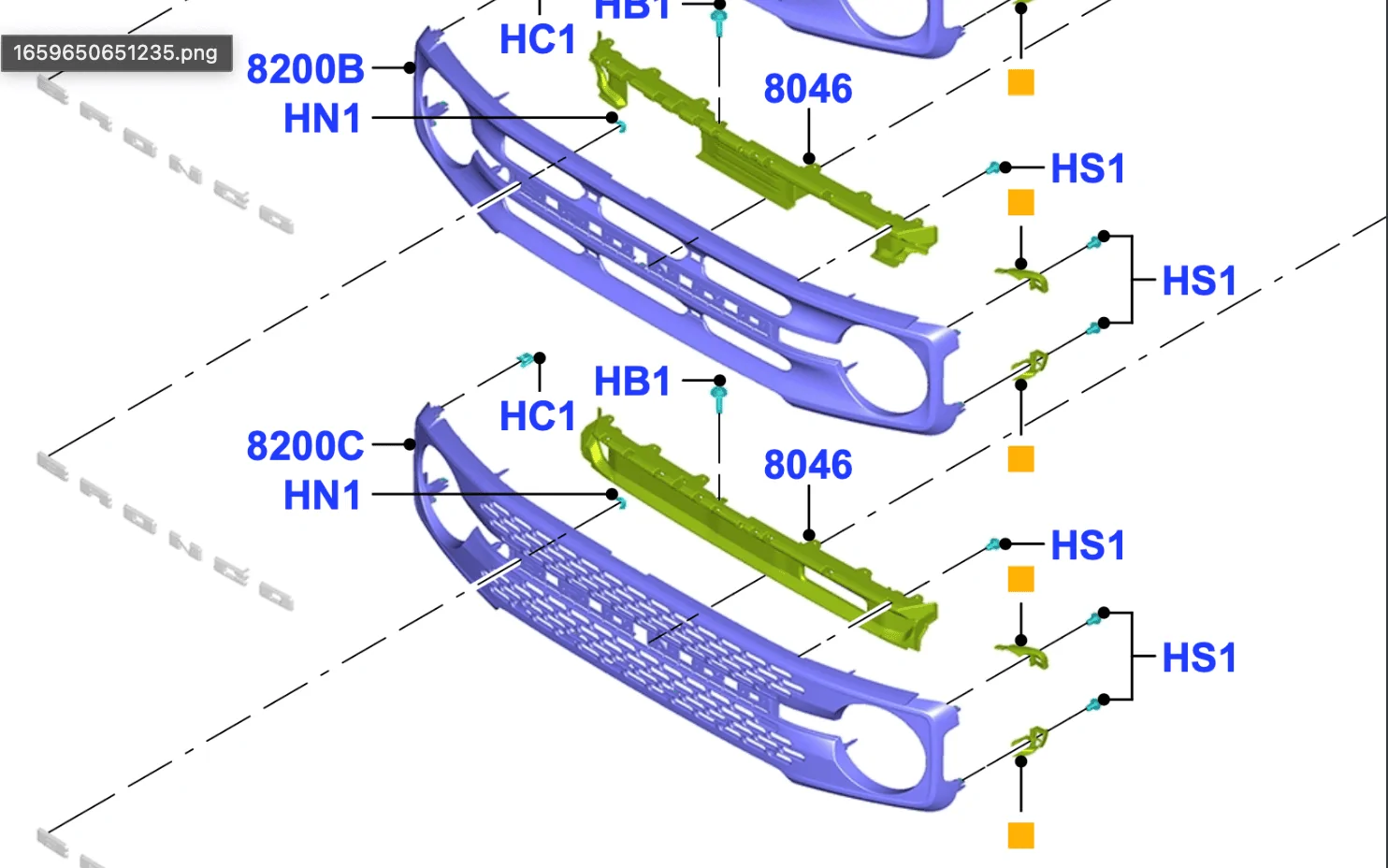

Here is the diagram showing the air intake channels being different:
Has anyone with a front-facing camera installed a Big Bend grill and gotten the camera to mount?
Additionally, has anyone with a Badlands installed a Big Bend or OBX grill, along with the new grill's latch surround assembly? (since the BB and OBX grill openings are different than BL and WT, the air intake channels differ [green parts in picture])
Badlands Grill w/ Camera
Outer Banks Grill w/ Camera Opening
Big Bend Grill w/o Camera
Could it be as simple as trimming that horizontal bar in the opening between the "O" and "N", to mimc the OBX grill?
Here is the diagram showing the air intake channels being different:
