Headlight Wiring Broken

BasikFilly

Base
New Member
Joined
Dec 5, 2023
Threads
1
Messages
3
Reaction score
4
Location
Dallas, TX
Vehicle(s)
2023 Bronco
Your Bronco Model
Base

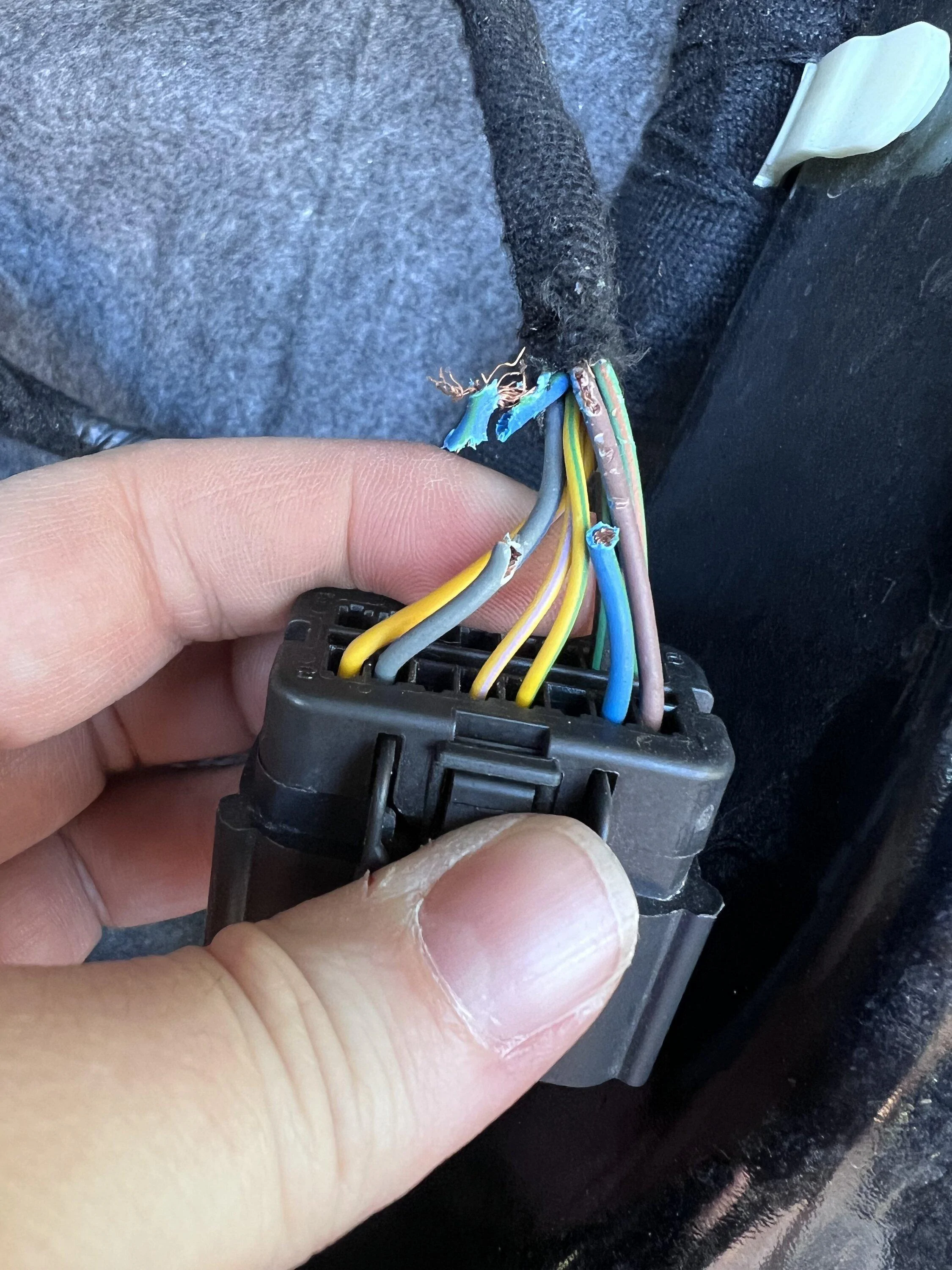

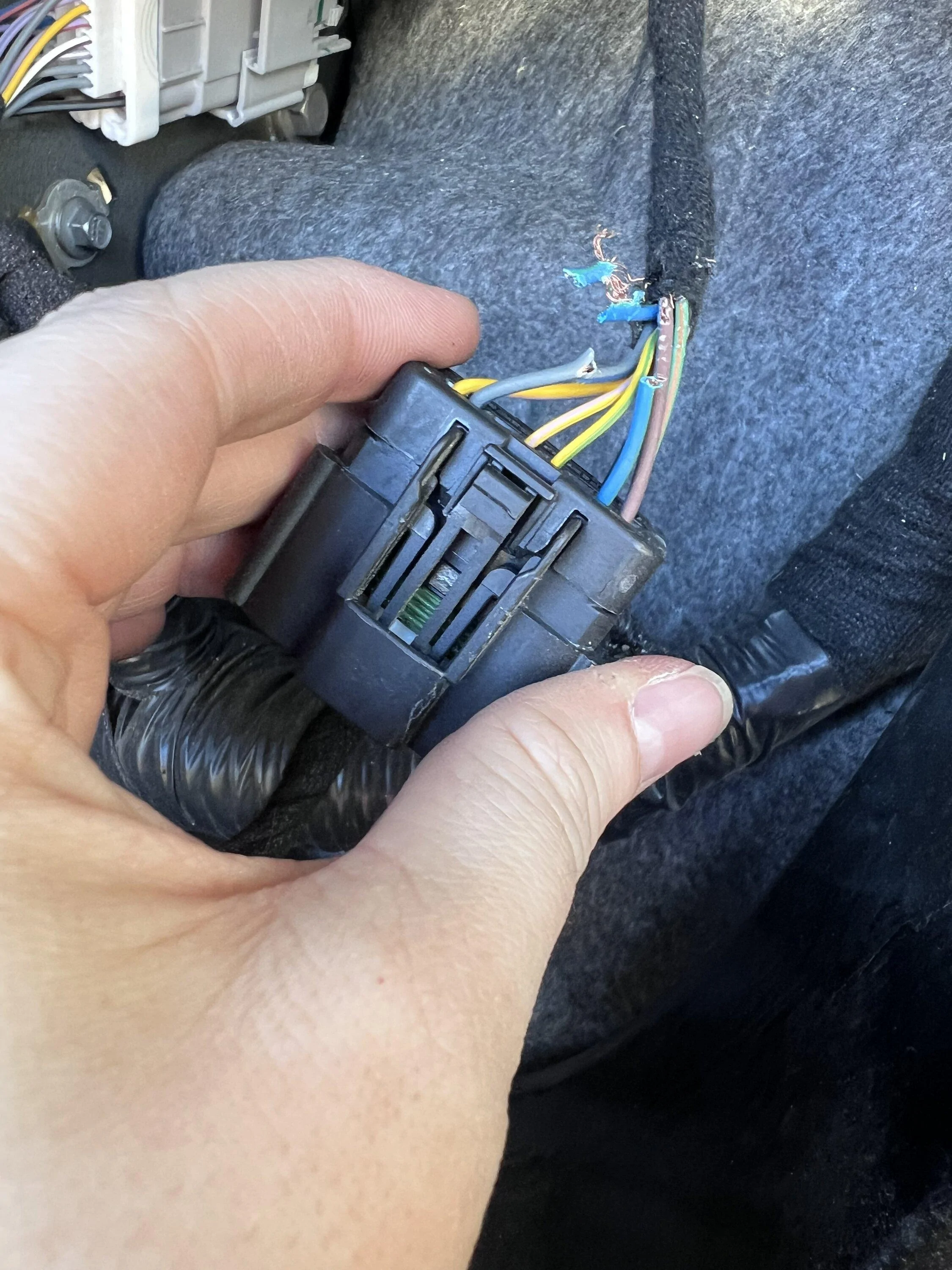

Looking for help or guidance on how to repair my headlight wiring. This is a picture the wiring the headlight would be plugged into. If additional information helps, I installed the alpha Rex headlights less than a year ago and just recently my blinker stopped working. Took apart the entire thing to find this. Which I guess I’m thankful for but ford quoted me $600 because they said my aftermarket grill and headlights would take longer to remove haha. Any guidance would be most appreciated!



Sponsored



PWillette

Badlands
Well-Known Member
First Name
Parrie
Joined
Dec 28, 2020
Threads
38
Messages
2,325
Reaction score
3,939
Location
Maine
Vehicle(s)
'08 F250 Super Duty, '01 SS Camaro, '21 Bronco
Your Bronco Model
Badlands
Not many options. For temporary could peel back the outer jacket and solder a short section of wire & heat shrink on the broken wire and just tape up the chaffed wires.


Ducati1098

Wildtrak
Well-Known Member
Joined
Jul 14, 2020
Threads
11
Messages
3,707
Reaction score
7,401
Location
Midwest
Vehicle(s)
2022 Bronco Wildtrak, 2012 Ford Fusion
Your Bronco Model
Wildtrak
Clubs

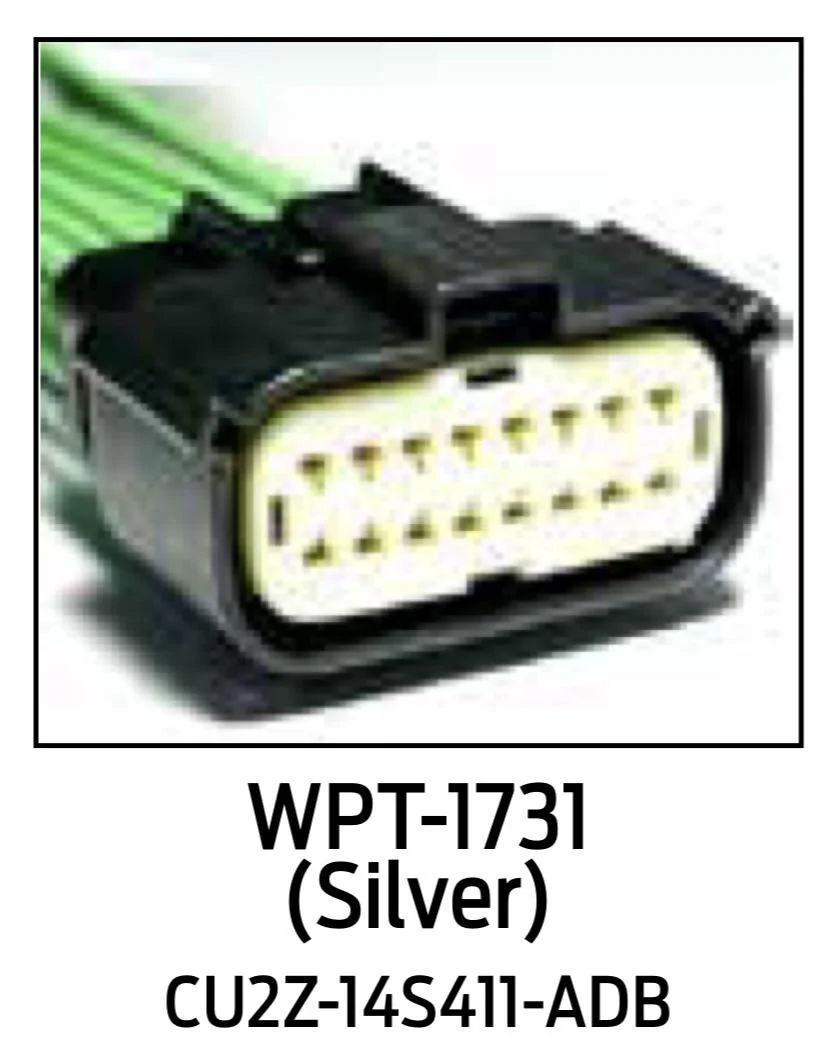

You can try and repair that, or you can just order a new pigtail connector which will give you a lot more wiring to work with.
Also, that looks like rodent damage so you may want to look out for any other signs.

Ford Bronco Headlight Wiring Broken IMG_2867


Headsong

Black Diamond
Well-Known Member
First Name
Jeff
Joined
Aug 23, 2020
Threads
53
Messages
5,402
Reaction score
8,882
Location
Kane County, Western Chicago area
Vehicle(s)
22 Black Diamond non squatch 4 door softtop v6
Your Bronco Model
Black Diamond
Clubs

Ah, mouses, little bastards. Stick some green killer blocks in the engine compartment, find a cat, set some traps, lock up birdseed...

OP
OP
BasikFilly

BasikFilly

Base
New Member
Joined
Dec 5, 2023
Threads
1
Messages
3
Reaction score
4
Location
Dallas, TX
Vehicle(s)
2023 Bronco
Your Bronco Model
Base
Rats! I would have never thought but this is a new challenge for me. I’ve never dealt with wiring, is there a video I could watch?


Sponsored

flip

Badlands
Well-Known Member
Base Sponsor (Level 1)
First Name
Phil
Joined
Jul 21, 2020
Threads
41
Messages
4,299
Reaction score
14,249
Location
IN
Website
www.ruxerparts.com
Vehicle(s)
Fords
Your Bronco Model
Badlands
Clubs

Rats! I would have never thought but this is a new challenge for me. I’ve never dealt with wiring, is there a video I could watch?
The connector is a Molex MX150 series. White locking shell is basically pulled forward until it hits a stop then a small round pin is inserted into the small hole below the square opening which is then pushed in and will release the terminal. You will have to unravel some of the insulation to splice in the new pigtails which isn't a huge deal but you will need to be able to cut the wire, strip back some insulation, crimp some small butt connectors and apply some heat shrink over the connector.

If you feel froggy, DM me with your address and I'll either make a few ends up or take some off a donor harness with the heat shrink and butt connectors.

ETA: The Ford repair kit that @Ducati1098 posted is over $100.00 just for the part.


Neps

Badlands
Well-Known Member
First Name
Mike
Joined
Dec 30, 2020
Threads
7
Messages
545
Reaction score
1,494
Location
Floating off California
Vehicle(s)
MX-5, Focus EV, F150, F350, Scout II (2)
Your Bronco Model
Badlands
Clubs

Quick search of Automotive Electrical Repair shops in Dallas shows quite a few in the area.

That type of repair isn't too difficult, but it's 1000% easier with some level of experience. A local shop who specializes in electrical repair is your best bet.
Although Flips offer is very generous, and crimp connectors can work for years. A solder repair is much preferred over the crimp (butt connector).


Bill K

Big Bend
Well-Known Member
First Name
Bill
Joined
Aug 18, 2021
Threads
6
Messages
255
Reaction score
200
Location
Allen, TX
Vehicle(s)
Ford Bronco Big Bend 2 Door
Your Bronco Model
Big Bend
Clubs

Looking for help or guidance on how to repair my headlight wiring. This is a picture the wiring the headlight would be plugged into. If additional information helps, I installed the alpha Rex headlights less than a year ago and just recently my blinker stopped working. Took apart the entire thing to find this. Which I guess I’m thankful for but ford quoted me $600 because they said my aftermarket grill and headlights would take longer to remove haha. Any guidance would be most appreciated!

Ford Bronco Headlight Wiring Broken IMG_2867


Ford Bronco Headlight Wiring Broken IMG_2867
I can help you with that and live in Allen. DM me. I have the tools at my house to solder and fix that (hate the damn rodents, will be the third vehicle I've had to fix).

--Bill


fourdayoff

Badlands
Well-Known Member
First Name
Jim
Joined
Apr 28, 2023
Threads
2
Messages
100
Reaction score
79
Location
Boulder City Nv
Vehicle(s)
2022 Bronco Badlands/sasquatch 2.7
Your Bronco Model
Badlands
Quick search of Automotive Electrical Repair shops in Dallas shows quite a few in the area.

That type of repair isn't too difficult, but it's 1000% easier with some level of experience. A local shop who specializes in electrical repair is your best bet.
Although Flips offer is very generous, and crimp connectors can work for years. A solder repair is much preferred over the crimp (butt connector).
I hate to start an oil thread here but crimp connectors are preferred over solder in FAA and NASA. Have you ever seen solder joints in wires in vehicles from the manufacture? Solder creates a brittle point in the wire. I always use bare butt connectors with glue heat shrink. Yes takes more time but good prep allows you to finish the race. Haters please chime in. Jim.


Brian_B

Big Bend
Well-Known Member
First Name
Brian
Joined
Sep 14, 2023
Threads
13
Messages
1,212
Reaction score
1,742
Location
Central CA
Vehicle(s)
'23 BB 4dr 7MT, '22 BSport OBX, '87 B-II XL
Your Bronco Model
Big Bend
Clubs

Solder creates a brittle point in the wire. I always use bare butt connectors with glue heat shrink. Yes takes more time but good prep allows you to finish the race. Haters please chime in. Jim.
Just like there being a "right" and a "wrong" way to use crimp connectors, there's also right and wrong ways to solder connectors.

I would say soldering "right" would be better than crimping, but it's hard to do that and I have absolutely no evidence to support that. I'd say the same thing about welding versus bolting on - welding - correctly - would be stronger than bolting, but if you weld it poorly it could be worse.


Sponsored

HP11

Wildtrak
Well-Known Member
Joined
Oct 7, 2023
Threads
2
Messages
69
Reaction score
77
Location
New Hampshire
Vehicle(s)
2013 Mustang Boss 302, 2023 Ford Bronco WildTrak
Your Bronco Model
Wildtrak
A Western Union Splice soldered with shrink tubing would be ideal but I don't think you have enough exposed wire on the connectors to completed that repair.


Rydfree

Badlands
Well-Known Member
First Name
Benny
Joined
Aug 12, 2020
Threads
10
Messages
1,181
Reaction score
3,291
Location
Alabama
Vehicle(s)
2007 Ford F-150 Supercrew 4WD King Ranch
Your Bronco Model
Badlands
I hate to start an oil thread here but crimp connectors are preferred over solder in FAA and NASA. Have you ever seen solder joints in wires in vehicles from the manufacture? Solder creates a brittle point in the wire. I always use bare butt connectors with glue heat shrink. Yes takes more time but good prep allows you to finish the race. Haters please chime in. Jim.
Unless he plans for his Bronco to take flight or go into space a soldered connection would be my preferred fix. Looks to be a 10-15 minute job.


Bill K

Big Bend
Well-Known Member
First Name
Bill
Joined
Aug 18, 2021
Threads
6
Messages
255
Reaction score
200
Location
Allen, TX
Vehicle(s)
Ford Bronco Big Bend 2 Door
Your Bronco Model
Big Bend
Clubs

I hate to start an oil thread here but crimp connectors are preferred over solder in FAA and NASA. Have you ever seen solder joints in wires in vehicles from the manufacture? Solder creates a brittle point in the wire. I always use bare butt connectors with glue heat shrink. Yes takes more time but good prep allows you to finish the race. Haters please chime in. Jim.
I used to wire military aircraft for a living. J-hook and solder along with sleeving was the preferred repair method assuming sufficient service length was available. Also use crimp, but prefer solder. Good sleeving will help reinforce that brittle point...


Neps

Badlands
Well-Known Member
First Name
Mike
Joined
Dec 30, 2020
Threads
7
Messages
545
Reaction score
1,494
Location
Floating off California
Vehicle(s)
MX-5, Focus EV, F150, F350, Scout II (2)
Your Bronco Model
Badlands
Clubs

If I follow the FAA guide, do I then have to worry about my doors falling off?

Too soon..

NASA allows for both soldered and crimp, but the type if crimp we use for space components is not the Autozone / Walmart type of crimp ;)


Roger123

Badlands
Well-Known Member
First Name
Roger
Joined
Jul 21, 2020
Threads
8
Messages
1,251
Reaction score
2,916
Location
VA Beach, VA
Vehicle(s)
'15 GC, '14 Yamaha Super Tenere
Your Bronco Model
Badlands
You could solder it but then it would be the only solder joint on the entire vehicle (but for the printed circuit boards).

Strip back some wire, use some good quality butt connectors, a little heat shrink and call it a day.
