That is a lin bus tap,
No, he is tapping into the medium speed CAN, not the LIN network.

I still don't think this would work, but regardless, the Medium speed CAN bus wires he tapped into you can find in a bunch of different places on the vehicle.
Here is a list of modules on the MS-CAN:
RTM, SODL, SODR, DDM, PDM, HVAC and the TRM

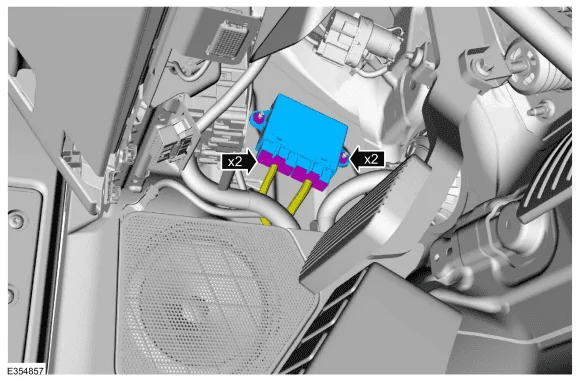

The DDM is probably the easiest in this case. Here is a picture of where it is located.

Ford Bronco Highbeam tap 1682604457861


You would need Pins 6 and 7.

Ford Bronco Highbeam tap 1682604808446
