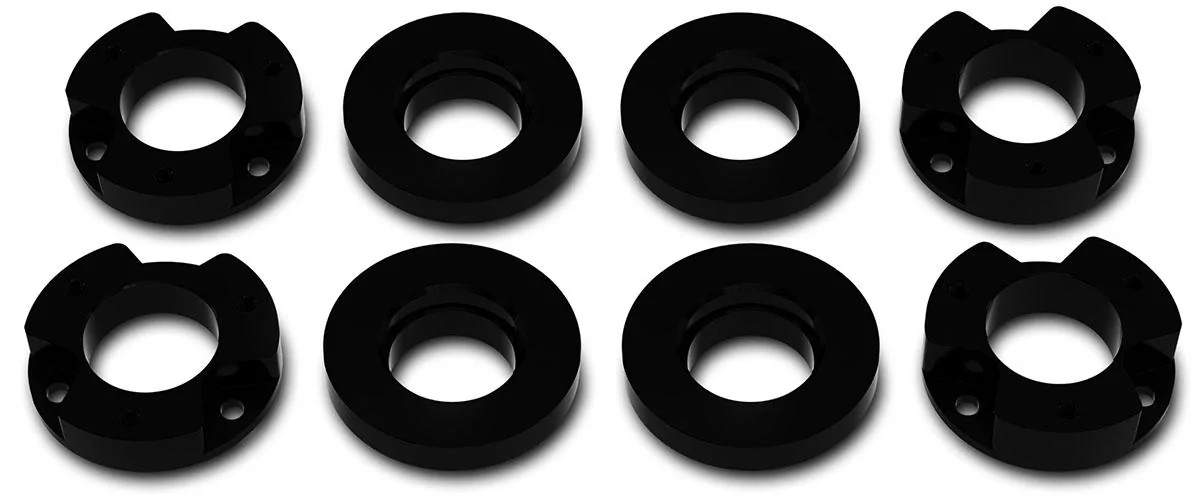

The ICON Leveling Lift Kit for 2021 and newer Ford Bronco provides an easy to install, economical yet performance-enhancing method of gaining the necessary clearance to run larger tires. The kit consists of CNC machined 6061 billet aluminum top spacers and pre-load spacers to yield approximately 3” of front suspension lift and 2” of rear lift to level the vehicle’s stance. The result is full articulation, full steering range, no-rub fitment for up to 35” tires on non-Sasquatch equipped Broncos or up to 37” tires if Sasquatch-equipped. ICON engineers have dialed in the dimensions to tuck the tires cleanly into the OE fender flares at full bump (up travel) when using either factory Sasquatch wheels or 17 X 8.5, 25mm offset wheels such as the amazing ICON Rebound Pro. The components are relatively easy to install without disassembling the shock itself (spring compressor required for installation on some models). Get the most travel and articulation possible out of your factory control arms without ball joint bind or over-extension. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

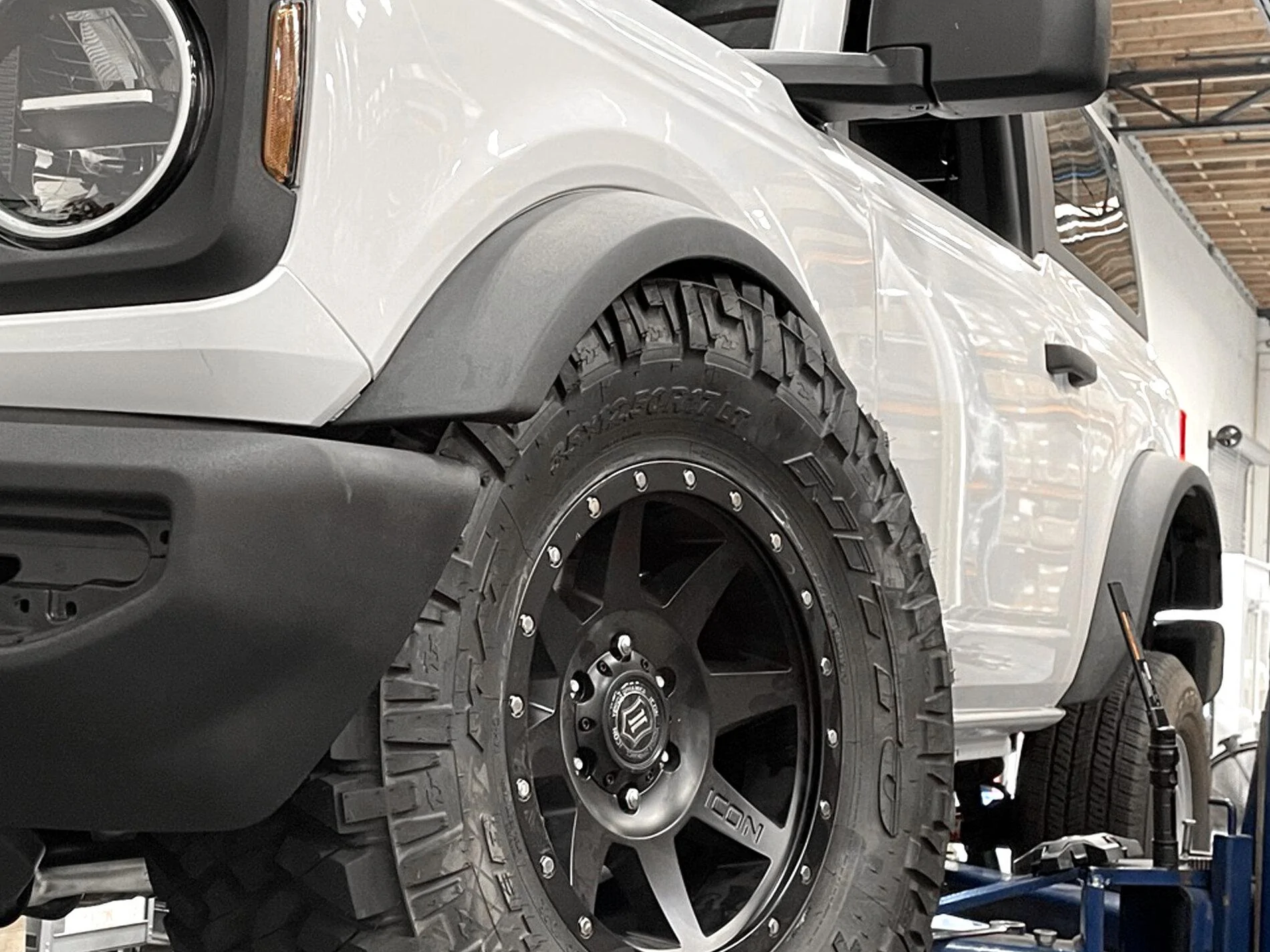

Photo below shows the kit installed on a 2-door Base Bronco, non-Sasquatch, at full suspension compression (the coil springs were removed from the struts to allow full compression while checking clearance). The Bronco in the photo was equipped with 35x12.50-17LT Nitto Trail Grapplers mounted on ICON Alloys 17X8.5 Rebound wheels with 25mm offset. With this combination the tires tuck cleanly into the non-Sasquatch flares at full compression, with no rubbing and full steering range.

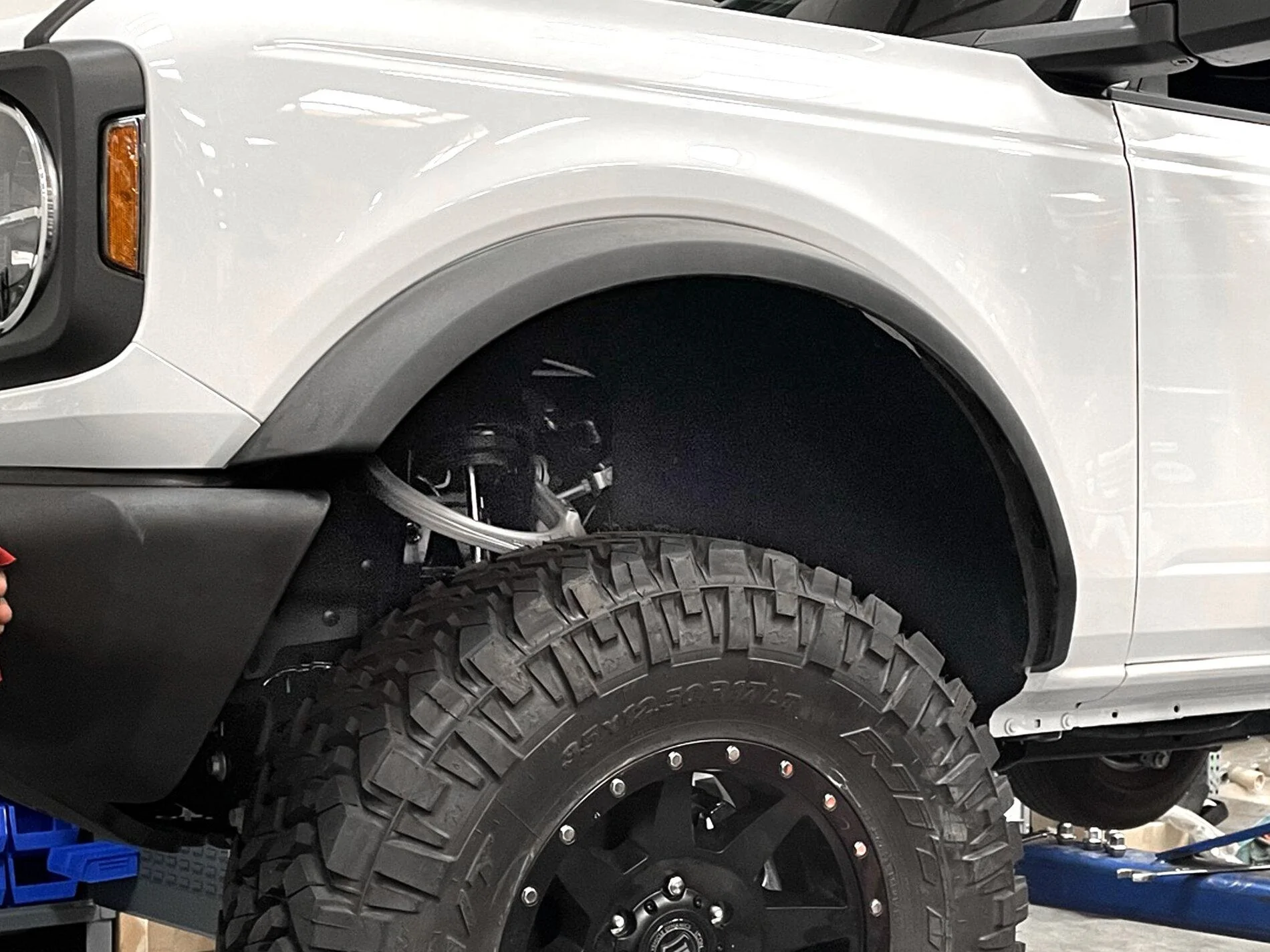

This photo shows the same setup at full suspension extension, again with coil springs removed to allow free movement of the suspension components, showing the full range of travel using the stock upper and lower control arms.



The kit may be used on all models of 2021 Ford Bronco, to fit 35's on non-Sasquatch Broncos or 37's on Sasquatch-equipped Broncos. MSRP is $419, with most authorized ICON Dealers using our MAP price of $399. Orders may be placed now, for fulfillment beginning in a couple of weeks as the first production run is still underway. Available Direct from ICON or from any Authorized ICON Dealer (inquire by phone or email if your dealer of choice doesn't have it listed yet, as they have already received data and are able to place orders even if they haven't loaded it into their website yet).
Advertisement


Last edited:

JonD

Wildtrak
Well-Known Member
First Name
Jon
Joined
Jul 29, 2020
Messages
229
Reaction score
259
Location
Maryland
Vehicle(s)
Ford Ranger, Hyundai Genesis, Suburu Outback
Bronco
Wildtrak
Stupid question....does this void warranty


azbronco6G

Wildtrak
Member
First Name
Scott
Joined
Sep 30, 2021
Messages
15
Reaction score
39
Location
Arizona
Vehicle(s)
73 Bronco, 19 Raptor, 19 Corvette, 20 Range Rover
Bronco
Wildtrak
Clubs

Damn.....i wish you dropped this a week ago as i just took delivery of my RPG Perch Collar lift. Maybe i can send the kit back and order this one :)


MJJ

Badlands
Well-Known Member
First Name
Sean
Joined
Jul 17, 2020
Messages
494
Reaction score
1,239
Location
Iowa
Vehicle(s)
18 Jeep Wrangler Rubicon, 17 Nissan GTR, 20 Chevrolet ZR2, 20 Jeep Cherokee, 21 Badlands reserved
Bronco
Badlands

Ponyride302

Black Diamond
Well-Known Member
First Name
John
Joined
Aug 4, 2020
Messages
395
Reaction score
698
Location
Central Virginia
Vehicle(s)
04 F-350 CC dually, 97 Infiniti QX4, 21 Bronco BD
Bronco
Black Diamond

srotier

Badlands
Well-Known Member
First Name
Scott
Joined
Aug 4, 2020
Messages
88
Reaction score
260
Location
Maryland
Vehicle(s)
2017 Dodge Durango GT
Bronco
Badlands
Clubs

Does it work with Badlands? If so, will Badlands fit 35's or 37's?


c2one

First Edition
Well-Known Member
Joined
Jan 17, 2020
Messages
541
Reaction score
1,544
Location
San Antonio, Texas
Vehicle(s)
2021 Ford Bronco FE
Bronco
First Edition
Clubs

I definitely appreciate all the information you provided here and that's on the Icon website - with tire and wheel fitment to go along with this lift. (y)

and especially this... "No ball joint over extension or bind"


F2F

Big Bend
Well-Known Member
Joined
Oct 17, 2021
Messages
62
Reaction score
95
Location
NC
Vehicle(s)
2019 Jeep Wrangler Altitude 2.0L Turbo
Bronco
Big Bend
Clubs

So correct me if I’m wrong, but I can install 37x12.5 tires on the stock Sasquatch rims along with these spacers and I’ll have no rubbing?


Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Messages
122
Reaction score
587
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Bronco
Base
Clubs

Do you have photos or videos of it on a Sasquatch running 37s? I'd be interested
We did install it briefly on our Sasquatch with 37's to test. I don't know whether they got any photos, as I wasn't here when they did it. I'll find out next week when everyone's back in.


c2one

First Edition
Well-Known Member
Joined
Jan 17, 2020
Messages
541
Reaction score
1,544
Location
San Antonio, Texas
Vehicle(s)
2021 Ford Bronco FE
Bronco
First Edition
Clubs

So correct me if I’m wrong, but I can install 37x12.5 tires on the stock Sasquatch rims along with these spacers and I’ll have no rubbing?
There is this disclaimer on the Icon website:

  • Recommended Aftermarket Tires (With Sasquatch Package): 37" x 12.50" (May require fender trimming and modifications)


Dusty

Base
Well-Known Member
Joined
Feb 29, 2016
Messages
122
Reaction score
587
Location
Mentone, CA
Vehicle(s)
70, 71 & '21 Broncos
Bronco
Base
Clubs

Does this spacer kit build into the bigger kits, or would these have to be removed to install future kits?
We have several different build paths in the works. These spacers would be rendered un-needed by any of our future kits that include replacement shocks and coilovers. But if you wanted to, you would be able to run our future front and rear control arms with this kit, and get some benefit.
