Hey folks I thought it might be helpful to list all of ICON's Bronco-compatible wheels in one place. Here is every wheel that ICON currently offers that fits the 2021+ Ford Bronco. New styles, sizes and offsets are introduced regularly so I'll try to keep this list updated. Some notes:
  • FINISH: The finishes (colors) are listed in the table in the same order they are shown in the images (left-to-right).
  • OFFSET: Factory Sasquatch wheels are 17 X 8.5 with 30mm offset. ICON wheels with 25mm offset will put the outside of the wheel about 1/4" wider than the Sasquatch wheel. The ICON 0mm offset wheels will place the outside of the tire approximately 1-1/4" wider than the Sasquatch wheel.
  • HUB BORE: All of the wheels listed here will fit and work correctly with your Bronco's hubs. The Hub Bore column simply denotes which part numbers will be hub-centric (93.1mm bore) and which will be lug-centric (anything larger) in the way they attach and center onto the hub. If you're not familiar with those terms, don't worry, it won't affect fitment or function, either mounting method works fine.
  • PART NUMBERS are included so you may inquire directly with your favorite Authorized ICON Dealer with a specific part number in hand when checking price and availability.
  • This list includes ICON's 17" wheels only, at this time. I will update it soon with 18" and 20" Bronco-compatible part numbers.

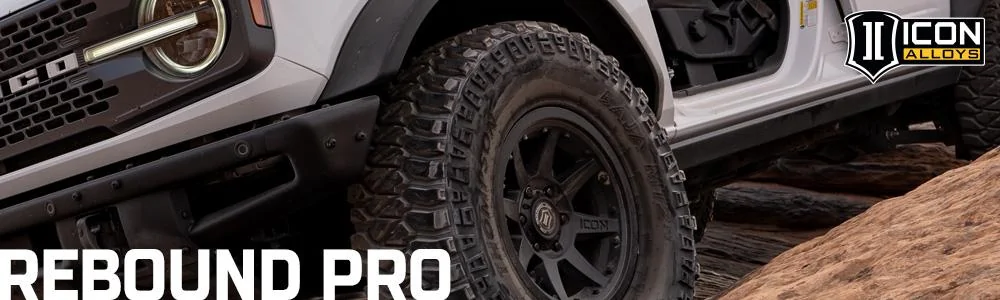

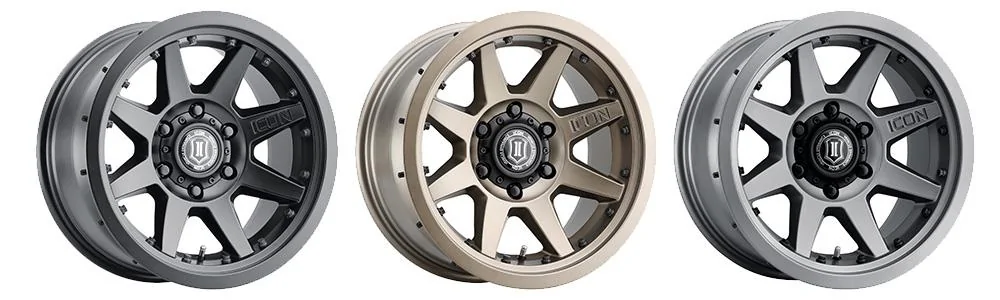

REBOUND PRO 17 X 8.5
With patented InnerLock Bead Retention Technology - More Info in This Thread


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm3200 LBS21817858347SB
BRONZE4.75"0mm106.1mm3200 LBS21817858347BR
TITANIUM4.75"0mm106.1mm3200 LBS21817858347TT

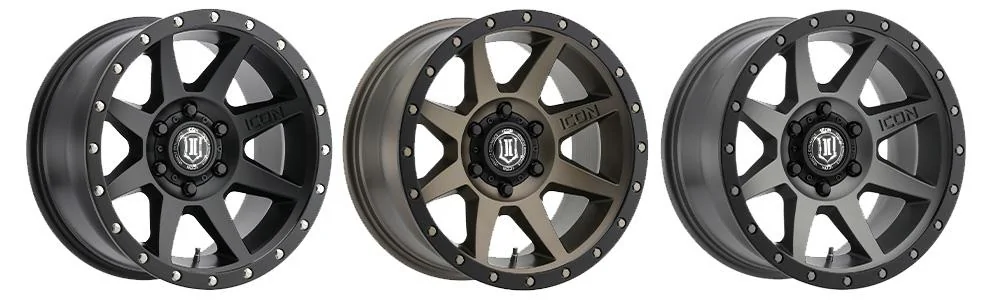

REBOUND 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS1817858347SB
BRONZE4.75"0mm106.1mm2750 LBS1817858347BR
TITANIUM4.75"0mm106.1mm2750 LBS1817858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS1817858357SB
BRONZE5.75"25mm93.1mm2750 LBS1817858357BR
TITANIUM5.75"25mm93.1mm2750 LBS1817858357TT

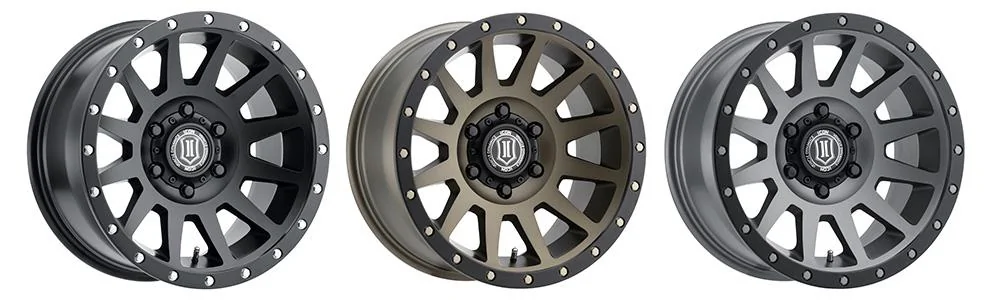

COMPRESSION 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2017858347SB
BRONZE4.75"0mm106.1mm2750 LBS2017858347BR
TITANIUM4.75"0mm106.1mm2750 LBS2017858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS2017858357SB
BRONZE5.75"25mm93.1mm2750 LBS2017858357BR
TITANIUM5.75"25mm93.1mm2750 LBS2017858357TT

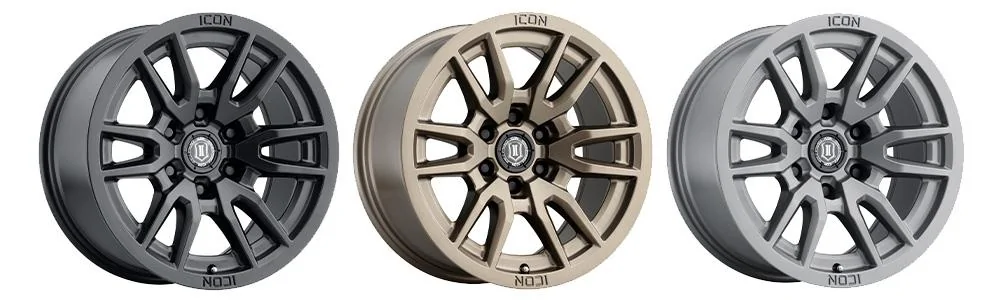

VECTOR 6 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2417858347SB
BRONZE4.75"0mm106.1mm2750 LBS2417858347BR
TITANIUM4.75"0mm106.1mm2750 LBS2417858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS2417858357SB
BRONZE5.75"25mm93.1mm2750 LBS2417858357BR
TITANIUM5.75"25mm93.1mm2750 LBS2417858357TT

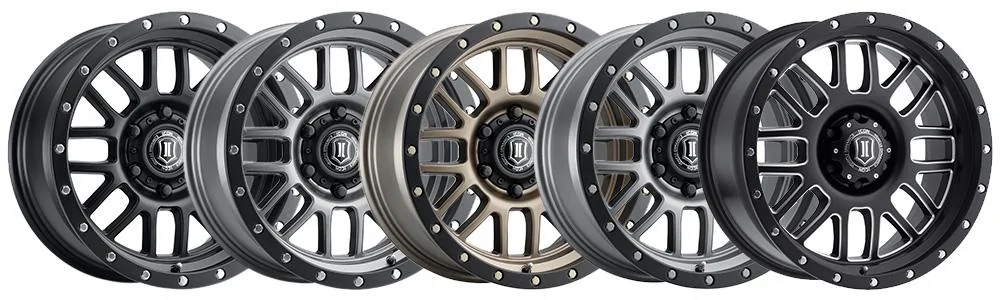

ALPHA 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2500 LBS1217858347SB
GUN METAL4.75"0mm106.1mm2500 LBS1217858347GM
BRONZE4.75"0mm106.1mm2500 LBS1217858347BR
TITANIUM4.75"0mm106.1mm2500 LBS1217858347TT
SAT BLK/MACHINED4.75"0mm106.1mm2500 LBS1217858347MB

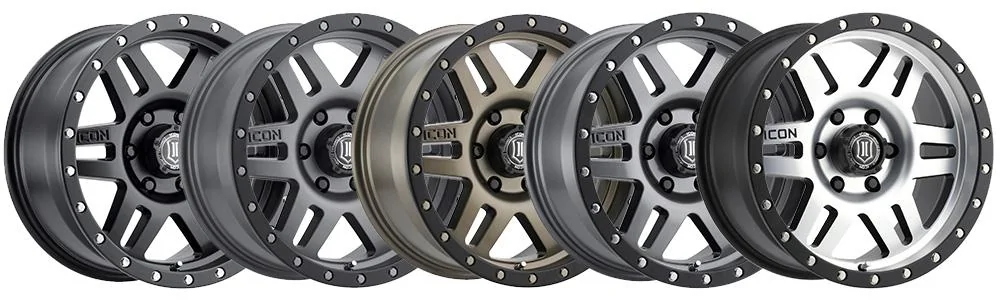

SIX SPEED 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm108mm2500 LBS1417858347SB
GUN METAL4.75"0mm108mm2500 LBS1417858347GM
BRONZE4.75"0mm108mm2500 LBS1417858347BR
TITANIUM4.75"0mm108mm2500 LBS1417858347TT
SAT BLK/MACH4.75"0mm108mm2500 LBS1417858347MB
SAT BLACK5.75"25mm108.1mm2500 LBS1417858357SB
BRONZE5.75"25mm108.1mm2500 LBS1417858357BR
TITANIUM5.75"25mm108.1mm2500 LBS1417858357TT

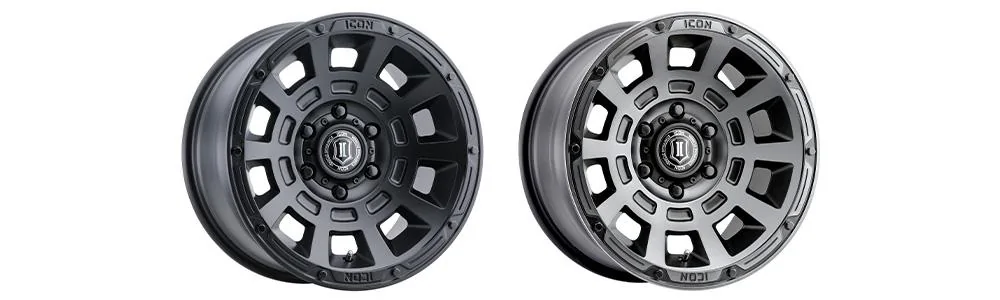

THRUST 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2817858347SB
SMK SAT BLACK4.75"0mm106.1mm2750 LBS2817858347SSBT
SAT BLACK5.75"25mm93.1mm3200 LBS2817858357SB
SMK SAT BLACK5.75"25mm93.1mm3200 LBS2817858357SSBT

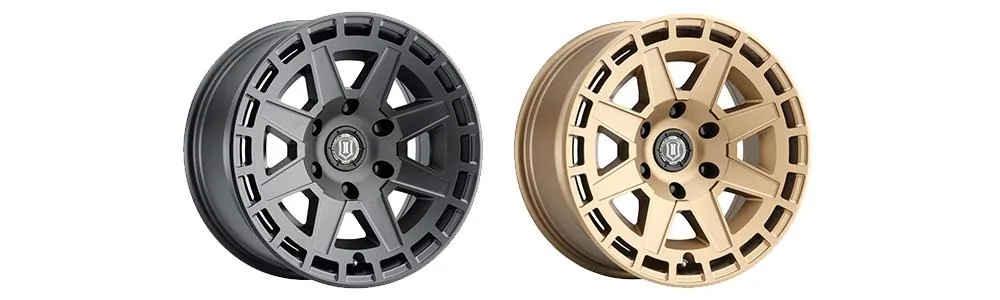

COMPASS 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS3217858347SB
SAT BRASS4.75"0mm106.1mm2750 LBS3217858347BS

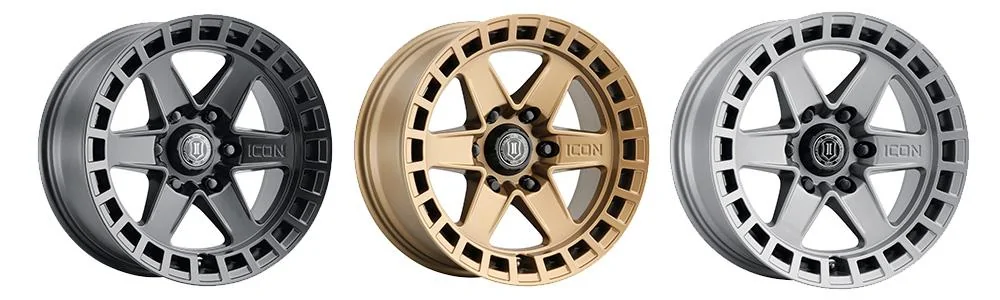

RAIDER 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS3417858347SB
SAT BRASS4.75"0mm106.1mm2750 LBS3417858347BS
TITANIUM4.75"0mm106.1mm2750 LBS3417858347TT

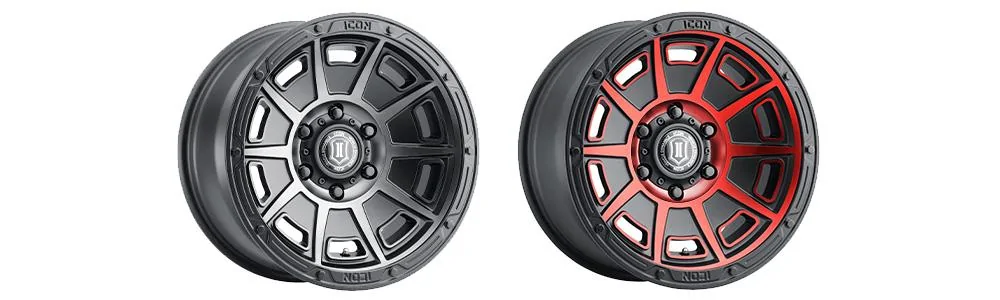

VICTORY 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SMK SAT BLACK4.75"0mm106.1mm2750 LBS3017858347SBT
SAT BLACK RED4.75"0mm106.1mm2750 LBS3017858347SBRT
Advertisement


Last edited:

Dom

Well-Known Member
First Name
Dom
Joined
Jan 25, 2021
Messages
397
Reaction score
773
Location
Shamokin Dam PA
Vehicle(s)
2000 Ford Expedition, 2013 Ford Fusion
Bronco
Undecided
I like the Vecotrs and the Thrust. Very nice!


wanna1

Badlands
Well-Known Member
First Name
Andrew
Joined
Oct 20, 2020
Messages
80
Reaction score
101
Location
39759
Vehicle(s)
2013 Ford F150 Platinum 4x4
Bronco
Badlands
Vehicle Showcase
1
Beadlocks ?


wanna1

Badlands
Well-Known Member
First Name
Andrew
Joined
Oct 20, 2020
Messages
80
Reaction score
101
Location
39759
Vehicle(s)
2013 Ford F150 Platinum 4x4
Bronco
Badlands
Vehicle Showcase
1
The Rebound Pro at the top of the post features our InnerLock bead retention technology. We do not sell a wheel with a separate beadlock ring.
Thanks !!!


dweskamp

Badlands
Well-Known Member
First Name
Dan
Joined
Apr 23, 2020
Messages
361
Reaction score
590
Location
Missouri
Vehicle(s)
2016 GMC truck
Bronco
Badlands
Clubs

Hey folks I thought it might be helpful to list all of ICON's Bronco-compatible wheels in one place. Here is every wheel that ICON currently offers that fits the 2021+ Ford Bronco. New styles, sizes and offsets are introduced regularly so I'll try to keep this list updated. Some notes:
  • FINISH: The finishes (colors) are listed in the table in the same order they are shown in the images (left-to-right).
  • OFFSET: Factory Sasquatch wheels are 17 X 8.5 with 30mm offset. ICON wheels with 25mm offset will put the outside of the wheel about 1/4" wider than the Sasquatch wheel. The ICON 0mm offset wheels will place the outside of the tire approximately 1-1/4" wider than the Sasquatch wheel.
  • HUB BORE: All of the wheels listed here will fit and work correctly with your Bronco's hubs. The Hub Bore column simply denotes which part numbers will be hub-centric (93.1mm bore) and which will be lug-centric (anything larger) in the way they attach and center onto the hub. If you're not familiar with those terms, don't worry, it won't affect fitment or function, either mounting method works fine.
  • PART NUMBERS are included so you may inquire directly with your favorite Authorized ICON Dealer with a specific part number in hand when checking price and availability.
  • This list includes ICON's 17" wheels only, at this time. I will update it soon with 18" and 20" Bronco-compatible part numbers.
REBOUND PRO 17 X 8.5
With patented InnerLock Bead Retention Technology - More Info in This Thread


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm3200 LBS21817858347SB
BRONZE4.75"0mm106.1mm3200 LBS21817858347BR
TITANIUM4.75"0mm106.1mm3200 LBS21817858347TT

REBOUND 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS1817858347SB
BRONZE4.75"0mm106.1mm2750 LBS1817858347BR
TITANIUM4.75"0mm106.1mm2750 LBS1817858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS1817858357SB
BRONZE5.75"25mm93.1mm2750 LBS1817858357BR
TITANIUM5.75"25mm93.1mm2750 LBS1817858357TT

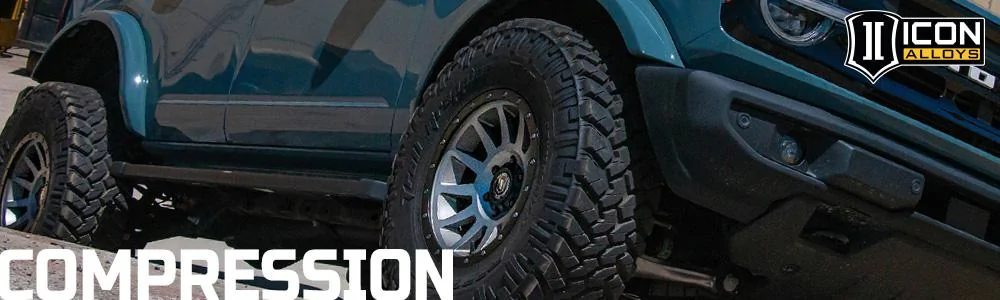

COMPRESSION 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2017858347SB
BRONZE4.75"0mm106.1mm2750 LBS2017858347BR
TITANIUM4.75"0mm106.1mm2750 LBS2017858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS2017858357SB
BRONZE5.75"25mm93.1mm2750 LBS2017858357BR
TITANIUM5.75"25mm93.1mm2750 LBS2017858357TT

VECTOR 6 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2417858347SB
BRONZE4.75"0mm106.1mm2750 LBS2417858347BR
TITANIUM4.75"0mm106.1mm2750 LBS2417858347TT
SAT BLACK5.75"25mm93.1mm2750 LBS2417858357SB
BRONZE5.75"25mm93.1mm2750 LBS2417858357BR
TITANIUM5.75"25mm93.1mm2750 LBS2417858357TT

ALPHA 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2500 LBS1217858347SB
GUN METAL4.75"0mm106.1mm2500 LBS1217858347GM
BRONZE4.75"0mm106.1mm2500 LBS1217858347BR
TITANIUM4.75"0mm106.1mm2500 LBS1217858347TT
SAT BLK/MACHINED4.75"0mm106.1mm2500 LBS1217858347MB

SIX SPEED 17 X 8.5


FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm108mm2500 LBS1417858347SB
GUN METAL4.75"0mm108mm2500 LBS1417858347GM
BRONZE4.75"0mm108mm2500 LBS1417858347BR
TITANIUM4.75"0mm108mm2500 LBS1417858347TT
SAT BLK/MACH4.75"0mm108mm2500 LBS1417858347MB
SAT BLACK5.75"25mm108.1mm2500 LBS1417858357SB
BRONZE5.75"25mm108.1mm2500 LBS1417858357BR
TITANIUM5.75"25mm108.1mm2500 LBS1417858357TT

THRUST 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS2817858347SB
SMK SAT BLACK4.75"0mm106.1mm2750 LBS2817858347SSBT
SAT BLACK5.75"25mm93.1mm3200 LBS2817858357SB
SMK SAT BLACK5.75"25mm93.1mm3200 LBS2817858357SSBT

COMPASS 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS3217858347SB
SAT BRASS4.75"0mm106.1mm2750 LBS3217858347BS

RAIDER 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SAT BLACK4.75"0mm106.1mm2750 LBS3417858347SB
SAT BRASS4.75"0mm106.1mm2750 LBS3417858347BS
TITANIUM4.75"0mm106.1mm2750 LBS3417858347TT


VICTORY 17 X 8.5

FINISHBACKSPACEOFFSETHUB BORELOAD RATINGPART #
SMK SAT BLACK4.75"0mm106.1mm2750 LBS3017858347SBT
SAT BLACK RED4.75"0mm106.1mm2750 LBS3017858347SBRT
Need a Thrust in Bronze


HudsonAlex

Big Bend
Member
First Name
Alex
Joined
Jun 7, 2021
Messages
20
Reaction score
24
Location
Anaheim, CA
Vehicle(s)
Ford Fusion, 39 Hudson coupe
Bronco
Big Bend
When I ran the compatability fit on your website it says these wheels 2817858357SSBT won't fit. Is that correct or did I do something wrong?


WarDamnBravos

Black Diamond
Well-Known Member
Joined
Jul 22, 2020
Messages
103
Reaction score
209
Location
Newport Beach
Vehicle(s)
2018 Wrangler
Bronco
Black Diamond
Can you drop in as many pictures as possible of the wheels on actual cars? I have a hard time picturing what they will look like just looking at the wheel

OP
OP
Dusty at ICON

Dusty at ICON

Base
Member
Squatch Sponsor (Level 3)
First Name
Dusty
Joined
Oct 4, 2021
Messages
17
Reaction score
175
Location
Riverside, CA
Vehicle(s)
2021 Bronco Base 2-Door
Bronco
Base
When I ran the compatability fit on your website it says these wheels 2817858357SSBT won't fit. Is that correct or did I do something wrong?
That's because I'm quicker than our web guys LOL...nah that's just a mistake. I've let them know, they should be updating it soon. In the meantime, you can probably trust my list above more than the website :)

OP
OP
Dusty at ICON

Dusty at ICON

Base
Member
Squatch Sponsor (Level 3)
First Name
Dusty
Joined
Oct 4, 2021
Messages
17
Reaction score
175
Location
Riverside, CA
Vehicle(s)
2021 Bronco Base 2-Door
Bronco
Base
Can you drop in as many pictures as possible of the wheels on actual cars? I have a hard time picturing what they will look like just looking at the wheel

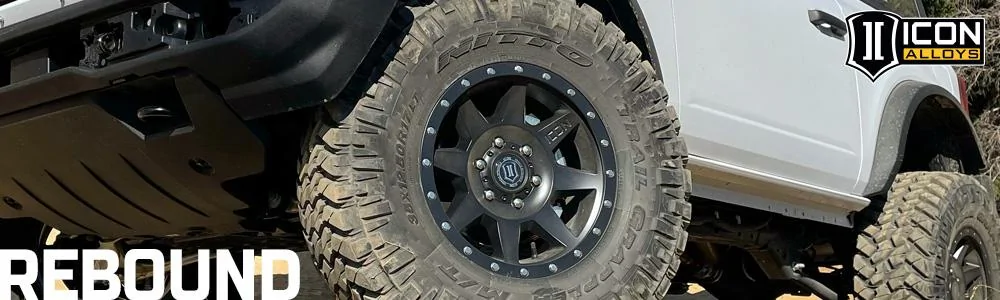

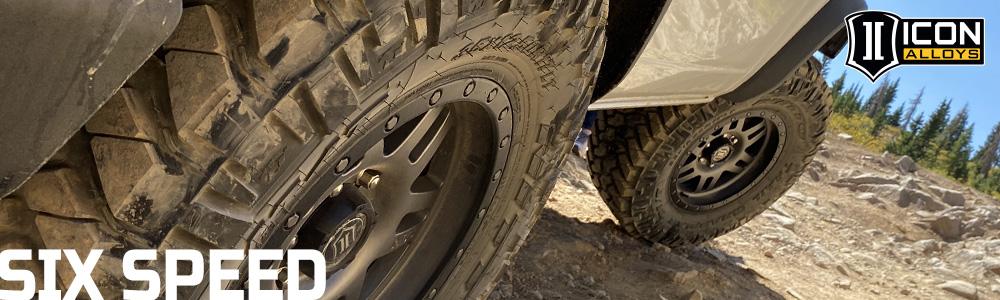

I start adding the few that I have, of the wheels on Broncos, to this thread. But I only have them on Broncos for a couple of the wheel styles. I'd hate to litter the Bronco forum with a bunch of Jeep and Toyota pics LOL.
