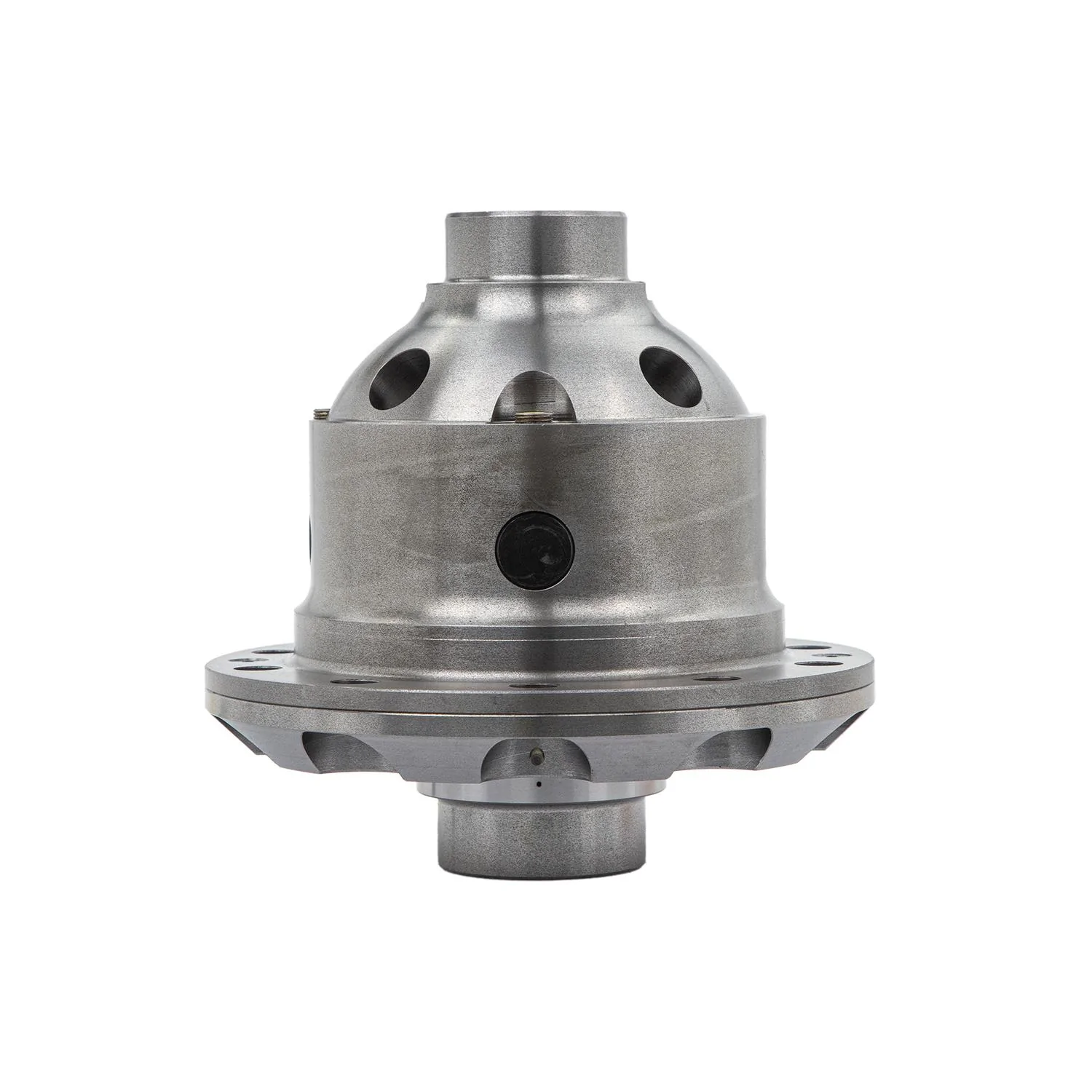

The world’s premier traction aid for the Ford Bronco is here. ARB is proud to introduce the Air Locker for the M220 rear axle.

Providing instant grip at the flip of a switch by preventing the internal differential gears from rotating and therefore preventing the axle shafts from spinning independently of each other. Without it, the factory open differential only sends power to the tire without traction; but in reality, the tire that needs power is the one that has traction. This system is great for on-road driving but disastrous when off-road, making the selectable locking differential the ideal choice for most four-wheelers.

Why Air Locker?

The original Air Locker was developed in the 1980s. This design featured a three-piece case with an air actuated cast piston. A true, revolutionary piece of 4WD equipment for its time.

But as time has passed, the sport of off-roading has evolved exponentially. Large tires and engines in that era do not compare to what is being used today. 37” and 40” tall tires have become the popular choice. V8 engine swaps outputting over 500 horsepower are no longer few and far between.

To get ahead of the curve, ARB’s team of engineers were tasked with developing an Air Locker that would hold up to the future of four wheeling. The research and development consisted of many torque and failure tests on the Air Locker and other lockers. At the beginning of the 21st century, the new and improved Air Locker was released. It featured a two-piece design, less internal parts, forged gears, and a patented timed locking system; all of which make it the world’s strongest locking differential.

Its limits have been put to the test, not only surviving but also winning multiple Ultra4 off-road races where drivers run 43” tall tires and 1000+ HP.

Many of our competitors still use the old three-piece case design that we manufactured in the 19th century.


KEY FEATURES
  • Provides 100 percent traction on demand without affecting on-road drivability or driveline wear
  • Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver’s seat
  • Two-piece design is ultra-durable and extremely strong – minimal moving parts, thereby ensuring maximum reliability
  • Patented ‘timed’ locking mechanism offers high strength and ultra-fast unlocking
  • Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures

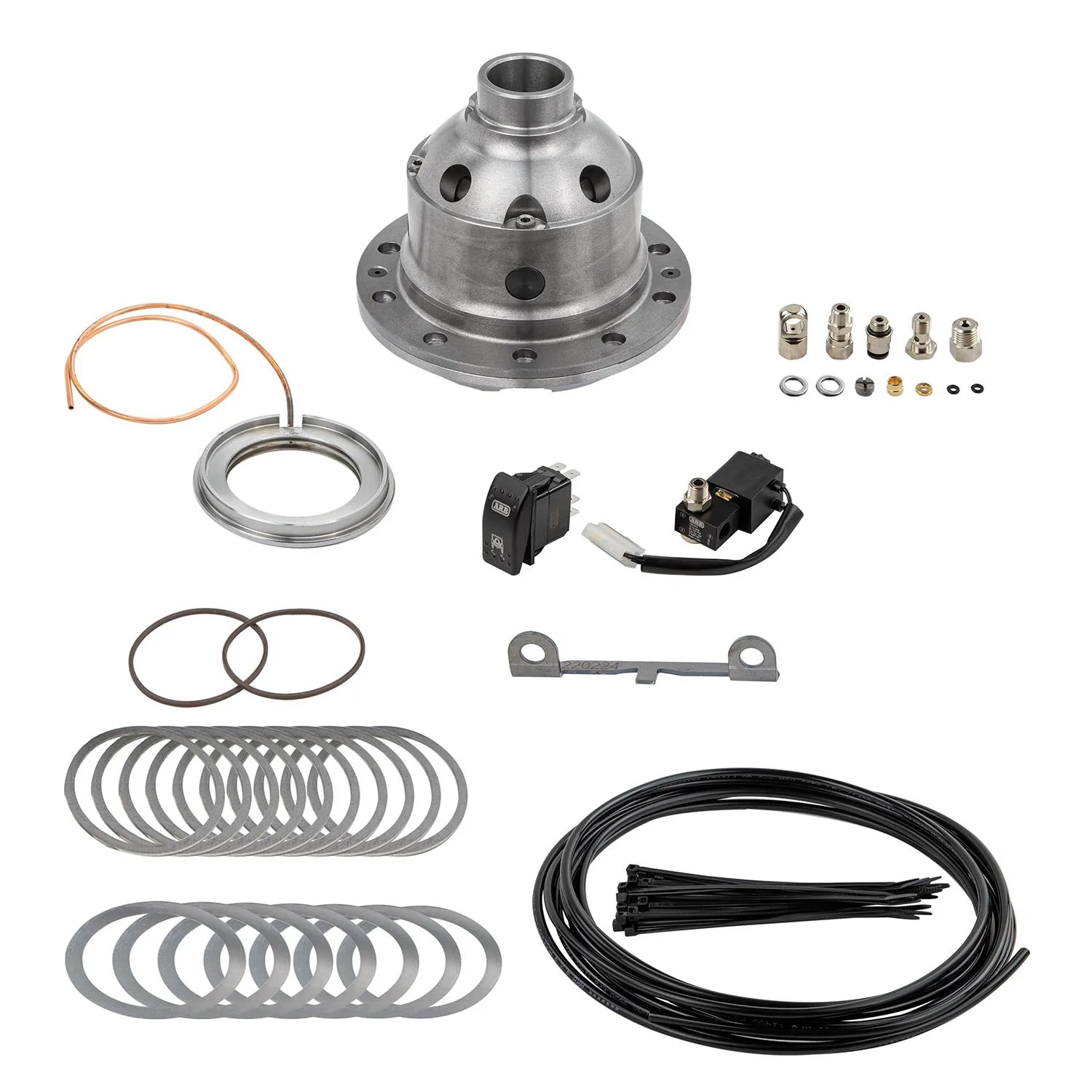

  • Includes: Air Locker differential, activation switch, solenoid valve, airline and bulkhead fitting
  • Race proven technology
  • Manufactured in Australia
  • Air compressor required for operation and optional tire inflation (sold separately)


SPECIFICATIONS
  • 32 spline axle​
  • 35.8mm [1.41”] axle shaft diameter​
  • 10 bolts on 157.8.mm [6.213”] Ring Gear Bolt Pattern​
  • 134.66mm [5.302”] Ring Gear ID​
  • 220mm [8.661”] Ring Gear OD​
  • All Ratios​

Air Locker Part no. RD245
MSRP: $1049.00
Availability: NOW (Contact any ARB Dealer to place the order) - https://arbusa.com/dealer-locator/

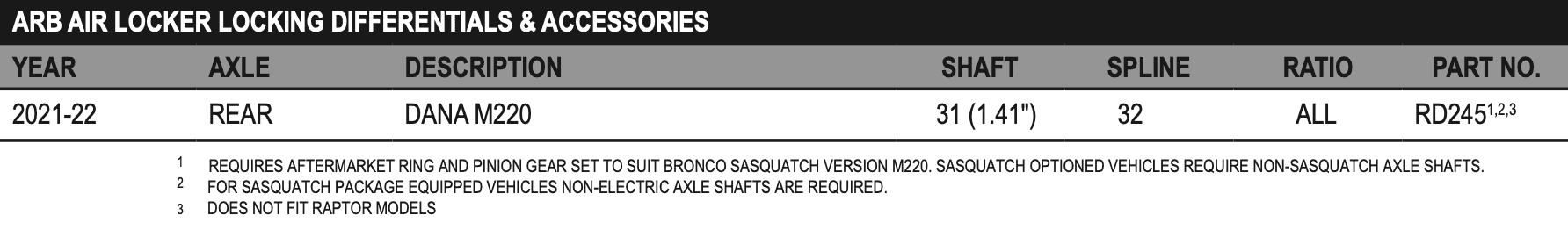

bronco air locker app info.png


GIVEAWAY (CLOSED)

To kick off the release, we are giving away a RD245 Air Locker to one of you lucky Bronco6G members!

To enter:
  • Like the OP
  • Leave a comment
  • Sign up for our newsletter

Last day for entries is September 9th, 11:59PST. The winner will be chosen randomly and will be notified in this thread.

Good luck!

*ARB will never message your directly and ask for your credit card information*
Sponsored


Last edited:

JakeC

Badlands
Well-Known Member
First Name
Jake
Joined
Aug 21, 2020
Threads
19
Messages
645
Reaction score
1,192
Location
Dearborn, MI
Website
michiganbroncos.club
Vehicle(s)
2022 Badlands
Your Bronco Model
Badlands
Clubs

This sounds like a great aftermarket option for those that didn’t order a Bronco with a rear-locker.

Good job ARB!

[edit] If this is for the M220 rear diff, as an upgrade, can I ask how this is an improvement on the existing rear-locker? Maybe I’m missing an aspect of the product. TIA


jonesh242

Badlands
Well-Known Member
First Name
John
Joined
Oct 7, 2021
Threads
0
Messages
128
Reaction score
157
Location
Southern Cal-unicorn-ia
Vehicle(s)
Cherokee Trail-Squak, YT Capra 29er & Decoy Mullet
Your Bronco Model
Badlands
Thanks for all the cool bits y'aller building at ARB. Odd question: If your bronco did not come with lockers, does this kit work for either front or rear? Or is their a specific kit for each?


Bronco_joe

Black Diamond
Well-Known Member
First Name
joe
Joined
Aug 9, 2020
Threads
42
Messages
428
Reaction score
646
Location
Niagara Falls. NY
Vehicle(s)
2021 Ford Bronco
Your Bronco Model
Black Diamond
Clubs

This would be a great addition to my bronco. Thanks for the opportunity!


Sadams27

Outer Banks
Member
First Name
Spencer
Joined
Feb 4, 2022
Threads
1
Messages
5
Reaction score
2
Location
San Anselmo
Vehicle(s)
Ford Bronco
Your Bronco Model
Outer Banks
Clubs

Im signed up!


Sponsored

Butzy

Base
Well-Known Member
First Name
Butzy
Joined
Jan 23, 2021
Threads
17
Messages
968
Reaction score
1,626
Location
Brookfield, Ohio
Vehicle(s)
f150 & wrangler
Your Bronco Model
Base
Clubs


The world’s premier traction aid for the Ford Bronco is here. ARB is proud to introduce the Air Locker for the M220 rear axle.

Providing instant grip at the flip of a switch by preventing the internal differential gears from rotating and therefore preventing the axle shafts from spinning independently of each other. Without it, the factory open differential only sends power to the tire without traction; but in reality, the tire that needs power is the one that has traction. This system is great for on-road driving but disastrous when off-road, making the selectable locking differential the ideal choice for most four-wheelers.

Why Air Locker?

The original Air Locker was developed in the 1980s. This design featured a three-piece case with an air actuated cast piston. A true, revolutionary piece of 4WD equipment for its time.

But as time has passed, the sport of off-roading has evolved exponentially. Large tires and engines in that era do not compare to what is being used today. 37” and 40” tall tires have become the popular choice. V8 engine swaps outputting over 500 horsepower are no longer few and far between.

To get ahead of the curve, ARB’s team of engineers were tasked with developing an Air Locker that would hold up to the future of four wheeling. The research and development consisted of many torque and failure tests on the Air Locker and other lockers. At the beginning of the 21st century, the new and improved Air Locker was released. It featured a two-piece design, less internal parts, forged gears, and a patented timed locking system; all of which make it the world’s strongest locking differential.

Its limits have been put to the test, not only surviving but also winning multiple Ultra4 off-road races where drivers run 43” tall tires and 1000+ HP.

Many of our competitors still use the old three-piece case design that we manufactured in the 19th century.


KEY FEATURES
  • Provides 100 percent traction on demand without affecting on-road drivability or driveline wear
  • Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver’s seat
  • Two-piece design is ultra-durable and extremely strong – minimal moving parts, thereby ensuring maximum reliability
  • Patented ‘timed’ locking mechanism offers high strength and ultra-fast unlocking
  • Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures
  • Includes: Air Locker differential, activation switch, solenoid valve, airline and bulkhead fitting
  • Race proven technology
  • Manufactured in Australia
  • Air compressor required for operation and optional tire inflation (sold separately)


SPECIFICATIONS
  • 32 spline axle​
  • 35.8mm [1.41”] axle shaft diameter​
  • 10 bolts on 157.8.mm [6.213”] Ring Gear Bolt Pattern​
  • 134.66mm [5.302”] Ring Gear ID​
  • 220mm [8.661”] Ring Gear OD​
  • All Ratios​

Air Locker Part no. RD245
MSRP: $1049.00
Availability: NOW (Contact any ARB Dealer to place the order) - https://arbusa.com/dealer-locator/

bronco air locker app info.png


GIVEAWAY

To kick off the release, we are giving away a RD245 Air Locker to one of you lucky Bronco6G members!

To enter:
  • Like the OP
  • Leave a comment
  • Sign up for our newsletter

Last day for entries is September 9th, 11:59PST. The winner will be chosen randomly and will be notified in this thread.

Good luck!

*ARB will never message your directly and ask for your credit card information*
Here here


Snacktime

Black Diamond
Well-Known Member
First Name
Nate
Joined
Jul 14, 2020
Threads
25
Messages
980
Reaction score
1,440
Location
Sac-a-tomatoes
Vehicle(s)
Bronco, Ram 1500, F150
Your Bronco Model
Black Diamond
Clubs

I'm in!


adamruiz2001

Wildtrak
Well-Known Member
Joined
Aug 21, 2020
Threads
14
Messages
529
Reaction score
771
Location
SoCal
Vehicle(s)
Ford Lightning
Your Bronco Model
Wildtrak
Clubs

This is awesome, keep up the great work and quality!


Dmorty217

Black Diamond
Well-Known Member
First Name
Derek
Joined
Feb 6, 2022
Threads
31
Messages
854
Reaction score
840
Location
Venice FL
Vehicle(s)
Camery
Your Bronco Model
Black Diamond
These are NICE!


Rivers90

Base
Well-Known Member
First Name
Ben
Joined
Jul 4, 2020
Threads
6
Messages
749
Reaction score
1,131
Location
california
Vehicle(s)
xterra mx5
Your Bronco Model
Base
Thanks for all the cool bits y'aller building at ARB. Odd question: If your bronco did not come with lockers, does this kit work for either front or rear? Or is their a specific kit for each?
This would work in the rear of any bronco but the raptor.
Not for the front.


Sponsored

DGE1993

Base
Active Member
Joined
Feb 26, 2022
Threads
0
Messages
27
Reaction score
55
Location
SGF-MO
Vehicle(s)
'66 Mustang; '06 F-150; '22 Bronco
Your Bronco Model
Base
Signed Up! Glad to see a company making an option for us that did get a E-locker!


DriveAllNight

Well-Known Member
First Name
Dan
Joined
Aug 17, 2022
Threads
1
Messages
198
Reaction score
574
Location
N.J.
Vehicle(s)
Ridgeline
Your Bronco Model
Undecided
Non Squatch lockers, the market is catching up.
Good to see it's being taking seriously.


DVAnt

Outer Banks
Member
First Name
Ant
Joined
Mar 9, 2022
Threads
0
Messages
15
Reaction score
16
Location
Honolulu
Vehicle(s)
BMW 428i
Your Bronco Model
Outer Banks
Clubs

This is a huge giveaway. Thanks for doing it.


CBWAR1

Well-Known Member
First Name
CB
Joined
May 1, 2018
Threads
2
Messages
92
Reaction score
105
Location
CA
Vehicle(s)
1973 F250 Custom 4X4; Pending: Bronco
Your Bronco Model
Undecided
Clubs

The BRaptors don't need the love?

Last edited:

1970AMCAMX

Base
Well-Known Member
First Name
Robert
Joined
Jul 22, 2021
Threads
17
Messages
737
Reaction score
1,633
Location
Titusville, FL
Vehicle(s)
F150, AMC AMX, DF Goblin
Your Bronco Model
Base
Yes, Please
