After much research, I found a cheaper alternative to the ford performance M220 diff cover. The rear Dana 44 installed in our broncos is nearly identical to the rear axle used in the Wrangler JL Jeep.

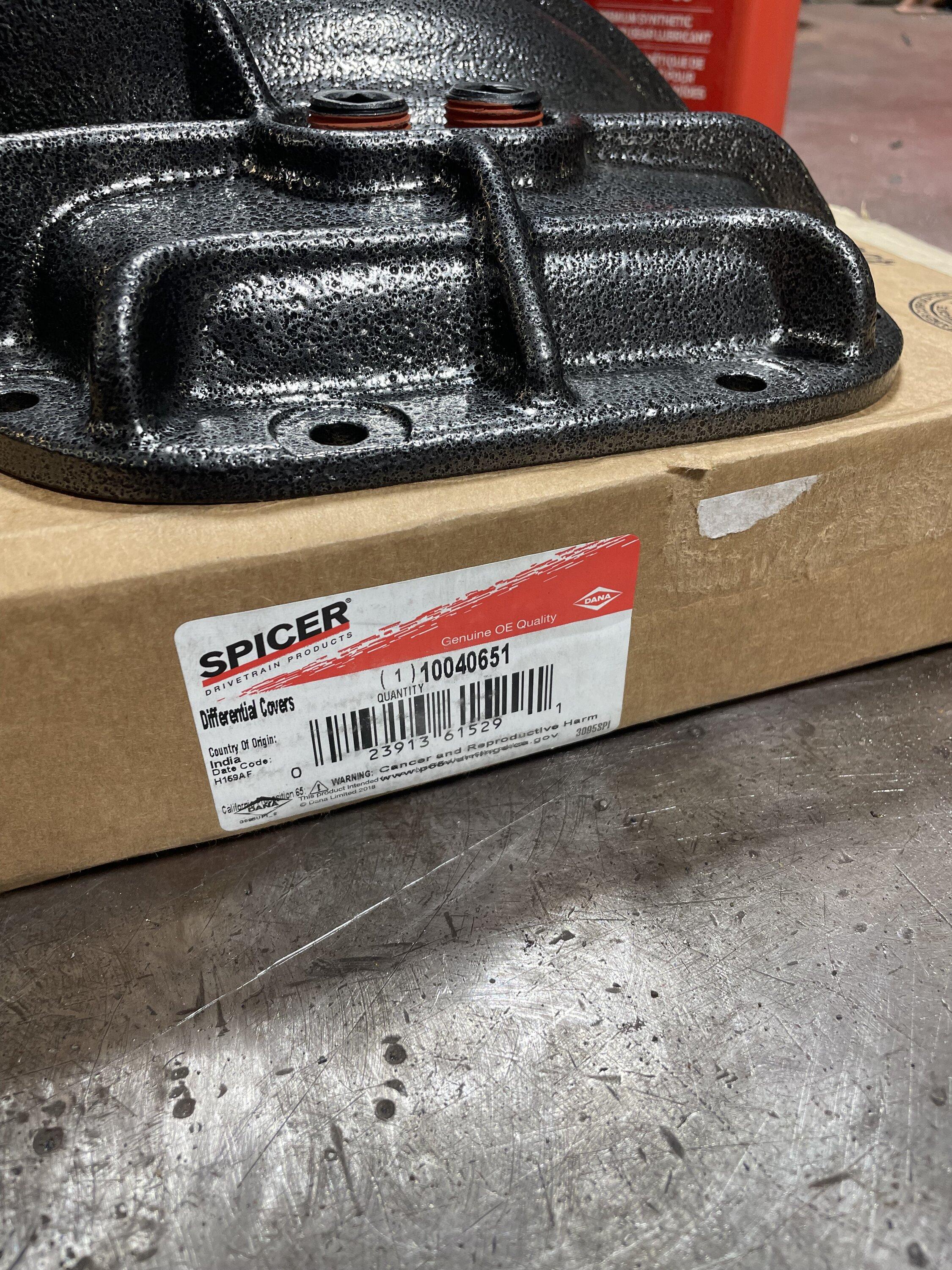

At $140.76 for the Dana Spicer OEM cover (Part # 10040651), it is far cheaper than what you pay for the Ford Performance Parts M220 diff cover at $295 (Part # M-4033-R). You are basically paying for a sticker!

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2438
Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2437


Here are a few things you'll need before the installation:

2 Quarts of 75w-85 Motorcraft Synthetic Hypoid Gear Lubricant (Part # XY75W85QL)
1 Rear differential cover gasket (Part # KB3Z-4036-A )

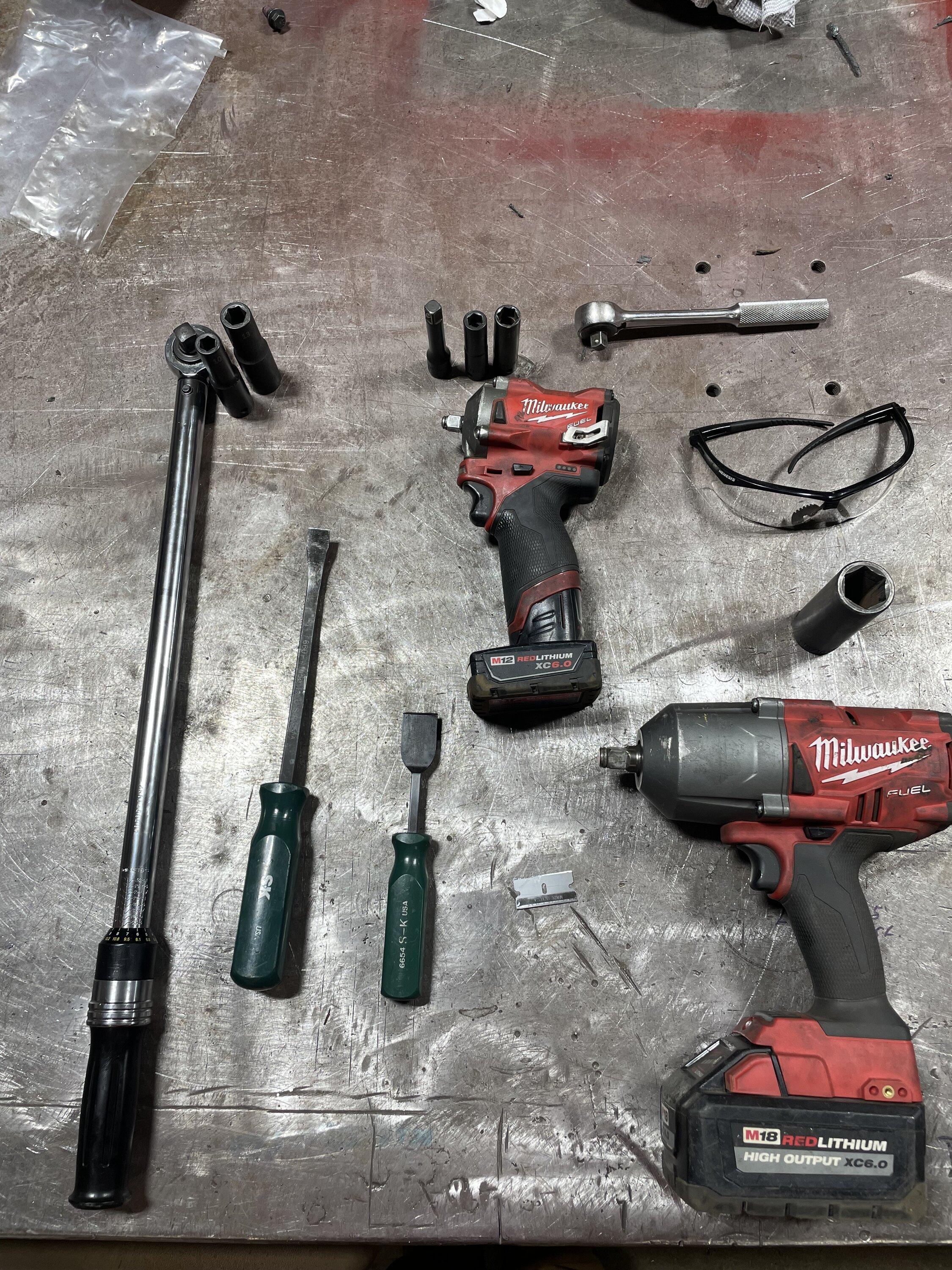

Tools Needed for the installation:
A pair of safety glasses
3/8" drive ratchet
3/8" drive impact gun
3/8" drive short extension
1/2" drive impact gun
10 mm deep socket (3/8" drive)
13 mm deep socket (3/8" drive)
15/16 Deep socket (1/2" drive)
Small pry bar
Gasket scraper
Razor blade
Torque wrench capable of 20-25 Ft-lbs
Oil pan
Rags
Acetone or some other solvent to clean the mating surface of oils
#268 lock tight or something similar for when we install the OEM plug and two 13mm bolts in the Dana cover

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2461

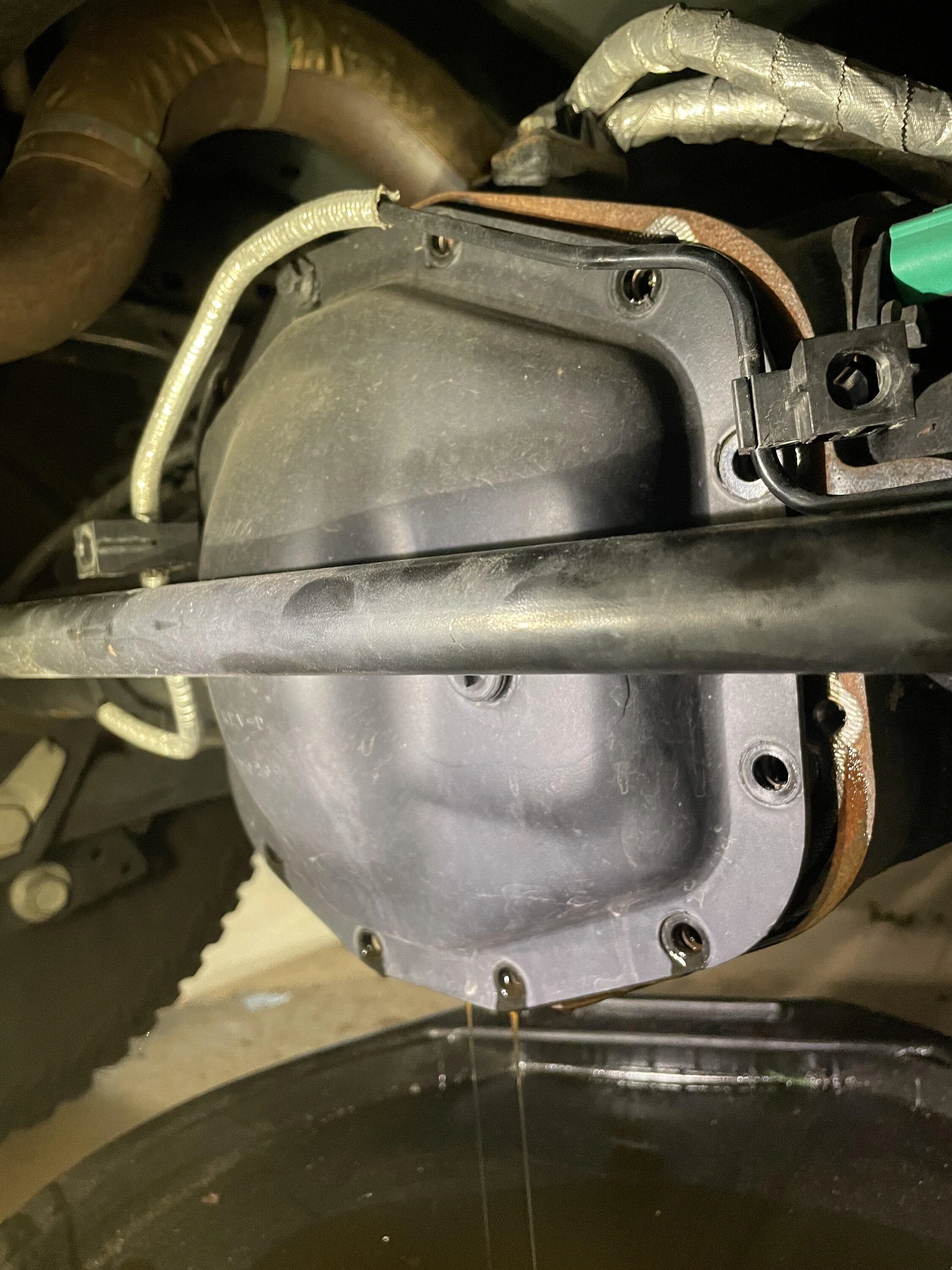

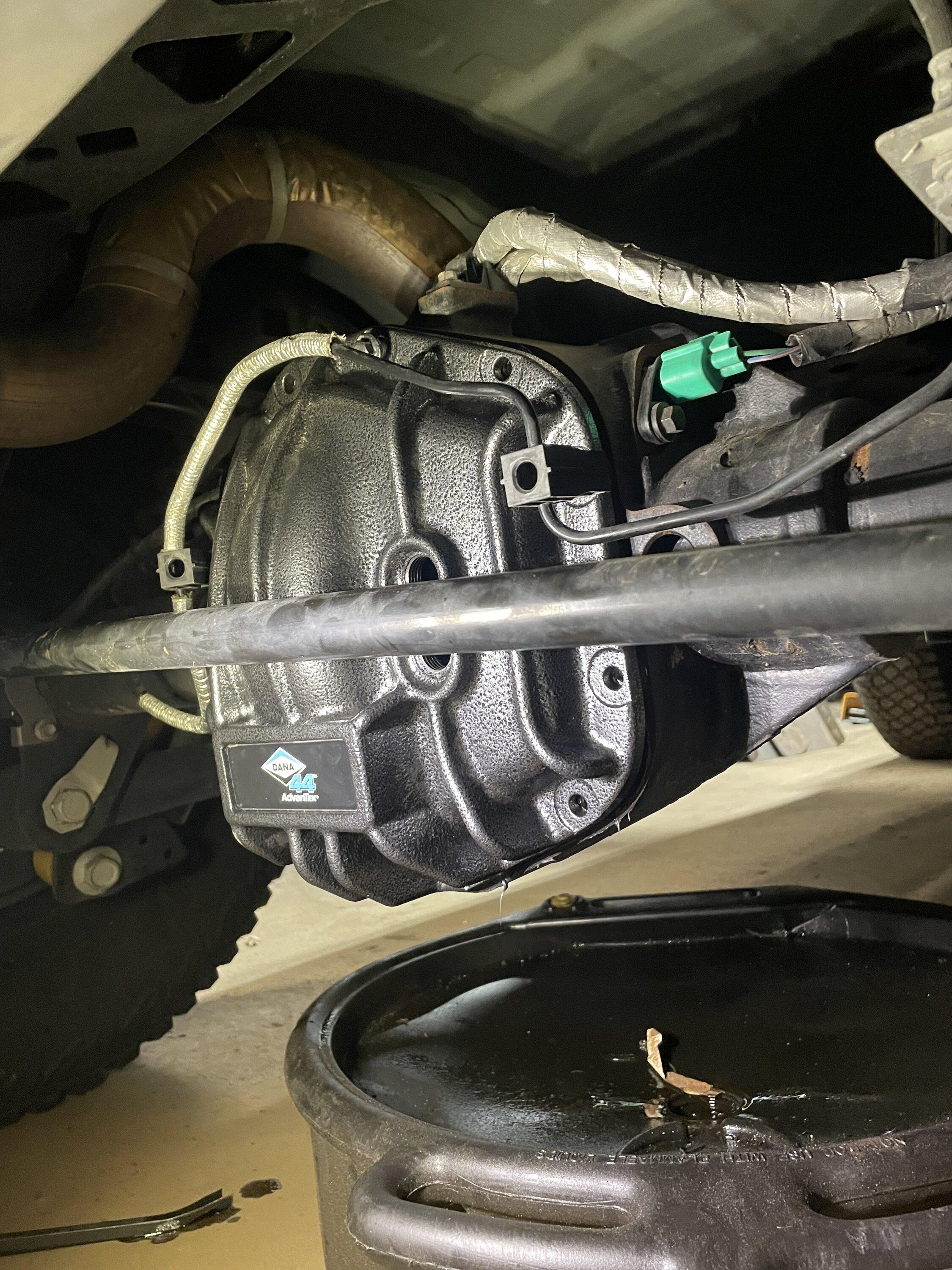

Start by parking on a flat surface. Place your oil pan under the differential in preparation for draining. You'll need to remove two plastic clips on studs that support the rear brake lines.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2442

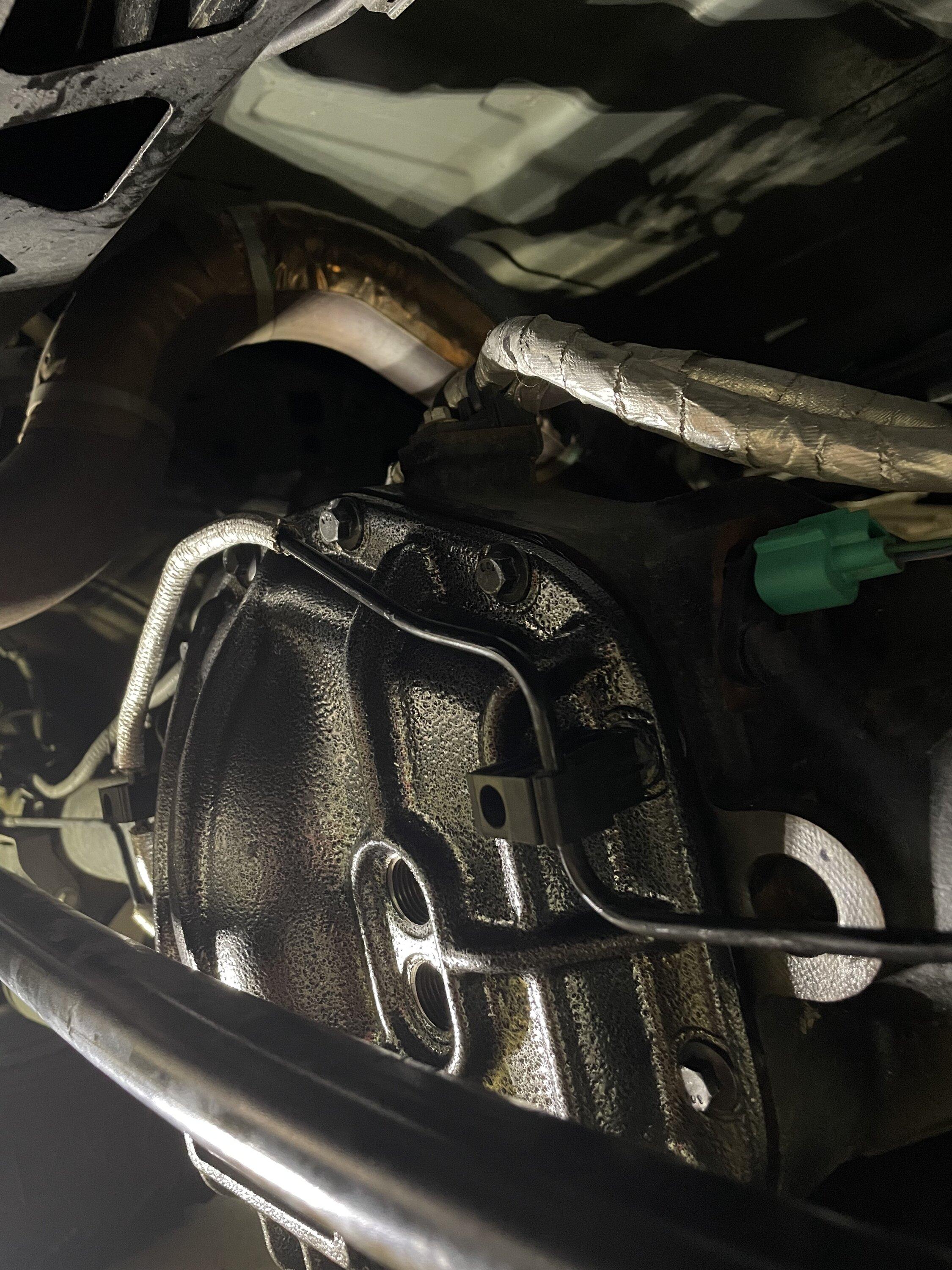

After removing the plastic clips, remove the cover bolts with a 10 mm socket. Be very careful while using an impact gun on the housing. You will need a short extension and a 13mm deep socket to remove the bolts with studs for the plastic clips. Save these, as we will reuse them during our installation of the dana cover. When removing the cover, a small pry bar may be necessary to break the seal between the cover and housing. Be careful not to damage the rear cover gasket, as it is reusable per the ford maintenance manual. If the gasket is damaged or you bought a new one, disregard this statement above, as you'll be changing it out anyway.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2443
Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2444

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2464

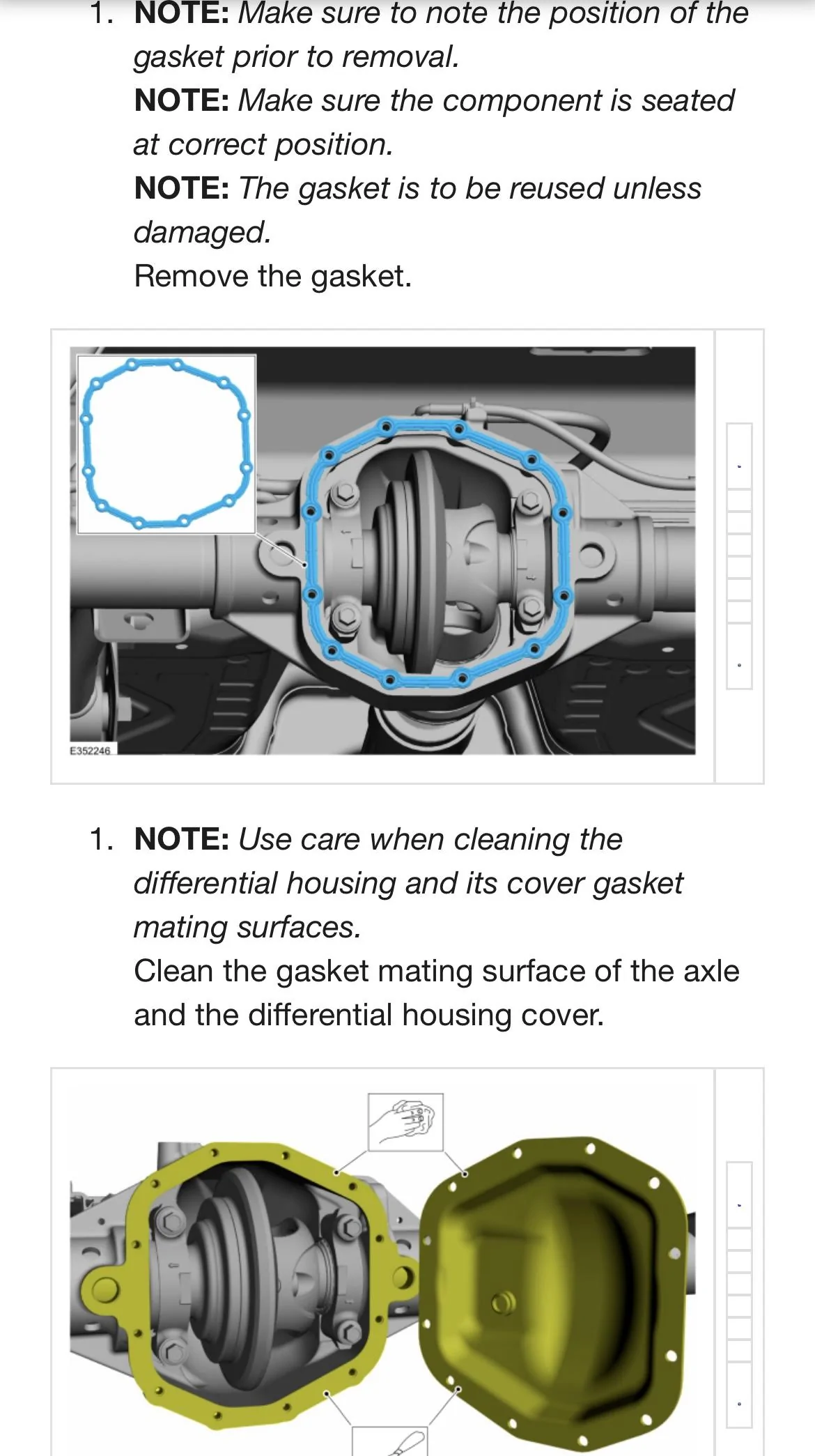

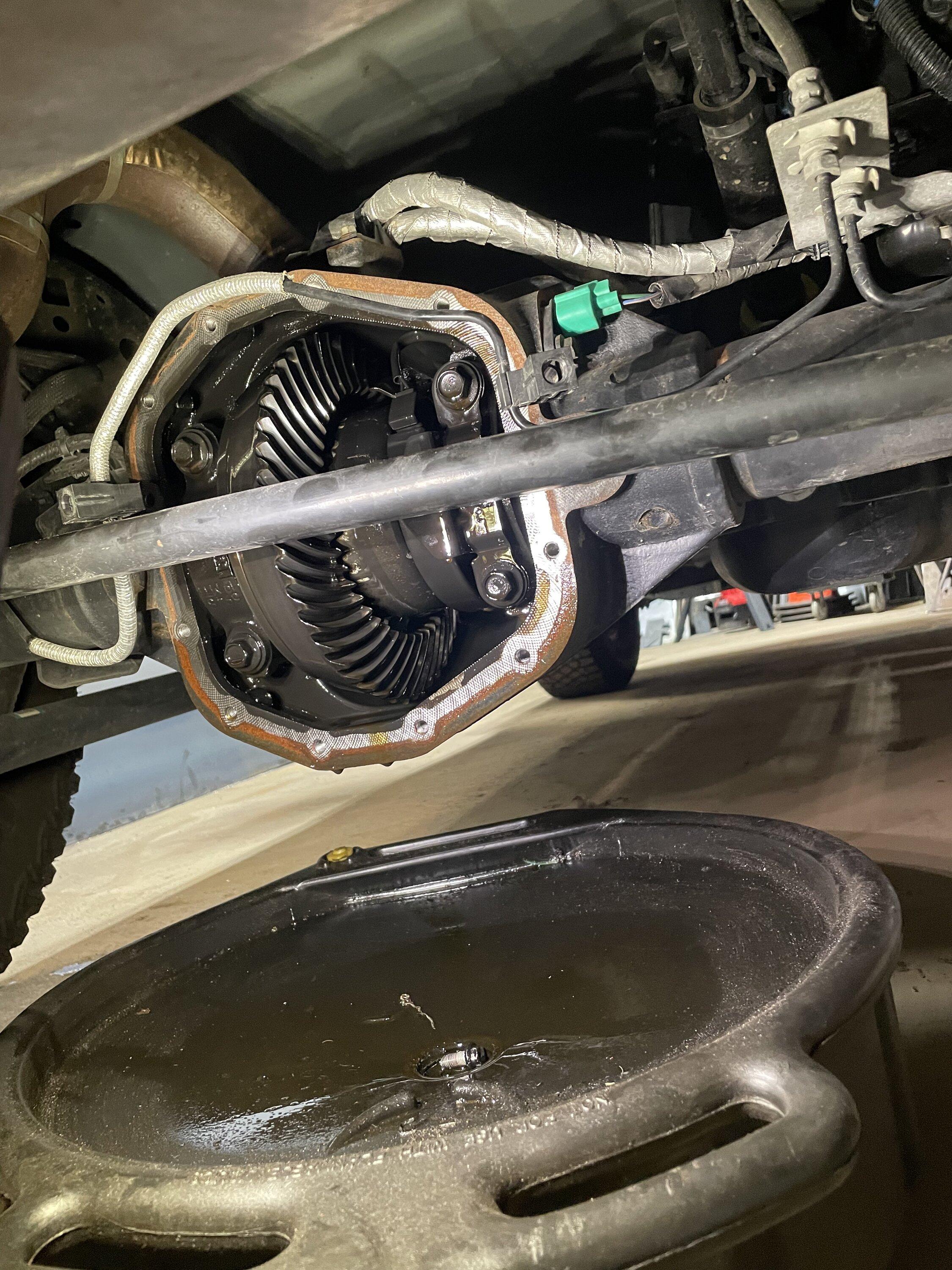

Visually inspect the mating surface for pitting or damage, and clean it with a rag and mild solvent. Inspect the rear drive gear and its components for any unusual wear or damaged teeth.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2446

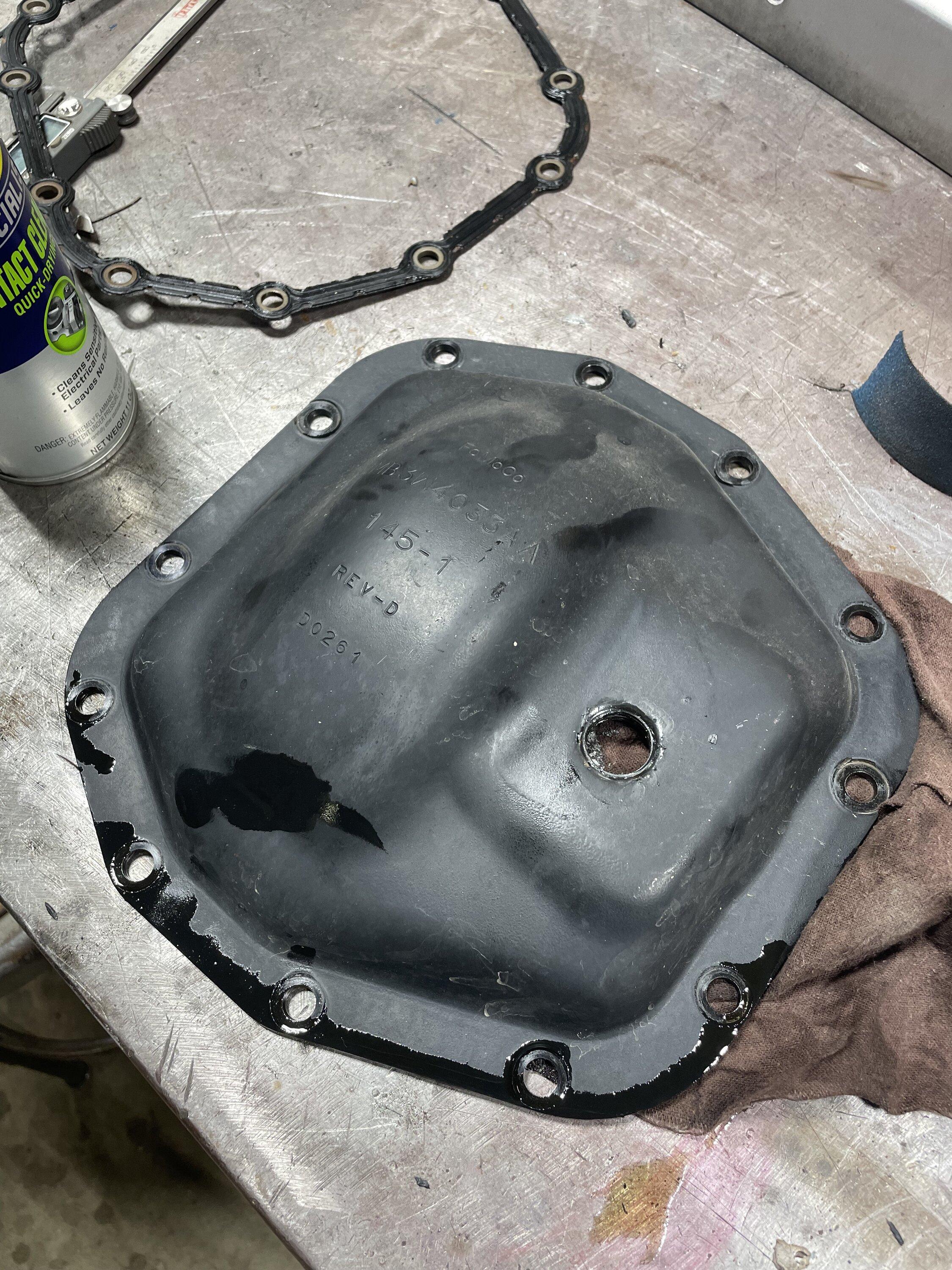

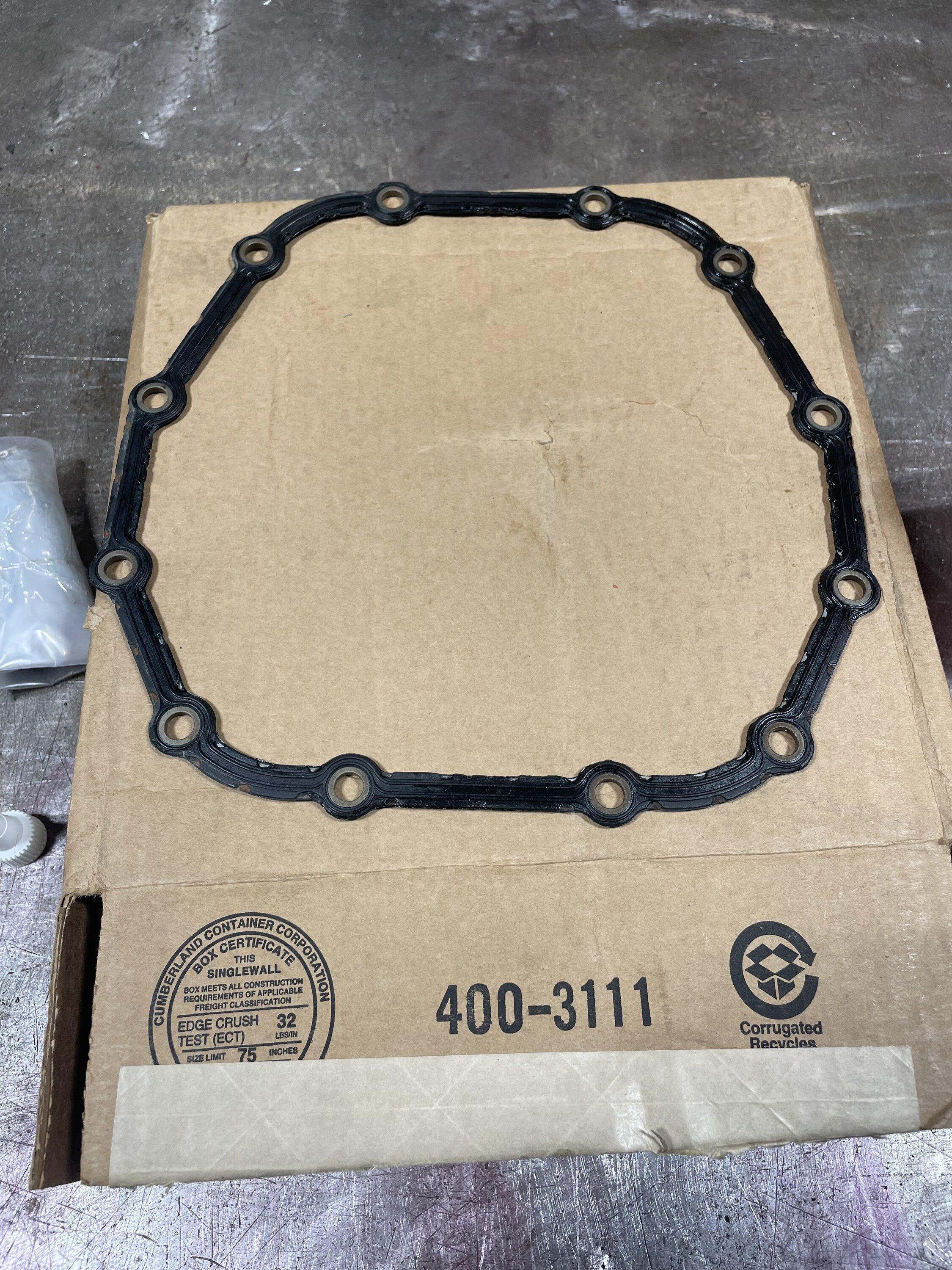

Clean the reusable gasket as needed. You will now begin to prep the dana cover for installation.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2445

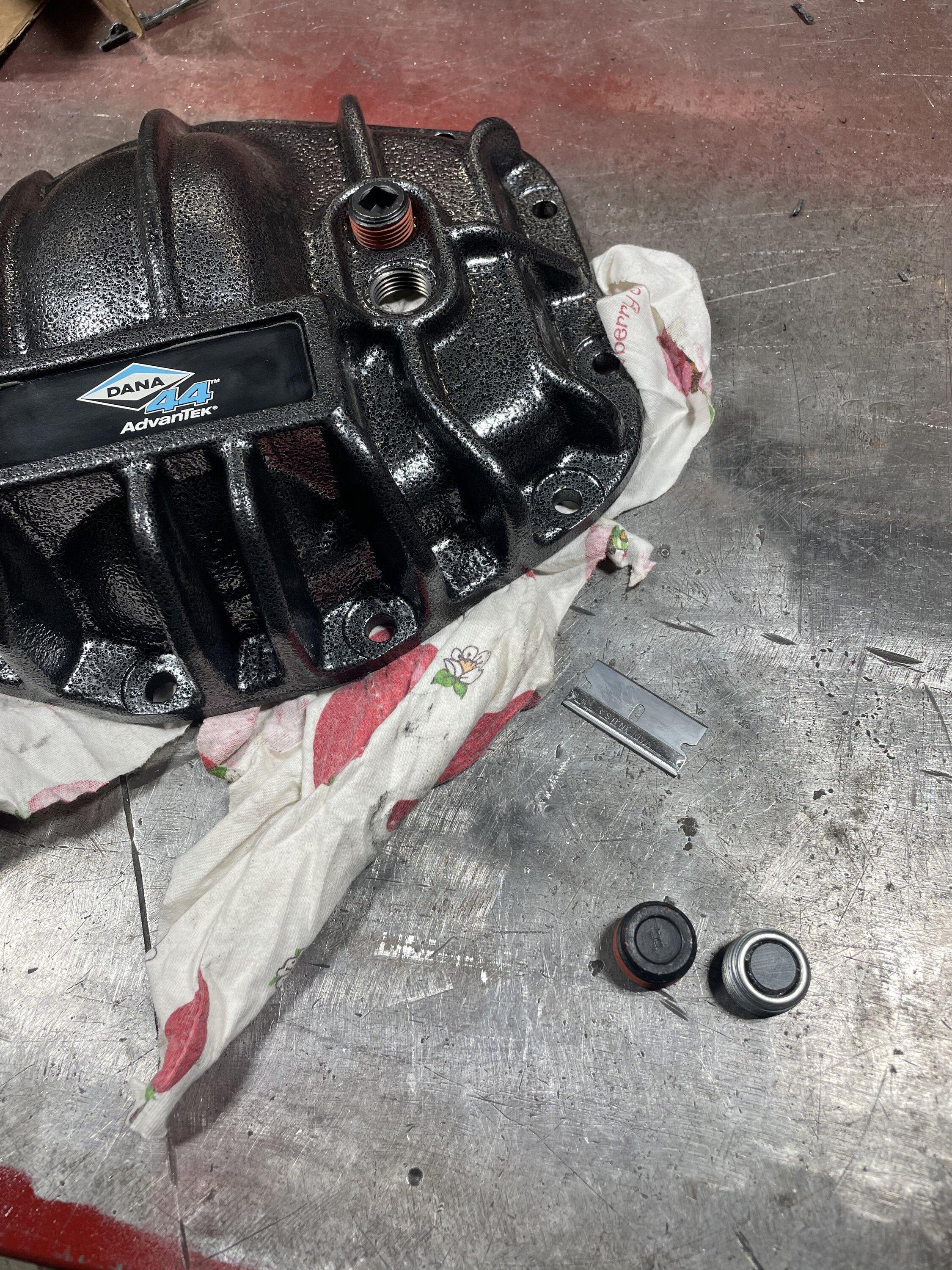

Remove the fill plug from the OEM cover, as it has a magnetic plug. We will replace the dana fill plug with the OEM plug to gain the magnet, hopefully preventing metal shaving from collecting in the bottom of the axle housing. Take your time to clean metal shavings on the magnet from the break-in process when you first got your bronco.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2447

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2448

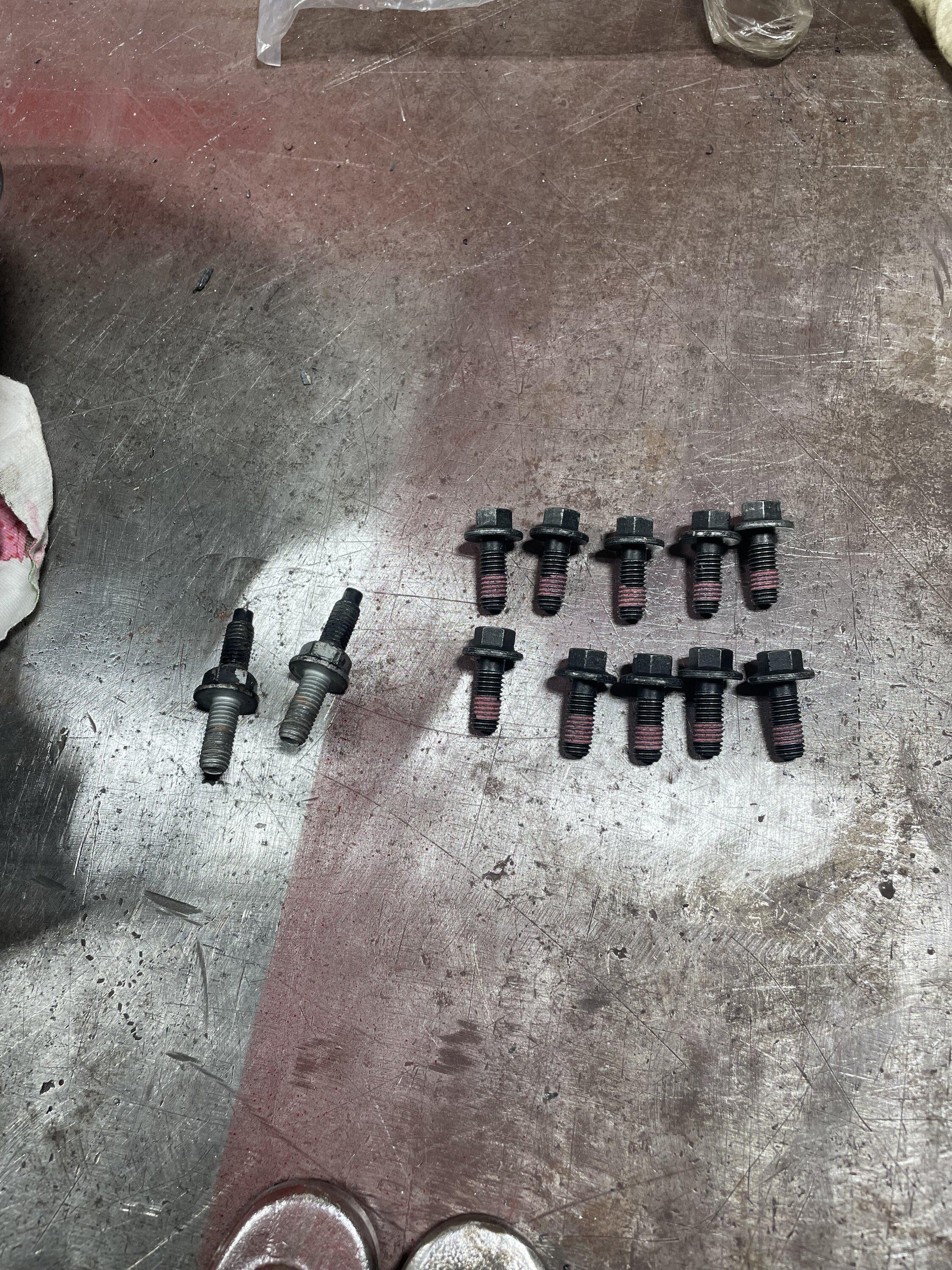

Pictured above are the ten 10mm dana bolts that come with the cover and the two 13mm bolts with studs used for the plastic brake line clips.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2439

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2451

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2452

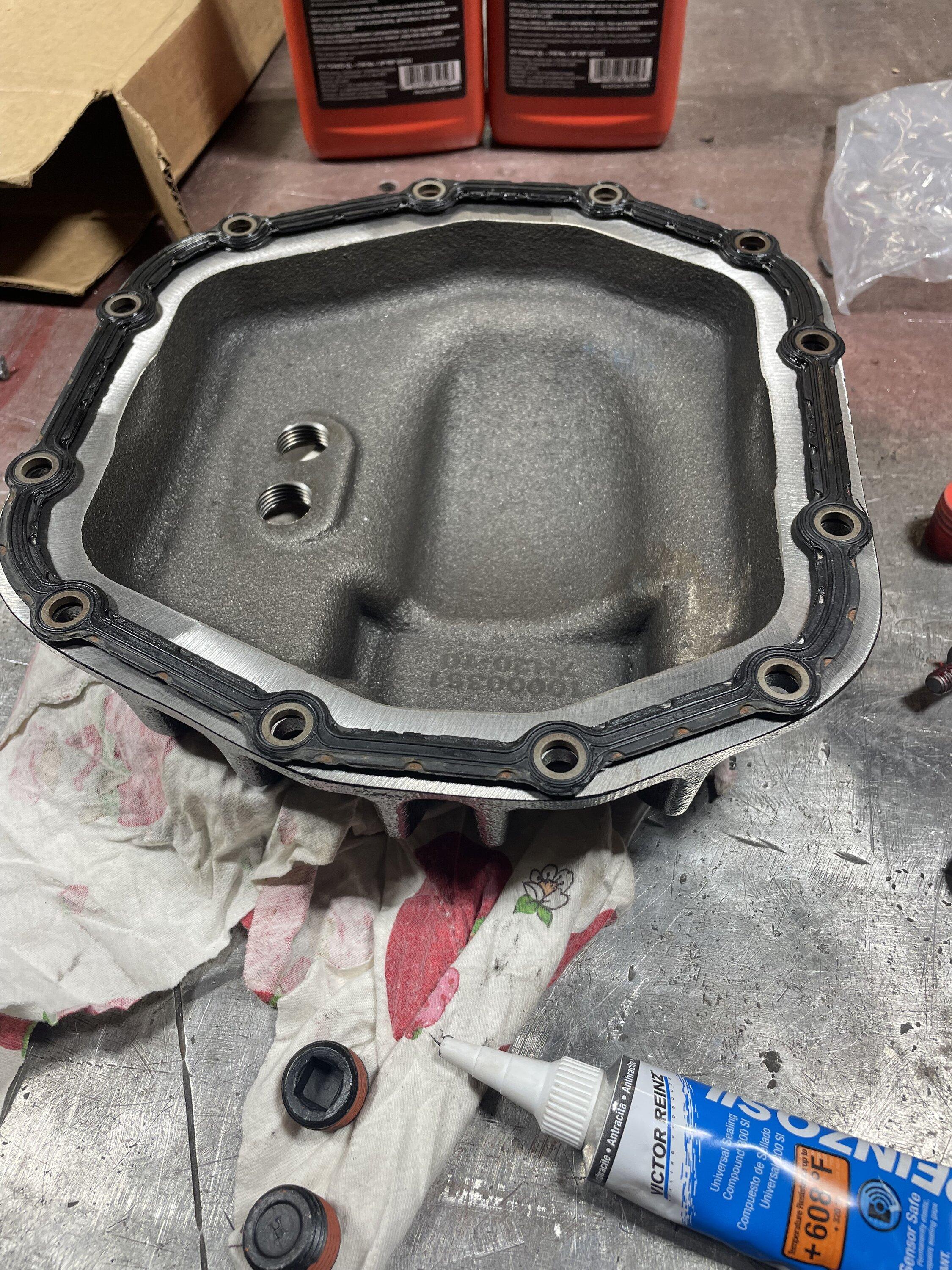

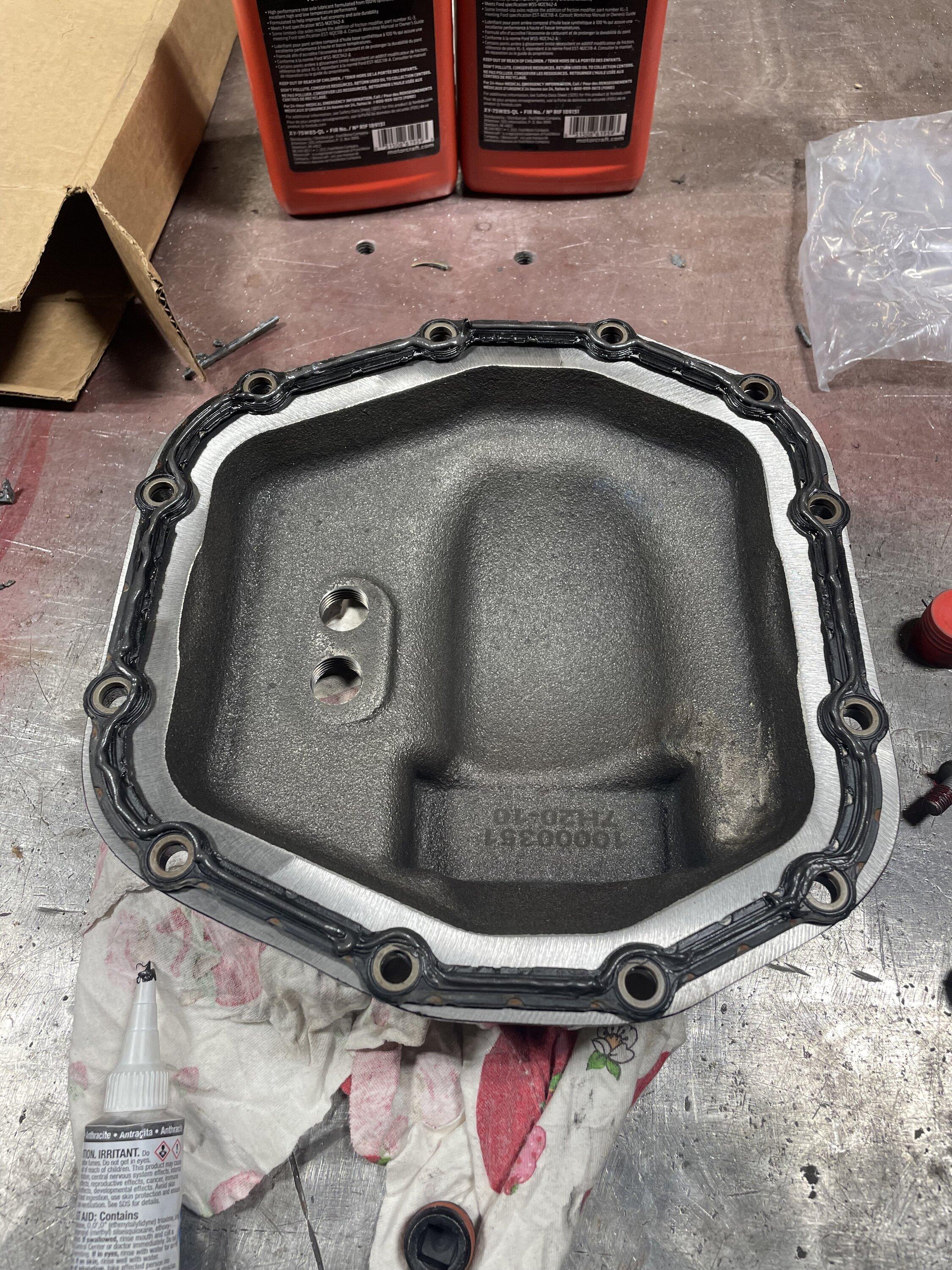

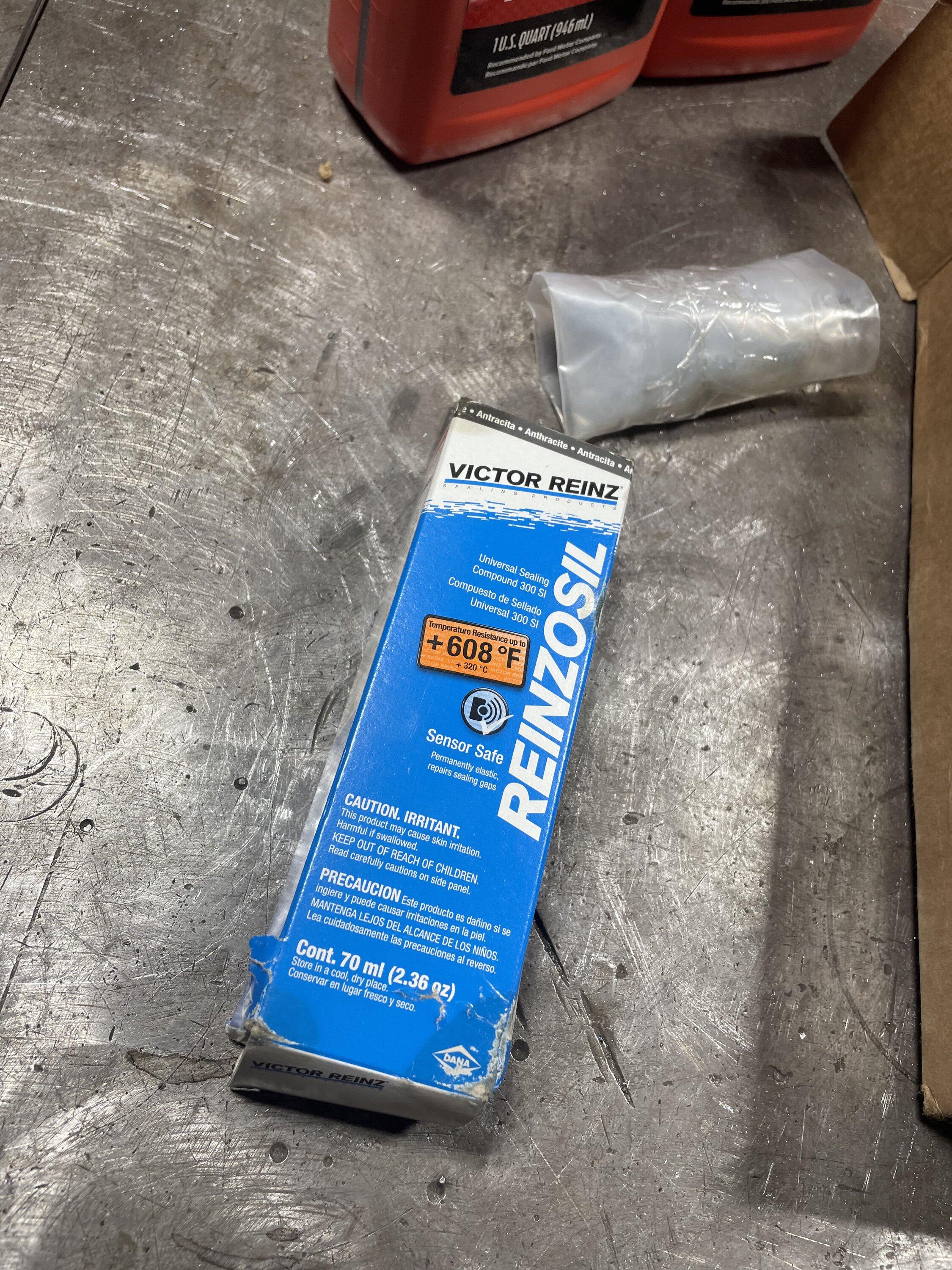

Using the provided gasket maker from Dana, we will run a bead along the inside of the gasket on both sides. This will help tack the gasket in place, making it easier to install the gasket and cover together while keeping the holes lined up.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2454

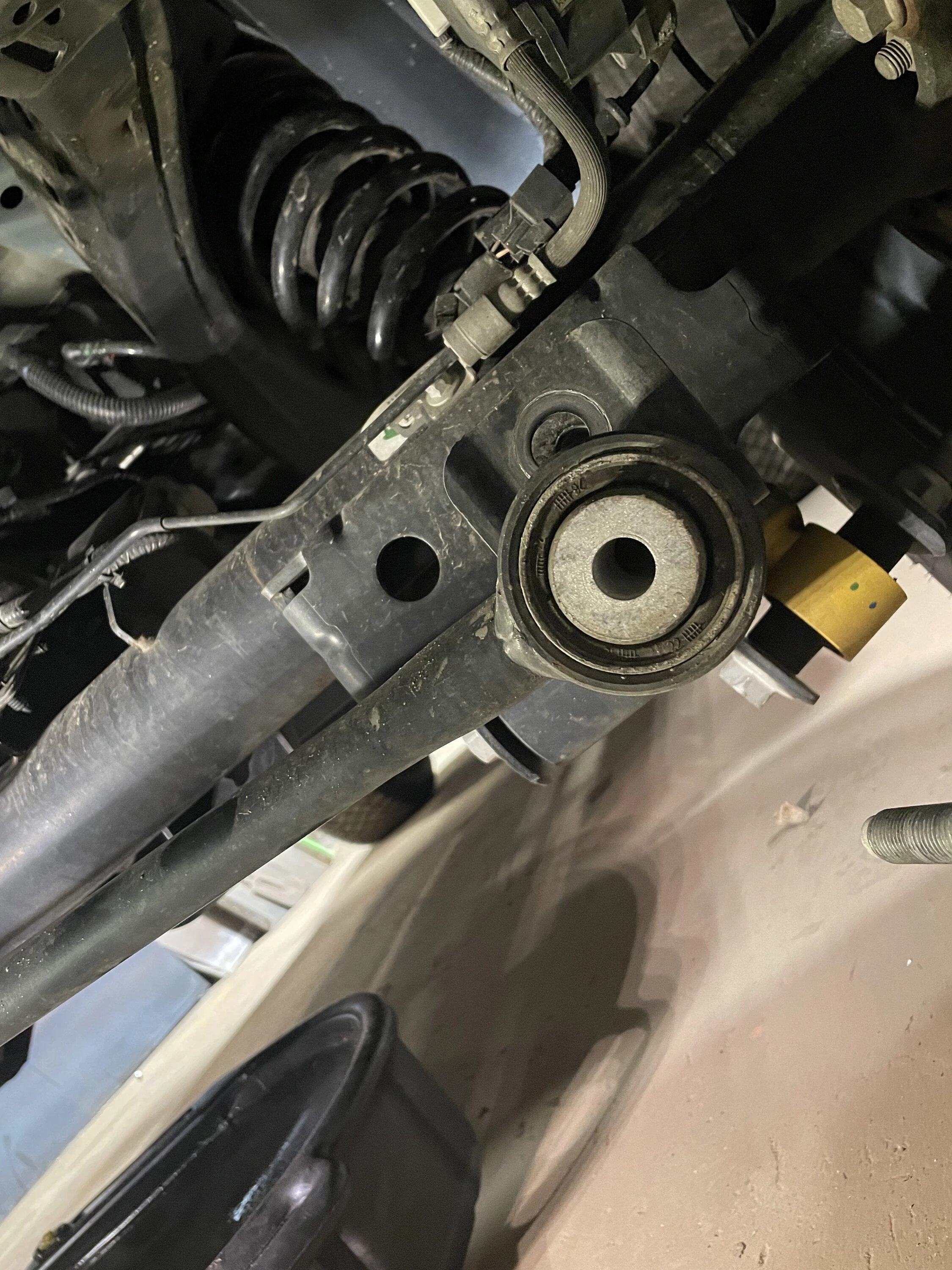

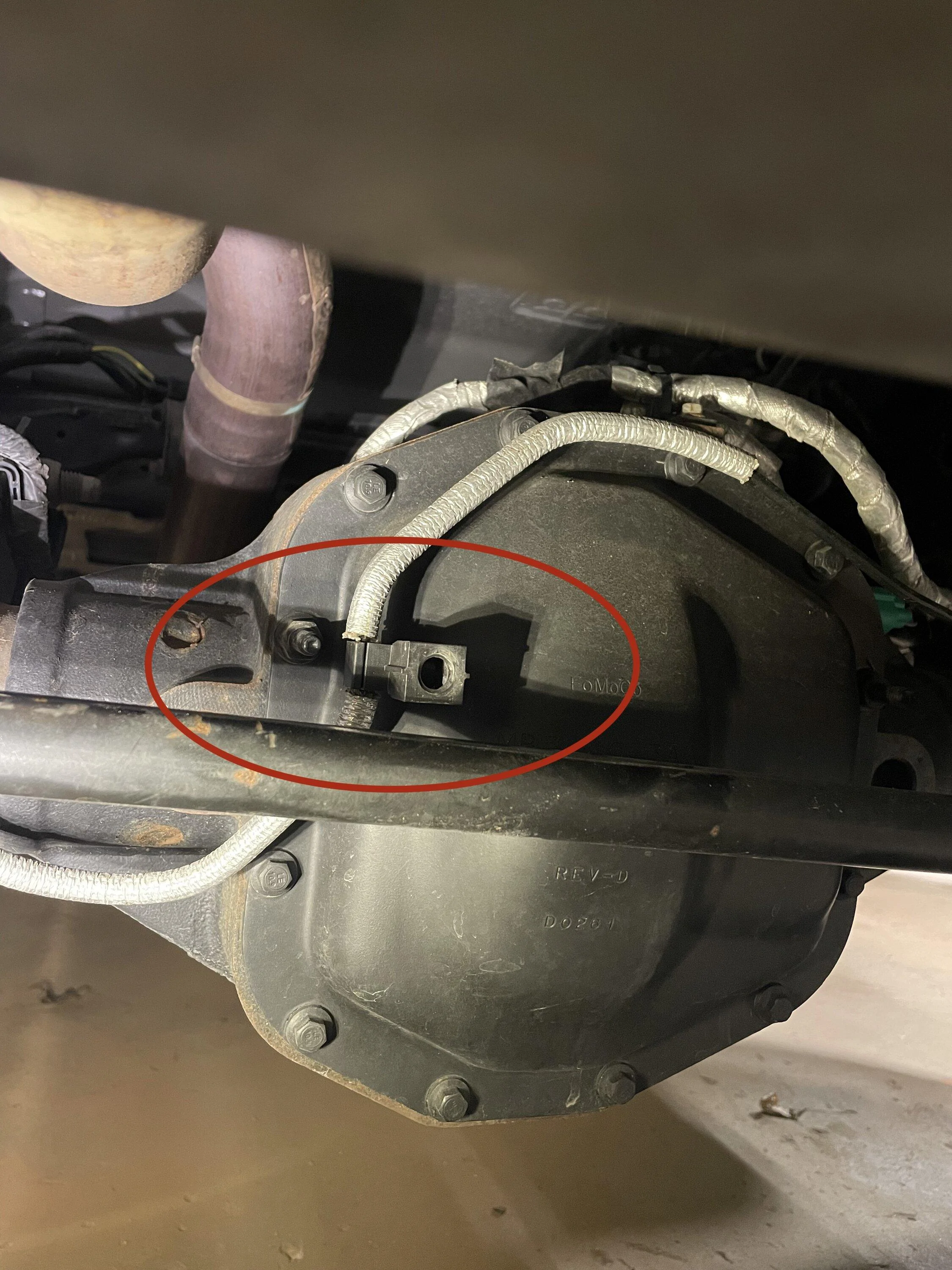

Using a 1/2" drive impact gun, remove the passenger side 15/16" bolt on the panhard bar. We will need to move the panhard bar out of the way slightly to install the dana cover easily.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2453


Using a bolt on top of the housing to loosely hold the cover in place, begin to install the provided dana bolts hand-tight.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2455

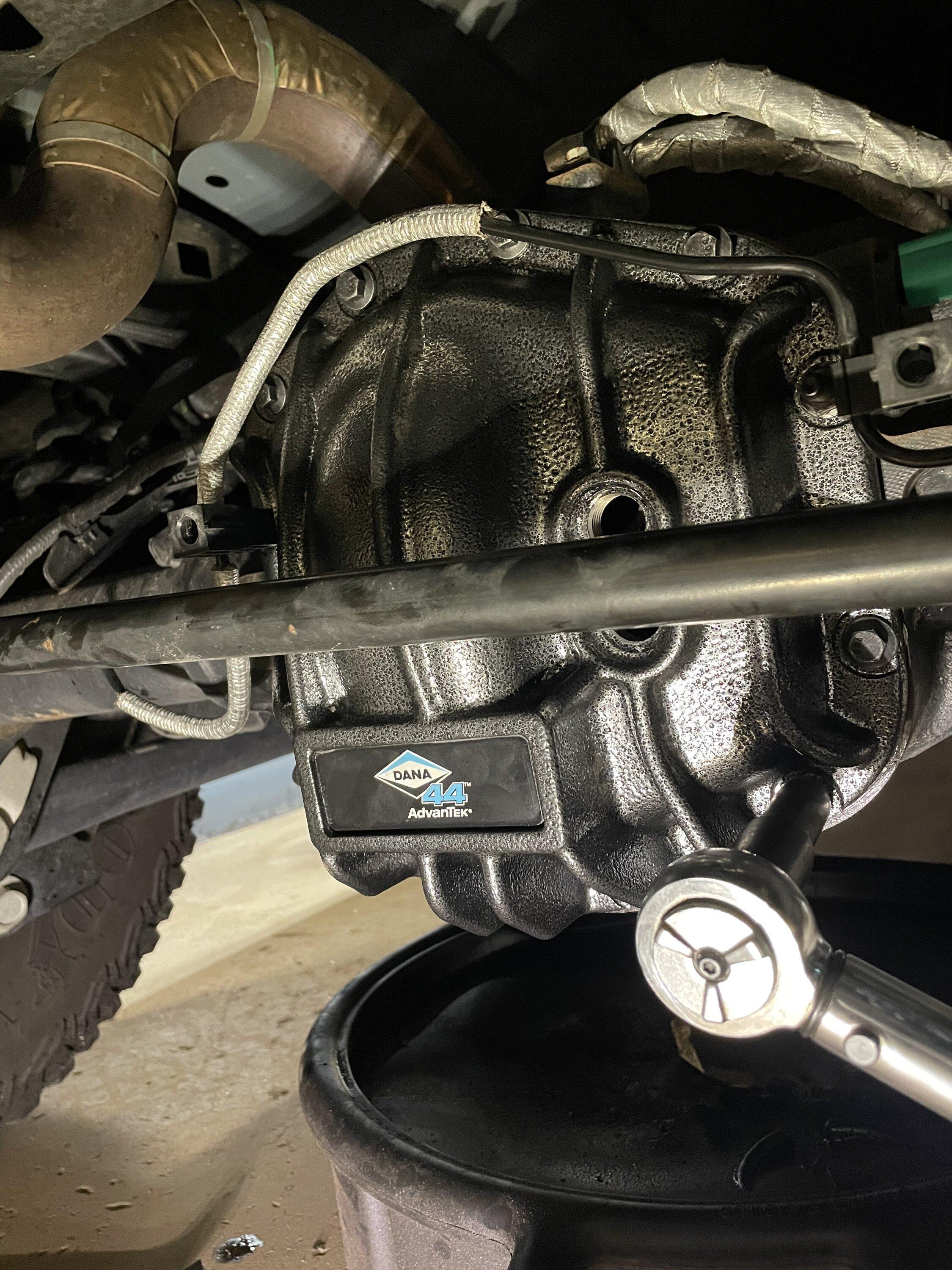

Torque the bolts to 20-25 ft-lbs, and be sure to tighten these bolts down to compress the gasket evenly. I worked in a 12- to 6 o'clock pattern for all bolts.
Note: These bolts are very easy to snap. Do not over-torque!

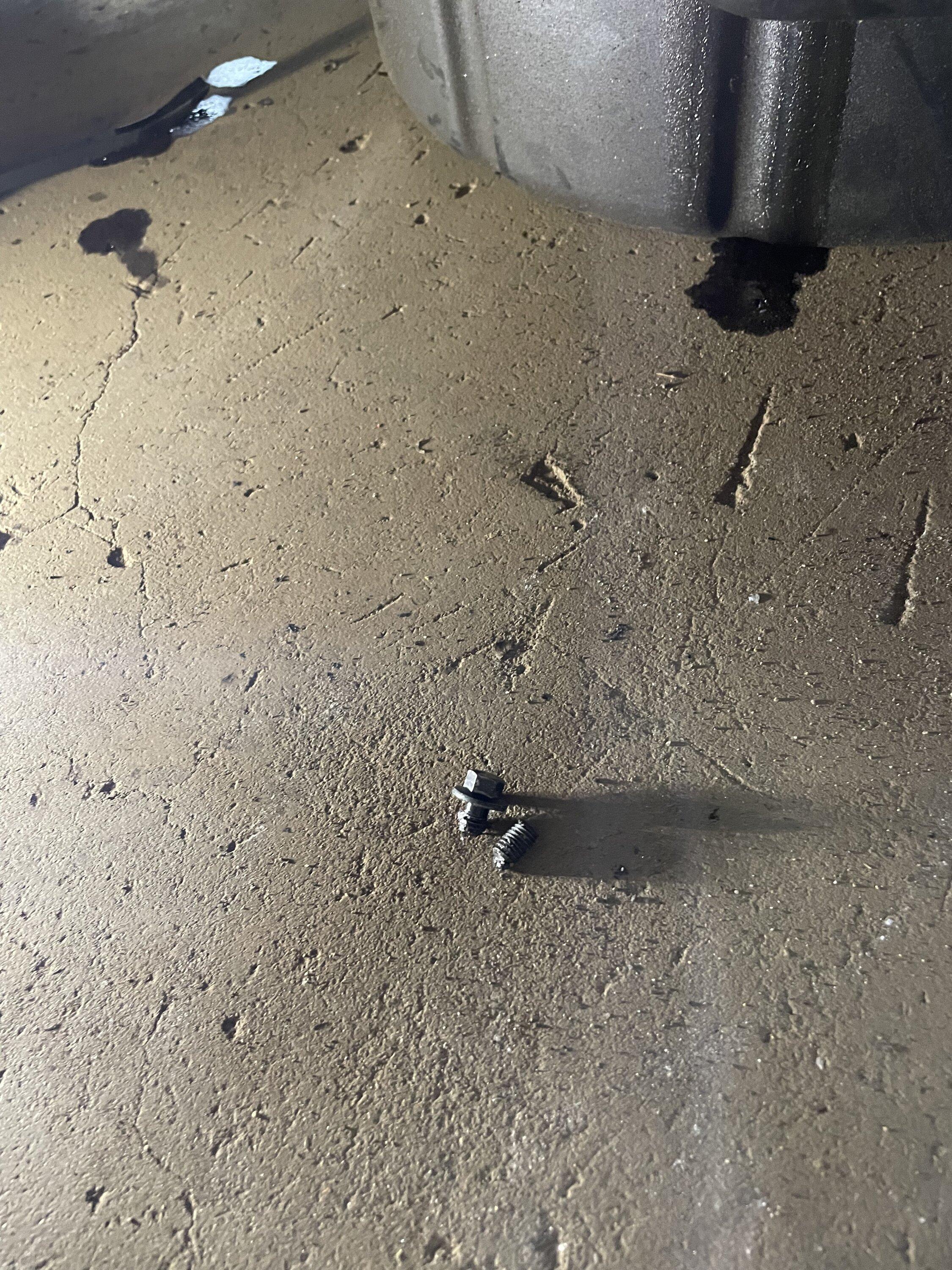

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2456


Thankfully I had two extra dana bolts because of the 13mm studs we are reusing from the OEM cover.

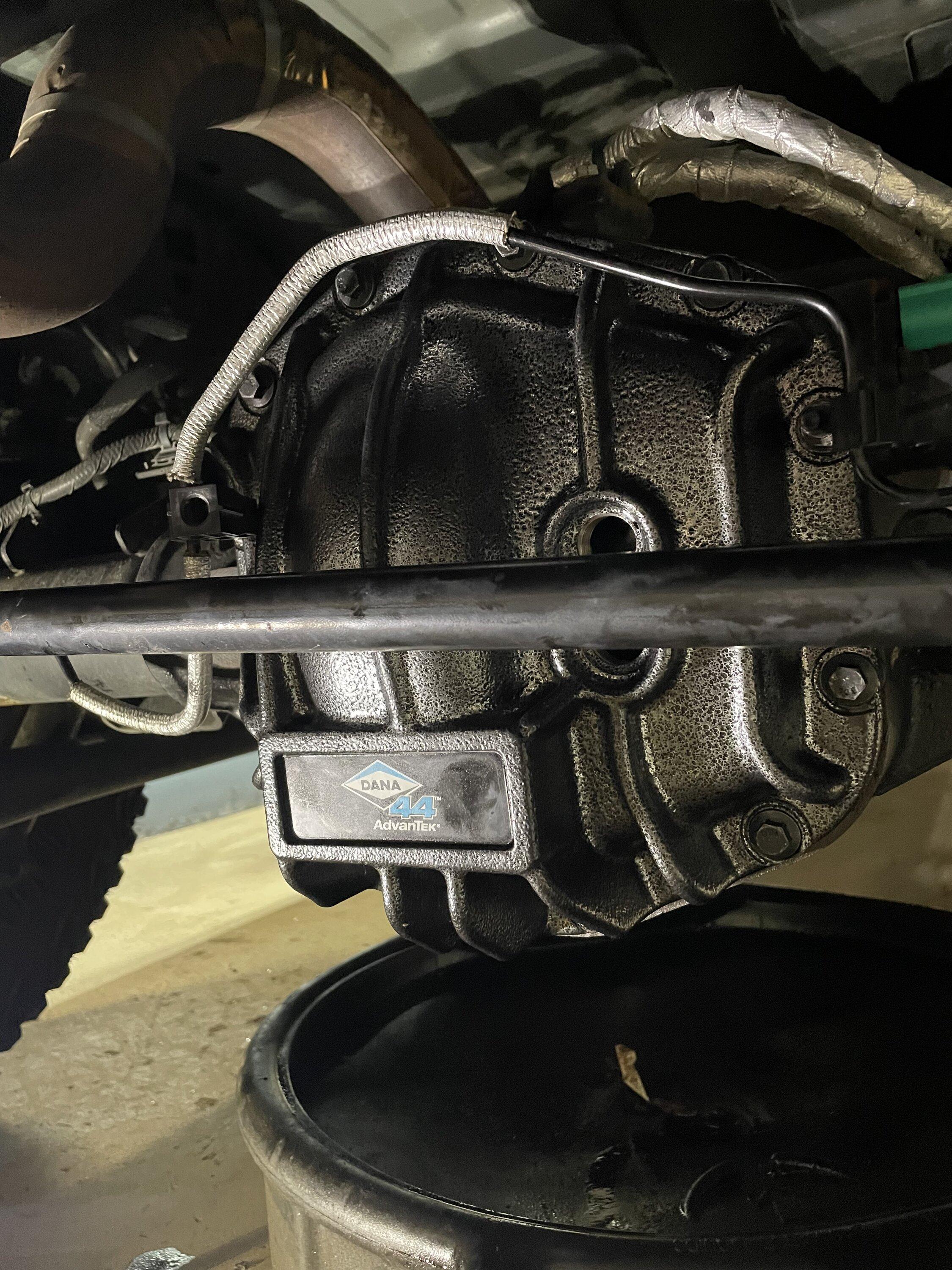

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2457


Clean up any gasket maker that might squeeze out with a rag.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2458


Push the plastic clips back onto their studs.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2459

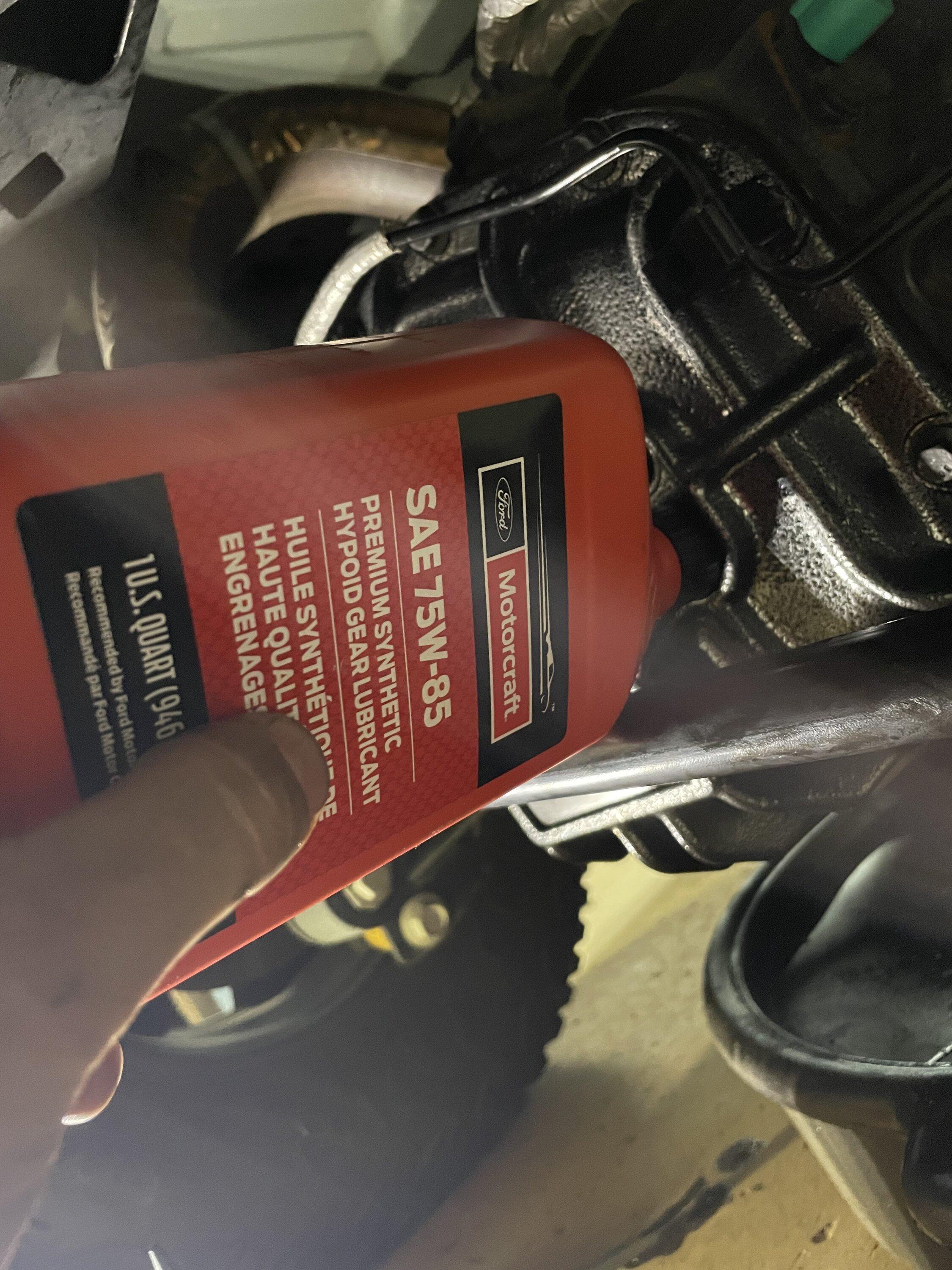

Fill with approx. 2 quarts of 75w-85 gear lube. Using the bottom hole in the cover, Fill until the lubricant begins to come out. There might be residual gear lube left inside the housing, so the total amount needed to fill the housing completely could be slightly less than 2 quarts. Once full reinstall the 15/16" bolt of the Panhard bar. Torque to 159 ft-lbs.

Ford Bronco Installed: Dana 44 M220 AdvanTek Nodular Differential Cover (From Jeep JL Wrangler) -- DIY IMG_2462

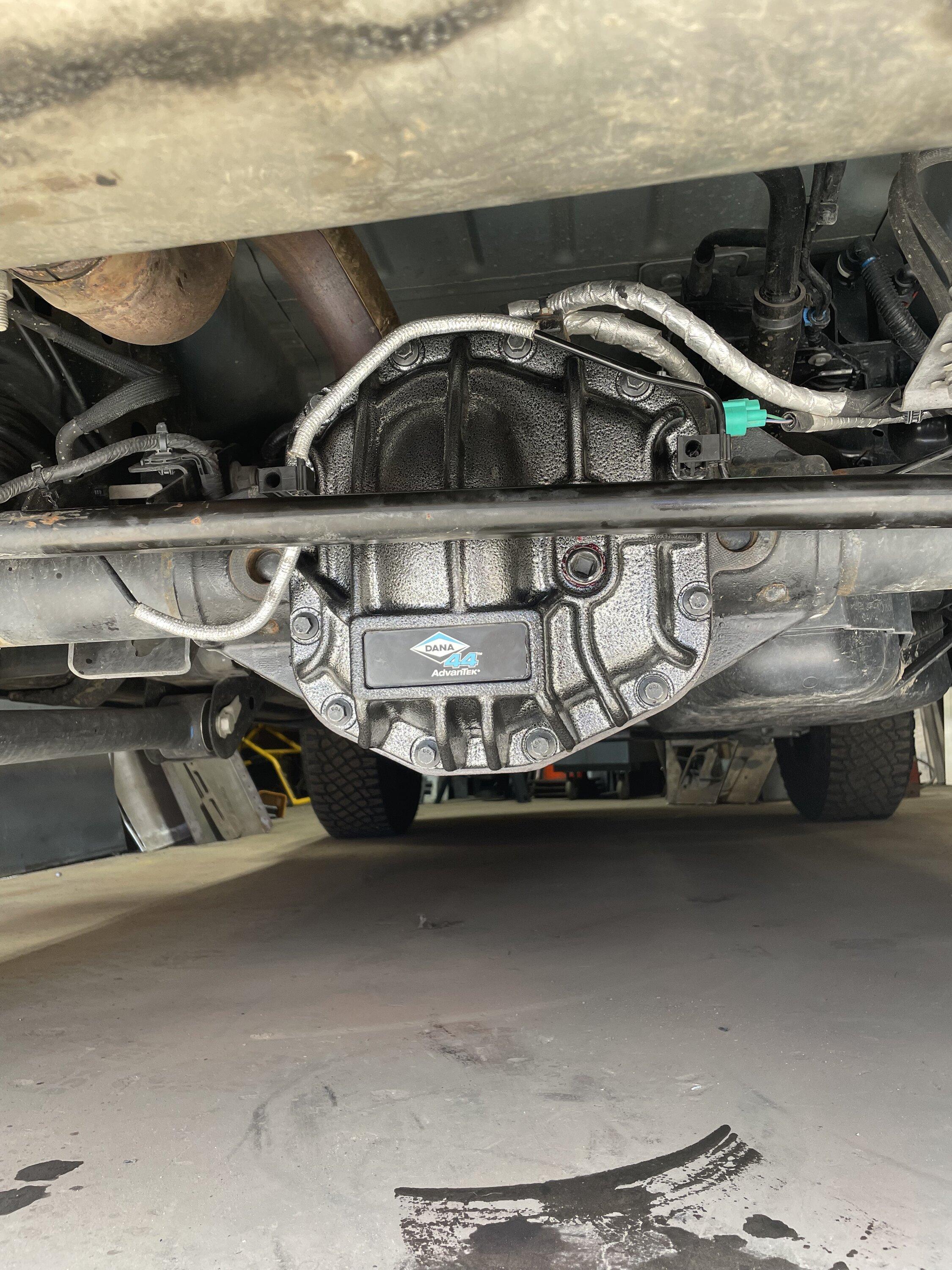

Install the plugs with some of the #268 lock tight and torque them to about 20 ft-lbs.


Monitor for leaks after driving, and it might be a good idea to re-torque the bolts after a few hundred miles just to be safe.
