Installing overhead aux switches after sales?

CliffCo

Big Bend
Active Member
First Name
Cliff
Joined
Sep 10, 2021
Messages
33
Reaction score
47
Location
Charlotte
Vehicle(s)
2021 Iconic Silver, Big Bend Sasquatch (MIC top)
Bronco
Big Bend
Clubs

wait... there's an overhead USB?!?


Aman

Badlands
Well-Known Member
First Name
Aman
Joined
Jul 6, 2020
Messages
746
Reaction score
2,524
Location
Northern NJ
Vehicle(s)
1998 BMW M3 (Track Car) & 2008 Nissan Armada
Bronco
Badlands
Clubs

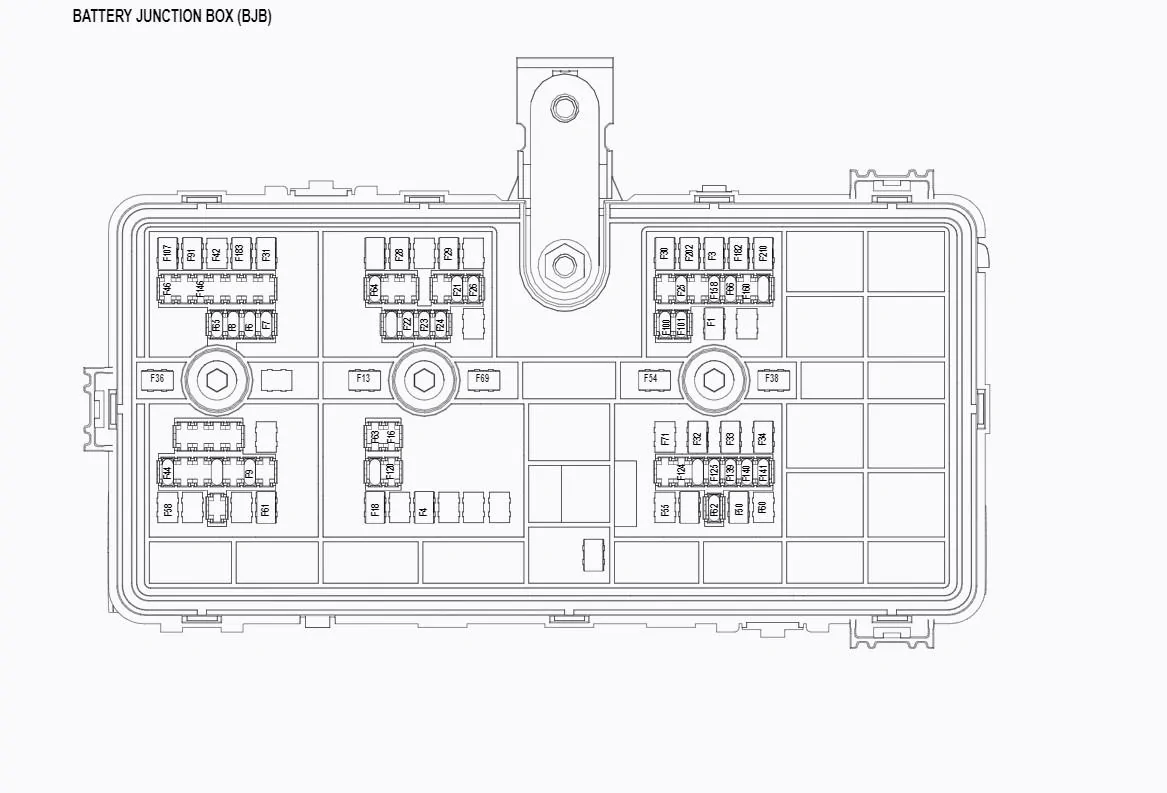

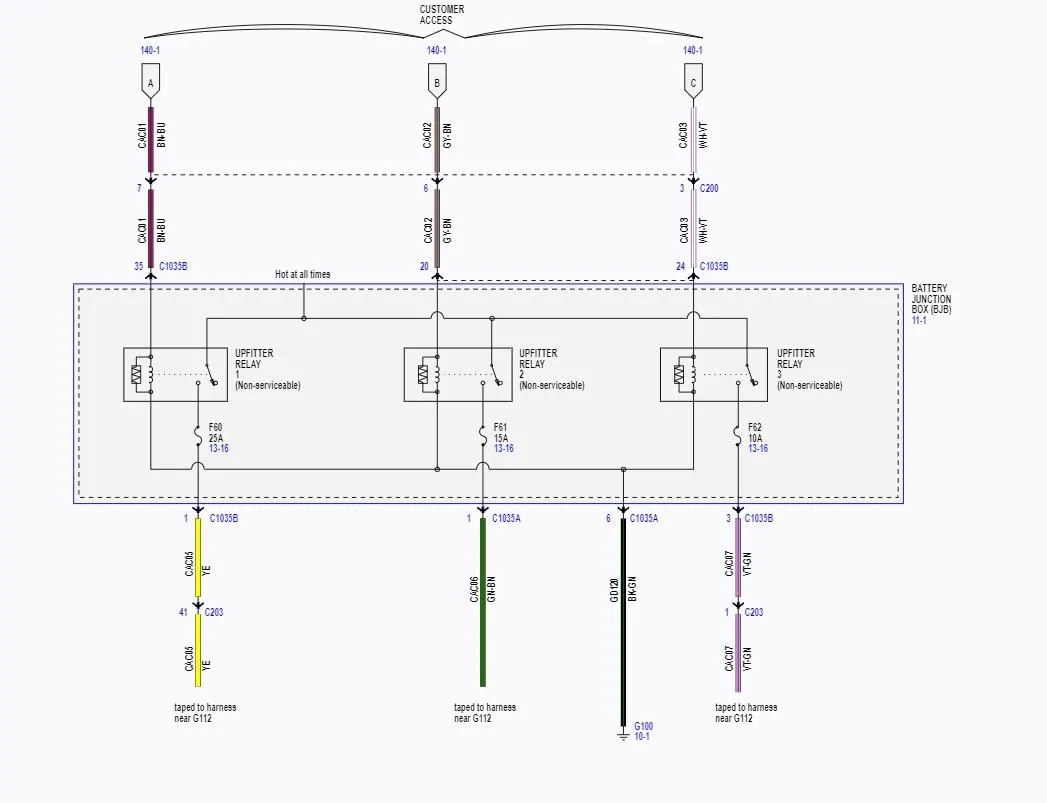

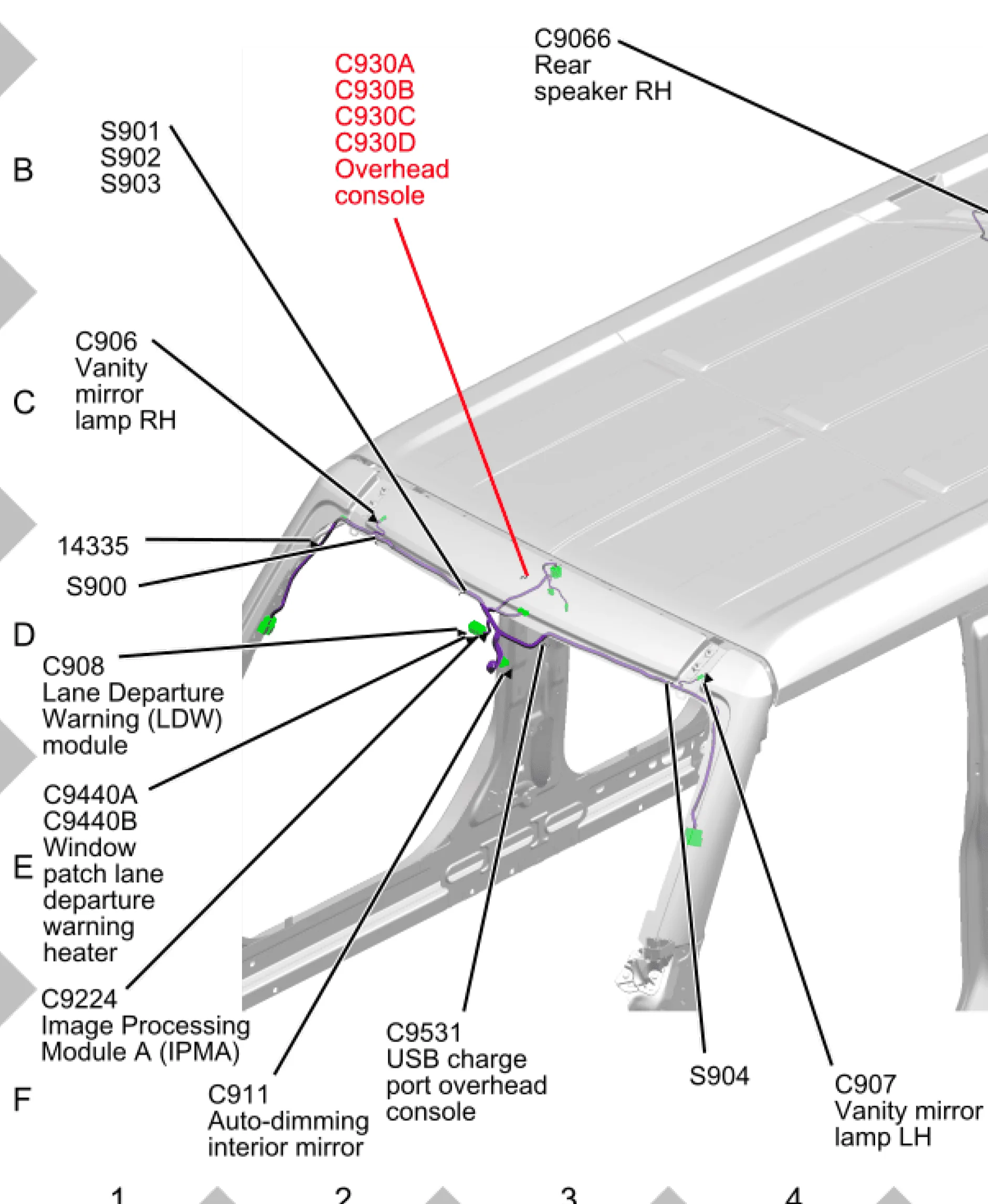

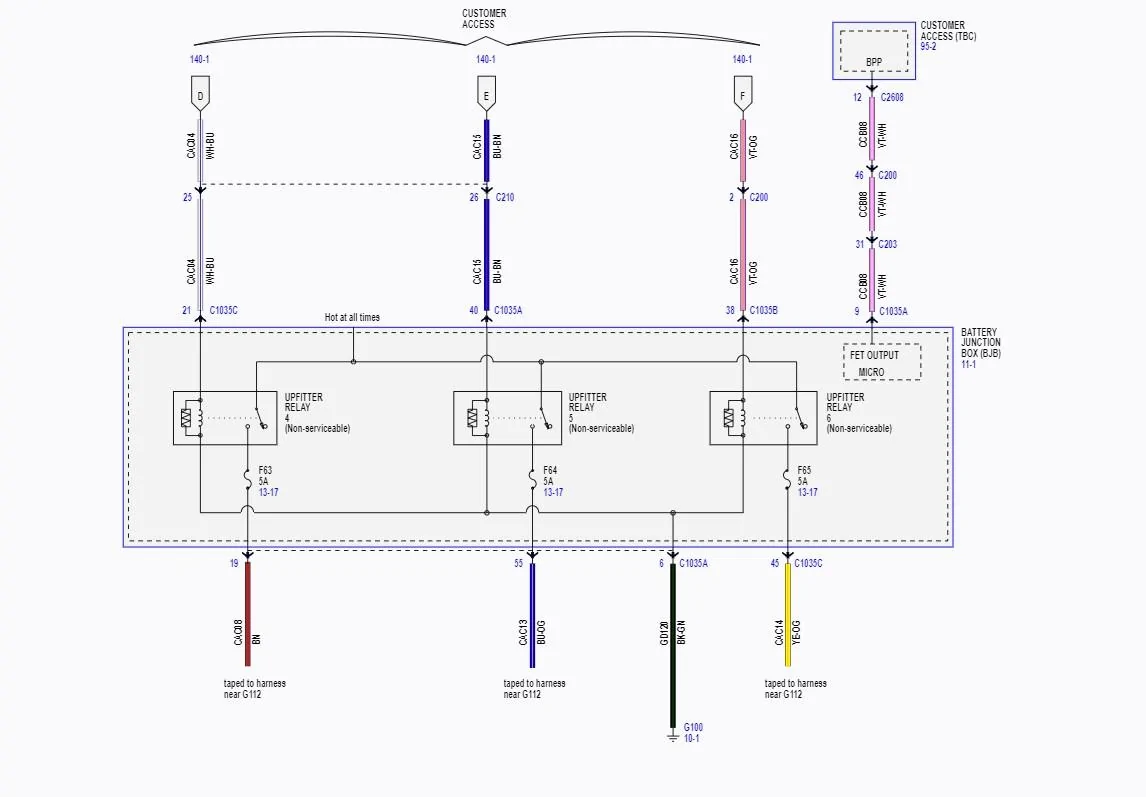

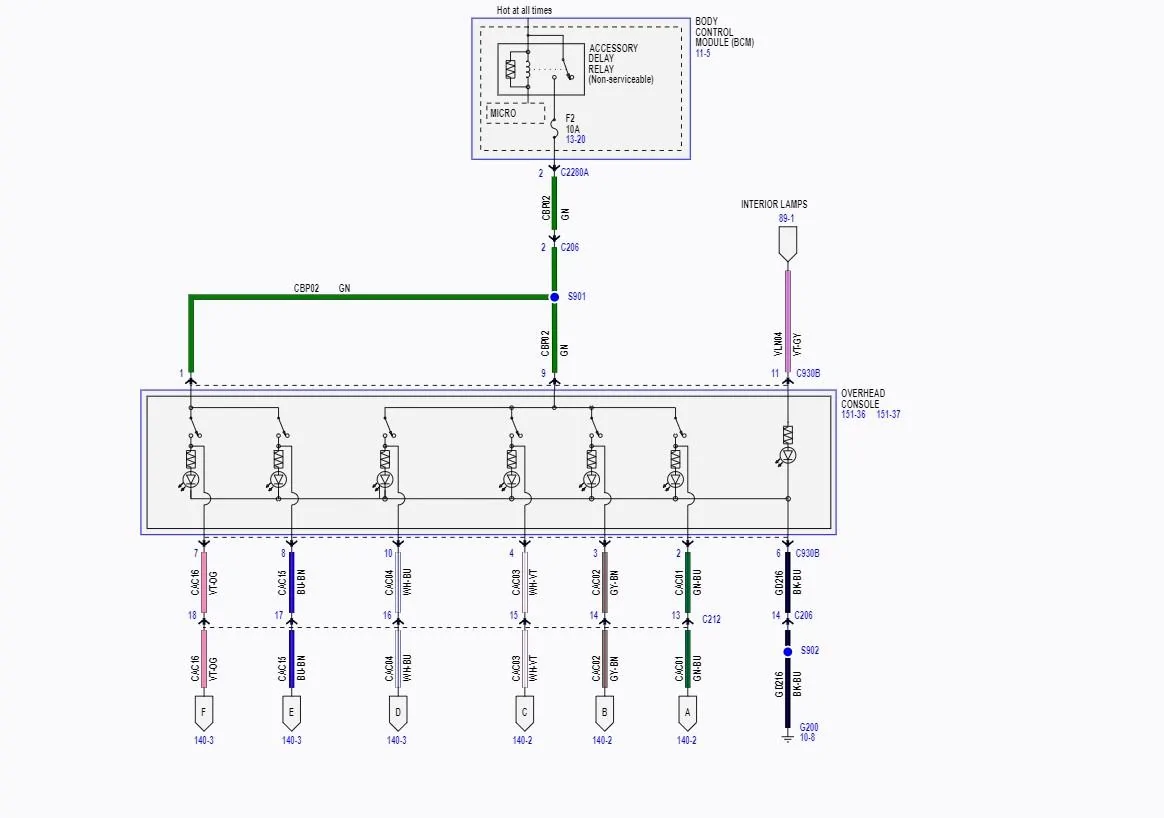

from the BCM up the driver pillar to the overhead console upfitter switches, then switch outputs go down the passenger a pillar and through the firewall on the passenger side.

Screen Shot 2022-01-04 at 9.15.40 PM.png
wait... there's an overhead USB?!?
This is news to me. Does anyone know where the referenced USB charge port is located?


RustysBronco

Outer Banks
Active Member
First Name
Matt
Joined
Dec 17, 2021
Messages
34
Reaction score
49
Location
Jupiter, FL
Vehicle(s)
2021 Ford Bronco Outer Banks
Bronco
Outer Banks
This is news to me. Does anyone know where the referenced USB charge port is located?
Just because the wiring diagram says "micro" it might not necessarily it meant "USB." Of course, (anyone) feel free to prove me wrong.


LowerSlowerDelaware

Base
Well-Known Member
First Name
Lee
Joined
Oct 22, 2020
Messages
447
Reaction score
1,617
Location
19958
Vehicle(s)
Subaru Outback, Chevy S10 Ram 3500
Bronco
Base
Clubs

Has anybody taken apart a Bronco w/Aux Switches to reverse engineer the wiring?

A lot easier to follow what's there than trying to figure out where it should go

When I get time in a warm garage or sunny day, I was thinking about breaking out my Fox&Hound to trace the wiring.


2Jeeps&PatriotX1

Badlands
Well-Known Member
Joined
Jul 23, 2020
Messages
1,923
Reaction score
2,732
Location
Denver, CO
Vehicle(s)
'21 Bronco, ‘05 LJ & ‘17 F150
Bronco
Badlands
Has anybody taken apart a Bronco w/Aux Switches to reverse engineer the wiring?

A lot easier to follow what's there than trying to figure out where it should go

When I get time in a warm garage or sunny day, I was thinking about breaking out my Fox&Hound to trace the wiring.
Reverse engineer in what way you thinking? Ive had my windshield header panel and switches off 2x in the last week and wired switches 5-6 hot at all times along with running my own custom harness up there for front & rear dashcams.


fschael

Base
Well-Known Member
First Name
Federico
Joined
Jan 10, 2021
Messages
638
Reaction score
1,102
Location
Houston, Tx
Vehicle(s)
2002 F-150 Supercrew FX4
Bronco
Base
Has anybody taken apart a Bronco w/Aux Switches to reverse engineer the wiring?

A lot easier to follow what's there than trying to figure out where it should go

When I get time in a warm garage or sunny day, I was thinking about breaking out my Fox&Hound to trace the wiring.
@1Five1 Garage did it and they didn't find anything for a simple install of the auxiliary switch.


Edit: just saw that you were referring to one that already has the aux switch. Hope the video help you either way.


LowerSlowerDelaware

Base
Well-Known Member
First Name
Lee
Joined
Oct 22, 2020
Messages
447
Reaction score
1,617
Location
19958
Vehicle(s)
Subaru Outback, Chevy S10 Ram 3500
Bronco
Base
Clubs

@1Five1 Garage did it and they didn't find anything for a simple install of the auxiliary switch.


Edit: just saw that you were referring to one that already has the aux switch. Hope the video help you either way.
Your video was very helpful. And you and your Mrs were extremely brave for your attempt. I was thinking the same that was a snap connector plug and harness bundle should be just sitting in either of the A post unterminated

Now, if you guys could get your hands on a Bronco with the installed switch panel, you would have an answer PDQ by following the wiring.

That folks is what I mean by reverse engineering.


LowerSlowerDelaware

Base
Well-Known Member
First Name
Lee
Joined
Oct 22, 2020
Messages
447
Reaction score
1,617
Location
19958
Vehicle(s)
Subaru Outback, Chevy S10 Ram 3500
Bronco
Base
Clubs

Reverse engineer in what way you thinking? Ive had my windshield header panel and switches off 2x in the last week and wired switches 5-6 hot at all times along with running my own custom harness up there for front & rear dashcams.
Following the wiring path from the switches to underneath the hood.

Which way does you the wiring for Switches 1 to 4 run? Overhead to Driver side post to wiring block?


1Five1 Garage

Badlands
Well-Known Member
Joined
Dec 30, 2021
Messages
73
Reaction score
167
Location
florida
Vehicle(s)
Bronco Big Bend, F350, 4Runner, 52 Ford F1 RatRod
Bronco
Badlands
Clubs

Your video was very helpful. And you and your Mrs were extremely brave for your attempt. I was thinking the same that was a snap connector plug and harness bundle should be just sitting in either of the A post unterminated

Now, if you guys could get your hands on a Bronco with the installed switch panel, you would have an answer PDQ by following the wiring.

That folks is what I mean by reverse engineering.
Your welcome. We will be pulling apart our Black Diamond, when we get it, to do a little digging on an aux panel equipped bronco. To verify the with and without.

Last edited:

LowerSlowerDelaware

Base
Well-Known Member
First Name
Lee
Joined
Oct 22, 2020
Messages
447
Reaction score
1,617
Location
19958
Vehicle(s)
Subaru Outback, Chevy S10 Ram 3500
Bronco
Base
Clubs

Your welcome. We will be pulling apart our Black Diamond, when we get it, to do a little digging on an aux panel equipped bronco. To verify the with and without.
I'll be looking forward to your next video then.
